Tutorial: Configure Lucidchart for automatic user provisioning

  • Artikkeli

This tutorial describes the steps you need to perform in both Lucidchart and Microsoft Entra ID to configure automatic user provisioning. When configured, Microsoft Entra ID automatically provisions and de-provisions users and groups to Lucidchart using the Microsoft Entra provisioning service. For important details on what this service does, how it works, and frequently asked questions, see Automate user provisioning and deprovisioning to SaaS applications with Microsoft Entra ID.

Capabilities supported

  • Create users in Lucidchart
  • Remove users in Lucidchart when they do not require access anymore
  • Keep user attributes synchronized between Microsoft Entra ID and Lucidchart
  • Provision groups and group memberships in Lucidchart
  • Single sign-on to Lucidchart (recommended)

Prerequisites

The scenario outlined in this tutorial assumes that you already have the following prerequisites:

Step 1: Plan your provisioning deployment

  1. Learn about how the provisioning service works.
  2. Determine who will be in scope for provisioning.
  3. Determine what data to map between Microsoft Entra ID and Lucidchart.

Step 2: Configure Lucidchart to support provisioning with Microsoft Entra ID

  1. Login to Lucidchart admin console. Navigate to Team > App Integration.

    Screenshot of the Lucidchart admin console. The Team menu is highlighted and open. Under Admin, App Integration is highlighted.

  2. Navigate to SCIM.

    Screenshot of the Lucidchart admin console. Within a large S C I M button, the text S C I M is highlighted, and an enabled banner is visible.

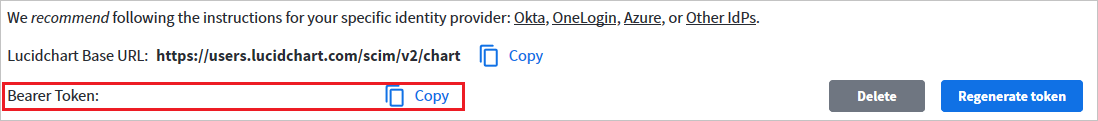

  3. Scroll down to see the Bearer token and Lucidchart Base URL. Copy and save the Bearer token. This value will be entered in the Secret Token * field in the Provisioning tab of your LucidChart application.

    Lucidchart token

Add Lucidchart from the Microsoft Entra application gallery to start managing provisioning to Lucidchart. If you have previously setup Lucidchart for SSO you can use the same application. However it is recommended that you create a separate app when testing out the integration initially. Learn more about adding an application from the gallery here.

Step 4: Define who will be in scope for provisioning

The Microsoft Entra provisioning service allows you to scope who will be provisioned based on assignment to the application and or based on attributes of the user / group. If you choose to scope who will be provisioned to your app based on assignment, you can use the following steps to assign users and groups to the application. If you choose to scope who will be provisioned based solely on attributes of the user or group, you can use a scoping filter as described here.

  • Start small. Test with a small set of users and groups before rolling out to everyone. When scope for provisioning is set to assigned users and groups, you can control this by assigning one or two users or groups to the app. When scope is set to all users and groups, you can specify an attribute based scoping filter.

  • If you need additional roles, you can update the application manifest to add new roles.

Step 5: Configure automatic user provisioning to Lucidchart

This section guides you through the steps to configure the Microsoft Entra provisioning service to create, update, and disable users and/or groups in TestApp based on user and/or group assignments in Microsoft Entra ID.

To configure automatic user provisioning for Lucidchart in Microsoft Entra ID:

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Identity > Applications > Enterprise applications

    Enterprise applications blade

  3. In the applications list, select Lucidchart.

    The Lucidchart link in the Applications list

  4. Select the Provisioning tab.

    Screenshot of the Manage options with the Provisioning option called out.

  5. Set the Provisioning Mode to Automatic.

    Screenshot of the Provisioning Mode dropdown list with the Automatic option called out.

  6. Under the Admin Credentials section, input the Bearer Token value retrieved earlier in Secret Token field. Click Test Connection to ensure Microsoft Entra ID can connect to Lucidchart. If the connection fails, ensure your Lucidchart account has Admin permissions and try again.

    provisioning

  7. In the Notification Email field, enter the email address of a person or group who should receive the provisioning error notifications and select the Send an email notification when a failure occurs check box.

    Notification Email

  8. Select Save.

  9. Under the Mappings section, select Synchronize Microsoft Entra users to Lucidchart.

  10. Review the user attributes that are synchronized from Microsoft Entra ID to Lucidchart in the Attribute-Mapping section. The attributes selected as Matching properties are used to match the user accounts in Lucidchart for update operations. If you choose to change the matching target attribute, you will need to ensure that the Lucidchart API supports filtering users based on that attribute. Select the Save button to commit any changes.

    Attribute Type
    userName String
    emails[type eq "work"].value String
    active Boolean
    name.givenName String
    name.familyName String
    urn:ietf:params:scim:schemas:extension:enterprise:2.0:User:department String
    urn:ietf:params:scim:schemas:extension:enterprise:2.0:User:division String
    urn:ietf:params:scim:schemas:extension:enterprise:2.0:User:costCenter String
    urn:ietf:params:scim:schemas:extension:enterprise:2.0:User:organization String
    urn:ietf:params:scim:schemas:extension:enterprise:2.0:User:employeeNumber String
    urn:ietf:params:scim:schemas:extension:enterprise:2.0:User:manager Reference
    urn:ietf:params:scim:schemas:extension:lucidchart:1.0:User:canEdit Boolean

  11. Under the Mappings section, select Synchronize Microsoft Entra groups to Lucidchart.

  12. Review the group attributes that are synchronized from Microsoft Entra ID to Lucidchart in the Attribute-Mapping section. The attributes selected as Matching properties are used to match the groups in Lucidchart for update operations. Select the Save button to commit any changes.

    Attribute Type
    displayName String
    members Reference

  13. To configure scoping filters, refer to the following instructions provided in the Scoping filter tutorial.

  14. To enable the Microsoft Entra provisioning service for Lucidchart, change the Provisioning Status to On in the Settings section.

    Provisioning Status Toggled On

  15. Define the users and/or groups that you would like to provision to Lucidchart by choosing the desired values in Scope in the Settings section.

    Provisioning Scope

  16. When you are ready to provision, click Save.

    Saving Provisioning Configuration

This operation starts the initial synchronization cycle of all users and groups defined in Scope in the Settings section. The initial cycle takes longer to perform than subsequent cycles, which occur approximately every 40 minutes as long as the Microsoft Entra provisioning service is running.

Step 6: Monitor your deployment

Once you've configured provisioning, use the following resources to monitor your deployment:

  1. Use the provisioning logs to determine which users have been provisioned successfully or unsuccessfully
  2. Check the progress bar to see the status of the provisioning cycle and how close it is to completion
  3. If the provisioning configuration seems to be in an unhealthy state, the application will go into quarantine. Learn more about quarantine states here.

Change log

  • 04/30/2020 - Added support for enterprise extension attribute and custom attribute "CanEdit" for users.
  • 06/15/2020 - Soft deletion of users is enabled (Supporting active attribute).
