Tutorial: Configure Vbrick Rev Cloud for automatic user provisioning

  • Artikkeli

This tutorial describes the steps you need to perform in both Vbrick Rev Cloud and Microsoft Entra ID to configure automatic user provisioning. When configured, Microsoft Entra ID automatically provisions and deprovisions users and groups to Vbrick Rev Cloud using the Microsoft Entra provisioning service. For important details on what this service does, how it works, and frequently asked questions, see Automate user provisioning and deprovisioning to SaaS applications with Microsoft Entra ID.

Supported capabilities

  • Create users in Vbrick Rev Cloud.
  • Remove users in Vbrick Rev Cloud when they do not require access anymore.
  • Keep user attributes synchronized between Microsoft Entra ID and Vbrick Rev Cloud.
  • Provision groups and group memberships in Vbrick Rev Cloud.
  • Single sign-on to Vbrick Rev Cloud (recommended).

Prerequisites

The scenario outlined in this tutorial assumes that you already have the following prerequisites:

Step 1: Plan your provisioning deployment

  1. Learn about how the provisioning service works.
  2. Determine who will be in scope for provisioning.
  3. Determine what data to map between Microsoft Entra ID and Vbrick Rev Cloud.

Step 2: Configure Vbrick Rev Cloud to support provisioning with Microsoft Entra ID

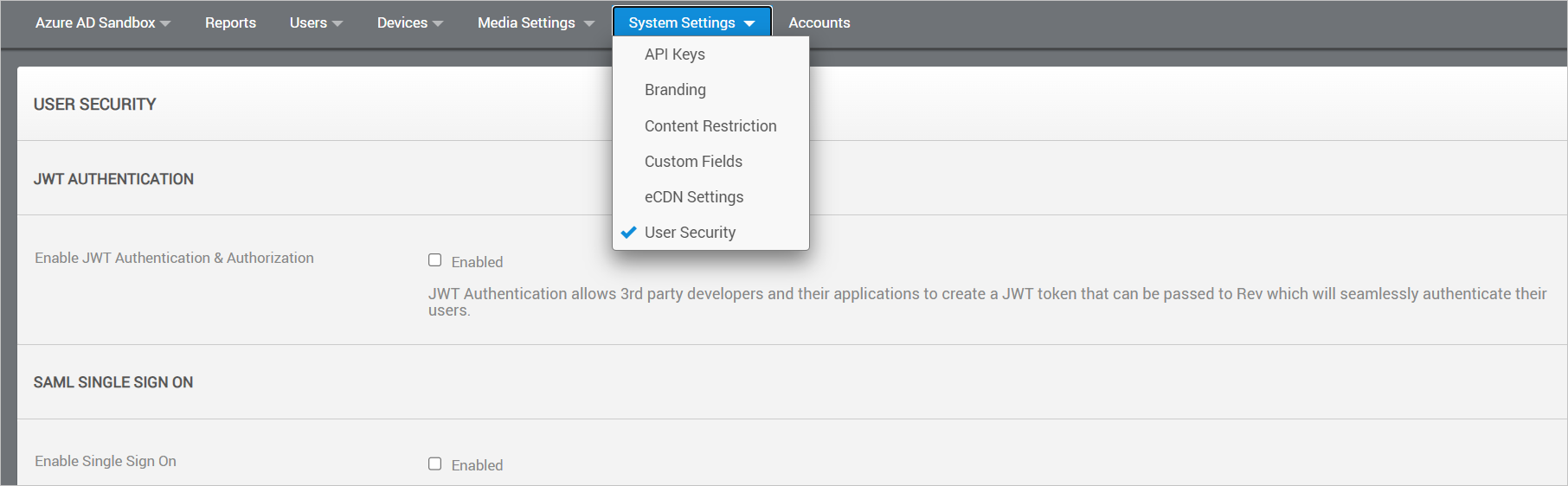

  1. Sign in to your Rev Tenant. Navigate to Admin > Security Settings > User Security in the navigation pane.

    Screenshot of Vbrick Rev User Security Settings.

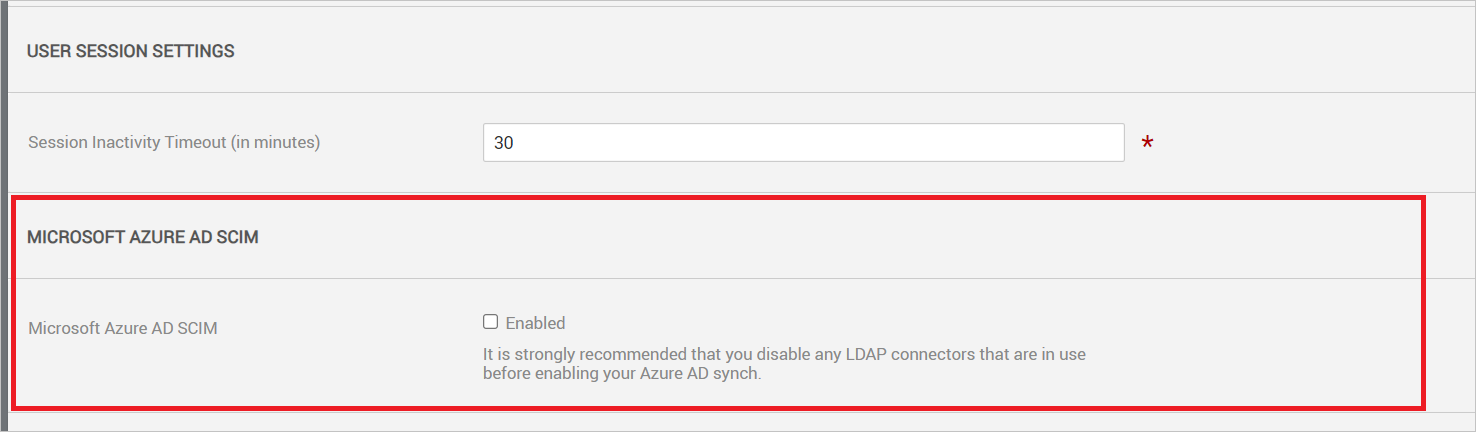

  2. Navigate to Microsoft Entra SCIM section of the page.

    Screenshot of the Vbrick Rev User Security Settings with the Microsoft AD SCIM section called out.

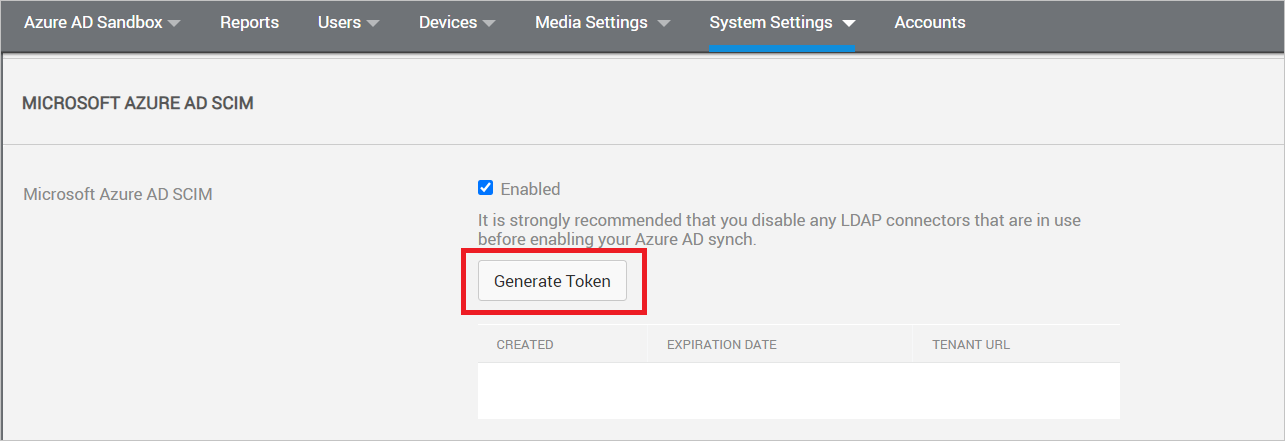

  3. Enable Microsoft Entra SCIM and click on Generate Token button. Screenshot of the Vbrick Rev User Security Settings with the Microsoft AD SCIM enable.

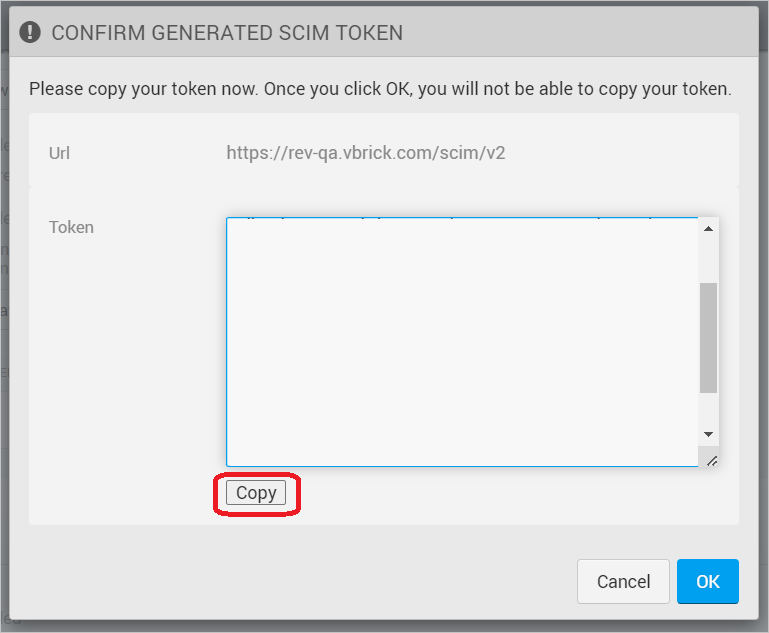

  4. It will open a popup with the URL and the JWT token. Copy and save the JWT token and URL for next steps.

    Screenshot of the Vbrick Rev User Security Settings with the Scim Token section called out.

  5. Once you have a copy of the JWT token and URL, click OK to close the popup and then click on the Save button at the bottom of the settings page to enable SCIM for your tenant.

Add Vbrick Rev Cloud from the Microsoft Entra application gallery to start managing provisioning to Vbrick Rev Cloud. If you have previously setup Vbrick Rev Cloud for SSO you can use the same application. However it's recommended that you create a separate app when testing out the integration initially. Learn more about adding an application from the gallery here.

Step 4: Define who will be in scope for provisioning

The Microsoft Entra provisioning service allows you to scope who will be provisioned based on assignment to the application and or based on attributes of the user / group. If you choose to scope who will be provisioned to your app based on assignment, you can use the following steps to assign users and groups to the application. If you choose to scope who will be provisioned based solely on attributes of the user or group, you can use a scoping filter as described here.

  • Start small. Test with a small set of users and groups before rolling out to everyone. When scope for provisioning is set to assigned users and groups, you can control this by assigning one or two users or groups to the app. When scope is set to all users and groups, you can specify an attribute based scoping filter.

  • If you need more roles, you can update the application manifest to add new roles.

Step 5: Configure automatic user provisioning to Vbrick Rev Cloud

This section guides you through the steps to configure the Microsoft Entra provisioning service to create, update, and disable users and/or groups in TestApp based on user and/or group assignments in Microsoft Entra ID.

To configure automatic user provisioning for Vbrick Rev Cloud in Microsoft Entra ID:

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Identity > Applications > Enterprise applications

    Screenshot of Enterprise applications blade.

  3. In the applications list, select Vbrick Rev Cloud.

    Screenshot of the Vbrick Rev Cloud link in the Applications list.

  4. Select the Provisioning tab.

    Screenshot of Provisioning tab.

  5. Set the Provisioning Mode to Automatic.

    Screenshot of Provisioning tab automatic.

  6. Under the Admin Credentials section, input your Vbrick Rev Cloud Tenant URL and Secret Token. Click Test Connection to ensure Microsoft Entra ID can connect to Vbrick Rev Cloud. If the connection fails, ensure your Vbrick Rev Cloud account has Admin permissions and try again.

    Screenshot of Token.

  7. In the Notification Email field, enter the email address of a person or group who should receive the provisioning error notifications and select the Send an email notification when a failure occurs check box.

    Screenshot of Notification Email.

  8. Select Save.

  9. Under the Mappings section, select Synchronize Microsoft Entra users to Vbrick Rev Cloud.

  10. Review the user attributes that are synchronized from Microsoft Entra ID to Vbrick Rev Cloud in the Attribute-Mapping section. The attributes selected as Matching properties are used to match the user accounts in Vbrick Rev Cloud for update operations. If you choose to change the matching target attribute, you'll need to ensure that the Vbrick Rev Cloud API supports filtering users based on that attribute. Select the Save button to commit any changes.

    Attribute Type Supported for filtering Required by Vbrick Rev Cloud
    userName String ✓ ✓
    active Boolean ✓
    title String
    emails[type eq "work"].value String
    name.givenName String
    name.familyName String ✓
    name.formatted String
    phoneNumbers[type eq "work"].value String
    externalId String ✓

  11. Under the Mappings section, select Synchronize Microsoft Entra groups to Vbrick Rev Cloud.

  12. Review the group attributes that are synchronized from Microsoft Entra ID to Vbrick Rev Cloud in the Attribute-Mapping section. The attributes selected as Matching properties are used to match the groups in Vbrick Rev Cloud for update operations. Select the Save button to commit any changes.

    Attribute Type Supported for filtering Required by Vbrick Rev Cloud
    displayName String ✓ ✓
    externalId String ✓
    members Reference

  13. To configure scoping filters, refer to the following instructions provided in the Scoping filter tutorial.

  14. To enable the Microsoft Entra provisioning service for Vbrick Rev Cloud, change the Provisioning Status to On in the Settings section.

    Screenshot of Provisioning Status Toggled On.

  15. Define the users and/or groups that you would like to provision to Vbrick Rev Cloud by choosing the desired values in Scope in the Settings section.

    Screenshot of Provisioning Scope.

  16. When you're ready to provision, click Save.

    Screenshot of Saving Provisioning Configuration.

This operation starts the initial synchronization cycle of all users and groups defined in Scope in the Settings section. The initial cycle takes longer to perform than subsequent cycles, which occur approximately every 40 minutes as long as the Microsoft Entra provisioning service is running.

Step 6: Monitor your deployment

Once you've configured provisioning, use the following resources to monitor your deployment:

  • Use the provisioning logs to determine which users have been provisioned successfully or unsuccessfully
  • Check the progress bar to see the status of the provisioning cycle and how close it's to completion
  • If the provisioning configuration seems to be in an unhealthy state, the application goes into quarantine. Learn more about quarantine states here.
