Automatically check for an attachment before a message is sent

  • מאמר

Never miss attaching an important document or photo to your message ever again. With an event-based add-in, your messages are automatically checked for attachments before they're sent, so that you can feel assured that you're always sending a complete version.

The following sections walk you through how to develop an event-based add-in that implements Smart Alerts to handle the OnMessageSend event. By the end of this walkthrough, your add-in will automatically check for an attached document or picture mentioned in the message and alert you if it's missing before the message is sent.

Note

The OnMessageSend and OnAppointmentSend events were introduced in requirement set 1.12. Additional functionality and customization options were also added to subsequent requirement sets. To verify that your Outlook client supports these events and features, see Supported clients and platforms and the specific sections that describe the features you want to implement.

Set up your environment

Before you start the walkthrough, verify that your Outlook client supports the Smart Alerts feature. For guidance, see Supported clients and platforms.

Then, complete the Outlook quick start, which creates an add-in project with the Yeoman generator for Office Add-ins.

Configure the manifest

To configure the manifest, select the tab for the type of manifest you are using.

  1. Open the manifest.json file.

  2. Add the following object to the "extensions.runtimes" array. Note the following about this markup:

    • The "minVersion" of the Mailbox requirement set is set to "1.12" because the supported events table specifies that this is the lowest version of the requirement set that supports the OnMessageSend event.
    • The "id" of the runtime is set to the descriptive name "autorun_runtime".
    • The "code" property has a child "page" property that is set to an HTML file and a child "script" property that is set to a JavaScript file. You'll create or edit these files in later steps. Office uses one of these values or the other depending on the platform.
      • Classic Outlook on Windows executes the event handler in a JavaScript-only runtime, which loads a JavaScript file directly.
      • Outlook on the web, on Mac, and on new Outlook on Windows execute the handler in a browser runtime, which loads an HTML file. That file, in turn, contains a <script> tag that loads the JavaScript file. For more information, see Runtimes in Office Add-ins.
    • The "lifetime" property is set to "short", which means that the runtime starts up when the event is triggered and shuts down when the handler completes. (In certain rare cases, the runtime shuts down before the handler completes. See Runtimes in Office Add-ins.)
    • There is an action to run a handler for the OnMessageSend event. You'll create the handler function in a later step.
     {
    "requirements": {
        "capabilities": [
            {
                "name": "Mailbox",
                "minVersion": "1.14"
            }
        ]
    },
    "id": "autorun_runtime",
    "type": "general",
    "code": {
        "page": "https://localhost:3000/commands.html",
        "script": "https://localhost:3000/launchevent.js"
    },
    "lifetime": "short",
    "actions": [
        {
            "id": "onMessageSendHandler",
            "type": "executeFunction",
            "displayName": "onMessageSendHandler"
        }
    ]
}

  3. Add the following "autoRunEvents" array as a property of the object in the "extensions" array.

    "autoRunEvents": [

]

  4. Add the following object to the "autoRunEvents" array. Note the following about this code:

    • The event object assigns a handler function to the OnMessageSend event (using the event's unified manifest name, "messageSending", as described in the supported events table). The function name provided in "actionId" must match the name used in the "id" property of the object in the "actions" array in an earlier step.
    • The "sendMode" option is set to "softBlock". This means that if the message doesn't meet the conditions that the add-in sets for sending, the user must take action before they can send the message. However, if the add-in is unavailable at the time of sending, the item will be sent.
      {
      "requirements": {
          "capabilities": [
              {
                  "name": "Mailbox",
                  "minVersion": "1.12"
              }
          ],
          "scopes": [
              "mail"
          ]
      },
      "events": [
        {
            "type": "messageSending",
            "actionId": "onMessageSendHandler",
            "options": {
                "sendMode": "softBlock"
            }
        }
      ]
  }

Tip

Implement event handling

You have to implement handling for your selected event.

In this scenario, you'll add handling for sending a message. Your add-in will check for certain keywords in the message. If any of those keywords are found, it will then check for any attachments. If there are no attachments, your add-in will recommend to the user to add the possibly missing attachment.

Note

The event handler in this walkthrough implements the errorMessageMarkdown property. This property is currently in preview in Outlook on the web and on Windows (new and classic). Features in preview shouldn't be used in production add-ins. We invite you to try out this feature in test or development environments and welcome feedback on your experience through GitHub (see the Feedback section at the end of this page).

To test this feature in classic Outlook on Windows, you must install Version 2403 (Build 17330.10000) or later. Then, join the Microsoft 365 Insider program and select the Beta Channel option in your Outlook client to access Office beta builds.

  1. From the same quick start project, create a new folder named launchevent under the ./src directory.

  2. In the ./src/launchevent folder, create a new file named launchevent.js.

  3. Open the file ./src/launchevent/launchevent.js in your code editor and add the following JavaScript code.

    /*
* Copyright (c) Microsoft Corporation. All rights reserved. Licensed under the MIT license.
* See LICENSE in the project root for license information.
*/

function onMessageSendHandler(event) {
  Office.context.mailbox.item.body.getAsync(
    "text",
    { asyncContext: event },
    getBodyCallback
  );
}

function getBodyCallback(asyncResult){
  const event = asyncResult.asyncContext;
  let body = "";
  if (asyncResult.status !== Office.AsyncResultStatus.Failed && asyncResult.value !== undefined) {
    body = asyncResult.value;
  } else {
    const message = "Failed to get body text";
    console.error(message);
    event.completed({ allowEvent: false, errorMessage: message });
    return;
  }

  const matches = hasMatches(body);
  if (matches) {
    Office.context.mailbox.item.getAttachmentsAsync(
      { asyncContext: event },
      getAttachmentsCallback);
  } else {
    event.completed({ allowEvent: true });
  }
}

function hasMatches(body) {
  if (body == null || body == "") {
    return false;
  }

  const arrayOfTerms = ["send", "picture", "document", "attachment"];
  for (let index = 0; index < arrayOfTerms.length; index++) {
    const term = arrayOfTerms[index].trim();
    const regex = RegExp(term, 'i');
    if (regex.test(body)) {
      return true;
    }
  }

  return false;
}

function getAttachmentsCallback(asyncResult) {
  const event = asyncResult.asyncContext;
  if (asyncResult.value.length > 0) {
    for (let i = 0; i < asyncResult.value.length; i++) {
      if (asyncResult.value[i].isInline == false) {
        event.completed({ allowEvent: true });
        return;
      }
    }

    event.completed({
      allowEvent: false,
      errorMessage: "Looks like the body of your message includes an image or an inline file. Attach a copy to the message before sending.",
      // TIP: In addition to the formatted message, it's recommended to also set a
      // plain text message in the errorMessage property for compatibility on
      // older versions of Outlook clients.
      errorMessageMarkdown: "Looks like the body of your message includes an image or an inline file. Attach a copy to the message before sending.\n\n**Tip**: For guidance on how to attach a file, see [Attach files in Outlook](https://www.contoso.com/help/attach-files-in-outlook)."
    });
  } else {
    event.completed({
      allowEvent: false,
      errorMessage: "Looks like you're forgetting to include an attachment.",
      // TIP: In addition to the formatted message, it's recommended to also set a
      // plain text message in the errorMessage property for compatibility on
      // older versions of Outlook clients.
      errorMessageMarkdown: "Looks like you're forgetting to include an attachment.\n\n**Tip**: For guidance on how to attach a file, see [Attach files in Outlook](https://www.contoso.com/help/attach-files-in-outlook)."
    });
  }
}

// IMPORTANT: To ensure your add-in is supported in Outlook, remember to map the event handler name specified in the manifest to its JavaScript counterpart.
Office.actions.associate("onMessageSendHandler", onMessageSendHandler);

Important

  • In classic Outlook on Windows, imports aren't currently supported in the JavaScript file where you implement the handling for event-based activation.
  • To ensure your add-in runs as expected when an OnMessageSend or OnAppointmentSend event occurs, call Office.actions.associate in the JavaScript file where your handlers are implemented. This maps the event handler name specified in the manifest to its JavaScript counterpart. If this call isn't included in your JavaScript file and the send mode property of your manifest is set to soft block or isn't specified, your users will be blocked from sending messages or meetings.

Customize the Don't Send button (optional)

Note

Support to customize the Don't Send button was introduced in requirement set 1.14. Learn more about its supported clients and platforms.

If a mail item doesn't meet the conditions of a Smart Alerts add-in, a dialog is shown to the user to alert them that additional actions may be needed before an item can be sent. The send mode option specified in the manifest determines the options that appear to the user in the dialog. The Don't Send option appears in the dialog no matter what send mode option you select. By default, selecting Don't Send cancels the send operation and closes the dialog. To provide the user with further guidance on how to meet the conditions of your add-in, customize the text of this button and program it to open a task pane or run a function. Through these add-in commands, you can provide the user with additional information and functionality.

Modify the Don't Send button text and functionality

To modify the text of the Don't Send button or assign it a task pane or function, you must set additional options in the event.completed method of your event handler.

  • The cancelLabel option customizes the text of the Don't Send button. Custom text must be a maximum of 20 characters.

  • The commandId option specifies the ID of the task pane or function that runs when the Don't Send button is selected. The value must match the task pane or function command ID in the manifest of your add-in. The markup depends on the type of manifest your add-in uses.

    • Add-in only manifest: The id attribute of the <Control> element representing the task pane or function command.
    • Unified manifest for Microsoft 365: The "id" property of the task pane or function command in the "controls" array.

  • The contextData option specifies any JSON data you want to pass to the add-in when the Don't Send button is selected. If you include this option, you must also set the commandId option. Otherwise, the JSON data is ignored.

    Tip

    To retrieve the value of the contextData option, you must call Office.context.mailbox.item.getInitializationContextAsync in the JavaScript implementation of your task pane or function command.

In this sample, the Don't Send button is modified to open a task pane.

  1. Navigate to the ./src/launchevent folder, then open launchevent.js.

  2. Replace the getAttachmentsCallback function with the following code.

    function getAttachmentsCallback(asyncResult) {
  const event = asyncResult.asyncContext;
  if (asyncResult.value.length > 0) {
    for (let i = 0; i < asyncResult.value.length; i++) {
      if (asyncResult.value[i].isInline == false) {
        event.completed({ allowEvent: true });
        return;
      }
    }

    event.completed({
      allowEvent: false,
      errorMessage: "Looks like the body of your message includes an image or an inline file. Attach a copy to the message before sending.",
      // TIP: In addition to the formatted message, it's recommended to also set a
      // plain text message in the errorMessage property for compatibility on
      // older versions of Outlook clients.
      errorMessageMarkdown: "Looks like the body of your message includes an image or an inline file. Attach a copy to the message before sending.\n\n**Tip**: For guidance on how to attach a file, see [Attach files in Outlook](https://www.contoso.com/help/attach-files-in-outlook).",
      cancelLabel: "Add an attachment",
      commandId: "msgComposeOpenPaneButton"
    });
  } else {
    event.completed({
      allowEvent: false,
      errorMessage: "Looks like you're forgetting to include an attachment.",
      // TIP: In addition to the formatted message, it's recommended to also set a
      // plain text message in the errorMessage property for compatibility on
      // older versions of Outlook clients.
      errorMessageMarkdown: "Looks like you're forgetting to include an attachment.\n\n**Tip**: For guidance on how to attach a file, see [Attach files in Outlook](https://www.contoso.com/help/attach-files-in-outlook).",
      cancelLabel: "Add an attachment",
      commandId: "msgComposeOpenPaneButton"
    });
  }
}

  3. Save your changes.

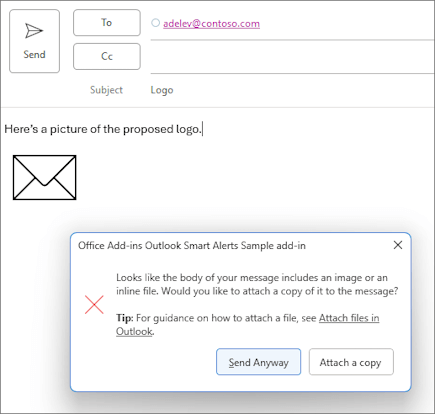

Override the send mode option at runtime (optional)

Note

Support to customize the Don't Send button was introduced in requirement set 1.14. Learn more about its supported clients and platforms.

There may be instances when you want your add-in to implement different send mode options. For example, you may want your add-in to enforce the block option on mail items that don't meet the information protection policies of your organization, but only have it apply the prompt user option to provide a recommendation if a user adds the incorrect recipient.

To override the send mode option at runtime, you must set the sendModeOverride option in the event.completed method of your event handler.

  1. Navigate to the ./src/launchevent folder, then open launchevent.js.

  2. Replace the getAttachmentsCallback function with the following code.

    function getAttachmentsCallback(asyncResult) {
  const event = asyncResult.asyncContext;
  if (asyncResult.value.length > 0) {
    for (let i = 0; i < asyncResult.value.length; i++) {
      if (asyncResult.value[i].isInline == false) {
        event.completed({ allowEvent: true });
        return;
      }
    }

    event.completed({
      allowEvent: false,
      errorMessage: "Looks like the body of your message includes an image or an inline file. Would you like to attach a copy of it to the message?",
      // TIP: In addition to the formatted message, it's recommended to also set a
      // plain text message in the errorMessage property for compatibility on
      // older versions of Outlook clients.
      errorMessageMarkdown: "Looks like the body of your message includes an image or an inline file. Would you like to attach a copy of it to the message?\n\n**Tip**: For guidance on how to attach a file, see [Attach files in Outlook](https://www.contoso.com/help/attach-files-in-outlook).",
      cancelLabel: "Attach a copy",
      commandId: "msgComposeOpenPaneButton",
      sendModeOverride: Office.MailboxEnums.SendModeOverride.PromptUser
    });
  } else {
    event.completed({
      allowEvent: false,
      errorMessage: "Looks like you're forgetting to include an attachment.",
      // TIP: In addition to the formatted message, it's recommended to also set a
      // plain text message in the errorMessage property for compatibility on
      // older versions of Outlook clients.
      errorMessageMarkdown: "Looks like you're forgetting to include an attachment.\n\n**Tip**: For guidance on how to attach a file, see [Attach files in Outlook](https://www.contoso.com/help/attach-files-in-outlook).",
      cancelLabel: "Add an attachment",
      commandId: "msgComposeOpenPaneButton"
    });
  }
}

  3. Save your changes.

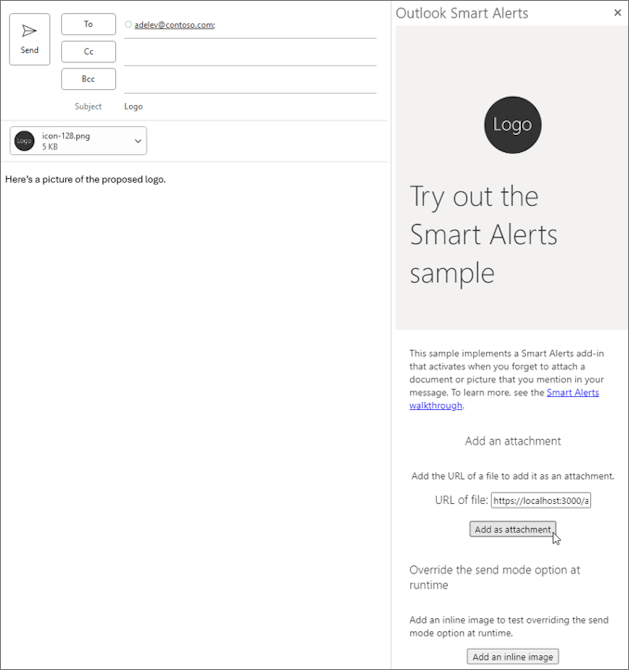

Configure the task pane (optional)

If you implemented the optional steps to customize the Don't Send button or override the send mode option in this walkthrough, you also need to configure the task pane. Although the task pane is needed in this implementation, it isn't a requirement to customize the text of the Don't Send button or override the send mode option.

  1. Navigate to the ./src/taskpane folder, then open taskpane.html.

  2. Select the entire <body> node (including its open and close tags) and replace it with the following code.

    <body class="ms-welcome ms-Fabric">
    <header class="ms-welcome__header ms-bgColor-neutralLighter">
        <img width="90" height="90" src="../../assets/logo-filled.png" alt="Contoso" title="Contoso" />
        <h1 class="ms-font-su">Try out the Smart Alerts sample</h1>
    </header>
    <section id="sideload-msg" class="ms-welcome__main">
        <h2 class="ms-font-xl">Please <a href="https://learn.microsoft.com/office/dev/add-ins/testing/test-debug-office-add-ins#sideload-an-office-add-in-for-testing">sideload</a> your add-in to see app body.</h2>
    </section>
    <main id="app-body" class="ms-welcome__main" style="display: none;">
        <p>
            This sample implements a Smart Alerts add-in that activates when you forget to attach a document or picture that you mention in your message.
            To learn more, see the <a href="https://learn.microsoft.com/office/dev/add-ins/outlook/smart-alerts-onmessagesend-walkthrough">Smart Alerts walkthrough</a>.
        </p>
        <h3 class="ms-font-l">Add an attachment</h3>
        <p>Add the URL of a file to add it as an attachment.</p>
        <div class="ms-TextField">
            <label class="ms-Label ms-font-l">URL of file:</label>
            <input id="attachment-url" class="ms-TextField-field" type="text" value="https://localhost:3000/assets/icon-128.png" placeholder="">
        </div>
        <br/>
        <button class="ms-Button ms-Button--primary">
            <span id="add-attachment" class="ms-Button-label">Add as attachment</span>
        </button>
        <br/>
        <h3 class="ms-font-l">Override the send mode option at runtime</h3>
        <p>Add an inline image to test overriding the send mode option at runtime.</p>
        <button class="ms-Button ms-Button--primary">
            <span id="add-inline-image" class="ms-Button-label">Add an inline image</span>
        </button>
    </main>
</body>

  3. Save your changes.

  4. In the same ./src/taskpane folder, open taskpane.js.

  5. Replace its contents with the following code.

    /*
 * Copyright (c) Microsoft Corporation. All rights reserved. Licensed under the MIT license.
 * See LICENSE in the project root for license information.
 */

Office.onReady((info) => {
  if (info.host === Office.HostType.Outlook) {
    document.getElementById("sideload-msg").style.display = "none";
    document.getElementById("app-body").style.display = "flex";
    document.getElementById("add-attachment").onclick = addAttachment;
    document.getElementById("add-inline-image").onclick = addInlineImage;
  }
});

// Adds the specified URL as an attachment to the message.
export async function addAttachment() {
  const attachmentUrl = document.querySelector("#attachment-url").value;
  Office.context.mailbox.item.addFileAttachmentAsync(attachmentUrl, getFileName(attachmentUrl), (asyncResult) => {
    console.log(asyncResult);
  });
}

// Gets the file name from a URL.
function getFileName(url) {
  const lastIndex = url.lastIndexOf("/");
  if (lastIndex >= 0) {
    return url.substring(lastIndex + 1);
  }

  return url;
}

// Adds an inline image to the body of the message.
export async function addInlineImage() {
  const mailItem = Office.context.mailbox.item;
  const base64String =
    "iVBORw0KGgoAAAANSUhEUgAAAGAAAABgCAMAAADVRocKAAAAAXNSR0IArs4c6QAAAARnQU1BAACxjwv8YQUAAAAnUExURQAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAN0S+bUAAAAMdFJOUwAQIDBAUI+fr7/P7yEupu8AAAAJcEhZcwAADsMAAA7DAcdvqGQAAAF8SURBVGhD7dfLdoMwDEVR6Cspzf9/b20QYOthS5Zn0Z2kVdY6O2WULrFYLBaLxd5ur4mDZD14b8ogWS/dtxV+dmx9ysA2QUj9TQRWv5D7HyKwuIW9n0vc8tkpHP0W4BOg3wQ8wtlvA+PC1e8Ao8Ld7wFjQtHvAiNC2e8DdqHqKwCrUPc1gE1AfRVgEXBfB+gF0lcCWoH2tYBOYPpqQCNwfT3QF9i+AegJfN8CtAWhbwJagtS3AbIg9o2AJMh9M5C+SVGBvx6zAfmT0r+Bv8JMwP4kyFPir+cswF5KL3WLv14zAFBCLf56Tw9cparFX4upgaJUtPhrOS1QlY5W+vWTXrGgBFB/b72ev3/0igUdQPppP/nfowfKUUEFcP207y/yxKmgAYQ+PywoAFOfCH3A2MdCFzD3kdADBvq10AGG+pXQBgb7pdAEhvuF0AIc/VtoAK7+JciAs38KIuDugyAC/v4hiMCE/i7IwLRBsh68N2WQjMVisVgs9i5bln8LGScNcCrONQAAAABJRU5ErkJggg==";

  // Gets the current body of the message.
  mailItem.body.getAsync(Office.CoercionType.Html, (bodyResult) => {
    if (bodyResult.status === Office.AsyncResultStatus.Failed) {
      console.log(bodyResult.error.message);
      return;
    }

    // Inserts the Base64-encoded image to the beginning of the body.
    const options = { isInline: true, asyncContext: bodyResult.value };
    mailItem.addFileAttachmentFromBase64Async(base64String, "sample.png", options, (attachResult) => {
      if (attachResult.status === Office.AsyncResultStatus.Failed) {
        console.log(attachResult.error.message);
        return;
      }

      let body = attachResult.asyncContext;
      body = body.replace("<p class=MsoNormal>", `<p class=MsoNormal><img src="cid:sample.png">`);
      mailItem.body.setAsync(body, { coercionType: Office.CoercionType.Html }, (setResult) => {
        if (setResult.status === Office.AsyncResultStatus.Failed) {
          console.log(setResult.error.message);
          return;
        }

        console.log("Inline image added to the body.");
      });
    });
  });
}

  6. Save your changes.

Update the commands HTML file

  1. In the ./src/commands folder, open commands.html.

  2. Immediately before the closing head tag (</head>), add a script entry for the event-handling JavaScript code.

    <script type="text/javascript" src="../launchevent/launchevent.js"></script>

Important

The Don't Send button customization and send mode option override features are currently in preview in Outlook on Mac. If you're testing these features in your add-in project, you must include a reference to the preview version of the Office JavaScript API in your commands.html file.

<script type="text/javascript" src="https://appsforoffice.microsoft.com/lib/beta/hosted/office.js"></script>
<script type="text/javascript" src="../launchevent/launchevent.js"></script>
  1. Save your changes.

Update webpack config settings

  1. Open the webpack.config.js file found in the root directory of the project and complete the following steps.

  2. Locate the plugins array within the config object and add this new object to the beginning of the array.

    new CopyWebpackPlugin({
  patterns: [
    {
      from: "./src/launchevent/launchevent.js",
      to: "launchevent.js",
    },
  ],
}),

  3. Save your changes.

Try it out

  1. Run the following commands in the root directory of your project. When you run npm start, the local web server will start (if it isn't already running) and your add-in will be sideloaded.

    npm run build

    npm start

    Note

    If your add-in wasn't automatically sideloaded, follow the instructions in Sideload Outlook add-ins for testing to manually sideload the add-in in Outlook.

  2. In your preferred Outlook client, create a new message and set the subject. In the body, add some text. For example, "Here's a picture of the proposed logo."

  3. Send the message. A dialog appears requesting you to add an attachment. Select Don't Send or Add an attachment. The option available to you depends on whether you implemented the optional step to customize the Don't Send button.

    • Default Don't Send button.

      Dialog requesting the user to add an attachment to the message.

    • Customized Add an attachment button.

      Dialog with a customized Don't Send button requesting the user to add an attachment to the message.

    Note

    In supported versions of classic Outlook on Windows prior to Version 2410 (Build 18031.15000), if you assign a task pane to the Don't Send button, closing the dialog also opens the specified task pane.

  4. Add an attachment to your message. If you implemented the optional step to customize the Don't Send button, use the task pane to add an attachment.

    Task pane with an option to add an attachment.

  5. Send the message. There should be no alert this time.

  6. When you want to stop the local web server and uninstall the add-in, follow the applicable instructions:

    • To stop the server, run the following command. If you used npm start, the following command should also uninstall the add-in.

      npm stop

    • If you manually sideloaded the add-in, see Remove a sideloaded add-in.

Try out overriding the send mode option at runtime (optional)

If you implemented the optional step to override the send mode option at runtime, perform the following to try it out.

  1. Run npm start in the root directory of your project. This starts the local web server (if it isn't already running) and sideloads your add-in.

    Note

    If your add-in wasn't automatically sideloaded, follow the instructions in Sideload Outlook add-ins for testing to manually sideload the add-in in Outlook.

  2. In your preferred Outlook client, create a new message and set the subject. In the body, add some text. For example, "Here's a picture of the proposed logo."

  3. From the ribbon, select Contoso Add-in > Show Taskpane.

  4. In the task pane, select Add an inline image. An image is added to the body of your message.

  5. Send the message. A dialog appears recommending to attach a copy of the image to the message.

  6. Select Send Anyway to send the message as is, or select Attach a copy to include a copy before sending the message.

    Smart Alerts dialog with the Send Anyway option available at runtime.

Important

If a Smart Alerts add-in that implements the override feature can't complete processing an event due to an error or is unavailable when the event occurs, it uses the send mode option specified in the manifest.

See also
