Microsoft 365 network connectivity test tool
The Microsoft 365 network connectivity test tool is located at https://connectivity.office.com. It's an adjunct tool to the network assessment and network insights available in the Microsoft 365 admin center under the Health | Connectivity menu.
Note
This document mentions the URL (https://connectivity.office.com) for the Global version of this tool. For other versions, please refer to the table below for the corresponding URLs.
| Feature | Global service https://connectivity.office.com | US Government (GCC) https://connectivity.office.com | China operated by 21Vianet https://connectivity.sovcloud.cn |
|---|---|---|---|
| Anonymous test | ✅ | ✅ | ✅ |
| Print report | ✅ | ✅ | ✅ |
| Login | ✅ | ✖️ | ✅ |
| Save report | ✅ | ✖️ | ✅ |
| View report | ✅ | ✖️ | ✅ |
| Share report in tenant | ✅ | ✖️ | ✅ |
| Share report to public | ✅ | ✖️ | ✅ |
| Network health status | ✅ | ✅ | ✅ |
| Multi-languages support: English, Chinese Simplified, Chinese Traditional, Japanese | ✅ | ✅ | ✅ |
| Testing from the command line | ✅ | ✖️ | ✅ |
| FAQ | ✅ | ✅ | ✅ |
| Community forum | ✅ | ✅ | ✅ |
Important
It's important to sign in to your Microsoft 365 tenant as all test reports are shared with your administrator and uploaded to the tenant while you are signed in.
Network insights in the Microsoft 365 Admin Center are based on regular in-product measurements for your Microsoft 365 tenant, aggregated each day. In comparison, network insights from the Microsoft 365 network connectivity test are run locally in the tool.
In-product testing is limited, and running tests local to the user collects more data resulting in deeper insights. Network insights in the Microsoft 365 Admin Center show that there's a networking problem at a specific office location. The Microsoft 365 connectivity test can help to identify the root cause of that problem and provide a targeted performance improvement action.
We recommend that these insights be used together where networking quality status can be assessed for each office location in the Microsoft 365 Admin Center. More specifics can be found after deployment of testing based on the Microsoft 365 connectivity test.
What happens at each test step
Office location identification
When you select the Run test button, we show the running test page and identify the office location. You can type in your location by city, state, and country/region or choose to have it detected for you. If you detect the office location, the tool requests the latitude and longitude from the web browser and limits the accuracy to 300 meters by 300 meters before use. It's not necessary to identify the location more accurately than the building to measure network performance.
JavaScript tests
After office location identification, we run a TCP latency test in JavaScript and we request data from the service about in-use and recommended Microsoft 365 service front door servers. When these tests are completed, we show them on the map and in the details tab where they can be viewed before the next step.
Download the advanced tests client application
Next, we start the download of the advanced tests client application. We rely on the user to launch the client application and they must also have .NET 6.0 Runtime installed.
There are two parts to the Microsoft 365 network connectivity test: the web site https://connectivity.office.com and a downloadable Windows client application that runs advanced network connectivity tests. Most of the tests require the application to be run. It populates results back into the web page as it runs.

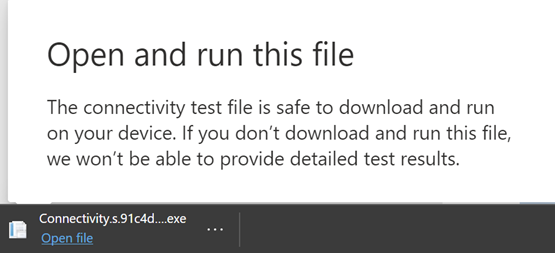

You'll be prompted to download the advanced client test application from the web site after the web browser tests have completed. Open and run the file when prompted.
Start the advanced tests client application
Once the client application starts, the web page updates to show this result. Test data starts to be received to the web page. The page updates each time new-data is received and you can review the data as it arrives.
Advanced tests completed and test report upload
When the tests are completed, the web page and the advanced tests client will both show that. If the user is signed in, the test report is uploaded to the customer's tenant.
Sharing your test report
The test report requires authentication to your Microsoft 365 account. Your administrator selects how you can share your test report. The default settings allow for sharing of your reports with other user within your organization and the ReportID link isn't available. Reports will expire by default after 90 days.
Sharing your report with your administrator
If you're signed in when a test report occurs, the report is shared with your administrator.
Sharing with your Microsoft account team, support or other personnel
Test reports (excluding any personal identification) are shared with Microsoft employees. This sharing is enabled by default and can be disabled by your administrator in the Health | Network Connectivity page in the Microsoft 365 Admin Center.
Sharing with other users who sign in to the same Microsoft 365 tenant

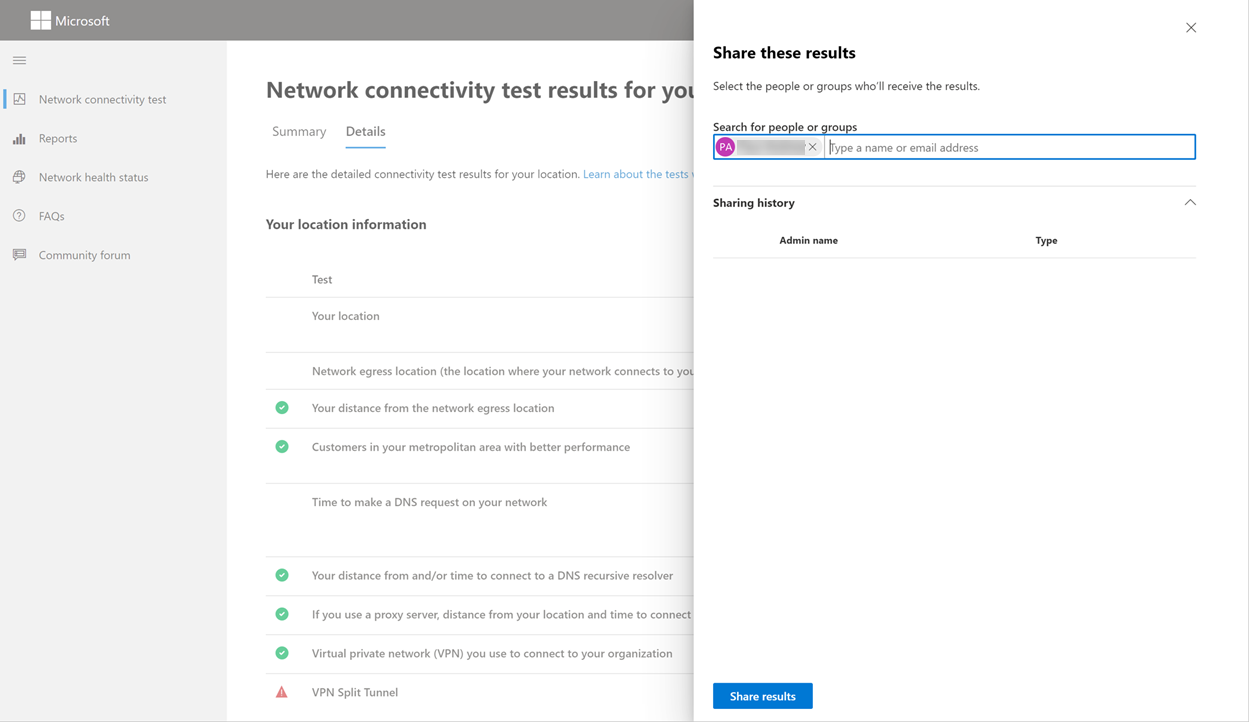

You can choose users to share your report with. Being able to choose is enabled by default, but it can be disabled by your administrator.
Sharing with anyone using a ReportID link
You can share your test report with anyone by providing access to a ReportID link. This link generates a URL that you can send to someone so that they can bring up the test report without signing in. This sharing is disabled by default and must be enabled by your administrator.
Network Connectivity Test Results
The results are shown in the Summary and Details tabs. The summary tab shows a map of the detected network perimeter and a comparison of the network assessment to other Microsoft 365 customers nearby. It also allows for sharing of the test report. Here's what the summary results view looks like:

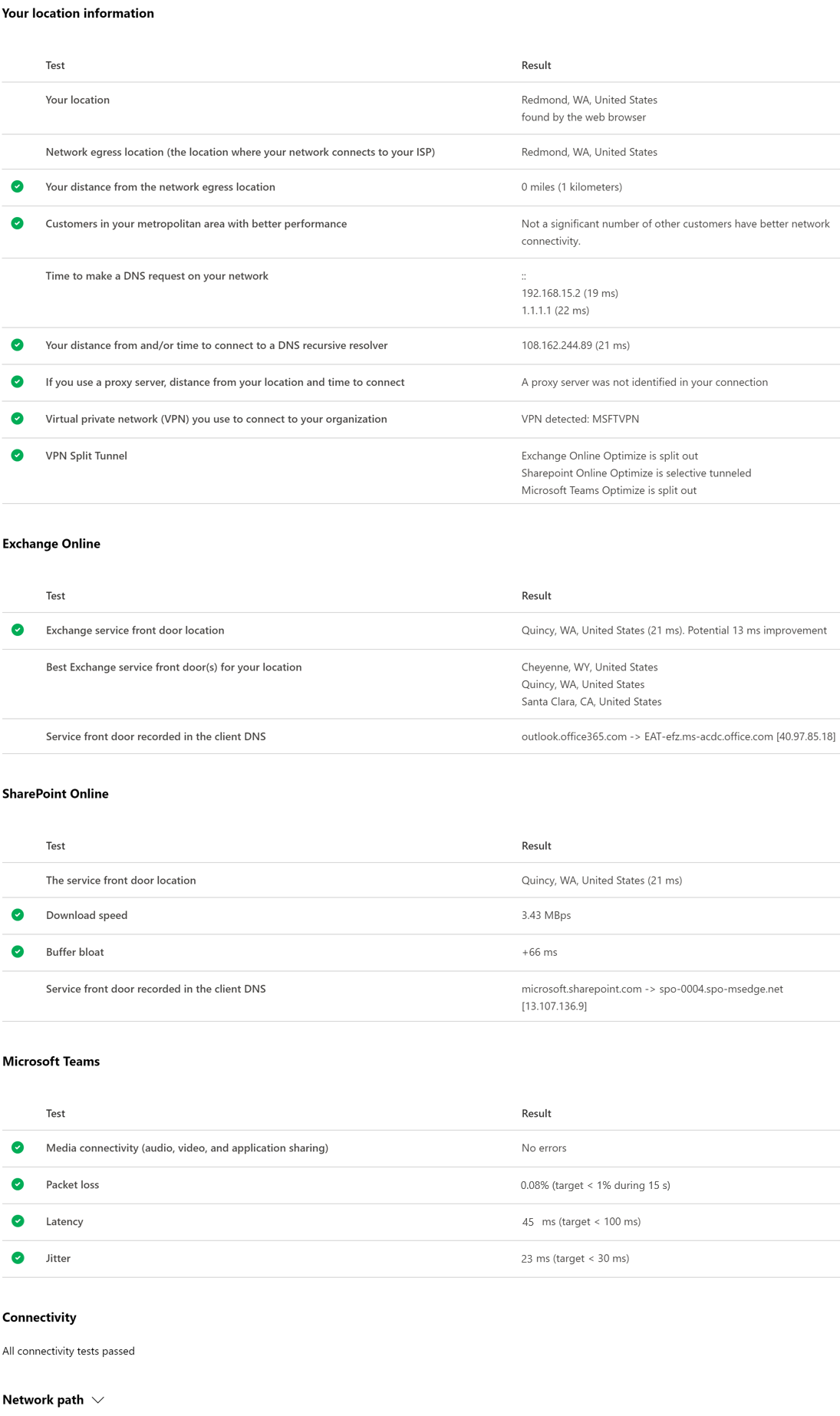

Here's an example of the details tab output. On the details tab, we show a green circle check mark if the result was compared favorably. We show a red triangle exclamation point if the result exceeded a threshold indicating a network insight. The following sections describe each of the details tab results rows and explain the thresholds used for network insights.
Your location information
This section shows test results related to your location.
Your location
The user location is detected from the users web browser. It can also be typed in at the user's choice. It's used to identify network distances to specific parts of the enterprise network perimeter. Only the city from this location detection and the distance to other network points are saved in the report.
The user office location is shown on the map view.
Network egress location (the location where your network connects to your ISP)
We identify the network egress IP address on the server side. Location databases are used to look up the approximate location for the network egress. These databases typically have an accuracy of about 90% of IP addresses. If the location looked up from the network egress IP address isn't accurate, this inaccuracy would lead to a false result. To validate if this error is occurring for a specific IP address, you can use publicly accessible network IP address location web sites to compare against your actual location.
Your distance from the network egress location
We determine the distance from that location to the office location. This distance is shown as a network insight if the distance is greater than 500 miles (800 kilometers) since that is likely to increase the TCP latency by more than 25 ms and might affect user experience.
The map shows the network egress location in relation to the user office location indicating the network backhaul inside of the enterprise WAN.
Implement local and direct network egress from user office locations to the Internet for optimal Microsoft 365 network connectivity. Improvements to local and direct egress are the best way to address this network insight.
Proxy server information
We identify whether proxy server(s) are configured on the local machine to pass Microsoft 365 network traffic in the Optimize category. We identify the distance from the user office location to the proxy servers.
The distance is tested first by ICMP ping. If that fails, we test with TCP ping and finally we look up the proxy server IP address in an IP address location database. We show a network insight if the proxy server is further than 500 miles (800 kilometers) away from the user office location.
Virtual private network (VPN) you use to connect to your organization
This test detects if you're using a VPN to connect to Microsoft 365. A passing result shows if you have no VPN, or if you have a VPN with recommended split tunnel configuration for Microsoft 365.
VPN Split Tunnel
Each Optimize category route for Exchange Online, SharePoint Online, and Microsoft Teams is tested to see if It's tunneled on the VPN. A split out workload avoids the VPN entirely. A tunneled workload is sent over the VPN. A selective tunneled workload has some routes sent over the VPN and some split out. A passing result shows if all workloads are split out or selective tunneled.
Customers in your metropolitan area with better performance
Network latency between the user office location and the Exchange Online service is compared to other Microsoft 365 customers in the same metro area. A network insight is shown if 10% or more of customers in the same metro area have better performance. This means their users have better performance in the Microsoft 365 user interface.
This network insight is generated on the basis that all users in a city have access to the same telecommunications infrastructure and the same proximity to Internet circuits and Microsoft's network.
Time to make a DNS request on your network
This shows the DNS server configured on the client machine that ran the tests. It might be a DNS Recursive Resolver server however this is uncommon. It's more likely to be a DNS forwarder server, which caches DNS results and forwards any uncached DNS requests to another DNS server.
This is provided for information only and doesn't contribute to any network insight.
Your distance from and/or time to connect to a DNS recursive resolver
The in-use DNS Recursive Resolver is identified by making a specific DNS request and then asking the DNS Name Server for the IP Address that it received the same request from. This IP Address is the DNS Recursive Resolver and it's looked up in IP Address location databases to find the location. The distance from the user office location to the DNS Recursive Resolver server location is then calculated. This is shown as a network insight if the distance is greater than 500 miles (800 kilometers).
The location looked up from the network egress IP Address might not be accurate and this inaccuracy would lead to a false result from this test. To validate if this error is occurring for a specific IP Address, you can use publicly accessible network IP Address location web sites.
This network insight affects the selection of the Exchange Online service front door. To address this insight local and direct network egress should be a prerequisite and then DNS Recursive Resolver should be located close to that network egress.
Exchange Online
This section shows test results related to Exchange Online.
Exchange service front door location
The in-use Exchange service front door is identified in the same way that Outlook does this and we measure the network TCP latency from the user location to it. The TCP latency is shown and the in-use Exchange service front door is compared to the list of best service front doors for the current location. This is shown as a network insight if one of the best Exchange service front doors isn't in use.
Not using one of the best Exchange service front doors could be caused by network backhaul before the corporate network egress in which case we recommend local and direct network egress. It could also be caused by use of a remote DNS recursive resolver server in which case we recommend aligning the DNS recursive resolver server with the network egress.
We calculate a potential improvement in TCP latency (ms) to the Exchange service front door. This is done by looking at the tested user office location network latency and subtracting the network latency from the current location to the closets Exchange service front door. The difference represents the potential opportunity for improvement.
Best Exchange service front door(s) for your location
This lists the best Exchange service front door locations by city for your location.
Service front door recorded in the client DNS
This shows the DNS name and IP Address of the Exchange service front door server that you were directed to. It's provided for information only and there's no associated network insight.
SharePoint
This section shows test results related to SharePoint and OneDrive.
The service front door location
The in-use SharePoint service front door is identified in the same way that the OneDrive client does. We measure the network TCP latency from the user office location to it.
Download speed
We measure the download speed for a 15-Mb file from the SharePoint service front door. The result is shown in megabytes per second to indicate what size file in megabytes can be downloaded from SharePoint or OneDrive in one second. The number should be similar to one tenth of the minimum circuit bandwidth in megabits per second. For example if you have a 100mbps internet connection, you may expect 10 megabytes per second (10 MBps).
Buffer bloat
During the 15-Mb download, we measure the TCP latency to the SharePoint service front door. This is the latency under load and it's compared to the latency when not under load. The increase in latency when under load is often attributable to consumer network device buffers being loaded (or bloated). A network insight is shown for any bloat of 100 ms or more.
Service front door recorded in the client DNS
This shows the DNS name and IP Address of the SharePoint service front door server that you were directed to. It's provided for information only and there's no associated network insight.
Microsoft Teams
This section shows test results related to Microsoft Teams.
Media connectivity (audio, video, and application sharing)
This tests for UDP connectivity to the Microsoft Teams service front door. If this is blocked, then Microsoft Teams might still work using TCP, but audio and video will be impaired. Read more about these UDP network measurements, which also apply to Microsoft Teams at Media Quality and Network Connectivity Performance in Skype for Business Online.
Packet loss
Shows the UDP packet loss measured in a 10-second test audio call from the client to the Microsoft Teams service front door. This should be lower than 1.00% for a pass.
Latency
Shows the measured UDP latency, which should be lower than 100ms.
Jitter
Shows the measured UDP jitter, which should be lower than 30ms.
Connectivity
We test for HTTP connectivity from the user office location to all of the required Microsoft 365 network endpoints. These are published at https://aka.ms/o365ip. A network insight is shown for any required network endpoints, which can't be connected to.
Connectivity might be blocked by a proxy server, a firewall, or another network security device on the enterprise network perimeter. Connectivity to TCP port 80 is tested with an HTTP request and connectivity to TCP port 443 is tested with an HTTPS request. If there's no response the FQDN is marked as a failure. If there's an HTTP response code 407 the FQDN is marked as a failure. If there's an HTTP response code 403, then we check the Server attribute of the response and if it appears to be a proxy server we mark this as a failure. You can simulate the tests we perform with the Windows command-line tool curl.exe.
We test the TLS/SSL certificate at each required Microsoft 365 network endpoint that is in the optimize or allow category as defined at https://aka.ms/o365ip. If any tests don't find a Microsoft TLS/SSL certificate, then the encrypted network connected must have been intercepted by an intermediary network device. A network insight is shown on any intercepted encrypted network endpoints.
Where an TLS/SSL certificate is found that isn't provided by Microsoft, we show the FQDN for the test and the in-use TLS/SSL certificate owner. This TLS/SSL certificate owner might be a proxy server vendor, or it might be an enterprise self-signed certificate.
Network path
This section shows the results of an ICMP traceroute to the Exchange Online service front door, the SharePoint service front door, and the Microsoft Teams service front door. It's provided for information only and there's no associated network insight. There are three traceroutes provided. A traceroute to outlook.office365.com, a traceroute to the customers SharePoint front end or to microsoft.sharepoint.com if one wasn't provided, and a traceroute to world.tr.teams.microsoft.com.
Note
In reports generated in different versions, the addresses you see above may also vary slightly.
Connectivity reports

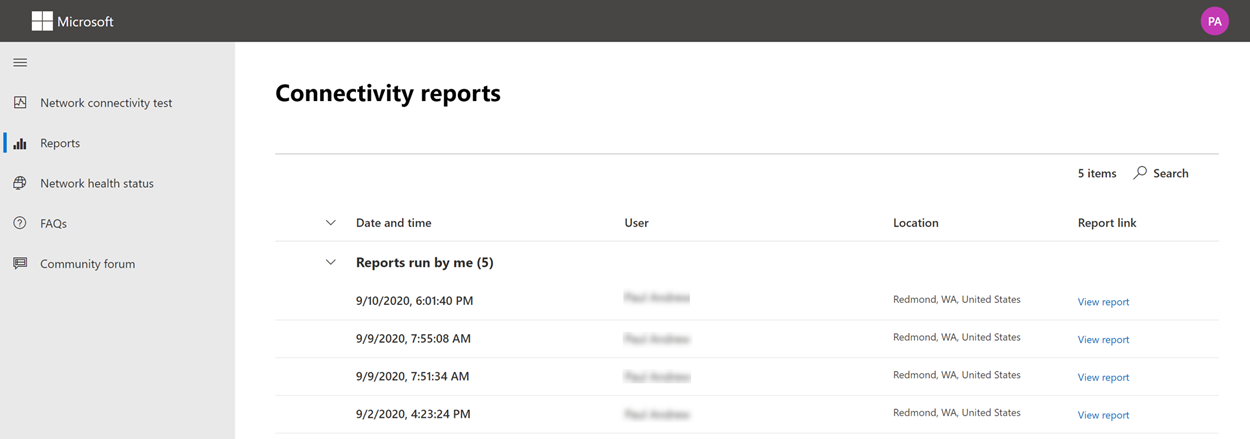

When you're signed in you can review previous reports that you have run. You can also share them or delete them from the list.
Network health status
This shows any significant health issues with Microsoft's global network, which might affect Microsoft 365 customers.
Testing from the Command Line
We provide a command line executable that can be used by your remote deployment, execution tools and run the same tests as are available in the Microsoft 365 network connectivity test tool web site.
The command line test tool can be downloaded here: Command Line Tool
You can run it by double clicking the executable in Windows File Explorer, or you can start it from a command prompt, or you can schedule it with task scheduler.
The first time you launch the executable you'll be prompted to accept the end user license agreement (EULA) before testing is performed. If you have already read and accepted the EULA, you can create an empty file called Microsoft-365-Network-Connectivity-Test-EULA-accepted.txt in the current working directory for the executable process when it's launched. To accept the EULA, you can type 'y' and press enter in the command line window when prompted.
The executable accepts the following command line parameters:
- -h to show a link to this help documentation
- -testlist <test> Specifies tests to run. By default only basic tests are run. Valid test names include: all, dnsConnectivityPerf, dnsResolverIdentification, bufferBloat, traceroute, proxy, vpn, skype, connectivity, networkInterface
- -filepath <filedir> Directory path of test result files. Allowed value is absolute or relative path of an accessible directory
- -city <city> For the city, state, and country/region fields the specified value will be used if provided. If not provided then Windows Location Services (WLS) will be queried. If WLS fails the location will be detected from the machines network egress
- -state <state>
- -country <country>
- -proxy <account> <password> Proxy account name and password can be provided if you require a proxy to access the Internet
Results
Output of results is written to a JSON file in a folder called TestResults, which is created in the current working directory of the process unless it already exists. The filename format for the output is connectivity_test_result_YYYY-MM-DD-HH-MM-SS.json. The results are in JSON nodes that match the output shown on the web page for the Microsoft 365 network connectivity test tool web site. A new result file is created each time you run it and the standalone executable doesn't upload results to your Microsoft tenant for viewing in the Admin Center Network Connectivity pages. Front door codes, longitudes, and latitudes aren't included in the result file.
Launching from Windows File Explorer
You can double select on the executable to start the testing and a command prompt window will appear.
Launching from the Command Prompt
In a CMD.EXE command prompt window, you can type the path and name of the executable to run it. The filename is MicrosoftConnectivityTest.exe.
Launching from Windows Task Scheduler
In Windows Task Scheduler, you can add a task to launch the standalone test executable. You should specify the current working directory of the task to be where you have created the EULA accepted file since the executable blocks until the EULA is accepted. You can't interactively accept the EULA if the process is started in the background with no console.
More details on the standalone executable
The commandline tool uses Windows Location Services to find the users City State Country/region information for determining some distances. If Windows Location Services is disabled in the control panel, then user location based assessments are blank. In Windows Settings, "Location services" must be on and "Let desktop apps access your location" must also be on.
The commandline tool attempts to install the .NET Framework if it isn't already installed. It also downloads the main testing executable from the Microsoft 365 network connectivity test tool and launch that.
Test using the Microsoft Support and Recovery Assistant
Microsoft Support and Recovery Assistant (Assistant) automates all the steps required to execute the command-line version of the Microsoft 365 network connectivity test tool on a user’s machine and creates a report similar to the one created by the web version of the connectivity test tool. Note, the Assistant runs the command line version of Microsoft 365 network connectivity test tool to produce the same JSON result file, but the JSON file is converted into .CSV file format.
You can download and run the Assistant here.
Viewing Test Results
Reports can be accessed in the following ways:
The reports are available on the below screen once the Assistant has finished scanning the user's machine. To access these reports, simply select on the “View log” option to view them.
Connectivity test results and Telemetry data are collected and uploaded to the uploadlogs folder. To access this folder, use one of the following methods:
- Open Run (Windows logo key + R), and run the %localappdata%/saralogs/uploadlogs command as follows:
- In File Explorer, type C:\Users<UserName>\AppData\Local\saralogs\uploadlogs and press Enter as follows:
Note: <UserName> is the user's Windows profile name. To view the information about the test results and telemetry, double-click and open the files.
Types of result files
Microsoft Support and Recovery Assistant creates two files:
Network Connectivity Report (CSV) This report runs the raw JSON file against a rule engine to make sure defined thresholds are being met and if they aren't met a “warning” or “error” is displayed in the output column of the CSV file. You can view the NetworkConnectivityReport.csv file to be informed about any detected issues or defects. See What happens at each test step for details on each test and the thresholds for warnings.
Network Connectivity Scan Report (JSON) This file provides the raw output test results from the command-line version of the Microsoft 365 network connectivity test tool (MicrosoftConnectivityTest.exe).
FAQ
Here are answers to some of our frequently asked questions.
What is required to run the advanced test client?
The advanced test client requires .NET 6.0 Runtime. If you run the advanced test client without that installed you'll be directed to the .NET 6.0 installer page. Be sure to install from the Run desktop apps column for Windows. Administrator permissions on the machine are required to install .NET 6.0 Runtime.
The advanced test client uses SignalR to communicate to the web page. For this, you must ensure that TCP port 443 connectivity to connectivity.service.signalr.net is open. This URL isn't published in the https://aka.ms/o365ip because that connectivity isn't required for a Microsoft 365 client application user. If you're using an HTTP proxy for connection to FQDN connectivity.office.com and encounter the error SignalR proxy configuration is different than origin., ensure connection to FQDN connectivity.service.signalr.net is allowed through the proxy. If a PAC file is being used to push proxy configuration settings, ensure the PAC file will return the same proxy settings for FQDN's connectivity.office.com and connectivity.service.signalr.net.
What is Microsoft 365 service front door?
The Microsoft 365 service front door is an entry point on Microsoft's global network where Office clients and services terminate their network connection. For an optimal network connection to Microsoft 365, It's recommended that your network connection is terminated into the closest Microsoft 365 front door in your city or metro.
Note
Microsoft 365 service front door has no direct relationship to the Azure Front Door Service product available in the Azure marketplace.
What is the best Microsoft 365 service front door?
A best Microsoft 365 service front door (formerly known as an optimal service front door) is one that is closest to your network egress, generally in your city or metro area. Use the Microsoft 365 network performance tool to determine location of your in-use Microsoft 365 service front door and the best service front door(s). If the tool determines your in-use front door is one of the best ones, then you should expect great connectivity into Microsoft's global network.
What is an internet egress location?
The internet egress Location is the location where your network traffic exits your enterprise network and connects to the Internet. This is also identified as the location where you have a Network Address Translation (NAT) device and usually where you connect with an Internet Service Provider (ISP). If you see a long distance between your location and your internet egress location, then this might identify a significant WAN backhaul.
Related articles
Network connectivity in the Microsoft 365 Admin Center
Microsoft 365 network performance insights
