Overview of the Terraform AzAPI provider

Grein
08/16/2024

The AzAPI provider is a thin layer on top of the Azure ARM REST APIs. It enables you to manage any Azure resource type using any API version, enabling you to utilize the latest functionality within Azure. AzAPI is a first-class provider designed to be used on its own or in tandem with the AzureRM provider.

Resources

To allow you to manage all Azure resources and features without requiring updates, the AzAPI provider includes the following generic resources:

Resource Name	Description
azapi_resource	Used to fully manage any Azure (control plane) resource (API) with full CRUD. Example Use Cases: New preview service New feature added to existing service Existing feature / service not currently covered
azapi_update_resource	Used to manage resources or parts of resources that don't have full CRUD Example Use Cases: Update new properties on an existing service Update pre-created child resource - such as DNS SOA record.
azapi_resource_action	Used to perform a single operation on a resource without managing the lifecycle of it Example Use Cases: Shut down a Virtual Machine Add a secret to a Key Vault
azapi_data_plane_resource	Used to manage a specific subset of Azure data plane resources Example Use Cases: KeyVault Certificate Contacts Synapse Workspace Libraries

Usage hierarchy

Overall, usage should follow these steps:

It's always recommended to start with performing as many operations as possible within azapi_resource.
If the resource type doesn't exist within azapi_resource but does fall under one of the types supported by azapi_data_plane_resource, use that instead.
If the resource already exists in AzureRM or has a property that can't be accessed within azapi_resource, use azapi_update_resource to access these specific properties. Resources that azapi_resource or azapi_data_plane_resource don't support can't be updated through this resource.
If you're trying to perform an action that isn't based on an Azure CRUD-friendly resource, azapi_resource_action is less straightforward than azapi_update_resource but more flexible.

Resource configuration examples

The following code snippet configures a resource that doesn't currently exist in the AzureRM provider:

resource "azapi_resource" "publicip" {
  type      = "Microsoft.Network/Customipprefixes@2021-03-01"
  name      = "exfullrange"
  parent_id = azurerm_resource_group.example.id
  location  = "westus2"

  body = {
    properties = {
      cidr          = "10.0.0.0/24"
      signedMessage = "Sample Message for WAN"
    }
  }
}

The following code snippet configures a preview property for an existing resource from AzureRM:

resource "azapi_update_resource" "test" {
  type        = "Microsoft.ContainerRegistry/registries@2020-11-01-preview"
  resource_id = azurerm_container_registry.acr.id

  body = jsonencode{
    properties = {
      anonymousPullEnabled = var.bool_anonymous_pull
    }
  }
}

The following code snippet configures a resource action on an existing AzureRM resource:

resource "azapi_resource_action" "vm_shutdown" {
  type = "Microsoft.Compute/virtualMachines@2023-07-01"
  resource_id = azurerm_linux_virtual_machine.example.id
  action = "powerOff”
}

The following code snippet configures a resource that doesn't currently exist in the AzureRM provider due to being provisioned on the data plane:

resource "azapi_data_plane_resource" "dataset" {
  type      = "Microsoft.Synapse/workspaces/datasets@2020-12-01"
  parent_id = trimprefix(data.azurerm_synapse_workspace.example.connectivity_endpoints.dev, "https://")
  name      = "example-dataset"
  body = {
    properties = {
      type = "AzureBlob",
      typeProperties = {
        folderPath = {
          value = "@dataset().MyFolderPath"
          type  = "Expression"
        }
        fileName = {
          value = "@dataset().MyFileName"
          type  = "Expression"
        }
        format = {
          type = "TextFormat"
        }
      }
      parameters = {
        MyFolderPath = {
          type = "String"
        }
        MyFileName = {
          type = "String"
        }
      }
    }
  }
}

Authentication using the AzAPI provider

The AzAPI provider enables the same authentication methods as the AzureRM provider. For more information on authentication options, see Authenticate Terraform to Azure.

Benefits of using the AzAPI provider

The AzAPI provider features the following benefits:

Supports all Azure control plane services:
- Preview services and features
- All API versions
Full Terraform state file fidelity
- Properties and values are saved to state
No dependency on Swagger
Common and consistent Azure authentication
Robust VS Code Extension

Experience and lifecycle of the AzAPI provider

This section describes some tools to help you use the AzAPI provider.

VS Code extension and Language Server

The AzAPI VS Code extension provides a rich authoring experience with the following benefits:

List all available resource types and API versions.

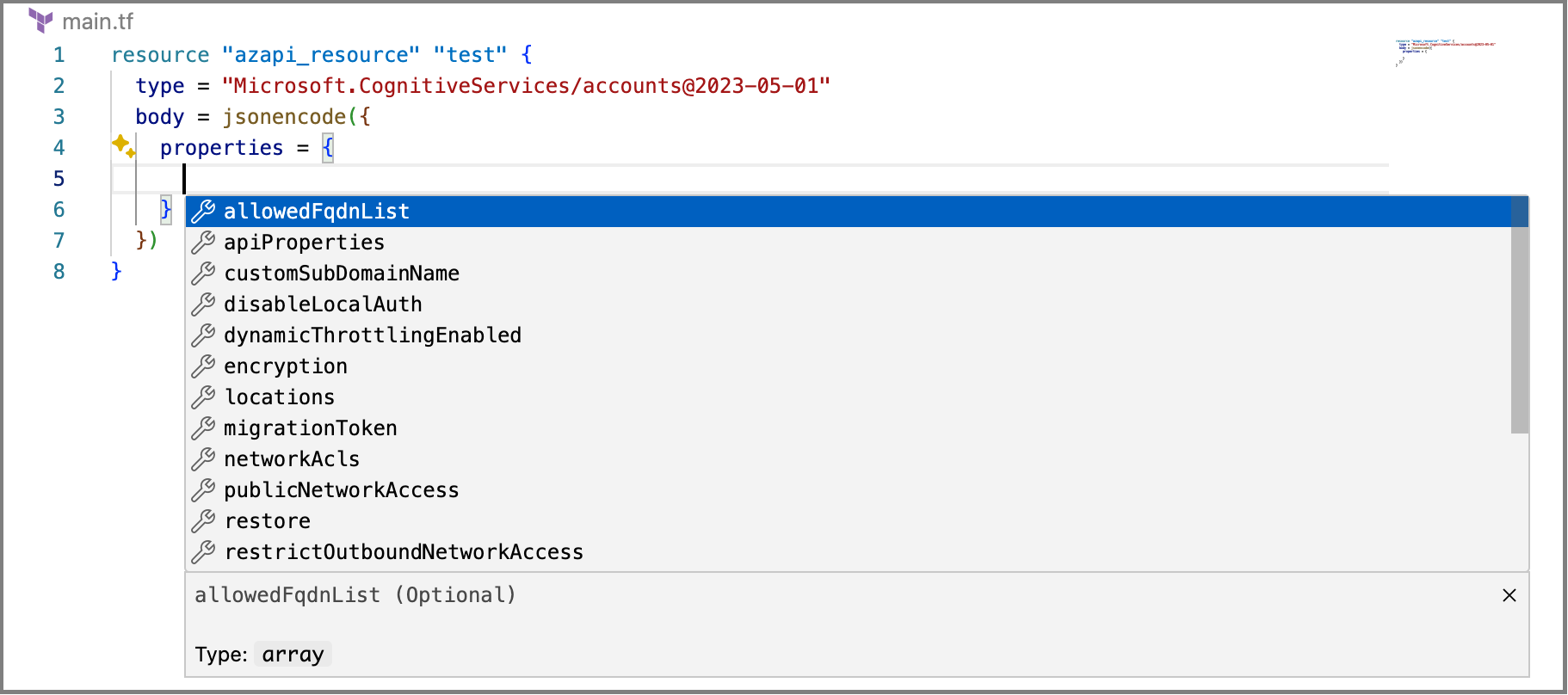

Auto-completion of the allowed properties and values for any resource.

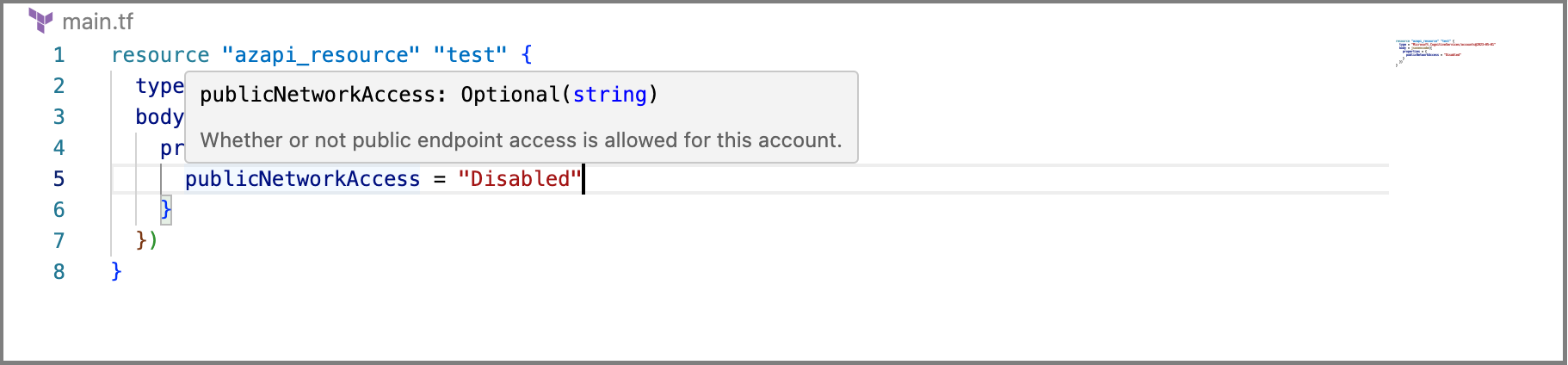

Show hints when hovering over a property.

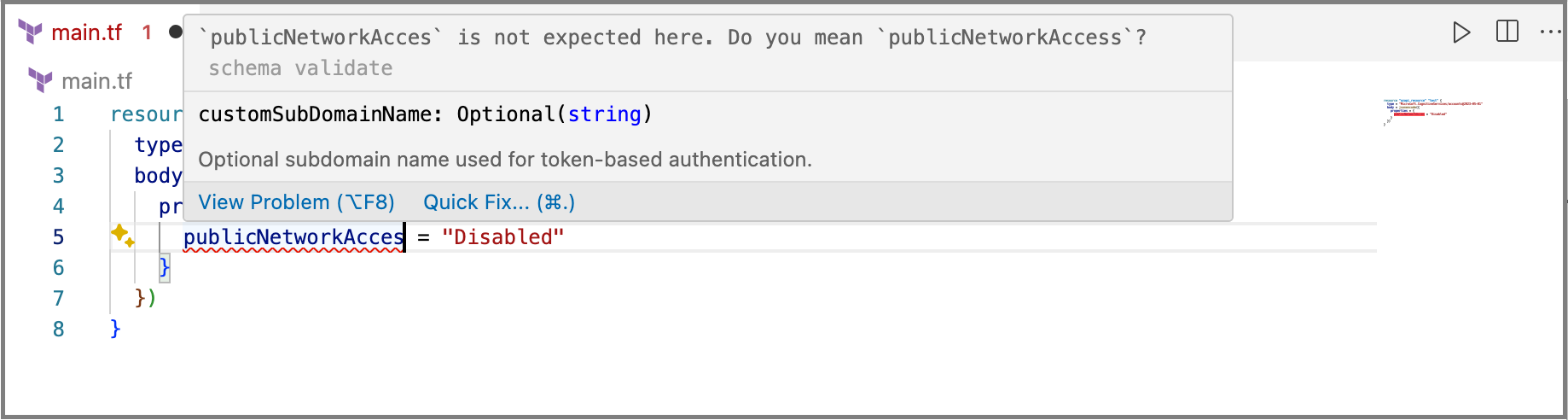

Syntax validation

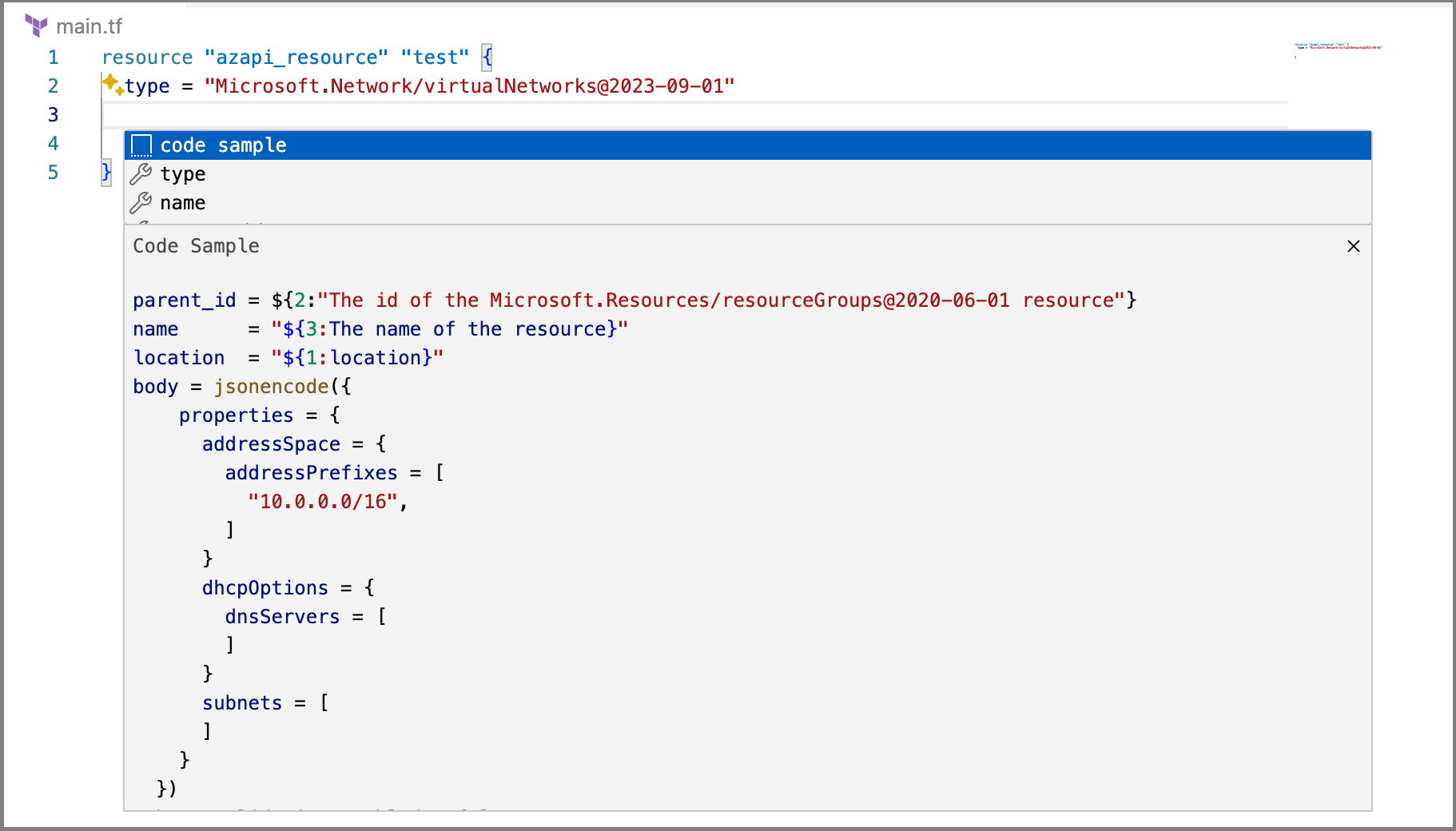

Auto-completion with code samples.

AzAPI2AzureRM migration tool

The AzureRM provider provides the most integrated Terraform experience for managing Azure resources. Therefore, the recommended usage of the AzAPI and AzureRM providers is as follows:

While the service or feature is in preview, use the AzAPI provider.
once the service is officially released, use the AzureRM provider.

The AzAPI2AzureRM tool is designed to help migrate from the AzAPI provider to the AzureRM provider.

AzAPI2AzureRM is an open-source tool that automates the process of converting AzAPI resources to AzureRM resources.

AzAPI2AzureRM has two modes: plan and migrate:

Plan displays the AzAPI resources that can be migrated.
Migrate migrates the AzAPI resources to AzureRM resources in both the HCL files and the state.

AzAPI2AzureRM ensures after migration that your Terraform configuration and state are aligned with your actual state. You can validate the update to state by running terraform plan after completing the migration to see that nothing has changed.

Using the AzAPI provider

Install VS Code extension

Add the AzAPI provider to your Terraform configuration.

terraform {
  required_providers {
    azapi = {
      source  = "Azure/azapi"
    }
  }
}

provider "azapi" {
  # More information on the authentication methods supported by
  # the AzureRM Provider can be found here:
  # https://registry.terraform.io/providers/hashicorp/azurerm/latest/docs

  # subscription_id = "..."
  # client_id       = "..."
  # client_secret   = "..."
  # tenant_id       = "..."
}

Declare one or more AzAPI resources as shown in the following example code:

resource "azapi_resource" "example" {
  name = "example"
  parent_id = data.azurerm_machine_learning_workspace.existing.id
  type = "Microsoft.MachineLearningServices/workspaces/computes@2021-07-01"

  location = "eastus"
  body = jsonencode({
    properties = {
      computeType      = "ComputeInstance"
      disableLocalAuth = true
      properties = {
        vmSize = "STANDARD_NC6"
      }
    }
  })
}
