Azure Event Grid namespace concepts

  • Grein

This article introduces you to the main concepts and functionality associated to namespace topics.

Events

An event is the smallest amount of information that fully describes something that happened in a system. We often refer to an event as a discrete event because it represents a distinct, self-standing fact about a system that provides an insight that can be actionable. Every event has common information like source of the event, time the event took place, and a unique identifier. Event every also has a type, which usually is a unique identifier that describes the kind of announcement the event is used for.

For example, an event about a new file being created in Azure Storage has details about the file, such as the lastTimeModified value. An Event Hubs event has the URL of the captured file. An event about a new order in your Orders microservice might have an orderId attribute and a URL attribute to the order’s state representation. A few more examples of event types include: com.yourcompany.Orders.OrderCreated, org.yourorg.GeneralLedger.AccountChanged, io.solutionname.Auth.MaximumNumberOfUserLoginAttemptsReached.

Here's a sample event:

{
    "specversion" : "1.0",
    "type" : "com.yourcompany.order.created",
    "source" : "/orders/account/123",
    "subject" : "O-28964",
    "id" : "A234-1234-1234",
    "time" : "2018-04-05T17:31:00Z",
    "comexampleextension1" : "value",
    "comexampleothervalue" : 5,
    "datacontenttype" : "application/json",
    "data" : {
       "orderId" : "O-28964",
       "URL" : "https://com.yourcompany/orders/O-28964"
    }
}

Another kind of event

The user community also refers as "events" to messages that carry a data point, such as a single device reading or a click on a web application page. That kind of event is usually analyzed over a time window to derive insights and take an action. In Event Grid’s documentation, we refer to that kind of event as a data point, streaming data, or simply as telemetry. Among other types of messages, this kind of events is used with Event Grid’s Message Queuing Telemetry Transport (MQTT) broker feature.

Support for CloudEvents

Event Grid namespace topics accepts events that comply with the Cloud Native Computing Foundation (CNCF)’s open standard CloudEvents 1.0 specification using the HTTP protocol binding with JSON format. A CloudEvent is a kind of message that contains what is being communicated, referred to as event data, and metadata about it. The event data in event-driven architectures typically carries the information announcing a system state change. The CloudEvents metadata is composed of a set of attributes that provide contextual information about the message like where it originated (the source system), its type, etc.

For more information, see Support for CloudEvents schema.

Publishers

A publisher is the application that sends events to Event Grid. It could be the same application where the events originated, the event source. You can publish events from your own application when using namespace topics.

Event sources

An event source is where the event happens. Each event source supports one or more event types. For example, your application is the event source for custom events that your system defines. When using namespace topics, the event sources supported are your own applications.

Namespaces

An Event Grid namespace is a management container for the following resources:

Resource Protocol supported
Namespace topics HTTP
Topic Spaces MQTT
Clients MQTT
Client Groups MQTT
CA Certificates MQTT
Permission bindings MQTT

With an Azure Event Grid namespace, you can group related resources and manage them as a single unit in your Azure subscription. It gives you a unique fully qualified domain name (FQDN).

A Namespace exposes two endpoints:

  • An HTTP endpoint to support general messaging requirements using namespace topics.
  • An MQTT endpoint for IoT messaging or solutions that use MQTT.

A namespace also provides DNS-integrated network endpoints. It also provides a range of access control and network integration management features such as public IP ingress filtering and private links. It's also the container of managed identities used for contained resources in the namespace.

Here are a few more points about namespaces:

  • Namespace is a tracked resource with tags and location properties, and once created, it can be found on resources.azure.com.
  • The name of the namespace can be 3-50 characters long. It can include alphanumeric, and hyphen(-), and no spaces.
  • The name needs to be unique per region.

Throughput units

Throughput units (TUs) define the ingress and egress event rate capacity in namespaces. For more information, see Azure Event Grid quotas and limits.

Topics

A topic holds events that have been published to Event Grid. You typically use a topic resource for a collection of related events. We often referred to topics inside a namespace as namespace topics.

Namespace topics

Namespace topics are topics that are created within an Event Grid namespace. Your application publishes events to an HTTP namespace endpoint specifying a namespace topic where published events are logically contained. When designing your application, you have to decide how many topics to create. For relatively large solutions, create a namespace topic for each category of related events. For example, consider an application that manages user accounts and another application about customer orders. It's unlikely that all event subscribers want events from both applications. To segregate concerns, create two namespace topics: one for each application. Let event consumers subscribe to the topic according to their requirements. For small solutions, you might prefer to send all events to a single topic.

Namespace topics support pull delivery and push delivery. See when to use pull or push delivery to help you decide if pull delivery is the right approach given your requirements.

Event subscriptions

An event subscription is a configuration resource associated with a single topic. Among other things, you use an event subscription to set the event selection criteria to define the event collection available to a subscriber out of the total set of events available in a topic. You can filter events according to the subscriber's requirements. For example, you can filter events by their event type. You can also define filter criteria on event data properties if using a JSON object as the value for the data property. For more information on resource properties, look for control plane operations in the Event Grid REST API.

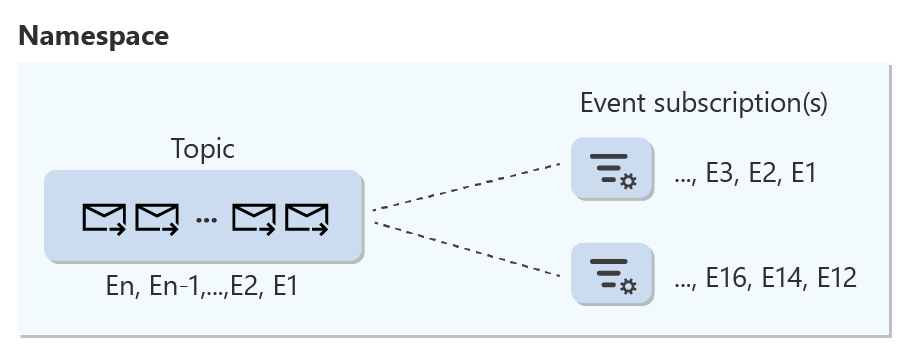

Diagram showing a topic and associated event subscriptions.

For an example of creating subscriptions for namespace topics, see Publish and consume messages using namespace topics using CLI.

Note

The event subscriptions under a namespace topic feature a simplified resource model when compared to that used for custom, domain, partner, and system topics (Event Grid Basic). For more information, see Create, view, and manage event subscriptions.

Pull delivery

With pull delivery, your application connects to Event Grid to read messages using queue-like semantics. As applications connect to Event Grid to consume events, they are in control of the event consumption rate and its timing. Consumer applications can also use private endpoints when connecting to Event Grid to read events using private IP space.

Pull delivery supports the following operations for reading messages and controlling message state: receive, acknowledge, release, reject, and renew lock. For more information, see pull delivery overview.

Data shape when receiving events using pull delivery

When delivering events using pull delivery, Event Grid includes an array of objects that in turn includes the event and brokerProperties objects. The value of the event property is the CloudEvent delivered in structured content mode. The brokerProperties object contains the lock token associated to the CloudEvent delivered. The following json object is a sample response from a receive operation that returns two events:

{
    "value": [
        {
            "brokerProperties": {
                "lockToken": "CiYKJDUwNjE4QTFFLUNDODQtNDZBQy1BN0Y4LUE5QkE3NjEwNzQxMxISChDXYS23Z+5Hq754VqQjxywE",
                "deliveryCount": 2
            },
            "event": {
                "specversion": "1.0",
                "id": "A234-1234-1235",
                "source": "/mycontext",
                "time": "2018-04-05T17:31:00Z",
                "type": "com.example.someeventtype",
                "data": "some data"
            }
        },
        {
            "brokerProperties": {
                "lockToken": "CiYKJDUwNjE4QTFFLUNDODQtNDZBQy1BN0Y4LUE5QkE3NjEwNzQxMxISChDLeaL+nRJLNq3/5NXd/T0b",
                "deliveryCount": 1
            },
            "event": {
                "specversion": "1.0",
                "id": "B688-1234-1235",
                "source": "/mycontext",
                "type": "com.example.someeventtype",
                "time": "2018-04-05T17:31:00Z",
                "data": {
                    "somekey" : "value",
                    "someOtherKey" : 9
                }
            }
        }
    ]
}

Push delivery

With push delivery, Event Grid sends events to a destination configured in a push (delivery mode in) event subscription. It provides a robust retry logic in case the destination isn't able to receive events.

Important

Event Grid namespaces' push delivery currently supports Azure Event Hubs as a destination. In the future, Event Grid namespaces will support more destinations, including all destinations supported by Event Grid Basic.

Event Hubs event delivery

Event Grid uses Event Hubs SDK to send events to Event Hubs using AMQP. Events are sent as a byte array with every element in the array containing a CloudEvent.

Push and pull delivery

Event Grid supports push and pull event delivery using HTTP. With push delivery, you define a destination in an event subscription, a webhook, or an Azure service, to which Event Grid sends events. With pull delivery, subscriber applications connect to Event Grid to consume events. Pull delivery is supported for topics in an Event Grid namespace.

Important

Event Hubs is supported as a destination for subscriptions to namespace topics. In coming releases, Event Grid Namespaces will support all destinations currently available in Event Grid Basic along with additional destinations.

High-level diagram showing push delivery and pull delivery with the kind of resources involved.

When to use push delivery vs. pull delivery

The following are general guidelines to help you decide when to use pull or push delivery.

Pull delivery

  • You need full control as to when to receive events. For example, your application might not be up all the time, not stable enough, or you process data at certain times.
  • You need full control over event consumption. For example, a downstream service or layer in your consumer application has a problem that prevents you from processing events. In that case, the pull delivery API allows the consumer app to release an already read event back to the broker so that it can be delivered later.
  • You want to use private links when receiving events, which is possible only with the pull delivery, not the push delivery.
  • You don't have the ability to expose an endpoint and use push delivery, but you can connect to Event Grid to consume events.

Push delivery

  • You want to avoid constant polling to determine that a system state change has occurred. You rather use Event Grid to send events to you at the time state changes happen.
  • You have an application that can't make outbound calls. For example, your organization might be concerned about data exfiltration. However, your application can receive events through a public endpoint.
