Set up Pacemaker on SUSE Linux Enterprise Server in Azure

  • Grein

This article discusses how to set up Pacemaker on SUSE Linux Enterprise Server (SLES) in Azure.

Overview

In Azure, you have two options for setting up fencing in the Pacemaker cluster for SLES. You can use an Azure fence agent, which restarts a failed node via the Azure APIs, or you can use SBD device.

Use an SBD device

You can configure the SBD device by using either of two options:

  • SBD with an iSCSI target server:

    The SBD device requires at least one additional virtual machine (VM) that acts as an Internet Small Computer System Interface (iSCSI) target server and provides an SBD device. These iSCSI target servers can, however, be shared with other Pacemaker clusters. The advantage of using an SBD device is that if you're already using SBD devices on-premises, they don't require any changes to how you operate the Pacemaker cluster.

    You can use up to three SBD devices for a Pacemaker cluster to allow an SBD device to become unavailable (for example, during OS patching of the iSCSI target server). If you want to use more than one SBD device per Pacemaker, be sure to deploy multiple iSCSI target servers and connect one SBD from each iSCSI target server. We recommend using either one SBD device or three. Pacemaker can't automatically fence a cluster node if only two SBD devices are configured and one of them is unavailable. If you want to be able to fence when one iSCSI target server is down, you have to use three SBD devices and, therefore, three iSCSI target servers. That's the most resilient configuration when you're using SBDs.

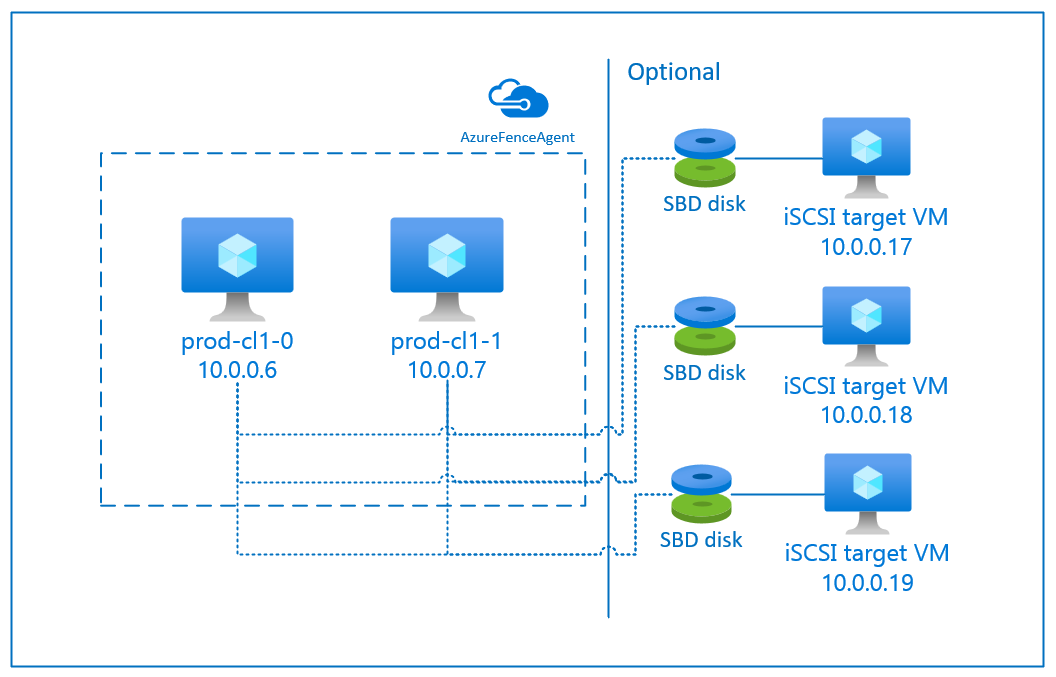

    Diagram of Pacemaker on SLES overview.

    Important

    When you're planning and deploying Linux Pacemaker clustered nodes and SBD devices, do not allow the routing between your virtual machines and the VMs that are hosting the SBD devices to pass through any other devices, such as a network virtual appliance (NVA).

    Maintenance events and other issues with the NVA can have a negative impact on the stability and reliability of the overall cluster configuration. For more information, see User-defined routing rules.

  • SBD with an Azure shared disk:

    To configure an SBD device, you need to attach at least one Azure shared disk to all virtual machines that are part of Pacemaker cluster. The advantage of SBD device using an Azure shared disk is that you don't need to deploy additional virtual machines.

    Diagram of the Azure shared disk SBD device for SLES Pacemaker cluster.

    Here are some important considerations about SBD devices when you're using an Azure shared disk:

    • An Azure shared disk with Premium SSD is supported as an SBD device.
    • SBD devices that use an Azure shared disk are supported on SLES High Availability 15 SP01 and later.
    • SBD devices that use an Azure premium shared disk are supported on locally redundant storage (LRS) and zone-redundant storage (ZRS).
    • Depending on the type of your deployment, choose the appropriate redundant storage for an Azure shared disk as your SBD device.
    • An SBD device using LRS for Azure premium shared disk (skuName - Premium_LRS) is only supported with deployment in availability set.
    • An SBD device using ZRS for an Azure premium shared disk (skuName - Premium_ZRS) is recommended with deployment in availability zones.
    • A ZRS for managed disk is currently unavailable in all regions with availability zones. For more information, review the ZRS "Limitations" section in Redundancy options for managed disks.
    • The Azure shared disk that you use for SBD devices doesn't need to be large. The maxShares value determines how many cluster nodes can use the shared disk. For example, you can use P1 or P2 disk sizes for your SBD device on two-node cluster such as SAP ASCS/ERS or SAP HANA scale-up.
    • For HANA scale-out with HANA system replication (HSR) and Pacemaker, you can use an Azure shared disk for SBD devices in clusters with up to four nodes per replication site because of the current limit of maxShares.
    • We do not recommend attaching an Azure shared disk SBD device across Pacemaker clusters.
    • If you use multiple Azure shared disk SBD devices, check on the limit for a maximum number of data disks that can be attached to a VM.
    • For more information about limitations for Azure shared disks, carefully review the "Limitations" section of Azure shared disk documentation.

Use an Azure fence agent

You can set up fencing by using an Azure fence agent. Azure fence agent requires managed identities for the cluster VMs or a service principal that manages restarting failed nodes via Azure APIs. Azure fence agent doesn't require the deployment of additional virtual machines.

SBD with an iSCSI target server

To use an SBD device that uses an iSCSI target server for fencing, follow the instructions in the next sections.

Set up the iSCSI target server

You first need to create the iSCSI target virtual machines. You can share iSCSI target servers with multiple Pacemaker clusters.

  1. Deploy new SLES 12 SP3 or higher virtual machines and connect to them via SSH. The machines don't need to be large. Virtual machine sizes Standard_E2s_v3 or Standard_D2s_v3 are sufficient. Be sure to use Premium storage for the OS disk.

  2. On iSCSI target virtual machines, run the following commands:

    a. Update SLES.

    sudo zypper update

    Note

    You might need to reboot the OS after you upgrade or update the OS.

    b. Remove packages.

    To avoid a known issue with targetcli and SLES 12 SP3, uninstall the following packages. You can ignore errors about packages that can't be found.

    sudo zypper remove lio-utils python-rtslib python-configshell targetcli

    c. Install iSCSI target packages.

    sudo zypper install targetcli-fb dbus-1-python

    d. Enable the iSCSI target service.

    sudo systemctl enable targetcli
sudo systemctl start targetcli

Create an iSCSI device on the iSCSI target server

To create the iSCSI disks for the clusters to be used by your SAP systems, run the following commands on all iSCSI target virtual machines. In the example, SBD devices for multiple clusters are created. It shows how you would use one iSCSI target server for multiple clusters. The SBD devices are placed on the OS disk. Make sure that you have enough space.

  • nfs: Identifies the NFS cluster.
  • ascsnw1: Identifies the ASCS cluster of NW1.
  • dbnw1: Identifies the database cluster of NW1.
  • nfs-0 and nfs-1: The hostnames of the NFS cluster nodes.
  • nw1-xscs-0 and nw1-xscs-1: The hostnames of the NW1 ASCS cluster nodes.
  • nw1-db-0 and nw1-db-1: The hostnames of the database cluster nodes.

In the following instructions, replace adjust the hostnames of your cluster nodes and the SID of your SAP system.

  1. Create the root folder for all SBD devices.

    sudo mkdir /sbd

  2. Create the SBD device for the NFS server.

    sudo targetcli backstores/fileio create sbdnfs /sbd/sbdnfs 50M write_back=false
sudo targetcli iscsi/ create iqn.2006-04.nfs.local:nfs
sudo targetcli iscsi/iqn.2006-04.nfs.local:nfs/tpg1/luns/ create /backstores/fileio/sbdnfs
sudo targetcli iscsi/iqn.2006-04.nfs.local:nfs/tpg1/acls/ create iqn.2006-04.nfs-0.local:nfs-0
sudo targetcli iscsi/iqn.2006-04.nfs.local:nfs/tpg1/acls/ create iqn.2006-04.nfs-1.local:nfs-1

  3. Create the SBD device for the ASCS server of SAP System NW1.

    sudo targetcli backstores/fileio create sbdascsnw1 /sbd/sbdascsnw1 50M write_back=false
sudo targetcli iscsi/ create iqn.2006-04.ascsnw1.local:ascsnw1
sudo targetcli iscsi/iqn.2006-04.ascsnw1.local:ascsnw1/tpg1/luns/ create /backstores/fileio/sbdascsnw1
sudo targetcli iscsi/iqn.2006-04.ascsnw1.local:ascsnw1/tpg1/acls/ create iqn.2006-04.nw1-xscs-0.local:nw1-xscs-0
sudo targetcli iscsi/iqn.2006-04.ascsnw1.local:ascsnw1/tpg1/acls/ create iqn.2006-04.nw1-xscs-1.local:nw1-xscs-1

  4. Create the SBD device for the database cluster of SAP System NW1.

    sudo targetcli backstores/fileio create sbddbnw1 /sbd/sbddbnw1 50M write_back=false
sudo targetcli iscsi/ create iqn.2006-04.dbnw1.local:dbnw1
sudo targetcli iscsi/iqn.2006-04.dbnw1.local:dbnw1/tpg1/luns/ create /backstores/fileio/sbddbnw1
sudo targetcli iscsi/iqn.2006-04.dbnw1.local:dbnw1/tpg1/acls/ create iqn.2006-04.nw1-db-0.local:nw1-db-0
sudo targetcli iscsi/iqn.2006-04.dbnw1.local:dbnw1/tpg1/acls/ create iqn.2006-04.nw1-db-1.local:nw1-db-1

  5. Save the targetcli changes.

    sudo targetcli saveconfig

  6. Check to ensure that everything was set up correctly.

    sudo targetcli ls

o- / .......................................................................................................... [...]
o- backstores ............................................................................................... [...]
| o- block ................................................................................... [Storage Objects: 0]
| o- fileio .................................................................................. [Storage Objects: 3]
| | o- sbdascsnw1 ................................................ [/sbd/sbdascsnw1 (50.0MiB) write-thru activated]
| | | o- alua .................................................................................... [ALUA Groups: 1]
| | |   o- default_tg_pt_gp ........................................................ [ALUA state: Active/optimized]
| | o- sbddbnw1 .................................................... [/sbd/sbddbnw1 (50.0MiB) write-thru activated]
| | | o- alua .................................................................................... [ALUA Groups: 1]
| | |   o- default_tg_pt_gp ........................................................ [ALUA state: Active/optimized]
| | o- sbdnfs ........................................................ [/sbd/sbdnfs (50.0MiB) write-thru activated]
| |   o- alua .................................................................................... [ALUA Groups: 1]
| |     o- default_tg_pt_gp ........................................................ [ALUA state: Active/optimized]
| o- pscsi ................................................................................... [Storage Objects: 0]
| o- ramdisk ................................................................................. [Storage Objects: 0]
o- iscsi ............................................................................................. [Targets: 3]
| o- iqn.2006-04.ascsnw1.local:ascsnw1 .................................................................. [TPGs: 1]
| | o- tpg1 ................................................................................ [no-gen-acls, no-auth]
| |   o- acls ........................................................................................... [ACLs: 2]
| |   | o- iqn.2006-04.nw1-xscs-0.local:nw1-xscs-0 ............................................... [Mapped LUNs: 1]
| |   | | o- mapped_lun0 ............................................................ [lun0 fileio/sbdascsnw1 (rw)]
| |   | o- iqn.2006-04.nw1-xscs-1.local:nw1-xscs-1 ............................................... [Mapped LUNs: 1]
| |   |   o- mapped_lun0 ............................................................ [lun0 fileio/sbdascsnw1 (rw)]
| |   o- luns ........................................................................................... [LUNs: 1]
| |   | o- lun0 .......................................... [fileio/sbdascsnw1 (/sbd/sbdascsnw1) (default_tg_pt_gp)]
| |   o- portals ..................................................................................... [Portals: 1]
| |     o- 0.0.0.0:3260 ...................................................................................... [OK]
| o- iqn.2006-04.dbnw1.local:dbnw1 ...................................................................... [TPGs: 1]
| | o- tpg1 ................................................................................ [no-gen-acls, no-auth]
| |   o- acls ........................................................................................... [ACLs: 2]
| |   | o- iqn.2006-04.nw1-db-0.local:nw1-db-0 ................................................... [Mapped LUNs: 1]
| |   | | o- mapped_lun0 .............................................................. [lun0 fileio/sbddbnw1 (rw)]
| |   | o- iqn.2006-04.nw1-db-1.local:nw1-db-1 ................................................... [Mapped LUNs: 1]
| |   |   o- mapped_lun0 .............................................................. [lun0 fileio/sbddbnw1 (rw)]
| |   o- luns ........................................................................................... [LUNs: 1]
| |   | o- lun0 .............................................. [fileio/sbddbnw1 (/sbd/sbddbnw1) (default_tg_pt_gp)]
| |   o- portals ..................................................................................... [Portals: 1]
| |     o- 0.0.0.0:3260 ...................................................................................... [OK]
| o- iqn.2006-04.nfs.local:nfs .......................................................................... [TPGs: 1]
|   o- tpg1 ................................................................................ [no-gen-acls, no-auth]
|     o- acls ........................................................................................... [ACLs: 2]
|     | o- iqn.2006-04.nfs-0.local:nfs-0 ......................................................... [Mapped LUNs: 1]
|     | | o- mapped_lun0 ................................................................ [lun0 fileio/sbdnfs (rw)]
|     | o- iqn.2006-04.nfs-1.local:nfs-1 ......................................................... [Mapped LUNs: 1]
|     |   o- mapped_lun0 ................................................................ [lun0 fileio/sbdnfs (rw)]
|     o- luns ........................................................................................... [LUNs: 1]
|     | o- lun0 .................................................. [fileio/sbdnfs (/sbd/sbdnfs) (default_tg_pt_gp)]
|     o- portals ..................................................................................... [Portals: 1]
|       o- 0.0.0.0:3260 ...................................................................................... [OK]
o- loopback .......................................................................................... [Targets: 0]
o- vhost ............................................................................................. [Targets: 0]
o- xen-pvscsi ........................................................................................ [Targets: 0]

Set up the iSCSI target server SBD device

Connect to the iSCSI device that you created in the last step from the cluster. Run the following commands on the nodes of the new cluster that you want to create.

Note

  • [A]: Applies to all nodes.
  • [1]: Applies only to node 1.
  • [2]: Applies only to node 2.

  1. [A] Install iSCSI package.

    sudo zypper install open-iscsi

  2. [A] Connect to the iSCSI devices. First, enable the iSCSI and SBD services.

    sudo systemctl enable iscsid
sudo systemctl enable iscsi
sudo systemctl enable sbd

  3. [1] Change the initiator name on the first node.

    sudo vi /etc/iscsi/initiatorname.iscsi

  4. [1] Change the contents of the file to match the access control lists (ACLs) you used when you created the iSCSI device on the iSCSI target server (for example, for the NFS server).

    InitiatorName=iqn.2006-04.nfs-0.local:nfs-0

  5. [2] Change the initiator name on the second node.

    sudo vi /etc/iscsi/initiatorname.iscsi

  6. [2] Change the contents of the file to match the ACLs you used when you created the iSCSI device on the iSCSI target server.

    InitiatorName=iqn.2006-04.nfs-1.local:nfs-1

  7. [A] Restart the iSCSI service to apply the change.

    sudo systemctl restart iscsid
sudo systemctl restart iscsi

  8. [A] Connect the iSCSI devices. In the following example, 10.0.0.17 is the IP address of the iSCSI target server, and 3260 is the default port. iqn.2006-04.nfs.local:nfs is one of the target names that's listed when you run the first command, iscsiadm -m discovery.

    sudo iscsiadm -m discovery --type=st --portal=10.0.0.17:3260
sudo iscsiadm -m node -T iqn.2006-04.nfs.local:nfs --login --portal=10.0.0.17:3260
sudo iscsiadm -m node -p 10.0.0.17:3260 -T iqn.2006-04.nfs.local:nfs --op=update --name=node.startup --value=automatic

  9. [A] If you want to use multiple SBD devices, also connect to the second iSCSI target server.

    sudo iscsiadm -m discovery --type=st --portal=10.0.0.18:3260
sudo iscsiadm -m node -T iqn.2006-04.nfs.local:nfs --login --portal=10.0.0.18:3260
sudo iscsiadm -m node -p 10.0.0.18:3260 -T iqn.2006-04.nfs.local:nfs --op=update --name=node.startup --value=automatic

  10. [A] If you want to use multiple SBD devices, also connect to the third iSCSI target server.

    sudo iscsiadm -m discovery --type=st --portal=10.0.0.19:3260
sudo iscsiadm -m node -T iqn.2006-04.nfs.local:nfs --login --portal=10.0.0.19:3260
sudo iscsiadm -m node -p 10.0.0.19:3260 -T iqn.2006-04.nfs.local:nfs --op=update --name=node.startup --value=automatic

  11. [A] Make sure that the iSCSI devices are available and note the device name (/dev/sde, in the following example).

    lsscsi

# [2:0:0:0]    disk    Msft     Virtual Disk     1.0   /dev/sda
# [3:0:1:0]    disk    Msft     Virtual Disk     1.0   /dev/sdb
# [5:0:0:0]    disk    Msft     Virtual Disk     1.0   /dev/sdc
# [5:0:0:1]    disk    Msft     Virtual Disk     1.0   /dev/sdd
# [6:0:0:0]    disk    LIO-ORG  sbdnfs           4.0   /dev/sdd
# [7:0:0:0]    disk    LIO-ORG  sbdnfs           4.0   /dev/sde
# [8:0:0:0]    disk    LIO-ORG  sbdnfs           4.0   /dev/sdf

  12. [A] Retrieve the IDs of the iSCSI devices.

    ls -l /dev/disk/by-id/scsi-* | grep sdd

# lrwxrwxrwx 1 root root  9 Aug  9 13:20 /dev/disk/by-id/scsi-1LIO-ORG_sbdnfs:afb0ba8d-3a3c-413b-8cc2-cca03e63ef42 -> ../../sdd
# lrwxrwxrwx 1 root root  9 Aug  9 13:20 /dev/disk/by-id/scsi-36001405afb0ba8d3a3c413b8cc2cca03 -> ../../sdd
# lrwxrwxrwx 1 root root  9 Aug  9 13:20 /dev/disk/by-id/scsi-SLIO-ORG_sbdnfs_afb0ba8d-3a3c-413b-8cc2-cca03e63ef42 -> ../../sdd

ls -l /dev/disk/by-id/scsi-* | grep sde

# lrwxrwxrwx 1 root root  9 Feb  7 12:39 /dev/disk/by-id/scsi-1LIO-ORG_cl1:3fe4da37-1a5a-4bb6-9a41-9a4df57770e4 -> ../../sde
# lrwxrwxrwx 1 root root  9 Feb  7 12:39 /dev/disk/by-id/scsi-360014053fe4da371a5a4bb69a419a4df -> ../../sde
# lrwxrwxrwx 1 root root  9 Feb  7 12:39 /dev/disk/by-id/scsi-SLIO-ORG_cl1_3fe4da37-1a5a-4bb6-9a41-9a4df57770e4 -> ../../sde

ls -l /dev/disk/by-id/scsi-* | grep sdf

# lrwxrwxrwx 1 root root  9 Aug  9 13:32 /dev/disk/by-id/scsi-1LIO-ORG_sbdnfs:f88f30e7-c968-4678-bc87-fe7bfcbdb625 -> ../../sdf
# lrwxrwxrwx 1 root root  9 Aug  9 13:32 /dev/disk/by-id/scsi-36001405f88f30e7c9684678bc87fe7bf -> ../../sdf
# lrwxrwxrwx 1 root root  9 Aug  9 13:32 /dev/disk/by-id/scsi-SLIO-ORG_sbdnfs_f88f30e7-c968-4678-bc87-fe7bfcbdb625 -> ../../sdf

    The command lists three device IDs for every SBD device. We recommend using the ID that starts with scsi-3. In the preceding example, the IDs are:

    • /dev/disk/by-id/scsi-36001405afb0ba8d3a3c413b8cc2cca03
    • /dev/disk/by-id/scsi-360014053fe4da371a5a4bb69a419a4df
    • /dev/disk/by-id/scsi-36001405f88f30e7c9684678bc87fe7bf

  13. [1] Create the SBD device.

    a. Use the device ID of the iSCSI devices to create the new SBD devices on the first cluster node.

    sudo sbd -d /dev/disk/by-id/scsi-36001405afb0ba8d3a3c413b8cc2cca03 -1 60 -4 120 create

    b. Also create the second and third SBD devices if you want to use more than one.

    sudo sbd -d /dev/disk/by-id/scsi-360014053fe4da371a5a4bb69a419a4df -1 60 -4 120 create
sudo sbd -d /dev/disk/by-id/scsi-36001405f88f30e7c9684678bc87fe7bf -1 60 -4 120 create

  14. [A] Adapt the SBD configuration.

    a. Open the SBD config file.

    sudo vi /etc/sysconfig/sbd

    b. Change the property of the SBD device, enable the Pacemaker integration, and change the start mode of SBD.

    [...]
SBD_DEVICE="/dev/disk/by-id/scsi-36001405afb0ba8d3a3c413b8cc2cca03;/dev/disk/by-id/scsi-360014053fe4da371a5a4bb69a419a4df;/dev/disk/by-id/scsi-36001405f88f30e7c9684678bc87fe7bf"
[...]
SBD_PACEMAKER="yes"
[...]
SBD_STARTMODE="always"
[...]

    Note

    If the SBD_DELAY_START property value is set to "no", change the value to "yes". You must also check the SBD service file to ensure that the value of TimeoutStartSec is greater than the value of SBD_DELAY_START. For more information, see SBD file configuraton

  15. [A] Create the softdog configuration file.

    echo softdog | sudo tee /etc/modules-load.d/softdog.conf

  16. [A] Load the module.

    sudo modprobe -v softdog

SBD with an Azure shared disk

This section applies only if you want to use an SBD device with an Azure shared disk.

Create and attach an Azure shared disk with PowerShell

  1. Adjust the values for your resource group, Azure region, virtual machines, logical unit numbers (LUNs), and so on.

    $ResourceGroup = "MyResourceGroup"
$Location = "MyAzureRegion"

  2. Define the size of the disk based on available disk size for Premium SSDs. In this example, P1 disk size of 4G is mentioned.

    $DiskSizeInGB = 4
$DiskName = "SBD-disk1"

  3. With parameter -MaxSharesCount, define the maximum number of cluster nodes to attach the shared disk for the SBD device.

    $ShareNodes = 2

  4. For an SBD device that uses LRS for an Azure premium shared disk, use the following storage SkuName:

    $SkuName = "Premium_LRS"

  5. For an SBD device that uses ZRS for an Azure premium shared disk, use the following storage SkuName:

    $SkuName = "Premium_ZRS"

  6. Set up an Azure shared disk.

    $diskConfig = New-AzDiskConfig -Location $Location -SkuName $SkuName -CreateOption Empty -DiskSizeGB $DiskSizeInGB -MaxSharesCount $ShareNodes
$dataDisk = New-AzDisk -ResourceGroupName $ResourceGroup -DiskName $DiskName -Disk $diskConfig

  7. Attach the disk to the cluster VMs.

    $VM1 = "prod-cl1-0"
$VM2 = "prod-cl1-1"

    a. Add the Azure shared disk to cluster node 1.

    $vm = Get-AzVM -ResourceGroupName $ResourceGroup -Name $VM1
$vm = Add-AzVMDataDisk -VM $vm -Name $DiskName -CreateOption Attach -ManagedDiskId $dataDisk.Id -Lun 0
Update-AzVm -VM $vm -ResourceGroupName $ResourceGroup -Verbose

    b. Add the Azure shared disk to cluster node 2.

    $vm = Get-AzVM -ResourceGroupName $ResourceGroup -Name $VM2
$vm = Add-AzVMDataDisk -VM $vm -Name $DiskName -CreateOption Attach -ManagedDiskId $dataDisk.Id -Lun 0
Update-AzVm -VM $vm -ResourceGroupName $ResourceGroup -Verbose

If you want to deploy resources by using the Azure CLI or the Azure portal, you can also refer to Deploy a ZRS disk.

Set up an Azure shared disk SBD device

  1. [A] Enable the SBD services.

    sudo systemctl enable sbd

  2. [A] Make sure that the attached disk is available.

    # lsblk
NAME   MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT
fd0      2:0    1    4K  0 disk
sda      8:0    0   30G  0 disk
├─sda1   8:1    0    2M  0 part
├─sda2   8:2    0  512M  0 part /boot/efi
├─sda3   8:3    0    1G  0 part /boot
├─sda4   8:4    0 28.5G  0 part /
sdb      8:16   0  256G  0 disk
├─sdb1   8:17   0  256G  0 part /mnt
sdc      8:32   0    4G  0 disk
sr0     11:0    1 1024M  0 rom

# lsscsi
[1:0:0:0]    cd/dvd  Msft     Virtual CD/ROM   1.0   /dev/sr0
[2:0:0:0]    disk    Msft     Virtual Disk     1.0   /dev/sda
[3:0:1:0]    disk    Msft     Virtual Disk     1.0   /dev/sdb
[5:0:0:0]    disk    Msft     Virtual Disk     1.0   /dev/sdc

  3. [A] Retrieve the IDs of the attached disks.

    # ls -l /dev/disk/by-id/scsi-* | grep sdc
lrwxrwxrwx 1 root root  9 Nov  8 16:55 /dev/disk/by-id/scsi-14d534654202020204208a67da80744439b513b2a9728af19 -> ../../sdc
lrwxrwxrwx 1 root root  9 Nov  8 16:55 /dev/disk/by-id/scsi-3600224804208a67da8073b2a9728af19 -> ../../sdc

    The commands list device IDs for the SBD device. We recommend using the ID that starts with scsi-3. In the preceding example, the ID is /dev/disk/by-id/scsi-3600224804208a67da8073b2a9728af19.

  4. [1] Create the SBD device.

    Use the device ID from step 2 to create the new SBD devices on the first cluster node.

    # sudo sbd -d /dev/disk/by-id/scsi-3600224804208a67da8073b2a9728af19 -1 60 -4 120 create

  5. [A] Adapt the SBD configuration.

    a. Open the SBD config file.

    sudo vi /etc/sysconfig/sbd

    b. Change the property of the SBD device, enable the Pacemaker integration, and change the start mode of the SBD device.

    [...]
SBD_DEVICE="/dev/disk/by-id/scsi-3600224804208a67da8073b2a9728af19"
[...]
SBD_PACEMAKER="yes"
[...]
SBD_STARTMODE="always"
[...]

    Note

    If the SBD_DELAY_START property value is set to "no", change the value to "yes". You must also check the SBD service file to ensure that the value of TimeoutStartSec is greater than the value of SBD_DELAY_START. For more information, see SBD file configuraton

  6. Create the softdog configuration file.

    echo softdog | sudo tee /etc/modules-load.d/softdog.conf

  7. Load the module.

    sudo modprobe -v softdog

Use an Azure fence agent

This section applies only if you want to use a fencing device with an Azure fence agent.

Create an Azure fence agent device

This section applies only if you're using a fencing device that's based on an Azure fence agent. The fencing device uses either a managed identity or a service principal to authorize against Microsoft Azure.

To create a managed identity (MSI), create a system-assigned managed identity for each VM in the cluster. Should a system-assigned managed identity already exist, it will be used. User assigned managed identities shouldn't be used with Pacemaker at this time. Azure fence agent, based on managed identity is supported for SLES 12 SP5 and SLES 15 SP1 and above.

[1] Create a custom role for the fence agent

By default, neither managed identity nor service principal has permissions to access your Azure resources. You need to give the managed identity or service principal permissions to start and stop (deallocate) all virtual machines in the cluster. If you didn't already create the custom role, you can do so by using PowerShell or the Azure CLI.

Use the following content for the input file. You need to adapt the content to your subscriptions. That is, replace xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx and yyyyyyyy-yyyy-yyyy-yyyy-yyyyyyyyyyyy with your own subscription IDs. If you have only one subscription, remove the second entry under AssignableScopes.

{
      "Name": "Linux fence agent Role",
      "description": "Allows to power-off and start virtual machines",
      "assignableScopes": [
              "/subscriptions/xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx",
              "/subscriptions/yyyyyyyy-yyyy-yyyy-yyyy-yyyyyyyyyyyy"
      ],
      "actions": [
              "Microsoft.Compute/*/read",
              "Microsoft.Compute/virtualMachines/powerOff/action",
              "Microsoft.Compute/virtualMachines/start/action"
      ],
      "notActions": [],
      "dataActions": [],
      "notDataActions": []
}

[A] Assign the custom role

Use managed identity or service principal.

Assign the custom role "Linux Fence Agent Role" that was created in the last chapter to each managed identity of the cluster VMs. Each VM system-assigned managed identity needs the role assigned for every cluster VM's resource. For detailed steps, see Assign a managed identity access to a resource by using the Azure portal. Verify each VM's managed identity role assignment contains all cluster VMs.

Important

Be aware assignment and removal of authorization with managed identities can be delayed until effective.

Install the cluster

Note

  • [A]: Applies to all nodes.
  • [1]: Applies only to node 1.
  • [2]: Applies only to node 2.

  1. [A] Update SLES.

    sudo zypper update

    Note

    For SLES 15 SP4, verify the versions of the crmsh and pacemaker packages to ensure they meet the minimum version requirements:

    • crmsh-4.4.0+20221028.3e41444-150400.3.9.1 or later
    • pacemaker-2.1.2+20211124.ada5c3b36-150400.4.6.1 or later

    Important

    • SLES 12 SP5: If python-azure-core-1.23.1-2.12.8 is installed, the Azure fence agent may fail to start in a Pacemaker cluster, displaying the error message “Azure Resource Manager Python SDK not found or not accessible” in /var/log/messages. Follow the instructions in SUSE KBA 21532 for more details.
    • SLES 15 SP4+: After updating the OS, the Azure libraries for Python might use the Python 3.11 interpreter, causing the Azure fence agent to fail to start in a Pacemaker cluster. The error message “Azure Resource Manager Python SDK not found or not accessible” will appear in /var/log/messages. Follow the instructions in SUSE KBA 21504 for more details.

  2. [A] Install the component, which you need for the cluster resources.

    sudo zypper in socat

  3. [A] Install the azure-lb component, which you need for the cluster resources.

    sudo zypper in resource-agents

    Note

    Check the version of the resource-agents package, and make sure that the minimum version requirements are met:

    • SLES 12 SP4/SP5: The version must be resource-agents-4.3.018.a7fb5035-3.30.1 or later.
    • SLES 15/15 SP1: The version must be resource-agents-4.3.0184.6ee15eb2-4.13.1 or later.

  4. [A] Configure the operating system.

    a. Pacemaker occasionally creates many processes, which can exhaust the allowed number. When this happens, a heartbeat between the cluster nodes might fail and lead to a failover of your resources. We recommend increasing the maximum number of allowed processes by setting the following parameter:

    # Edit the configuration file
sudo vi /etc/systemd/system.conf

# Change the DefaultTasksMax
#DefaultTasksMax=512
DefaultTasksMax=4096

# Activate this setting
sudo systemctl daemon-reload

# Test to ensure that the change was successful
sudo systemctl --no-pager show | grep DefaultTasksMax

    b. Reduce the size of the dirty cache. For more information, see Low write performance on SLES 11/12 servers with large RAM.

    sudo vi /etc/sysctl.conf
# Change/set the following settings
vm.dirty_bytes = 629145600
vm.dirty_background_bytes = 314572800

    c. Make sure vm.swappiness is set to 10 to reduce swap usage and favor memory.

    sudo vi /etc/sysctl.conf
# Change/set the following setting
vm.swappiness = 10

  5. [A] Check the cloud-netconfig-azure package version.

    Check the installed version of the cloud-netconfig-azure package by running zypper info cloud-netconfig-azure. If the version is earlier than 1.3, we recommend that you update the cloud-netconfig-azure package to the latest available version.

    Tip

    If the version in your environment is 1.3 or later, it's no longer necessary to suppress the management of network interfaces by the cloud network plug-in.

    Only if the version of cloud-netconfig-azure is lower than 1.3, change the configuration file for the network interface as shown in the following code to prevent the cloud network plug-in from removing the virtual IP address (Pacemaker must control the assignment). For more information, see SUSE KB 7023633.

    # Edit the configuration file
sudo vi /etc/sysconfig/network/ifcfg-eth0

# Change CLOUD_NETCONFIG_MANAGE
# CLOUD_NETCONFIG_MANAGE="yes"
CLOUD_NETCONFIG_MANAGE="no"

  6. [1] Enable SSH access.

    sudo ssh-keygen

# Enter file in which to save the key (/root/.ssh/id_rsa), and then select Enter
# Enter passphrase (empty for no passphrase), and then select Enter
# Enter same passphrase again, and then select Enter

# copy the public key
sudo cat /root/.ssh/id_rsa.pub

  7. [2] Enable SSH access.

    sudo ssh-keygen

# Enter file in which to save the key (/root/.ssh/id_rsa), and then select Enter
# Enter passphrase (empty for no passphrase), and then select Enter
# Enter same passphrase again, and then select Enter

# Insert the public key you copied in the last step into the authorized keys file on the second server
sudo vi /root/.ssh/authorized_keys

# copy the public key
sudo cat /root/.ssh/id_rsa.pub

  8. [1] Enable SSH access.

    # insert the public key you copied in the last step into the authorized keys file on the first server
sudo vi /root/.ssh/authorized_keys

  9. [A] Install the fence-agents package if you're using a fencing device, based on the Azure fence agent.

    sudo zypper install fence-agents

    Important

    The installed version of the fence-agents package must be 4.4.0 or later to benefit from the faster failover times with the Azure fence agent, when a cluster node is fenced. If you're running an earlier version, we recommend that you update the package.

    Important

    If using managed identity, the installed version of the fence-agents package must be -

    • SLES 12 SP5: fence-agents 4.9.0+git.1624456340.8d746be9-3.35.2 or later
    • SLES 15 SP1 and higher: fence-agents 4.5.2+git.1592573838.1eee0863 or later.

    Earlier versions will not work correctly with a managed identity configuration.

  10. [A] Install fence-agents-azure-arm package.

    For SLES 12 SP5, if you are using fence-agents version 4.9.0+git.1624456340.8d746be9-3.41.3 or later, and for SLES 15 SP4 and newer, you need to install the fence-agents-azure-arm package. This package will include all required dependencies.

    # On SLES 12 SP5 with fence-agents version 4.9.0+git.1624456340.8d746be9-3.41.3 or higher. You might need to activate the public cloud extension first
SUSEConnect -p sle-module-public-cloud/12/x86_64
sudo zypper install fence-agents-azure-arm

# On SLES 15 SP4 and later. You might need to activate the public cloud extension first. In this example, the SUSEConnect
SUSEConnect -p sle-module-public-cloud/15.4/x86_64
sudo zypper install fence-agents-azure-arm

  11. [A] Install the Azure Python SDK and Azure Identity Python module.

    For SLES 12 SP5, if your fence-agents version is lower then 4.9.0+git.1624456340.8d746be9-3.41.3, and for SLES 15 SP3 and below, you need to install below additional packages.

    # You might need to activate the public cloud extension first
SUSEConnect -p sle-module-public-cloud/12/x86_64
sudo zypper install python-azure-mgmt-compute
sudo zypper install python-azure-identity

# You might need to activate the public cloud extension first. In this example, the SUSEConnect command is for SLES 15 SP1
SUSEConnect -p sle-module-public-cloud/15.1/x86_64
sudo zypper install python3-azure-mgmt-compute
sudo zypper install python3-azure-identity

    Important

    Depending on your version and image type, you might need to activate the public cloud extension for your OS release before you can install the Azure Python SDK. You can check the extension by running SUSEConnect ---list-extensions. To achieve the faster failover times with the Azure fence agent:

    • On SLES 12 SP5, install version 4.6.2 or later of the python-azure-mgmt-compute package.
    • If your python-azure-mgmt-compute or python3-azure-mgmt-compute package version is 17.0.0-6.7.1, follow the instructions in SUSE KBA to update the fence-agents version and install the Azure Identity client library for Python module if it is missing.

  12. [A] Set up the hostname resolution.

    You can either use a DNS server or modify the /etc/hosts file on all nodes. This example shows how to use the /etc/hosts file.

    Replace the IP address and the hostname in the following commands.

    Important

    If you're using hostnames in the cluster configuration, it's essential to have a reliable hostname resolution. The cluster communication will fail if the names are unavailable, and that can lead to cluster failover delays.

    The benefit of using /etc/hosts is that your cluster becomes independent of the DNS, which could be a single point of failure too.

    sudo vi /etc/hosts

    Insert the following lines in the /etc/hosts. Change the IP address and hostname to match your environment.

    # IP address of the first cluster node
10.0.0.6 prod-cl1-0
# IP address of the second cluster node
10.0.0.7 prod-cl1-1

  13. [1] Install the cluster.

    • If you're using SBD devices for fencing (for either the iSCSI target server or Azure shared disk):

      sudo crm cluster init
# ! NTP is not configured to start at system boot.
# Do you want to continue anyway (y/n)? y
# /root/.ssh/id_rsa already exists - overwrite (y/n)? n
# Address for ring0 [10.0.0.6] Select Enter
# Port for ring0 [5405] Select Enter
# SBD is already configured to use /dev/disk/by-id/scsi-36001405639245768818458b930abdf69;/dev/disk/by-id/scsi-36001405afb0ba8d3a3c413b8cc2cca03;/dev/disk/by-id/scsi-36001405f88f30e7c9684678bc87fe7bf - overwrite (y/n)? n
# Do you wish to configure an administration IP (y/n)? n

    • If you're not using SBD devices for fencing:

      sudo crm cluster init
# ! NTP is not configured to start at system boot.
# Do you want to continue anyway (y/n)? y
# /root/.ssh/id_rsa already exists - overwrite (y/n)? n
# Address for ring0 [10.0.0.6] Select Enter
# Port for ring0 [5405] Select Enter
# Do you wish to use SBD (y/n)? n
# WARNING: Not configuring SBD - STONITH will be disabled.
# Do you wish to configure an administration IP (y/n)? n

  14. [2] Add the node to the cluster.

    sudo crm cluster join
# ! NTP is not configured to start at system boot.
# Do you want to continue anyway (y/n)? y
# IP address or hostname of existing node (for example, 192.168.1.1) []10.0.0.6
# /root/.ssh/id_rsa already exists - overwrite (y/n)? n

  15. [A] Change the hacluster password to the same password.

    sudo passwd hacluster

  16. [A] Adjust the corosync settings.

    sudo vi /etc/corosync/corosync.conf

    a. Check the following section in the file and adjust, if the values aren't there or are different. Be sure to change the token to 30000 to allow memory-preserving maintenance. For more information, see the "Maintenance for virtual machines in Azure" article for Linux or Windows.

    [...]
  token:          30000
  token_retransmits_before_loss_const: 10
  join:           60
  consensus:      36000
  max_messages:   20

  interface {
     [...]
  }
  transport:      udpu
}
nodelist {
  node {
   ring0_addr:10.0.0.6
  }
  node {
   ring0_addr:10.0.0.7
  }
}
logging {
  [...]
}
quorum {
     # Enable and configure quorum subsystem (default: off)
     # See also corosync.conf.5 and votequorum.5
     provider: corosync_votequorum
     expected_votes: 2
     two_node: 1
}

    b. Restart the corosync service.

    sudo service corosync restart

Create a fencing device on the Pacemaker cluster

Tip

  • To avoid fence races within a two-node pacemaker cluster, you can configure additional "priority-fencing-delay" cluster property. This property introduces additional delay in fencing a node that has higher total resource priority when a split-brain scenario occurs. For additional details, see SUSE Linux Enterprise Server high availability extension administration guide.
  • The instruction on setting "priority-fencing-delay" cluster property can be found in respective SAP ASCS/ERS (applicable only on ENSA2) and SAP HANA scale-up high availability document.

  1. [1] If you're using an SBD device (iSCSI target server or Azure shared disk) as a fencing device, run the following commands. Enable the use of a fencing device, and set the fence delay.

    sudo crm configure property stonith-timeout=144
sudo crm configure property stonith-enabled=true

# List the resources to find the name of the SBD device
sudo crm resource list
sudo crm resource stop stonith-sbd
sudo crm configure delete stonith-sbd
sudo crm configure primitive stonith-sbd stonith:external/sbd \
   params pcmk_delay_max="15" \
   op monitor interval="600" timeout="15"

  2. [1] If you're using an Azure fence agent for fencing, run the following commands. After you've assigned roles to both cluster nodes, you can configure the fencing devices in the cluster.

    sudo crm configure property stonith-enabled=true
sudo crm configure property concurrent-fencing=true

    Note

    The 'pcmk_host_map' option is required in the command only if the hostnames and the Azure VM names are not identical. Specify the mapping in the format hostname:vm-name.

# Adjust the command with your subscription ID and resource group of the VM

sudo crm configure primitive rsc_st_azure stonith:fence_azure_arm \
params msi=true subscriptionId="subscription ID" resourceGroup="resource group" \
pcmk_monitor_retries=4 pcmk_action_limit=3 power_timeout=240 pcmk_reboot_timeout=900 pcmk_delay_max=15 pcmk_host_map="prod-cl1-0:prod-cl1-0-vm-name;prod-cl1-1:prod-cl1-1-vm-name" \
op monitor interval=3600 timeout=120

sudo crm configure property stonith-timeout=900

If you're using fencing device, based on service principal configuration, read Change from SPN to MSI for Pacemaker clusters using Azure fencing and learn how to convert to managed identity configuration.

Important

The monitoring and fencing operations are deserialized. As a result, if there's a longer-running monitoring operation and simultaneous fencing event, there's no delay to the cluster failover because the monitoring operation is already running.

Tip

The Azure fence agent requires outbound connectivity to the public endpoints, as documented, along with possible solutions, in Public endpoint connectivity for VMs using standard ILB.

Configure Pacemaker for Azure scheduled events

Azure offers scheduled events. Scheduled events are provided via the metadata service and allow time for the application to prepare for such events. Resource agent azure-events-az monitors for scheduled Azure events. If events are detected and the resource agent determines that another cluster node is available, it sets a cluster health attribute. When the cluster health attribute is set for a node, the location constraint triggers and all resources, whose name doesn't start with "health-" are migrated away from the node with scheduled event. Once the affected cluster node is free of running cluster resources, scheduled event is acknowledged and can execute its action, such as restart.

Important

Previously, this document described the use of resource agent azure-events. New resource agent azure-events-az fully supports Azure environments deployed in different availability zones. It is recommended to utilize the newer azure-events-az agent for all SAP highly available systems with Pacemaker.

  1. [A] Make sure that the package for the azure-events agent is already installed and up to date.

    sudo zypper info resource-agents

    Minimum version requirements:

    • SLES 12 SP5: resource-agents-4.3.018.a7fb5035-3.98.1
    • SLES 15 SP1: resource-agents-4.3.0184.6ee15eb2-150100.4.72.1
    • SLES 15 SP2: resource-agents-4.4.0+git57.70549516-150200.3.56.1
    • SLES 15 SP3: resource-agents-4.8.0+git30.d0077df0-150300.8.31.1
    • SLES 15 SP4 and newer: resource-agents-4.10.0+git40.0f4de473-150400.3.19.1

  2. [1] Configure the resources in Pacemaker.

    #Place the cluster in maintenance mode
sudo crm configure property maintenance-mode=true

  3. [1] Set the pacemaker cluster health node strategy and constraint

    sudo crm configure property node-health-strategy=custom
sudo crm configure location loc_azure_health \
/'!health-.*'/ rule '#health-azure': defined '#uname'

    Important

    Don't define any other resources in the cluster starting with "health-", besides the resources described in the next steps of the documentation.

  4. [1] Set initial value of the cluster attributes. Run for each cluster node. For scale-out environments including majority maker VM.

    sudo crm_attribute --node prod-cl1-0 --name '#health-azure' --update 0
sudo crm_attribute --node prod-cl1-1 --name '#health-azure' --update 0

  5. [1] Configure the resources in Pacemaker. Important: The resources must start with 'health-azure'.

    sudo crm configure primitive health-azure-events ocf:heartbeat:azure-events-az \
meta allow-unhealthy-nodes=true failure-timeout=120s \
op start start-delay=60s \
op monitor interval=10s

sudo crm configure clone health-azure-events-cln health-azure-events

    Note

    On configuring 'health-azure-events' resource, following warning message can be ignored.

    WARNING: health-azure-events: unknown attribute 'allow-unhealthy-nodes'.

  6. Take the Pacemaker cluster out of maintenance mode

    sudo crm configure property maintenance-mode=false

  7. Clear any errors during enablement and verify that the health-azure-events resources have started successfully on all cluster nodes.

    sudo crm resource cleanup

    First time query execution for scheduled events can take up to 2 minutes. Pacemaker testing with scheduled events can use reboot or redeploy actions for the cluster VMs. For more information, see scheduled events documentation.

    Note

    After you've configured the Pacemaker resources for the azure-events agent, if you place the cluster in or out of maintenance mode, you might get warning messages such as:

    WARNING: cib-bootstrap-options: unknown attribute 'hostName_hostname'
    WARNING: cib-bootstrap-options: unknown attribute 'azure-events_globalPullState'
    WARNING: cib-bootstrap-options: unknown attribute 'hostName_ hostname'
    These warning messages can be ignored.

Next steps
