TileBrush Class

Definition

Describes a way to paint a region by using one or more tiles.

public ref class TileBrush abstract : System::Windows::Media::Brush
public abstract class TileBrush : System.Windows.Media.Brush
type TileBrush = class
    inherit Brush
Public MustInherit Class TileBrush
Inherits Brush
Inheritance
Derived

Remarks

The derived classes of TileBrush define the contents of the tiles that you use to paint a region. For example, use the ImageBrush class to paint an area by using an image.

Use a TileBrush to control how you paint an area. For example, Windows Presentation Foundation (WPF) provides several types of brushes:

When you use the TileBrush to paint an area, instead of painting an area by using a single stretched image, you can paint an area by using a series of image tiles that create a pattern.

When you paint an area by using a TileBrush, you use three components: content, tiles, and the output area. The following illustrations show how these three TileBrush components relate to each other.

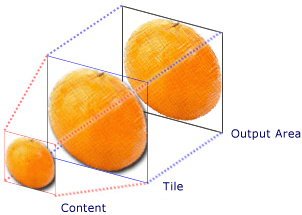

TileBrush components Components of a TileBrush with a single tile

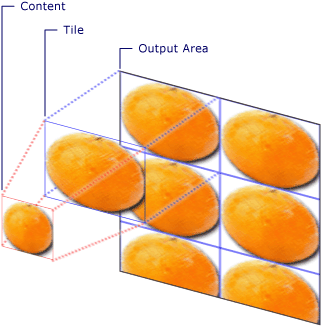

Components of a tiled TileBrush Components of a TileBrush with a TileMode of Tile

Content: A TileBrush can have different types of content:

You can specify the position and dimensions of TileBrush content by using the Viewbox property.

Tiles: A TileBrush produces one or more tiles. By default, the content of the brush is stretched to fill a single tile and that tile is stretched to fill the output area. The Viewport property is used to specify the size and position of the base tile for the TileBrush. The ViewportUnits property determines whether the size and position of the Viewport are relative to the output area (the default behavior) or whether they are absolute values.

Output Area: The output area is the area that the brush paints, such as the Fill of an Ellipse or the Background of a Button.

For more information about the TileBrush class, see Painting with Images, Drawings, and Visuals .

Freezable Features

A TileBrush is a Freezable type. For information about Freezable features, such as freezing and cloning, see the Freezable Objects Overview.

Notes to Implementers

When you inherit from the TileBrush class, you must override the CreateInstanceCore() method. For more information about inheriting from Freezable types, see the Freezable Objects Overview.

Constructors

TileBrush()

Provides initialization for base class values when called by the constructor of a derived class.

Fields

AlignmentXProperty

Identifies the AlignmentX dependency property.

AlignmentYProperty

Identifies the AlignmentY dependency property.

StretchProperty

Identifies the Stretch dependency property.

TileModeProperty

Identifies the TileMode dependency property.

ViewboxProperty

Identifies the Viewbox dependency property.

ViewboxUnitsProperty

Identifies the ViewboxUnits dependency property.

ViewportProperty

Identifies the Viewport dependency property.

ViewportUnitsProperty

Identifies the ViewportUnits dependency property.

Properties

AlignmentX

Gets or sets the horizontal alignment of content in the TileBrush base tile.

AlignmentY

Gets or sets the vertical alignment of content in the TileBrush base tile.

CanFreeze

Gets a value that indicates whether the object can be made unmodifiable.

(Inherited from Freezable)
DependencyObjectType

Gets the DependencyObjectType that wraps the CLR type of this instance.

(Inherited from DependencyObject)
Dispatcher

Gets the Dispatcher this DispatcherObject is associated with.

(Inherited from DispatcherObject)
HasAnimatedProperties

Gets a value that indicates whether one or more AnimationClock objects is associated with any of this object's dependency properties.

(Inherited from Animatable)
IsFrozen

Gets a value that indicates whether the object is currently modifiable.

(Inherited from Freezable)
IsSealed

Gets a value that indicates whether this instance is currently sealed (read-only).

(Inherited from DependencyObject)
Opacity

Gets or sets the degree of opacity of a Brush.

(Inherited from Brush)
RelativeTransform

Gets or sets the transformation that is applied to the brush using relative coordinates.

(Inherited from Brush)
Stretch

Gets or sets a value that specifies how the content of this TileBrush stretches to fit its tiles.

TileMode

Gets or sets a value that specifies how a TileBrush fills the area that you are painting if the base tile is smaller than the output area.

Transform

Gets or sets the transformation that is applied to the brush. This transformation is applied after the brush's output has been mapped and positioned.

(Inherited from Brush)
Viewbox

Gets or sets the position and dimensions of the content in a TileBrush tile.

ViewboxUnits

Gets or sets a value that specifies whether the Viewbox value is relative to the bounding box of the TileBrush contents or whether the value is absolute.

Viewport

Gets or sets the position and dimensions of the base tile for a TileBrush.

ViewportUnits

Gets or sets a BrushMappingMode enumeration that specifies whether the value of the Viewport, which indicates the size and position of the TileBrush base tile, is relative to the size of the output area.

Methods

ApplyAnimationClock(DependencyProperty, AnimationClock, HandoffBehavior)

Applies an AnimationClock to the specified DependencyProperty. If the property is already animated, the specified HandoffBehavior is used.

(Inherited from Animatable)
ApplyAnimationClock(DependencyProperty, AnimationClock)

Applies an AnimationClock to the specified DependencyProperty. If the property is already animated, the SnapshotAndReplace handoff behavior is used.

(Inherited from Animatable)
BeginAnimation(DependencyProperty, AnimationTimeline, HandoffBehavior)

Applies an animation to the specified DependencyProperty. The animation is started when the next frame is rendered. If the specified property is already animated, the specified HandoffBehavior is used.

(Inherited from Animatable)
BeginAnimation(DependencyProperty, AnimationTimeline)

Applies an animation to the specified DependencyProperty. The animation is started when the next frame is rendered. If the specified property is already animated, the SnapshotAndReplace handoff behavior is used.

(Inherited from Animatable)
CheckAccess()

Determines whether the calling thread has access to this DispatcherObject.

(Inherited from DispatcherObject)
ClearValue(DependencyProperty)

Clears the local value of a property. The property to be cleared is specified by a DependencyProperty identifier.

(Inherited from DependencyObject)
ClearValue(DependencyPropertyKey)

Clears the local value of a read-only property. The property to be cleared is specified by a DependencyPropertyKey.

(Inherited from DependencyObject)
Clone()

Creates a modifiable copy of this TileBrush by making deep copies of its values.

CloneCore(Freezable)

Makes the instance a clone (deep copy) of the specified Freezable using base (non-animated) property values.

(Inherited from Freezable)
CloneCurrentValue()

Creates a modifiable copy of this TileBrush object by making deep copies of its values. This method does not copy resource references, data bindings, or animations, although it does copy their current values.

CloneCurrentValueCore(Freezable)

Makes the instance a modifiable clone (deep copy) of the specified Freezable using current property values.

(Inherited from Freezable)
CoerceValue(DependencyProperty)

Coerces the value of the specified dependency property. This is accomplished by invoking any CoerceValueCallback function specified in property metadata for the dependency property as it exists on the calling DependencyObject.

(Inherited from DependencyObject)
CreateInstance()

Initializes a new instance of the Freezable class.

(Inherited from Freezable)
CreateInstanceCore()

When implemented in a derived class, creates a new instance of the Freezable derived class.

(Inherited from Freezable)
Equals(Object)

Determines whether a provided DependencyObject is equivalent to the current DependencyObject.

(Inherited from DependencyObject)
Freeze()

Makes the current object unmodifiable and sets its IsFrozen property to true.

(Inherited from Freezable)
FreezeCore(Boolean)

Makes this Animatable object unmodifiable or determines whether it can be made unmodifiable.

(Inherited from Animatable)
GetAnimationBaseValue(DependencyProperty)

Returns the non-animated value of the specified DependencyProperty.

(Inherited from Animatable)
GetAsFrozen()

Creates a frozen copy of the Freezable, using base (non-animated) property values. Because the copy is frozen, any frozen sub-objects are copied by reference.

(Inherited from Freezable)
GetAsFrozenCore(Freezable)

Makes the instance a frozen clone of the specified Freezable using base (non-animated) property values.

(Inherited from Freezable)
GetContentBounds(Rect)

Obtains the current bounds of the TileBrush content.

GetCurrentValueAsFrozen()

Creates a frozen copy of the Freezable using current property values. Because the copy is frozen, any frozen sub-objects are copied by reference.

(Inherited from Freezable)
GetCurrentValueAsFrozenCore(Freezable)

Makes the current instance a frozen clone of the specified Freezable. If the object has animated dependency properties, their current animated values are copied.

(Inherited from Freezable)
GetHashCode()

Gets a hash code for this DependencyObject.

(Inherited from DependencyObject)
GetLocalValueEnumerator()

Creates a specialized enumerator for determining which dependency properties have locally set values on this DependencyObject.

(Inherited from DependencyObject)
GetType()

Gets the Type of the current instance.

(Inherited from Object)
GetValue(DependencyProperty)

Returns the current effective value of a dependency property on this instance of a DependencyObject.

(Inherited from DependencyObject)
InvalidateProperty(DependencyProperty)

Re-evaluates the effective value for the specified dependency property.

(Inherited from DependencyObject)
MemberwiseClone()

Creates a shallow copy of the current Object.

(Inherited from Object)
OnChanged()

Called when the current Freezable object is modified.

(Inherited from Freezable)
OnFreezablePropertyChanged(DependencyObject, DependencyObject, DependencyProperty)

This member supports the Windows Presentation Foundation (WPF) infrastructure and is not intended to be used directly from your code.

(Inherited from Freezable)
OnFreezablePropertyChanged(DependencyObject, DependencyObject)

Ensures that appropriate context pointers are established for a DependencyObjectType data member that has just been set.

(Inherited from Freezable)
OnPropertyChanged(DependencyPropertyChangedEventArgs)

Overrides the DependencyObject implementation of OnPropertyChanged(DependencyPropertyChangedEventArgs) to also invoke any Changed handlers in response to a changing dependency property of type Freezable.

(Inherited from Freezable)
ReadLocalValue(DependencyProperty)

Returns the local value of a dependency property, if it exists.

(Inherited from DependencyObject)
ReadPreamble()

Ensures that the Freezable is being accessed from a valid thread. Inheritors of Freezable must call this method at the beginning of any API that reads data members that are not dependency properties.

(Inherited from Freezable)
SetCurrentValue(DependencyProperty, Object)

Sets the value of a dependency property without changing its value source.

(Inherited from DependencyObject)
SetValue(DependencyProperty, Object)

Sets the local value of a dependency property, specified by its dependency property identifier.

(Inherited from DependencyObject)
SetValue(DependencyPropertyKey, Object)

Sets the local value of a read-only dependency property, specified by the DependencyPropertyKey identifier of the dependency property.

(Inherited from DependencyObject)
ShouldSerializeProperty(DependencyProperty)

Returns a value that indicates whether serialization processes should serialize the value for the provided dependency property.

(Inherited from DependencyObject)
ToString()

Return string representation of this Brush.

(Inherited from Brush)
ToString(IFormatProvider)

Creates a string representation of this object based on the specified culture-specific formatting information.

(Inherited from Brush)
VerifyAccess()

Enforces that the calling thread has access to this DispatcherObject.

(Inherited from DispatcherObject)
WritePostscript()

Raises the Changed event for the Freezable and invokes its OnChanged() method. Classes that derive from Freezable should call this method at the end of any API that modifies class members that are not stored as dependency properties.

(Inherited from Freezable)
WritePreamble()

Verifies that the Freezable is not frozen and that it is being accessed from a valid threading context. Freezable inheritors should call this method at the beginning of any API that writes to data members that are not dependency properties.

(Inherited from Freezable)

Events

Changed

Occurs when the Freezable or an object it contains is modified.

(Inherited from Freezable)

Explicit Interface Implementations

IFormattable.ToString(String, IFormatProvider)

Formats the value of the current instance using the specified format.

(Inherited from Brush)
