What is SQL Data Sync for Azure?

  • Raksts

Applies to: Azure SQL Database

Important

SQL Data Sync will be retired on 30 September 2027. Consider migrating to alternative data replication/synchronization solutions.

SQL Data Sync is a service built on Azure SQL Database that lets you synchronize the data you select bi-directionally across multiple databases, both on-premises and in the cloud.

Azure SQL Data Sync does not support Azure SQL Managed Instance or Azure Synapse Analytics.

Overview

Data Sync is based around the concept of a sync group. A sync group is a group of databases that you want to synchronize.

Data Sync uses a hub and spoke topology to synchronize data. You define one of the databases in the sync group as the hub database. The rest of the databases are member databases. Sync occurs only between the hub and individual members.

  • The Hub Database must be an Azure SQL Database.
  • The member databases can be either databases in Azure SQL Database or in instances of SQL Server.
  • The Sync Metadata Database contains the metadata and log for Data Sync. The Sync Metadata Database has to be an Azure SQL Database located in the same region as the Hub Database. The Sync Metadata Database is customer created and customer owned. You can only have one Sync Metadata Database per region and subscription. Sync Metadata Database can't be deleted or renamed while sync groups or sync agents exist. Microsoft recommends creating a new, empty database for use as the Sync Metadata Database. Data Sync creates tables in this database and runs a frequent workload.

Note

If you're using an on-premises database as a member database, you have to install and configure a local sync agent.

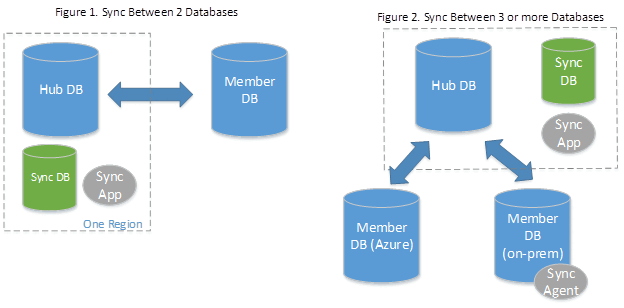

Diagram explaining the Sync data process between databases.

A sync group has the following properties:

  • The Sync Schema describes which data is being synchronized.
  • The Sync Direction can be bi-directional or can flow in only one direction. That is, the Sync Direction can be Hub to Member, or Member to Hub, or both.
  • The Sync Interval describes how often synchronization occurs.
  • The Conflict Resolution Policy is a group level policy, which can be Hub wins or Member wins.

When to use

Data Sync is useful in cases where data needs to be kept updated across several databases in Azure SQL Database or SQL Server. Here are the main use cases for Data Sync:

  • Hybrid Data Synchronization: With Data Sync, you can keep data synchronized between your databases in SQL Server and Azure SQL Database to enable hybrid applications. This capability might appeal to customers who are considering moving to the cloud and would like to put some of their application in Azure.
  • Distributed Applications: In many cases, it's beneficial to separate different workloads across different databases. For example, if you have a large production database, but you also need to run a reporting or analytics workload on this data, it's helpful to have a second database for this extra workload. This approach minimizes the performance impact on your production workload. You can use Data Sync to keep these two databases synchronized.
  • Globally Distributed Applications: Many businesses span several regions and even several countries/regions. To minimize network latency, it's best to have your data in a region close to you. With Data Sync, you can easily keep databases in regions around the world synchronized.

Data Sync isn't the preferred solution for the following scenarios:

Scenario Some recommended solutions
Disaster Recovery Automated backups in Azure SQL Database
Read Scale Use read-only replicas to offload read-only query workloads
ETL (OLTP to OLAP) Azure Data Factory or SQL Server Integration Services
Migration from SQL Server to Azure SQL Database. However, SQL Data Sync can be used after the migration is completed, to ensure that the source and target are kept in sync. Azure Database Migration Service

How it works

  • Tracking data changes: Data Sync tracks changes using insert, update, and delete triggers. The changes are recorded in a side table in the user database. BULK INSERT doesn't fire triggers by default. If FIRE_TRIGGERS isn't specified, no insert triggers execute. Add the FIRE_TRIGGERS option so Data Sync can track those inserts.
  • Synchronizing data: Data Sync is designed in a hub and spoke model. The hub syncs with each member individually. Changes from the hub are downloaded to the member and then changes from the member are uploaded to the hub.
  • Resolving conflicts: Data Sync provides two options for conflict resolution, Hub wins or Member wins.
    • If you select Hub wins, the changes in the hub always overwrite changes in the member.
    • If you select Member wins, the changes in the member overwrite changes in the hub. If there's more than one member, the final value depends on which member syncs first.

Compare with Transactional Replication

Data Sync Transactional Replication
Advantages - Active-active support
- Bi-directional between on-premises and Azure SQL Database		 - Lower latency
- Transactional consistency
- Reuse existing topology after migration
-Azure SQL Managed Instance support
Disadvantages - No transactional consistency
- Higher performance impact		 - Can't publish from Azure SQL Database
- High maintenance cost

Note

The SQL Data Sync private link is different from the Azure Private Link.

The new private link feature allows you to choose a service managed private endpoint to establish a secure connection between the sync service and your member/hub databases during the data synchronization process. A service managed private endpoint is a private IP address within a specific virtual network and subnet. Within Data Sync, the service managed private endpoint is created by Microsoft and is exclusively used by the Data Sync service for a given sync operation.

Before setting up the private link, read the general requirements for the feature.

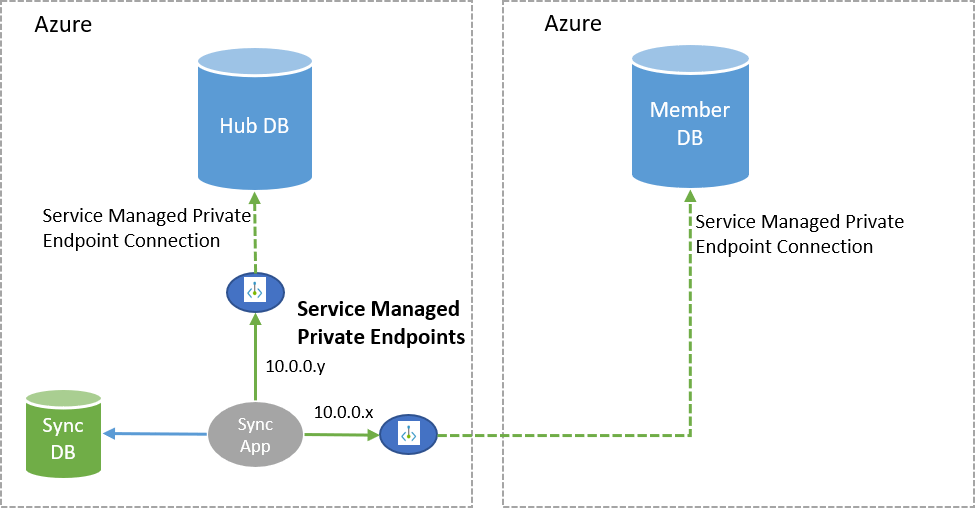

Diagram of private link for Data Sync.

Note

You must manually approve the service managed private endpoint in the Private endpoint connections page of the Azure portal during the sync group deployment or by using PowerShell.

Get started

Set up Data Sync in the Azure portal

Set up Data Sync with PowerShell

Set up Data Sync with REST API

Review the best practices for Data Sync

Did something go wrong

Consistency and performance

Eventual consistency

Since Data Sync is trigger-based, transactional consistency isn't guaranteed. Microsoft guarantees that all changes are made eventually and that Data Sync doesn't cause data loss.

Performance impact

Data Sync uses insert, update, and delete triggers to track changes. It creates side tables in the user database for change tracking. These change tracking activities have an impact on your database workload. Assess your service tier and upgrade if needed.

Provisioning and deprovisioning during sync group creation, update, and deletion might also affect the database performance.

Requirements and limitations

General requirements

  • Each table must have a primary key. Don't change the value of the primary key in any row. If you have to change a primary key value, delete the row and recreate it with the new primary key value.

Important

Changing the value of an existing primary key will result in the following faulty behavior:

  • Data between hub and member can be lost even though sync does not report any issue.
  • Sync can fail because the tracking table has a non-existing row from source due to the primary key change.

  • Snapshot isolation must be enabled for both Sync members and hub. For more info, see Snapshot Isolation in SQL Server.

  • In order to use Data Sync private link, both the member and hub databases must be hosted in Azure (same or different regions), in the same cloud type (for example, both in public cloud or both in government cloud). Additionally, to use private link, Microsoft.Network resource providers must be Registered for the subscriptions that host the hub and member servers. Lastly, you must manually approve the private link for Data Sync during the sync configuration, within the "Private endpoint connections" section in the Azure portal or through PowerShell. For more information on how to approve the private link, see Tutorial: Set up SQL Data Sync between databases in Azure SQL Database and SQL Server. Once you approve the service managed private endpoint, all communication between the sync service and the member/hub databases happen over the private link. Existing sync groups can be updated to have this feature enabled.

General limitations

  • A table can't have an identity column that isn't the primary key.
  • A primary key can't have the following data types: sql_variant, binary, varbinary, image, xml.
  • Be cautious when you use the following data types as a primary key, because the supported precision is only to the second: time, datetime, datetime2, datetimeoffset.
  • The names of objects (databases, tables, and columns) can't contain the printable characters period (.), left square bracket ([), or right square bracket (]).
  • A table name can't contain printable characters: ! " # $ % ' ( ) * + - or space.
  • Microsoft Entra (formerly Azure Active Directory) authentication isn't supported.
  • If there are tables with the same name but different schema (for example, dbo.customers and sales.customers) only one of the tables can be added into sync.
  • Columns with user-defined data types aren't supported.
  • Moving servers between different subscriptions isn't supported.
  • If two primary keys are only different in case (for example, Foo and foo), Data Sync won't support this scenario.
  • Truncating tables isn't an operation supported by Data Sync (changes won't be tracked).
  • Using an Azure SQL Hyperscale database as a Hub or Sync Metadata database isn't supported. However, a Hyperscale database can be a member database in a Data Sync topology.
  • Memory-optimized tables aren't supported.
  • Schema changes aren't automatically replicated. A custom solution can be created to automate the replication of schema changes.
  • Data Sync supports only the following two index properties: Unique, Clustered/Non-Clustered. Other properties of an index, like IGNORE_DUP_KEY or the WHERE filter predicate, aren't supported and the destination index is provisioned without these properties even if the source Index has these properties set.
  • An Azure Elastic jobs database can't be used as the SQL Data Sync Metadata database, and vice versa.
  • SQL Data Sync isn't supported for ledger databases.

Unsupported data types

  • FileStream
  • SQL/CLR UDT
  • XMLSchemaCollection (XML supported)
  • Cursor, RowVersion, Timestamp, Hierarchyid

Unsupported column types

Data Sync can't sync read-only or system-generated columns. For example:

  • Computed columns.
  • System-generated columns for temporal tables.

Limitations on service and database dimensions

Dimensions Limit Workaround
Maximum number of sync groups any database can belong to. 5
Maximum number of endpoints in a single sync group 30
Maximum number of on-premises endpoints in a single sync group. 5 Create multiple sync groups
Database, table, schema, and column names 50 characters per name
Tables in a sync group 500 Create multiple sync groups
Columns in a table in a sync group 1000
Data row size on a table 24 Mb

Note

There might be up to 30 endpoints in a single sync group if there is only one sync group. If there is more than one sync group, the total number of endpoints across all sync groups cannot exceed 30. If a database belongs to multiple sync groups, it is counted as multiple endpoints, not one.

Network requirements

Note

If you use Sync private link, these network requirements do not apply.

When the sync group is established, the Data Sync service needs to connect to the hub database. When establishing the sync group, the Azure SQL server must have the following configuration in its Firewalls and virtual networks settings:

  • Deny public network access must be set to Off.
  • Allow Azure services and resources to access this server must be set to Yes, or you must create IP rules for the IP addresses used by Data Sync service.

Once the sync group is created and provisioned, you can then disable these settings. The sync agent connects directly to the hub database, and you can use the server's firewall IP rules or private endpoints to allow the agent to access the hub server.

Note

If you change the sync group's schema settings, you will need to allow the Data Sync service to access the server again so that the hub database can be re-provisioned.

Region data residency

If you synchronize data within the same region, SQL Data Sync doesn't store/process customer data outside that region in which the service instance is deployed. If you synchronize data across different regions, SQL Data Sync replicates customer data to the paired regions.

FAQ about SQL Data Sync

How much does the SQL Data Sync service cost?

There's no charge for the SQL Data Sync service itself. However, you still collect data transfer charges for data movement in and out of your SQL Database instance. For more information, see data transfer charges.

What regions support Data Sync?

SQL Data Sync is available in all regions.

Is a SQL Database account required?

Yes. You must have a SQL Database account to host the hub database.

Can I use Data Sync to sync between SQL Server databases only?

Not directly. You can sync between SQL Server databases indirectly, however, by creating a Hub database in Azure, and then adding the on-premises databases to the sync group.

Can I configure Data Sync to sync between databases in Azure SQL Database that belong to different subscriptions?

Yes. You can configure sync between databases that belong to resource groups owned by different subscriptions, even if the subscriptions belong to different tenants.

  • If the subscriptions belong to the same tenant and you have permission to all subscriptions, you can configure the sync group in the Azure portal.
  • Otherwise, you have to use PowerShell to add the sync members.

Can I set up Data Sync to sync between databases in SQL Database that belong to different clouds (like Azure Public Cloud and Azure operated by 21Vianet)?

Yes. You can set up sync between databases that belong to different clouds. You have to use PowerShell to add the sync members that belong to the different subscriptions.

Can I use Data Sync to seed data from my production database to an empty database, and then sync them?

Yes. Create the schema manually in the new database by scripting it from the original. After you create the schema, add the tables to a sync group to copy the data and keep it synced.

Should I use SQL Data Sync to back up and restore my databases?

It isn't recommended to use SQL Data Sync to create a backup of your data. You can't back up and restore to a specific point in time because SQL Data Sync synchronizations aren't versioned. Furthermore, SQL Data Sync doesn't back up other SQL objects, such as stored procedures, and doesn't do the equivalent of a restore operation quickly.

For one recommended backup technique, see Copy a transactionally consistent copy of a database in Azure SQL Database.

Can Data Sync sync encrypted tables and columns?

  • If a database uses Always Encrypted, you can sync only the tables and columns that are not encrypted. You can't sync the encrypted columns, because Data Sync can't decrypt the data.
  • If a column uses Column-Level Encryption (CLE), you can sync the column, as long as the row size is less than the maximum size of 24 Mb. Data Sync treats the column encrypted by key (CLE) as normal binary data. To decrypt the data on other sync members, you need to have the same certificate.

Is collation supported in SQL Data Sync?

Yes. SQL Data Sync supports configuring collation settings in the following scenarios:

  • If the selected sync schema tables aren't already in your hub or member databases, then when you deploy the sync group, the service automatically creates the corresponding tables and columns with the collation settings selected in the empty destination databases.
  • If the tables to be synced already exist in both your hub and member databases, SQL Data Sync requires that the primary key columns have the same collation between hub and member databases to successfully deploy the sync group. There are no collation restrictions on columns other than the primary key columns.

Is federation supported in SQL Data Sync?

Federation Root Database can be used in the SQL Data Sync Service without any limitation. You can't add the Federated Database endpoint to the current version of SQL Data Sync.

Can I use Data Sync to sync data exported from Dynamics 365 using bring your own database (BYOD) feature?

The Dynamics 365 bring your own database feature lets administrators export data entities from the application into their own Microsoft Azure SQL database. Data Sync can be used to sync this data into other databases if data is exported using incremental push (full push isn't supported) and enable triggers in target database is set to yes.

How do I create Data Sync in Failover group to support Disaster Recovery?

  • To ensure data sync operations in failover region are at par with Primary region, after failover you have to manually re-create the Sync Group in failover region with same settings as primary region.

Related content

Update the schema of a synced database

Do you have to update the schema of a database in a sync group? Schema changes aren't automatically replicated. For some solutions, see the following articles:

Monitor and troubleshoot

Is SQL Data Sync doing as expected? To monitor activity and troubleshoot issues, see the following articles:

Learn more about Azure SQL Database

For more info about Azure SQL Database, see the following articles:
