Office 365 Outlook

Microsoft Office 365 is a cloud-based service that is designed to help meet your organization's needs for robust security, reliability, and user productivity.

This connector is available in the following products and regions:

Service Class Regions
Logic Apps Standard All Logic Apps regions
Power Automate Standard All Power Automate regions
Power Apps Standard All Power Apps regions
Connector Metadata
Publisher Microsoft

To learn how to use this connector in Power Apps, go to Connect to Office 365 Outlook from Power Apps. Some of operations operate with Graph API. You can find Graph API IP addresses in Office 365 URLs and IP address ranges.

Deprecated operations decommission

Due to underlying APIs decommission process, it's highly recommended to update existing solutions to avoid usage of operations marked as [DEPRECATED].

Known issues and limitations with actions

Short description Operations Long description
Incorrect email attachment with digitally signed emails All For digitally signed emails, the action output may contain incorrect attachment content, which can't be used as input in subsequent actions (for example, to create a new file with attachment content).
Support of HTML/action cards in different mail clients Send approval email
Send email with options
When sending emails with options or approvals, the action card (actionable message) rendering in Outlook won't support HTML in the body of the message (if HTML buttons are clicked, the output of the action can have null values for some fields). The rendering behavior of HTML in the body of the message depends on the options Use Only HTML Message and Hide HTML Message.

If Use Only HTML Message is set to Yes, all mail clients will show only the HTML buttons. The action card buttons will not be rendered.

If Use Only HTML Message is set to No, and Hide HTML Message is set to Yes, only the action card buttons will show.

If Use Only HTML Message is set to No, and Hide HTML Message is set to No, some mail clients will show both the action card and the HTML message, and some mail clients will show only the action card.

Actionable Messages are only supported with single user mailboxes. Group and shared mailboxes are not supported.

For information on the support of action cards in different mail clients, go to Outlook version requirements for actionable messages.
Receive meeting updates Update Event (V4) If you use this operation and you're the organizer of the event, all the attendees will receive meeting updates. Also, due to the current design, all event fields omitted during the update will be reset to default values. Therefore, you need to fill all the event properties with intended values or re-fill current values (please use Get event (V3) action), in case you are not going to update them.
When the event is updated, only one day of the week remains Update Event (V4) If the event that you are updating repeats several times a week every week, do not forget to specify these days in the Selected days of week parameter. Otherwise, after the update, one day of the week will be saved, which will be taken from the 'Start Time' parameter.
Set third-party mail filters Send email with options
Send approval email
Third-party mail filters (like G Suite and Mimecast) will autoselect the user options in action. For this reason, set Show HTML confirmation dialog to Yes to avoid this problem related to the functionality.
Send action cards/HTML Send email with options
Send approval email
These actions send action cards (actionable messages) and HTML content. The response will be localized only in case you push the button in an actionable message itself (not in HTML content). In Sovereign clouds, action cards are rendered only to the sender of the email, but not to other recipients. This happens even if the HTML content is rendered for all recipients.
Send an email from a shared mailbox Send an email from a shared mailbox (V2) The operation is expected to work for the Microsoft 365 shared mailbox feature only.
Workaround for rooms returned over 100 Get rooms (V2) The number of rooms returned is limited to 100. As a workaround, query for room lists using Get rooms in room list (V2). Then, search for the rooms inside the selected list.
Email encryption limitation Reply to email (V3) Emails that are encrypted aren't supported by the connector when using this action. Therefore, if you try to send an email to Outlook that has email encryption turned on, you'll see the error with a note that the request has failed.
Reply to email action changes datetime to UTC Reply to email (V3) Sent datetime of the original email is converted to UTC time zone due to underlying system limitations.
Send an email (V2) does not return message id Send an email (V2) There is no way to get the messageid when sending a message.
Send an email from the converted from a personal shared mailbox Send an email from a shared mailbox (V2) Action does not work for shared mailboxes that were converted from personal mailboxes.
Maximum number of events returned limitation Get calendar view of events (V3) The maximum number of events which can be returned is 256. To retrieve more than 256 events utilize the Skip Count and Top Count parameters to retrieve lists of events in incremental fashion.
Send approval email response returns null Send approval email When users click the Actionable Message card options at the top of an email, values for userid, useremailaddress, and usertenantid are retrieved.

If users click an option from the email body, these values remain empty. Additionally, when sending an approval email, the response for userid, useremailaddress, and usertenantid is null.

Known issues and limitations with triggers

Short description Operations Long description
Incorrect email attachment with digitally signed emails All For digitally signed emails, the trigger output may contain incorrect attachment content, which can't be used as input in subsequent actions (for example, to create a new file with attachment content).
Emails are missed due to system limitations All If there are many emails sent at the same time, some emails could be missed by the trigger due to underlying system limitations. This issue occurs rarely and is related to the mail triggers.
Trigger may run twice on emails with attachments with Dynamic Delivery All If Safe Attachments in Microsoft Defender for Office 365 is configured with Dynamic Delivery option, the trigger may run twice on receiving a new email. The first time it runs, attachments array in the trigger response is empty. As a workaround for emails with attachments, have a condition after the trigger that verifies whether the length of the attachments array is greater than 0.
Monitor multiple mailboxes or calendars All If you want to configure a trigger to monitor multiple mailboxes or calendars, create a separate flow/LogicApp for each mailbox or calendar.
Trigger fires twice When a new event is created (V3) When you accept a meeting invitation, the trigger would fire second time for this meeting event. The reason that the Outlook service treats an event after acceptance as a new event and rewrites its Id and created date—it recreates event. The user can work around this issue by filtering the trigger's outputs on the Response type parameter using built-in control module and its action's condition.
Trigger fires for all events in a recurring event When an event is added, updated or deleted (V3) Trigger fires on each event occurrence. When you change a recurring event, it affects all events in this series. For example, if a series has 15 occurrences, the trigger will fire 15 times.
Trigger fires with Deleted value in Action Type parameter for events outside interval window When an event is added, updated or deleted (V3) When a flow is configured to trigger for events inside of a specific time interval, all events outside of the defined interval — create, update, or deleted — will trigger the flow as Action Type parameter with a Deleted value. This situation can occur because of the following reason:

Interval periods are set at the time of the trigger creation and then updated one time per week, i.e., if 6 days have passed since the trigger was created, and the days 30 (before) and 30 (after) were set in the fields, then these dates will be relevant at the time of trigger creation. After 6 days it will look as if 36 (before) and 24 (after) were set. After 7 days, the trigger will automatically update and the dates will again be 30 (before) and 30 (after).

The main reason of this limitation is because of Microsoft Graph’s delta query behavior. For more information, go to event: delta - Microsoft Graph v1.0 - Microsoft Learn.
Trigger provides unnecessary updates When an event is added, updated or deleted (V3) An event can be updated due to internal Exchange processes and the trigger will fire again because of that. Users can filter a trigger's outputs on the Action Type parameter to ignore unnecessary updates.
Delay in a trigger fire When a new email arrives (V3)
When a new email mentioning me arrives (V3)
When an email is flagged (V3)
When an event is added, updated or deleted (V3)
Triggers fire on the corresponding event's occurrence almost immediately in most cases, but there could be rare circumstances when the trigger's delay to fire may take up to one hour.
Trigger behavior when an email folder is changed When a new email arrives (V3)
When a new email arrives in a shared mailbox (V2)
When a new email mentioning me arrives (V2)
Triggers are based on the date and time an email was received. Moving an email to another folder does not change the received date property value, so the triggers will skip any email that was received prior to the latest successful run.
 Flow intermittently triggers for older emails when moved to folder   When a new email arrives in a shared mailbox (V2)   The flow intermittently triggers for both older emails and the latest emails moved to another folder. This is by design and may result in inconsistent behavior.
Trigger behavior on flagged email When an email is flagged
When an email is flagged (V2)
When an email is flagged (V3)
When an email is flagged (V4)
Triggers fire on flagging an email or receiving a flagged email. Also, if an already flagged email is modified in any way (for example, an email category is changed or an email is replied), the trigger will fire on this email. Furthermore, when multiple emails are flagged at once, it causes the trigger to run multiple times for few emails.
Trigger limitation for shared mailboxes When a new email arrives in a shared mailbox (V2) The trigger won't work in cases of user-to-user shared mailboxes unless one of the users has full access to the other mailbox (which includes more permissions than just sending emails).
Trigger timeout with attachments When a new email arrives (V3) Setting Include Attachments to Yes causes the connector to wait for all attachments to be downloaded. When many emails with attachments arrive around the same time, the connector can timeout while downloading these attachments.

To avoid this, the trigger should be changed to set Include Attachments to No, and the logic should be changed to add the Get Attachment (V2) action to download the attachment.

Additionally, LogicApps authors should ensure that the Office 365 mailbox and the LogicApp are hosted in the same region to reduce attachment download time.
Trigger limitation when using To Or CC filter When a new email arrives (V3) When filtering by the To or CC field, only that field should be populated and the others left empty. If both the To and CC fields are set, then the trigger will fire only for emails that have the emailId(s) in both of the fields.
Email encryption limitation When a new email arrives (V3)

When a new email arrives in a shared mailbox (V2)
The output of triggers does not contain actual message body but will have note mentioning the message is secured and prohibited and this response is from backend.

Common errors

Error Solution
Access to OData is disabled or most errors when using the connector Check that the REST API is enabled. Accounts on a dedicated (on-premise) mail server or accounts that are sandbox (test) accounts may also see an error. Your administrator can learn how to migrate a mailbox in How to migrate mailbox data by using the Exchange Admin Center in Office 365. If you are using an EWS application access policy, ensure that the following user-agents are allowed: "LogicAppsDesigner/","azure-logic-apps/","PowerApps/", "Mozilla/", "Microsoft Flow*", "Azure.Connectors.Office365Outlook.Office365OutlookConnector", "Azure.Connectors.Outlook.OutlookConnector", "PowerAutomateLocal/*", "PowerAutomateCloud/*".
REST API is not yet supported for this mailbox The error can occur if the mailbox is on a dedicated Microsoft Exchange Server and is not a valid Office 365 mailbox. For more details, go to REST API is not yet supported for this mailbox error for request to a mailbox.
Specified object was not found in the store
  • Verify the permissions for the account.
  • Verify the user account used for the trigger is a member of the shared mailbox.
  • Verify that the original mailbox address field contains the shared mailbox address.
  • Re-check the shared mailbox configuration in the admin center.
  • Delete the current Outlook connection and create a new one.
Also, this error is displayed when the message has been moved or deleted by the mailbox owner. To learn more, go to Configure shared mailbox settings.
AADSTS53003: Access has been blocked by Conditional Access policies and the access policy does not allow token issuance and other Conditional Access errors Conditional Access policies can prevent the connector from running as expected. To learn more, go to the Microsoft Entra ID Conditional Access documentation.

General known issues and limitations

  • To use this integration, you'll need access to an Office 365 mailbox that has the REST API enabled. To make a connection, select Sign In. You'll be prompted to provide your Office 365 account. Then, follow the instructions to create a connection.

  • There are two types of email attachments:

    • File attachments: Any file, such as a .txt, .jpg, .zip, .pdf, and others. One of the few properties in a file attachment is the base64 encoded content of the file. The latest versions of all triggers support these attachments. EML, MSG, and ICS files should be attached within .zip archives to be available in trigger responses.

    • Item attachments: Email messages, calendar items, and NDR (Non-Delivery Report) emails that are attached to an email. Item attachments have many properties. These attachments, including NDR emails, are not supported by the connector at the moment. To workaround this issue, you can do the following:

      Warning

      Don't use the public endpoint (https://graph.microsoft.com) for national clouds. To learn more, go to Microsoft Graph and Graph Explorer service root endpoints.

  • We have a size limit of 1MB per data uri for inline embedded images, i.e. the image cannot be more than 1MB after base64 encoding. This only applies to embedded images inside of the mail body. Bear in mind the size of an image after being converted to a base64 string increases. Depending on the image compression, format, and other characteristics it can increase anywhere between 25% to 50%. For instance, an image of more than 700KB will after being converted to a base 64 string likely exceed the 1MB limit stated above.

  • An Office 365 group address can't be used as shared mailbox address.

  • If the email is sent outside of the associated organization, the admin should check if the organization has specific rules to reject sending/forwarding emails outside of the associated organization (for example, using SMTP headers). To learn more, go to SMTP headers.

  • Shared calendars are not supported in Office 365 Outlook connector.

  • Forward slash symbol / isn't supported for folder names in case of custom input value for Folder parameter. As a workaround, use file picker, or provide folder Id value.

  • In some rare cases, newly created users get a connection error despite required permissions granted to their accounts. The workaround would be to switch/re-authenticate the shared mailbox connection with the email address and password of the shared mailbox account. This way, the flow should run successfully for all users.

  • After the permissions are granted for the account to access the shared mailbox, it can take about two hours until the permissions are replicated on the platform.

  • Each email will count as only one API call per connection, even if there's more than one recipient in the To, Cc, or Bcc fields. To learn more about sending limits, go to sending limits.

  • In some circumstances, non-Latin characters won't render as expected when sending an email with an adaptive card inside it. To learn more, go to Known issues with HTML to PDF conversion. As a potential workaround, use the same type of characters in the email subject as used in adaptive card.

Throttling limits on the Office side

In addition to the throttling limits per connection, Office imposes its own limits per inbox. This limit can be reached if the user creates different flows/Logic Apps that target the same inbox. To learn more, go to the Exchange Online limits documentation.

Connector timeouts detail

Office 365 Outlook connector makes outgoing requests to one of the following APIs:

  • Graph API, which has 30 seconds timeout interval per single external request.
  • Outlook REST API, which has 60 seconds timeout interval per single external request.

This error will be returned after a request to these external APIs reached the limit: { "status": 504, "message": "Request failed. Try again later"} Such failed requests will be retried up to four times in Power Automate/Azure Logic Apps (unless the default retry policy is overridden by the user). To learn more about retry policy, go to Handle errors and exceptions in Azure Logic Apps.

The 504 (gateway timeout) status code returned doesn't imply the underlying action was unsuccessful. Due to default retry policy (if applied), the same action can be executed multiple times. For example, if the Send an email action results in a 504 response, and it retries the request, then duplicate emails are possible.

Deprecation of Webhook trigger

Due to a recent change in the lifecycle of webhook subscriptions, the When a new email arrives (webhook) trigger has been deprecated. While we are working to provide a solution to this, use the When a new email arrives polling trigger instead.

Shared mailbox support

As of May 6, 2020, shared mailbox support was added for certain operations with an optional Mailbox address parameter, which allows you to specify a shared mailbox address for your operation to access. If you were using this operation prior to May 6, 2020, you'll need to explicitly update your operations to specify the shared mailbox address.

For operations that don't support shared mailboxes yet, you can use a workaround with the Invoke an HTTP request action under the HTTP with Microsoft Entra ID connector. When creating a connection for the HTTP with Microsoft Entra ID connector, input text https://graph.microsoft.com/ for both Microsoft Entra ID Resource URI and Base Resource URL connection parameters. After it's created, you can go to Outlook mail REST API to set the URL, and optionally the request body to call its shared mailbox APIs. Some of the Outlook functions will only be available on the beta version of Graph API. The HTTP with Microsoft Entra ID connector is a premium connector and won't be available if you are using the free version of Microsoft Power Automate.

For adding hyperlinks to the email body, you can do the following:

  • In the Body field, mark the text you want to link, and then select the Link icon.
  • When you see the dialog, paste your link address into the Link Target field, and then select the Add button.
  • To verify that everything is correct, place the cursor over your new link. When you see the small icon, select it to open the linked page.

SMTP headers

The connector is attaching the following SMTP headers (Internet message headers) to each sent email:

  1. "x-ms-mail-application" with the following values:

    Service Value
    Power Automate Microsoft Power Automate; User-Agent: azure-logic-apps/1.0 (workflow <workflow id>; version <version id>) microsoft-flow/1.0
    Power Apps Microsoft Power Apps; User-Agent: PowerApps/<version id> (<Player type>; AppName=<app name>)
    Logic Apps Azure Logic Apps; User-Agent: azure-logic-apps/1.0 (workflow <workflow id>; version <version id>)
  2. "x-ms-mail-operation-type" with the following values:

    Description Value
    For reply email operations Reply
    For forward email operations Forward
    For send email operations (including SendEmailWithOptions and SendApprovalEmail) Send
  3. "x-ms-mail-environment-id" with Environment Id value.
    The presence of this header depends on the product you are using:

    • In Power Apps, it will always be present.
    • In Power Automate, it will only be present in newly created connections.
    • In Logic Apps, it will never be present.
  4. "x-ms-mail-workflow" with the following values:

    Service Value
    Power Automate x-ms-workflow-name: <workflow name>; x-ms-workflow-run-id: <workflow run id>; x-ms-client-request-id: <client request id>;
    Logic Apps x-ms-workflow-name: <workflow name>; x-ms-workflow-run-id: <workflow run id>; x-ms-client-request-id: <client request id>;
    Power Apps x-ms-client-request-id: <client request id>;

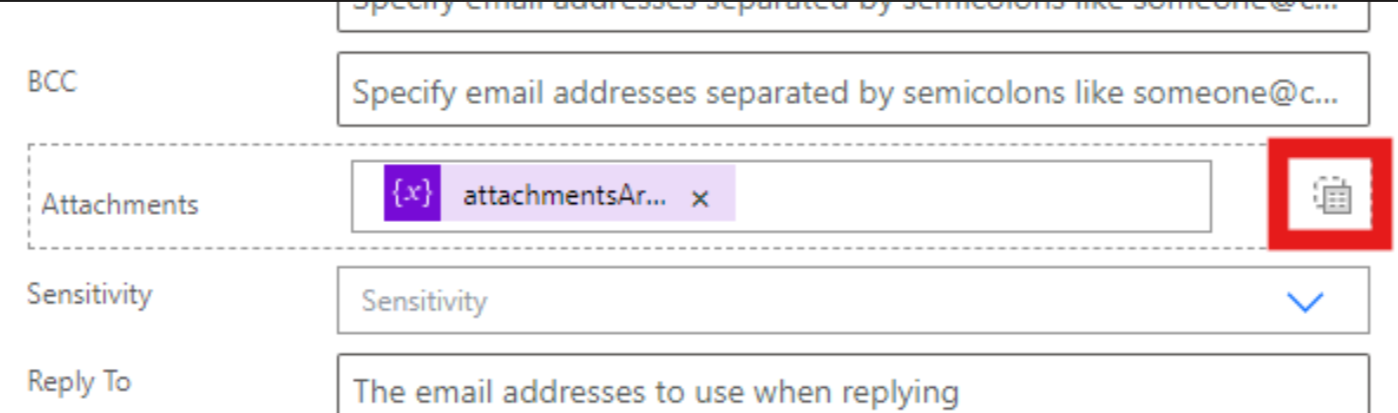

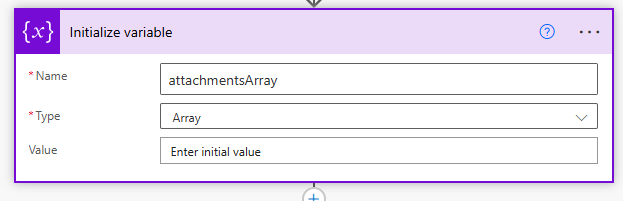

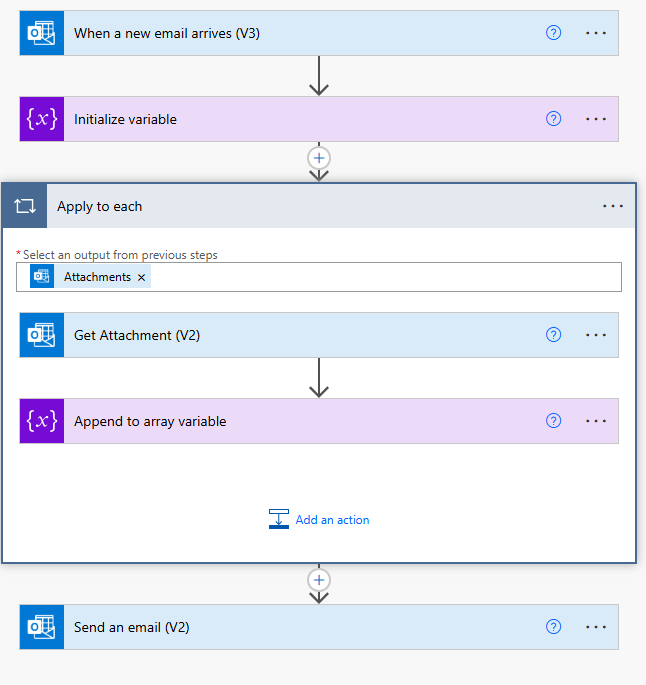

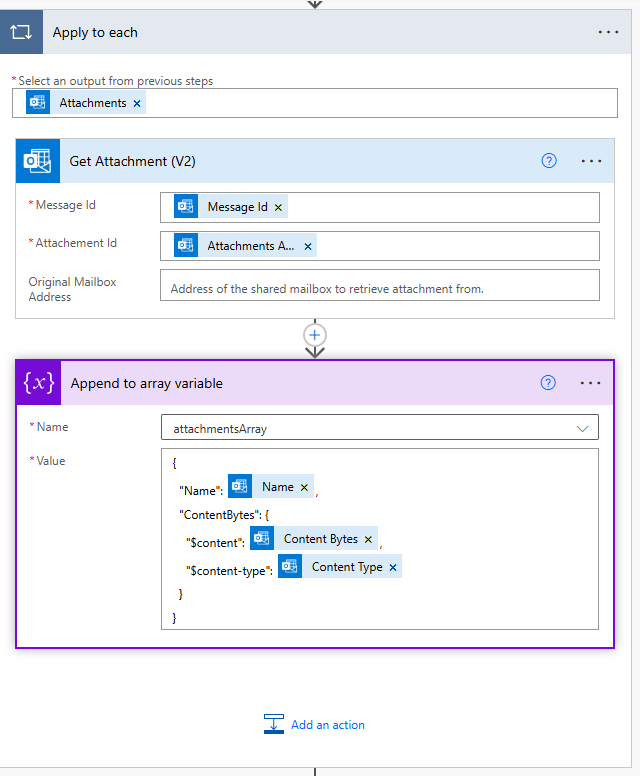

Working with attachments

Certain triggers and actions have a parameter to control whenever attachments content should be included into the response - Include Attachments. This parameter controls only attachments content, but not the attachments metadata (like Id, Name, Content Type, Size, and Is Inline), which would be included in the response regardless of the parameter value.

Connector in-depth

To learn more about the connector, go to Connect to Office 365 Outlook using Azure Logic Apps.

General Limits

Name Value
Maximum mails content length (in MB) 49
Maximum total mails content length per connection per 5 minutes for 'Send an email' actions (in MB) 500
Maximum total content length per connection per 5 minutes for ALL actions (in MB) 2000
Maximum number of options for options and approval mails 100
Maximum number of megabytes being transferred from the connector concurrently 300
Maximum number of requests being processed by the connector concurrently 70

Creating a connection

The connector supports the following authentication types:

Office 365 Credentials (Office GCC High) Log in with Office 365 Credentials (Office GCC High). Azure Government only Not shareable
Office 365 Credentials (Office Public/Office GCC) Log in with Office 365 Credentials (Office Public/Office GCC). Azure Government only Not shareable
Default Log in with Office 365 Credentials All regions except Azure Government Not shareable

Office 365 Credentials (Office GCC High)

Auth ID: oauthGccHigh

Applicable: Azure Government only

Log in with Office 365 Credentials (Office GCC High).

This is not shareable connection. If the power app is shared with another user, another user will be prompted to create new connection explicitly.

Office 365 Credentials (Office Public/Office GCC)

Auth ID: oauthPublic

Applicable: Azure Government only

Log in with Office 365 Credentials (Office Public/Office GCC).

This is not shareable connection. If the power app is shared with another user, another user will be prompted to create new connection explicitly.

Default

Applicable: All regions except Azure Government

Log in with Office 365 Credentials

This is not shareable connection. If the power app is shared with another user, another user will be prompted to create new connection explicitly.

Throttling Limits

Name Calls Renewal Period
API calls per connection 300 60 seconds

Actions

Create contact (V2)

This operation creates a new contact in a contacts folder.

Create contact [DEPRECATED]

This action has been deprecated. Please use Create contact (V2) instead.

This operation creates a new contact in a contacts folder.

Create event (V1) [DEPRECATED]

This action has been deprecated. Please use Create event (V4) instead.

This operation creates a new event in a calendar. (V1)

Create event (V2) [DEPRECATED]

This action has been deprecated. Please use Create event (V4) instead.

This operation creates a new event in a calendar. (V2)

Create event (V3) [DEPRECATED]

This action has been deprecated. Please use Create event (V4) instead.

This operation creates a new event in a calendar.

Create event (V4)

This operation creates a new event in a calendar.

Delete contact (V2)

This operation deletes a contact from a contacts folder.

Delete contact [DEPRECATED]

This action has been deprecated. Please use Delete contact (V2) instead.

This operation deletes a contact from a contacts folder.

Delete email (V2)

This operation deletes an email by id.

Delete email [DEPRECATED]

This action has been deprecated. Please use Delete email (V2) instead.

This operation deletes an email by id.

Delete event (V2)

This operation deletes an event in a calendar.

Delete event [DEPRECATED]

This action has been deprecated. Please use Delete event (V2) instead.

This operation deletes an event in a calendar.

Export email (V2)

Export the content of the email in the EML file format.

Export email [DEPRECATED]

This action has been deprecated. Please use Export email (V2) instead.

Export the content of the email.

Find meeting times (V2)

Find meeting time suggestions based on organizer, attendee availability, and time or location constraints

Find meeting times [DEPRECATED]

This action has been deprecated. Please use Find meeting times (V2) instead.

Find meeting time suggestions based on organizer, attendee availability, and time or location constraints

Flag email (V2)

This operation updates an email flag.

Flag email [DEPRECATED]

This action has been deprecated. Please use Flag email (V2) instead.

This operation flags an email.

Forward an email (V2)

Forward an email.

Forward an email [DEPRECATED]

This action has been deprecated. Please use Forward an email (V2) instead.

Forward an email.

Get Attachment (V2)

This operation gets an email attachment by id.

Get attachment [DEPRECATED]

This action has been deprecated. Please use Get Attachment (V2) instead.

This operation gets an email attachment by id.

Get calendar view of events (V2) [DEPRECATED]

This action has been deprecated. Please use Get calendar view of events (V3) instead.

This operation gets all events (including instances of recurrences) in a calendar. Recurrence property is null in this case.

Get calendar view of events (V3)

This operation gets all events (including instances of recurrences) in a calendar using Graph API. Recurrence property is null in this case.

Get calendar view of events [DEPRECATED]

This action has been deprecated. Please use Get calendar view of events (V3) instead.

Get calendar view of events.

Get calendars (V2)

This operation lists available calendars.

Get calendars [DEPRECATED]

This action has been deprecated. Please use Get calendars (V2) instead.

This operation lists available calendars.

Get contact (V2)

This operation gets a specific contact from a contacts folder.

Get contact [DEPRECATED]

This action has been deprecated. Please use Get contact (V2) instead.

This operation gets a specific contact from a contacts folder.

Get contact folders (V2)

This operation lists available contacts folders using Graph API

Get contact folders [DEPRECATED]

This action has been deprecated. Please use Get contact folders (V2) instead.

This operation lists available contacts folders.

Get contacts (V2)

This operation gets contacts from a contacts folder.

Get contacts [DEPRECATED]

This action has been deprecated. Please use Get contacts (V2) instead.

This operation gets contacts from a contacts folder.

Get email (V2)

This operation gets an email by id.

Get email [DEPRECATED]

This action has been deprecated. Please use Get email (V2) instead.

This operation gets an email by id.

Get emails (V2) [DEPRECATED]

This action has been deprecated. Please use Get emails (V3) instead.

This operation gets emails from a folder.

Get emails (V3)

This operation gets emails from a folder via graph apis. Please note that filtering related to these fields: To, Cc, To Or Cc, From, Importance, Fetch Only With Attachments, Subject Filter, is performed using first 250 items in a given mail folder. To avoid that limitation you can use 'Search Query' field.

Get emails [DEPRECATED]

This action has been deprecated. Please use Get emails (V3) instead.

This operation gets emails from a folder.

Get event (V1) [DEPRECATED]

This action has been deprecated. Please use Get event (V3) instead.

This operation gets a specific event from a calendar. (V1)

Get event (V2) [DEPRECATED]

This action has been deprecated. Please use Get event (V3) instead.

This operation gets a specific event from a calendar. (V2)

Get event (V3)

This operation gets a specific event from a calendar using Graph API. (V3)

Get events (V1) [DEPRECATED]

This action has been deprecated. Please use Get events (V4) instead.

This operation gets events from a calendar. (V1)

Get events (V2) [DEPRECATED]

This action has been deprecated. Please use Get events (V4) instead.

This operation gets events from a calendar. (V2)

Get events (V3) [DEPRECATED]

This action has been deprecated. Please use Get events (V4) instead.

This operation gets events from a calendar. (V3)

Get events (V4)

This operation gets events from a calendar using Graph API. (V4)

Get mail tips for a mailbox (V2)

Get mail tips for a mailbox such as automatic replies / OOF message or if the mailbox is full. This is not available in GccHigh and Mooncake.

Get mail tips for a mailbox [DEPRECATED]

This action has been deprecated. Please use Get mail tips for a mailbox (V2) instead.

Get mail tips for a mailbox such as automatic replies / OOF message or if the mailbox is full.

Get room lists (V2)

Get all the room lists defined in the user's tenant

Get room lists [DEPRECATED]

This action has been deprecated. Please use Get room lists (V2) instead.

Get all the room lists defined in the user's tenant

Get rooms (V2)

Get all the meeting rooms defined in the user's tenant

Get rooms [DEPRECATED]

This action has been deprecated. Please use Get rooms (V2) instead.

Get all the meeting rooms defined in the user's tenant

Get rooms in room list (V2)

Get the meeting rooms in a specific room list

Get rooms in room list [DEPRECATED]

This action has been deprecated. Please use Get rooms in room list (V2) instead.

Get the meeting rooms in a specific room list

Mark as read [DEPRECATED]

This action has been deprecated. Please use Mark as read or unread (V3) instead.

This operation marks an email as having been read.

Mark as read or unread (V2) [DEPRECATED]

This action has been deprecated. Please use Mark as read or unread (V3) instead.

This operation marks an email as read/unread.

Mark as read or unread (V3)

This operation marks an email as read/unread.

Move email (V2)

This operation moves an email to the specified folder within the same mailbox.

Move email [DEPRECATED]

This action has been deprecated. Please use Move email (V2) instead.

This operation moves an email to the specified folder within the same mailbox.

Reply to email (V2) [DEPRECATED]

This action has been deprecated. Please use Reply to email (V3) instead.

This operation replies to an email.

Reply to email (V3)

This operation replies to an email.

Reply to email [DEPRECATED]

This action has been deprecated. Please use Reply to email (V3) instead.

This operation replies to an email.

Respond to an event invite (V2)

Respond to an event invite.

Respond to an event invite [DEPRECATED]

This action has been deprecated. Please use Respond to an event invite (V2) instead.

Respond to an event invite.

Send an email (V2)

This operation sends an email message.

Send an email [DEPRECATED]

This action has been deprecated. Please use Send an email (V2) instead.

This operation sends an email message.

Send an email from a shared mailbox (V2)

This operation sends an email from a shared mailbox. Your account should have permission to access the mailbox for this operation to succeed.

Send an email from a shared mailbox [DEPRECATED]

This action has been deprecated. Please use Send an email from a shared mailbox (V2) instead.

This operation sends an email from a shared mailbox. Your account should have permission to access the mailbox for this operation to succeed.

Send an HTTP request

Construct a Microsoft Graph REST API request to invoke. These segments are supported: 1st segement: /me, /users/ 2nd segment: messages, mailFolders, events, calendar, calendars, outlook, inferenceClassification. Learn more: https://docs.microsoft.com/en-us/graph/use-the-api.

Send approval email

This operation sends an approval email and waits for a response from the recipient. Please refer to the following link regarding the support of actionable messages in different mail clients: https://docs.microsoft.com/outlook/actionable-messages/#outlook-version-requirements-for-actionable-messages.

Send email with options

This operation sends an email with multiple options and waits for the recipient to respond back with one of the options. Please refer to the following link regarding the support of actionable messages in different mail clients: https://docs.microsoft.com/outlook/actionable-messages/#outlook-version-requirements-for-actionable-messages.

Set up automatic replies (V2)

Set the automatic replies setting for your mailbox.

Set up automatic replies [DEPRECATED]

This action has been deprecated. Please use Set up automatic replies (V2) instead.

Set the automatic replies setting for your mailbox.

Update contact (V2)

This operation updates a contact in a contacts folder.

Update contact [DEPRECATED]

This action has been deprecated. Please use Update contact (V2) instead.

This operation updates a contact in a contacts folder.

Update event (V1) [DEPRECATED]

This action has been deprecated. Please use Update event (V4) instead.

This operation updates an event in a calendar. (V1)

Update event (V2) [DEPRECATED]

This action has been deprecated. Please use Update event (V4) instead.

This operation updates an event in a calendar. (V2)

Update event (V3) [DEPRECATED]

This action has been deprecated. Please use Update event (V4) instead.

This operation updates an event in a calendar.

Update event (V4)

This operation updates an event in a calendar using Graph API.

Update my contact's photo

Updates the photo of the specified contact of the current user. The size of the photo must be less than 4 MB.

Create contact (V2)

This operation creates a new contact in a contacts folder.

Parameters

Name Key Required Type Description
Folder id
folder True string

Select a contacts folder

Id
id string

The contact's unique identifier.

Parent folder id
parentFolderId string

The ID of the contact's parent folder

Birthday
birthday date-time

The contact's birthday

File as
fileAs string

The name the contact is filed under

Display Name
displayName string

The contact's display name

Given name
givenName True string

The contact's given name

Initials
initials string

The contact's initials

Middle name
middleName string

The contact's middle name

Nickname
nickName string

The contact's nickname

Surname
surname string

The contact's surname

Title
title string

The contact's title

Generation
generation string

The contact's generation

name
name string
address
address email
IM addresses
imAddresses array of string

The contact's instant messaging (IM) addresses

JobTitle
jobTitle string

The contact's job title

Company name
companyName string

The name of the contact's company

Department
department string

The contact's department

Office location
officeLocation string

The location of the contact's office

Profession
profession string

The contact's profession

Business home page
businessHomePage string

The business home page of the contact

Assistant name
assistantName string

The name of the contact's assistant

Manager
manager string

The name of the contact's manager

Home phones
homePhones True array of string

The contact's home phone numbers

Business phones
businessPhones array of string

The contact's business phone numbers

Mobile phone
mobilePhone string

The contact's mobile phone number

Street
street string

The contact's street address.

City
city string

The contact's city.

State
state string

The contact's state.

Country Or Region
countryOrRegion string

The contact's country of region.

Postal code
postalCode string

The contact's postal code.

Street
street string

The contact's street address.

City
city string

The contact's city.

State
state string

The contact's state.

Country Or Region
countryOrRegion string

The contact's country of region.

Postal code
postalCode string

The contact's postal code.

Street
street string

The contact's street address.

City
city string

The contact's city.

State
state string

The contact's state.

Country Or Region
countryOrRegion string

The contact's country of region.

Postal code
postalCode string

The contact's postal code.

Yomi company name
yomiCompanyName string

The phonetic Japanese company name of the contact

Yomi given name
yomiGivenName string

The phonetic Japanese given name (first name) of the contact

Yomi surname
yomiSurname string

The phonetic Japanese surname (last name) of the contact

Categories
categories array of string

The categories associated with the contact

Change key
changeKey string

Identifies the version of the event object

Created time
createdDateTime date-time

The time the contact was created

Last modified time
lastModifiedDateTime date-time

The time the contact was modified

Returns

Contact

Create contact [DEPRECATED]

This action has been deprecated. Please use Create contact (V2) instead.

This operation creates a new contact in a contacts folder.

Parameters

Name Key Required Type Description
Folder id
table True string

Select a contacts folder

Id
Id string

The contact's unique identifier.

Parent folder id
ParentFolderId string

The ID of the contact's parent folder

Birthday
Birthday date-time

The contact's birthday

File as
FileAs string

The name the contact is filed under

Display Name
DisplayName string

The contact's display name

Given name
GivenName True string

The contact's given name

Initials
Initials string

The contact's initials

Middle name
MiddleName string

The contact's middle name

Nickname
NickName string

The contact's nickname

Surname
Surname string

The contact's surname

Title
Title string

The contact's title

Generation
Generation string

The contact's generation

Name
Name string
Address
Address email
IM addresses
ImAddresses array of string

The contact's instant messaging (IM) addresses

JobTitle
JobTitle string

The contact's job title

Company name
CompanyName string

The name of the contact's company

Department
Department string

The contact's department

Office location
OfficeLocation string

The location of the contact's office

Profession
Profession string

The contact's profession

Business home page
BusinessHomePage string

The business home page of the contact

Assistant name
AssistantName string

The name of the contact's assistant

Manager
Manager string

The name of the contact's manager

Home phones
HomePhones True array of string

The contact's home phone numbers

Business phones
BusinessPhones array of string

The contact's business phone numbers

Mobile phone
MobilePhone1 string

The contact's mobile phone number

Street
Street string
City
City string
State
State string
CountryOrRegion
CountryOrRegion string
PostalCode
PostalCode string
Street
Street string
City
City string
State
State string
CountryOrRegion
CountryOrRegion string
PostalCode
PostalCode string
Street
Street string
City
City string
State
State string
CountryOrRegion
CountryOrRegion string
PostalCode
PostalCode string
Yomi company name
YomiCompanyName string

The phonetic Japanese company name of the contact

Yomi given name
YomiGivenName string

The phonetic Japanese given name (first name) of the contact

Yomi surname
YomiSurname string

The phonetic Japanese surname (last name) of the contact

Categories
Categories array of string

The categories associated with the contact

Change key
ChangeKey string

Identifies the version of the event object

Created time
DateTimeCreated date-time

The time the contact was created

Last modified time
DateTimeLastModified date-time

The time the contact was modified

Returns

Contact response

Create event (V1) [DEPRECATED]

This action has been deprecated. Please use Create event (V4) instead.

This operation creates a new event in a calendar. (V1)

Parameters

Name Key Required Type Description
Calendar id
table True string

Select a calendar

Id
Id string

The Event's unique identifier

Response
Response string
Time
Time date-time
Type
Type string
Name
Name string
Address
Address email
ContentType
ContentType string
Content
Content string
Body preview
BodyPreview string

The preview of the message associated with the event

Categories
Categories array of string

The categories associated with the event

Change key
ChangeKey string

This property identifies the version of the event object. Every time the event is changed, ChangeKey changes as well.

Created time
DateTimeCreated date-time

The date and time that the event was created

Last modified time
DateTimeLastModified date-time

The date and time that the event was last modified

End time
End True date-time

The end time of the event

End time zone
EndTimeZone string

This property specifies the time zone of the meeting end time. The value must be as defined in Windows (example: 'Pacific Standard Time').

Has attachments?
HasAttachments boolean

Set to true if the event has attachments

Event Unique ID
ICalUId string

A unique identifier that is shared by all instances of an event across different calendars

Importance
Importance string

The importance of the event: Low, Normal, or High

Is all day event?
IsAllDay boolean

Set to true if the event lasts all day

Is cancelled?
IsCancelled boolean

Set to true if the event has been canceled

Is Organizer
IsOrganizer boolean

Set to true if the message sender is also the organizer

DisplayName
DisplayName string
Street
Street string
City
City string
State
State string
CountryOrRegion
CountryOrRegion string
PostalCode
PostalCode string
Altitude
Altitude double
Latitude
Latitude double
Longitude
Longitude double
Accuracy
Accuracy double
AltitudeAccuracy
AltitudeAccuracy double
Name
Name string
Address
Address email
Type
Type string
Interval
Interval integer
Month
Month integer
DayOfMonth
DayOfMonth integer
DaysOfWeek
DaysOfWeek array of string
FirstDayOfWeek
FirstDayOfWeek string
Index
Index string
Type
Type string
StartDate
StartDate date-time
EndDate
EndDate date-time
NumberOfOccurrences
NumberOfOccurrences integer
Reminder
Reminder integer

Time in minutes before event start to remind

Response requested
ResponseRequested boolean

Set to true if the sender would like a response when the event is accepted or declined

Response
Response string
Time
Time date-time
Series master id
SeriesMasterId string

Unique identifier for Series Master event type

Show as
ShowAs string

Shows as free or busy

Start time
Start True date-time

The start time of the event

Start time zone
StartTimeZone string

This property specifies the time zone of the meeting start time. The value must be as defined in Windows (example: 'Pacific Standard Time').

Subject
Subject True string

Event subject

Type
Type string

The event type: Single Instance, Occurrence, Exception, or Series Master

Web link
WebLink uri

The preview of the message associated with the event

Reason
Reason string

The reason property used by O365 sync events protocol, will be 'deleted' if its a deleted event.

Returns

Connector specific calendar event model class for the backend

Create event (V2) [DEPRECATED]

This action has been deprecated. Please use Create event (V4) instead.

This operation creates a new event in a calendar. (V2)

Parameters

Name Key Required Type Description
Calendar id
table True string

Select a calendar

Subject
Subject True string

Event subject

Start time
Start True date-time

Start time of the event (example: '2016-11-01T14:30:00Z')

End time
End True date-time

End time of the event (example: '2016-11-01T15:30:00Z')

Time zone
TimeZone string

Time zone of the event

Required attendees
RequiredAttendees email

Required attendees for the event separated by semicolons

Optional attendees
OptionalAttendees email

Optional attendees for the event separated by semicolons

Resource attendees
ResourceAttendees string

Resource attendees for the event separated by semicolons

Body
Body string

Body of the message associated with the event

Is HTML
IsHtml boolean

Set to true if the body is Html

Location
Location string

Location of the event

Importance
Importance string

The importance of the event: Low, Normal, or High

Is all day event?
IsAllDay boolean

Set to true if the event lasts all day

Recurrence
Recurrence string

The recurrence pattern for the event

Recurrence end time
RecurrenceEnd date-time

End time of the recurrence

Number of occurrences
NumberOfOccurrences integer

How many times to repeat the event

Reminder
Reminder integer

Time in minutes before event start to remind

Show as
ShowAs string

Status to show during the event

Response requested
ResponseRequested boolean

Set to true if the sender would like a response when the event is accepted or declined

Returns

Connector specific calendar event model class for the client

Create event (V3) [DEPRECATED]

This action has been deprecated. Please use Create event (V4) instead.

This operation creates a new event in a calendar.

Parameters

Name Key Required Type Description
Calendar id
table True string

Select a calendar

Subject
Subject True string

Event subject

Start time
Start True date-time

Start time of the event (example: '2016-11-01T14:30:00Z')

End time
End True date-time

End time of the event (example: '2016-11-01T15:30:00Z')

Time zone
TimeZone string

Time zone of the event

Required attendees
RequiredAttendees email

Required attendees for the event separated by semicolons

Optional attendees
OptionalAttendees email

Optional attendees for the event separated by semicolons

Resource attendees
ResourceAttendees string

Resource attendees for the event separated by semicolons

Body
Body html

Body of the message associated with the event

Location
Location string

Location of the event

Importance
Importance string

The importance of the event: Low, Normal, or High

Is all day event?
IsAllDay boolean

Set to true if the event lasts all day

Recurrence
Recurrence string

The recurrence pattern for the event

Recurrence end time
RecurrenceEnd date-time

End time of the recurrence

Number of occurrences
NumberOfOccurrences integer

How many times to repeat the event

Reminder
Reminder integer

Time in minutes before event start to remind

Show as
ShowAs string

Status to show during the event

Response requested
ResponseRequested boolean

Set to true if the sender would like a response when the event is accepted or declined

Returns

Connector specific calendar event model class for the client

Create event (V4)

This operation creates a new event in a calendar.

Parameters

Name Key Required Type Description
Calendar id
table True string

Select a calendar

Subject
subject True string

Event subject

Start time
start True date-no-tz

Start time of the event (example: '2017-08-29T04:00:00')

End time
end True date-no-tz

End time of the event (example: '2017-08-29T05:00:00')

Time zone
timeZone True string

Time zone of the event

Required attendees
requiredAttendees email

Required attendees for the event separated by semicolons

Optional attendees
optionalAttendees email

Optional attendees for the event separated by semicolons

Resource attendees
resourceAttendees string

Resource attendees for the event separated by semicolons

Body
body html

Body of the message associated with the event

Categories
categories array of string

The categories associated with the event

Location
location string

Location of the event

Importance
importance string

The importance of the event: low, normal, or high

Is all day event?
isAllDay boolean

Set to true if the event lasts all day

Recurrence
recurrence string

The recurrence pattern for the event: none, daily, weekly, monthly or yearly

Selected days of week
selectedDaysOfWeek array of string

Days of week for weekly recurrence

Recurrence end date
recurrenceEnd date

End Date of the recurrence

Number of occurrences
numberOfOccurences integer

How many times to repeat the event

Reminder
reminderMinutesBeforeStart integer

Time in minutes before event start to remind

Is reminder on
isReminderOn boolean

Set to true if an alert is set to remind the user of the event.

Show as
showAs string

Status to show during the event: free, tentative, busy, oof, workingElsewhere or unknown

Response requested
responseRequested boolean

Set to true if the sender would like a response when the event is accepted or declined

Sensitivity
sensitivity string

The possible values are: normal, personal, private, confidential

Returns

Connector specific calendar event model class for the client with Graph API

Delete contact (V2)

This operation deletes a contact from a contacts folder.

Parameters

Name Key Required Type Description
Folder id
folder True string

Select a contacts folder

Id
id True string

Unique identifier of contact to delete

Delete contact [DEPRECATED]

This action has been deprecated. Please use Delete contact (V2) instead.

This operation deletes a contact from a contacts folder.

Parameters

Name Key Required Type Description
Folder id
table True string

Select a contacts folder

Id
id True string

Unique identifier of contact to delete

Delete email (V2)

This operation deletes an email by id.

Parameters

Name Key Required Type Description
Message Id
messageId True string

Id of the email to delete.

Original Mailbox Address
mailboxAddress string

Address of the shared mailbox to delete mail from.

Delete email [DEPRECATED]

This action has been deprecated. Please use Delete email (V2) instead.

This operation deletes an email by id.

Parameters

Name Key Required Type Description
Message Id
messageId True string

Id of the email to delete.

Delete event (V2)

This operation deletes an event in a calendar.

Parameters

Name Key Required Type Description
Calendar id
calendar True string

Select a calendar

Id
event True string

Select an event

Delete event [DEPRECATED]

This action has been deprecated. Please use Delete event (V2) instead.

This operation deletes an event in a calendar.

Parameters

Name Key Required Type Description
Calendar id
table True string

Select a calendar

Id
id True string

Select an event

Export email (V2)

Export the content of the email in the EML file format.

Parameters

Name Key Required Type Description
Message Id
messageId True string

Id of the email to export.

Original Mailbox Address
mailboxAddress string

Address of the shared mailbox to export from.

Returns

response
binary

Export email [DEPRECATED]

This action has been deprecated. Please use Export email (V2) instead.

Export the content of the email.

Parameters

Name Key Required Type Description
Message Id
messageId True string

Id of the email to export.

Returns

response
binary

Find meeting times (V2)

Find meeting time suggestions based on organizer, attendee availability, and time or location constraints

Parameters

Name Key Required Type Description
Required attendees
RequiredAttendees string

List of semicolon separated email addresses

Optional attendees
OptionalAttendees string

List of semicolon separated email addresses

Resource attendees
ResourceAttendees string

Resource attendees for the event separated by semicolons

Meeting duration
MeetingDuration integer

Duration of the meeting in minutes

Start time
Start date-time

Start time for meeting time suggestions

End time
End date-time

End time for meeting time suggestions

Max Candidates
MaxCandidates integer

The maximum number of meeting suggestions to return in the response

Minimum Attendee Percentage
MinimumAttendeePercentage string

The minimum required confidence for a time slot to be returned in the response

Is Organizer Optional?
IsOrganizerOptional boolean

true if the organizer doesn't have to attend. The default is false

Activity Domain
ActivityDomain string

Work, Personal, Unrestricted, or Unknown

Returns

Name Path Type Description
Empty Suggestions Reason
emptySuggestionsReason string

Empty Suggestions Reason

Meeting Time Suggestions
meetingTimeSuggestions MeetingTimeSuggestions_V2

Meeting Time Suggestions

Find meeting times [DEPRECATED]

This action has been deprecated. Please use Find meeting times (V2) instead.

Find meeting time suggestions based on organizer, attendee availability, and time or location constraints

Parameters

Name Key Required Type Description
Required attendees
RequiredAttendees string

List of semicolon separated email addresses

Optional attendees
OptionalAttendees string

List of semicolon separated email addresses

Resource attendees
ResourceAttendees string

Resource attendees for the event separated by semicolons

Meeting duration
MeetingDuration integer

Duration of the meeting in minutes

Start time
Start date-time

Start time for meeting time suggestions

End time
End date-time

End time for meeting time suggestions

Max Candidates
MaxCandidates integer

The maximum number of meeting suggestions to return in the response

Minimum Attendee Percentage
MinimumAttendeePercentage string

The minimum required confidence for a time slot to be returned in the response

Is Organizer Optional?
IsOrganizerOptional boolean

true if the organizer doesn't have to attend. The default is false

Activity Domain
ActivityDomain string

Work, Personal, Unrestricted, or Unknown

Returns

Name Path Type Description
Empty Suggestions Reason
EmptySuggestionsReason string

Empty Suggestions Reason

Meeting Time Suggestions
MeetingTimeSuggestions MeetingTimeSuggestions

Meeting Time Suggestions

Flag email (V2)

This operation updates an email flag.

Parameters

Name Key Required Type Description
Message Id
messageId True string

Id of the email to be flagged.

Original Mailbox Address
mailboxAddress string

Address of the shared mailbox to update mail.

Flag Status
flagStatus string

Flag status

Flag email [DEPRECATED]

This action has been deprecated. Please use Flag email (V2) instead.

This operation flags an email.

Parameters

Name Key Required Type Description
Message Id
messageId True string

Id of the email to be flagged.

Forward an email (V2)

Forward an email.

Parameters

Name Key Required Type Description
Message Id
message_id True string

Id of the message to forward. (You can use 'Message Id' from trigger or 'Get Emails' action output)

Original Mailbox Address
mailboxAddress string

Address of the shared mailbox to forward mail from.

Comment
Comment string

Comment

To
ToRecipients True string

Semicolon separated list of recipients to forward the message to

Forward an email [DEPRECATED]

This action has been deprecated. Please use Forward an email (V2) instead.

Forward an email.

Parameters

Name Key Required Type Description
Message Id
message_id True string

Id of the message to forward.

Comment
Comment string

Comment

To
ToRecipients True string

Semicolon separated list of recipients to forward the message to

Get Attachment (V2)

This operation gets an email attachment by id.

Parameters

Name Key Required Type Description
Message Id
messageId True string

Id of the email.

Attachement Id
attachmentId True string

Id of the attachment to download.

Original Mailbox Address
mailboxAddress string

Address of the shared mailbox to retrieve attachment from.

Returns

Name Path Type Description
Id
id string

Id of the attachment.

Name
name string

Name of attachment.

Content Type
contentType string

Content type of attachment.

Size
size integer

Size of attachment.

Content Bytes
contentBytes byte

Content of attachment.

Is Inline
isInline boolean

Set to true if this is an inline attachment.

Last Modified DateTime
lastModifiedDateTime date-time

The date and time when the attachment was last modified.

Content Id
contentId string

Content Id

Get attachment [DEPRECATED]

This action has been deprecated. Please use Get Attachment (V2) instead.

This operation gets an email attachment by id.

Parameters

Name Key Required Type Description
Message Id
messageId True string

Id of the email.

Attachment Id
attachmentId True string

Id of the attachment to download.

Returns

response
binary

Get calendar view of events (V2) [DEPRECATED]

This action has been deprecated. Please use Get calendar view of events (V3) instead.

This operation gets all events (including instances of recurrences) in a calendar. Recurrence property is null in this case.

Parameters

Name Key Required Type Description
Calendar Id
calendarId True string

Select a calendar

Start Time
startDateTimeOffset True string

Start time (example: '2017-01-01T08:00:00-07:00')

End Time
endDateTimeOffset True string

End time (example: '2017-02-01T08:00:00-07:00')

Filter Query
$filter string

An ODATA filter query to restrict the entries returned (e.g. stringColumn eq 'string' OR numberColumn lt 123).

Order By
$orderby string

An ODATA orderBy query for specifying the order of entries.

Top Count
$top integer

Total number of entries to retrieve (default = all).

Skip Count
$skip integer

The number of entries to skip (default = 0).

Search
search string

Search text for matching event body and subject

Returns

Entity list response

Get calendar view of events (V3)

This operation gets all events (including instances of recurrences) in a calendar using Graph API. Recurrence property is null in this case.

Parameters

Name Key Required Type Description
Calendar Id
calendarId True string

Select a calendar

Start Time
startDateTimeUtc True string

Start time in UTC (example: '2017-01-01T08:00:00')

End Time
endDateTimeUtc True string

End time in UTC (example: '2017-02-01T08:00:00')

Filter Query
$filter string

An ODATA filter query to restrict the entries returned (e.g. stringColumn eq 'string' OR numberColumn lt 123).

Order By
$orderby string

An ODATA orderBy query for specifying the order of entries.

Top Count
$top integer

Total number of entries to retrieve (default = all).

Skip Count
$skip integer

The number of entries to skip (default = 0).

Search
search string

Search text for matching event body and subject

Returns

Entity list response

Get calendar view of events [DEPRECATED]

This action has been deprecated. Please use Get calendar view of events (V3) instead.

Get calendar view of events.

Parameters

Name Key Required Type Description
Calendar Id
calendarId True string

Select a calendar.

Start Time
startDateTimeOffset True string

Start time (example: '2017-01-01T08:00:00-07:00').

End Time
endDateTimeOffset True string

End time (example: '2017-02-01T08:00:00-07:00').

Returns

Response containing a list and next link

Get calendars (V2)

This operation lists available calendars.

Returns

Name Path Type Description
value
value array of object

value

ID
value.id string

The id of the calendar. The id is used at runtime.

Name
value.name string

The display name of the calendar.

owner
value.owner EmailAddress_V2

Get calendars [DEPRECATED]

This action has been deprecated. Please use Get calendars (V2) instead.

This operation lists available calendars.

Returns

Entity list response

Get contact (V2)

This operation gets a specific contact from a contacts folder.

Parameters

Name Key Required Type Description
Folder id
folder True string

Select a contacts folder

Item id
id True string

Unique identifier of a contact to retrieve

Returns

Contact

Get contact [DEPRECATED]

This action has been deprecated. Please use Get contact (V2) instead.

This operation gets a specific contact from a contacts folder.

Parameters

Name Key Required Type Description
Folder id
table True string

Select a contacts folder

Item id
id True string

Unique identifier of a contact to retrieve

Returns

Contact response

Get contact folders (V2)

This operation lists available contacts folders using Graph API

Returns

Entity list response

Get contact folders [DEPRECATED]

This action has been deprecated. Please use Get contact folders (V2) instead.

This operation lists available contacts folders.

Returns

Entity list response

Get contacts (V2)

This operation gets contacts from a contacts folder.

Parameters

Name Key Required Type Description
Folder id
folder True string

Unique identifier of the contacts folder to retrieve

Filter Query
$filter string

An ODATA filter query to restrict the entries returned (e.g. stringColumn eq 'string' OR numberColumn lt 123).

Order By
$orderby string

An ODATA orderBy query for specifying the order of entries.

Top Count
$top integer

Total number of entries to retrieve (default = all).

Skip Count
$skip integer

The number of entries to skip (default = 0).

Returns

Entity list response

Get contacts [DEPRECATED]

This action has been deprecated. Please use Get contacts (V2) instead.

This operation gets contacts from a contacts folder.

Parameters

Name Key Required Type Description
Folder id
table True string

Unique identifier of the contacts folder to retrieve

Filter Query
$filter string

An ODATA filter query to restrict the entries returned (e.g. stringColumn eq 'string' OR numberColumn lt 123).

Order By
$orderby string

An ODATA orderBy query for specifying the order of entries.

Top Count
$top integer

Total number of entries to retrieve (default = all).

Skip Count
$skip integer

The number of entries to skip (default = 0).

Returns

Entity list response

Get email (V2)

This operation gets an email by id.

Parameters

Name Key Required Type Description
Message Id
messageId True string

Id of the email.

Original Mailbox Address
mailboxAddress string

Address of the shared mailbox to retrieve mail from.

Include Attachments
includeAttachments boolean

If set to true, attachments content will also be retrieved along with the email.

Internet Message Id
internetMessageId string

Internet Message Id.

Returns

Graph Client Receive Email Message

Get email [DEPRECATED]

This action has been deprecated. Please use Get email (V2) instead.

This operation gets an email by id.

Parameters

Name Key Required Type Description
Message Id
messageId True string

Id of the email.

Original Mailbox Address
mailboxAddress string

Address of the shared mailbox to retrieve mail from.

Include Attachments
includeAttachments boolean

If set to true, attachments content will also be retrieved along with the email.

Internet Message Id
internetMessageId string

Internet Message Id.

Returns

Receive Email Message

Get emails (V2) [DEPRECATED]

This action has been deprecated. Please use Get emails (V3) instead.

This operation gets emails from a folder.

Parameters

Name Key Required Type Description
Folder
folderPath string

Mail folder to retrieve emails from (default: 'Inbox').

To
to email

Recipient email addresses separated by semicolons (If any match, the trigger will run).

CC
cc email

CC recipient email addresses separated by semicolons (If any match, the trigger will run).

To or CC
toOrCc email

To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).

From
from email

Sender email addresses separated by semicolons (If any match, the trigger will run).

Importance
importance string

Importance of the email (Any, High, Normal, Low).

Only with Attachments
fetchOnlyWithAttachment boolean

If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.

Subject Filter
subjectFilter string

String to look for in the subject line.

Fetch Only Unread Messages
fetchOnlyUnread boolean

Retrieve only unread emails?.

Include Attachments
includeAttachments boolean

If set to true, attachments content will also be retrieved along with the email.

Search Query
searchQuery string

Search query (like in the Outlook client) to filter emails.

Top
top integer

Number of emails to retrieve (default: 10).

Returns

Represents a wrapper object for batch response

Get emails (V3)

This operation gets emails from a folder via graph apis. Please note that filtering related to these fields: To, Cc, To Or Cc, From, Importance, Fetch Only With Attachments, Subject Filter, is performed using first 250 items in a given mail folder. To avoid that limitation you can use 'Search Query' field.

Parameters

Name Key Required Type Description
Folder
folderPath string

Mail folder to retrieve emails from (default: 'Inbox').

To
to email

Recipient email addresses separated by semicolons (If any match, the trigger will run).

CC
cc email

CC recipient email addresses separated by semicolons (If any match, the trigger will run).

To or CC
toOrCc email

To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).

From
from email

Sender email addresses separated by semicolons (If any match, the trigger will run).

Importance
importance string

Importance of the email (Any, High, Normal, Low).

Only with Attachments
fetchOnlyWithAttachment boolean

If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.

Subject Filter
subjectFilter string

String to look for in the subject line.

Fetch Only Unread Messages
fetchOnlyUnread boolean

Retrieve only unread emails?.

Original Mailbox Address
mailboxAddress string

Address of the shared mailbox to retrieve mails from.

Include Attachments
includeAttachments boolean

If set to true, attachments content will also be retrieved along with the email.

Search Query
searchQuery string

Search query to filter emails. How to use '$search' parameter please refer to: https://docs.microsoft.com/graph/query-parameters#search-parameter.

Top
top integer

Number of emails to retrieve (default: 10, max: 25).

Returns

Represents a wrapper object for batch response

Get emails [DEPRECATED]

This action has been deprecated. Please use Get emails (V3) instead.

This operation gets emails from a folder.

Parameters

Name Key Required Type Description
Folder
folderPath string

Mail folder to retrieve emails from (default: 'Inbox').

Fetch Only Unread Messages
fetchOnlyUnread boolean

Retrieve only unread emails?.

Include Attachments
includeAttachments boolean

If set to true, attachments content will also be retrieved along with the email.

Search Query
searchQuery string

Search query (like in the Outlook client) to filter emails.

Top
top integer

Number of emails to retrieve (default: 10).

Returns

Get event (V1) [DEPRECATED]

This action has been deprecated. Please use Get event (V3) instead.

This operation gets a specific event from a calendar. (V1)

Parameters

Name Key Required Type Description
Calendar id
table True string

Select a calendar

Item id
id True string

Select an event

Returns

Connector specific calendar event model class for the backend

Get event (V2) [DEPRECATED]

This action has been deprecated. Please use Get event (V3) instead.

This operation gets a specific event from a calendar. (V2)

Parameters

Name Key Required Type Description
Calendar id
table True string

Select a calendar

Item id
id True string

Select an event

Returns

Connector specific calendar event model class for the client

Get event (V3)

This operation gets a specific event from a calendar using Graph API. (V3)

Parameters

Name Key Required Type Description
Calendar id
table True string

Select a calendar

Item id
id True string

Select an event

Returns

Connector specific calendar event model class for the client with Graph API

Get events (V1) [DEPRECATED]

This action has been deprecated. Please use Get events (V4) instead.

This operation gets events from a calendar. (V1)

Parameters

Name Key Required Type Description
Calendar id
table True string

Select a calendar

Order By
$orderby string

An ODATA orderBy query for specifying the order of entries.

Top Count
$top integer

Total number of entries to retrieve (default = all).

Skip Count
$skip integer

The number of entries to skip (default = 0).

Returns

Entity list response

Get events (V2) [DEPRECATED]

This action has been deprecated. Please use Get events (V4) instead.

This operation gets events from a calendar. (V2)

Parameters

Name Key Required Type Description
Calendar id
table True string

Select a calendar

Filter Query
$filter string

An ODATA filter query to restrict the entries returned (e.g. stringColumn eq 'string' OR numberColumn lt 123).

Order By
$orderby string

An ODATA orderBy query for specifying the order of entries.

Top Count
$top integer

Total number of entries to retrieve (default = all).

Skip Count
$skip integer

The number of entries to skip (default = 0).

Returns

Entity list response

Get events (V3) [DEPRECATED]

This action has been deprecated. Please use Get events (V4) instead.

This operation gets events from a calendar. (V3)

Parameters

Name Key Required Type Description
Calendar id
table True string

Select a calendar

Filter Query
$filter string

An ODATA filter query to restrict the entries returned (e.g. stringColumn eq 'string' OR numberColumn lt 123).

Order By
$orderby string

An ODATA orderBy query for specifying the order of entries.

Top Count
$top integer

Total number of entries to retrieve (default = all).

Skip Count
$skip integer

The number of entries to skip (default = 0).

Returns

The list of calendar items

Get events (V4)

This operation gets events from a calendar using Graph API. (V4)

Parameters

Name Key Required Type Description
Calendar id
table True string

Select a calendar

Filter Query
$filter string

An ODATA filter query to restrict the entries returned (e.g. stringColumn eq 'string' OR numberColumn lt 123).

Order By
$orderby string

An ODATA orderBy query for specifying the order of entries.

Top Count
$top integer

Total number of entries to retrieve (default = all).

Skip Count
$skip integer

The number of entries to skip (default = 0).

Returns

The list of calendar items returned by Graph API

Get mail tips for a mailbox (V2)

Get mail tips for a mailbox such as automatic replies / OOF message or if the mailbox is full. This is not available in GccHigh and Mooncake.

Parameters

Name Key Required Type Description
Email Addresses
EmailAddresses True array of string

Address of the mailbox to get mail tips for.

Returns

Name Path Type Description
value
value array of MailTipsClientReceive_V2

Get mail tips for a mailbox [DEPRECATED]

This action has been deprecated. Please use Get mail tips for a mailbox (V2) instead.

Get mail tips for a mailbox such as automatic replies / OOF message or if the mailbox is full.

Parameters

Name Key Required Type Description
Original Mailbox Address
mailboxAddress True string

Address of the mailbox to get mail tips for.

Returns

Mail tips client model returned to the caller

Get room lists (V2)

Get all the room lists defined in the user's tenant

Returns

Name Path Type Description
value
value array of object

value

Name
value.name string

Name

Address
value.address string

Address

Get room lists [DEPRECATED]

This action has been deprecated. Please use Get room lists (V2) instead.

Get all the room lists defined in the user's tenant

Returns

Name Path Type Description
value
value array of object

value

Name
value.Name string

Name

Address
value.Address string

Address

Get rooms (V2)

Get all the meeting rooms defined in the user's tenant

Returns

Name Path Type Description
value
value array of object

value

Name
value.name string

Name

Address
value.address string

Address

Get rooms [DEPRECATED]

This action has been deprecated. Please use Get rooms (V2) instead.

Get all the meeting rooms defined in the user's tenant

Returns

Name Path Type Description
value
value array of object

value

Name
value.Name string

Name

Address
value.Address string

Address

Get rooms in room list (V2)

Get the meeting rooms in a specific room list

Parameters

Name Key Required Type Description
Room list
room_list True string

Room list to find rooms in

Returns

Name Path Type Description
value
value array of object

value

Name
value.name string

Name

Address
value.address string

Address

Get rooms in room list [DEPRECATED]

This action has been deprecated. Please use Get rooms in room list (V2) instead.

Get the meeting rooms in a specific room list

Parameters

Name Key Required Type Description
Room list
room_list True string

Room list to find rooms in

Returns

Name Path Type Description
value
value array of object

value

Name
value.Name string

Name

Address
value.Address string

Address

Mark as read [DEPRECATED]

This action has been deprecated. Please use Mark as read or unread (V3) instead.

This operation marks an email as having been read.

Parameters

Name Key Required Type Description
Message Id
messageId True string

Id of the email to be marked as read.

Mark as read or unread (V2) [DEPRECATED]

This action has been deprecated. Please use Mark as read or unread (V3) instead.

This operation marks an email as read/unread.

Parameters

Name Key Required Type Description
Message Id
messageId True string

Id of the email to be marked.

Original Mailbox Address
mailboxAddress string

Address of the shared mailbox to update mail.

Mark as
isRead boolean

Mark as read/unread.

Mark as read or unread (V3)

This operation marks an email as read/unread.

Parameters

Name Key Required Type Description
Message Id
messageId True string

Id of the email to be marked.

Original Mailbox Address
mailboxAddress string

Address of the shared mailbox to update mail.

Mark as
isRead True boolean

Mark as read/unread.

Move email (V2)

This operation moves an email to the specified folder within the same mailbox.

Parameters

Name Key Required Type Description
Message Id
messageId True string

Id of the email to be moved.

Folder
folderPath True string

Mail folder to move the email to.

Original Mailbox Address
mailboxAddress string

Address of the shared mailbox to move mail from.

Returns

Graph Client Receive Email Message

Move email [DEPRECATED]

This action has been deprecated. Please use Move email (V2) instead.

This operation moves an email to the specified folder within the same mailbox.

Parameters

Name Key Required Type Description
Message Id
messageId True string

Id of the email to be moved.

Folder
folderPath True string

Mail folder to move the email to.

Returns

Receive Email Message

Reply to email (V2) [DEPRECATED]

This action has been deprecated. Please use Reply to email (V3) instead.

This operation replies to an email.

Parameters

Name Key Required Type Description
Message Id
messageId True string

Id of the email to reply to.

To
To email

Example: recipient1@domain.com; recipient2@domain.com

CC
Cc email

Example: recipient1@domain.com; recipient2@domain.com

BCC
Bcc email

Example: recipient1@domain.com; recipient2@domain.com

Subject
Subject string

Email subject (if empty, the original subject used).

Body
Body string

Content of the email.

Reply All
ReplyAll boolean

True to reply to all recipients. (default: False)

Is HTML
IsHtml boolean

True to send the reply as HTML. (default: True)

Importance
Importance string

Pick an importance. (default: Low)

Name
Name True string

Attachment name

Content
ContentBytes True byte

Attachment content

Original Mailbox Address
mailboxAddress string

Address of the shared mailbox to reply from.

Reply to email (V3)

This operation replies to an email.

Parameters

Name Key Required Type Description
Message Id
messageId True string

Id of the email to reply to.

To
To email

Example: recipient1@domain.com; recipient2@domain.com

CC
Cc email

Example: recipient1@domain.com; recipient2@domain.com

BCC
Bcc email

Example: recipient1@domain.com; recipient2@domain.com

Subject
Subject string

Email subject (if empty, the original subject used).

Body
Body html

Content of the email.

Reply All
ReplyAll boolean

True to reply to all recipients. (default: False)

Importance
Importance string

Pick an importance. (default: Low)

Name
Name True string

Attachment name

Content
ContentBytes True byte

Attachment content

Original Mailbox Address
mailboxAddress string

Address of the shared mailbox to reply from.

Reply to email [DEPRECATED]

This action has been deprecated. Please use Reply to email (V3) instead.

This operation replies to an email.

Parameters

Name Key Required Type Description
Message Id
messageId True string

Id of the email to reply to.

Comment
comment True string

Reply comment.

Reply All
replyAll boolean

Reply to all recipients.

Respond to an event invite (V2)

Respond to an event invite.

Parameters

Name Key Required Type Description
Event Id
event_id True string

Id of the event to respond to.

Response
response True string

Response for the event invite

Comment
Comment string

Comment

Send response?
SendResponse boolean

Send response to organizer?

Respond to an event invite [DEPRECATED]

This action has been deprecated. Please use Respond to an event invite (V2) instead.

Respond to an event invite.

Parameters

Name Key Required Type Description
Event Id
event_id True string

Id of the event to respond to.

Response
response True string

Response for the event invite

Comment
Comment string

Comment

Send response?
SendResponse boolean

Send response to organizer?

Send an email (V2)

This operation sends an email message.

Parameters

Name Key Required Type Description
To
To True email

Specify email addresses separated by semicolons like someone@contoso.com

Subject
Subject True string

Specify the subject of the mail

Body
Body True html

Specify the body of the mail

From (Send as)
From email

Email address to send mail from (requires "Send as" or "Send on behalf of" permission for that mailbox). For more info on granting permissions please refer https://docs.microsoft.com/office365/admin/manage/send-email-as-distribution-list

CC
Cc email

Specify email addresses separated by semicolons like someone@contoso.com

BCC
Bcc email

Specify email addresses separated by semicolons like someone@contoso.com

Name
Name True string

Attachment name

Content
ContentBytes True byte

Attachment content

Sensitivity
Sensitivity string

Sensitivity

Reply To
ReplyTo email

The email addresses to use when replying

Importance
Importance string

Importance

Send an email [DEPRECATED]

This action has been deprecated. Please use Send an email (V2) instead.

This operation sends an email message.

Parameters

Name Key Required Type Description
From (Send as)
From email

Email address to send mail from (requires "Send as" or "Send on behalf of" permission for that mailbox). For more info on granting permissions please refer https://docs.microsoft.com/office365/admin/manage/send-email-as-distribution-list

CC
Cc email

Specify email addresses separated by semicolons like someone@contoso.com

BCC
Bcc email

Specify email addresses separated by semicolons like someone@contoso.com

To
To True email

Specify email addresses separated by semicolons like someone@contoso.com

Subject
Subject True string

Specify the subject of the mail

Body
Body True string

Specify the body of the mail

Name
Name True string

Attachment name

Content
ContentBytes True byte

Attachment content

Sensitivity
Sensitivity string

Sensitivity

Reply To
ReplyTo email

The email addresses to use when replying

Importance
Importance string

Importance

Is HTML
IsHtml boolean

Is Html?

Send an email from a shared mailbox (V2)

This operation sends an email from a shared mailbox. Your account should have permission to access the mailbox for this operation to succeed.

Parameters

Name Key Required Type Description
Original Mailbox Address
MailboxAddress True email

Specify email address of a shared mailbox like someone@contoso.com

To
To True email

Specify email addresses separated by semicolons like someone@contoso.com

Subject
Subject True string

Specify the subject of the mail

Body
Body True html

Specify the body of the mail

CC
Cc email

Specify email addresses separated by semicolons like someone@contoso.com

BCC
Bcc email

Specify email addresses separated by semicolons like someone@contoso.com

Name
Name True string

Attachment name

Content
ContentBytes True byte

Attachment content

Sensitivity
Sensitivity string

Sensitivity

Reply To
ReplyTo email

The email addresses to use when replying

Importance
Importance string

Importance

Send an email from a shared mailbox [DEPRECATED]

This action has been deprecated. Please use Send an email from a shared mailbox (V2) instead.

This operation sends an email from a shared mailbox. Your account should have permission to access the mailbox for this operation to succeed.

Parameters

Name Key Required Type Description
Original Mailbox Address
MailboxAddress True email

Specify email address of a shared mailbox like someone@contoso.com

To
To True email

Specify email addresses separated by semicolons like someone@contoso.com

Subject
Subject True string

Specify the subject of the mail

Body
Body True string

Specify the body of the mail

CC
Cc email

Specify email addresses separated by semicolons like someone@contoso.com

BCC
Bcc email

Specify email addresses separated by semicolons like someone@contoso.com

Name
Name True string

Attachment name

Content
ContentBytes True byte

Attachment content

Sensitivity
Sensitivity string

Sensitivity

Reply To
ReplyTo email

The email addresses to use when replying

Importance
Importance string

Importance

Is HTML
IsHtml boolean

Is Html?

Send an HTTP request

Construct a Microsoft Graph REST API request to invoke. These segments are supported: 1st segement: /me, /users/ 2nd segment: messages, mailFolders, events, calendar, calendars, outlook, inferenceClassification. Learn more: https://docs.microsoft.com/en-us/graph/use-the-api.

Parameters

Name Key Required Type Description
URI
Uri True string

The full or relative URI. Example: https://graph.microsoft.com/{version}/{resource}.

Method
Method True string

The HTTP method (default is GET).

Body
Body binary

The request body content.

Content-Type
ContentType string

The content-type header for the body (default is application/json).

CustomHeader1
CustomHeader1 string

Custom header 1. Specify in format: header-name: header-value

CustomHeader2
CustomHeader2 string

Custom header 2. Specify in format: header-name: header-value

CustomHeader3
CustomHeader3 string

Custom header 3. Specify in format: header-name: header-value

CustomHeader4
CustomHeader4 string

Custom header 4. Specify in format: header-name: header-value

CustomHeader5
CustomHeader5 string

Custom header 5. Specify in format: header-name: header-value

Returns

Send approval email

This operation sends an approval email and waits for a response from the recipient. Please refer to the following link regarding the support of actionable messages in different mail clients: https://docs.microsoft.com/outlook/actionable-messages/#outlook-version-requirements-for-actionable-messages.

Parameters

Name Key Required Type Description
To
To True email

Specify email addresses separated by semicolons like someone@contoso.com

Subject
Subject string

Subject

User Options
Options string

User Options

Header Text
HeaderText string

Header text for email body

Selection Text
SelectionText string

Header text for users options selection

Body
Body string

Body

Importance
Importance string

Importance

Name
Name True string

Attachment name

Content
ContentBytes True byte

Attachment content

Use only HTML message
UseOnlyHTMLMessage boolean

Use only HTML message

Hide HTML message
HideHTMLMessage boolean

If set to Yes, then the email body is hidden and only message card is displayed. Email clients which do not support actionable messages will display HTML message regardless of the parameter value.

Show HTML confirmation dialog
ShowHTMLConfirmationDialog boolean

If set to Yes then a dialog wil be shown to confirm selected option of HTML message

Returns

Approval Email Response

Send email with options

This operation sends an email with multiple options and waits for the recipient to respond back with one of the options. Please refer to the following link regarding the support of actionable messages in different mail clients: https://docs.microsoft.com/outlook/actionable-messages/#outlook-version-requirements-for-actionable-messages.

Parameters

Name Key Required Type Description
To
To True email

Specify email addresses separated by semicolons like someone@contoso.com

Subject
Subject string

Subject of the email

User Options
Options string

List of comma separated options for the email response

Header Text
HeaderText string

Header text for email body

Selection Text
SelectionText string

Header text for users options selection

Body
Body string

Body of the email

Importance
Importance string

Importance

Name
Name True string

Attachment name

Content
ContentBytes True byte

Attachment content

Use only HTML message
UseOnlyHTMLMessage boolean

Use only HTML message

Hide HTML message
HideHTMLMessage boolean

If set to Yes, then the email body is hidden and only message card is displayed. Email clients which do not support actionable messages will display HTML message regardless of the parameter value.

Show HTML confirmation dialog
ShowHTMLConfirmationDialog boolean

If set to Yes then a dialog wil be shown to confirm selected option of HTML message

Hide Microsoft footer
HideMicrosoftFooter boolean

If set to Yes, then the Microsoft footer is hidden in the email body.

Returns

Approval Email Response

Set up automatic replies (V2)

Set the automatic replies setting for your mailbox.

Parameters

Name Key Required Type Description
Status
status True string

Automatic reply setting status

External Audience
externalAudience True string

The audience that will see the external reply message

DateTime
dateTime string

Scheduled start time (example: '2017-08-29T04:00:00.0000000')

TimeZone
timeZone string

TimeZone (example: 'Pacific Standard Time')

DateTime
dateTime string

Scheduled end time (example: '2017-08-29T05:00:00.0000000')

TimeZone
timeZone string

TimeZone (example: 'Pacific Standard Time')

Internal Reply Message
internalReplyMessage string

Message for people within your organization

External Reply Message
externalReplyMessage string

Message for people outside your organization

Returns

Name Path Type Description
automaticRepliesSetting
automaticRepliesSetting AutomaticRepliesSettingClient_V2

Automatic replies setting model for the connector

Set up automatic replies [DEPRECATED]

This action has been deprecated. Please use Set up automatic replies (V2) instead.

Set the automatic replies setting for your mailbox.

Parameters

Name Key Required Type Description
Status
Status True string

Automatic reply setting status

External Audience
ExternalAudience True string

The audience that will see the external reply message

Start Time
ScheduledStartDateTimeOffset string

Scheduled start time (example: '2016-11-01T15:30:00-00:00Z')

End Time
ScheduledEndDateTimeOffset string

Scheduled end time (example: '2016-11-01T15:30:00-00:00Z')

Internal Reply Message
InternalReplyMessage string

Message for people within your organization

External Reply Message
ExternalReplyMessage string

Message for people outside your organization

Update contact (V2)

This operation updates a contact in a contacts folder.

Parameters

Name Key Required Type Description
Folder id
folder True string

Select a contacts folder

Id
id True string

Unique identifier of contact to update

Id
id string

The contact's unique identifier.

Parent folder id
parentFolderId string

The ID of the contact's parent folder

Birthday
birthday date-time

The contact's birthday

File as
fileAs string

The name the contact is filed under

Display Name
displayName string

The contact's display name

Given name
givenName True string

The contact's given name

Initials
initials string

The contact's initials

Middle name
middleName string

The contact's middle name

Nickname
nickName string

The contact's nickname

Surname
surname string

The contact's surname

Title
title string

The contact's title

Generation
generation string

The contact's generation

name
name string
address
address email
IM addresses
imAddresses array of string

The contact's instant messaging (IM) addresses

JobTitle
jobTitle string

The contact's job title

Company name
companyName string

The name of the contact's company

Department
department string

The contact's department

Office location
officeLocation string

The location of the contact's office

Profession
profession string

The contact's profession

Business home page
businessHomePage string

The business home page of the contact

Assistant name
assistantName string

The name of the contact's assistant

Manager
manager string

The name of the contact's manager

Home phones
homePhones True array of string

The contact's home phone numbers

Business phones
businessPhones array of string

The contact's business phone numbers

Mobile phone
mobilePhone string

The contact's mobile phone number

Street
street string

The contact's street address.

City
city string

The contact's city.

State
state string

The contact's state.

Country Or Region
countryOrRegion string

The contact's country of region.

Postal code
postalCode string

The contact's postal code.

Street
street string

The contact's street address.

City
city string

The contact's city.

State
state string

The contact's state.

Country Or Region
countryOrRegion string

The contact's country of region.

Postal code
postalCode string

The contact's postal code.

Street
street string

The contact's street address.

City
city string

The contact's city.

State
state string

The contact's state.

Country Or Region
countryOrRegion string

The contact's country of region.

Postal code
postalCode string

The contact's postal code.

Yomi company name
yomiCompanyName string

The phonetic Japanese company name of the contact

Yomi given name
yomiGivenName string

The phonetic Japanese given name (first name) of the contact

Yomi surname
yomiSurname string

The phonetic Japanese surname (last name) of the contact

Categories
categories array of string

The categories associated with the contact

Change key
changeKey string

Identifies the version of the event object

Created time
createdDateTime date-time

The time the contact was created

Last modified time
lastModifiedDateTime date-time

The time the contact was modified

Returns

Contact

Update contact [DEPRECATED]

This action has been deprecated. Please use Update contact (V2) instead.

This operation updates a contact in a contacts folder.

Parameters

Name Key Required Type Description
Folder id
table True string

Select a contacts folder

Id
id True string

Unique identifier of contact to update

Id
Id string

The contact's unique identifier.

Parent folder id
ParentFolderId string

The ID of the contact's parent folder

Birthday
Birthday date-time

The contact's birthday

File as
FileAs string

The name the contact is filed under

Display Name
DisplayName string

The contact's display name

Given name
GivenName True string

The contact's given name

Initials
Initials string

The contact's initials

Middle name
MiddleName string

The contact's middle name

Nickname
NickName string

The contact's nickname

Surname
Surname string

The contact's surname

Title
Title string

The contact's title

Generation
Generation string

The contact's generation

Name
Name string
Address
Address email
IM addresses
ImAddresses array of string

The contact's instant messaging (IM) addresses

JobTitle
JobTitle string

The contact's job title

Company name
CompanyName string

The name of the contact's company

Department
Department string

The contact's department

Office location
OfficeLocation string

The location of the contact's office

Profession
Profession string

The contact's profession

Business home page
BusinessHomePage string

The business home page of the contact

Assistant name
AssistantName string

The name of the contact's assistant

Manager
Manager string

The name of the contact's manager

Home phones
HomePhones True array of string

The contact's home phone numbers

Business phones
BusinessPhones array of string

The contact's business phone numbers

Mobile phone
MobilePhone1 string

The contact's mobile phone number

Street
Street string
City
City string
State
State string
CountryOrRegion
CountryOrRegion string
PostalCode
PostalCode string
Street
Street string
City
City string
State
State string
CountryOrRegion
CountryOrRegion string
PostalCode
PostalCode string
Street
Street string
City
City string
State
State string
CountryOrRegion
CountryOrRegion string
PostalCode
PostalCode string
Yomi company name
YomiCompanyName string

The phonetic Japanese company name of the contact

Yomi given name
YomiGivenName string

The phonetic Japanese given name (first name) of the contact

Yomi surname
YomiSurname string

The phonetic Japanese surname (last name) of the contact

Categories
Categories array of string

The categories associated with the contact

Change key
ChangeKey string

Identifies the version of the event object

Created time
DateTimeCreated date-time

The time the contact was created

Last modified time
DateTimeLastModified date-time

The time the contact was modified

Returns

Contact response

Update event (V1) [DEPRECATED]

This action has been deprecated. Please use Update event (V4) instead.

This operation updates an event in a calendar. (V1)

Parameters

Name Key Required Type Description
Calendar id
table True string

Select a calendar

Id
id True string

Select an event

Id
Id string

The Event's unique identifier

Response
Response string
Time
Time date-time
Type
Type string
Name
Name string
Address
Address email
ContentType
ContentType string
Content
Content string
Body preview
BodyPreview string

The preview of the message associated with the event

Categories
Categories array of string

The categories associated with the event

Change key
ChangeKey string

This property identifies the version of the event object. Every time the event is changed, ChangeKey changes as well.

Created time
DateTimeCreated date-time

The date and time that the event was created

Last modified time
DateTimeLastModified date-time

The date and time that the event was last modified

End time
End True date-time

The end time of the event

End time zone
EndTimeZone string

This property specifies the time zone of the meeting end time. The value must be as defined in Windows (example: 'Pacific Standard Time').

Has attachments?
HasAttachments boolean

Set to true if the event has attachments

Event Unique ID
ICalUId string

A unique identifier that is shared by all instances of an event across different calendars

Importance
Importance string

The importance of the event: Low, Normal, or High

Is all day event?
IsAllDay boolean

Set to true if the event lasts all day

Is cancelled?
IsCancelled boolean

Set to true if the event has been canceled

Is Organizer
IsOrganizer boolean

Set to true if the message sender is also the organizer

DisplayName
DisplayName string
Street
Street string
City
City string
State
State string
CountryOrRegion
CountryOrRegion string
PostalCode
PostalCode string
Altitude
Altitude double
Latitude
Latitude double
Longitude
Longitude double
Accuracy
Accuracy double
AltitudeAccuracy
AltitudeAccuracy double
Name
Name string
Address
Address email
Type
Type string
Interval
Interval integer
Month
Month integer
DayOfMonth
DayOfMonth integer
DaysOfWeek
DaysOfWeek array of string
FirstDayOfWeek
FirstDayOfWeek string
Index
Index string
Type
Type string
StartDate
StartDate date-time
EndDate
EndDate date-time
NumberOfOccurrences
NumberOfOccurrences integer
Reminder
Reminder integer

Time in minutes before event start to remind

Response requested
ResponseRequested boolean

Set to true if the sender would like a response when the event is accepted or declined

Response
Response string
Time
Time date-time
Series master id
SeriesMasterId string

Unique identifier for Series Master event type

Show as
ShowAs string

Shows as free or busy

Start time
Start True date-time

The start time of the event

Start time zone
StartTimeZone string

This property specifies the time zone of the meeting start time. The value must be as defined in Windows (example: 'Pacific Standard Time').

Subject
Subject True string

Event subject

Type
Type string

The event type: Single Instance, Occurrence, Exception, or Series Master

Web link
WebLink uri

The preview of the message associated with the event

Reason
Reason string

The reason property used by O365 sync events protocol, will be 'deleted' if its a deleted event.

Returns

Connector specific calendar event model class for the backend

Update event (V2) [DEPRECATED]

This action has been deprecated. Please use Update event (V4) instead.

This operation updates an event in a calendar. (V2)

Parameters

Name Key Required Type Description
Calendar id
table True string

Select a calendar

Id
id True string

Select an event

Subject
Subject True string

Event subject

Start time
Start True date-time

Start time of the event (example: '2016-11-01T14:30:00Z')

End time
End True date-time

End time of the event (example: '2016-11-01T15:30:00Z')

Time zone
TimeZone string

Time zone of the event

Required attendees
RequiredAttendees email

Required attendees for the event separated by semicolons

Optional attendees
OptionalAttendees email

Optional attendees for the event separated by semicolons

Resource attendees
ResourceAttendees string

Resource attendees for the event separated by semicolons

Body
Body string

Body of the message associated with the event

Is HTML
IsHtml boolean

Set to true if the body is Html

Location
Location string

Location of the event

Importance
Importance string

The importance of the event: Low, Normal, or High

Is all day event?
IsAllDay boolean

Set to true if the event lasts all day

Recurrence
Recurrence string

The recurrence pattern for the event

Recurrence end time
RecurrenceEnd date-time

End time of the recurrence

Number of occurrences
NumberOfOccurrences integer

How many times to repeat the event

Reminder
Reminder integer

Time in minutes before event start to remind

Show as
ShowAs string

Status to show during the event

Response requested
ResponseRequested boolean

Set to true if the sender would like a response when the event is accepted or declined

Returns

Connector specific calendar event model class for the client

Update event (V3) [DEPRECATED]

This action has been deprecated. Please use Update event (V4) instead.

This operation updates an event in a calendar.

Parameters

Name Key Required Type Description
Calendar id
table True string

Select a calendar

Id
id True string

Select an event

Subject
Subject True string

Event subject

Start time
Start True date-time

Start time of the event (example: '2016-11-01T14:30:00Z')

End time
End True date-time

End time of the event (example: '2016-11-01T15:30:00Z')

Time zone
TimeZone string

Time zone of the event

Required attendees
RequiredAttendees email

Required attendees for the event separated by semicolons

Optional attendees
OptionalAttendees email

Optional attendees for the event separated by semicolons

Resource attendees
ResourceAttendees string

Resource attendees for the event separated by semicolons

Body
Body html

Body of the message associated with the event

Location
Location string

Location of the event

Importance
Importance string

The importance of the event: Low, Normal, or High

Is all day event?
IsAllDay boolean

Set to true if the event lasts all day

Recurrence
Recurrence string

The recurrence pattern for the event

Recurrence end time
RecurrenceEnd date-time

End time of the recurrence

Number of occurrences
NumberOfOccurrences integer

How many times to repeat the event

Reminder
Reminder integer

Time in minutes before event start to remind

Show as
ShowAs string

Status to show during the event

Response requested
ResponseRequested boolean

Set to true if the sender would like a response when the event is accepted or declined

Returns

Connector specific calendar event model class for the client

Update event (V4)

This operation updates an event in a calendar using Graph API.

Parameters

Name Key Required Type Description
Calendar id
table True string

Select a calendar

Id
id True string

Select an event

Subject
subject True string

Event subject

Start time
start True date-no-tz

Start time of the event (example: '2017-08-29T04:00:00')

End time
end True date-no-tz

End time of the event (example: '2017-08-29T05:00:00')

Time zone
timeZone True string

Time zone of the event

Required attendees
requiredAttendees email

Required attendees for the event separated by semicolons

Optional attendees
optionalAttendees email

Optional attendees for the event separated by semicolons

Resource attendees
resourceAttendees string

Resource attendees for the event separated by semicolons

Body
body html

Body of the message associated with the event

Categories
categories array of string

The categories associated with the event

Location
location string

Location of the event

Importance
importance string

The importance of the event: low, normal, or high

Is all day event?
isAllDay boolean

Set to true if the event lasts all day

Recurrence
recurrence string

The recurrence pattern for the event: none, daily, weekly, monthly or yearly

Selected days of week
selectedDaysOfWeek array of string

Days of week for weekly recurrence

Recurrence end date
recurrenceEnd date

End Date of the recurrence

Number of occurrences
numberOfOccurences integer

How many times to repeat the event

Reminder
reminderMinutesBeforeStart integer

Time in minutes before event start to remind

Is reminder on
isReminderOn boolean

Set to true if an alert is set to remind the user of the event.

Show as
showAs string

Status to show during the event: free, tentative, busy, oof, workingElsewhere or unknown

Response requested
responseRequested boolean

Set to true if the sender would like a response when the event is accepted or declined

Sensitivity
sensitivity string

The possible values are: normal, personal, private, confidential

Returns

Connector specific calendar event model class for the client with Graph API

Update my contact's photo

Updates the photo of the specified contact of the current user. The size of the photo must be less than 4 MB.

Parameters

Name Key Required Type Description
Folder id
folder True string

Select a contacts folder

Item id
id True string

Unique identifier of a contact to update photo

Image content
body True binary

Image content

Triggers

When a new email arrives (V2) [DEPRECATED]

This action has been deprecated. Please use When a new email arrives (V3) instead.

This operation triggers a flow when a new email arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

When a new email arrives (V3)

This operation triggers a flow when a new email arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

When a new email arrives (webhook) [DEPRECATED]

This operation triggers a flow when a new email arrives.

When a new email arrives [DEPRECATED]

This action has been deprecated. Please use When a new email arrives (V3) instead.

This operation triggers a flow when a new email arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

When a new email arrives in a shared mailbox (V2)

This operation triggers a flow when a new email arrives in a shared mailbox. Your account should have permission to access the mailbox for this operation to succeed. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

When a new email arrives in a shared mailbox [DEPRECATED]

This action has been deprecated. Please use When a new email arrives in a shared mailbox (V2) instead.

This operation triggers a flow when a new email arrives in a shared mailbox. Your account should have permission to access the mailbox for this operation to succeed. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

When a new email mentioning me arrives (V2) [DEPRECATED]

This action has been deprecated. Please use When a new email mentioning me arrives (V3) instead.

This operation triggers a flow when a new email mentioning me arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

When a new email mentioning me arrives (V3)

This operation triggers a flow when a new email mentioning me arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

When a new email mentioning me arrives [DEPRECATED]

This action has been deprecated. Please use When a new email mentioning me arrives (V3) instead.

This operation triggers a flow when a new email mentioning me arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

When a new event is created (V1) [DEPRECATED]

This action has been deprecated. Please use When a new event is created (V3) instead.

This operation triggers a flow when a new event is created in a calendar. (V1)

When a new event is created (V2) [DEPRECATED]

This action has been deprecated. Please use When a new event is created (V3) instead.

This operation triggers a flow when a new event is created in a calendar. (V2)

When a new event is created (V3)

This operation triggers a flow when a new event is created in a calendar. (V3)

When an email is flagged (V2) [DEPRECATED]

This action has been deprecated. Please use When an email is flagged (V4) instead.

This operation triggers a flow when an email is flagged.

When an email is flagged (V3)

This operation triggers a flow when an email is flagged.

When an email is flagged (V4) (Preview)

This operation triggers a flow when an email is flagged.

When an email is flagged [DEPRECATED]

This action has been deprecated. Please use When an email is flagged (V4) instead.

This operation triggers a flow when an email is flagged.

When an event is added, updated or deleted (V2) [DEPRECATED]

This action has been deprecated. Please use When an event is added, updated or deleted (V3) instead.

This operation triggers a flow when an event is added, updated or deleted in a calendar. (V2)

When an event is added, updated or deleted (V3)

This operation triggers a flow when an event is added, updated or deleted in a calendar. (V3) This is not available in Mooncake.

When an event is added, updated or deleted [DEPRECATED]

This action has been deprecated. Please use When an event is added, updated or deleted (V3) instead.

This operation triggers a flow when an event is added, updated or deleted in a calendar.

When an event is modified (V1) [DEPRECATED]

This action has been deprecated. Please use When an event is modified (V3) instead.

This operation triggers a flow when an event is modified in a calendar. (V1)

When an event is modified (V2) [DEPRECATED]

This action has been deprecated. Please use When an event is modified (V3) instead.

This operation triggers a flow when an event is modified in a calendar. (V2)

When an event is modified (V3)

This operation triggers a flow when an event is modified in a calendar. (V3)

When an upcoming event is starting soon (V2) [DEPRECATED]

This action has been deprecated. Please use When an upcoming event is starting soon (V3) instead.

This operation triggers a flow when an upcoming calendar event is starting.

When an upcoming event is starting soon (V3)

This operation triggers a flow when an upcoming calendar event is starting.

When an upcoming event is starting soon [DEPRECATED]

This action has been deprecated. Please use When an upcoming event is starting soon (V3) instead.

This operation triggers a flow when an upcoming calendar event is starting.

When a new email arrives (V2) [DEPRECATED]

This action has been deprecated. Please use When a new email arrives (V3) instead.

This operation triggers a flow when a new email arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

Parameters

Name Key Required Type Description
Folder
folderPath string

Mail folder to check for new emails.

To
to email

Recipient email addresses separated by semicolons (If any match, the trigger will run).

CC
cc email

CC recipient email addresses separated by semicolons (If any match, the trigger will run).

To or CC
toOrCc email

To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).

From
from email

Sender email addresses separated by semicolons (If any match, the trigger will run).

Importance
importance string

Importance of the email (Any, High, Normal, Low).

Only with Attachments
fetchOnlyWithAttachment boolean

If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.

Include Attachments
includeAttachments boolean

Should the response of the trigger include the attachments content.

Subject Filter
subjectFilter string

String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

When a new email arrives (V3)

This operation triggers a flow when a new email arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

Parameters

Name Key Required Type Description
Folder
folderPath string

Mail folder to check for new emails.

To
to email

Recipient email addresses separated by semicolons (If any match, the trigger will run).

CC
cc email

CC recipient email addresses separated by semicolons (If any match, the trigger will run).

To or CC
toOrCc email

To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).

From
from email

Sender email addresses separated by semicolons (If any match, the trigger will run).

Importance
importance string

Importance of the email (Any, High, Normal, Low).

Only with Attachments
fetchOnlyWithAttachment boolean

If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.

Include Attachments
includeAttachments boolean

Should the response of the trigger include the attachments content.

Subject Filter
subjectFilter string

String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

When a new email arrives (webhook) [DEPRECATED]

This operation triggers a flow when a new email arrives.

Parameters

Name Key Required Type Description
Folder
folderPath string

Mail folder to check for new emails.

Importance
importance string

Importance of the received email ("Any", "High", "Normal", "Low").

Has Attachment
hasAttachment string

Whether the email has attachments ("Any", "Yes", "No").

Returns

Represents a wrapper object for batch trigger response

When a new email arrives [DEPRECATED]

This action has been deprecated. Please use When a new email arrives (V3) instead.

This operation triggers a flow when a new email arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

Parameters

Name Key Required Type Description
Folder
folderPath string

Mail folder to check for new emails.

To
to email

Recipient email addresses separated by semicolons (If any match, the trigger will run).

CC
cc email

CC recipient email addresses separated by semicolons (If any match, the trigger will run).

To or CC
toOrCc email

To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).

From
from email

Sender email addresses separated by semicolons (If any match, the trigger will run).

Importance
importance string

Importance of the email (Any, High, Normal, Low).

Only with Attachments
fetchOnlyWithAttachment boolean

If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.

Include Attachments
includeAttachments boolean

Should the response of the trigger include the attachments content.

Subject Filter
subjectFilter string

String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

When a new email arrives in a shared mailbox (V2)

This operation triggers a flow when a new email arrives in a shared mailbox. Your account should have permission to access the mailbox for this operation to succeed. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

Parameters

Name Key Required Type Description
Original Mailbox Address
mailboxAddress True string

Address of the shared mailbox.

Folder
folderId string

Mail folder to check for new emails.

To
to email

Recipient email addresses separated by semicolons (If any match, the trigger will run).

CC
cc email

CC recipient email addresses separated by semicolons (If any match, the trigger will run).

To or CC
toOrCc email

To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).

From
from email

Sender email addresses separated by semicolons (If any match, the trigger will run).

Importance
importance string

Importance of the email (Any, High, Normal, Low).

Only with Attachments
hasAttachments boolean

If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.

Include Attachments
includeAttachments boolean

Should the response of the trigger include the attachments content.

Subject Filter
subjectFilter string

String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

When a new email arrives in a shared mailbox [DEPRECATED]

This action has been deprecated. Please use When a new email arrives in a shared mailbox (V2) instead.

This operation triggers a flow when a new email arrives in a shared mailbox. Your account should have permission to access the mailbox for this operation to succeed. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

Parameters

Name Key Required Type Description
Original Mailbox Address
mailboxAddress True string

Address of the shared mailbox.

Folder
folderId string

Mail folder to check for new emails.

To
to email

Recipient email addresses separated by semicolons (If any match, the trigger will run).

CC
cc email

CC recipient email addresses separated by semicolons (If any match, the trigger will run).

To or CC
toOrCc email

To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).

From
from email

Sender email addresses separated by semicolons (If any match, the trigger will run).

Importance
importance string

Importance of the email (Any, High, Normal, Low).

Only with Attachments
hasAttachments boolean

If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.

Include Attachments
includeAttachments boolean

Should the response of the trigger include the attachments content.

Subject Filter
subjectFilter string

String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

When a new email mentioning me arrives (V2) [DEPRECATED]

This action has been deprecated. Please use When a new email mentioning me arrives (V3) instead.

This operation triggers a flow when a new email mentioning me arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

Parameters

Name Key Required Type Description
Folder
folderPath string

Mail folder to check for new emails.

To
to email

Recipient email addresses separated by semicolons (If any match, the trigger will run).

CC
cc email

CC recipient email addresses separated by semicolons (If any match, the trigger will run).

To or CC
toOrCc email

To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).

From
from email

Sender email addresses separated by semicolons (If any match, the trigger will run).

Importance
importance string

Importance of the email (Any, High, Normal, Low).

Only with Attachments
fetchOnlyWithAttachment boolean

If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.

Include Attachments
includeAttachments boolean

Should the response of the trigger include the attachments content.

Subject Filter
subjectFilter string

String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

When a new email mentioning me arrives (V3)

This operation triggers a flow when a new email mentioning me arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

Parameters

Name Key Required Type Description
Folder
folderPath string

Mail folder to check for new emails.

To
to email

Recipient email addresses separated by semicolons (If any match, the trigger will run).

CC
cc email

CC recipient email addresses separated by semicolons (If any match, the trigger will run).

To or CC
toOrCc email

To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).

From
from email

Sender email addresses separated by semicolons (If any match, the trigger will run).

Importance
importance string

Importance of the email (Any, High, Normal, Low).

Only with Attachments
fetchOnlyWithAttachment boolean

If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.

Include Attachments
includeAttachments boolean

Should the response of the trigger include the attachments content.

Subject Filter
subjectFilter string

String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

When a new email mentioning me arrives [DEPRECATED]

This action has been deprecated. Please use When a new email mentioning me arrives (V3) instead.

This operation triggers a flow when a new email mentioning me arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

Parameters

Name Key Required Type Description
Folder
folderPath string

Mail folder to check for new emails.

To
to email

Recipient email addresses separated by semicolons (If any match, the trigger will run).

CC
cc email

CC recipient email addresses separated by semicolons (If any match, the trigger will run).

To or CC
toOrCc email

To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).

From
from email

Sender email addresses separated by semicolons (If any match, the trigger will run).

Importance
importance string

Importance of the email (Any, High, Normal, Low).

Only with Attachments
fetchOnlyWithAttachment boolean

If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.

Include Attachments
includeAttachments boolean

Should the response of the trigger include the attachments content.

Subject Filter
subjectFilter string

String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

When a new event is created (V1) [DEPRECATED]

This action has been deprecated. Please use When a new event is created (V3) instead.

This operation triggers a flow when a new event is created in a calendar. (V1)

Parameters

Name Key Required Type Description
Calendar id
table True string

Select a calendar

Order By
$orderby string

An ODATA orderBy query for specifying the order of entries.

Top Count
$top integer

Total number of entries to retrieve (default = all).

Skip Count
$skip integer

The number of entries to skip (default = 0).

Returns

The list of calendar items

When a new event is created (V2) [DEPRECATED]

This action has been deprecated. Please use When a new event is created (V3) instead.

This operation triggers a flow when a new event is created in a calendar. (V2)

Parameters

Name Key Required Type Description
Calendar id
table True string

Select a calendar

Order By
$orderby string

An ODATA orderBy query for specifying the order of entries.

Top Count
$top integer

Total number of entries to retrieve (default = all).

Skip Count
$skip integer

The number of entries to skip (default = 0).

Returns

The list of calendar items

When a new event is created (V3)

This operation triggers a flow when a new event is created in a calendar. (V3)

Parameters

Name Key Required Type Description
Calendar id
table True string

Select a calendar

Order By
$orderby string

An ODATA orderBy query for specifying the order of entries.

Top Count
$top integer

Total number of entries to retrieve (default = all).

Skip Count
$skip integer

The number of entries to skip (default = 0).

Returns

The list of calendar items returned by Graph API

When an email is flagged (V2) [DEPRECATED]

This action has been deprecated. Please use When an email is flagged (V4) instead.

This operation triggers a flow when an email is flagged.

Parameters

Name Key Required Type Description
Folder
folderPath string

Mail folder to check for new emails.

To
to email

Recipient email addresses separated by semicolons (If any match, the trigger will run).

CC
cc email

CC recipient email addresses separated by semicolons (If any match, the trigger will run).

To or CC
toOrCc email

To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).

From
from email

Sender email addresses separated by semicolons (If any match, the trigger will run).

Importance
importance string

Importance of the email (Any, High, Normal, Low).

Only with Attachments
fetchOnlyWithAttachment boolean

If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.

Include Attachments
includeAttachments boolean

Should the response of the trigger include the attachments content.

Subject Filter
subjectFilter string

String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

When an email is flagged (V3)

This operation triggers a flow when an email is flagged.

Parameters

Name Key Required Type Description
Folder
folderPath string

Mail folder to check for new emails.

To
to email

Recipient email addresses separated by semicolons (If any match, the trigger will run).

CC
cc email

CC recipient email addresses separated by semicolons (If any match, the trigger will run).

To or CC
toOrCc email

To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).

From
from email

Sender email addresses separated by semicolons (If any match, the trigger will run).

Importance
importance string

Importance of the email (Any, High, Normal, Low).

Only with Attachments
fetchOnlyWithAttachment boolean

If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.

Include Attachments
includeAttachments boolean

Should the response of the trigger include the attachments content.

Subject Filter
subjectFilter string

String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

When an email is flagged (V4) (Preview)

This operation triggers a flow when an email is flagged.

Parameters

Name Key Required Type Description
Folder
folderPath string

Mail folder to check for new emails.

To
to email

Recipient email addresses separated by semicolons (If any match, the trigger will run).

CC
cc email

CC recipient email addresses separated by semicolons (If any match, the trigger will run).

To or CC
toOrCc email

To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).

From
from email

Sender email addresses separated by semicolons (If any match, the trigger will run).

Importance
importance string

Importance of the email (Any, High, Normal, Low).

Only with Attachments
fetchOnlyWithAttachment boolean

If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.

Include Attachments
includeAttachments boolean

Should the response of the trigger include the attachments content.

Subject Filter
subjectFilter string

String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

When an email is flagged [DEPRECATED]

This action has been deprecated. Please use When an email is flagged (V4) instead.

This operation triggers a flow when an email is flagged.

Parameters

Name Key Required Type Description
Folder
folderPath string

Mail folder to check for new emails.

To
to email

Recipient email addresses separated by semicolons (If any match, the trigger will run).

CC
cc email

CC recipient email addresses separated by semicolons (If any match, the trigger will run).

To or CC
toOrCc email

To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).

From
from email

Sender email addresses separated by semicolons (If any match, the trigger will run).

Importance
importance string

Importance of the email (Any, High, Normal, Low).

Only with Attachments
fetchOnlyWithAttachment boolean

If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.

Include Attachments
includeAttachments boolean

Should the response of the trigger include the attachments content.

Subject Filter
subjectFilter string

String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

When an event is added, updated or deleted (V2) [DEPRECATED]

This action has been deprecated. Please use When an event is added, updated or deleted (V3) instead.

This operation triggers a flow when an event is added, updated or deleted in a calendar. (V2)

Parameters

Name Key Required Type Description
Calendar id
table True string

Select a calendar

Incoming Days Tracked
incomingDays integer

Number of incoming days in calendar to be tracked

Past Days Tracked
pastDays integer

Number of past days in calendar to be tracked

Returns

The list of calendar items with action type

When an event is added, updated or deleted (V3)

This operation triggers a flow when an event is added, updated or deleted in a calendar. (V3) This is not available in Mooncake.

Parameters

Name Key Required Type Description
Calendar id
table True string

Select a calendar

Incoming Days Tracked
incomingDays integer

Number of incoming days in calendar to be tracked

Past Days Tracked
pastDays integer

Number of past days in calendar to be tracked

Returns

The list of calendar items with action type

When an event is added, updated or deleted [DEPRECATED]

This action has been deprecated. Please use When an event is added, updated or deleted (V3) instead.

This operation triggers a flow when an event is added, updated or deleted in a calendar.

Parameters

Name Key Required Type Description
Calendar id
table True string

Select a calendar

Incoming Days Tracked
incomingDays integer

Number of incoming days in calendar to be tracked

Past Days Tracked
pastDays integer

Number of past days in calendar to be tracked

Returns

The list of calendar items with action type

When an event is modified (V1) [DEPRECATED]

This action has been deprecated. Please use When an event is modified (V3) instead.

This operation triggers a flow when an event is modified in a calendar. (V1)

Parameters

Name Key Required Type Description
Calendar id
table True string

Select a calendar

Order By
$orderby string

An ODATA orderBy query for specifying the order of entries.

Top Count
$top integer

Total number of entries to retrieve (default = all).

Skip Count
$skip integer

The number of entries to skip (default = 0).

Returns

The list of calendar items

When an event is modified (V2) [DEPRECATED]

This action has been deprecated. Please use When an event is modified (V3) instead.

This operation triggers a flow when an event is modified in a calendar. (V2)

Parameters

Name Key Required Type Description
Calendar id
table True string

Select a calendar

Order By
$orderby string

An ODATA orderBy query for specifying the order of entries.

Top Count
$top integer

Total number of entries to retrieve (default = all).

Skip Count
$skip integer

The number of entries to skip (default = 0).

Returns

The list of calendar items

When an event is modified (V3)

This operation triggers a flow when an event is modified in a calendar. (V3)

Parameters

Name Key Required Type Description
Calendar id
table True string

Select a calendar

Order By
$orderby string

An ODATA orderBy query for specifying the order of entries.

Top Count
$top integer

Total number of entries to retrieve (default = all).

Skip Count
$skip integer

The number of entries to skip (default = 0).

Returns

The list of calendar items returned by Graph API

When an upcoming event is starting soon (V2) [DEPRECATED]

This action has been deprecated. Please use When an upcoming event is starting soon (V3) instead.

This operation triggers a flow when an upcoming calendar event is starting.

Parameters

Name Key Required Type Description
Calendar Id
table True string

Unique identifier of the calendar.

Look-Ahead Time
lookAheadTimeInMinutes integer

Time (in minutes) to look ahead for upcoming events.

Returns

The list of calendar items

When an upcoming event is starting soon (V3)

This operation triggers a flow when an upcoming calendar event is starting.

Parameters

Name Key Required Type Description
Calendar Id
table True string

Unique identifier of the calendar.

Look-Ahead Time
lookAheadTimeInMinutes integer

Time (in minutes) to look ahead for upcoming events.

Returns

The list of calendar items returned by Graph API

When an upcoming event is starting soon [DEPRECATED]

This action has been deprecated. Please use When an upcoming event is starting soon (V3) instead.

This operation triggers a flow when an upcoming calendar event is starting.

Parameters

Name Key Required Type Description
Calendar Id
table True string

Unique identifier of the calendar.

Look-Ahead Time
lookAheadTimeInMinutes integer

Time (in minutes) to look ahead for upcoming events.

Returns

The list of calendar items

Definitions

CalendarEventList

The list of calendar items

Name Path Type Description
value
value array of CalendarEventBackend

List of calendar items

CalendarEventBackend

Connector specific calendar event model class for the backend

Name Path Type Description
Id
Id string

The Event's unique identifier

Attendees
Attendees array of Attendee

List of attendees for the event

Body
Body ItemBody
Body preview
BodyPreview string

The preview of the message associated with the event

Categories
Categories array of string

The categories associated with the event

Change key
ChangeKey string

This property identifies the version of the event object. Every time the event is changed, ChangeKey changes as well.

Created time
DateTimeCreated date-time

The date and time that the event was created

Last modified time
DateTimeLastModified date-time

The date and time that the event was last modified

End time
End date-time

The end time of the event

End time zone
EndTimeZone string

This property specifies the time zone of the meeting end time. The value must be as defined in Windows (example: 'Pacific Standard Time').

Has attachments?
HasAttachments boolean

Set to true if the event has attachments

Event Unique ID
ICalUId string

A unique identifier that is shared by all instances of an event across different calendars

Importance
Importance string

The importance of the event: Low, Normal, or High

Is all day event?
IsAllDay boolean

Set to true if the event lasts all day

Is cancelled?
IsCancelled boolean

Set to true if the event has been canceled

Is Organizer
IsOrganizer boolean

Set to true if the message sender is also the organizer

Location
Location Location
Organizer
Organizer Recipient
Recurrence
Recurrence PatternedRecurrence
Reminder
Reminder integer

Time in minutes before event start to remind

Response requested
ResponseRequested boolean

Set to true if the sender would like a response when the event is accepted or declined

ResponseStatus
ResponseStatus ResponseStatus
Series master id
SeriesMasterId string

Unique identifier for Series Master event type

Show as
ShowAs string

Shows as free or busy

Start time
Start date-time

The start time of the event

Start time zone
StartTimeZone string

This property specifies the time zone of the meeting start time. The value must be as defined in Windows (example: 'Pacific Standard Time').

Subject
Subject string

Event subject

Type
Type string

The event type: Single Instance, Occurrence, Exception, or Series Master

Web link
WebLink uri

The preview of the message associated with the event

Reason
Reason string

The reason property used by O365 sync events protocol, will be 'deleted' if its a deleted event.

Attendee

Name Path Type Description
Status
Status ResponseStatus
Type
Type string
EmailAddress
EmailAddress EmailAddress

ItemBody

Name Path Type Description
ContentType
ContentType string
Content
Content string

Location

Name Path Type Description
DisplayName
DisplayName string
Address
Address PhysicalAddress
Coordinates
Coordinates GeoCoordinates

Recipient

Name Path Type Description
EmailAddress
EmailAddress EmailAddress

PatternedRecurrence

Name Path Type Description
Pattern
Pattern RecurrencePattern
Range
Range RecurrenceRange

ResponseStatus

Name Path Type Description
Response
Response string
Time
Time date-time

EmailAddress

Name Path Type Description
Name
Name string
Address
Address email

PhysicalAddress

Name Path Type Description
Street
Street string
City
City string
State
State string
CountryOrRegion
CountryOrRegion string
PostalCode
PostalCode string

GeoCoordinates

Name Path Type Description
Altitude
Altitude double
Latitude
Latitude double
Longitude
Longitude double
Accuracy
Accuracy double
AltitudeAccuracy
AltitudeAccuracy double

RecurrencePattern

Name Path Type Description
Type
Type string
Interval
Interval integer
Month
Month integer
DayOfMonth
DayOfMonth integer
DaysOfWeek
DaysOfWeek array of string
FirstDayOfWeek
FirstDayOfWeek string
Index
Index string

RecurrenceRange

Name Path Type Description
Type
Type string
StartDate
StartDate date-time
EndDate
EndDate date-time
NumberOfOccurrences
NumberOfOccurrences integer

CalendarEventListClientReceive

The list of calendar items

Name Path Type Description
value
value array of CalendarEventClientReceive

List of calendar items

CalendarEventClientReceive

Connector specific calendar event model class for the client

Name Path Type Description
Subject
Subject string

Event subject

Start time
Start date-time

Start time of the event (example: '2016-11-01T14:30:00Z')

End time
End date-time

End time of the event (example: '2016-11-01T15:30:00Z')

Show as
ShowAs integer

Status to show during the event (Unknown - -1, Free - 0, Tentative - 1, Busy - 2, Oof - 3, WorkingElsewhere - 4)

Recurrence
Recurrence integer

The recurrence pattern for the event (None - 0, Daily - 1, Weekly - 2, Monthly - 3, Yearly - 4)

Response type
ResponseType integer

The response type of the event (None - 0, Organizer - 1, TentativelyAccepted - 2, Accepted - 3, Declined - 4, NotResponded - 5)

Response time
ResponseTime date-time

The response time of the event

Event Unique ID
ICalUId string

A unique identifier that is shared by all instances of an event across different calendars

Importance
Importance integer

The importance of the event (0 - Low, 1 - Normal, 2 - High)

Id
Id string

The event's unique identifier

Created time
DateTimeCreated date-time

The date and time that the event was created

Last modified time
DateTimeLastModified date-time

The date and time that the event was last modified

Organizer
Organizer email

The organizer of the event

Time zone
TimeZone string

Time zone of the event

Series master id
SeriesMasterId string

Unique identifier for Series Master event type

Categories
Categories array of string

The categories associated with the event

Web link
WebLink uri

The URL to open the event in Outlook Web App

Required attendees
RequiredAttendees email

Required attendees for the event separated by semicolons

Optional attendees
OptionalAttendees email

Optional attendees for the event separated by semicolons

Resource attendees
ResourceAttendees string

Resource attendees for the event separated by semicolons

Body
Body string

Body of the message associated with the event

Is HTML
IsHtml boolean

Set to true if the body is Html

Location
Location string

Location of the event

Is all day event?
IsAllDay boolean

Set to true if the event lasts all day

Recurrence end time
RecurrenceEnd date-time

End time of the recurrence

Number of occurrences
NumberOfOccurrences integer

How many times to repeat the event

Reminder
Reminder integer

Time in minutes before event start to remind

Response requested
ResponseRequested boolean

Set to true if the sender would like a response when the event is accepted or declined

GraphCalendarEventListClientReceive

The list of calendar items returned by Graph API

Name Path Type Description
value
value array of GraphCalendarEventClientReceive

List of calendar items

GraphCalendarEventClientReceive

Connector specific calendar event model class for the client with Graph API

Name Path Type Description
Subject
subject string

Event subject

Start time
start date-no-tz

Start time of the event (example: '2017-08-29T04:00:00.0000000')

End time
end date-no-tz

End time of the event (example: '2017-08-29T05:00:00.0000000')

Start time with time zone
startWithTimeZone date-time

Start time of the event with time zone (example: '2017-08-29T04:00:00.0000000+00:00')

End time with time zone
endWithTimeZone date-time

End time of the event with time zone (example: '2017-08-29T05:00:00.0000000+00:00')

Body
body html

Body of the message associated with the event

Is HTML
isHtml boolean

Set to true if the body is Html

Response type
responseType string

The response type of the event (none, organizer, tentativelyAccepted, accepted, declined or notResponded)

Response time
responseTime date-time

The response time of the event

Id
id string

The event's unique identifier

Created time
createdDateTime date-time

The date and time that the event was created

Last modified time
lastModifiedDateTime date-time

The date and time that the event was last modified

Organizer
organizer email

The organizer of the event

Time zone
timeZone string

Time zone of the event

Series master id
seriesMasterId string

Unique identifier for Series Master event type

iCalUId
iCalUId string

A unique identifier for an event across calendars. This ID is different for each occurrence in a recurring series

Categories
categories array of string

The categories associated with the event

Web link
webLink uri

The URL to open the event in Outlook Web App

Required attendees
requiredAttendees email

Required attendees for the event separated by semicolons

Optional attendees
optionalAttendees email

Optional attendees for the event separated by semicolons

Resource attendees
resourceAttendees string

Resource attendees for the event separated by semicolons

Location
location string

Location of the event

Importance
importance string

The importance of the event: low, normal, or high

Is all day event?
isAllDay boolean

Set to true if the event lasts all day

Recurrence
recurrence string

The recurrence pattern for the event: none, daily, weekly, monthly or yearly

Recurrence end date
recurrenceEnd date

End Date of the recurrence

Number of occurrences
numberOfOccurences integer

How many times to repeat the event

Reminder
reminderMinutesBeforeStart integer

Time in minutes before event start to remind

Is reminder on
isReminderOn boolean

Set to true if an alert is set to remind the user of the event.

Show as
showAs string

Status to show during the event: free, tentative, busy, oof, workingElsewhere or unknown

Response requested
responseRequested boolean

Set to true if the sender would like a response when the event is accepted or declined

Sensitivity
sensitivity string

The possible values are: normal, personal, private, confidential

PaginatedListResponse[CalendarEventClientReceiveStringEnums]

Response containing a list and next link

Name Path Type Description
Values
Values array of CalendarEventClientReceiveStringEnums

Values

CalendarEventClientReceiveStringEnums

Connector specific calendar event model class for the client

Name Path Type Description
Importance
Importance string

The importance of the event: Low, Normal, or High

Response type
ResponseType string

The response type of the event: None, Organizer, TentativelyAccepted, Accepted, Declined or NotResponded

Recurrence
Recurrence string

The recurrence pattern for the event

Show as
ShowAs string

Status to show during the event

Subject
Subject string

Event subject

Start time
Start date-time

Start time of the event (example: '2016-11-01T14:30:00Z')

End time
End date-time

End time of the event (example: '2016-11-01T15:30:00Z')

Response time
ResponseTime date-time

The response time of the event

Event Unique ID
ICalUId string

A unique identifier that is shared by all instances of an event across different calendars

Id
Id string

The event's unique identifier

Created time
DateTimeCreated date-time

The date and time that the event was created

Last modified time
DateTimeLastModified date-time

The date and time that the event was last modified

Organizer
Organizer email

The organizer of the event

Time zone
TimeZone string

Time zone of the event

Series master id
SeriesMasterId string

Unique identifier for Series Master event type

Categories
Categories array of string

The categories associated with the event

Web link
WebLink uri

The URL to open the event in Outlook Web App

Required attendees
RequiredAttendees email

Required attendees for the event separated by semicolons

Optional attendees
OptionalAttendees email

Optional attendees for the event separated by semicolons

Resource attendees
ResourceAttendees string

Resource attendees for the event separated by semicolons

Body
Body string

Body of the message associated with the event

Is HTML
IsHtml boolean

Set to true if the body is Html

Location
Location string

Location of the event

Is all day event?
IsAllDay boolean

Set to true if the event lasts all day

Recurrence end time
RecurrenceEnd date-time

End time of the recurrence

Number of occurrences
NumberOfOccurrences integer

How many times to repeat the event

Reminder
Reminder integer

Time in minutes before event start to remind

Response requested
ResponseRequested boolean

Set to true if the sender would like a response when the event is accepted or declined

ClientReceiveMessageStringEnums

Receive Email Message

Name Path Type Description
Importance
Importance string

The importance of the message

From
From email

The mailbox owner and sender of the message

To
To email

The recipients for the message

CC
Cc email

The Cc recipients for the message

BCC
Bcc email

The Bcc recipients for the message

Reply To
ReplyTo email

The email addresses to use when replying

Subject
Subject string

The subject of the message

Body
Body string

The body of the message

Body Preview
BodyPreview string

The preview of the message

Has Attachment
HasAttachment boolean

Indicates whether the message has attachments

Message Id
Id string

The unique identifier of the message

Internet Message Id
InternetMessageId string

The message ID in the format specified by RFC2822

Conversation Id
ConversationId string

The Id of the conversation the email belongs to

Received Time
DateTimeReceived date-time

The date and time the message was received

Is Read
IsRead boolean

Indicates whether the message has been read

Attachments
Attachments array of ClientReceiveFileAttachment

The file attachments for the message

Is HTML
IsHtml boolean

Is Html?

ClientReceiveFileAttachment

File Attachment

Name Path Type Description
Attachment Id
Id string

Attachment Id

Name
Name string

Attachment name

Content
ContentBytes byte

Attachment content

Content-Type
ContentType string

Attachment content type

Size
Size integer

The size in bytes of the attachment

Is Inline
IsInline boolean

Set to true if this is an inline attachment

Last Modified DateTime
LastModifiedDateTime date-time

The date and time when the attachment was last modified

Content Id
ContentId string

Content Id

BatchResponse[ClientReceiveMessage]

Represents a wrapper object for batch response

Name Path Type Description
value
value array of ClientReceiveMessage

A list of the response objects

ClientReceiveMessage

Receive Email Message

Name Path Type Description
From
From email

The mailbox owner and sender of the message

To
To email

The recipients for the message

CC
Cc email

The Cc recipients for the message

BCC
Bcc email

The Bcc recipients for the message

Reply To
ReplyTo email

The email addresses to use when replying

Subject
Subject string

The subject of the message

Body
Body string

The body of the message

Importance
Importance integer

The importance of the message (0 - Low, 1 - Normal, 2 - High)

Body Preview
BodyPreview string

The preview of the message

Has Attachment
HasAttachment boolean

Indicates whether the message has attachments

Message Id
Id string

The unique identifier of the message

Internet Message Id
InternetMessageId string

The message ID in the format specified by RFC2822

Conversation Id
ConversationId string

The Id of the conversation the email belongs to

Received Time
DateTimeReceived date-time

The date and time the message was received

Is Read
IsRead boolean

Indicates whether the message has been read

Attachments
Attachments array of ClientReceiveFileAttachment

The file attachments for the message

Is HTML
IsHtml boolean

Is Html?

GraphClientReceiveMessage

Graph Client Receive Email Message

Name Path Type Description
From
from email

The mailbox owner and sender of the message

To
toRecipients email

The recipients for the message

CC
ccRecipients email

The Cc recipients for the message

BCC
bccRecipients email

The Bcc recipients for the message

Reply To
replyTo email

The email addresses to use when replying

Subject
subject string

The subject of the message

Body
body string

The body of the message

Importance
importance string

The importance of the message (low, normal, high)

Body Preview
bodyPreview string

The preview of the message

Has Attachment
hasAttachments boolean

Indicates whether the message has attachments

Message Id
id string

The unique identifier of the message

Internet Message Id
internetMessageId string

The message ID in the format specified by RFC2822

Conversation Id
conversationId string

The Id of the conversation the email belongs to

Received Time
receivedDateTime date-time

The date and time the message was received

Is Read
isRead boolean

Indicates whether the message has been read

Attachments
attachments array of GraphClientReceiveFileAttachment

The file attachments for the message

Is HTML
isHtml boolean

Is Html?

GraphClientReceiveFileAttachment

File Attachment

Name Path Type Description
Attachment Id
id string

Attachment Id

Name
name string

Attachment name

Content
contentBytes byte

Attachment content

Content-Type
contentType string

Attachment content type

Size
size integer

The size in bytes of the attachment

Is Inline
isInline boolean

Set to true if this is an inline attachment

Last Modified DateTime
lastModifiedDateTime date-time

The date and time when the attachment was last modified

Content Id
contentId string

Content Id

BatchResponse[GraphClientReceiveMessage]

Represents a wrapper object for batch response

Name Path Type Description
value
value array of GraphClientReceiveMessage

A list of the response objects

TriggerBatchResponse[ClientReceiveMessage]

Represents a wrapper object for batch trigger response

Name Path Type Description
value
value array of ClientReceiveMessage

A list of the response objects

TriggerBatchResponse[GraphClientReceiveMessage]

Represents a wrapper object for batch trigger response

Name Path Type Description
value
value array of GraphClientReceiveMessage

A list of the response objects

MailTipsClientReceive

Mail tips client model returned to the caller

Name Path Type Description
AutomaticReplies
AutomaticReplies MailTipsAutomaticReplies

Automatic replies as part of mail tips

DeliveryRestricted
DeliveryRestricted boolean

Is delivery restricted

ExternalMemberCount
ExternalMemberCount integer

Number of external members

IsModerated
IsModerated boolean

Is moderated

MailboxFull
MailboxFull boolean

Is mailbox full

MaxMessageSize
MaxMessageSize integer

Maximum message size

TotalMemberCount
TotalMemberCount integer

Total member count

MailTipsAutomaticReplies

Automatic replies as part of mail tips

Name Path Type Description
Message
Message string

Automatic replies message

TriggerBatchResponse[ReceiveMessageMetadata]

Represents a wrapper object for batch trigger response

Name Path Type Description
value
value array of ReceiveMessageMetadata

A list of the response objects

ReceiveMessageMetadata

Receive Email Message

Name Path Type Description
From
From email

The mailbox owner and sender of the message

To
To email

The recipients for the message

CC
Cc email

The Cc recipients for the message

BCC
Bcc email

The Bcc recipients for the message

Reply To
ReplyTo email

The email addresses to use when replying

Subject
Subject string

The subject of the message

Importance
Importance integer

The importance of the message (0 - Low, 1 - Normal, 2 - High)

Has Attachment
HasAttachment boolean

Indicates whether the message has attachments

Message Id
Id string

The unique identifier of the message

Received Time
DateTimeReceived date-time

The date and time the message was received

Is Read
IsRead boolean

Indicates whether the message has been read

ApprovalEmailResponse

Approval Email Response

Name Path Type Description
SelectedOption
SelectedOption string

User response

UserEmailAddress
UserEmailAddress string

User email address. The value is the user's email address for individual users and user ID for the members in Distribution Group or Mail Enabled Security Group.

UserTenantId
UserTenantId string

User tenant ID. The value is the tenant id of the user for both individual users and the members in Distribution Group or Mail Enabled Security Group.

UserId
UserId string

User ID. The value is the user id for both individual users and the members in Distribution Group or Mail Enabled Security Group.

EntityListResponse[Table]

Entity list response

Name Path Type Description
value
value array of Table

List of values

Table

Represents a table.

Name Path Type Description
Name
Name string

The name of the table. The name is used at runtime.

DisplayName
DisplayName string

The display name of the table.

DynamicProperties
DynamicProperties object

Additional table properties provided by the connector to the clients.

EntityListResponse[CalendarEventBackend]

Entity list response

Name Path Type Description
value
value array of CalendarEventBackend

List of values

EntityListResponse[CalendarEventClientReceiveStringEnums]

Entity list response

Name Path Type Description
value
value array of CalendarEventClientReceiveStringEnums

List of values

EntityListResponse[GraphCalendarEventClientReceive]

Entity list response

Name Path Type Description
value
value array of GraphCalendarEventClientReceive

List of values

CalendarEventListWithActionType

The list of calendar items with action type

Name Path Type Description
value
value array of CalendarEventClientWithActionType

List of calendar items

CalendarEventClientWithActionType

Calendar event model with action type

Name Path Type Description
Action Type
ActionType string

Changed action type of the event - added, updated or deleted.

Is Added
IsAdded boolean

Flag that indicates whether the event was added since the last poll of the trigger.

Is Updated
IsUpdated boolean

Flag that indicates whether the event was updated since the last poll of the trigger.

Subject
Subject string

Event subject

Start time
Start date-time

Start time of the event (example: '2016-11-01T14:30:00Z')

End time
End date-time

End time of the event (example: '2016-11-01T15:30:00Z')

Show as
ShowAs integer

Status to show during the event (Unknown - -1, Free - 0, Tentative - 1, Busy - 2, Oof - 3, WorkingElsewhere - 4)

Recurrence
Recurrence integer

The recurrence pattern for the event (None - 0, Daily - 1, Weekly - 2, Monthly - 3, Yearly - 4)

Response type
ResponseType integer

The response type of the event (None - 0, Organizer - 1, TentativelyAccepted - 2, Accepted - 3, Declined - 4, NotResponded - 5)

Response time
ResponseTime date-time

The response time of the event

Event Unique ID
ICalUId string

A unique identifier that is shared by all instances of an event across different calendars

Importance
Importance integer

The importance of the event (0 - Low, 1 - Normal, 2 - High)

Id
Id string

The event's unique identifier

Created time
DateTimeCreated date-time

The date and time that the event was created

Last modified time
DateTimeLastModified date-time

The date and time that the event was last modified

Organizer
Organizer email

The organizer of the event

Time zone
TimeZone string

Time zone of the event

Series master id
SeriesMasterId string

Unique identifier for Series Master event type

Categories
Categories array of string

The categories associated with the event

Web link
WebLink uri

The URL to open the event in Outlook Web App

Required attendees
RequiredAttendees email

Required attendees for the event separated by semicolons

Optional attendees
OptionalAttendees email

Optional attendees for the event separated by semicolons

Resource attendees
ResourceAttendees string

Resource attendees for the event separated by semicolons

Body
Body string

Body of the message associated with the event

Is HTML
IsHtml boolean

Set to true if the body is Html

Location
Location string

Location of the event

Is all day event?
IsAllDay boolean

Set to true if the event lasts all day

Recurrence end time
RecurrenceEnd date-time

End time of the recurrence

Number of occurrences
NumberOfOccurrences integer

How many times to repeat the event

Reminder
Reminder integer

Time in minutes before event start to remind

Response requested
ResponseRequested boolean

Set to true if the sender would like a response when the event is accepted or declined

GraphCalendarEventListWithActionType

The list of calendar items with action type

Name Path Type Description
value
value array of GraphCalendarEventClientWithActionType

List of calendar items

GraphCalendarEventClientWithActionType

Graph calendar event model with action type

Name Path Type Description
Action Type
ActionType string

Changed action type of the event - added, updated or deleted.

Is Added
IsAdded boolean

Flag that indicates whether the event was added since the last poll of the trigger.

Is Updated
IsUpdated boolean

Flag that indicates whether the event was updated since the last poll of the trigger.

Subject
subject string

Event subject

Start time
start date-no-tz

Start time of the event (example: '2017-08-29T04:00:00.0000000')

End time
end date-no-tz

End time of the event (example: '2017-08-29T05:00:00.0000000')

Start time with time zone
startWithTimeZone date-time

Start time of the event with time zone (example: '2017-08-29T04:00:00.0000000+00:00')

End time with time zone
endWithTimeZone date-time

End time of the event with time zone (example: '2017-08-29T05:00:00.0000000+00:00')

Body
body html

Body of the message associated with the event

Is HTML
isHtml boolean

Set to true if the body is Html

Response type
responseType string

The response type of the event (none, organizer, tentativelyAccepted, accepted, declined or notResponded)

Response time
responseTime date-time

The response time of the event

Id
id string

The event's unique identifier

Created time
createdDateTime date-time

The date and time that the event was created

Last modified time
lastModifiedDateTime date-time

The date and time that the event was last modified

Organizer
organizer email

The organizer of the event

Time zone
timeZone string

Time zone of the event

Series master id
seriesMasterId string

Unique identifier for Series Master event type

iCalUId
iCalUId string

A unique identifier for an event across calendars. This ID is different for each occurrence in a recurring series

Categories
categories array of string

The categories associated with the event

Web link
webLink uri

The URL to open the event in Outlook Web App

Required attendees
requiredAttendees email

Required attendees for the event separated by semicolons

Optional attendees
optionalAttendees email

Optional attendees for the event separated by semicolons

Resource attendees
resourceAttendees string

Resource attendees for the event separated by semicolons

Location
location string

Location of the event

Importance
importance string

The importance of the event: low, normal, or high

Is all day event?
isAllDay boolean

Set to true if the event lasts all day

Recurrence
recurrence string

The recurrence pattern for the event: none, daily, weekly, monthly or yearly

Recurrence end date
recurrenceEnd date

End Date of the recurrence

Number of occurrences
numberOfOccurences integer

How many times to repeat the event

Reminder
reminderMinutesBeforeStart integer

Time in minutes before event start to remind

Is reminder on
isReminderOn boolean

Set to true if an alert is set to remind the user of the event.

Show as
showAs string

Status to show during the event: free, tentative, busy, oof, workingElsewhere or unknown

Response requested
responseRequested boolean

Set to true if the sender would like a response when the event is accepted or declined

Sensitivity
sensitivity string

The possible values are: normal, personal, private, confidential

EntityListResponse[GraphContactFolder]

Entity list response

Name Path Type Description
value
value array of GraphContactFolder

List of values

GraphContactFolder

Contact folder data model returned by Graph API

Name Path Type Description
ID
id string

The ID of the contacts folder

Display Name
displayName string

The name of the contacts folder

Parent Folder ID
parentFolderId string

The ID of the parent folder

EntityListResponse[ContactResponse]

Entity list response

Name Path Type Description
value
value array of ContactResponse

List of values

ContactResponse

Contact response

Name Path Type Description
Given name
GivenName string

The contact's given name

Home phones
HomePhones array of string

The contact's home phone numbers

Id
Id string

The contact's unique identifier.

Parent folder id
ParentFolderId string

The ID of the contact's parent folder

Birthday
Birthday date-time

The contact's birthday

File as
FileAs string

The name the contact is filed under

Display Name
DisplayName string

The contact's display name

Initials
Initials string

The contact's initials

Middle name
MiddleName string

The contact's middle name

Nickname
NickName string

The contact's nickname

Surname
Surname string

The contact's surname

Title
Title string

The contact's title

Generation
Generation string

The contact's generation

Email addresses
EmailAddresses array of EmailAddress

The contact's email addresses

IM addresses
ImAddresses array of string

The contact's instant messaging (IM) addresses

JobTitle
JobTitle string

The contact's job title

Company name
CompanyName string

The name of the contact's company

Department
Department string

The contact's department

Office location
OfficeLocation string

The location of the contact's office

Profession
Profession string

The contact's profession

Business home page
BusinessHomePage string

The business home page of the contact

Assistant name
AssistantName string

The name of the contact's assistant

Manager
Manager string

The name of the contact's manager

Business phones
BusinessPhones array of string

The contact's business phone numbers

Mobile phone
MobilePhone1 string

The contact's mobile phone number

HomeAddress
HomeAddress PhysicalAddress
BusinessAddress
BusinessAddress PhysicalAddress
OtherAddress
OtherAddress PhysicalAddress
Yomi company name
YomiCompanyName string

The phonetic Japanese company name of the contact

Yomi given name
YomiGivenName string

The phonetic Japanese given name (first name) of the contact

Yomi surname
YomiSurname string

The phonetic Japanese surname (last name) of the contact

Categories
Categories array of string

The categories associated with the contact

Change key
ChangeKey string

Identifies the version of the event object

Created time
DateTimeCreated date-time

The time the contact was created

Last modified time
DateTimeLastModified date-time

The time the contact was modified

AutomaticRepliesSettingClient_V2

Automatic replies setting model for the connector

Name Path Type Description
Status
status string

Automatic reply setting status

External Audience
externalAudience string

The audience that will see the external reply message

DateTime
scheduledStartDateTime.dateTime string

Scheduled start time (example: '2017-08-29T04:00:00.0000000')

TimeZone
scheduledStartDateTime.timeZone string

TimeZone (example: 'Pacific Standard Time')

DateTime
scheduledEndDateTime.dateTime string

Scheduled end time (example: '2017-08-29T05:00:00.0000000')

TimeZone
scheduledEndDateTime.timeZone string

TimeZone (example: 'Pacific Standard Time')

Internal Reply Message
internalReplyMessage string

Message for people within your organization

External Reply Message
externalReplyMessage string

Message for people outside your organization

MailTipsClientReceive_V2

Mail tips client model returned to the caller

Name Path Type Description
automaticReplies
automaticReplies MailTipsAutomaticReplies_V2

Automatic replies as part of mail tips

Is delivery restricted
deliveryRestricted boolean

Is delivery restricted

Is moderated
externalMemberCount integer

Number of external members

Is moderated
isModerated boolean

Is moderated

Is mailbox full
mailboxFull boolean

Is mailbox full

Maximum message size
maxMessageSize integer

Maximum message size

Total member count
totalMemberCount integer

Total member count

MailTipsAutomaticReplies_V2

Automatic replies as part of mail tips

Name Path Type Description
Automatic replies message
message string

Automatic replies message

MeetingTimeSuggestions

Meeting Time Suggestions

Name Path Type Description
Confidence
Confidence float

Confidence

Organizer Availability
OrganizerAvailability string

Organizer Availability

Suggestion Reason
SuggestionReason string

Suggestion Reason

DateTimeTimeZone
MeetingTimeSlot.Start DateTimeTimeZone

DateTimeTimeZone

DateTimeTimeZone
MeetingTimeSlot.End DateTimeTimeZone

DateTimeTimeZone

Attendee Availability
AttendeeAvailability array of object

Attendee Availability

Availability
AttendeeAvailability.Availability string

Availability

Type
AttendeeAvailability.Attendee.Type string

Type

Address
AttendeeAvailability.Attendee.EmailAddress.Address string

Address

Locations
Locations array of object

Locations

Display Name
Locations.DisplayName string

Display Name

Location Email Address
Locations.LocationEmailAddress string

Location Email Address

Type
Locations.Address.Type string

Type

Street
Locations.Address.Street string

Street

City
Locations.Address.City string

City

State
Locations.Address.State string

State

Country Or Region
Locations.Address.CountryOrRegion string

Country Or Region

Postal Code
Locations.Address.PostalCode string

Postal Code

MeetingTimeSuggestions_V2

Meeting Time Suggestions

Name Path Type Description
Confidence
confidence float

Confidence

Organizer Availability
organizerAvailability string

Organizer Availability

Suggestion Reason
suggestionReason string

Suggestion Reason

DateTimeTimeZone
meetingTimeSlot.start DateTimeTimeZone_V2

DateTimeTimeZone

DateTimeTimeZone
meetingTimeSlot.end DateTimeTimeZone_V2

DateTimeTimeZone

Attendee Availability
attendeeAvailability array of object

Attendee Availability

Availability
attendeeAvailability.availability string

Availability

Type
attendeeAvailability.attendee.type string

Type

Address
attendeeAvailability.attendee.emailAddress.address string

Address

Locations
locations array of object

Locations

Display Name
locations.displayName string

Display Name

Location Email Address
locations.locationEmailAddress string

Location Email Address

Street
locations.address.street string

Street

City
locations.address.city string

City

State
locations.address.state string

State

Country Or Region
locations.address.countryOrRegion string

Country Or Region

Postal Code
locations.address.postalCode string

Postal Code

DateTimeTimeZone

DateTimeTimeZone

Name Path Type Description
DateTime
DateTime string

DateTime

TimeZone
TimeZone string

TimeZone

DateTimeTimeZone_V2

DateTimeTimeZone

Name Path Type Description
DateTime
dateTime string

DateTime (example: '2017-08-29T04:00:00.0000000')

TimeZone
timeZone string

TimeZone (example: 'Pacific Standard Time')

EntityListResponse[ContactResponse]_V2

Entity list response

Name Path Type Description
value
value array of ContactResponse_V2

List of values

EmailAddress_V2

Name Path Type Description
name
name string
address
address email

PhysicalAddress_V2

Name Path Type Description
Street
street string

The contact's street address.

City
city string

The contact's city.

State
state string

The contact's state.

Country Or Region
countryOrRegion string

The contact's country of region.

Postal code
postalCode string

The contact's postal code.

ContactResponse_V2

Contact

Name Path Type Description
Id
id string

The contact's unique identifier.

Parent folder id
parentFolderId string

The ID of the contact's parent folder

Birthday
birthday date-time

The contact's birthday

File as
fileAs string

The name the contact is filed under

Display Name
displayName string

The contact's display name

Given name
givenName string

The contact's given name

Initials
initials string

The contact's initials

Middle name
middleName string

The contact's middle name

Nickname
nickName string

The contact's nickname

Surname
surname string

The contact's surname

Title
title string

The contact's title

Generation
generation string

The contact's generation

Email addresses
emailAddresses array of EmailAddress_V2

The contact's email addresses

IM addresses
imAddresses array of string

The contact's instant messaging (IM) addresses

JobTitle
jobTitle string

The contact's job title

Company name
companyName string

The name of the contact's company

Department
department string

The contact's department

Office location
officeLocation string

The location of the contact's office

Profession
profession string

The contact's profession

Business home page
businessHomePage string

The business home page of the contact

Assistant name
assistantName string

The name of the contact's assistant

Manager
manager string

The name of the contact's manager

Home phones
homePhones array of string

The contact's home phone numbers

Business phones
businessPhones array of string

The contact's business phone numbers

Mobile phone
mobilePhone string

The contact's mobile phone number

homeAddress
homeAddress PhysicalAddress_V2
businessAddress
businessAddress PhysicalAddress_V2
otherAddress
otherAddress PhysicalAddress_V2
Yomi company name
yomiCompanyName string

The phonetic Japanese company name of the contact

Yomi given name
yomiGivenName string

The phonetic Japanese given name (first name) of the contact

Yomi surname
yomiSurname string

The phonetic Japanese surname (last name) of the contact

Categories
categories array of string

The categories associated with the contact

Change key
changeKey string

Identifies the version of the event object

Created time
createdDateTime date-time

The time the contact was created

Last modified time
lastModifiedDateTime date-time

The time the contact was modified

ObjectWithoutType

binary

This is the basic data type 'binary'.
