Block.BorderBrush Property

Reference

Definition

Namespace:: System.Windows.Documents

Assembly:: PresentationFramework.dll

Important

Some information relates to prerelease product that may be substantially modified before it’s released. Microsoft makes no warranties, express or implied, with respect to the information provided here.

Gets or sets a Brush to use when painting the element's border.

public:
 property System::Windows::Media::Brush ^ BorderBrush { System::Windows::Media::Brush ^ get(); void set(System::Windows::Media::Brush ^ value); };

public System.Windows.Media.Brush BorderBrush { get; set; }

member this.BorderBrush : System.Windows.Media.Brush with get, set

Public Property BorderBrush As Brush

Property Value

Brush

The brush used to apply to the element's border. The default is null.

Examples

The following example shows how to set the BorderBrush attribute of a Block element (Paragraph).

<FlowDocument>
  <Paragraph Name="par"
    BorderBrush="Blue"
    BorderThickness="0.25in"
  >
    <Run>
      Child elements in this Block element (Paragraph) will be surrounded by a blue border.
    </Run>
    <LineBreak/><LineBreak/>
    <Run>
      This border will be one quarter inch thick in all directions.
    </Run>
  </Paragraph>
</FlowDocument>

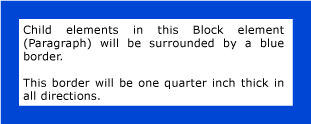

The following figure shows how the preceding example renders.

Screenshot: Blue, 1/4inch border around Block

The following example shows how to set the BorderBrush property programmatically.

Paragraph par = new Paragraph();

Run run1 = new Run("Child elements in this Block element (Paragraph) will be surrounded by a blue border.");
Run run2 = new Run("This border will be one quarter inch thick in all directions.");

par.Inlines.Add(run1);
par.Inlines.Add(run2);

par.BorderBrush = Brushes.Blue;
ThicknessConverter tc = new ThicknessConverter();
par.BorderThickness = (Thickness)tc.ConvertFromString("0.25in");

Dim par As New Paragraph()

Dim run1 As New Run("Child elements in this Block element (Paragraph) will be surrounded by a blue border.")
Dim run2 As New Run("This border will be one quarter inch thick in all directions.")

par.Inlines.Add(run1)
par.Inlines.Add(run2)

par.BorderBrush = Brushes.Blue
Dim tc As New ThicknessConverter()
par.BorderThickness = CType(tc.ConvertFromString("0.25in"), Thickness)

Remarks

For a table of swatches that show the available predefined brush colors, see Brushes.

Dependency Property Information


Identifier field	BorderBrushProperty
Metadata properties set to `true`	AffectsRender
