Integrate F5 BIG-IP with Microsoft Entra ID

  • Članek

With increases in the threat landscape and the use of multiple mobile devices, organizations are rethinking resource access and governance. Part of modernization programs include assessing your readiness across identities, devices, apps, infrastructure, network, and data. You can learn about the Zero Trust framework to enable remote work and the Zero Trust Assessment tool.

Digital transformation is a long-term journey, and potentially critical resources are exposed until modernized. The goal of F5 BIG-IP and Microsoft Entra ID secure hybrid access (SHA) is to improve remote access to on-premises applications, and strengthen the security posture of vulnerable legacy services.

Research estimates that 60%-80% of on-premises applications are legacy, or incapable of being integrated with Microsoft Entra ID. The same study indicates a large proportion of similar systems run on previous versions of SAP, Oracle, SAGE, and other well-known workloads for critical services.

SHA enables organizations to continue using investments in F5 network and application delivery. With Microsoft Entra ID, SHA bridges the gap with the identity control plane.

Benefits

When Microsoft Entra ID preauthenticates access to BIG-IP published services, there are many benefits:

Other benefits include:

Scenario description

As an Application Delivery Controller (ADC) and secure socket layer virtual private network (SSL-VPN), a BIG-IP system provides local and remote access to services, including:

  • Modern and legacy web applications
  • Non-web-based applications
  • Representational State Transfer (REST) and Simple Object Access Protocol (SOAP) Web application programming interface (API) services

BIG-IP Local Traffic Manager (LTM) is for secure service publishing, while an Access Policy Manager (APM) extends BIG-IP functions that enable identity federation and single sign-on (SSO).

With integration, you achieve the protocol transition to secure legacy, or other integrated services, with controls such as:

In the scenario, a BIG-IP is a reverse proxy that hands off service preauthentication and authorization to Microsoft Entra ID. The integration is based on a standard federation trust between the APM and Microsoft Entra ID. This scenario is common with SHA. Learn more: Configure F5 BIG-IP SSL-VPN for Microsoft Entra SSO. With SHA you can secure Security Assertion Markup Language (SAML), Open Authorization (OAuth), and OpenID Connect (OIDC) resources.

Note

When used for local and remote access, a BIG-IP can be a choke point for Zero Trust access to services, including software as a service (SaaS) apps.

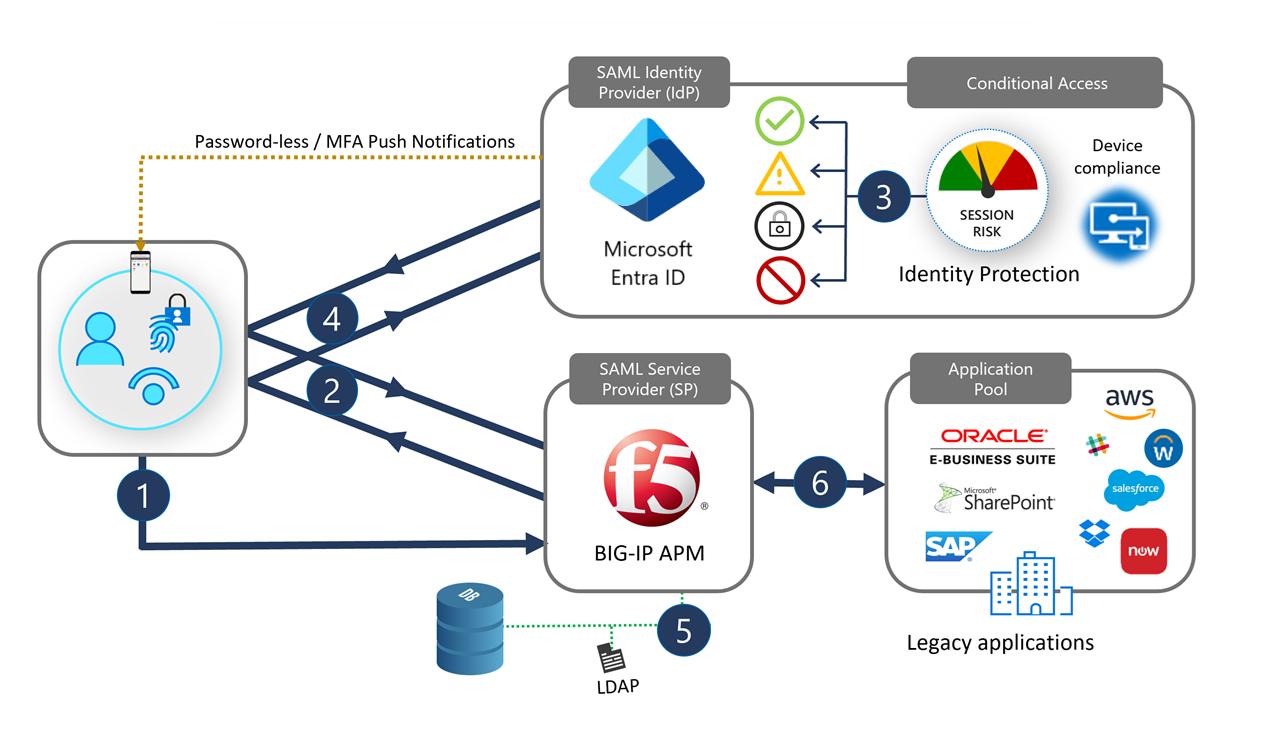

The following diagram illustrates the front-end preauthentication exchange between a user, a BIG-IP, and Microsoft Entra ID, in a service provider (SP) initiated flow. It then shows subsequent APM session enrichment, and SSO to individual back-end services.

Diagram of integration architecture.

  1. Users select an application icon in the portal, resolving URL to the SAML SP (BIG-IP)
  2. BIG-IP redirects the user to the SAML identity provider (IdP), Microsoft Entra ID, for preauthentication
  3. Microsoft Entra ID processes Conditional Access policies and session controls for authorization
  4. Users return to BIG-IP, and present the SAML claims issued by Microsoft Entra ID
  5. BIG-IP requests session information for SSO and role-based access control (RBAC) to the published service
  6. BIG-IP forwards the client request to the back-end service

User experience

Whether an employee, affiliate, or consumer, most users are acquainted with the Office 365 sign-in experience. Accessing BIG-IP services is similar.

Users can find their BIG-IP published services in the My Apps portal or Microsoft 365 app launcher with self-service capabilities, regardless of device or location. Users can continue accessing published services with the BIG-IP Webtop portal. When users sign out, SHA ensures session termination for BIG-IP and Microsoft Entra ID, helping services remain protected from unauthorized access.

Users access the My Apps portal to find BIG-IP published services and to manage their account properties. See the gallery and page in the following graphic.

Screenshot of woodgrove my apps page.

Insights and analytics

You can monitor deployed BIG-IP instances to ensure published services are highly available, at an SHA level and operationally.

There are several options to log events locally, or remotely through a Security Information and Event Management (SIEM) solution, which enables storage and telemetry processing. To monitor Microsoft Entra ID and SHA activity, you can use Azure Monitor and Microsoft Sentinel, together:

  • Overview of your organization, potentially across multiple clouds, and on-premises locations, including BIG-IP infrastructure

  • One control plane with view of signals, avoiding reliance on complex, and disparate tools

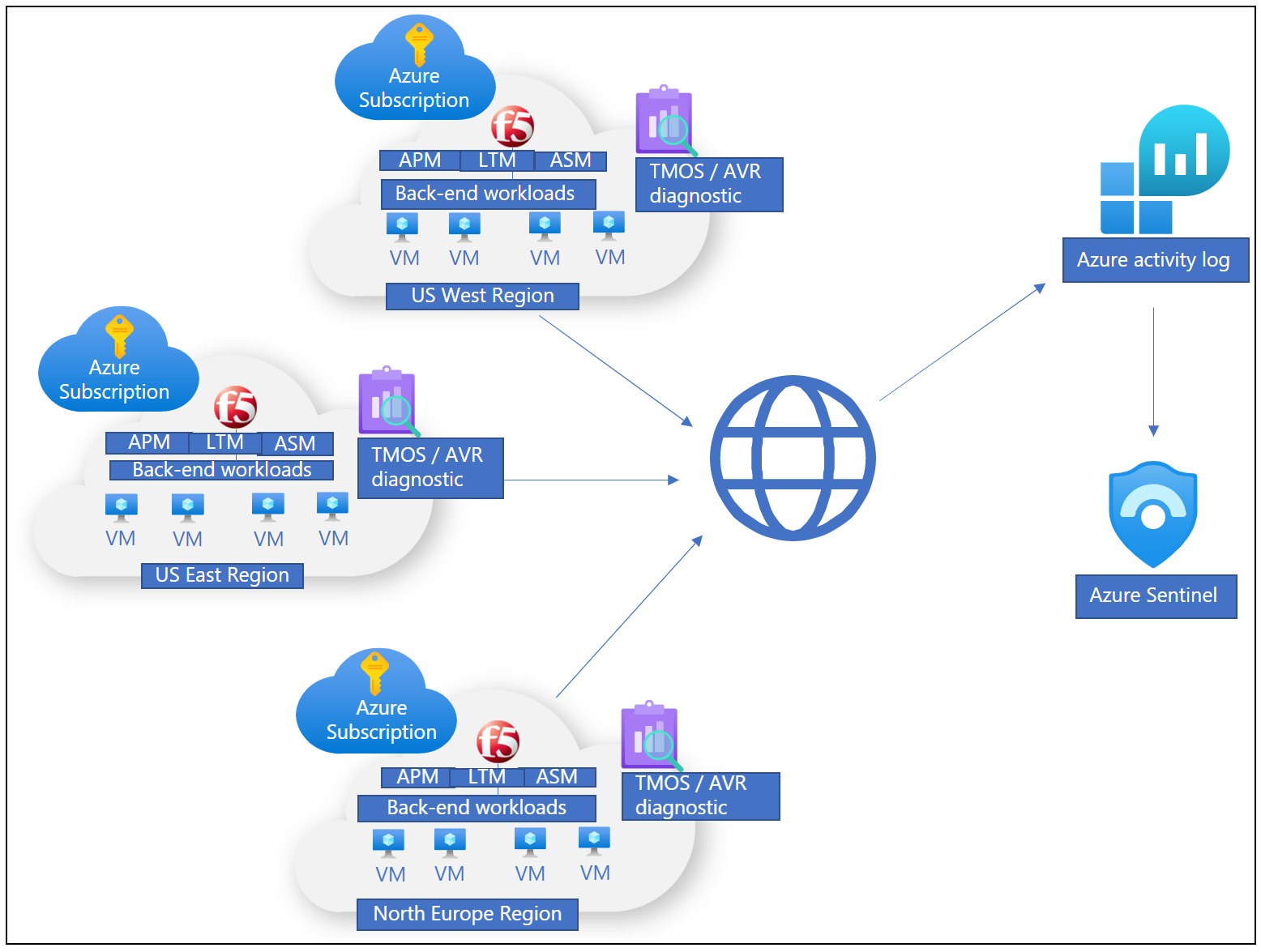

    Diagram of the monitoring flow.

Integration prerequisites

No previous experience, or F5 BIG-IP knowledge, is necessary to implement SHA, but we recommend you learn some F5 BIG-IP terminology. See the F5 service Glossary.

Integrating an F5 BIG-IP with Microsoft Entra ID for SHA has the following prerequisites:

  • An F5 BIG-IP instance running on:

    • Physical appliance
    • Hypervisor Virtual Edition such as Microsoft Hyper-V, VMware ESXi, Linux kernel-based virtual machine (KVM), and Citrix Hypervisor
    • Cloud Virtual Edition such as Azure, VMware, KVM, Community Xen, MS Hyper-V, AWS, OpenStack, and Google Cloud

    Note

    The BIG-IP instance location can be on-premises or a supported cloud platform including Azure. The instance has internet connectivity, resources being published, and other services.

  • An active F5 BIG-IP APM license:

    • F5 BIG-IP® Best bundle
    • F5 BIG-IP Access Policy Manager™ standalone license
    • F5 BIG-IP Access Policy Manager™ (APM) add-on license on an existing BIG-IP F5 BIG-IP® Local Traffic Manager™ (LTM)
    • A 90-day BIG-IP Access Policy Manager™ (APM) trial license

  • Microsoft Entra ID licensing:

Configuration scenarios

You can configure a BIG-IP for SHA with template-based options, or a manual configuration. The following tutorials have guidance on implementing BIG-IP and Microsoft Entra ID secure hybrid access.

Advanced configuration

The advanced approach is a flexible way to implement SHA. You manually create all BIG-IP configuration objects. Use this approach for scenarios not in guided configuration templates.

Advanced configuration tutorials:

Guided Configuration and Easy Button templates

The BIG-IP version 13.1 Guided Configuration wizard, minimizes time and effort to implement common BIG-IP publishing scenarios. Its workflow framework provides an intuitive deployment experience, for specific access topologies.

Guided Configuration version 16.x has the Easy Button feature. Administrators don't back and forth between Microsoft Entra ID and a BIG-IP to enable services for SHA. The APM Guided Configuration wizard and Microsoft Graph handle deployment and policy management. This integration between BIG-IP APM and Microsoft Entra ID ensures applications support identity federation, SSO, and Microsoft Entra Conditional Access, without the management overhead of doing so for each app.

Tutorials for using Easy Button templates, F5 BIG-IP Easy Button for SSO to:

Microsoft Entra B2B guest access

Microsoft Entra B2B guest access to SHA-protected applications is possible, but might require steps not in the tutorials. One example is Kerberos SSO, when a BIG-IP performs kerberos constrained delegation (KCD) to obtain a service ticket from domain controllers. Without a local representation of a local guest user, a domain controller doesn't honor the request because there's no user. To support this scenario, ensure external identities are flowed down from your Microsoft Entra tenant to the directory used by the application.

Learn more: Grant B2B users in Microsoft Entra ID access to your on-premises applications

Next steps

You can conduct a proof-of-concept (POC) for SHA using your BIG-IP infrastructure, or by Deploying a BIG-IP Virtual Edition virtual machine into Azure. It takes approximately 30 minutes to deploy a virtual machine (VM) in Azure. The result is:

  • A secured platform to model a pilot for SHA
  • A preproduction instance to test new BIG-IP system updates and hotfixes

Identify one or two applications to be published with BIG-IP and protected with SHA.

Our recommendation is to start with an application that isn't published via a BIG-IP. This action avoids potential disruption to production services. The guidelines in this article can help you learn about the procedure to create BIG-IP configuration objects and setting up SHA. You can then convert BIG-IP published services to SHA.
