Set up Azure Monitor logs and collect diagnostics data for B2B messages in Azure Logic Apps

Чланак
01/04/2024

Applies to: Azure Logic Apps (Consumption)

Note

This article applies only to Consumption logic apps. For information about monitoring Standard logic apps, review Enable or open Application Insights after deployment for Standard logic apps.

After you set up B2B communication between trading partners in your integration account, those partners can exchange messages by using protocols such as AS2, X12, and EDIFACT. To check that this communication works the way you expect, you can set up Azure Monitor logs for your integration account. Azure Monitor helps you monitor your cloud and on-premises environments so that you can more easily maintain their availability and performance. By using Azure Monitor logs, you can record and store data about runtime data and events, such as trigger events, run events, and action events in a Log Analytics workspace. For messages, logging also collects information such as:

Message count and status
Acknowledgments status
Correlations between messages and acknowledgments
Detailed error descriptions for failures

Azure Monitor lets you create log queries to help you find and review this information. You can also use this diagnostics data with other Azure services, such as Azure Storage and Azure Event Hubs.

To set up logging for your integration account, install the Logic Apps B2B solution in the Azure portal. This solution provides aggregated information for B2B message events. Then, to enable logging and creating queries for this information, set up Azure Monitor logs.

This article shows how to enable Azure Monitor logging for your integration account.

Note

This article was recently updated to use the term Azure Monitor logs instead of Log Analytics. Log data is still stored in a Log Analytics workspace and is still collected and analyzed by the same Log Analytics service. We are updating the terminology to better reflect the role of logs in Azure Monitor. See Azure Monitor terminology changes for details.

Prerequisites

A Log Analytics workspace. If you don't have a Log Analytics workspace, learn how to create a Log Analytics workspace.
A logic app that's set up with Azure Monitor logging and sends that information to a Log Analytics workspace. Learn how to set up Azure Monitor logs for your logic app.
An integration account that's linked to your logic app. Learn how to link your integration account to your logic app.

Install Logic Apps B2B solution

Before Azure Monitor logs can track the B2B messages for your logic app, add the Logic Apps B2B solution to your Log Analytics workspace.

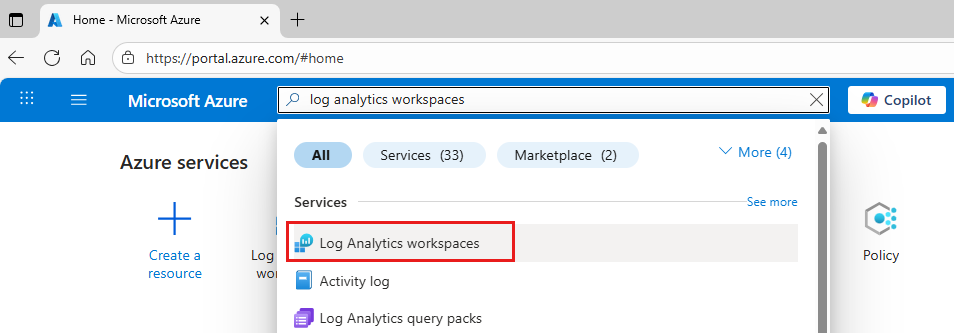

In the Azure portal's search box, enter log analytics workspaces, and then select Log Analytics workspaces.

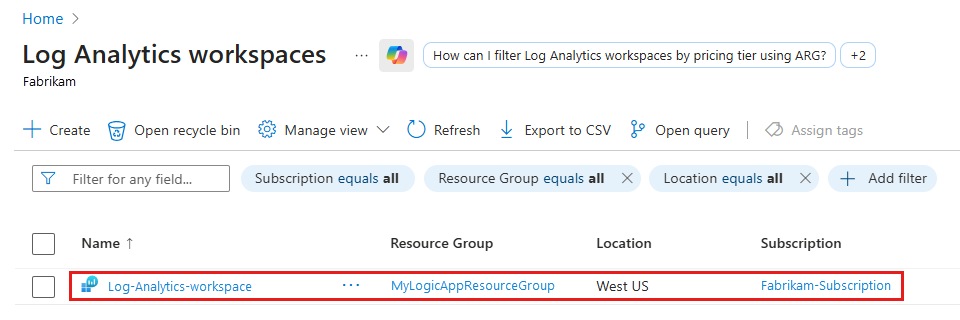

Under Log Analytics workspaces, select your workspace.

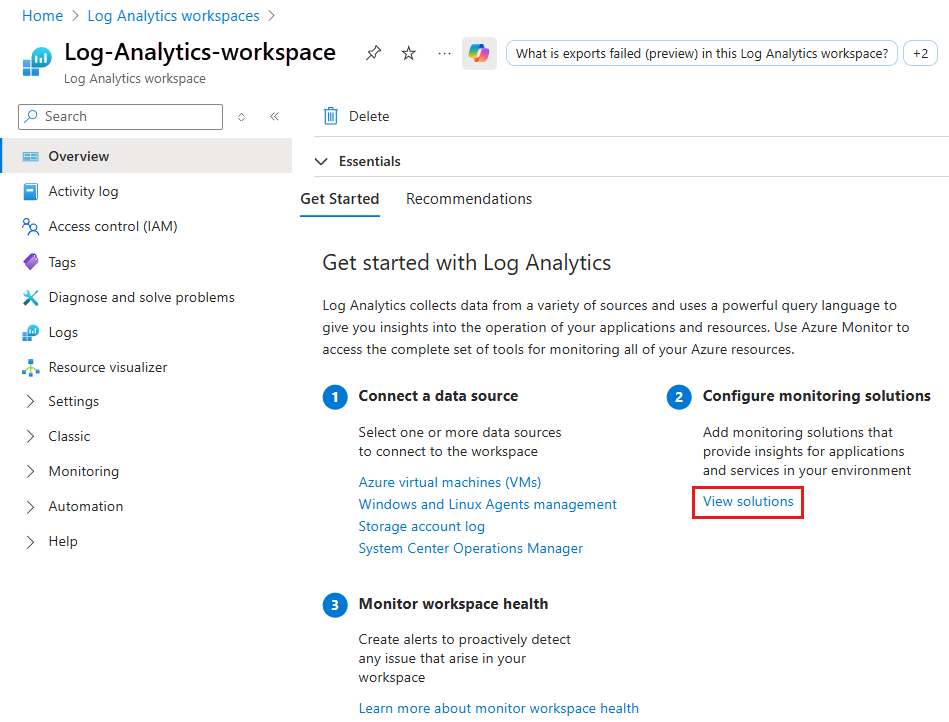

On the Overview pane, under Get started with Log Analytics > Configure monitoring solutions, select View solutions.

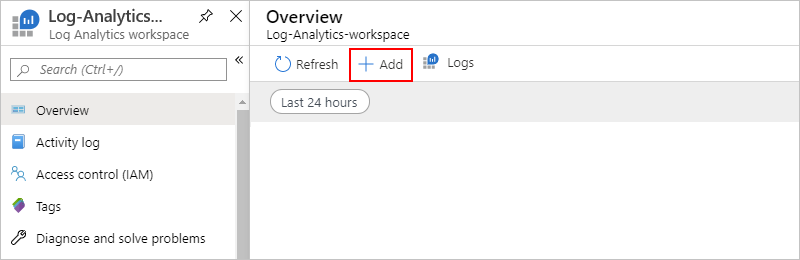

On the Overview pane, select Add.

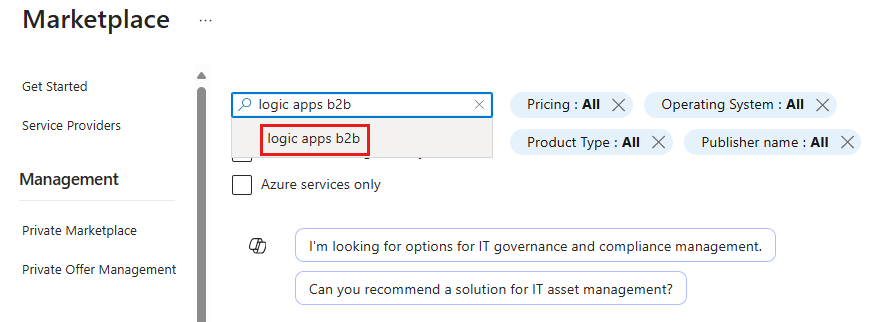

After the Marketplace opens, in the search box, enter logic apps b2b, and select Logic Apps B2B.

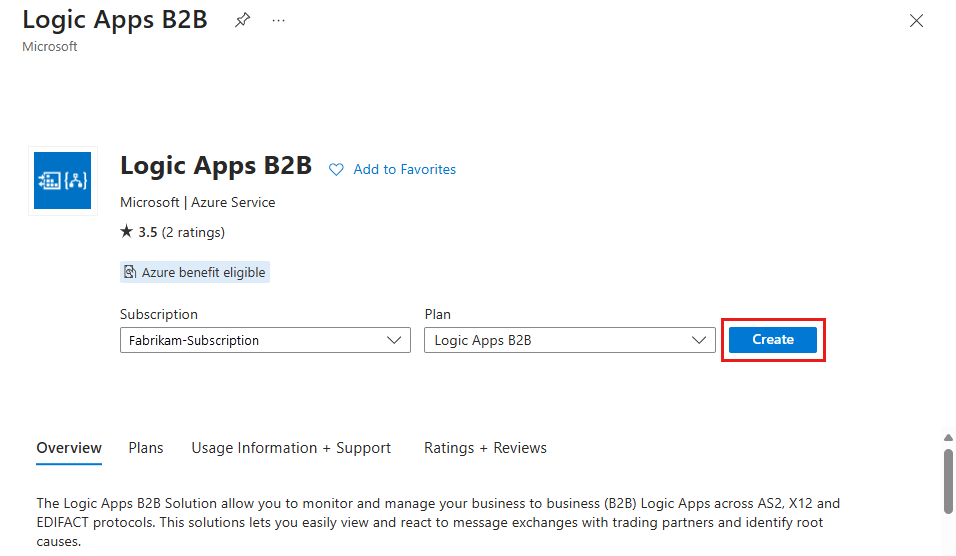

On the solution description pane, select Create.

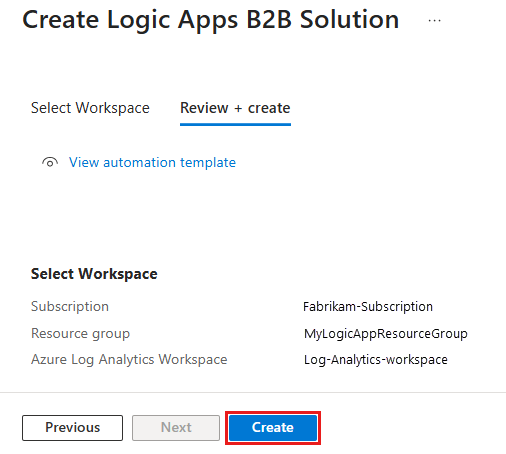

Review and confirm the Log Analytics workspace where you want to install the solution, and select Create again.

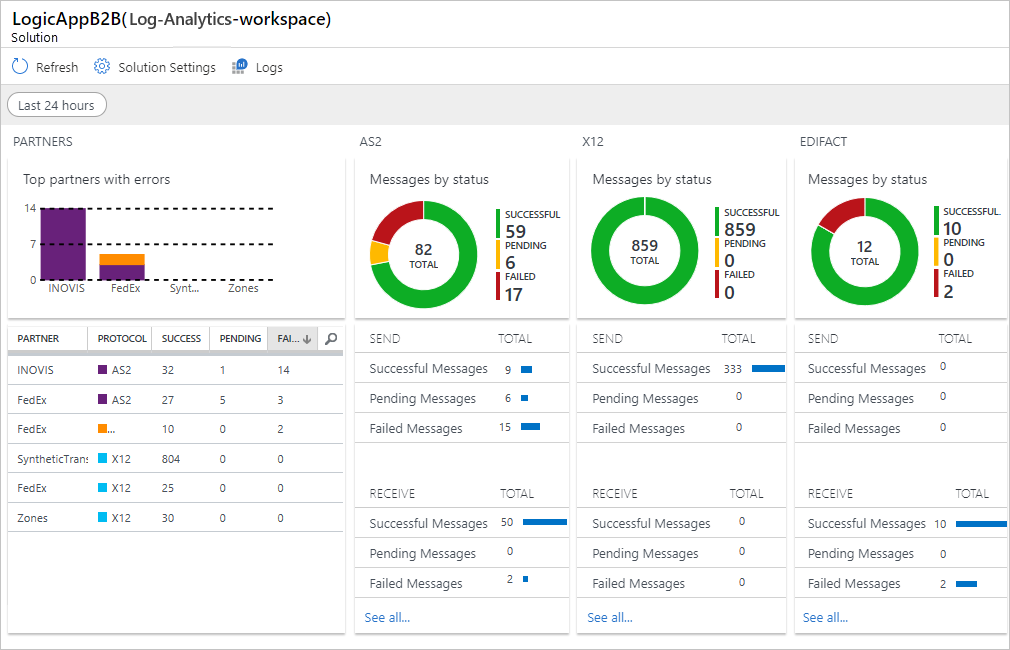

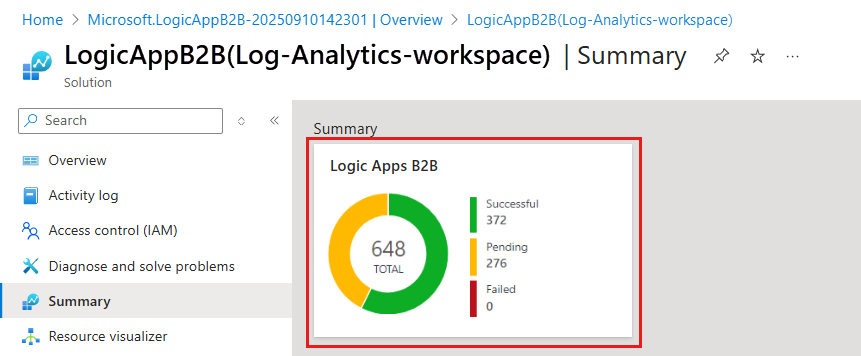

After Azure deploys the solution to the Azure resource group that contains your Log Analytics workspace, the solution appears on your workspace's summary pane. When B2B messages are processed, the message count on this pane is updated.
