Subscriptions in Azure API Management

  • บทความ

APPLIES TO: All API Management tiers

In Azure API Management, subscriptions are the most common way for API consumers to access APIs published through an API Management instance. This article provides an overview of the concept.

Note

An API Management subscription is used specifically to call APIs through API Management using a subscription key. It's not the same as an Azure subscription.

What are subscriptions?

By publishing APIs through API Management, you can easily secure API access using subscription keys. Developers who need to consume the published APIs must include a valid subscription key in HTTP requests when calling those APIs. Without a valid subscription key, the calls are:

  • Rejected immediately by the API Management gateway.
  • Not forwarded to the back-end services.

To access APIs, developers need a subscription and a subscription key. A subscription is a named container for a pair of subscription keys.

In addition,

  • Developers can get subscriptions without needing approval from API publishers.
  • API publishers can create subscriptions directly for API consumers.

Tip

API Management also supports other mechanisms for securing access to APIs, including the following examples:

Manage subscription keys

Regularly regenerating keys is a common security precaution. Like most Azure services requiring a subscription key, API Management generates keys in pairs. Each application using the service can switch from key A to key B and regenerate key A with minimal disruption, and vice versa.

Setting specific keys instead of regenerating ones can be performed by invoking the Azure API Management Subscription - Create Or Update Azure REST API. Specifically, the properties.primaryKey and/or properties.secondaryKey need to be set in the HTTP request body.

Note

  • API Management doesn't provide built-in features to manage the lifecycle of subscription keys, such as setting expiration dates or automatically rotating keys. You can develop workflows to automate these processes using tools such as Azure PowerShell or the Azure SDKs.
  • To enforce time-limited access to APIs, API publishers may be able to use policies with subscription keys, or use a mechanism that provides built-in expiration such as token-based authentication.

Scope of subscriptions

Subscriptions can be associated with various scopes: product, all APIs, or an individual API.

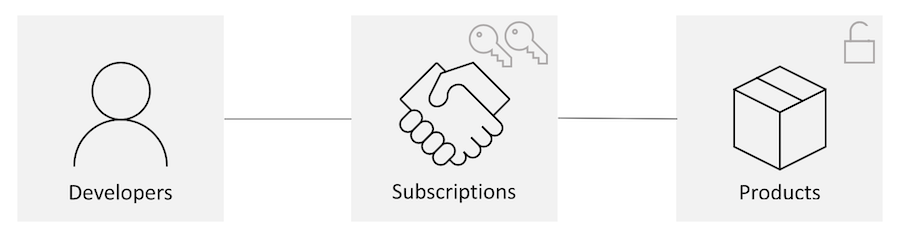

Subscriptions for a product

Traditionally, subscriptions in API Management were associated with a single product scope. Developers:

  • Found the list of products on the developer portal.
  • Submitted subscription requests for the products they wanted to use.
  • Use the keys in those subscriptions (approved either automatically or by API publishers) to access all APIs in the product.

Currently, the developer portal only shows the product scope subscriptions under the User Profile section.

Product subscriptions

Subscriptions for all APIs or an individual API

You can also create keys that grant access to either:

  • A single API, or
  • All APIs within an API Management instance.

In these cases, you don't need to create a product and add APIs to it first.

All-access subscription

Each API Management instance comes with a built in all-access subscription that grants access to all APIs. This service-scoped subscription makes it straightforward for service owners to test and debug APIs within the test console.

Warning

The all-access subscription enables access to every API in the API Management instance and should only be used by authorized users. Never use this subscription for routine API access or embed the all-access subscription key in client apps.

Note

If you're using an API-scoped subscription, an all-APIs subscription, or the built-in all-access subscription, policies configured at the product scope aren't applied to requests from that subscription.

Standalone subscriptions

API Management also allows standalone subscriptions, which aren't associated with a developer account. This feature proves useful in scenarios similar to several developers or teams sharing a subscription.

Creating a subscription without assigning an owner makes it a standalone subscription. To grant developers and the rest of your team access to the standalone subscription key, either:

  • Manually share the subscription key.
  • Use a custom system to make the subscription key available to your team.

Create and manage subscriptions in Azure portal

API publishers can create subscriptions directly in the Azure portal.

When created in the portal, a subscription is in the Active state, meaning a subscriber can call an associated API using a valid subscription key. You can change the state of the subscription as needed. For example, you can suspend, cancel, or delete any subscription (including the built-in all-access subscription) to prevent API access.

Use a subscription key

A subscriber can use an API Management subscription key in one of two ways:

  • Add the Ocp-Apim-Subscription-Key HTTP header to the request, passing the value of a valid subscription key.

  • Include the subscription-key query parameter and a valid value in the URL. The query parameter is checked only if the header isn't present.

Tip

Ocp-Apim-Subscription-Key is the default name of the subscription key header, and subscription-key is the default name of the query parameter. If desired, you may modify these names in the settings for each API. For example, in the portal, update these names on the Settings tab of an API.

Note

When included in a request header or query parameter, the subscription key by default is passed to the backend and may be exposed in backend monitoring logs or other systems. If this is considered sensitive data, you can configure a policy at the end of the inbound section to remove the subscription key header (set-header) or query parameter (set-query-parameter).

Enable or disable subscription requirement for API or product access

By default when you create an API, a subscription key is required for API access. Similarly, when you create a product, by default a subscription key is required to access any API that's added to the product. Under certain scenarios, an API publisher might want to publish a product or a particular API to the public without the requirement of subscriptions. While a publisher could choose to enable unsecured (anonymous) access to certain APIs, configuring another mechanism to secure client access is recommended.

Caution

Use care when configuring a product or an API that doesn't require a subscription. This configuration may be overly permissive and may make an API more vulnerable to certain API security threats.

Note

Open products have the Requires subscription setting disabled, which means that users don't need to subscribe to it. For this reason, open products aren't displayed on the Products page of the developer portal.

You can disable the subscription requirement at the time you create an API or product, or at a later date.

To disable the subscription requirement using the portal:

  • Disable requirement for product - On the Settings page of the product, disable Requires subscription
  • Disable requirement for API - In the Settings page of the API, disable Subscription required.

After the subscription requirement is disabled, the selected API or APIs can be accessed without a subscription key.

How API Management handles requests with or without subscription keys

API request with a subscription key

When API Management receives an API request from a client with a subscription key, it handles the request according to these rules:

  1. Check first if it's a valid key associated with an active subscription, either:

    • A subscription scoped to the API
    • A subscription scoped to a product that's assigned to the API
    • A subscription scoped to all APIs
    • The service-scoped subscription (built-in all access subscription)

    If a valid key for an active subscription at an appropriate scope is provided, access is allowed. Policies are applied depending on the configuration of the policy definition at that scope.

  2. If the key isn't valid but a product exists that includes the API but doesn't require a subscription (an open product), ignore the key and handle as an API request without a subscription key (see below).

  3. Otherwise, access is denied (401 Access denied error).

API request without a subscription key

When API Management receives an API request from a client without a subscription key, it handles the request according to these rules:

  1. Check first for the existence of a product that includes the API but doesn't require a subscription (an open product). If the open product exists, handle the request in the context of the APIs, policies, and access rules configured for the open product. An API can be associated with at most one open product.
  2. If an open product including the API isn't found, check whether the API requires a subscription. If a subscription isn't required, handle the request in the context of that API and operation.
  3. If no configured product or API is found, then access is denied (401 Access denied error).

Summary table

The following table summarizes how the gateway handles API requests with or without subscription keys in different scenarios. Configurations that could potentially enable unintended, anonymous API access are noted.

All products assigned to API require subscription API requires subscription API call with subscription key API call without subscription key Typical scenarios
✔️ ✔️ Access allowed:

• Product-scoped key
• API-scoped key
• All APIs-scoped key
• Service-scoped key

Access denied:

• Other key not scoped to applicable product or API		 Access denied Protected API access using product-scoped or API-scoped subscription
✔️ ❌ Access allowed:

• Product-scoped key
• API-scoped key
• All APIs-scoped key
• Service-scoped key
• Other key not scoped to applicable product or API		 Access allowed (API context) • Protected API access with product-scoped subscription

• Anonymous access to API. If anonymous access isn’t intended, configure API-level policies to enforce authentication and authorization.
❌1 ✔️ Access allowed:

• Product-scoped key
• API-scoped key
• All APIs-scoped key
• Service-scoped key

Access denied:

• Other key not scoped to applicable product or API		 Access allowed (open product context) • Protected API access with API-scoped subscription

• Anonymous access to API. If anonymous access isn’t intended, configure with product policies to enforce authentication and authorization
❌1 ❌ Access allowed:

• Product-scoped key
• API-scoped key
• All APIs-scoped key
• Service-scoped key
• Other key not scoped to applicable product or API		 Access allowed (open product context) Anonymous access to API. If anonymous access isn’t intended, configure with product policies to enforce authentication and authorization

1 An open product exists that's associated with the API.

Considerations

  • API access in a product context is the same, whether the product is published or not. Unpublishing the product hides it from the developer portal, but it doesn’t invalidate new or existing subscription keys.
  • If an API doesn't require subscription authentication, any API request that includes a subscription key is treated the same as a request without a subscription key. The subscription key is ignored.
  • API access "context" means the policies and access controls that are applied at a particular scope (for example, API or product).
