Back up multiple SQL Server VMs from the Recovery Services vault

SQL Server databases are critical workloads that require a low recovery-point objective (RPO) and long-term retention. You can back up SQL Server databases running on Azure virtual machines (VMs) by using Azure Backup.

This article shows how to back up a SQL Server database that's running on an Azure VM to an Azure Backup Recovery Services vault.

Note

See the SQL backup support matrix to know more about the supported configurations and scenarios.

Prerequisites

Before you back up a SQL Server database, check the following criteria:

  1. Identify or create a Recovery Services vault in the same region and subscription as the VM hosting the SQL Server instance.

  2. Verify that the VM has network connectivity.

  3. Make sure that the Azure Virtual Machine Agent is installed on the VM.

  4. Make sure that .NET 4.6.2 version or above is installed on the VM.

    Caution

    The support for backups of SQL VMs running .NET Framework 4.6.1 or below will soon be deprecated because these versions are officially out of support. We recommend that you upgrade the .NET Framework to version 4.6.2 or above to ensure that there are no backup failures.

  5. Make sure that the SQL Server databases follow the database naming guidelines for Azure Backup.

  6. Ensure that the combined length of the SQL Server VM name and the resource group name doesn't exceed 84 characters for Azure Resource Manager VMs (or 77 characters for classic VMs). This limitation is because some characters are reserved by the service.

  7. Check that you don't have any other backup solutions enabled for the database. Disable all other SQL Server backups before you back up the database.

  8. When using SQL Server 2008 R2 or SQL Server 2012, you might run into the time zone issue for backup as described here. Make sure that you are on the latest cumulative updates to avoid the time zone-related issue described above. If applying the updates to the SQL Server instance on the Azure VM isn't feasible, disable Daylight Saving Time (DST) for the time zone on the virtual machine.

Note

You can enable Azure Backup for an Azure VM and also for a SQL Server database running on the VM without conflict.

Establish network connectivity

For all operations, a SQL Server VM requires connectivity to the Azure Backup service, Azure Storage, and Microsoft Entra ID. This can be achieved by using private endpoints or by allowing access to the required public IP addresses or FQDNs. Not allowing proper connectivity to the required Azure services may lead to failure in operations like database discovery, configuring backup, performing backups, and restoring data.

The following table lists the various alternatives you can use for establishing connectivity:

Option Advantages Disadvantages
Private endpoints Allow backups over private IPs inside the virtual network

Provide granular control on the network and vault side
Incurs standard private endpoint costs
NSG service tags Easier to manage as range changes are automatically merged

No additional costs
Can be used with NSGs only

Provides access to the entire service
Azure Firewall FQDN tags Easier to manage since the required FQDNs are automatically managed Can be used with Azure Firewall only
Allow access to service FQDNs/IPs No additional costs.

Works with all network security appliances and firewalls.

You can also use service endpoints for Storage and Microsoft Entra ID. However, for Azure Backup, you need to assign the access to the corresponding IPs/FQDNs.
A broad set of IPs or FQDNs may be required to be accessed.
Use an HTTP proxy Single point of internet access to VMs Additional costs to run a VM with the proxy software

The following sections provide more details around using these options.

Note

You can use the Azure Backup connectivity test scripts to self-diagnose the network connectivity issues on Windows environment.

Private endpoints

Private endpoints allow you to connect securely from servers inside a virtual network to your Recovery Services vault. The private endpoint uses an IP from the VNET address space for your vault. The network traffic between your resources inside the virtual network and the vault travels over your virtual network and a private link on the Microsoft backbone network. This eliminates exposure from the public internet. Read more on private endpoints for Azure Backup here.

NSG tags

If you use Network Security Groups (NSG), use the AzureBackup service tag to allow outbound access to Azure Backup. In addition to the Azure Backup tag, you also need to allow connectivity for authentication and data transfer by creating similar NSG rules for Microsoft Entra ID (AzureActiveDirectory) and Azure Storage(Storage). The following steps describe the process to create a rule for the Azure Backup tag:

  1. In All Services, go to Network security groups and select the network security group.

  2. Select Outbound security rules under Settings.

  3. Select Add. Enter all the required details for creating a new rule as described in security rule settings. Ensure the option Destination is set to Service Tag and Destination service tag is set to AzureBackup.

  4. Select Add to save the newly created outbound security rule.

You can similarly create NSG outbound security rules for Azure Storage and Microsoft Entra ID.

Azure Firewall tags

If you're using Azure Firewall, create an application rule by using the AzureBackup Azure Firewall FQDN tag. This allows all outbound access to Azure Backup.

Note

Azure Backup currently doesn't support the TLS inspection enabled Application Rule on Azure Firewall.

Allow access to service IP ranges

If you choose to allow access service IPs, refer to the IP ranges in the JSON file available here. You'll need to allow access to IPs corresponding to Azure Backup, Azure Storage, and Microsoft Entra ID.

Allow access to service FQDNs

You can also use the following FQDNs to allow access to the required services from your servers:

Service Domain names to be accessed Ports
Azure Backup *.backup.windowsazure.com 443
Azure Storage *.blob.core.windows.net

*.queue.core.windows.net

*.blob.storage.azure.net
443
Azure AD *.login.microsoft.com

Allow access to FQDNs under sections 56 and 59 according to this article
443

As applicable

Allow connectivity for servers behind internal load balancers

When using an internal load balancer, you need to allow the outbound connectivity from virtual machines behind the internal load balancer to perform backups. To do so, you can use a combination of internal and external standard load balancers to create an outbound connectivity. Learn more about the configuration to create an egress only setup for VMs in the backend pool of the internal load balancer.

Use an HTTP proxy server to route traffic

When you back up a SQL Server database on an Azure VM, the backup extension on the VM uses the HTTPS APIs to send management commands to Azure Backup and data to Azure Storage. The backup extension also uses Microsoft Entra ID for authentication. Route the backup extension traffic for these three services through the HTTP proxy. Use the list of IPs and FQDNs mentioned above for allowing access to the required services. Authenticated proxy servers aren't supported.

Note

Disable proxy for localhost communications within the VM. Proxy will be honored for outbound communications from the SQL VM.

Database naming guidelines for Azure Backup

  • Avoid using the following elements in database names:

    • Trailing and leading spaces
    • Trailing exclamation marks (!)
    • Closing square brackets (])
    • Semicolon (;)
    • Forward slash (/)
    • Percentage (%)
  • SQL Backup configuration doesn't support the single quotation in the database name and causes deployment failure. If there is any database with single quote, we recommend that you rename the database or take the native backup approach.

  • Aliasing is available for unsupported characters, but we recommend avoiding them. For more information, see Understanding the Table Service Data Model.

  • Multiple databases on the same SQL instance with casing difference aren't supported.

  • Changing the casing of an SQL database isn't supported after configuring protection.

Note

The Configure Protection operation for databases with special characters, such as {, '}, [, ], ,, =, -, (, ), ., +, &, ;, ', or /, in their name isn't supported. You can change the database name or enable Auto Protection, which can successfully protect these databases.

Create a Recovery Services vault

A Recovery Services vault is a management entity that stores recovery points that are created over time, and it provides an interface to perform backup-related operations. These operations include taking on-demand backups, performing restores, and creating backup policies.

To create a Recovery Services vault:

  1. Sign in to the Azure portal.

  2. Search for Backup center, and then go to the Backup center dashboard.

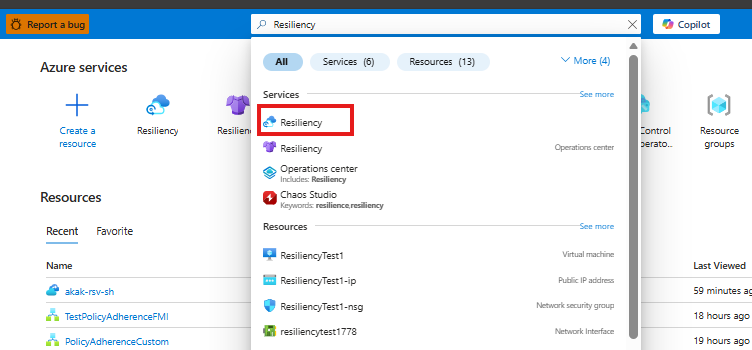

    Screenshot that shows where to search for and select 'Backup center'.

  3. On the Overview pane, select Vault.

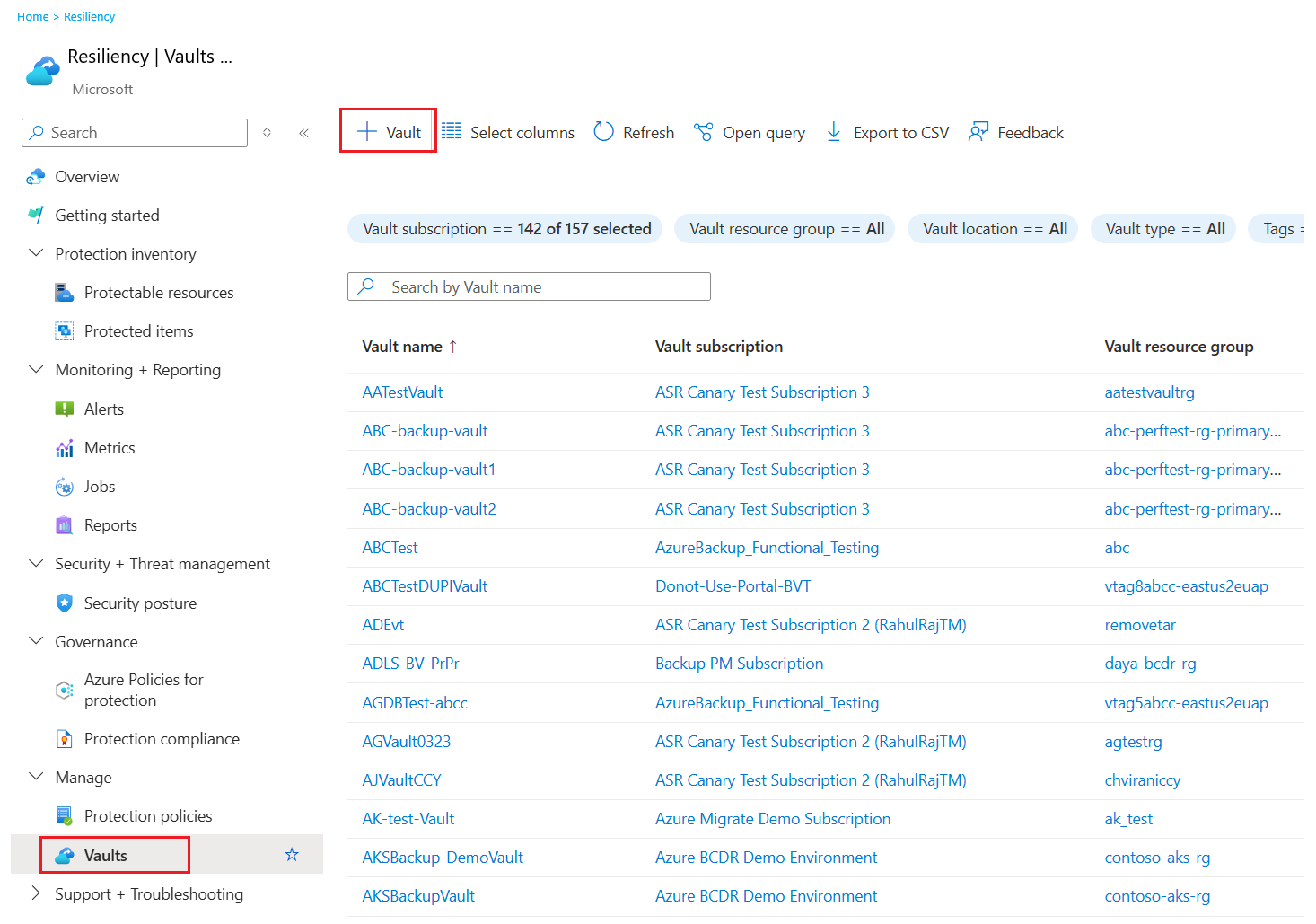

    Screenshot of the button for creating a Recovery Services vault.

  4. Select Recovery Services vault > Continue.

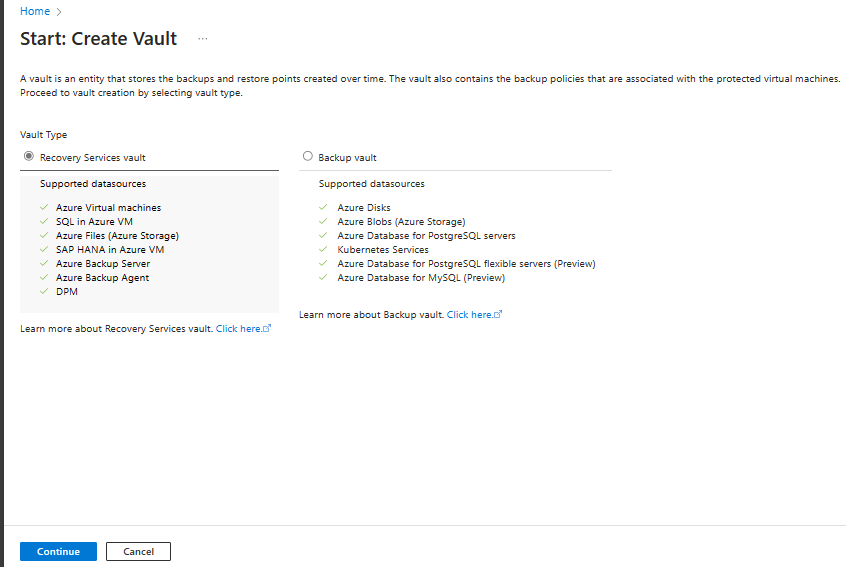

    Screenshot that shows where to select Recovery Services as the vault type.

  5. On the Recovery Services vault pane, enter the following values:

    • Subscription: Select the subscription to use. If you're a member of only one subscription, you'll see that name. If you're not sure which subscription to use, use the default subscription. There are multiple choices only if your work or school account is associated with more than one Azure subscription.

    • Resource group: Use an existing resource group or create a new one. To view a list of available resource groups in your subscription, select Use existing, and then select a resource in the dropdown list. To create a new resource group, select Create new, and then enter the name. For more information about resource groups, see Azure Resource Manager overview.

    • Vault name: Enter a friendly name to identify the vault. The name must be unique to the Azure subscription. Specify a name that has at least 2 but not more than 50 characters. The name must start with a letter and consist only of letters, numbers, and hyphens.

    • Region: Select the geographic region for the vault. For you to create a vault to help protect any data source, the vault must be in the same region as the data source.

      Important

      If you're not sure of the location of your data source, close the window. Go to the list of your resources in the portal. If you have data sources in multiple regions, create a Recovery Services vault for each region. Create the vault in the first location before you create a vault in another location. There's no need to specify storage accounts to store the backup data. The Recovery Services vault and Azure Backup handle that automatically.

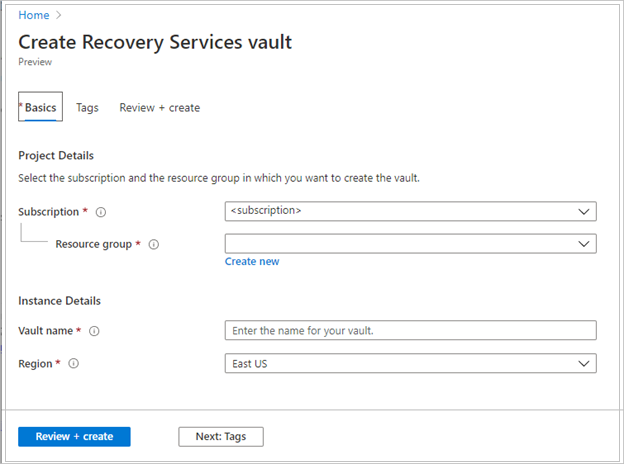

    Screenshot that shows fields for configuring a Recovery Services vault.

  6. After providing the values, select Review + create.

  7. To finish creating the Recovery Services vault, select Create.

    It can take a while to create the Recovery Services vault. Monitor the status notifications in the Notifications area at the upper right. After the vault is created, it appears in the list of Recovery Services vaults. If the vault doesn't appear, select Refresh.

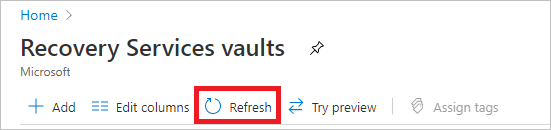

    Screenshot that shows the button for refreshing the list of backup vaults.

Note

Azure Backup now supports immutable vaults that help you ensure that recovery points once created can't be deleted before their expiry as per the backup policy. You can make the immutability irreversible for maximum protection to your backup data from various threats, including ransomware attacks and malicious actors. Learn more.

Discover SQL Server databases

How to discover databases running on a VM:

  1. In the Azure portal, go to Backup center and click +Backup.

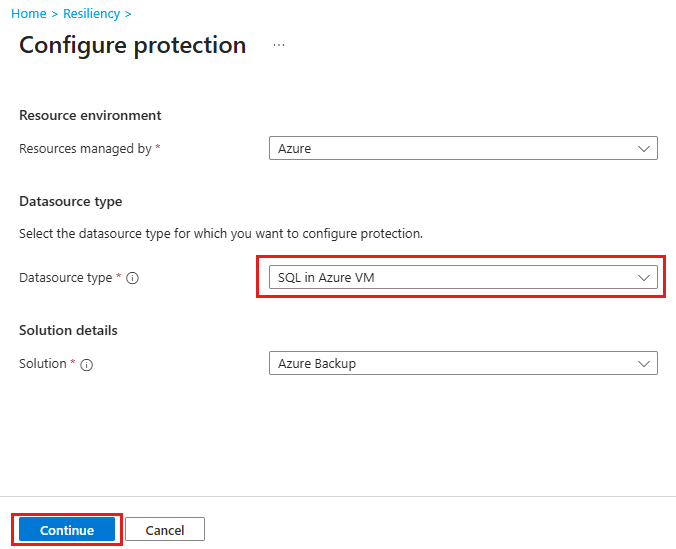

  2. Select SQL in Azure VM as the datasource type, select the Recovery Services vault you have created, and then click Continue.

    Screenshot showing to select Backup to view the databases running in a VM.

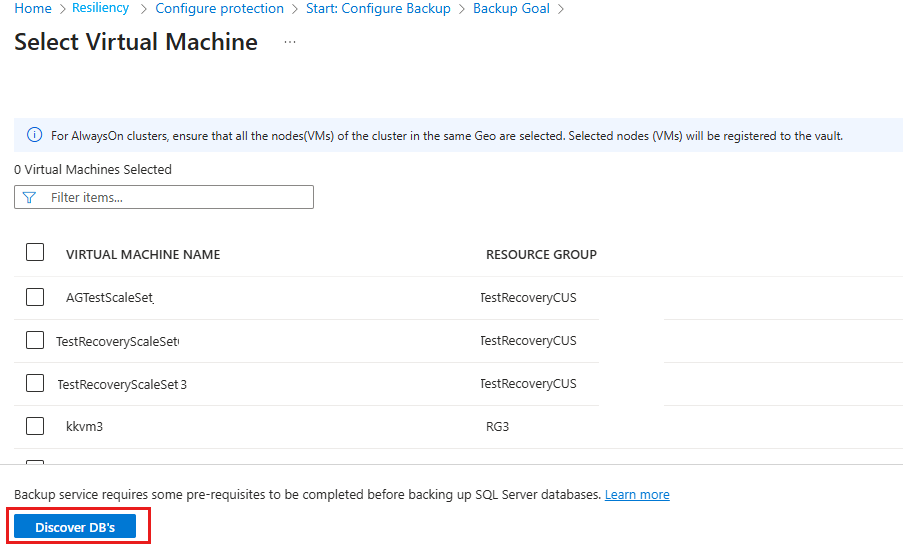

  3. In Backup Goal > Discover DBs in VMs, select Start Discovery to search for unprotected VMs in the subscription. This search can take a while, depending on the number of unprotected VMs in the subscription.

    • Unprotected VMs should appear in the list after discovery, listed by name and resource group.

    • If a VM isn't listed as you expect, see whether it's already backed up in a vault.

    • Multiple VMs can have the same name, but they'll belong to different resource groups.

      Backup is pending during search for DBs in VMs

  4. In the VM list, select the VM running the SQL Server database > Discover DBs.

  5. Track database discovery in Notifications. The time required for this action depends on the number of VM databases. When the selected databases are discovered, a success message appears.

    Deployment success message

  6. Azure Backup discovers all SQL Server databases on the VM. During discovery, the following elements occur in the background:

    • Azure Backup registers the VM with the vault for workload backup. All databases on the registered VM can be backed up to this vault only.

    • Azure Backup installs the AzureBackupWindowsWorkload extension on the VM. No agent is installed on an SQL database.

    • Azure Backup creates the service account NT Service\AzureWLBackupPluginSvc on the VM.

      • All backup and restore operations use the service account.

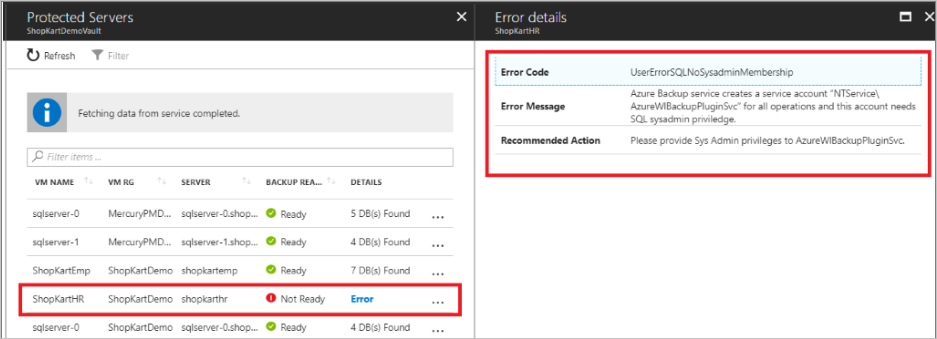

      • NT Service\AzureWLBackupPluginSvc requires SQL sysadmin permissions. All SQL Server VMs created in the Marketplace come with the SqlIaaSExtension installed. The AzureBackupWindowsWorkload extension uses the SQLIaaSExtension to automatically get the required permissions.
    • If you didn't create the VM from the Marketplace or if you are on SQL 2008 and 2008 R2, the VM may not have the SqlIaaSExtension installed, and the discovery operation fails with the error message UserErrorSQLNoSysAdminMembership. To fix this issue, follow the instructions under Set VM permissions.

      Select the VM and database

Configure backup

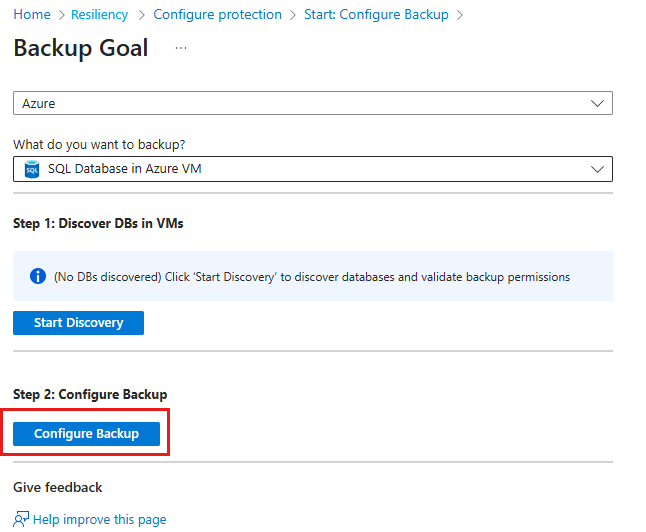

  1. In Backup Goal > Step 2: Configure Backup, select Configure Backup.

    Select Configure Backup

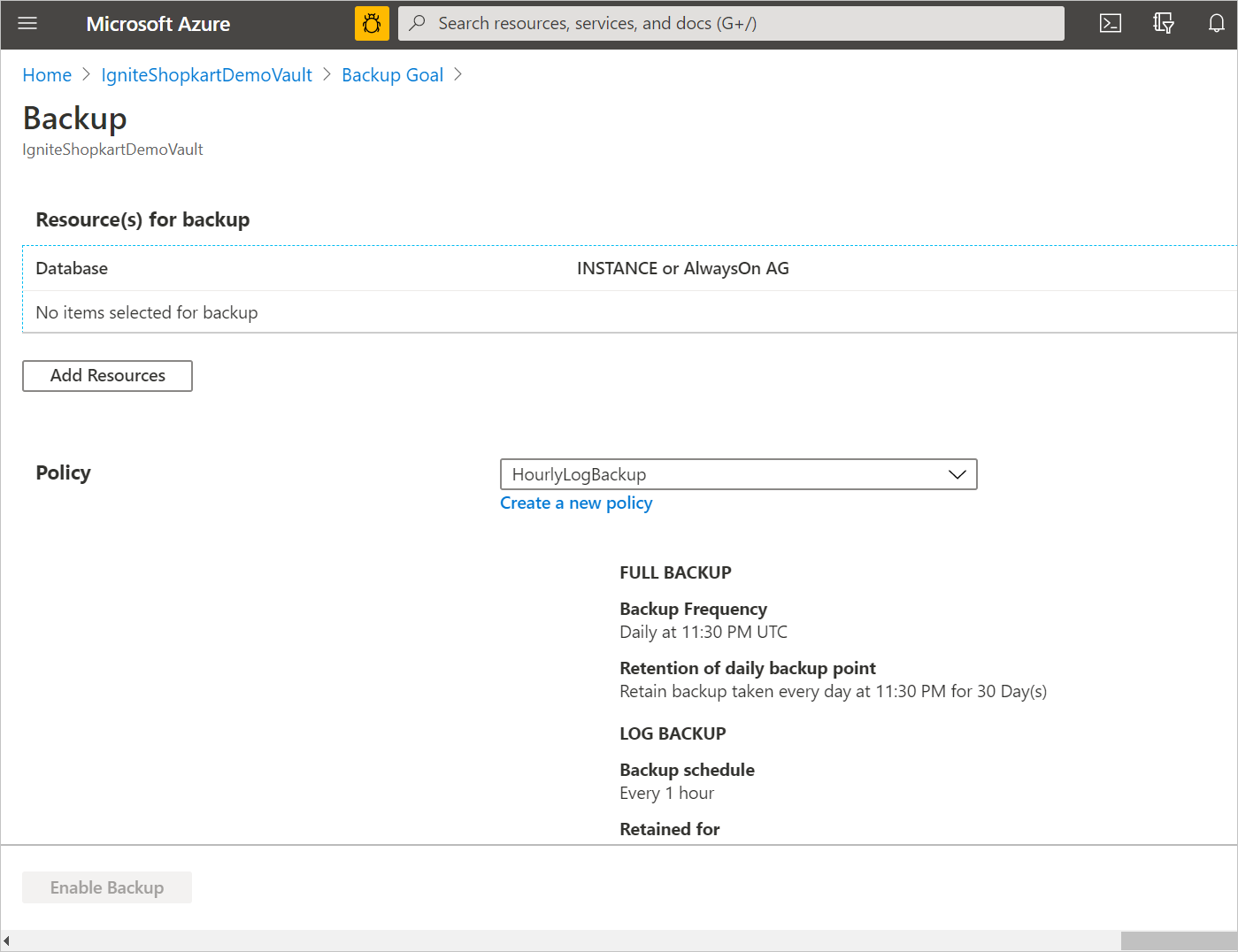

  2. Select Add Resources to see all the registered availability groups and standalone SQL Server instances.

    Select add resources

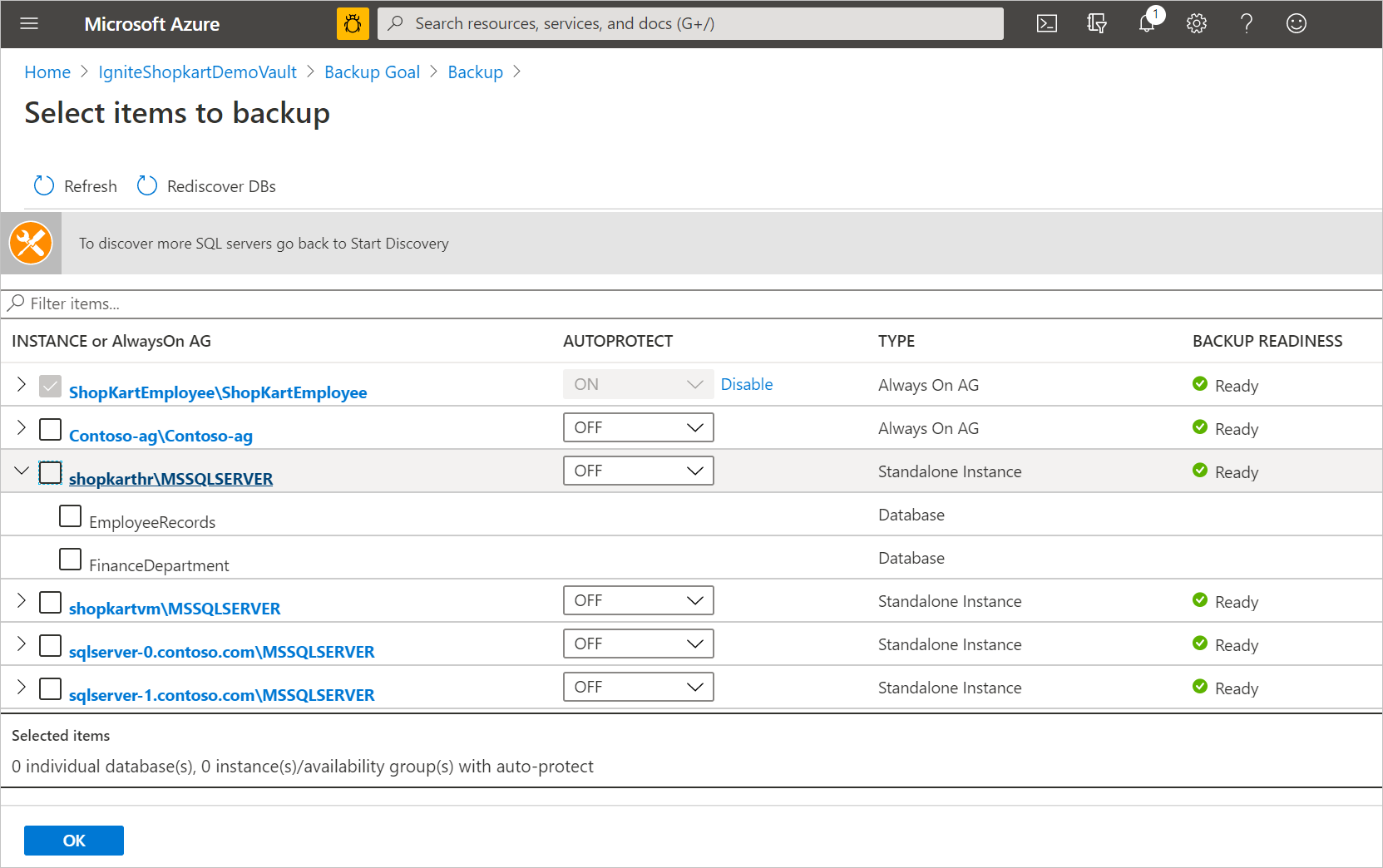

  3. In the Select items to backup screen, select the arrow to the left of a row to expand the list of all the unprotected databases in that instance or Always On availability group.

    Select items to backup

  4. Choose all the databases you want to protect, and then select OK.

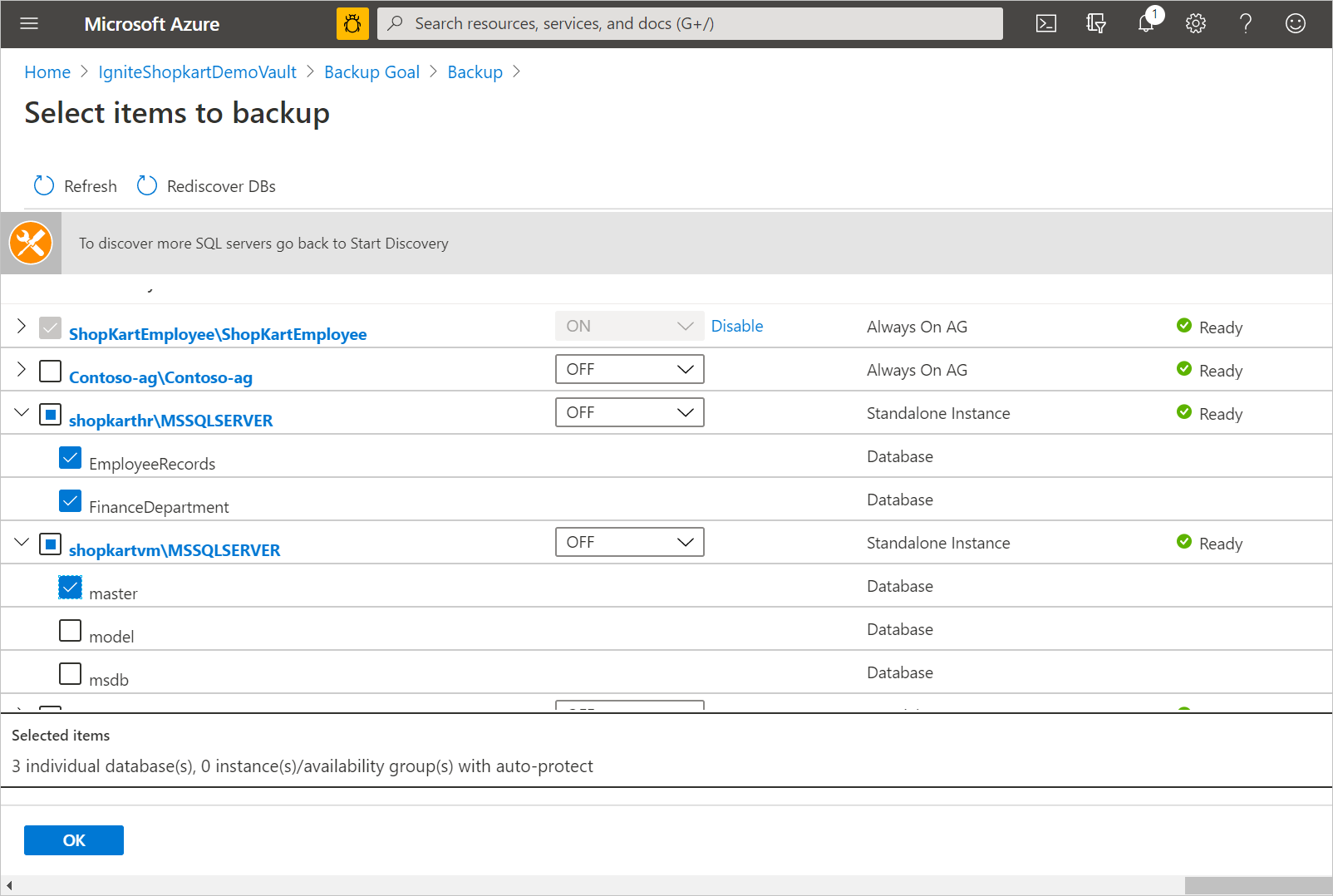

    Protecting the database

    To optimize backup loads, Azure Backup sets a maximum number of databases in one backup job to 50.

    • To protect more than 50 databases, configure multiple backups.

    • To enable the entire instance or the Always On availability group, in the AUTOPROTECT drop-down list, select ON, and then select OK.

      Note

      The auto-protection feature not only enables protection on all the existing databases at once, but also automatically protects any new databases added to that instance or the availability group.

  5. Define the Backup policy. You can do one of the following:

    • Select the default policy as HourlyLogBackup.

    • Choose an existing backup policy previously created for SQL.

    • Define a new policy based on your RPO and retention range.

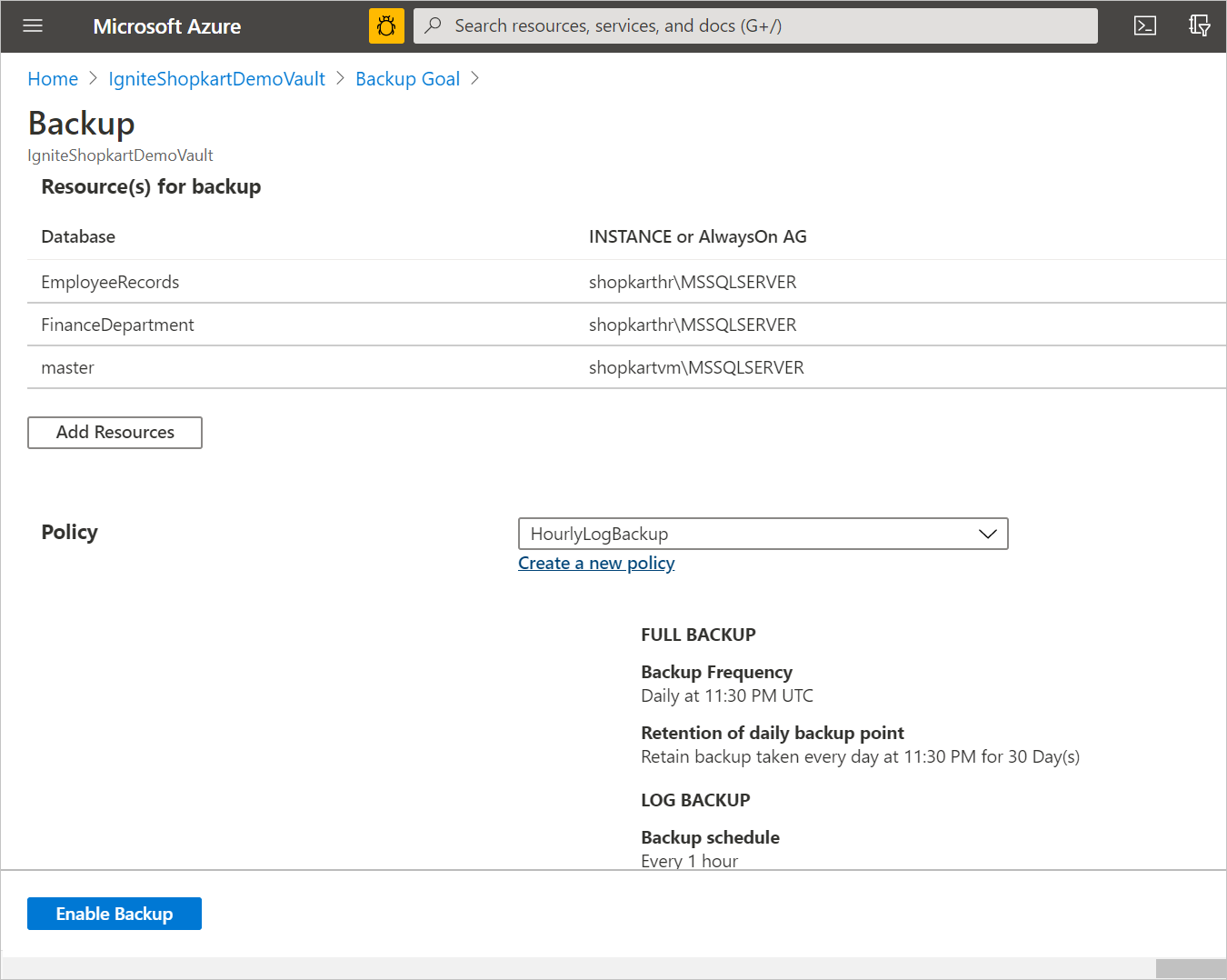

      Select Backup policy

  6. Select Enable Backup to submit the Configure Protection operation and track the configuration progress in the Notifications area of the portal.

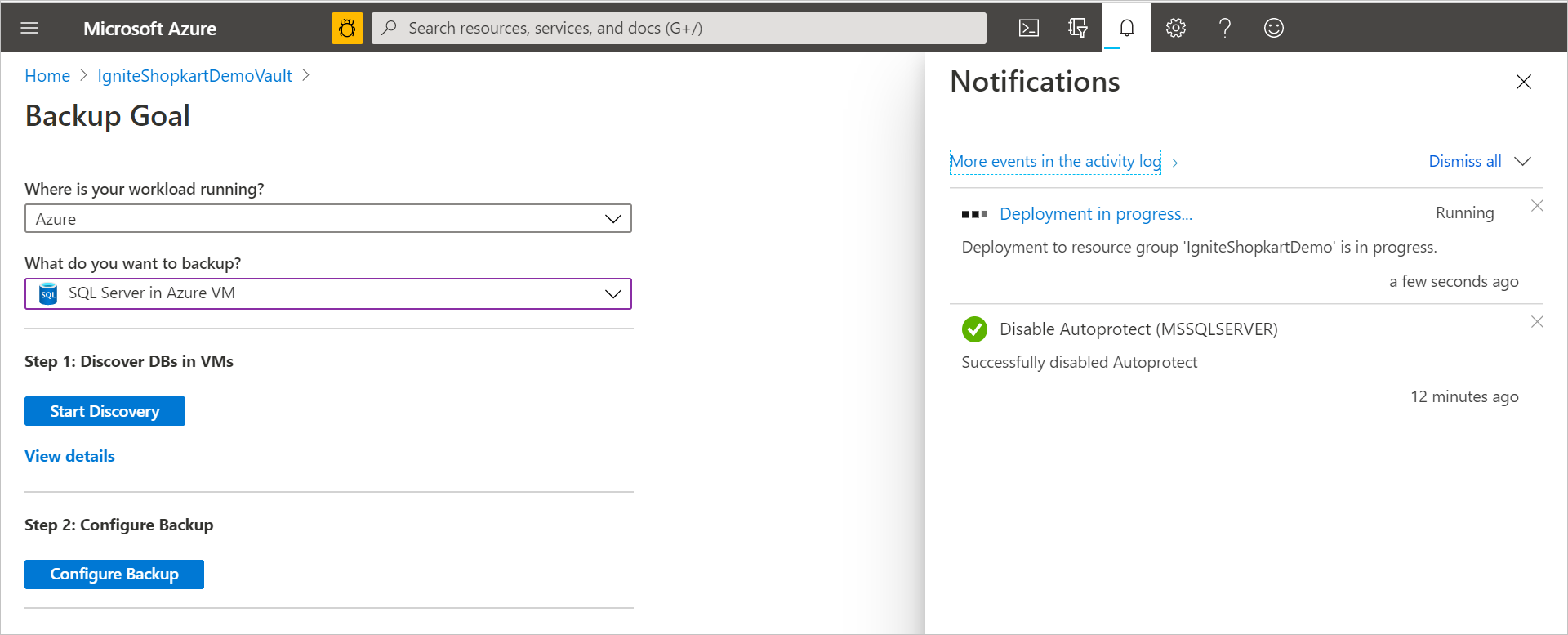

    Track configuration progress

Create a backup policy

A backup policy defines when backups are taken and how long they're retained.

  • A policy is created at the vault level.
  • Multiple vaults can use the same backup policy, but you must apply the backup policy to each vault.
  • When you create a backup policy, a daily full backup is the default.
  • You can add a differential backup, but only if you configure full backups to occur weekly.
  • Learn about different types of backup policies.

To create a backup policy:

  1. Go to Backup center and click +Policy.

  2. Select SQL Server in Azure VM as the datasource type, select the vault under which the policy should be created, and then click Continue.

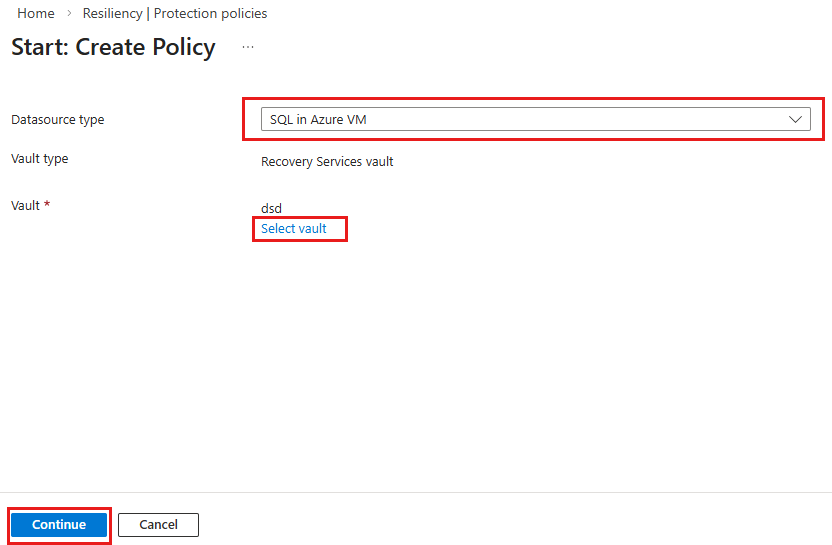

    Screenshot showing to choose a policy type for the new backup policy.

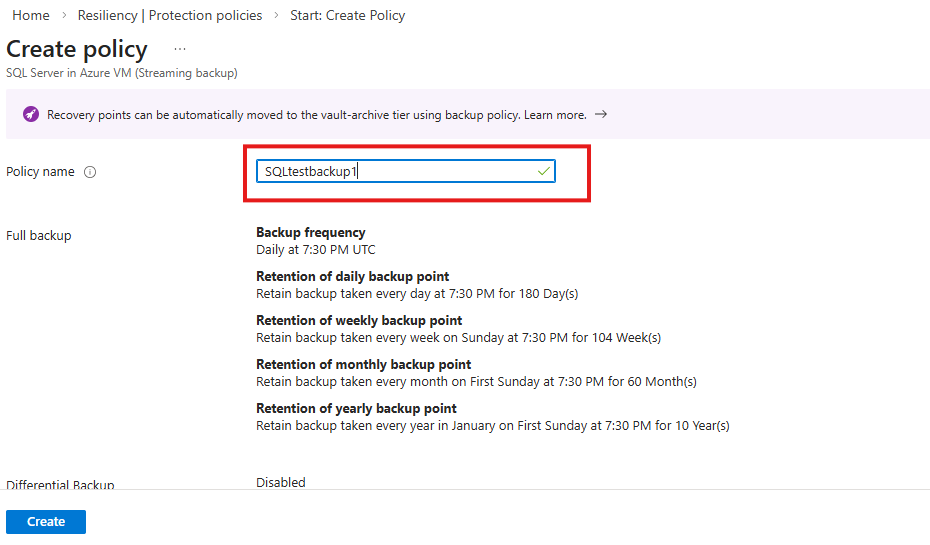

  3. In Policy name, enter a name for the new policy.

    Screenshot to showing to enter policy name.

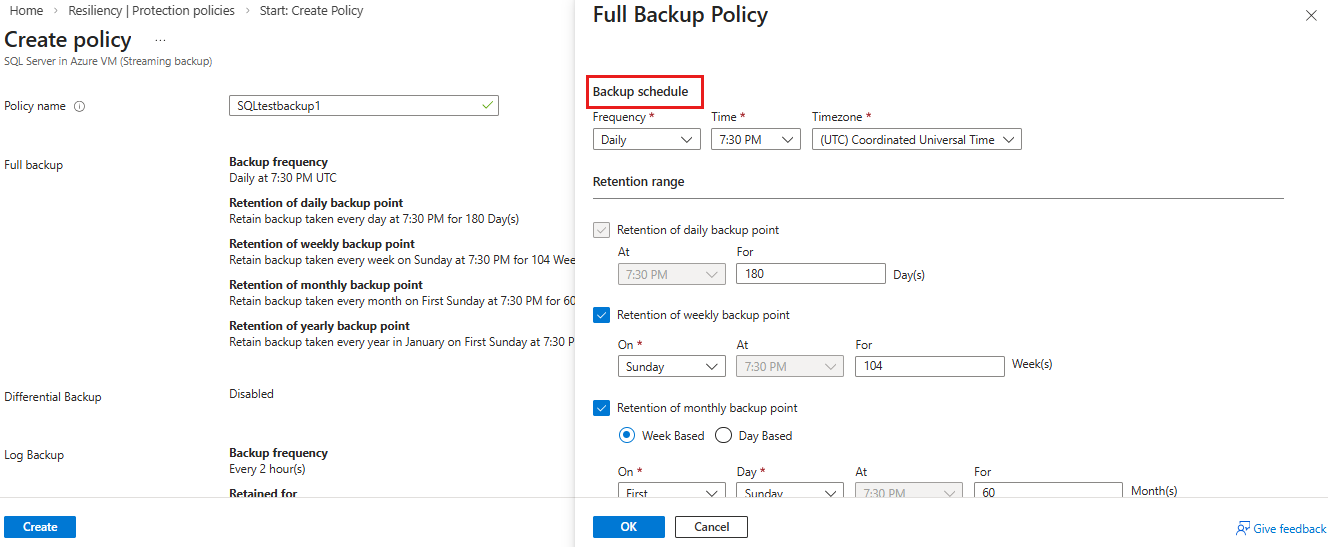

  4. Select the Edit link corresponding, to Full backup, to modify the default settings.

    • Select a Backup Frequency. Choose either Daily or Weekly.
    • For Daily, select the hour and time zone when the backup job begins. You can't create differential backups for daily full backups.

    Screenshot showing new backup policy fields.

  5. In RETENTION RANGE, all options are selected by default. Clear any retention range limits that you don't want, and then set the intervals to use.

    • Minimum retention period for any type of backup (full, differential, and log) is seven days.
    • Recovery points are tagged for retention based on their retention range. For example, if you select a daily full backup, only one full backup is triggered each day.
    • The backup for a specific day is tagged and retained based on the weekly retention range and the weekly retention setting.
    • Monthly and yearly retention ranges behave in a similar way.

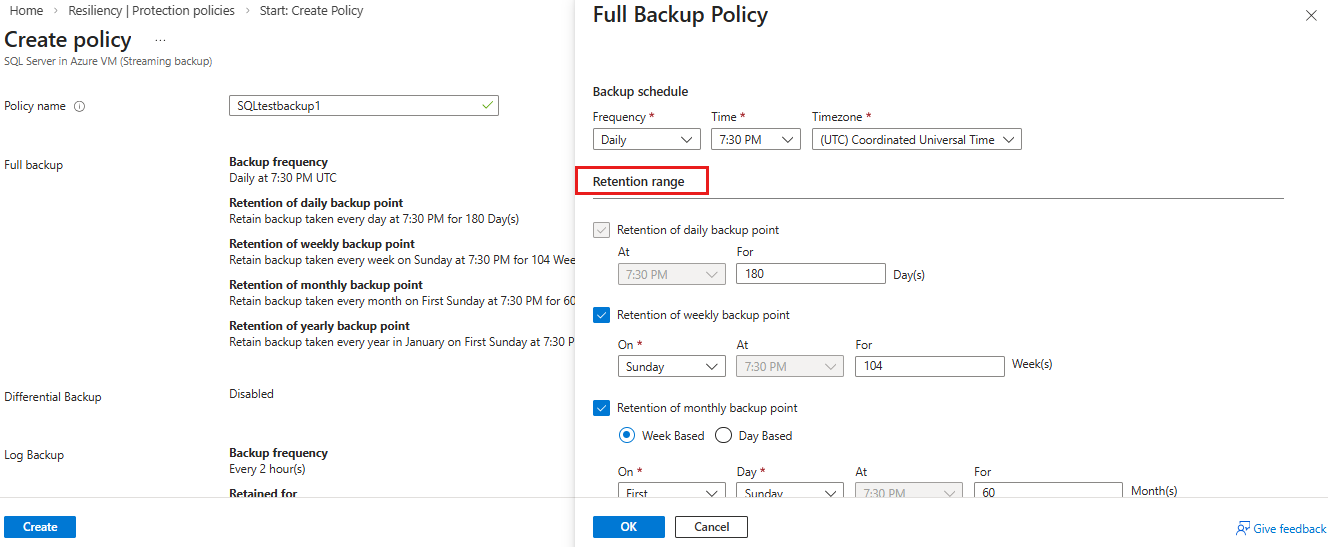

    Screenshot showing the retention range interval settings.

  6. Select OK to accept the setting for full backups.

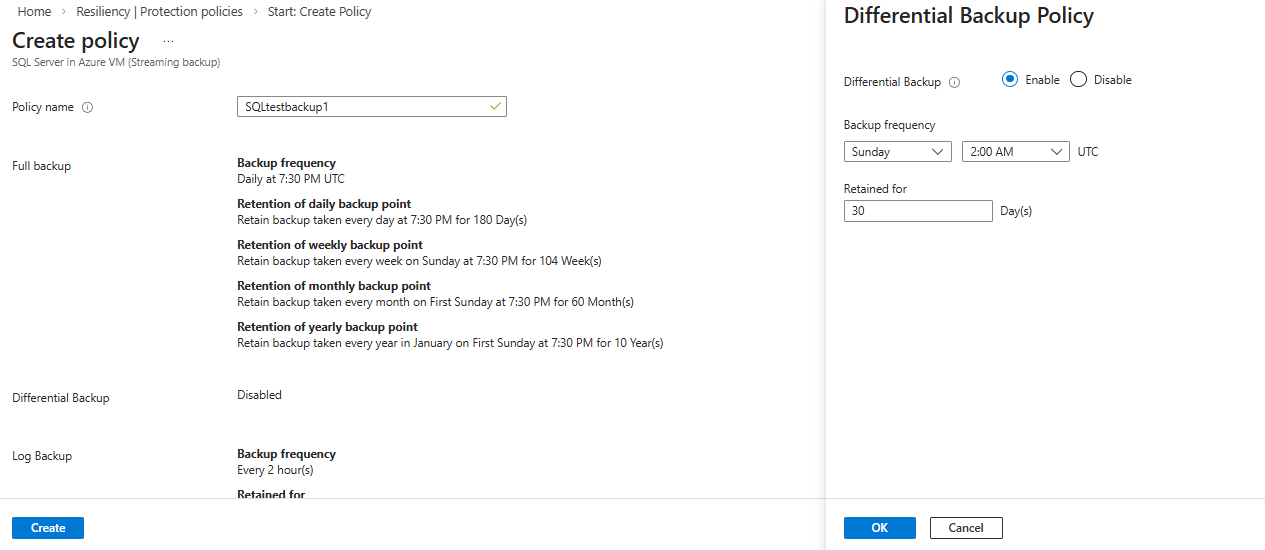

  7. Select the Edit link corresponding to Differential backup, to modify the default settings.

    • In Differential Backup policy, select Enable to open the frequency and retention controls.
    • You can trigger only one differential backup per day. A differential backup can't be triggered on the same day as a full backup.
    • Differential backups can be retained for a maximum of 180 days.
    • The differential backup retention period can't be greater than that of the full backup (as the differential backups are dependent on the full backups for recovery).
    • Differential Backup isn't supported for the master database.

    Screenshot showing the differential Backup policy.

  8. Select the Edit link corresponding to Log backup, to modify the default settings

    • In Log Backup, select Enable, and then set the frequency and retention controls.
    • Log backups can occur as often as every 15 minutes and can be retained for up to 35 days.
    • If the database is in the simple recovery model, the log backup schedule for that database will be paused and so no log backups will be triggered.
    • If the recovery model of the database changes from Full to Simple, log backups will be paused within 24 hours of the change in the recovery model. Similarly, if the recovery model changes from Simple, implying log backups can now be supported for the database, the log backups schedules will be enabled within 24 hours of the change in recovery model.

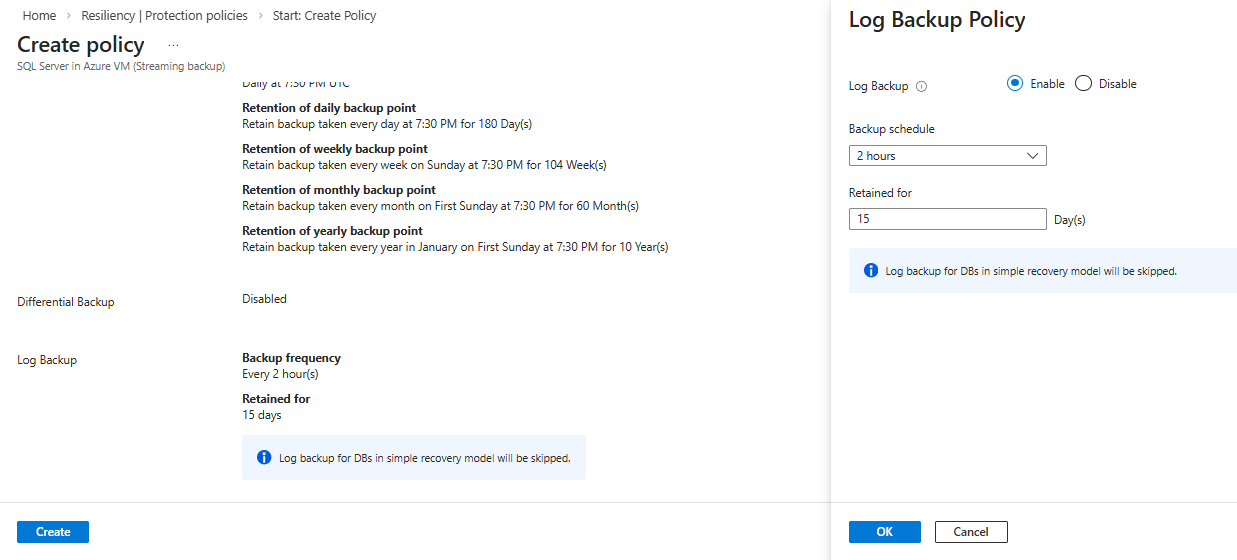

    Screenshot showing the log Backup policy.

  9. On the Backup policy menu, choose whether to enable SQL Backup Compression or not. This option is disabled by default. If enabled, SQL Server will send a compressed backup stream to the VDI. Azure Backup overrides instance level defaults with COMPRESSION / NO_COMPRESSION clause depending on the value of this control.

  10. After you complete the edits to the backup policy, select OK.

Note

Each log backup is chained to the previous full backup to form a recovery chain. This full backup will be retained until the retention of the last log backup has expired. This might mean that the full backup is retained for an extra period to make sure all the logs can be recovered. Let's assume you have a weekly full backup, daily differential and 2 hour logs. All of them are retained for 30 days. But, the weekly full can be really cleaned up/deleted only after the next full backup is available, that is, after 30 + 7 days. For example, a weekly full backup happens on Nov 16th. According to the retention policy, it should be retained until Dec 16th. The last log backup for this full happens before the next scheduled full, on Nov 22nd. Until this log is available until Dec 22nd, the Nov 16th full can't be deleted. So, the Nov 16th full is retained until Dec 22nd.

Enable auto-protection

You can enable auto-protection to automatically back up all existing and future databases to a standalone SQL Server instance or to an Always On availability group.

  • There's no limit on the number of databases you can select for auto-protection at a time. Discovery typically runs every eight hours. The auto-protection of a newly discovered database will be triggered within 32 hours. However, you can discover and protect new databases immediately if you manually run a discovery by selecting the Rediscover DBs option.
  • If the auto-protection operation on the newly discovered database fails, it'll be retried three times. If all three retries fail, the database won't be protected.
  • You can't selectively protect or exclude databases from protection in an instance at the time you enable auto-protection.
  • If your instance already includes some protected databases, they'll remain protected under their respective policies even after you turn on auto-protection. All unprotected databases added later will have only a single policy that you define at the time of enabling auto-protection, listed under Configure Backup. However, you can change the policy associated with an auto-protected database later.
  • If the Configure Protection operation for the newly discovered database fails, it won't raise an alert. However, a failed backup job could be found on the Backup jobs page.

To enable auto-protection:

  1. In Items to backup, select the instance for which you want to enable auto-protection.

  2. Select the drop-down list under AUTOPROTECT, choose ON, and then select OK.

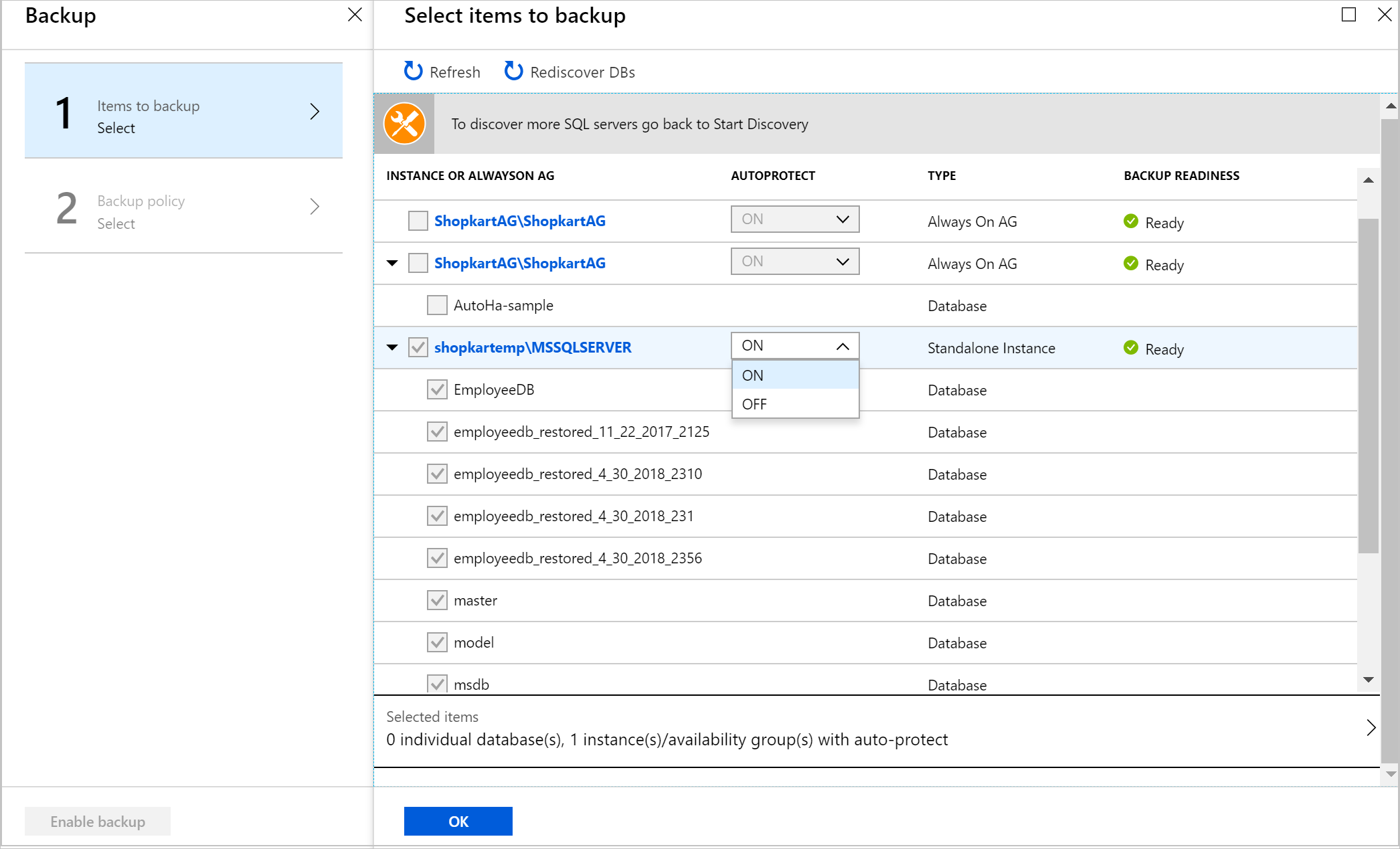

    Enable auto-protection on the availability group

  3. Backup is configured for all the databases together and can be tracked in Backup Jobs.

If you need to disable auto-protection, select the instance name under Configure Backup, and then select Disable Autoprotect for the instance. All databases will continue to be backed up, but future databases won't be automatically protected.

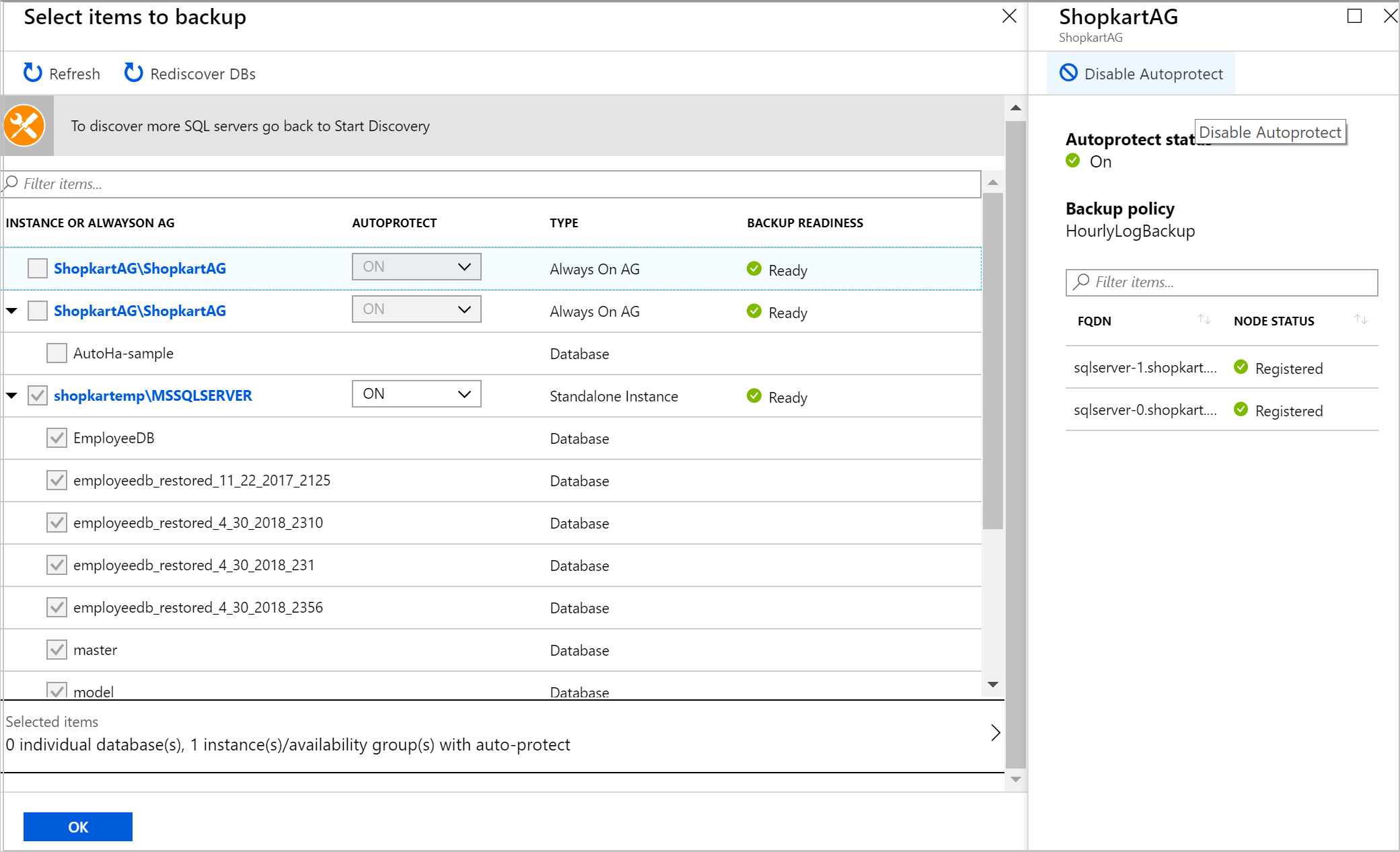

Disable auto-protection on that instance

Next steps

Learn how to:
