Flatten transformation in mapping data flow

  • บทความ

APPLIES TO: Azure Data Factory Azure Synapse Analytics

Tip

Try out Data Factory in Microsoft Fabric, an all-in-one analytics solution for enterprises. Microsoft Fabric covers everything from data movement to data science, real-time analytics, business intelligence, and reporting. Learn how to start a new trial for free!

Data flows are available both in Azure Data Factory and Azure Synapse Pipelines. This article applies to mapping data flows. If you are new to transformations, please refer to the introductory article Transform data using a mapping data flow.

Use the flatten transformation to take array values inside hierarchical structures such as JSON and unroll them into individual rows. This process is known as denormalization.

Configuration

The flatten transformation contains the following configuration settings.

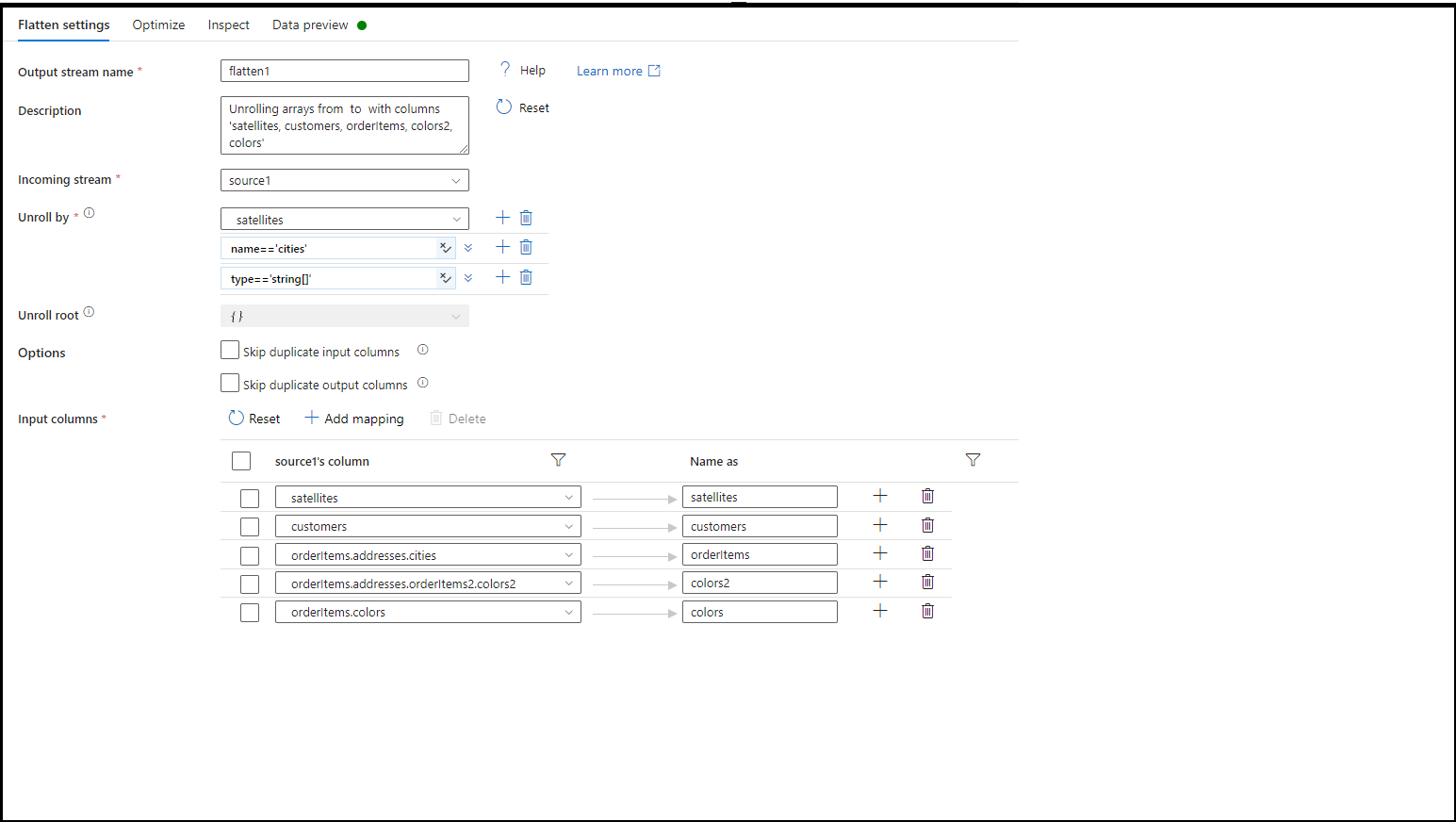

Screenshot that shows flatten settings.

Unroll by

Select an array to unroll. The output data will have one row per item in each array. If the unroll by array in the input row is null or empty, there will be one output row with unrolled values as null. You have the option to unroll more than one array per Flatten transformation. Click on the plus (+) button to include multiple arrays in a single Flatten transformation. You can use ADF data flow meta functions here including name and type and use pattern matching to unroll arrays that match those criteria. When including multiple arrays in a single Flatten transformation, your results will be a cartesian product of all of the possible array values.

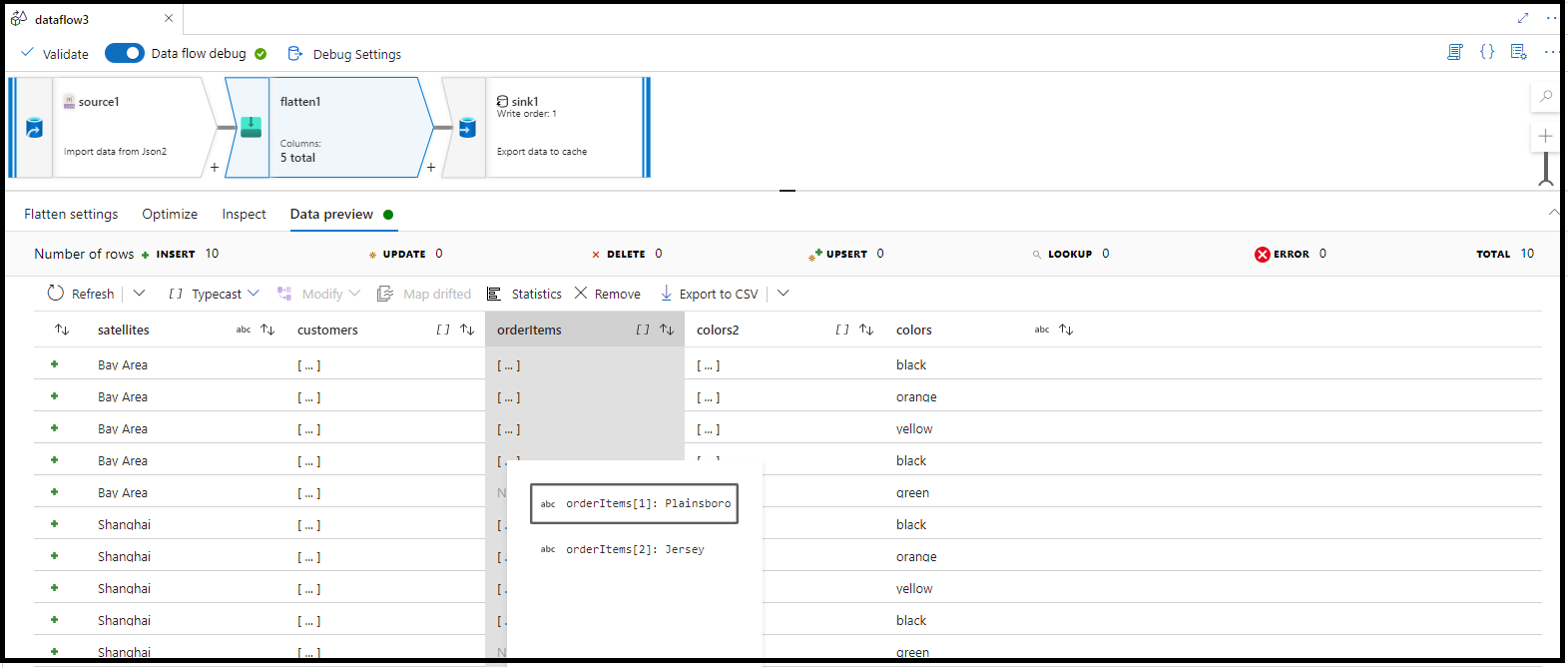

Screenshot that shows flatten results.

Unroll root

By default, the flatten transformation unrolls an array to the top of the hierarchy it exists in. You can optionally select an array as your unroll root. The unroll root must be an array of complex objects that either is or contains the unroll by array. If an unroll root is selected, the output data will contain at least one row per items in the unroll root. If the input row doesn't have any items in the unroll root, it will be dropped from the output data. Choosing an unroll root will always output a less than or equal number of rows than the default behavior.

Flatten mapping

Similar to the select transformation, choose the projection of the new structure from incoming fields and the denormalized array. If a denormalized array is mapped, the output column will be the same data type as the array. If the unroll by array is an array of complex objects that contains subarrays, mapping an item of that subarry will output an array.

Refer to the inspect tab and data preview to verify your mapping output.

Rule-based mapping

The flatten transformation supports rule-based mapping allowing you to create dynamic and flexible transformations that will flatten arrays based on rules and flatten structures based on hierarchy levels.

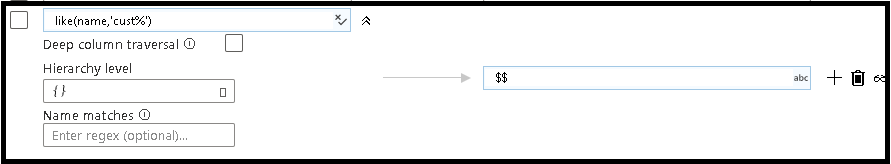

Flatten pattern

Matching condition

Enter a pattern matching condition for the column or columns that you wish to flatten using either exact matching or patterns. Example: like(name,'cust%')

Deep column traversal

Optional setting that tells the service to handle all subcolumns of a complex object individually instead of handling the complex object as a whole column.

Hierarchy level

Choose the level of the hierarchy that you would like to expand.

Name matches (regex)

Optionally choose to express your name matching as a regular expression in this box, instead of using the matching condition above.

Examples

Refer to the following JSON object for the below examples of the flatten transformation

{
  "name":"MSFT","location":"Redmond", "satellites": ["Bay Area", "Shanghai"],
  "goods": {
    "trade":true, "customers":["government", "distributer", "retail"],
    "orders":[
        {"orderId":1,"orderTotal":123.34,"shipped":{"orderItems":[{"itemName":"Laptop","itemQty":20},{"itemName":"Charger","itemQty":2}]}},
        {"orderId":2,"orderTotal":323.34,"shipped":{"orderItems":[{"itemName":"Mice","itemQty":2},{"itemName":"Keyboard","itemQty":1}]}}
    ]}}
{"name":"Company1","location":"Seattle", "satellites": ["New York"],
  "goods":{"trade":false, "customers":["store1", "store2"],
  "orders":[
      {"orderId":4,"orderTotal":123.34,"shipped":{"orderItems":[{"itemName":"Laptop","itemQty":20},{"itemName":"Charger","itemQty":3}]}},
      {"orderId":5,"orderTotal":343.24,"shipped":{"orderItems":[{"itemName":"Chair","itemQty":4},{"itemName":"Lamp","itemQty":2}]}}
    ]}}
{"name": "Company2", "location": "Bellevue",
  "goods": {"trade": true, "customers":["Bank"], "orders": [{"orderId": 4, "orderTotal": 123.34}]}}
{"name": "Company3", "location": "Kirkland"}

No unroll root with string array

Unroll by Unroll root Projection
goods.customers None name
customer = goods.customer

Output

{ 'MSFT', 'government'}
{ 'MSFT', 'distributer'}
{ 'MSFT', 'retail'}
{ 'Company1', 'store'}
{ 'Company1', 'store2'}
{ 'Company2', 'Bank'}
{ 'Company3', null}

No unroll root with complex array

Unroll by Unroll root Projection
goods.orders.shipped.orderItems None name
orderId = goods.orders.orderId
itemName = goods.orders.shipped.orderItems.itemName
itemQty = goods.orders.shipped.orderItems.itemQty
location = location

Output

{ 'MSFT', 1, 'Laptop', 20, 'Redmond'}
{ 'MSFT', 1, 'Charger', 2, 'Redmond'}
{ 'MSFT', 2, 'Mice', 2, 'Redmond'}
{ 'MSFT', 2, 'Keyboard', 1, 'Redmond'}
{ 'Company1', 4, 'Laptop', 20, 'Seattle'}
{ 'Company1', 4, 'Charger', 3, 'Seattle'}
{ 'Company1', 5, 'Chair', 4, 'Seattle'}
{ 'Company1', 5, 'Lamp', 2, 'Seattle'}
{ 'Company2', 4, null, null, 'Bellevue'}
{ 'Company3', null, null, null, 'Kirkland'}

Same root as unroll array

Unroll by Unroll root Projection
goods.orders goods.orders name
goods.orders.shipped.orderItems.itemName
goods.customers
location

Output

{ 'MSFT', ['Laptop','Charger'], ['government','distributer','retail'], 'Redmond'}
{ 'MSFT', ['Mice', 'Keyboard'], ['government','distributer','retail'], 'Redmond'}
{ 'Company1', ['Laptop','Charger'], ['store', 'store2'], 'Seattle'}
{ 'Company1', ['Chair', 'Lamp'], ['store', 'store2'], 'Seattle'}
{ 'Company2', null, ['Bank'], 'Bellevue'}

Unroll root with complex array

Unroll by Unroll root Projection
goods.orders.shipped.orderItem goods.orders name
orderId = goods.orders.orderId
itemName = goods.orders.shipped.orderItems.itemName
itemQty = goods.orders.shipped.orderItems.itemQty
location = location

Output

{ 'MSFT', 1, 'Laptop', 20, 'Redmond'}
{ 'MSFT', 1, 'Charger', 2, 'Redmond'}
{ 'MSFT', 2, 'Mice', 2, 'Redmond'}
{ 'MSFT', 2, 'Keyboard', 1, 'Redmond'}
{ 'Company1', 4, 'Laptop', 20, 'Seattle'}
{ 'Company1', 4, 'Charger', 3, 'Seattle'}
{ 'Company1', 5, 'Chair', 4, 'Seattle'}
{ 'Company1', 5, 'Lamp', 2, 'Seattle'}
{ 'Company2', 4, null, null, 'Bellevue'}

Data flow script

Syntax

<incomingStream>
foldDown(unroll(<unroll cols>),
    mapColumn(
        name,
        each(<array>(type == '<arrayDataType>')),
        each(<array>, match(true())),
        location
    )) ~> <transformationName>

Example

source foldDown(unroll(goods.orders.shipped.orderItems, goods.orders),
    mapColumn(
        name,
        orderId = goods.orders.orderId,
        itemName = goods.orders.shipped.orderItems.itemName,
        itemQty = goods.orders.shipped.orderItems.itemQty,
        location = location
    ),
    skipDuplicateMapInputs: false,
    skipDuplicateMapOutputs: false)
