Quickstart: Deploy your first Spring Batch application to Azure Spring Apps

Note

The Basic, Standard, and Enterprise plans will be deprecated starting from mid-March, 2025, with a 3 year retirement period. We recommend transitioning to Azure Container Apps. For more information, see the Azure Spring Apps retirement announcement.

The Standard consumption and dedicated plan will be deprecated starting September 30, 2024, with a complete shutdown after six months. We recommend transitioning to Azure Container Apps. For more information, see Migrate Azure Spring Apps Standard consumption and dedicated plan to Azure Container Apps.

This quickstart shows how to deploy a Spring Batch ephemeral application to Azure Spring Apps. The sample project is derived from the Spring Batch sample Football Job. It's a statistics loading job. In the original sample, a unit test triggers the job. In the adapted sample, the main method of FootballJobApplication initiates the job.

This article applies to: ❌ Basic/Standard ✔️ Enterprise

The following diagram shows the architecture of the system:

This article provides the following options for deploying to Azure Spring Apps:

• The Azure portal option is the easiest and the fastest way to create resources and deploy applications with a single click. This option is suitable for Spring developers who want to quickly deploy applications to Azure cloud services.
• The Azure CLI option uses a powerful command line tool to manage Azure resources. This option is suitable for Spring developers who are familiar with Azure cloud services.

1. Prerequisites

Azure portal

• An Azure subscription. If you don't have a subscription, create a free account before you begin.
• Git.
• If you're deploying an Azure Spring Apps Enterprise plan instance for the first time in the target subscription, see the Requirements section of Enterprise plan in Azure Marketplace.

Azure CLI

• An Azure subscription. If you don't have a subscription, create a free account before you begin.
• Git.
• Java Development Kit (JDK), version 17.
• Azure CLI version 2.55.0 or higher. Use the following commands to install the Azure Spring Apps extension: az extension add --name spring.
• If you're deploying an Azure Spring Apps Enterprise plan instance for the first time in the target subscription, see the Requirements section of Enterprise plan in Azure Marketplace.

2. Prepare the Spring project

Use the following command to clone the sample project from GitHub:

git clone https://github.com/Azure-Samples/azure-spring-apps-samples.git

3. Prepare the cloud environment

The main resource required to run this sample is an Azure Spring Apps instance. This section provides the steps to create this resource.

Azure portal

3.1. Sign in to the Azure portal

Go to the Azure portal and enter your credentials to sign in to the portal. The default view is your service dashboard.

3.2. Create an Azure Spring Apps instance

Use the following steps to create an Azure Spring Apps service instance:

1. Select Create a resource in the corner of the Azure portal.

2. Select Compute > Azure Spring Apps.

3. Fill out the Basics form with the following information:

   Setting	Suggested value	Description
   Subscription	Your subscription name.	The Azure subscription that you want to use for your server. If you have multiple subscriptions, choose the subscription in which you'd like to be billed for the resource.
   Resource group	myresourcegroup	A new resource group name or an existing one from your subscription.
   Name	myasa	A unique name that identifies your Azure Spring Apps service. The name must be between 4 and 32 characters long and can contain only lowercase letters, numbers, and hyphens. The first character of the service name must be a letter and the last character must be either a letter or a number.
   Plan	Enterprise	The pricing plan that determines the resource and cost associated with your instance.
   Region	The region closest to your users.	The location that is closest to your users.
   Zone Redundant	Unselected	The option to create your Azure Spring Apps service in an Azure availability zone. This feature isn't currently supported in all regions.
   Software IP plan	Pay-as-You-Go	The pricing plan that lets you pay as you go with Azure Spring Apps.
   Terms	Selected	The agreement checkbox associated with Marketplace offering. You're required to select this checkbox.
   Deploy sample project	Unselected	The option to use the built-in sample application.

4. Select Review and Create to review your selections. Then, select Create to provision the Azure Spring Apps instance.

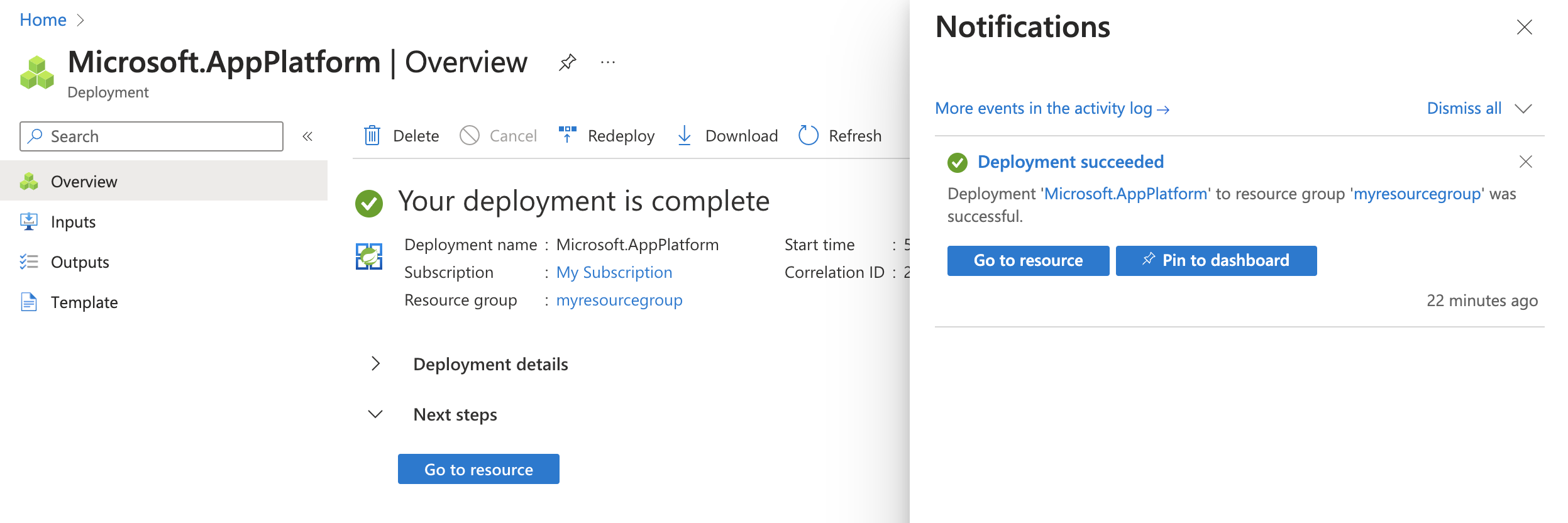

5. On the toolbar, select the Notifications icon (a bell) to monitor the deployment process. After the deployment finishes, you can select Pin to dashboard, which creates a tile for this service on your Azure portal dashboard as a shortcut to the service's Overview page.



6. Select Go to resource to go to the Azure Spring Apps Overview page.

3.3. Enable service registry

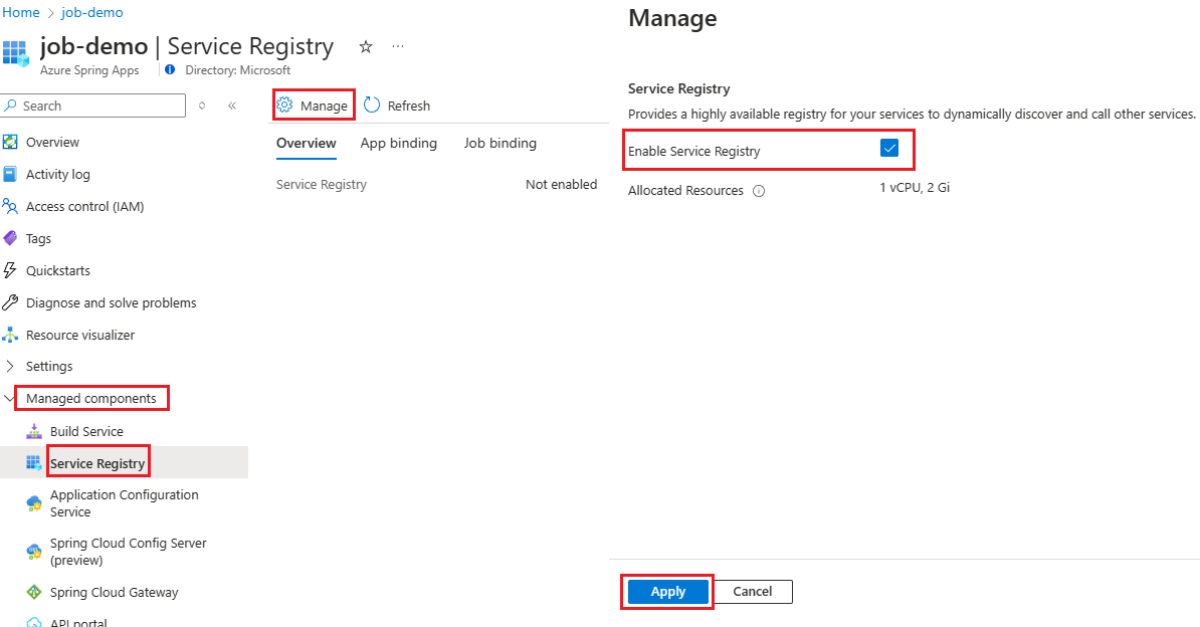

Go to the Azure Spring Apps instance you created, expand Managed components in the navigation pane, and then select Service Registry. Then, on the Overview page, select Manage to open the Manage page, select Enable Service Registry, and then select Apply.

3.4. Set up a log analytics workspace

For information on querying the data in logs, see Quickstart: Set up a Log Analytics workspace.

Azure CLI

3.1. Provide names for each resource

Create variables to hold the resource names by using the following commands. Be sure to replace the placeholders with your own values.

export LOCATION=<location>
export RESOURCE_GROUP=<resource-group-name>
export AZURE_SPRING_APPS_INSTANCE=<Azure-Spring-Apps-instance-name>

3.2. Create a new resource group

Use the following steps to create a new resource group:

1. Use the following command to sign in to the Azure CLI:

   az login


2. Use the following command to set the default location:

   az configure --defaults location=${LOCATION}


3. Use the following command to list all available subscriptions to determine the subscription ID to use:

   az account list --output table


4. Use the following command to set the default subscription:

   az account set --subscription <subscription-ID>


5. Use the following command to create a resource group:

   az group create --resource-group ${RESOURCE_GROUP}


6. Use the following command to set the newly created resource group as the default resource group:

   az configure --defaults group=${RESOURCE_GROUP}


3.3. Create an Azure Spring Apps instance

Azure Spring Apps is used to host the Spring web app. Use the following steps to create an Azure Spring Apps instance and an application inside it:

1. Use the following command to create an Azure Spring Apps service instance and enable the service registry:

   az spring create \
       --name ${AZURE_SPRING_APPS_INSTANCE} \
       --sku enterprise \
       --enable-sr


2. Use the following command to verify that the Azure Spring Apps Enterprise plan service instance was created successfully:

   az spring show --name ${AZURE_SPRING_APPS_INSTANCE}


4. Deploy the football-billboard app to Azure Spring Apps

Azure portal

Use the following steps to deploy the app:

1. Go to the Azure Spring Apps instance you created, expand Settings in the navigation pane, and then select Apps.

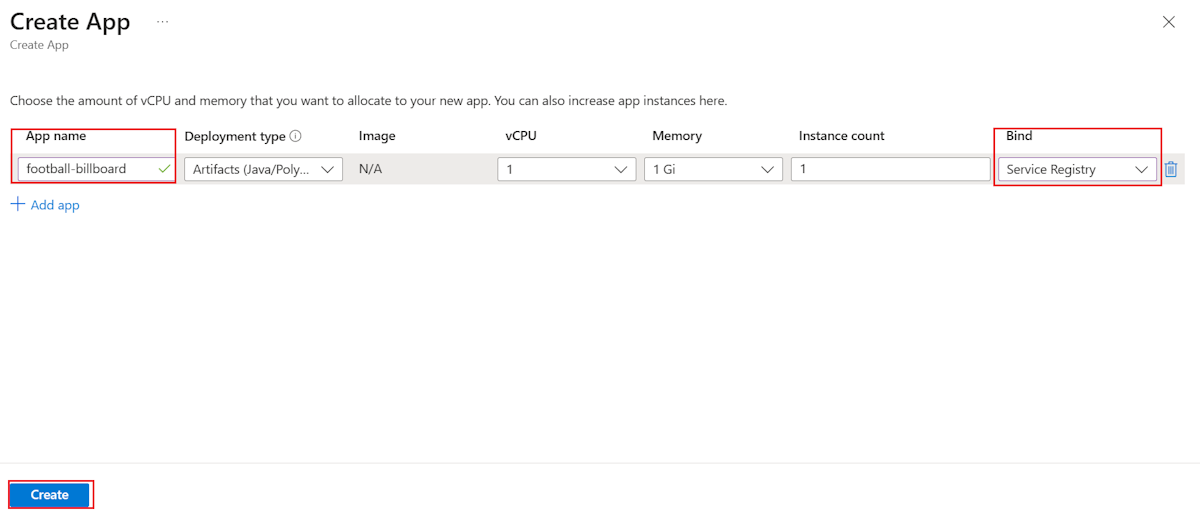

2. On the Apps pane, select Create App to open the Create App page.

3. Set App name to football-billboard, select Service Registry on the Bind column, and then select Create.



4. After creating the app, select Deploy App and copy the Azure CLI command for deploying the app. Then, open a Bash window and paste the command onto the command line, replacing the artifact path with the correct value for your system. Then, run the command. Wait several minutes until the build and deployment succeed. The command and output should look similar to the following example:

   $ az spring app deploy -s job-demo -g job-demo -n football-billboard --artifact-path target/spring-batch-football-billboard-0.0.1-SNAPSHOT.jar
   This command usually takes minutes to run. Add '--verbose' parameter if needed.
   [1/5] Requesting for upload URL.
   [2/5] Uploading package to blob.
   [3/5] Creating or Updating build 'football-billboard'.
   [4/5] Waiting for building container image to finish. This may take a few minutes.


5. After deployment, go back to the Apps pane and select the football-billboard app. Then, go to the overview page and select Assign endpoint to expose the public endpoint for the app.

Azure CLI

Use the following steps to deploy the app:

1. Use the following command to navigate to the sample project folder from the root folder of the repository:

   cd azure-spring-apps-samples/job-samples/football-billboard


2. Use the following command to create an application in the Azure Spring Apps instance and bind the service registry:

   az spring app create \
       --service ${AZURE_SPRING_APPS_INSTANCE} \
       --name football-billboard \
       --assign-endpoint true \
       --bind-sr


3. Use the following command to deploy the app:

   az spring app deploy \
       --service ${AZURE_SPRING_APPS_INSTANCE} \
       --name football-billboard \
       --source-path . \
       --build-env BP_JVM_VERSION=17


5. Deploy the job sample to Azure Spring Apps

This section provides the steps to deploy the sample.

Azure portal

5.1. Create and execute the job

Use the following steps to create and execute the job:

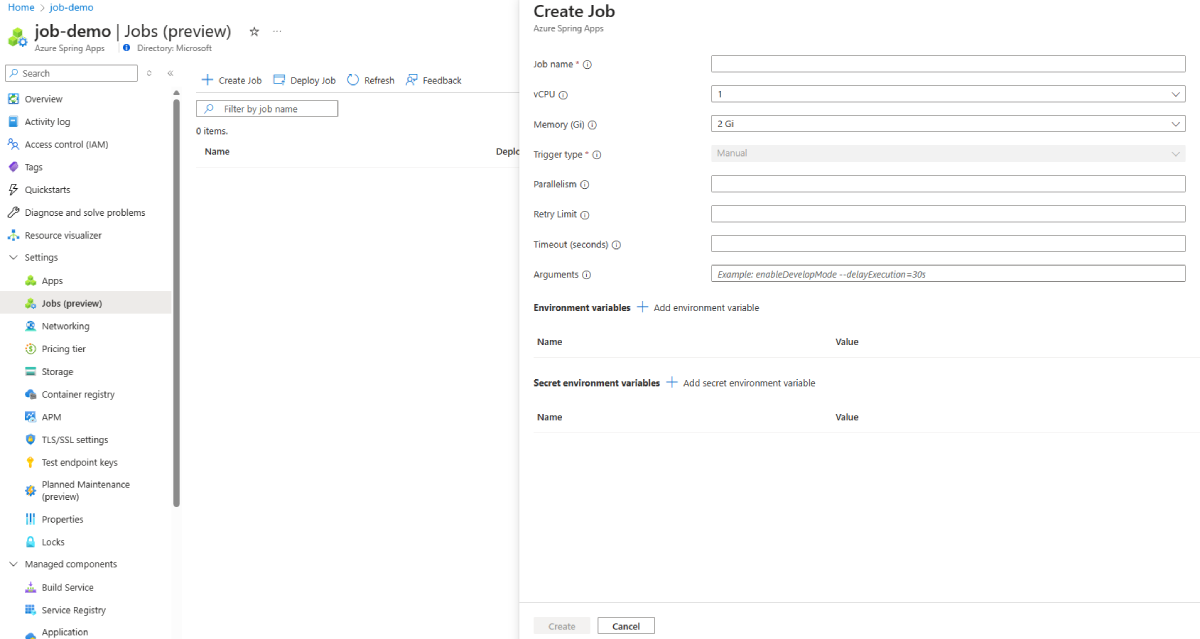

1. Navigate to Jobs pane then select Create Job. Fill in the job name as football. Configure the job parameters, such as parallelism, retry limit, and timeout. Add environment variables and secret environment variables as needed. After confirmation, select Create.



2. After creating the job, expand Managed components in the navigation pane and select Service Registry. Then, select Job binding, select Bind job to select the football job, and then select Apply to bind.



3. Go back to the Jobs pane after binding the job, select Deploy Job, and then copy the Azure CLI command for deploying the job. Then, open a Bash window and paste the command onto the command line, replacing the artifact path with the correct value for your system. Then, run the command. Wait several minutes until the build and deployment succeed. The command and output should look similar to the following example:

   $ az spring job deploy -s job-demo -g job-demo -n football --artifact-path target/spring-batch-football-0.0.1-SNAPSHOT-jar-with-dependencies.jar --build-env BP_JVM_VERSION=17
   This command is in preview and under development. Reference and support levels: https://aka.ms/CLI_refstatus
   This command usually takes minutes to run. Add '--verbose' parameter if needed.
   [1/5] Requesting for upload URL.
   [2/5] Uploading package to blob.
   [3/5] Creating or Updating build 'football'.
   [4/5] Waiting for building container image to finish. This may take a few minutes.


4. After deployment, open the overview page of the football job by selecting the job name. Select Run to initiate the task execution. You can customize each execution of the job with different parameters, such as environment variables, or just select Run to trigger the execution. A message indicates that the job is running.



Azure CLI

5.1. Create and execute the job

Use the following steps to create and execute the job:

1. Use the following command navigate to the sample project folder from the football-billboard folder where you left off previously:

   cd ..
   cd football


2. Use the following command to create a job in the Azure Spring Apps instance and bind the service registry:

   az spring job create \
       --service ${AZURE_SPRING_APPS_INSTANCE} \
       --name football \
       --bind-sr


3. Use the following command to deploy the football sample project to the job. This command uploads and compiles the source code on Azure and makes it ready to start.

   az spring job deploy \
       --service ${AZURE_SPRING_APPS_INSTANCE} \
       --name football \
       --source-path . \
       --build-env BP_JVM_VERSION=17


4. Use the following command to start the job and set the EXECUTION_NAME variable to the job execution name:

   export EXECUTION_NAME=$(az spring job start \
       --service ${AZURE_SPRING_APPS_INSTANCE} \
       --name football \
       --query name \
       --output tsv)


6. Check the job execution result and the billboard UI

You can now access the execution of the job and check its result.

Azure portal

Use the following steps to validate:

1. On the Executions pane, check the job execution result. Wait a few seconds and refresh to see the status turn to Completed. This value means that the job execution finishes successfully.

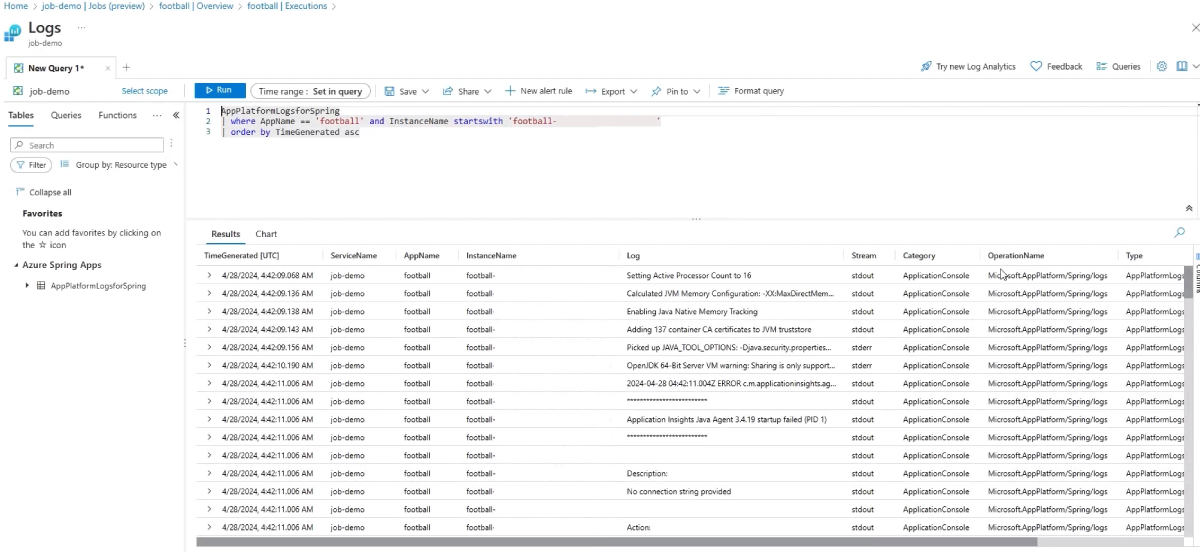

2. Select View logs to query the logs of the job execution.

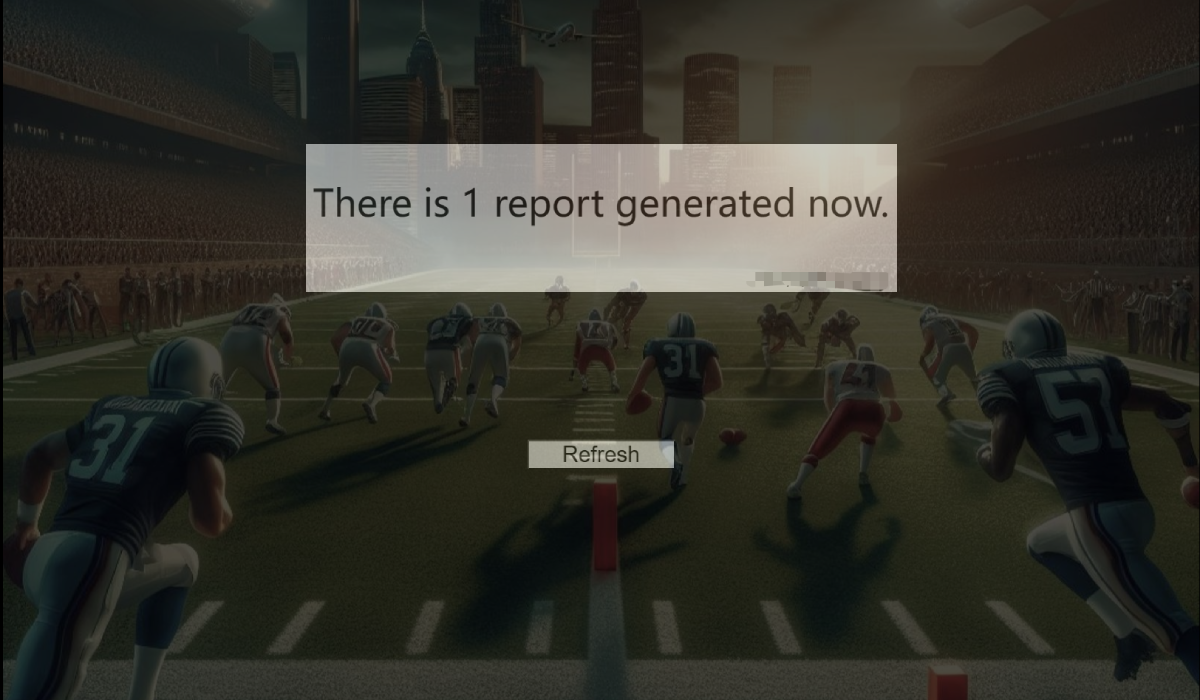

3. Open the public endpoint of the app in a browser window to see the billboard UI. Leave the app open.

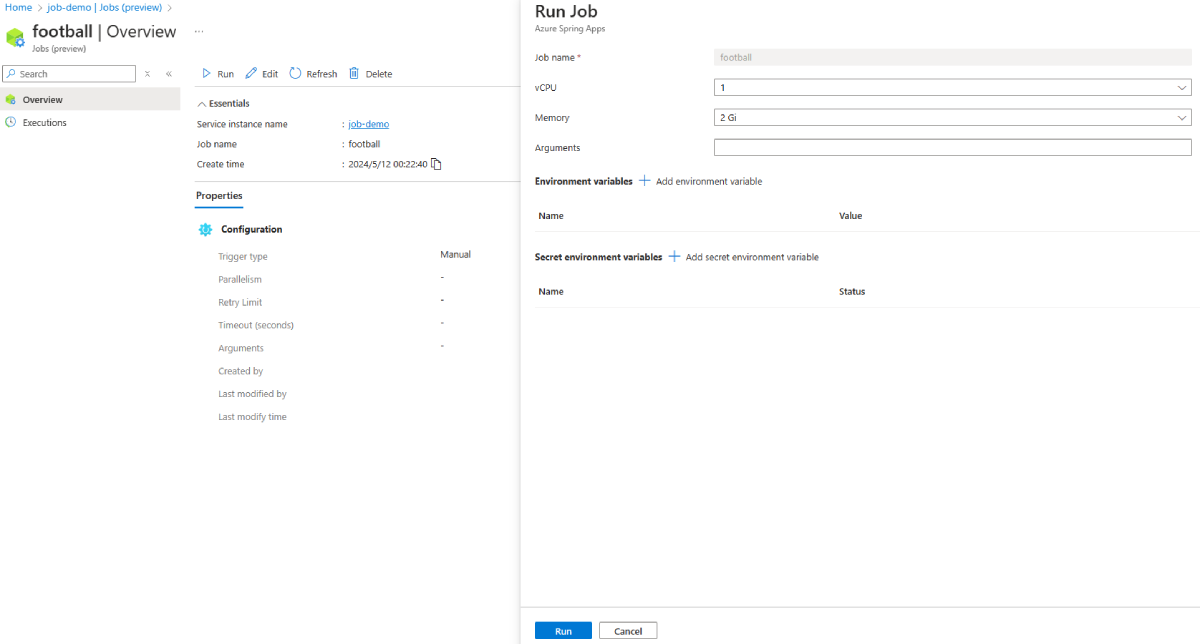

4. Go back to the overview page of the football job and select Run to trigger the execution again.

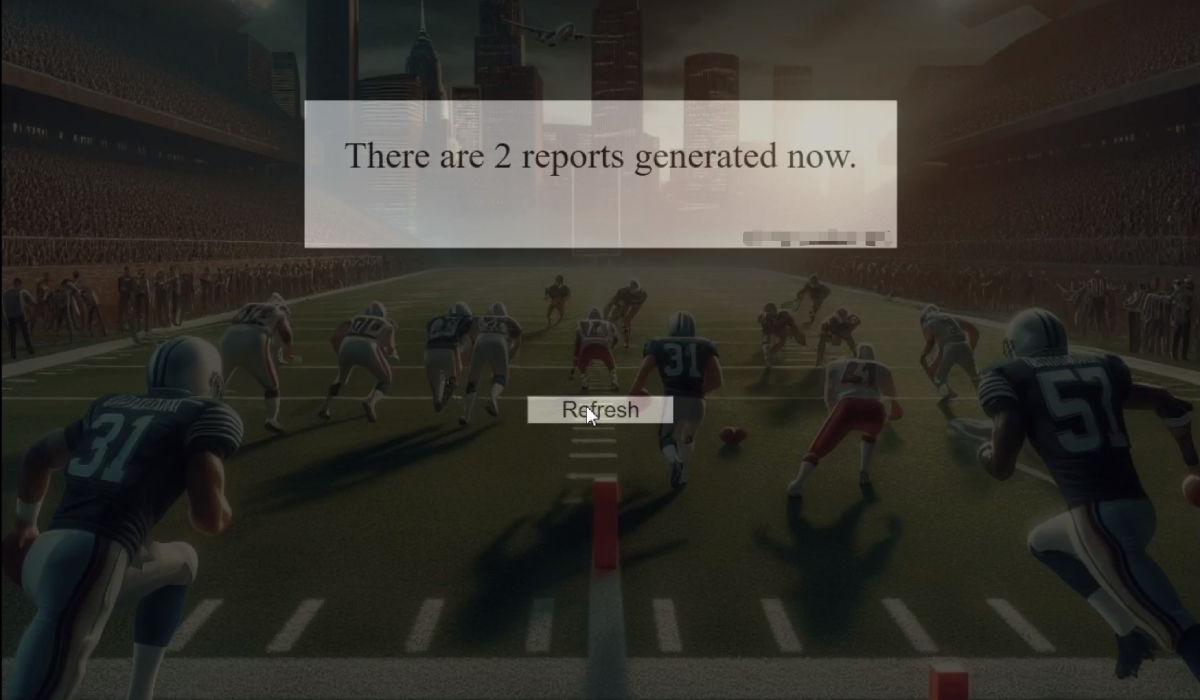

5. Go back to the endpoint page in the browser and select Refresh to see the UI changed, as shown in the following screenshot:



Azure CLI

Use the following steps to validate:

1. Use the following command to query the execution result using the job name and its execution name:

   az spring job logs \
       --service ${AZURE_SPRING_APPS_INSTANCE} \
       --name football \
       --execution ${EXECUTION_NAME} \
       --all-instances


   The job log streaming the job execution should look similar to the following example:

   [football-xxxxxxxxxxxxx-xxxxxx-x-xxxxx] [main] INFO org.springframework.batch.core.launch.support.SimpleJobLauncher - No TaskExecutor has been set, defaulting to synchronous executor.
   [football-xxxxxxxxxxxxx-xxxxxx-x-xxxxx] [main] INFO com.microsoft.sample.FootballJobApplication - There is {} player summary before job execution
   [football-xxxxxxxxxxxxx-xxxxxx-x-xxxxx] [main] INFO org.springframework.batch.core.launch.support.SimpleJobLauncher - Job: [SimpleJob: [name=footballJob]] launched with the following parameters: [{}]
   [football-xxxxxxxxxxxxx-xxxxxx-x-xxxxx] [main] INFO org.springframework.batch.core.job.SimpleStepHandler - Executing step: [playerLoad]
   [football-xxxxxxxxxxxxx-xxxxxx-x-xxxxx] [main] INFO org.springframework.batch.core.step.AbstractStep - Step: [playerLoad] executed in 200ms
   [football-xxxxxxxxxxxxx-xxxxxx-x-xxxxx] [main] INFO org.springframework.batch.core.job.SimpleStepHandler - Executing step: [gameLoad]
   [football-xxxxxxxxxxxxx-xxxxxx-x-xxxxx] [main] INFO org.springframework.batch.core.step.AbstractStep - Step: [gameLoad] executed in 290ms
   [football-xxxxxxxxxxxxx-xxxxxx-x-xxxxx] [main] INFO org.springframework.batch.core.job.SimpleStepHandler - Executing step: [summarizationStep]
   [football-xxxxxxxxxxxxx-xxxxxx-x-xxxxx] [main] INFO org.springframework.batch.core.step.AbstractStep - Step: [summarizationStep] executed in 7ms
   [football-xxxxxxxxxxxxx-xxxxxx-x-xxxxx] [main] INFO org.springframework.batch.core.launch.support.SimpleJobLauncher - Job: [SimpleJob: [name=footballJob]] completed with the following parameters: [{}] and the following status: [COMPLETED] in 519ms
   [football-xxxxxxxxxxxxx-xxxxxx-x-xxxxx] [main] INFO com.microsoft.sample.FootballJobApplication - There is 1 player summary after job execution
   [football-xxxxxxxxxxxxx-xxxxxx-x-xxxxx] [main] INFO org.springframework.jdbc.datasource.embedded.EmbeddedDatabaseFactory - Shutting down embedded database: url='jdbc:hsqldb:mem:testdb'
   ...


2. Use the following command to retrieve the endpoint of the football-billboard app:

   az spring app show \
       --service ${AZURE_SPRING_APPS_INSTANCE} \
       --name football-billboard \
       --query properties.url


3. Open the public endpoint of the app in a browser window to see the billboard UI. Leave the app open.



4. Use the following command to start job again:

   az spring job start \
       --service ${AZURE_SPRING_APPS_INSTANCE} \
       --name football


5. Go back to the endpoint page in the browser and select Refresh to see the UI changed, as shown in the following screenshot:



7. Clean up resources

Be sure to delete the resources you created in this article when you no longer need them. You can delete the Azure resource group, which includes all the resources in the resource group.

Azure portal

Use the following steps to delete the entire resource group, including the newly created service instance:

1. Locate your resource group in the Azure portal. On the navigation menu, select Resource groups, and then select the name of your resource group.

2. On the Resource group page, select Delete. Enter the name of your resource group in the text box to confirm deletion, then select Delete.

Azure CLI

Use the following command to delete the entire resource group, including the newly created service instance:

az group delete --name ${RESOURCE_GROUP}

8. Next steps

For more information, see the following articles:

• Azure Spring Apps Samples.
• Azure for Spring developers
• Spring Cloud Azure documentation
