Connect to Azure Blob storage in Microsoft Purview

This article outlines the process to register and govern Azure Blob Storage accounts in Microsoft Purview including instructions to authenticate and interact with the Azure Blob Storage source

Supported capabilities

Metadata Extraction Full Scan Incremental Scan Scoped Scan Classification Labeling Access Policy Lineage Data Sharing Live view
Yes Yes Yes Yes Yes Yes Yes (preview) Limited** Yes Yes

** Lineage is supported if dataset is used as a source/sink in Azure Data Factory Copy and Data Flow activities and [Azure Synapse Pipelines - Copy and Data Flow activities] (how-to-lineage-azure-synapse-analytics.md)

For file types such as csv, tsv, psv, ssv, the schema is extracted when the following logics are in place:

  • First row values are non-empty
  • First row values are unique
  • First row values aren't a date or a number

Prerequisites

** Lineage is supported if dataset is used as a source/sink in Data Factory Copy activity

Register

This section will enable you to register the Azure Blob storage account for scan and data share in Purview.

Prerequisites for register

  • You'll need to be a Data Source Admin and one of the other Purview roles (for example, Data Reader or Data Share Contributor) to register a source and manage it in the Microsoft Purview governance portal. See our Microsoft Purview Permissions page for details.

Steps to register

It is important to register the data source in Microsoft Purview prior to setting up a scan for the data source.

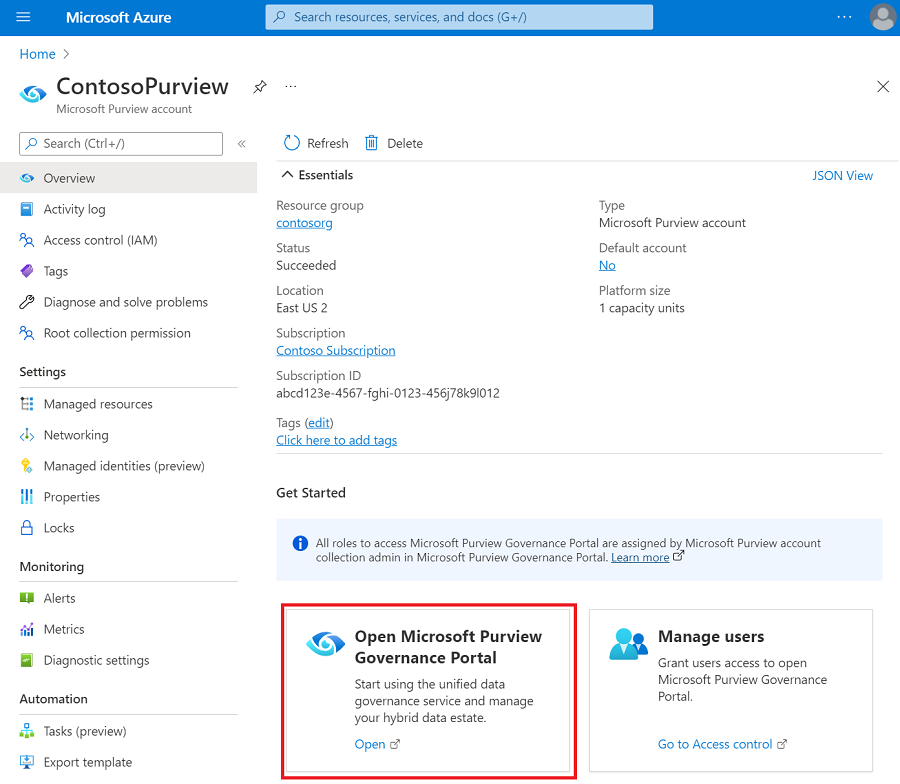

  1. Go to the Microsoft Purview governance portal by:

  2. Navigate to the Data Map --> Sources

    Screenshot that shows the link to open Microsoft Purview governance portal

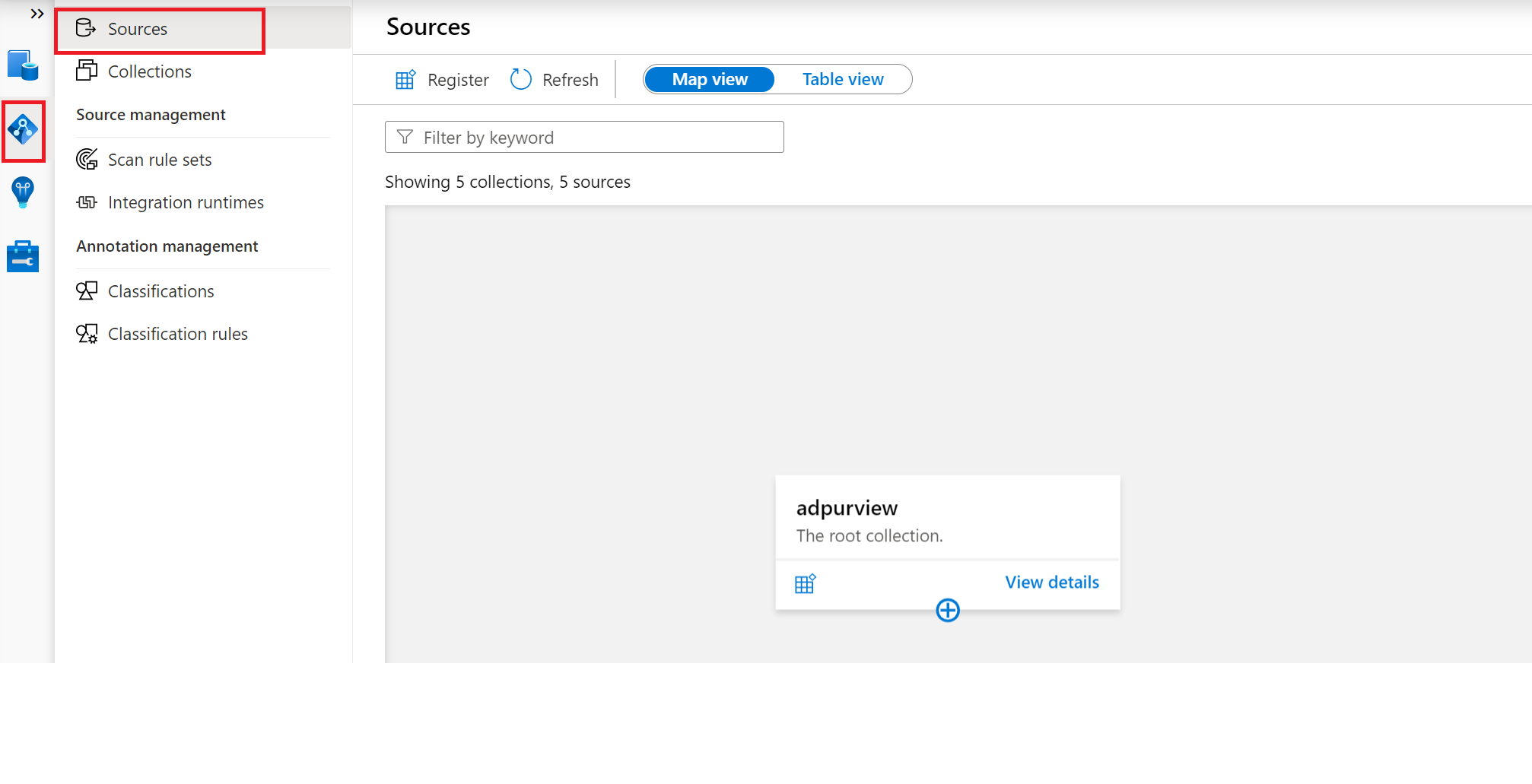

    Screenshot that navigates to the Sources link in the Data Map

  3. Create the Collection hierarchy using the Collections menu and assign permissions to individual subcollections, as required

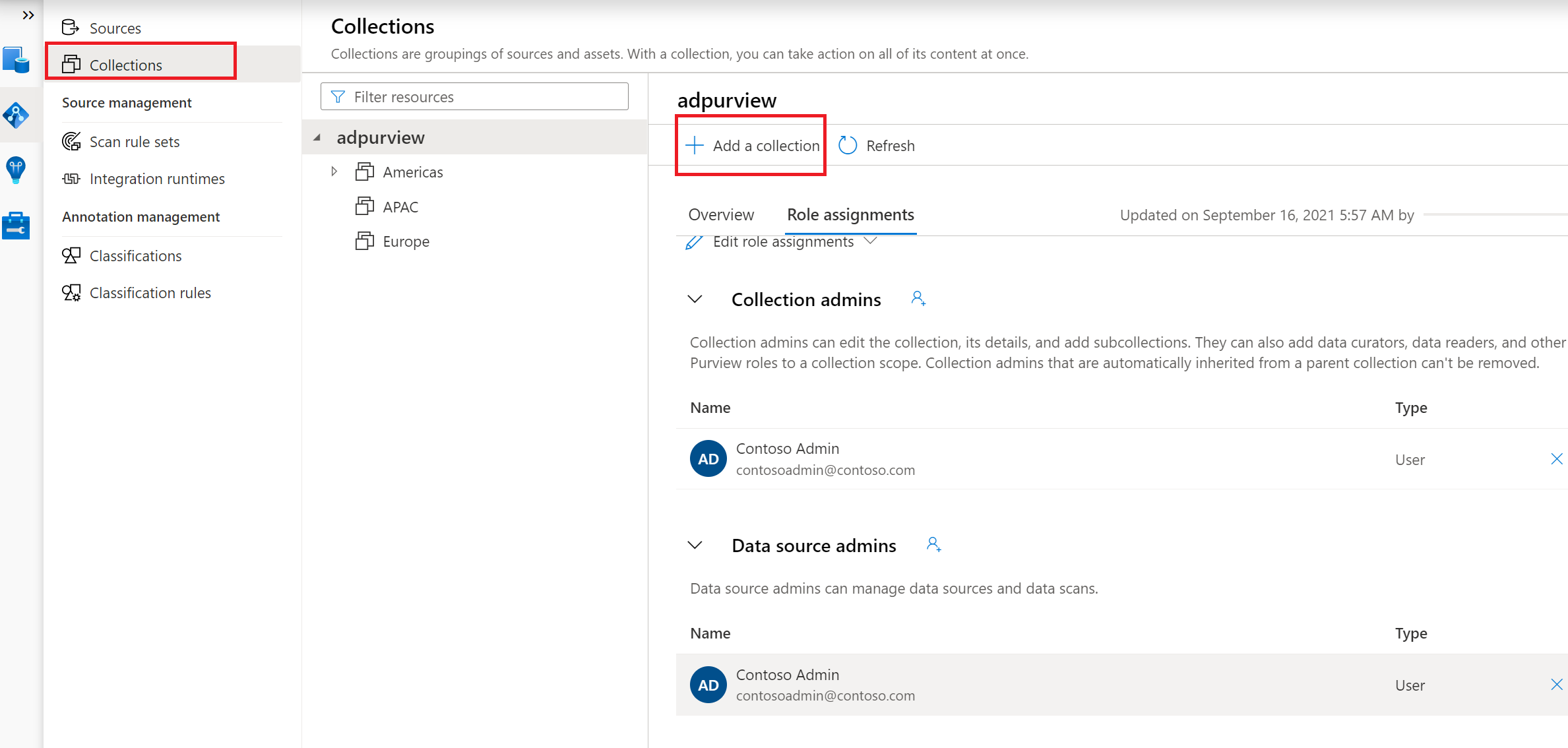

    Screenshot that shows the collection menu to create collection hierarchy

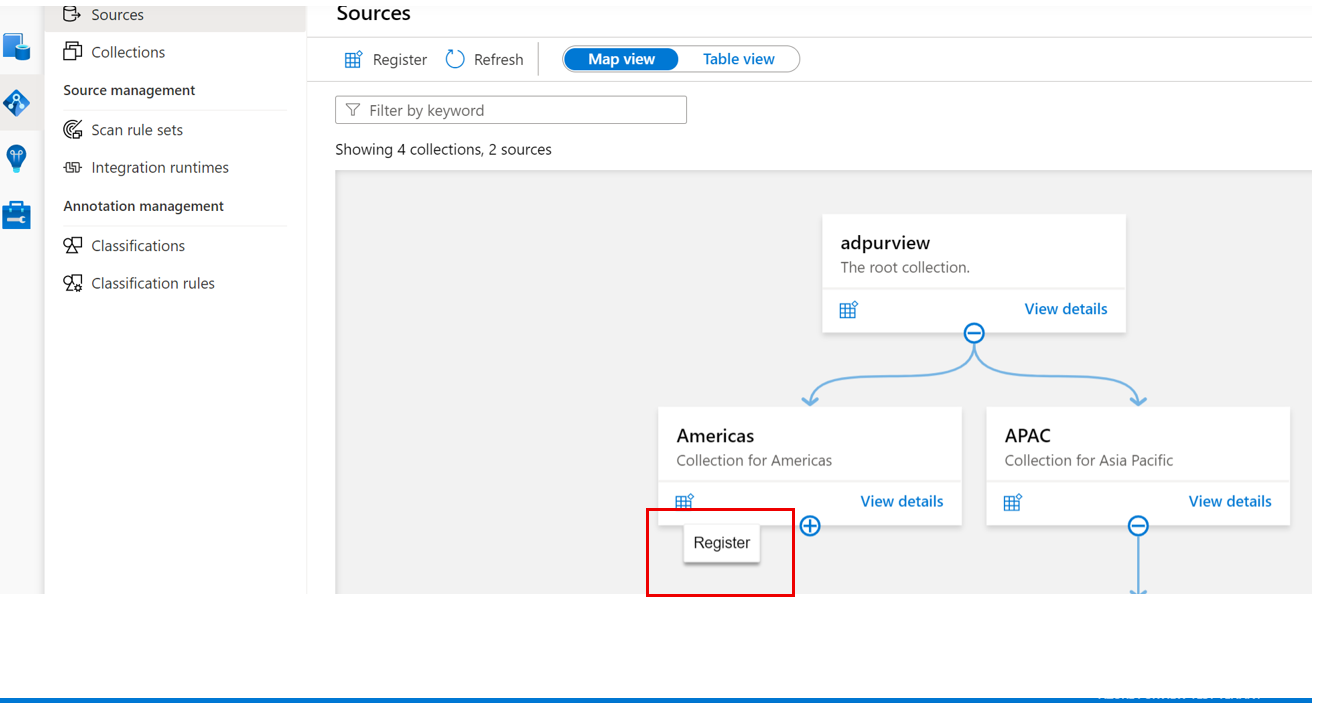

  4. Navigate to the appropriate collection under the Sources menu and select the Register icon to register a new Azure Blob data source

    Screenshot that shows the collection used to register the data source

  5. Select the Azure Blob Storage data source and select Continue

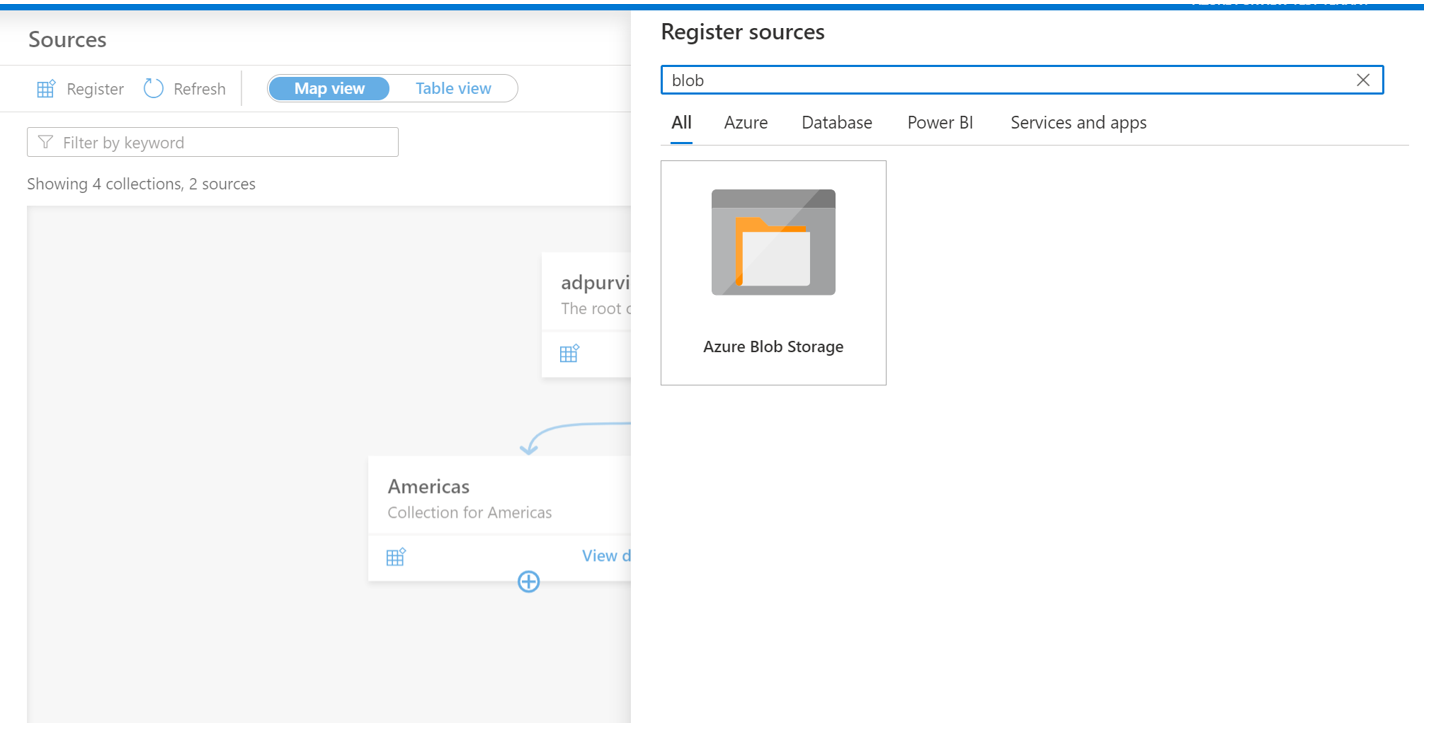

    Screenshot that allows selection of the data source

  6. Provide a suitable Name for the data source, select the relevant Azure subscription, existing Azure Blob Storage account name and the collection and select Apply. Leave the Data Policy Enforcement toggle on the disabled position until you have a chance to carefully go over this document.

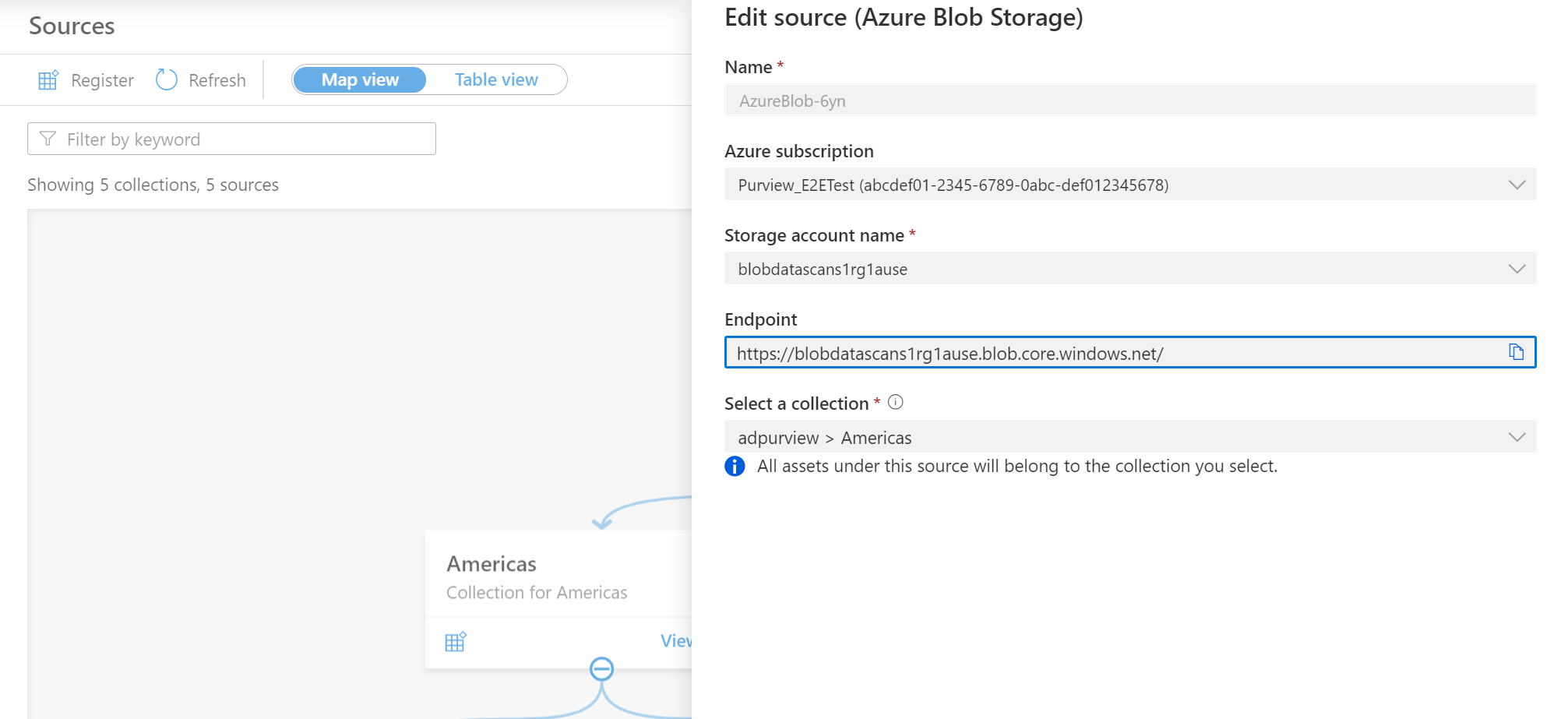

    Screenshot that shows the details to be entered in order to register the data source

  7. The Azure Blob storage account will be shown under the selected Collection

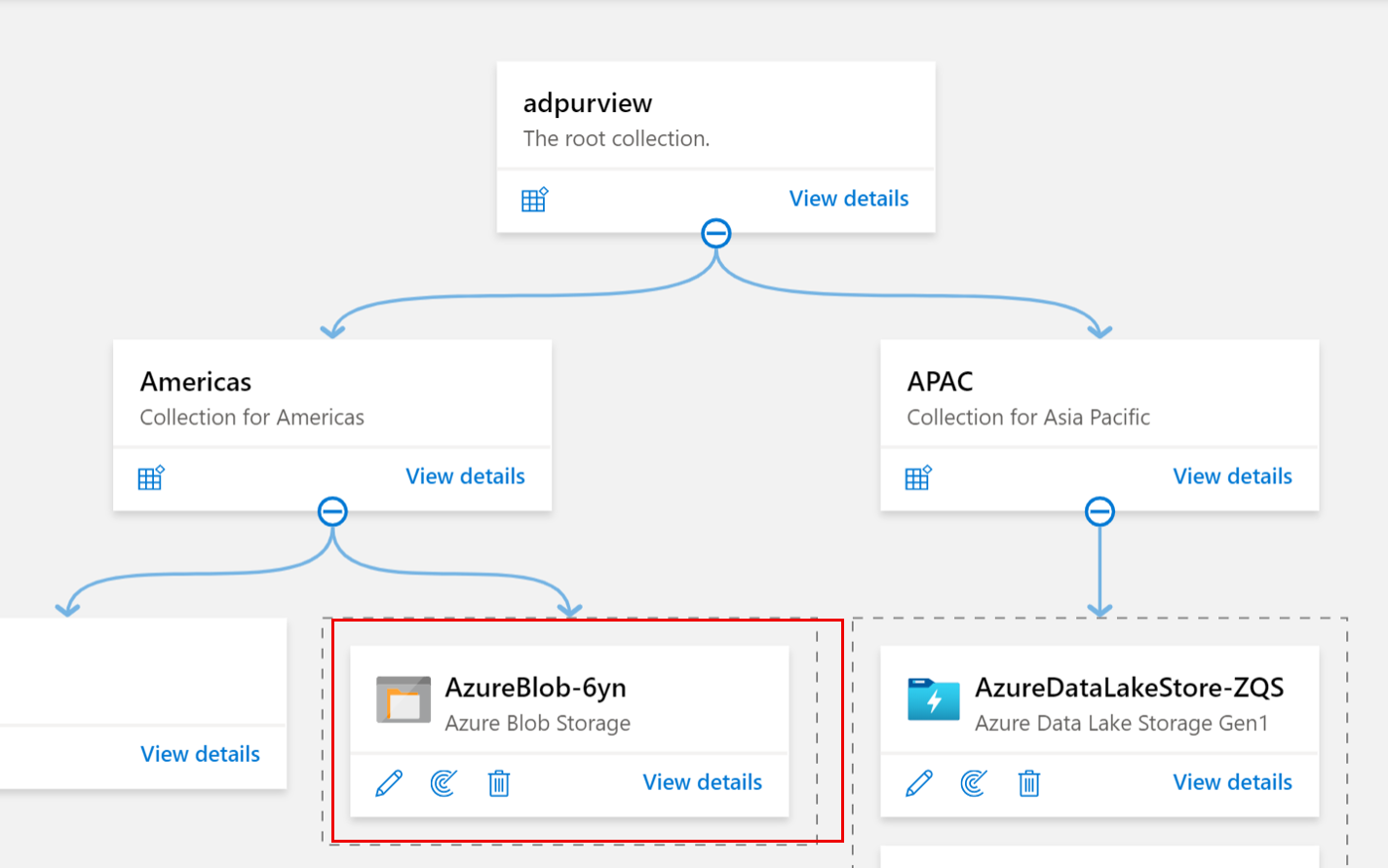

    Screenshot that shows the data source mapped to the collection to initiate scanning

Scan

For file types such as csv, tsv, psv, ssv, the schema is extracted when the following logics are in place:

  • First row values are non-empty
  • First row values are unique
  • First row values are not a date or a number

Authentication for a scan

Your Azure network may allow for communications between your Azure resources, but if you've set up firewalls, private endpoints, or virtual networks within Azure, you'll need to follow one of these configurations below.

Networking constraints Integration runtime type Available credential types
No private endpoints or firewalls Azure IR Managed identity (Recommended), service principal, or account key
Firewall enabled but no private endpoints Azure IR Managed identity
Private endpoints enabled *Self-Hosted IR Service principal, account key

*To use a self-hosted integration runtime, you'll first need to choose the right one for your scenario, create one, and confirm your network settings for Microsoft Purview.

Using a system or user assigned managed identity for scanning

There are two types of managed identity you can use:

  • System-assigned managed identity (Recommended) - As soon as the Microsoft Purview Account is created, a system-assigned managed identity (SAMI) is created automatically in Microsoft Entra tenant. Depending on the type of resource, specific RBAC role assignments are required for the Microsoft Purview system-assigned managed identity (SAMI) to perform the scans.

  • User-assigned managed identity (preview) - Similar to a system managed identity, a user-assigned managed identity (UAMI) is a credential resource that can be used to allow Microsoft Purview to authenticate against Microsoft Entra ID. For more information, you can see our User-assigned managed identity guide. It's important to give your Microsoft Purview account the permission to scan the Azure Blob data source. You can add access for the SAMI or UAMI at the Subscription, Resource Group, or Resource level, depending on what level scan permission is needed.

Note

If you have firewall enabled for the storage account, you must use managed identity authentication method when setting up a scan.

Note

You need to be an owner of the subscription to be able to add a managed identity on an Azure resource.

  1. From the Azure portal, find either the subscription, resource group, or resource (for example, an Azure Blob storage account) that you would like to allow the catalog to scan.

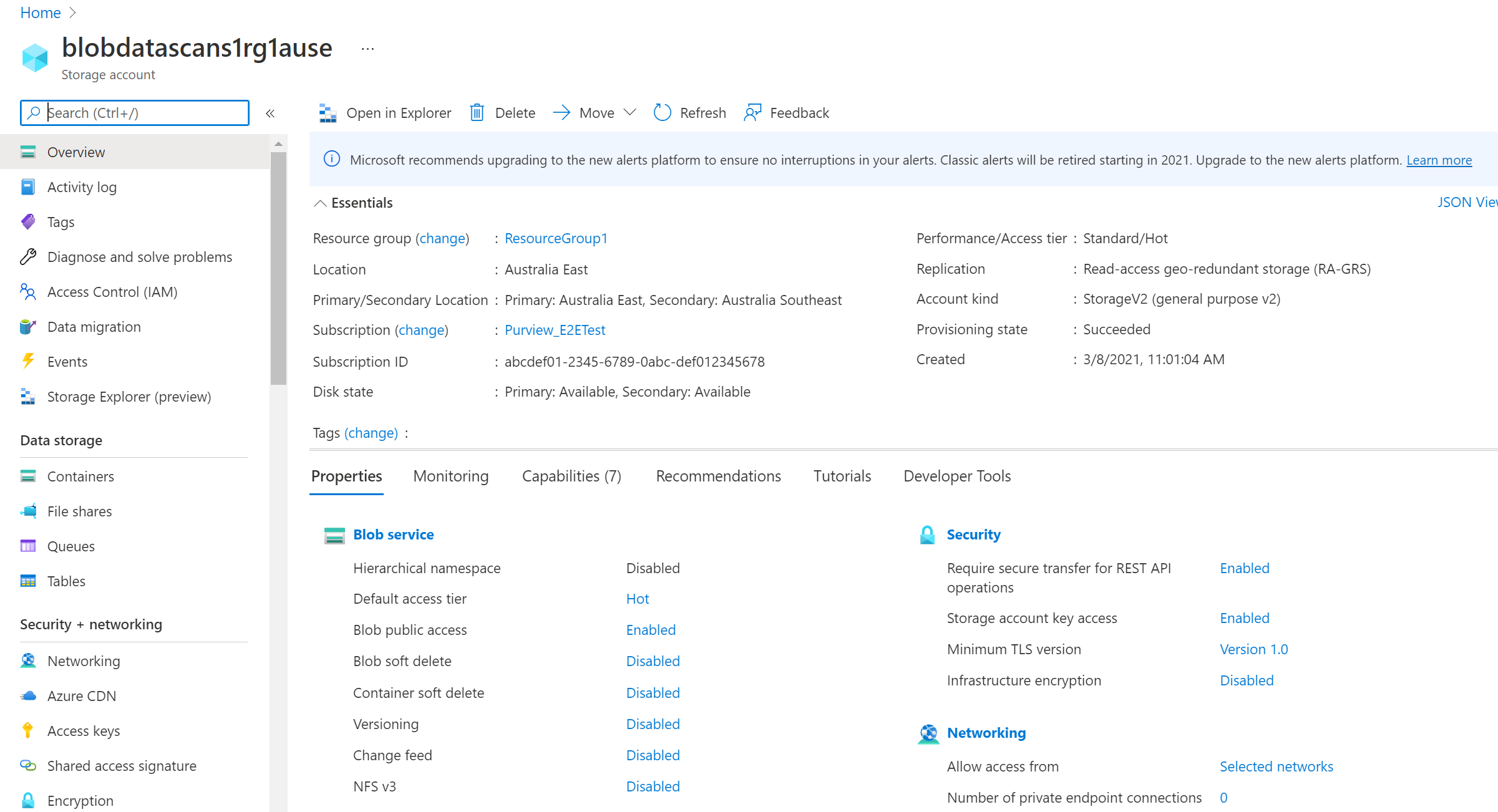

    Screenshot that shows the storage account

  2. Select Access Control (IAM) in the left navigation and then select + Add --> Add role assignment

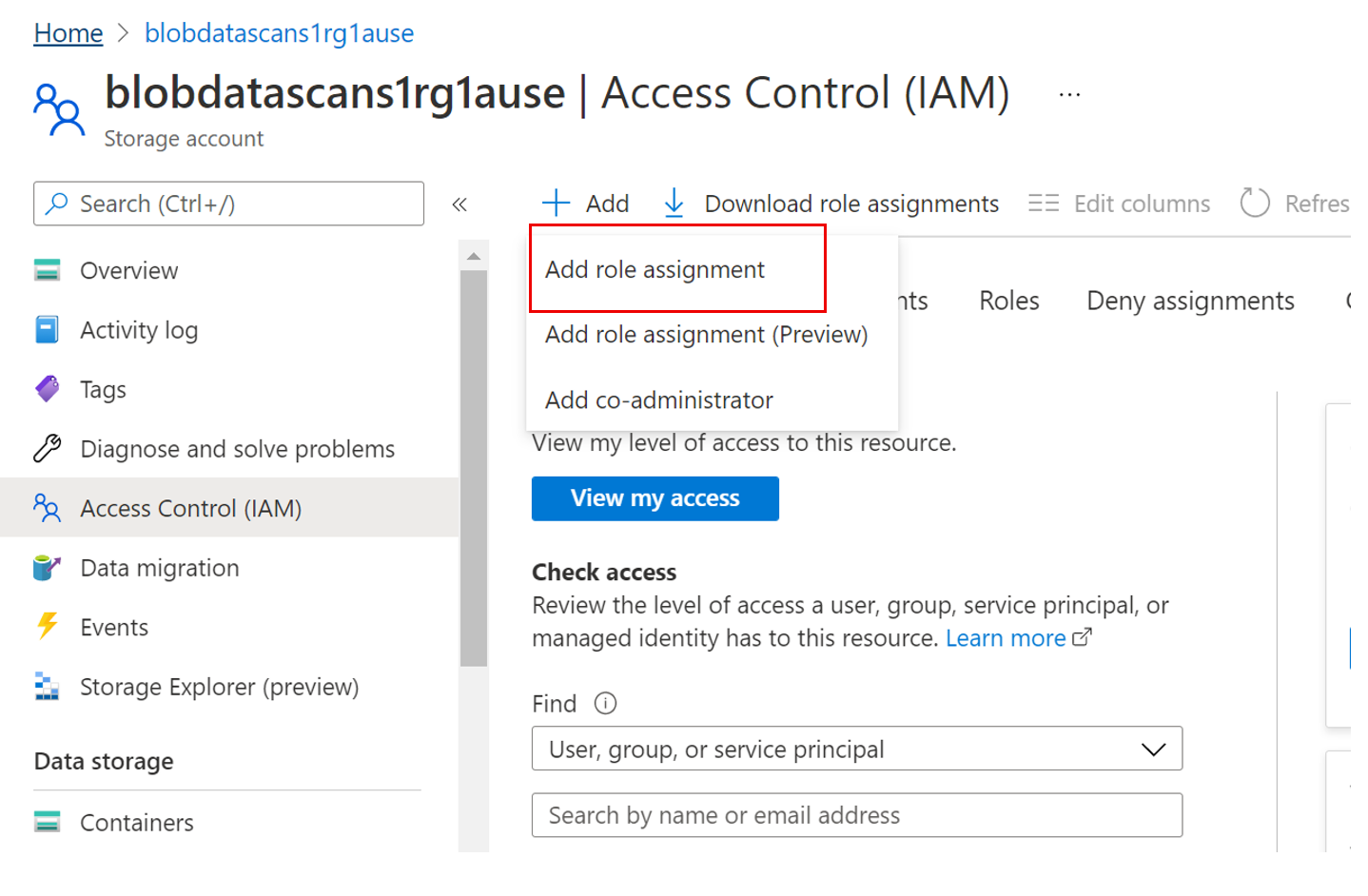

    Screenshot that shows the access control for the storage account

  3. Set the Role to Storage Blob Data Reader and enter your Microsoft Purview account name or user-assigned managed identity under Select input box. Then, select Save to give this role assignment to your Microsoft Purview account.

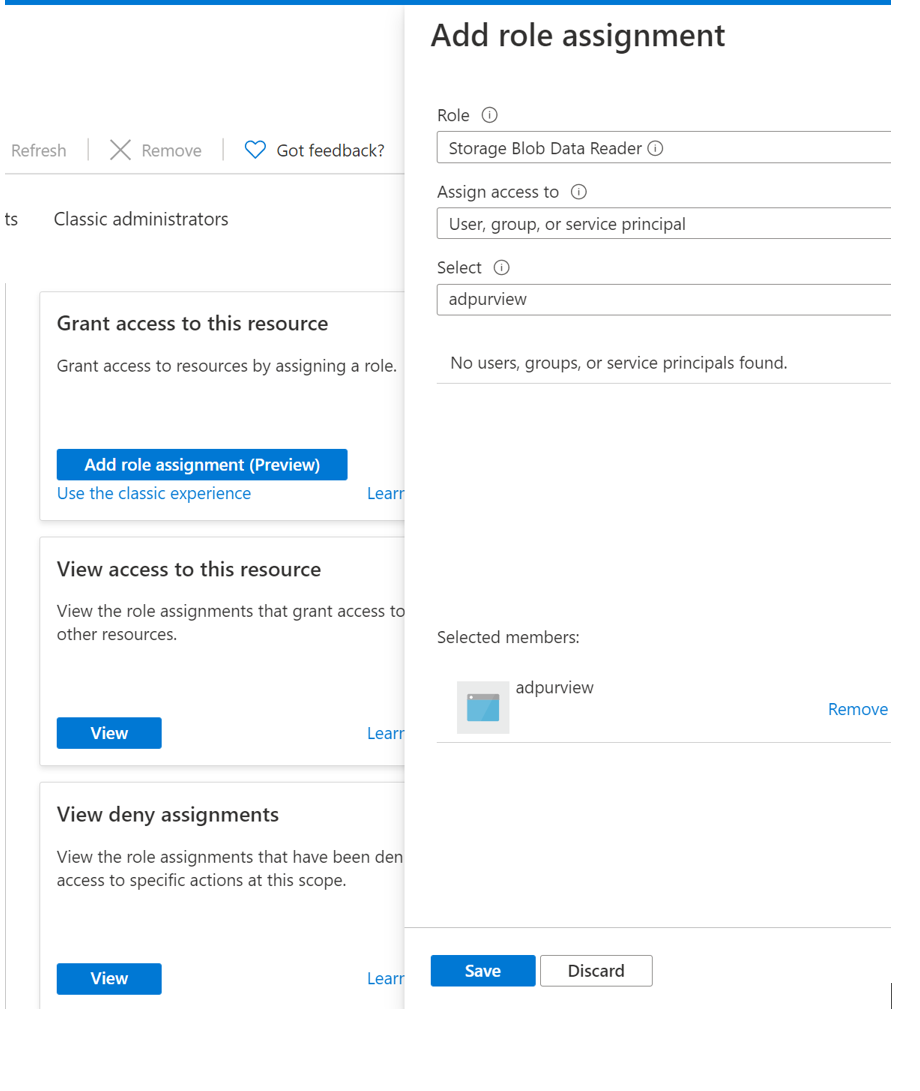

    Screenshot that shows the details to assign permissions for the Microsoft Purview account

  4. Go into your Azure Blob storage account in Azure portal

  5. Navigate to Security + networking > Networking

  6. Choose Selected Networks under Allow access from

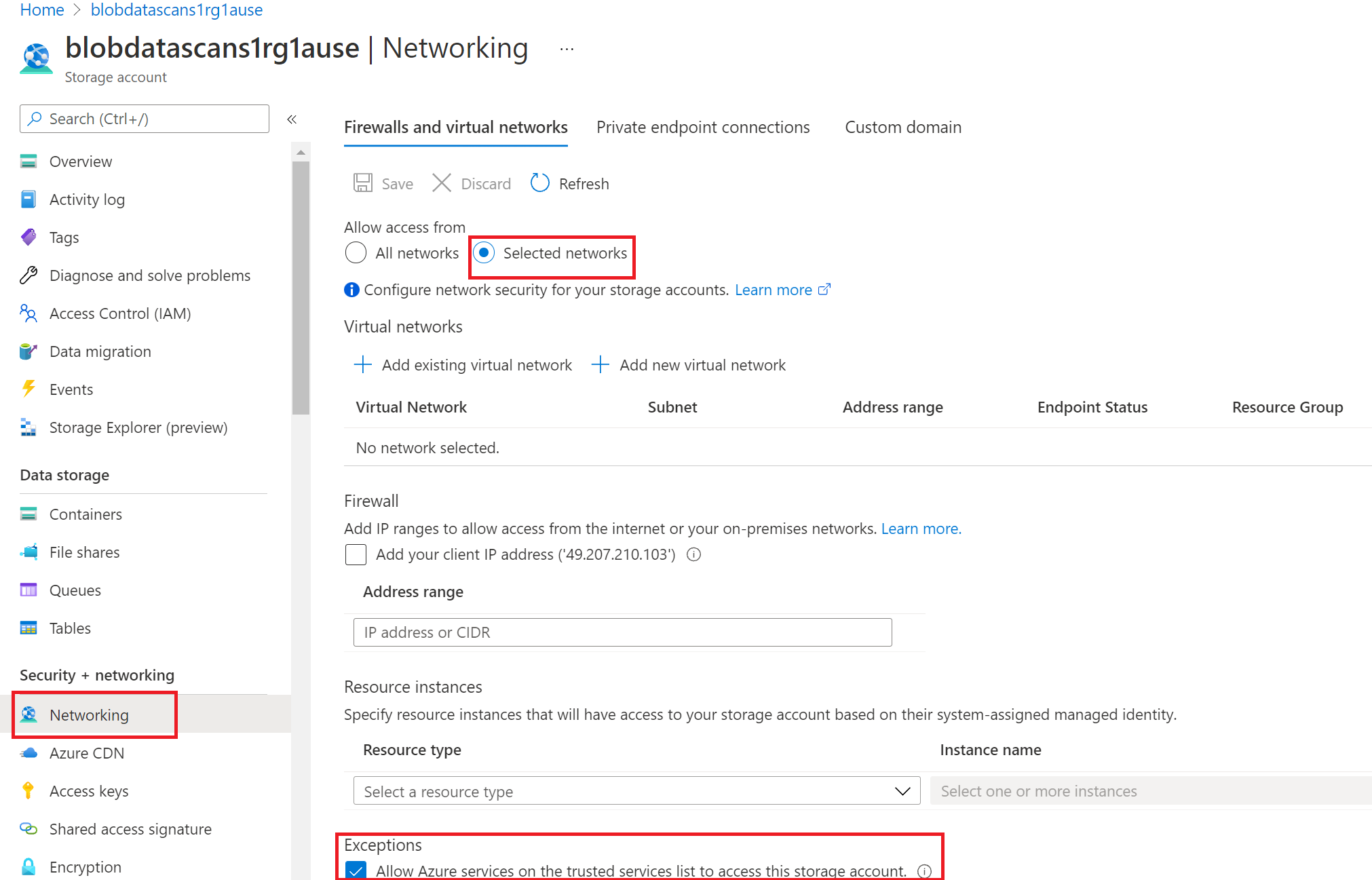

  7. In the Exceptions section, select Allow trusted Microsoft services to access this storage account and hit Save

    Screenshot that shows the exceptions to allow trusted Microsoft services to access the storage account

Note

For more details, please see steps in Authorize access to blobs and queues using Microsoft Entra ID

Using Account Key for scanning

When authentication method selected is Account Key, you need to get your access key and store in the key vault:

  1. Navigate to your Azure Blob storage account

  2. Select Security + networking > Access keys

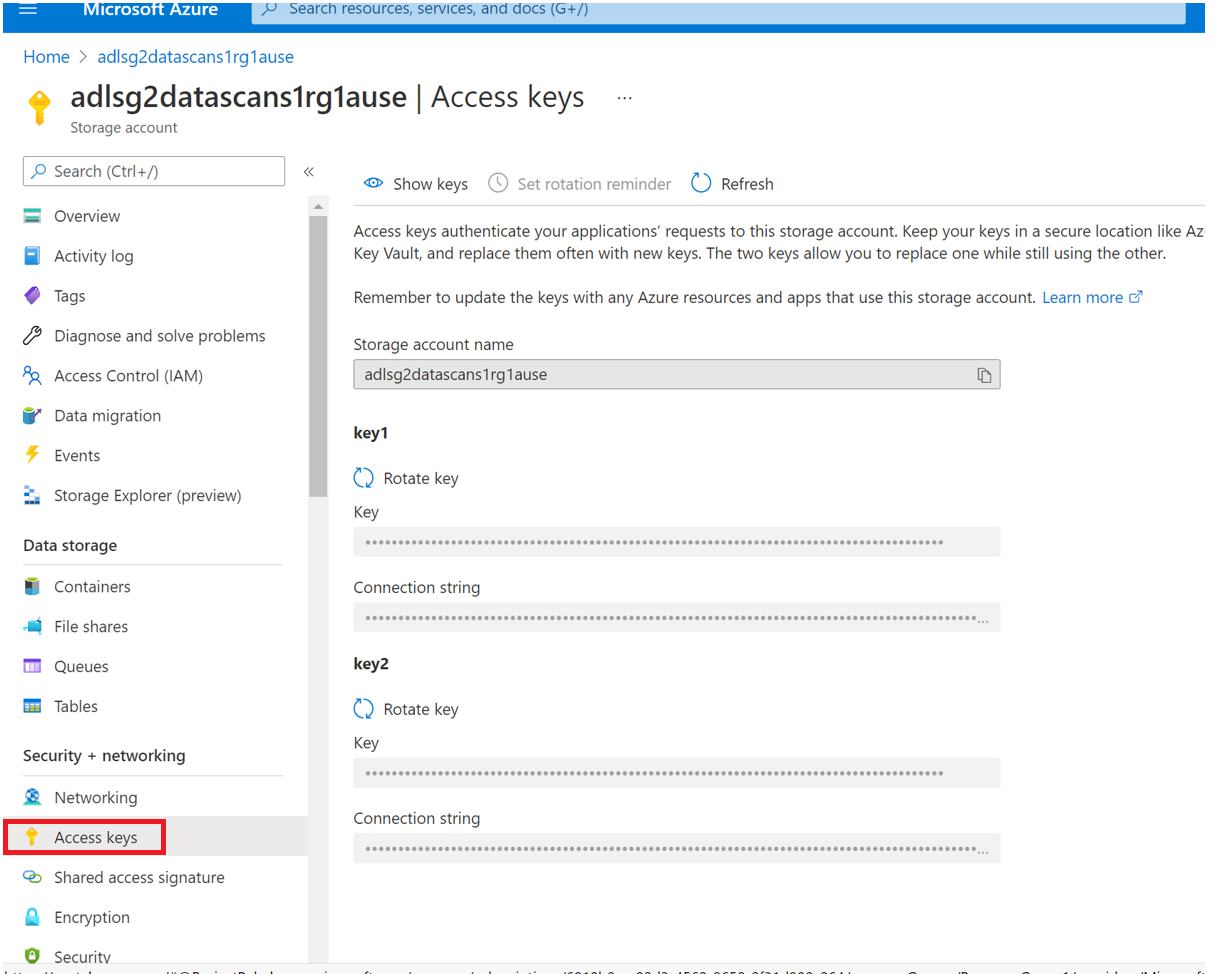

    Screenshot that shows the access keys in the storage account

  3. Copy your key and save it separately for the next steps

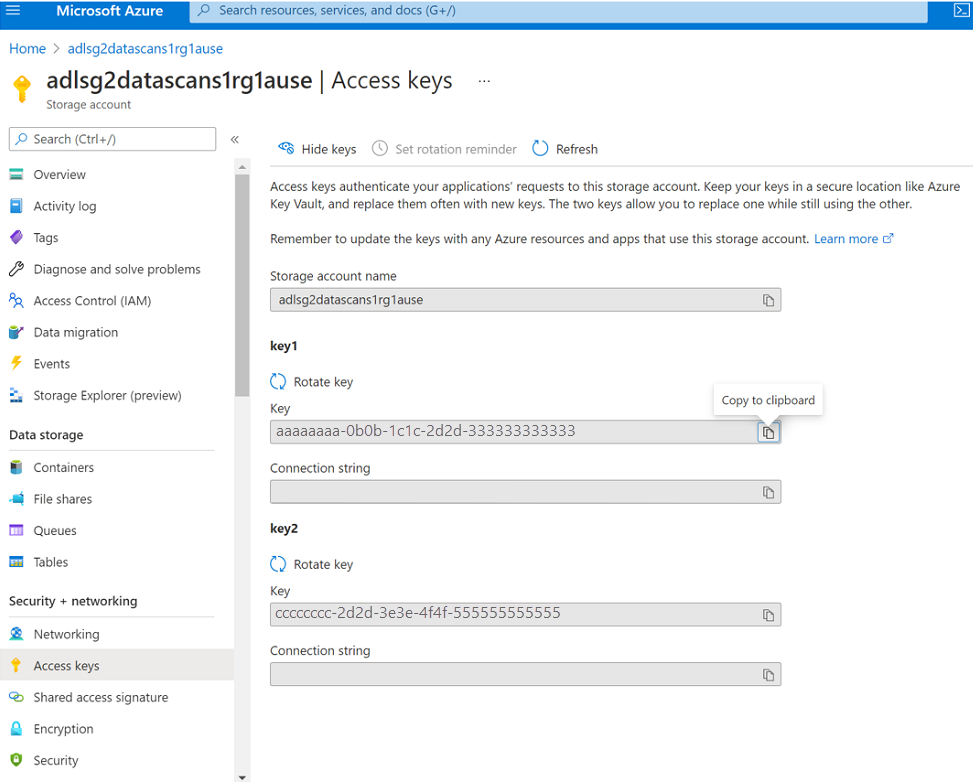

    Screenshot that shows the access keys to be copied

  4. Navigate to your key vault

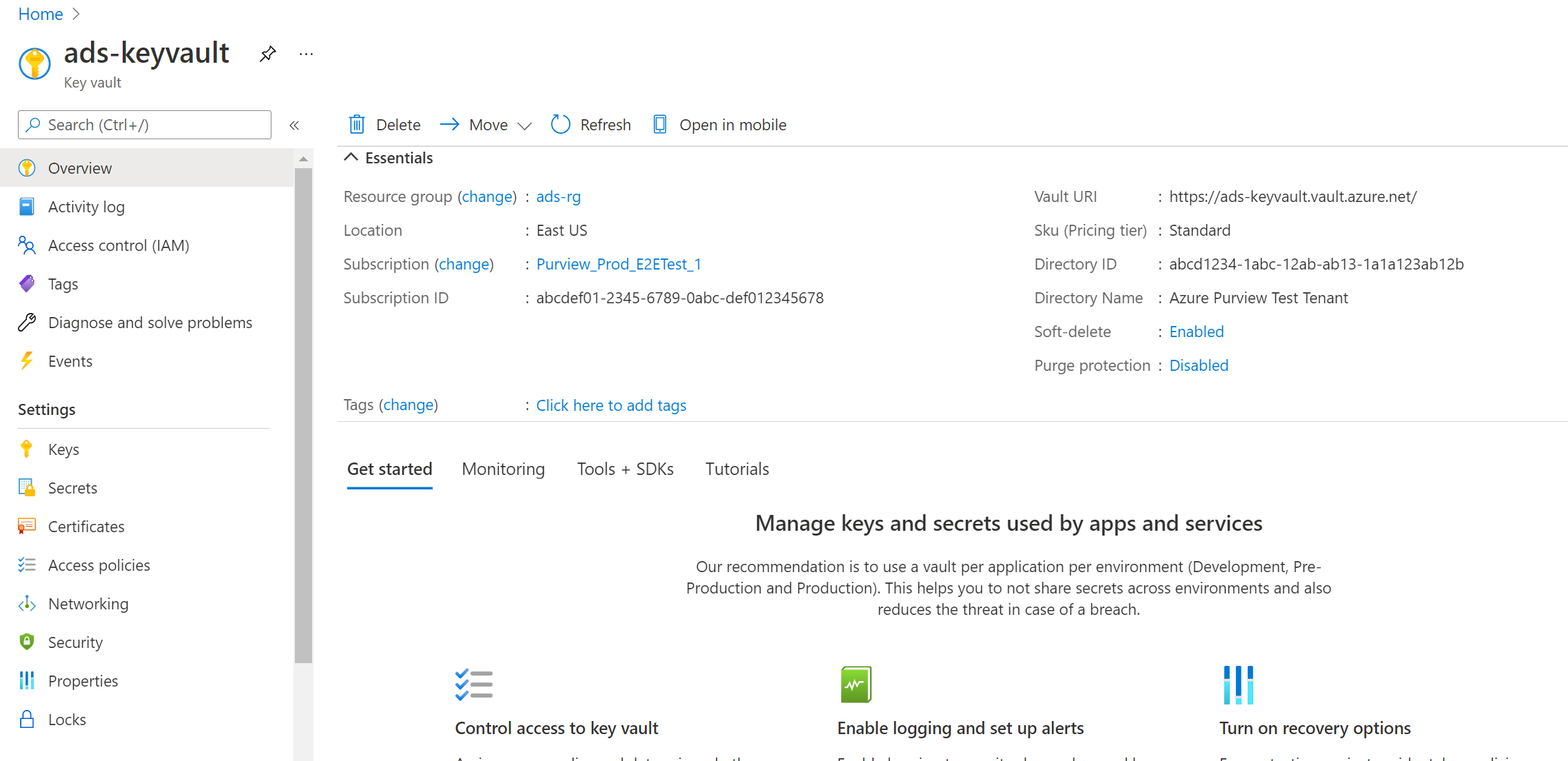

    Screenshot that shows the key vault

  5. Select Settings > Secrets and select + Generate/Import

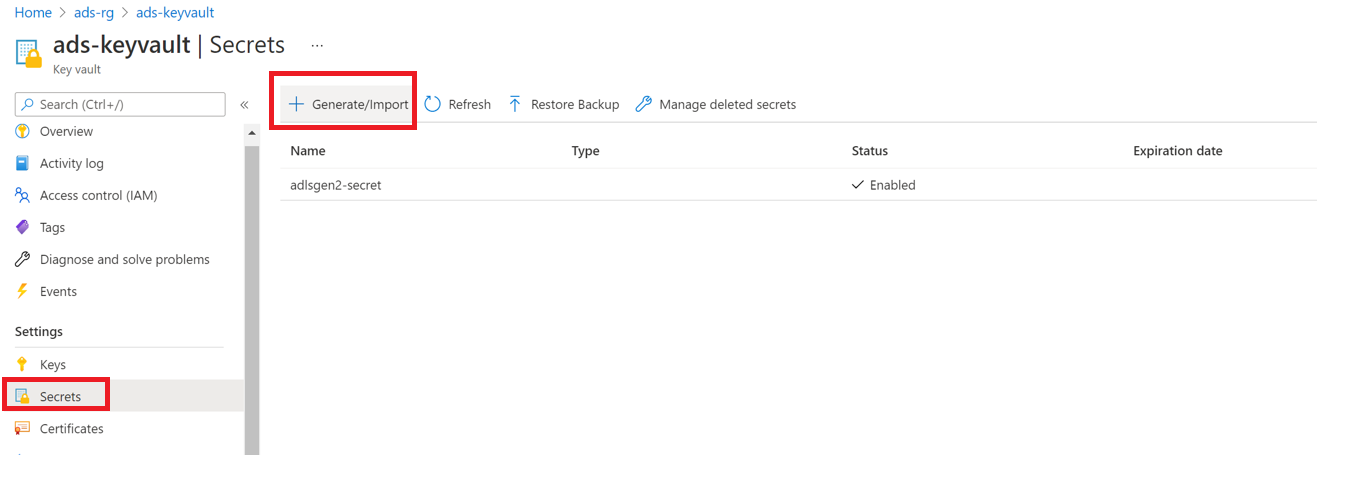

    Screenshot that shows the key vault option to generate a secret

  6. Enter the Name and Value as the key from your storage account

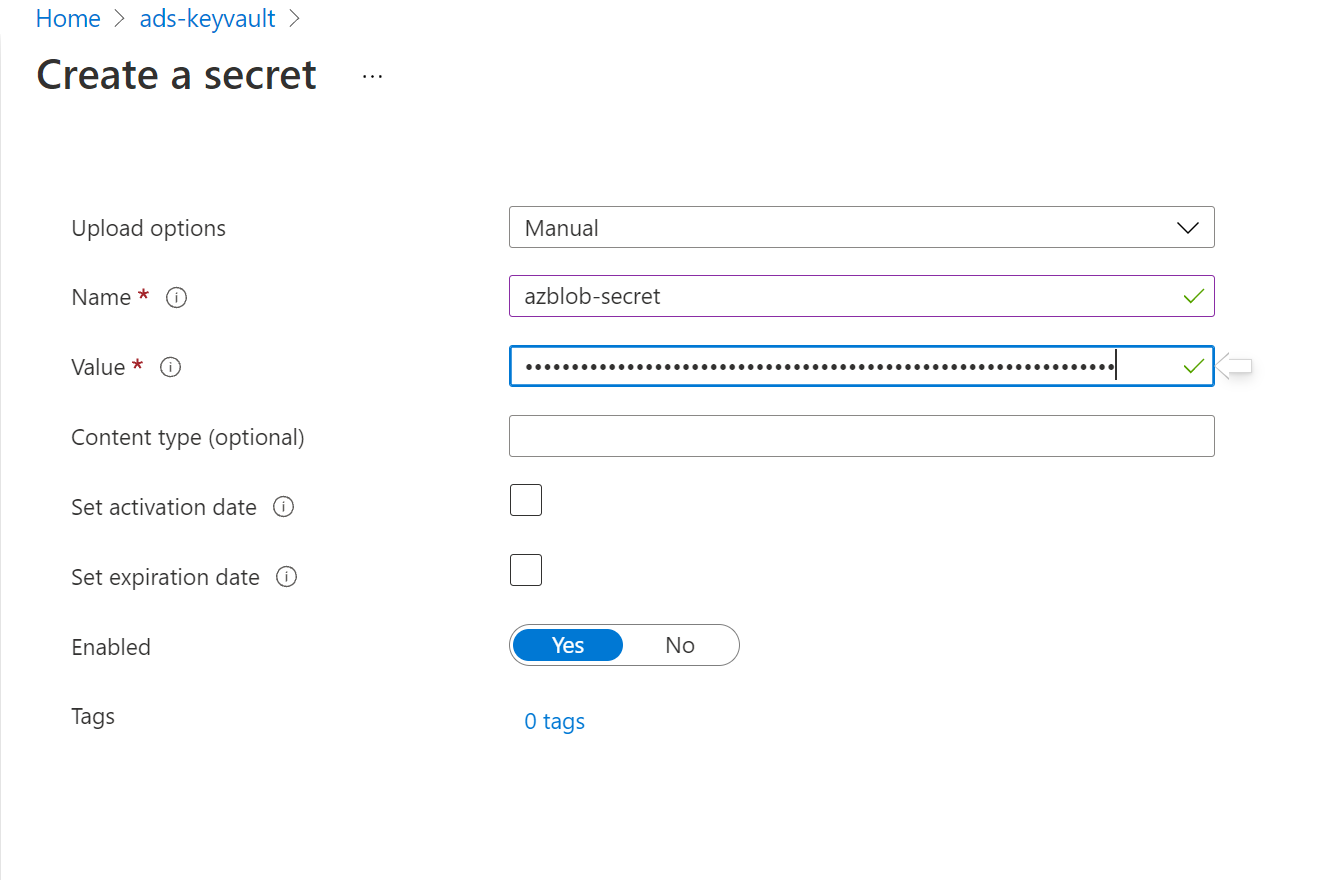

    Screenshot that shows the key vault option to enter the secret values

  7. Select Create to complete

  8. If your key vault isn't connected to Microsoft Purview yet, you'll need to create a new key vault connection

  9. Finally, create a new credential using the key to set up your scan

Using Service Principal for scanning

Creating a new service principal

If you need to Create a new service principal, it's required to register an application in your Microsoft Entra tenant and provide access to Service Principal in your data sources. Your Microsoft Entra Application Administrator can perform this operation.

Getting the Service Principal's Application ID
  1. Copy the Application (client) ID present in the Overview of the Service Principal already created

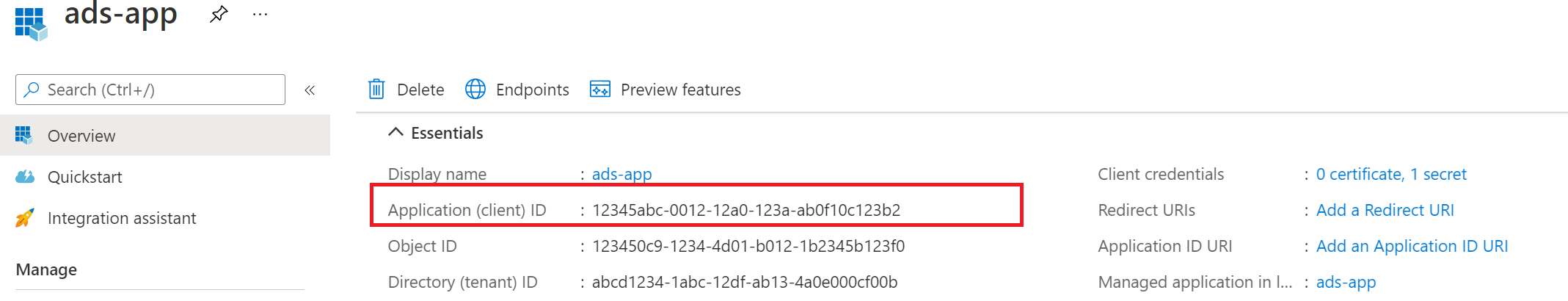

    Screenshot that shows the Application (client) ID for the Service Principal

Granting the Service Principal access to your Azure Blob account

It's important to give your service principal the permission to scan the Azure Blob data source. You can add access for the service principal at the Subscription, Resource Group, or Resource level, depending on what level scan access is needed.

Note

You need to be an owner of the subscription to be able to add a service principal on an Azure resource.

  1. From the Azure portal, find either the subscription, resource group, or resource (for example, an Azure Blob Storage storage account) that you would like to allow the catalog to scan.

    Screenshot that shows the storage account

  2. Select Access Control (IAM) in the left navigation and then select + Add --> Add role assignment

    Screenshot that shows the access control for the storage account

  3. Set the Role to Storage Blob Data Reader and enter your service principal under Select input box. Then, select Save to give this role assignment to your Microsoft Purview account.

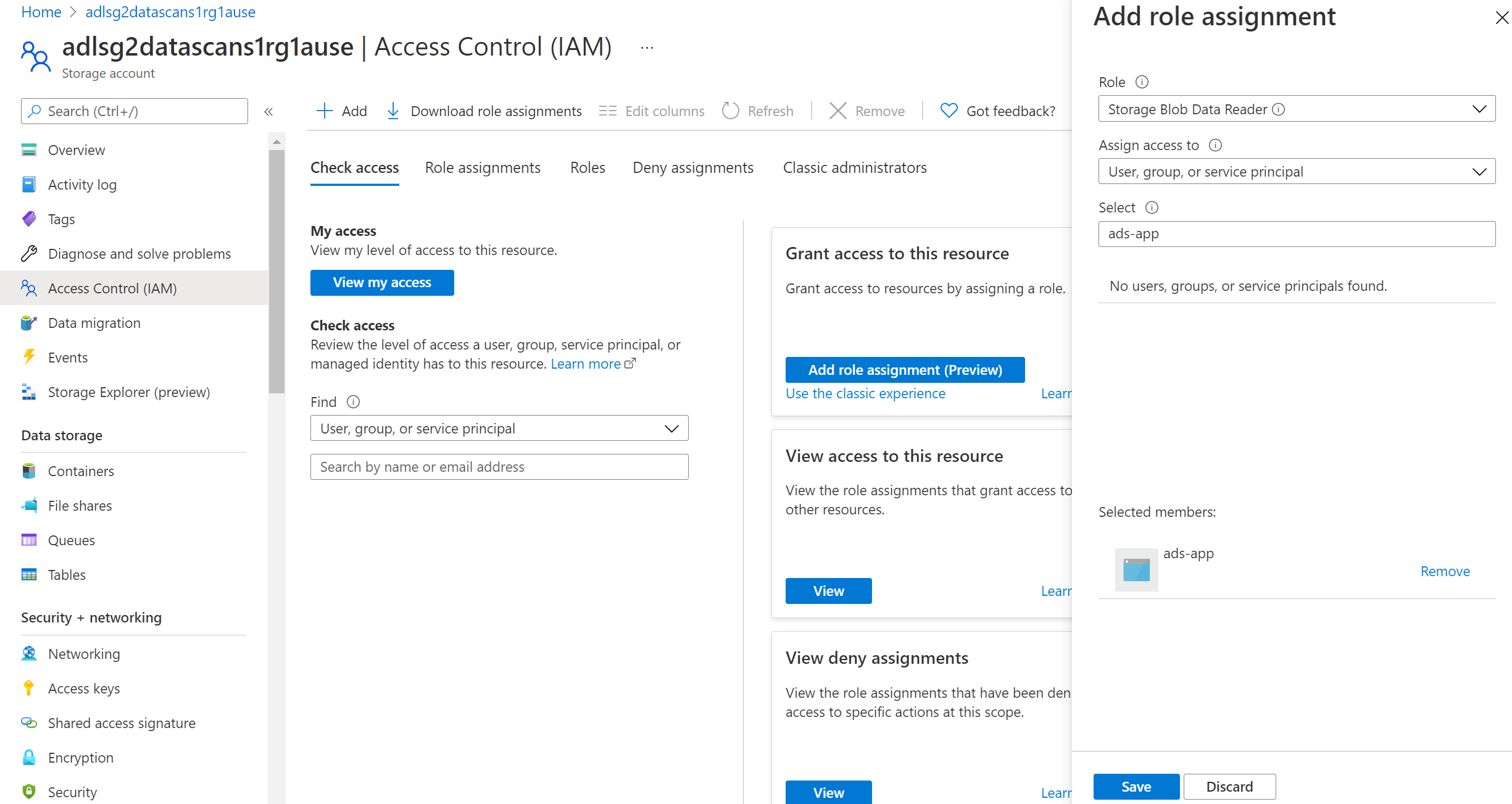

    Screenshot that shows the details to provide storage account permissions to the service principal

Creating the scan

  1. Open your Microsoft Purview account and select the Open Microsoft Purview governance portal

  2. Navigate to the Data map --> Sources to view the collection hierarchy

  3. Select the New Scan icon under the Azure Blob data source registered earlier

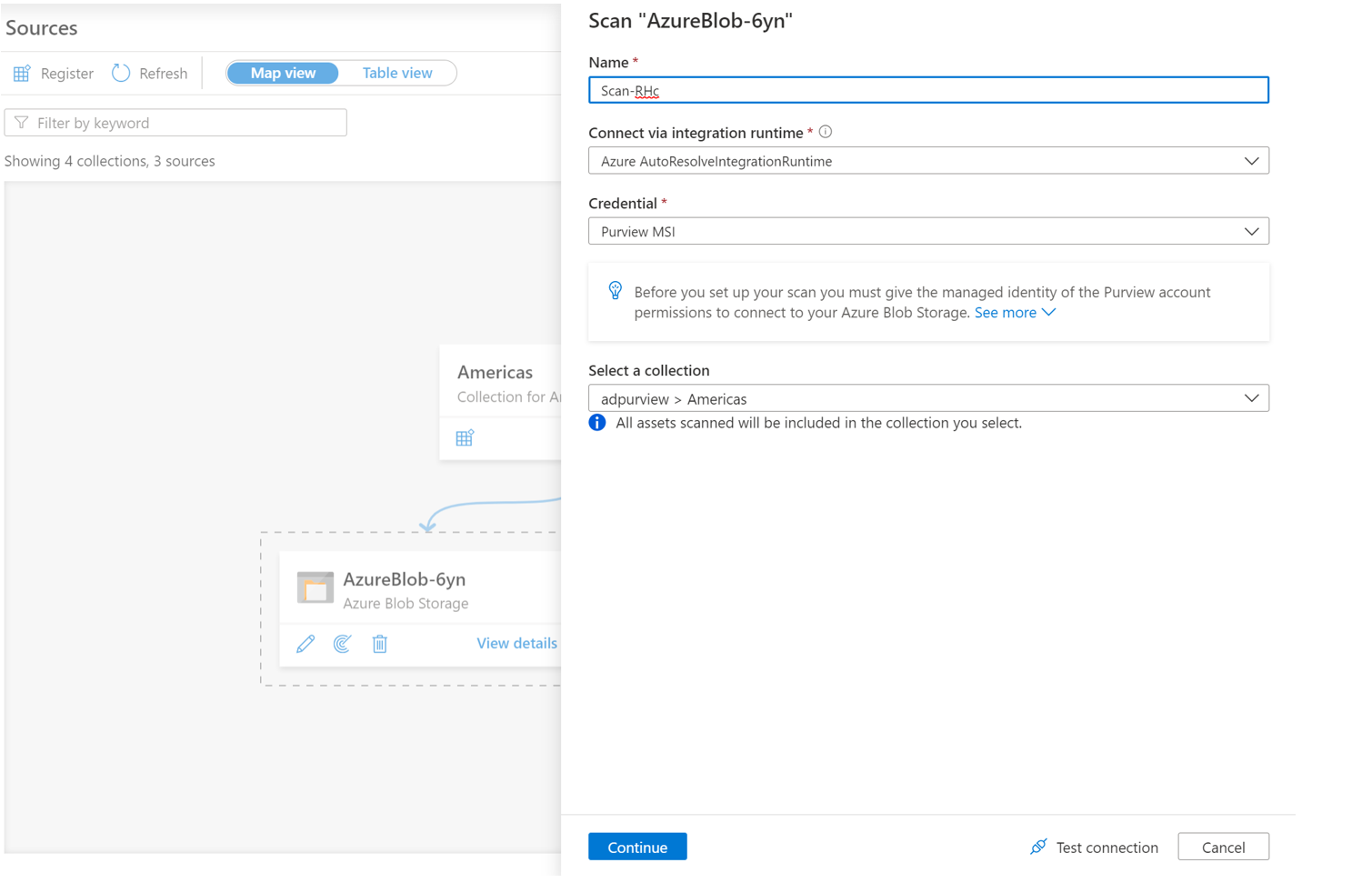

    Screenshot that shows the screen to create a new scan

  4. Choose either the Azure integration runtime if your source is publicly accessible, a managed virtual network integration runtime if using a managed virtual network, or a self-hosted integration runtime if your source is in a private virtual network. For more information about which integration runtime to use, see the choose the right integration runtime configuration article.

If using a system or user assigned managed identity

Provide a Name for the scan, select the Microsoft Purview accounts SAMI or UAMI under Credential, choose the appropriate collection for the scan, and select Test connection. On a successful connection, select Continue

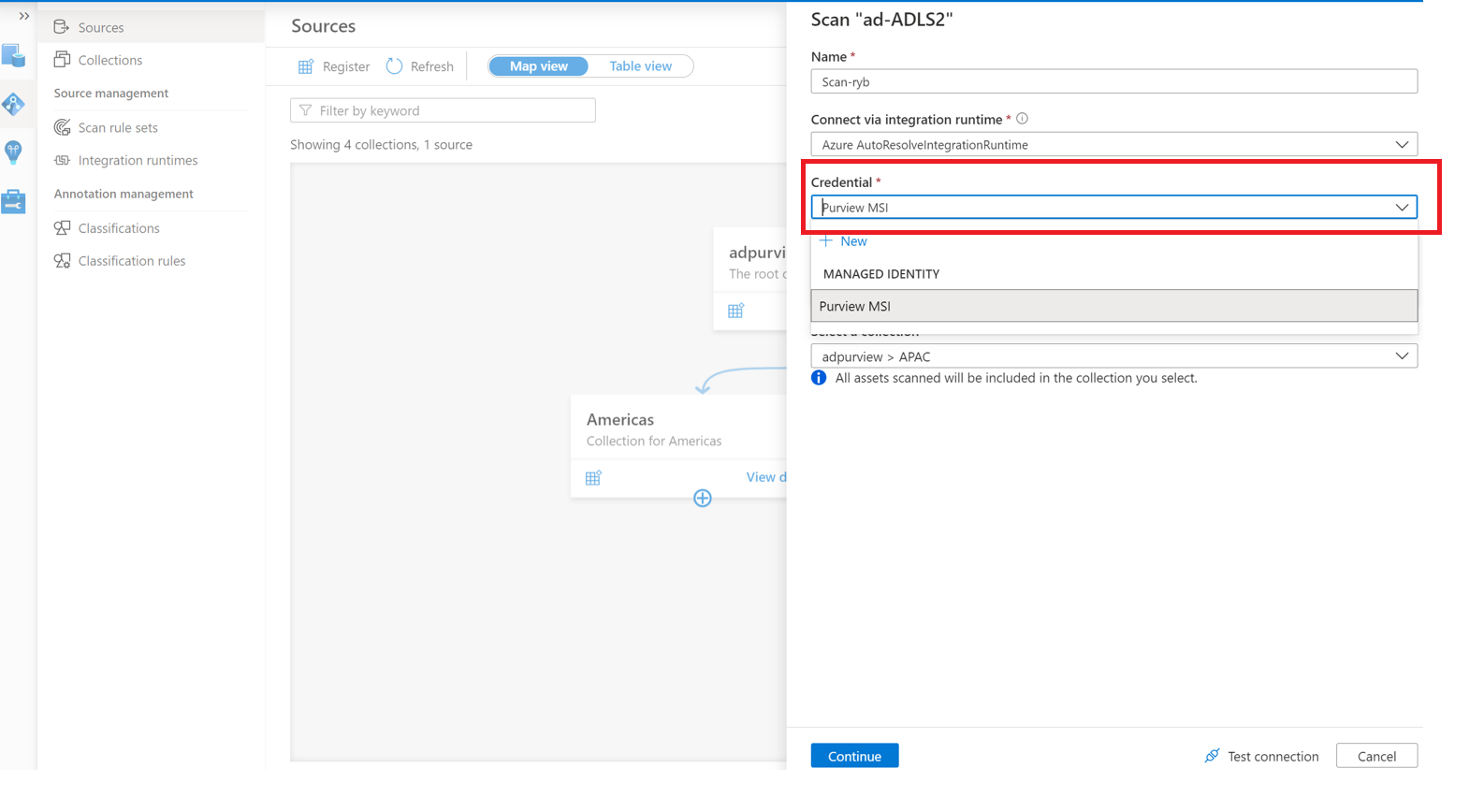

Screenshot that shows the managed identity option to run the scan

If using Account Key

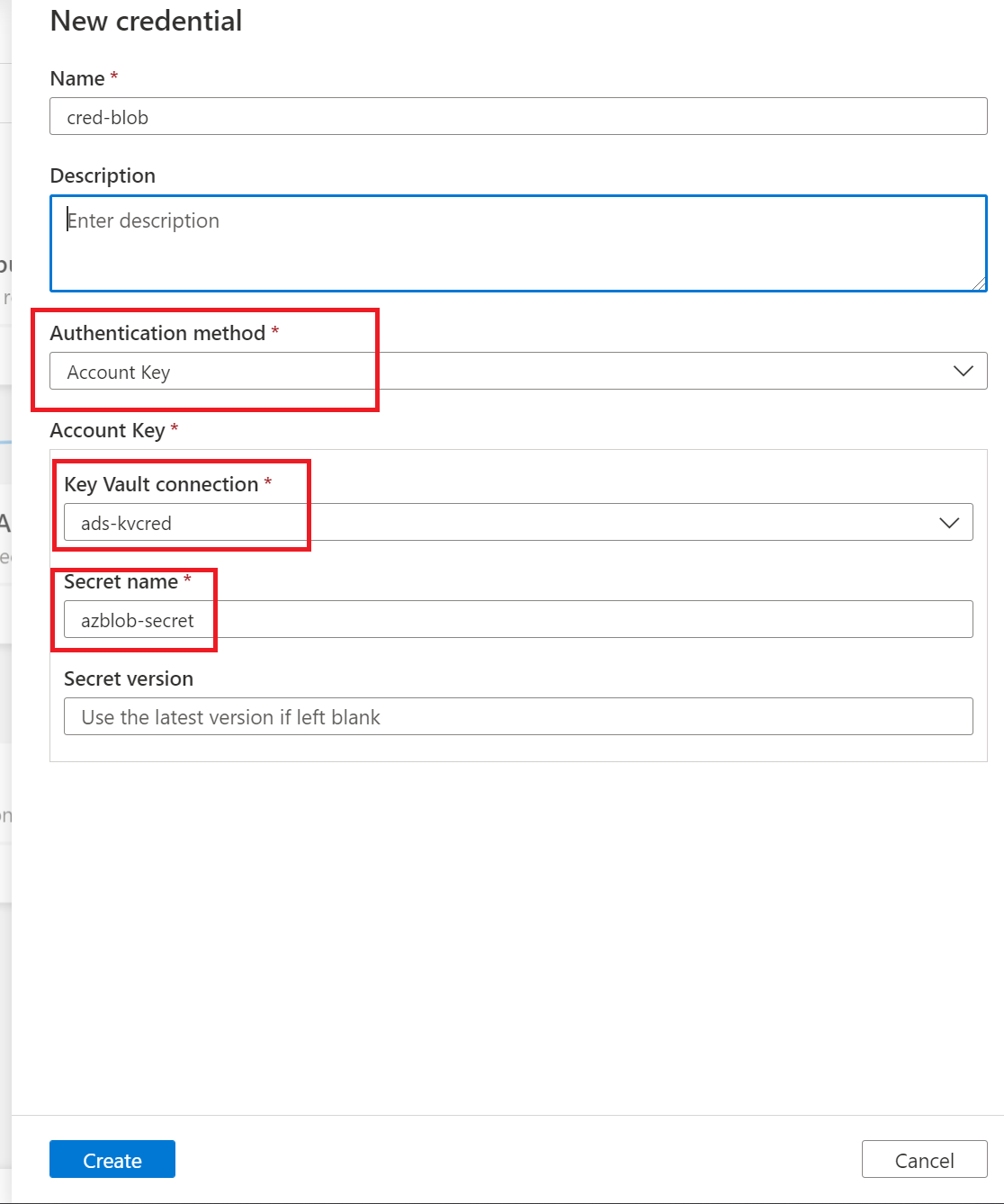

Provide a Name for the scan, select the Azure IR or your Self-Hosted IR depending on your configuration, choose the appropriate collection for the scan, and select Authentication method as Account Key and select Create

Screenshot that shows the Account Key option for scanning

If using Service Principal

  1. Provide a Name for the scan, select the Azure IR or your Self-Hosted IR depending on your configuration, choose the appropriate collection for the scan, and select the + New under Credential

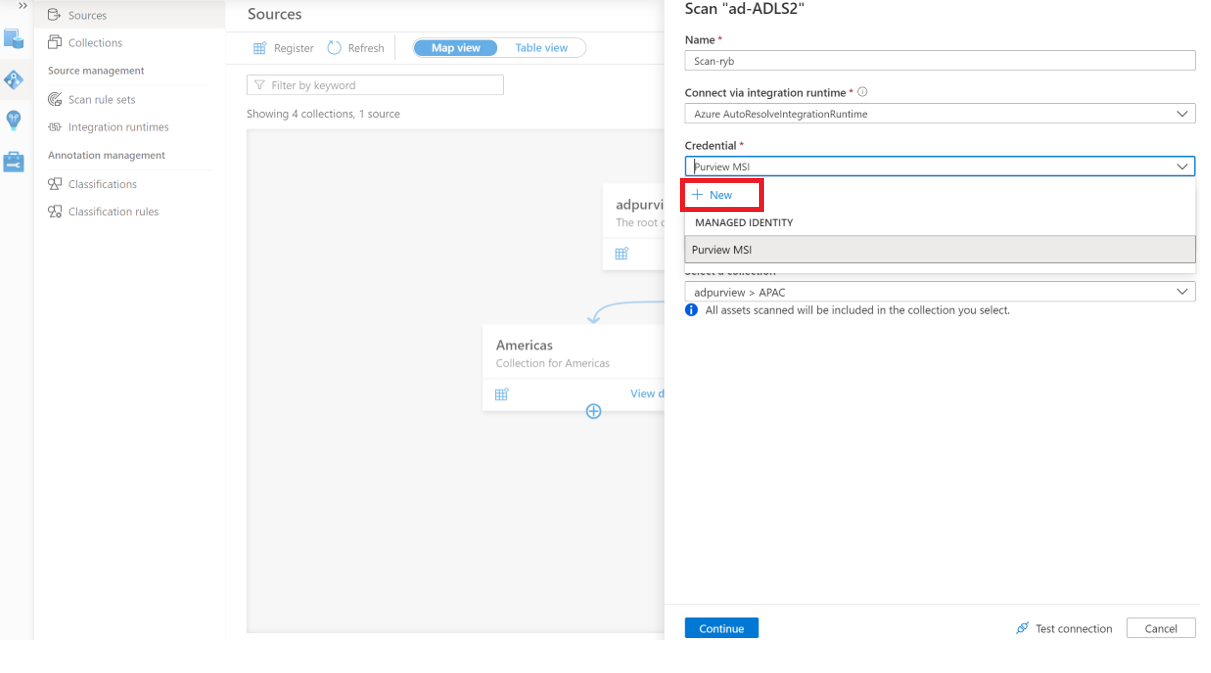

    Screenshot that shows the option for service principal to enable scanning

  2. Select the appropriate Key vault connection and the Secret name that was used while creating the Service Principal. The Service Principal ID is the Application (client) ID copied earlier

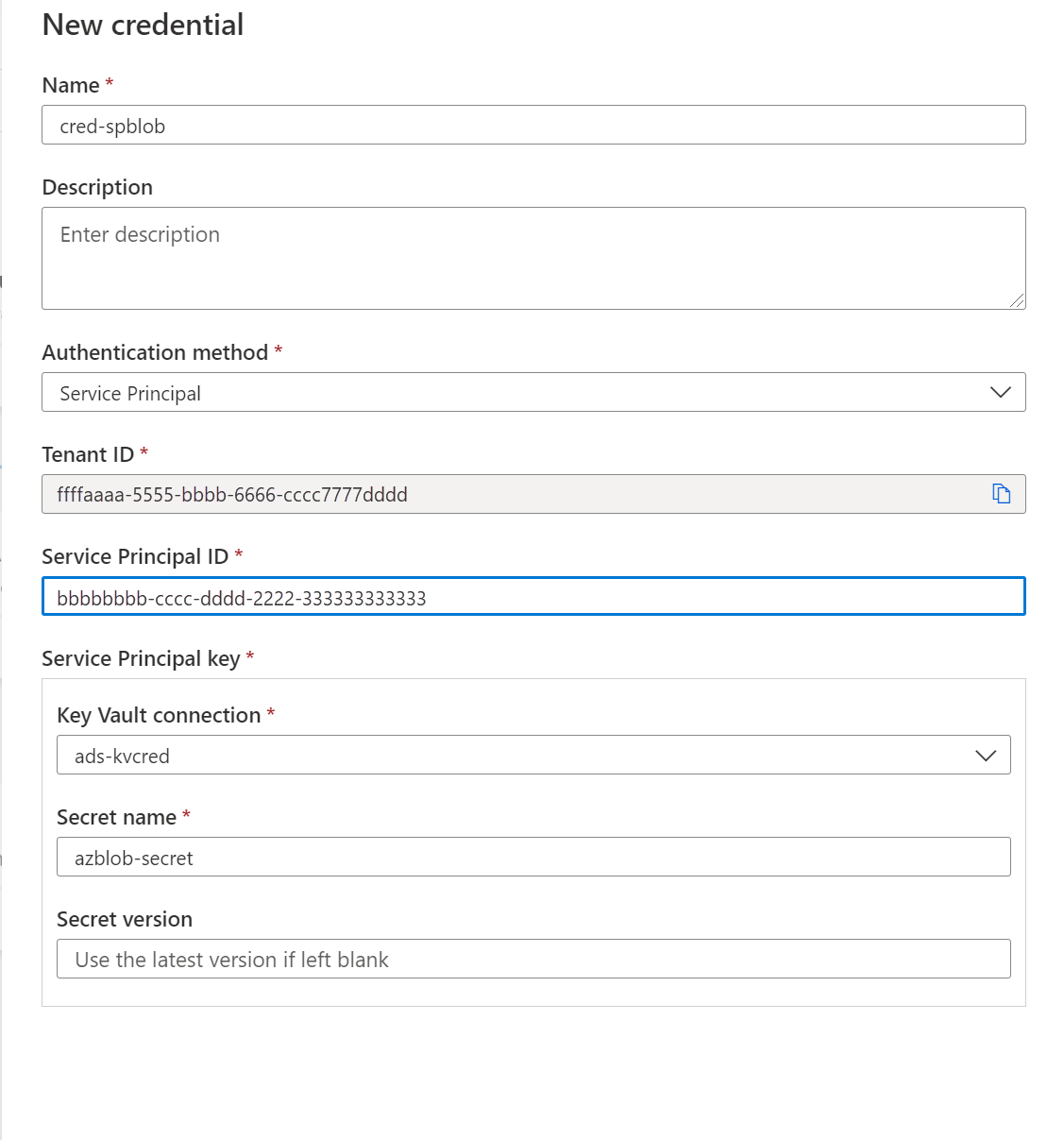

    Screenshot that shows the service principal option

  3. Select Test connection. On a successful connection, select Continue

Scoping and running the scan

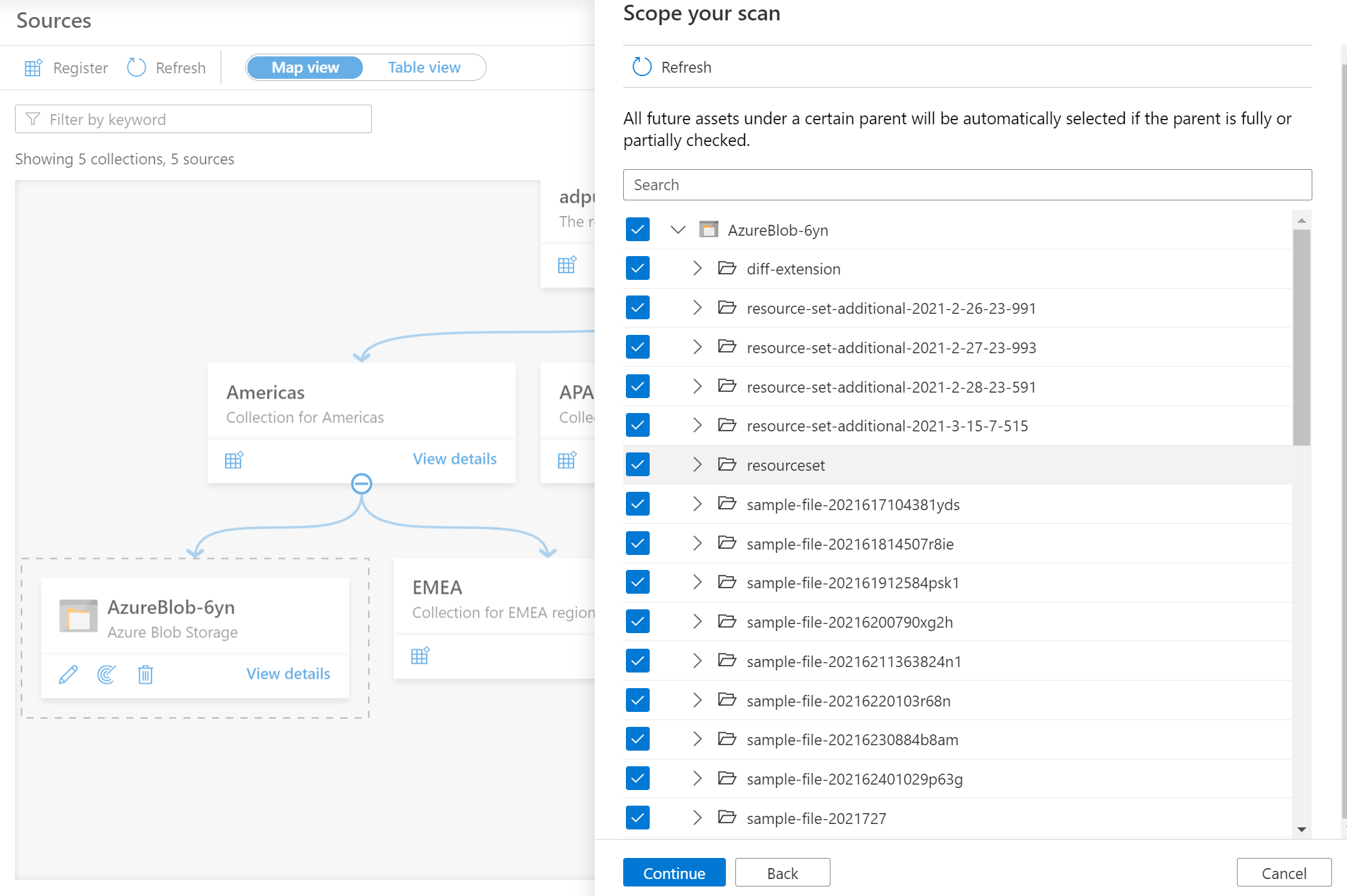

  1. You can scope your scan to specific folders and subfolders by choosing the appropriate items in the list.

    Scope your scan

  2. Then select a scan rule set. You can choose between the system default, existing custom rule sets, or create a new rule set inline.

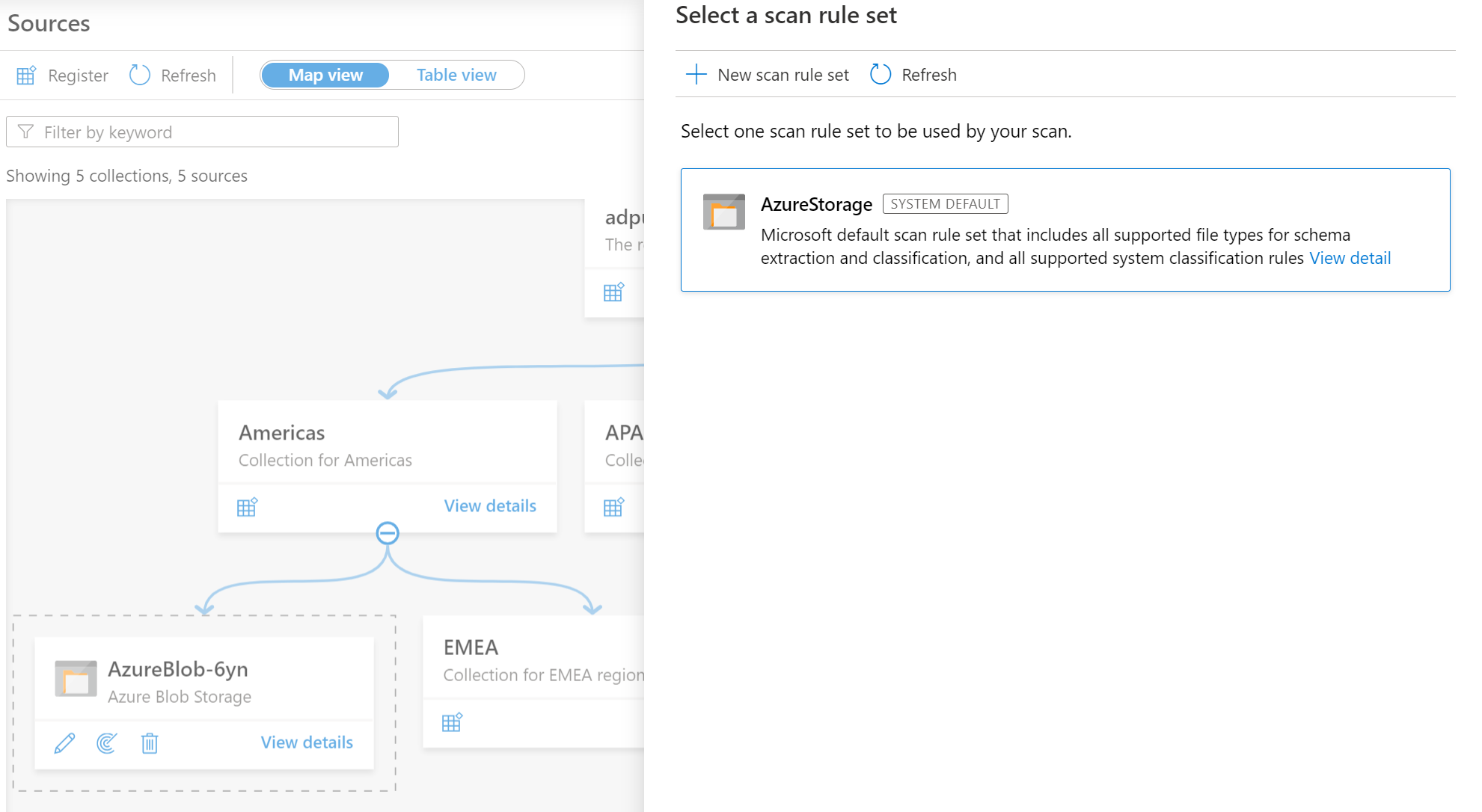

    Scan rule set

  3. If creating a new scan rule set, select the file types to be included in the scan rule.

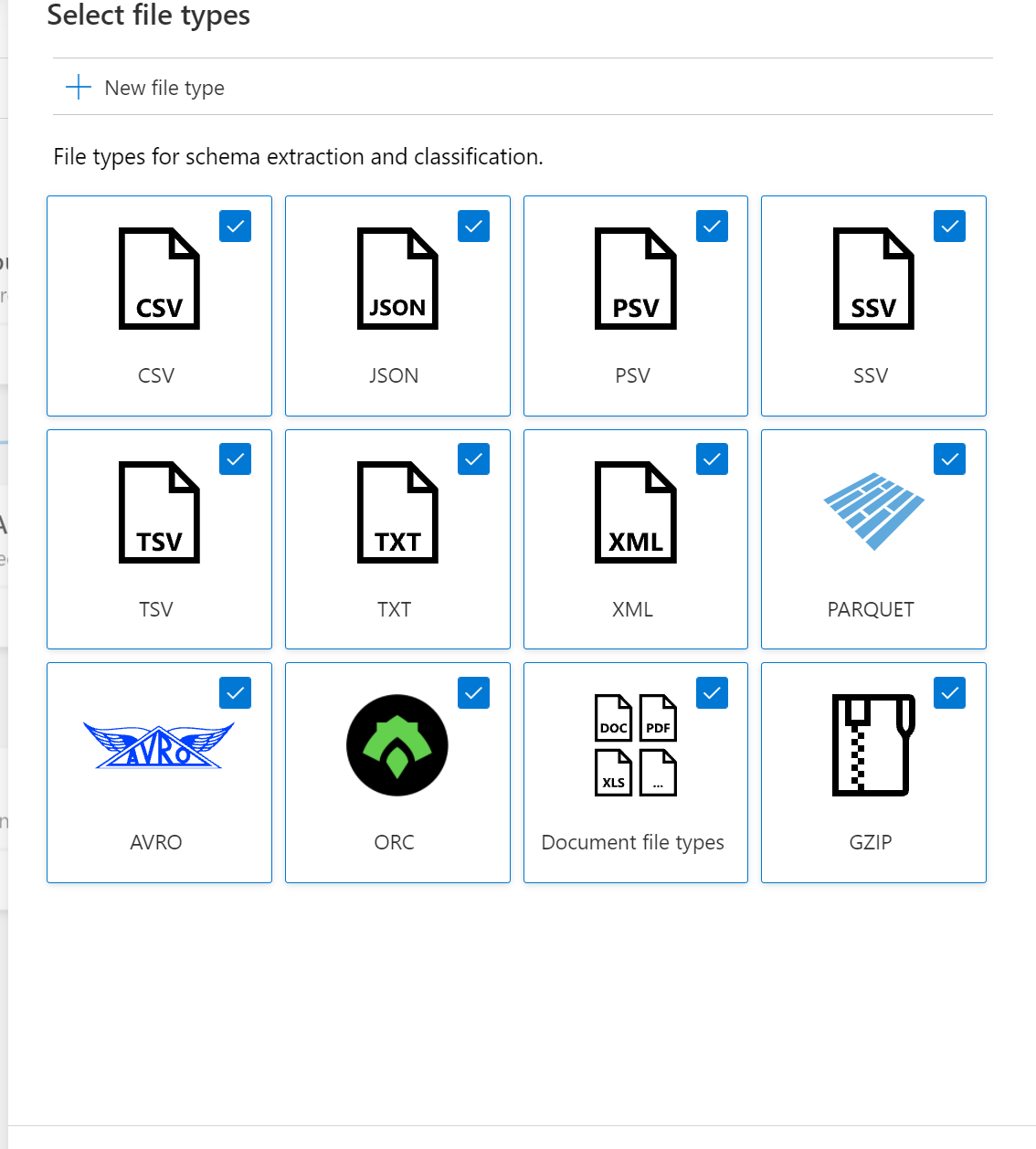

    Scan rule set file types

  4. You can select the classification rules to be included in the scan rule

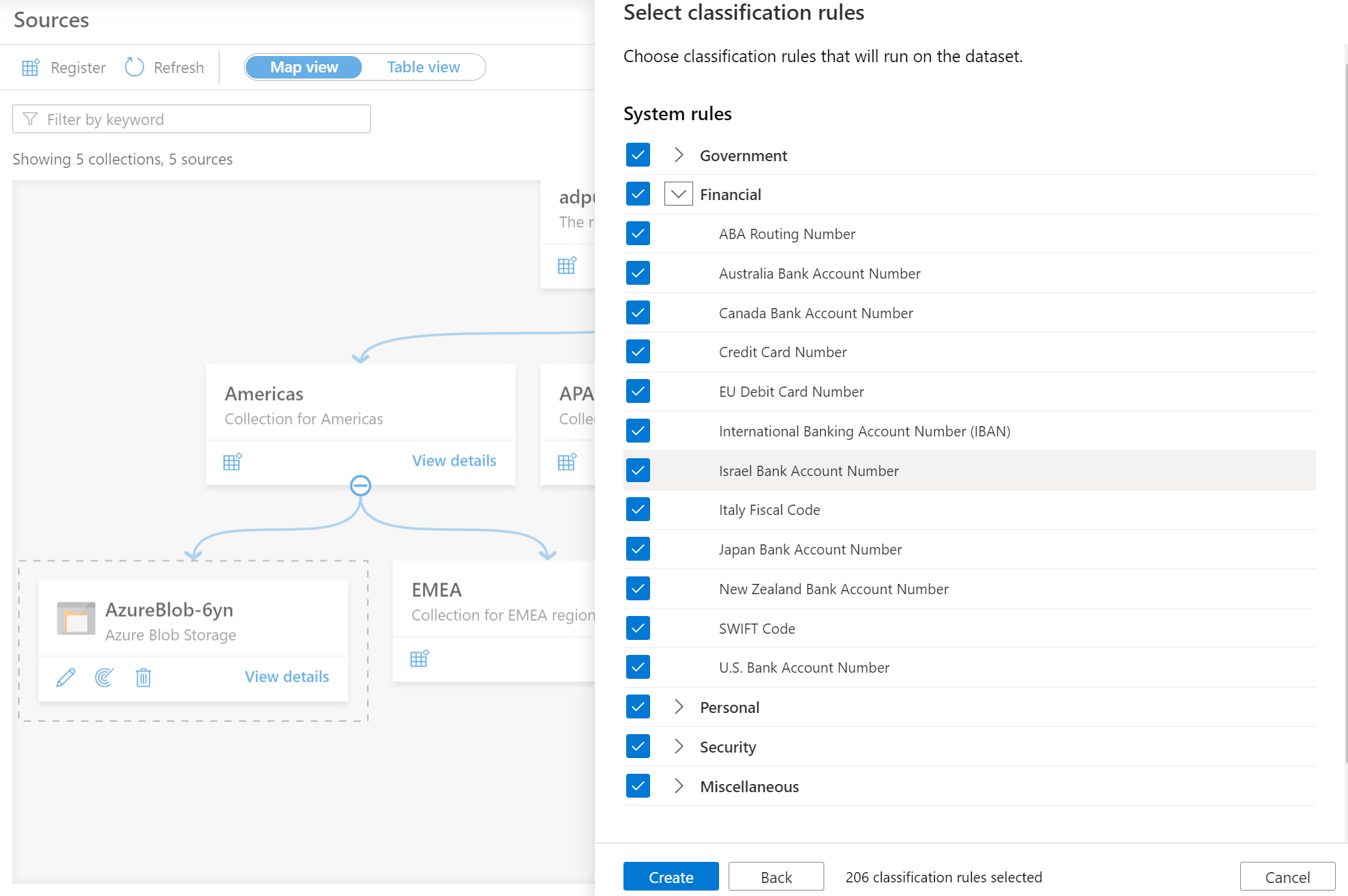

    Scan rule set classification rules

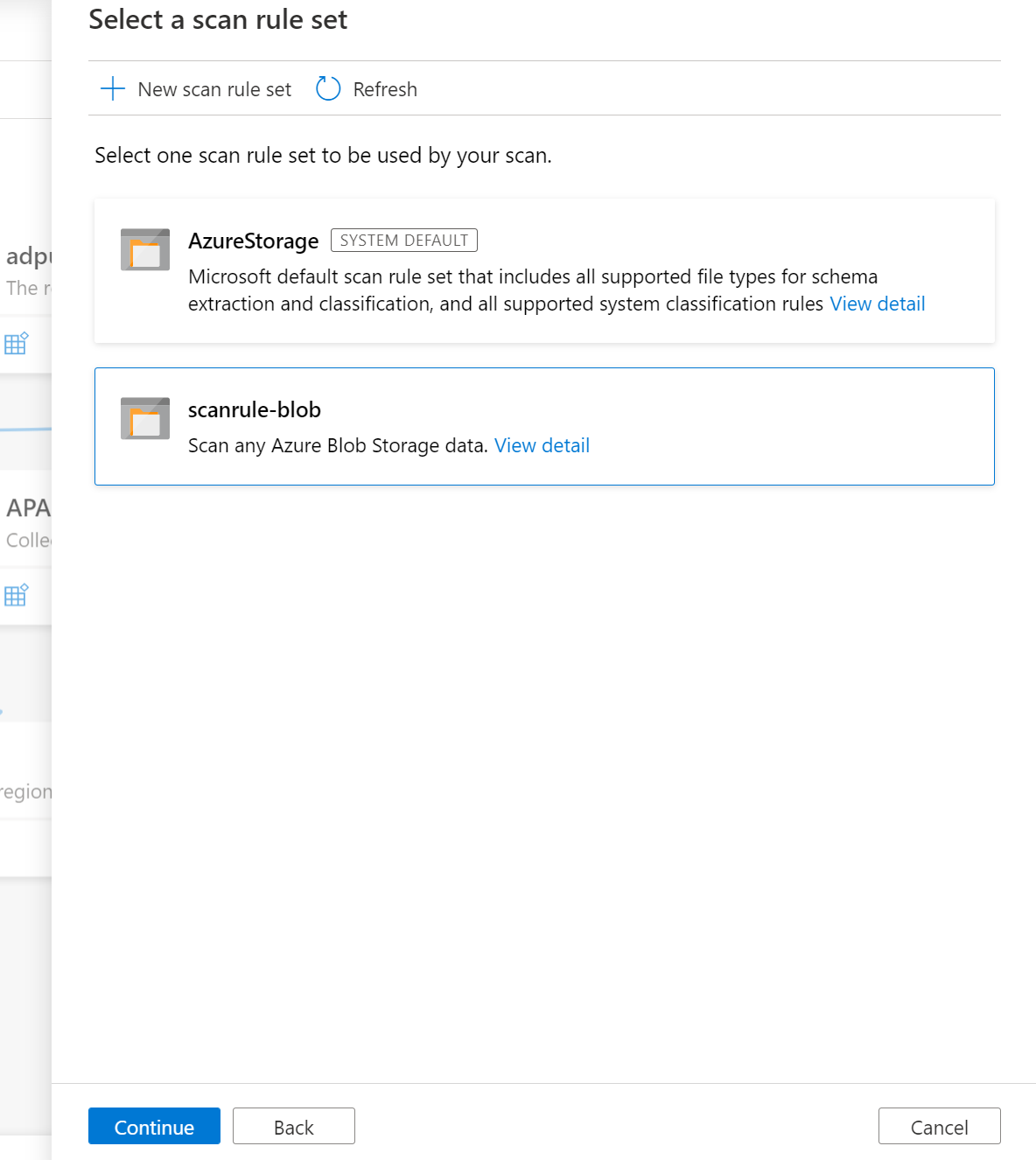

    Scan rule set selection

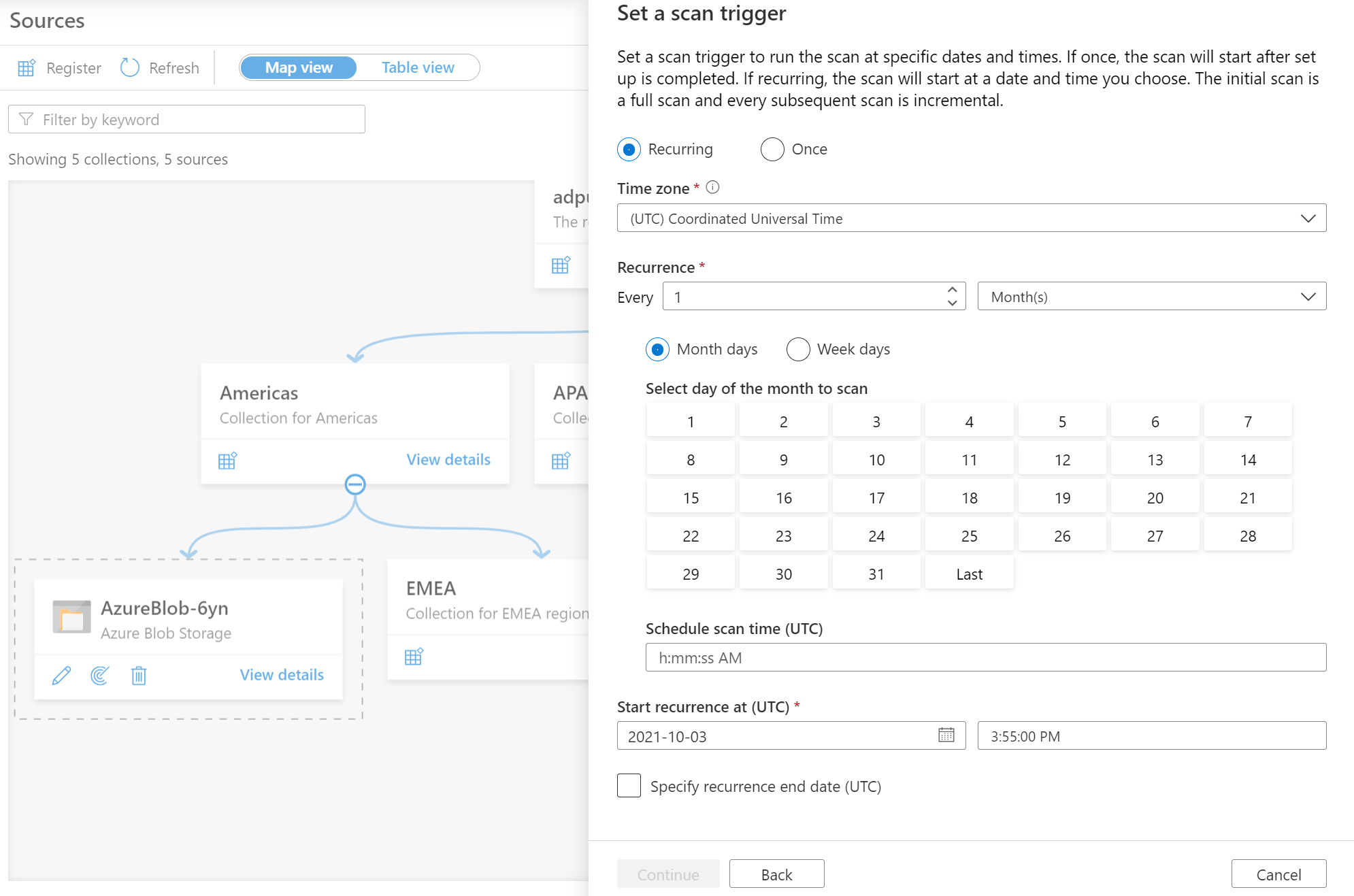

  5. Choose your scan trigger. You can set up a schedule or run the scan once.

    scan trigger

  6. Review your scan and select Save and run.

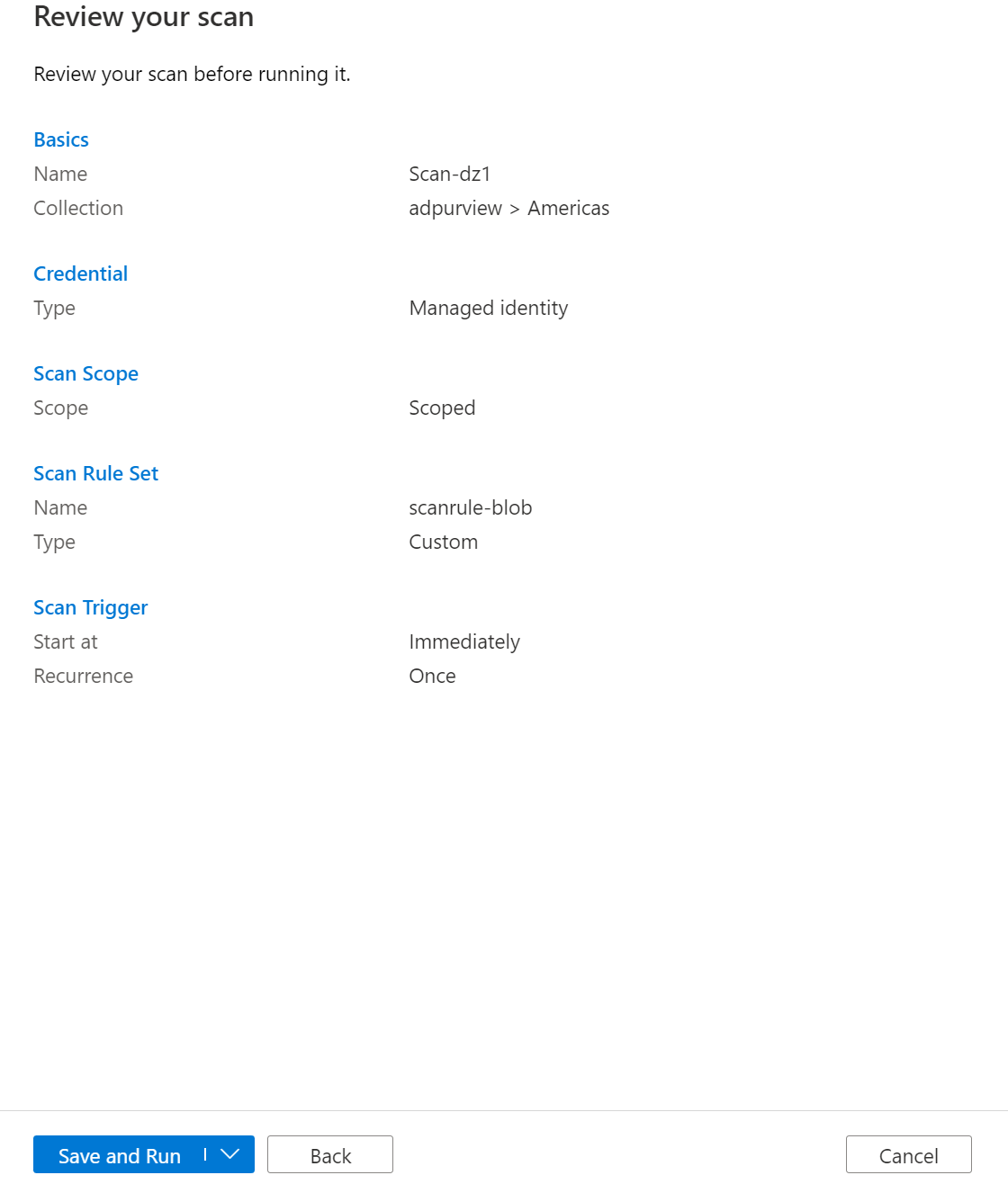

    review scan

Viewing Scan

  1. Navigate to the data source in the Collection and select View Details to check the status of the scan

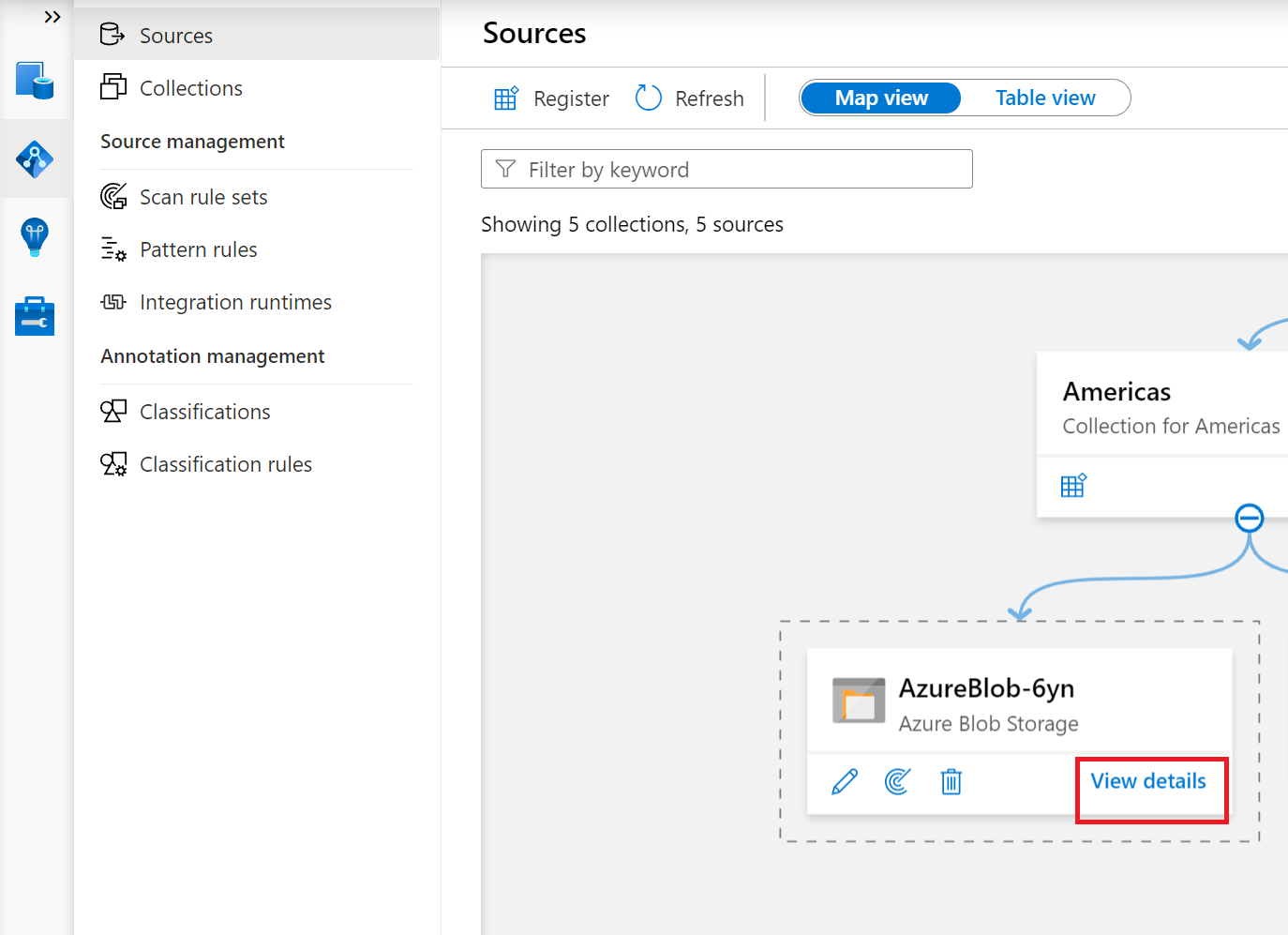

    view scan

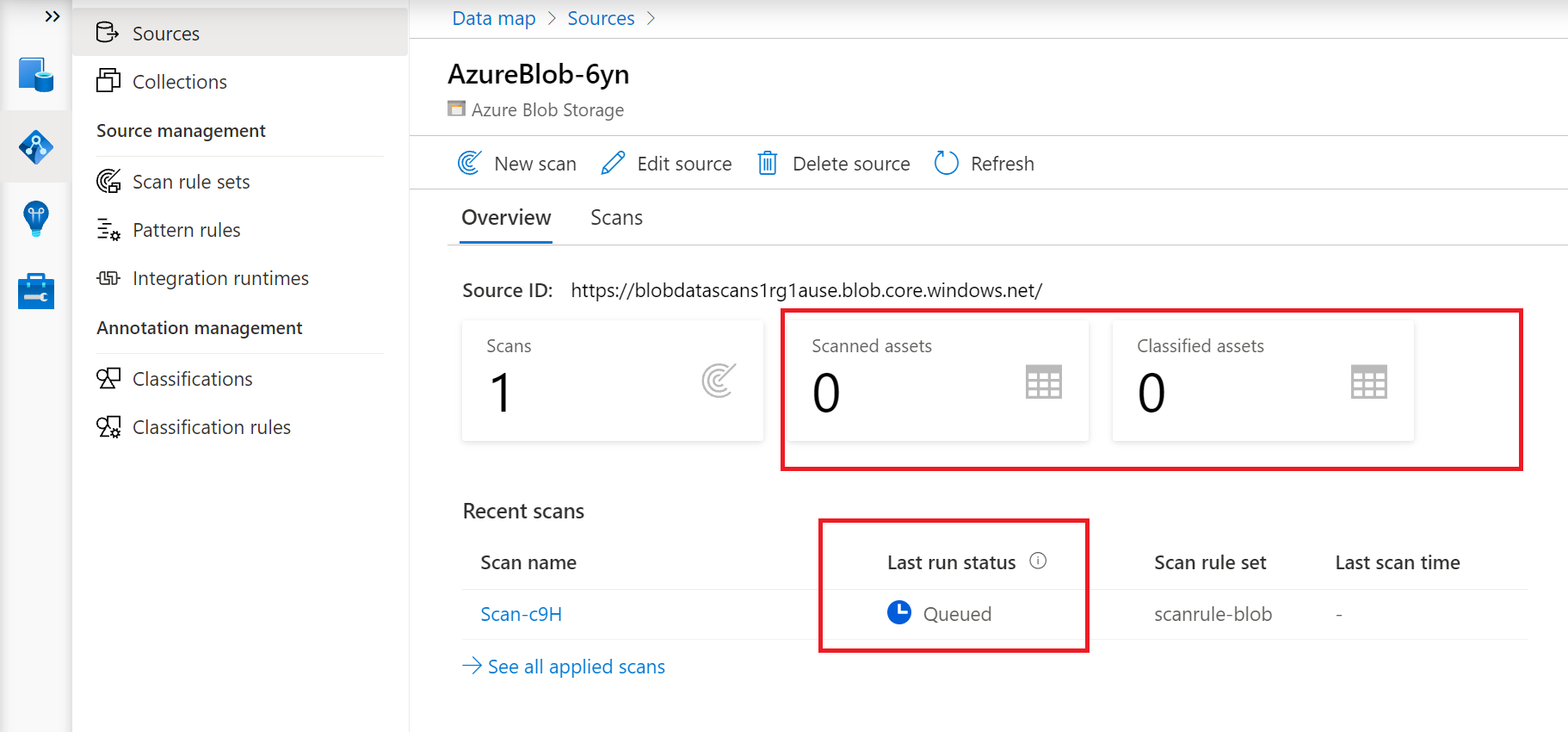

  2. The scan details indicate the progress of the scan in the Last run status and the number of assets scanned and classified

    view scan details

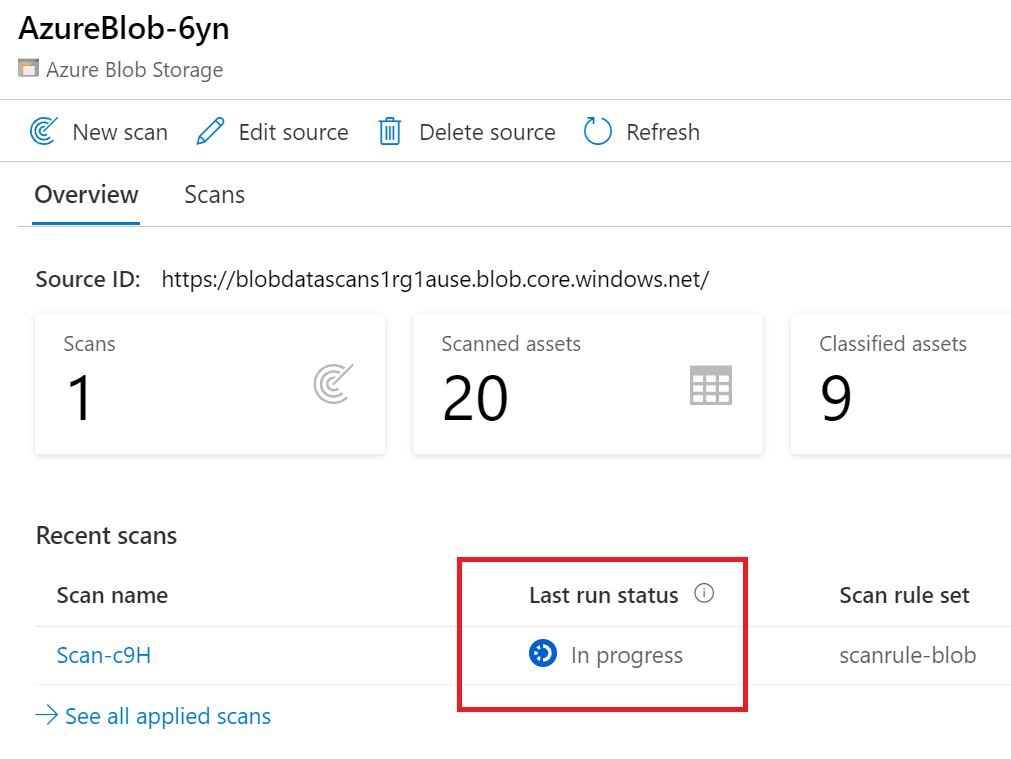

  3. The Last run status will be updated to In progress and then Completed once the entire scan has run successfully

    view scan in progress

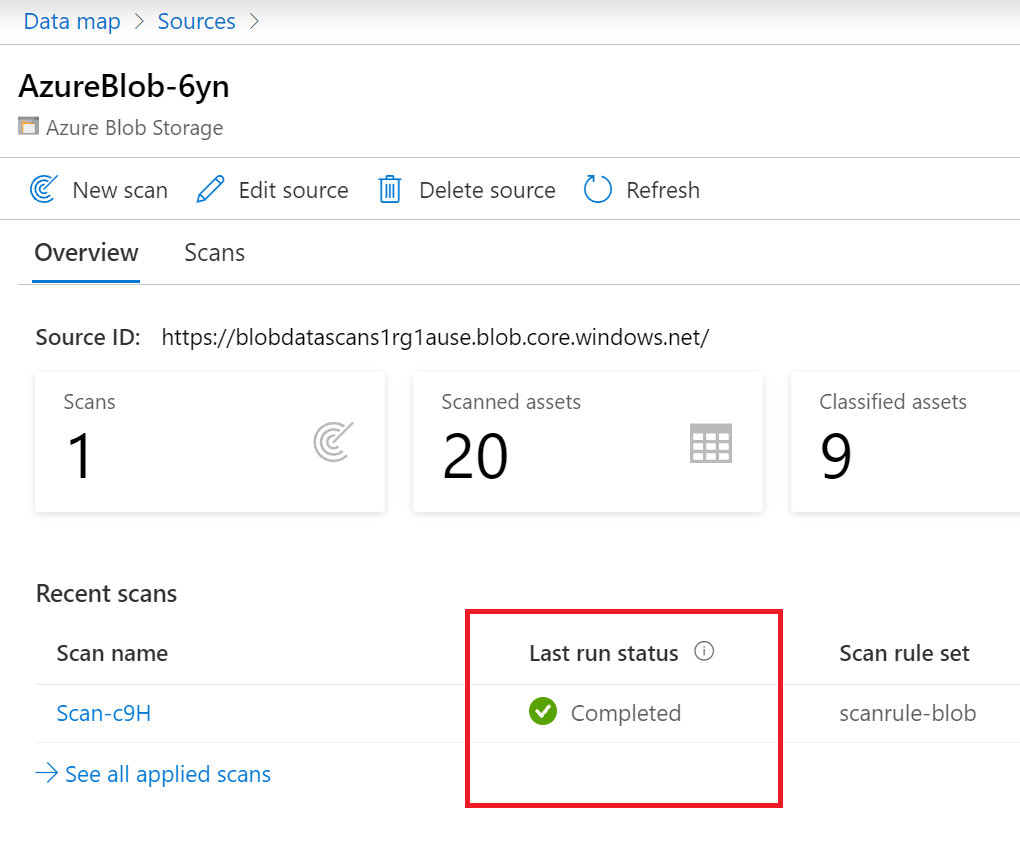

    view scan completed

Managing Scan

Scans can be managed or run again on completion

  1. Select the Scan name to manage the scan

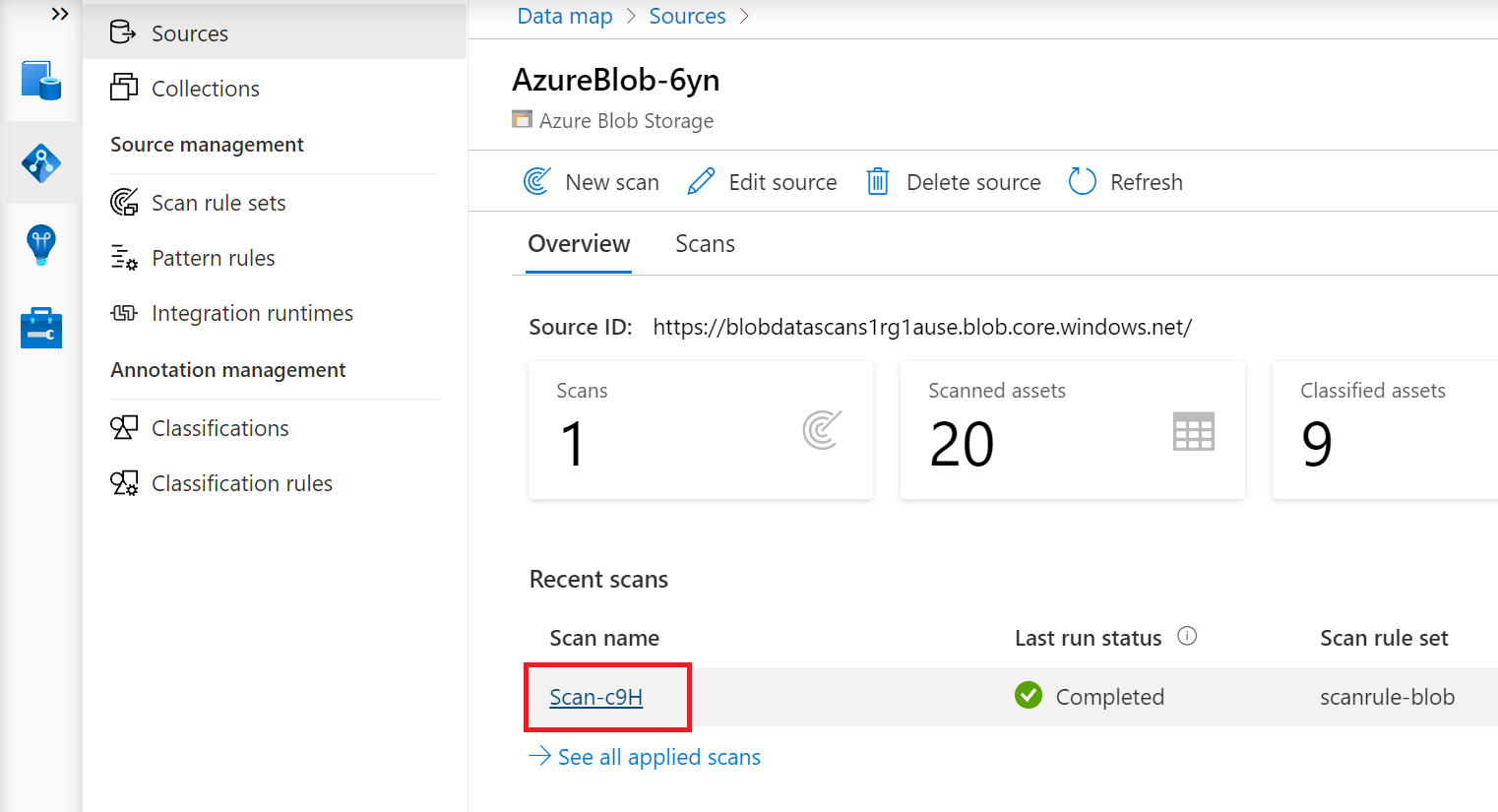

    manage scan

  2. You can run the scan again, edit the scan, delete the scan

    manage scan options

  3. You can run an incremental scan or a full scan again.

    full or incremental scan

Data sharing

Microsoft Purview Data Sharing (preview) enables sharing of data in-place from Azure Blob storage account to Azure Blob storage account. This section provides details about the specific requirements for sharing and receiving data in-place between Azure Blob storage accounts. Refer to How to share data and How to receive share for step by step guides on how to use data sharing.

Storage accounts supported for in-place data sharing

The following storage accounts are supported for in-place data sharing:

  • Regions: Canada Central, Canada East, UK South, UK West, Australia East, Japan East, Korea South, and South Africa North
  • Redundancy options: LRS, GRS, RA-GRS
  • Tiers: Hot, Cool

Only use storage accounts without production workload for the preview.

Note

Source and target storage accounts must be in the same region as each other. They don't need to be in the same region as the Microsoft Purview account.

Storage account permissions required to share data

To add or update a storage account asset to a share, you need ONE of the following permissions:

  • Microsoft.Authorization/roleAssignments/write - This permission is available in the Owner role.
  • Microsoft.Storage/storageAccounts/blobServices/containers/blobs/modifyPermissions/ - This permission is available in the Blob Storage Data Owner role.

Storage account permissions required to receive shared data

To map a storage account asset in a received share, you need ONE of the following permissions:

  • Microsoft.Storage/storageAccounts/write - This permission is available in the Contributor and Owner role.
  • Microsoft.Storage/storageAccounts/blobServices/containers/write - This permission is available in the Contributor, Owner, Storage Blob Data Contributor and Storage Blob Data Owner role.

Update shared data in source storage account

Updates you make to shared files or data in the shared folder from source storage account will be made available to recipient in target storage account in near real time. When you delete subfolder or files within the shared folder, they will disappear for recipient. To delete the shared folder, file or parent folders or containers, you need to first revoke access to all your shares from the source storage account.

Access shared data in target storage account

The target storage account enables recipient to access the shared data read-only in near real time. You can connect analytics tools such as Synapse Workspace and Databricks to the shared data to perform analytics. Cost of accessing the shared data is charged to the target storage account.

Service limit

Source storage account can support up to 20 targets, and target storage account can support up to 100 sources. If you require an increase in limit, please contact Support.

Policies

The following types of policies are supported on this data resource from Microsoft Purview:

  • Data owner policies - a set of policy statements that allow you to grant users and groups access to data sources.
  • Self-service access policies - policy that allows users to request access to data sources registered to Microsoft Purview.
  • Protection policies - denies access to data tagged with sensitivity labels to all users except those specified by the policy.

Access policy pre-requisites on Azure Storage accounts

Region support

  • All Microsoft Purview regions are supported.
  • Storage accounts in the following regions are supported without the need for additional configuration. However, zone-redundant storage (ZRS) accounts are not supported.
    • Australia Central
    • Australia East
    • Australia Southeast
    • Brazil South
    • Canada Central
    • Canada East
    • Central India
    • Central US
    • East Asia
    • East US 2
    • East US
    • France Central
    • Germany West Central
    • Japan East
    • Japan West
    • Korea Central
    • North Central US
    • North Europe
    • Norway East
    • Poland Central
    • Qatar Central
    • South Central US
    • South Africa North
    • Southeast Asia
    • South India
    • Sweden Central
    • Switzerland North
    • West Central US
    • West Europe
    • West US
    • West US 2
    • West US 3
    • UAE North
    • UK South
    • UK West
  • Storage accounts in other regions in Public Cloud are supported after setting feature flag AllowPurviewPolicyEnforcement, as outlined in the next section. Newly created ZRS Storage accounts are supported, if created after setting the feature flag AllowPurviewPolicyEnforcement.

If needed, you can create a new Storage account by following this guide.

Configure the subscription where the Azure Storage account resides for policies from Microsoft Purview

This step is only necessary in certain regions (see prior section). To enable Microsoft Purview to manage policies for one or more Azure Storage accounts, execute the following PowerShell commands in the subscription where you'll deploy your Azure Storage account. These PowerShell commands will enable Microsoft Purview to manage policies on all Azure Storage accounts in that subscription.

If you’re executing these commands locally, be sure to run PowerShell as an administrator. Alternatively, you can use the Azure Cloud Shell in the Azure portal: https://shell.azure.com.

# Install the Az module
Install-Module -Name Az -Scope CurrentUser -Repository PSGallery -Force
# Login into the subscription
Connect-AzAccount -Subscription <SubscriptionID>
# Register the feature
Register-AzProviderFeature -FeatureName AllowPurviewPolicyEnforcement -ProviderNamespace Microsoft.Storage

If the output of the last command shows RegistrationState as Registered, then your subscription is enabled for access policies. If the output is Registering, wait at least 10 minutes, and then retry the command. Do not continue unless the RegistrationState shows as Registered.

Configure the Microsoft Purview account for policies

Register the data source in Microsoft Purview

Before a policy can be created in Microsoft Purview for a data resource, you must register that data resource in Microsoft Purview Studio. You will find the instructions related to registering the data resource later in this guide.

Note

Microsoft Purview policies rely on the data resource ARM path. If a data resource is moved to a new resource group or subscription it will need to be de-registered and then registered again in Microsoft Purview.

Configure permissions to enable Data policy enforcement on the data source

Once a resource is registered, but before a policy can be created in Microsoft Purview for that resource, you must configure permissions. A set of permissions are needed to enable the Data policy enforcement. This applies to data sources, resource groups, or subscriptions. To enable Data policy enforcement, you must have both specific Identity and Access Management (IAM) privileges on the resource as well as specific Microsoft Purview privileges:

  • You must have either one of the following IAM role combinations on the resource's Azure Resource Manager path or any parent of it (that is, using IAM permission inheritance):

    • IAM Owner
    • Both IAM Contributor and IAM User Access Administrator

    To configure Azure role-based access control (RBAC) permissions, follow this guide. The following screenshot shows how to access the Access Control section in the Azure portal for the data resource to add a role assignment.

    Screenshot that shows the section in the Azure portal for adding a role assignment.

    Note

    The IAM Owner role for a data resource can be inherited from a parent resource group, a subscription, or a subscription management group. Check which Microsoft Entra users, groups, and service principals hold or are inheriting the IAM Owner role for the resource.

  • You also need to have the Microsoft Purview Data source admin role for the collection or a parent collection (if inheritance is enabled). For more information, see the guide on managing Microsoft Purview role assignments.

    The following screenshot shows how to assign the Data source admin role at the root collection level.

    Screenshot that shows selections for assigning the Data source admin role at the root collection level.

Configure Microsoft Purview permissions to create, update, or delete access policies

To create, update or delete policies, you need to get the Policy author role in Microsoft Purview at root collection level:

  • The Policy author role can create, update, and delete DevOps and Data Owner policies.
  • The Policy author role can delete self-service access policies.

For more information about managing Microsoft Purview role assignments, see Create and manage collections in the Microsoft Purview Data Map.

Note

Policy author role must be configured at the root collection level.

In addition, to easily search Microsoft Entra users or groups when creating or updating the subject of a policy, you can greatly benefit from getting the Directory Readers permission in Microsoft Entra ID. This is a common permission for users in an Azure tenant. Without the Directory Reader permission, the Policy Author will have to type the complete username or email for all the principals included in the subject of a data policy.

Configure Microsoft Purview permissions for publishing Data Owner policies

Data Owner policies allow for checks and balances if you assign the Microsoft Purview Policy author and Data source admin roles to different people in the organization. Before a Data owner policy takes effect, a second person (Data source admin) must review it and explicitly approve it by publishing it. This does not apply to DevOps or Self-service access policies as publishing is automatic for them when those policies are created or updated.

To publish a Data owner policy you need to get the Data source admin role in Microsoft Purview at root collection level.

For more information about managing Microsoft Purview role assignments, see Create and manage collections in the Microsoft Purview Data Map.

Note

To publish Data owner policies, the Data source admin role must be configured at the root collection level.

Delegate access provisioning responsibility to roles in Microsoft Purview

After a resource has been enabled for Data policy enforcement, any Microsoft Purview user with the Policy author role at the root collection level can provision access to that data source from Microsoft Purview.

Note

Any Microsoft Purview root Collection admin can assign new users to root Policy author roles. Any Collection admin can assign new users to a Data source admin role under the collection. Minimize and carefully vet the users who hold Microsoft Purview Collection admin, Data source admin, or Policy author roles.

If a Microsoft Purview account with published policies is deleted, such policies will stop being enforced within an amount of time that depends on the specific data source. This change can have implications on both security and data access availability. The Contributor and Owner roles in IAM can delete Microsoft Purview accounts. You can check these permissions by going to the Access control (IAM) section for your Microsoft Purview account and selecting Role Assignments. You can also use a lock to prevent the Microsoft Purview account from being deleted through Resource Manager locks.

Register the data source in Microsoft Purview for Data Policy Enforcement

The Azure Storage resource needs to be registered first with Microsoft Purview before you can create access policies. To register your resource, follow the Prerequisites and Register sections of this guide:

After you've registered the data source, you'll need to enable Data Policy Enforcement. This is a pre-requisite before you can create policies on the data source. Data Policy Enforcement can impact the security of your data, as it delegates to certain Microsoft Purview roles managing access to the data sources. Go through the secure practices related to Data Policy Enforcement in this guide: How to enable Data Policy Enforcement

Once your data source has the Data Policy Enforcement option set to Enabled, it will look like this screenshot: Screenshot shows how to register a data source for policy with the option Data policy enforcement set to enable

Create a policy

To create an access policy for Azure Blob Storage, follow this guide: Provision read/modify access on a single storage account.

To create policies that cover all data sources inside a resource group or Azure subscription you can refer to this section.

Protection policy

Protection access control policies (protection policies) enable organizations to automatically protect sensitive data across data sources. Microsoft Purview already scans data assets and identifies sensitive data elements, and this new feature allows you to automatically restrict access to that data using sensitivity labels from Microsoft Purview Information Protection.

Follow this documentation to create a protection policy: How to create a Microsoft Purview Information Protection policy.

Next steps

Follow the below guides to learn more about Microsoft Purview and your data.
