HoloLens (1st gen) Input 210: Gaze

  • บทความ

Important

The Mixed Reality Academy tutorials were designed with HoloLens (1st gen), Unity 2017, and Mixed Reality Immersive Headsets in mind. As such, we feel it is important to leave these tutorials in place for developers who are still looking for guidance in developing for those devices. These tutorials will not be updated with the latest toolsets or interactions being used for HoloLens 2 and may not be compatible with newer versions of Unity. They will be maintained to continue working on the supported devices. A new series of tutorials has been posted for HoloLens 2.

Gaze is the first form of input and reveals the user's intent and awareness. MR Input 210 (aka Project Explorer) is a deep dive into gaze-related concepts for Windows Mixed Reality. We will be adding contextual awareness to our cursor and holograms, taking full advantage of what your app knows about the user's gaze.

We have a friendly astronaut here to help you learn gaze concepts. In MR Basics 101, we had a simple cursor that just followed your gaze. Today we're moving a step beyond the simple cursor:

  • We're making the cursor and our holograms gaze-aware: both will change based on where the user is looking - or where the user is not looking. This makes them context-aware.
  • We will add feedback to our cursor and holograms to give the user more context on what is being targeted. This feedback can be audio and visual.
  • We'll show you targeting techniques to help users hit smaller targets.
  • We'll show you how to draw the user's attention to your holograms with a directional indicator.
  • We'll teach you techniques to take your holograms with the user as she moves around in your world.

Important

The videos embedded in each of the chapters below were recorded using an older version of Unity and the Mixed Reality Toolkit. While the step-by-step instructions are accurate and current, you may see scripts and visuals in the corresponding videos that are out-of-date. The videos remain included for posterity and because the concepts covered still apply.

Device support

Course HoloLens Immersive headsets
MR Input 210: Gaze ✔️ ✔️

Before you start

Prerequisites

Project files

  • Download the files required by the project. Requires Unity 2017.2 or later.
  • Un-archive the files to your desktop or other easy to reach location.

Note

If you want to look through the source code before downloading, it's available on GitHub.

Errata and Notes

  • In Visual Studio, "Just My Code" needs to be disabled (unchecked) under Tools->Options->Debugging in order to hit breakpoints in your code.

Chapter 1 - Unity Setup

Objectives

  • Optimize Unity for HoloLens development.
  • Import assets and setup the scene.
  • View the astronaut in the HoloLens.

Instructions

  1. Start Unity.
  2. Select New Project.
  3. Name the project ModelExplorer.
  4. Enter location as the Gaze folder you previously un-archived.
  5. Make sure the project is set to 3D.
  6. Click Create Project.

Unity settings for HoloLens

We need to let Unity know that the app we are trying to export should create an immersive view instead of a 2D view. We do that by adding HoloLens as a virtual reality device.

  1. Go to Edit > Project Settings > Player.
  2. In the Inspector Panel for Player Settings, select the Windows Store icon.
  3. Expand the XR Settings group.
  4. In the Rendering section, check the Virtual Reality Supported checkbox to add a new Virtual Reality SDKs list.
  5. Verify that Windows Mixed Reality appears in the list. If not, select the + button at the bottom of the list and choose Windows Holographic.

Next, we need to set our scripting backend to .NET.

  1. Go to Edit > Project Settings > Player (you may still have this up from the previous step).
  2. In the Inspector Panel for Player Settings, select the Windows Store icon.
  3. In the Other Settings Configuration section, make sure that Scripting Backend is set to .NET

Finally, we'll update our quality settings to achieve a fast performance on HoloLens.

  1. Go to Edit > Project Settings > Quality.
  2. Click on downward pointing arrow in the Default row under the Windows Store icon.
  3. Select Very Low for Windows Store Apps.

Import project assets

  1. Right click the Assets folder in the Project panel.
  2. Click on Import Package > Custom Package.
  3. Navigate to the project files you downloaded and click on ModelExplorer.unitypackage.
  4. Click Open.
  5. After the package loads, click on the Import button.

Setup the scene

  1. In the Hierarchy, delete the Main Camera.
  2. In the HoloToolkit folder, open the Input folder, then open the Prefabs folder.
  3. Drag and drop the MixedRealityCameraParent prefab from the Prefabs folder into the Hierarchy.
  4. Right-click the Directional Light in the Hierarchy and select Delete.
  5. In the Holograms folder, drag and drop the following assets into the root of the Hierarchy:
    • AstroMan
    • Lights
    • SpaceAudioSource
    • SpaceBackground
  6. Start Play Mode ▶ to view the astronaut.
  7. Click Play Mode ▶ again to Stop.
  8. In the Holograms folder, find the Fitbox asset and drag it to the root of the Hierarchy.
  9. Select the Fitbox in the Hierarchy panel.
  10. Drag the AstroMan collection from the Hierarchy to the Hologram Collection property of the Fitbox in the Inspector panel.

Save the project

  1. Save the new scene: File > Save Scene As.
  2. Click New Folder and name the folder Scenes.
  3. Name the file “ModelExplorer” and save it in the Scenes folder.

Build the project

  1. In Unity, select File > Build Settings.
  2. Click Add Open Scenes to add the scene.
  3. Select Universal Windows Platform in the Platform list and click Switch Platform.
  4. If you're specifically developing for HoloLens, set Target device to HoloLens. Otherwise, leave it on Any device.
  5. Ensure Build Type is set to D3D and SDK is set to Latest installed (which should be SDK 16299 or newer).
  6. Click Build.
  7. Create a New Folder named "App".
  8. Single click the App folder.
  9. Press Select Folder.

When Unity is done, a File Explorer window will appear.

  1. Open the App folder.
  2. Open the ModelExplorer Visual Studio Solution.

If deploying to HoloLens:

  1. Using the top toolbar in Visual Studio, change the target from Debug to Release and from ARM to x86.
  2. Click on the drop down arrow next to the Local Machine button, and select Remote Machine.
  3. Enter your HoloLens device IP address and set Authentication Mode to Universal (Unencrypted Protocol). Click Select. If you do not know your device IP address, look in Settings > Network & Internet > Advanced Options.
  4. In the top menu bar, click Debug -> Start Without debugging or press Ctrl + F5. If this is the first time deploying to your device, you will need to pair it with Visual Studio.
  5. When the app has deployed, dismiss the Fitbox with a select gesture.

If deploying to an immersive headset:

  1. Using the top toolbar in Visual Studio, change the target from Debug to Release and from ARM to x64.
  2. Make sure the deployment target is set to Local Machine.
  3. In the top menu bar, click Debug -> Start Without debugging or press Ctrl + F5.
  4. When the app has deployed, dismiss the Fitbox by pulling the trigger on a motion controller.

Chapter 2 - Cursor and target feedback

Objectives

  • Cursor visual design and behavior.
  • Gaze-based cursor feedback.
  • Gaze-based hologram feedback.

We're going to base our work on some cursor design principles, namely:

  • The cursor is always present.
  • Don't let the cursor get too small or big.
  • Avoid obstructing content.

Instructions

  1. In the HoloToolkit\Input\Prefabs folder, find the InputManager asset.
  2. Drag and drop the InputManager onto the Hierarchy.
  3. In the HoloToolkit\Input\Prefabs folder, find the Cursor asset.
  4. Drag and drop the Cursor onto the Hierarchy.
  5. Select the InputManager object in the Hierarchy.
  6. Drag the Cursor object from the Hierarchy into the InputManager's SimpleSinglePointerSelector's Cursor field, at the bottom of the Inspector.

Simple Single Pointer Selector set-up

Build and Deploy

  1. Rebuild the app from File > Build Settings.
  2. Open the App folder.
  3. Open the ModelExplorer Visual Studio Solution.
  4. Click Debug -> Start Without debugging or press Ctrl + F5.
  5. Observe how the cursor is drawn, and how it changes appearance if it is touching a hologram.

Instructions

  1. In the Hierarchy panel, expand the AstroMan->GEO_G->Back_Center object.
  2. Double click on Interactible.cs to open it in Visual Studio.
  3. Uncomment the lines in the IFocusable.OnFocusEnter() and IFocusable.OnFocusExit() callbacks in Interactible.cs. These are called by the Mixed Reality Toolkit's InputManager when focus (either by gaze or by controller pointing) enters and exits the specific GameObject's collider.
/* TODO: DEVELOPER CODING EXERCISE 2.d */

void IFocusable.OnFocusEnter()
{
    for (int i = 0; i < defaultMaterials.Length; i++)
    {
        // 2.d: Uncomment the below line to highlight the material when gaze enters.
        defaultMaterials[i].EnableKeyword("_ENVIRONMENT_COLORING");
    }
}

void IFocusable.OnFocusExit()
{
    for (int i = 0; i < defaultMaterials.Length; i++)
    {
        // 2.d: Uncomment the below line to remove highlight on material when gaze exits.
        defaultMaterials[i].DisableKeyword("_ENVIRONMENT_COLORING");
    }
}

Note

We use EnableKeyword and DisableKeyword above. In order to make use of these in your own app with the Toolkit's Standard shader, you'll need to follow the Unity guidelines for accessing materials via script. In this case, we've already included the three variants of highlighted material needed in the Resources folder (look for the three materials with highlight in the name).

Build and Deploy

  1. As before, build the project and deploy to the HoloLens.
  2. Observe what happens when the gaze is aimed at an object and when it's not.

Chapter 3 - Targeting Techniques

Objectives

  • Make it easier to target holograms.
  • Stabilize natural head movements.

Instructions

  1. In the Hierarchy panel, select the InputManager object.
  2. In the Inspector panel, find the Gaze Stabilizer script. Click it to open in Visual Studio, if you want to take a look.
    • This script iterates over samples of Raycast data and helps stabilize the user's gaze for precision targeting.
  3. In the Inspector, you can edit the Stored Stability Samples value. This value represents the number of samples that the stabilizer iterates on to calculate the stabilized value.

Chapter 4 - Directional indicator

Objectives

  • Add a directional indicator on the cursor to help find holograms.

Instructions

We're going to use the DirectionIndicator.cs file which will:

  1. Show the directional indicator if the user is not gazing at the holograms.
  2. Hide the directional indicator if the user is gazing at the holograms.
  3. Update the directional indicator to point to the holograms.

Let's get started.

  1. Click on the AstroMan object in the Hierarchy panel and click the arrow to expand it.
  2. In the Hierarchy panel, select the DirectionalIndicator object under AstroMan.
  3. In the Inspector panel, click the Add Component button.
  4. In the menu, type in the search box Direction Indicator. Select the search result.
  5. In the Hierarchy panel, drag and drop the Cursor object onto the Cursor property in the Inspector.
  6. In the Project panel, in the Holograms folder, drag and drop the DirectionalIndicator asset onto the Directional Indicator property in the Inspector.
  7. Build and deploy the app.
  8. Watch how the directional indicator object helps you find the astronaut.

Chapter 5 - Billboarding

Objectives

  • Use billboarding to have holograms always face towards you.

We will be using the Billboard.cs file to keep a GameObject oriented such that it is facing the user at all times.

  1. In the Hierarchy panel, select the AstroMan object.
  2. In the Inspector panel, click the Add Component button.
  3. In the menu, type in the search box Billboard. Select the search result.
  4. In the Inspector set the Pivot Axis to Y.
  5. Try it! Build and deploy the app as before.
  6. See how the Billboard object faces you no matter how you change the viewpoint.
  7. Delete the script from the AstroMan for now.

Chapter 6 - Tag-Along

Objectives

  • Use Tag-Along to have our holograms follow us around the room.

As we work on this issue, we'll be guided by the following design constraints:

  • Content should always be a glance away.
  • Content should not be in the way.
  • Head-locking content is uncomfortable.

The solution used here is to use a "tag-along" approach.

A tag-along object never fully leaves the user's view. You can think of the a tag-along as being an object attached to the user's head by rubber bands. As the user moves, the content will stay within an easy glance by sliding towards the edge of the view without completely leaving. When the user gazes towards the tag-along object, it comes more fully into view.

We're going to use the SimpleTagalong.cs file which will:

  1. Determine if the Tag-Along object is within the camera bounds.
  2. If not within the view frustum, position the Tag-Along to partially within the view frustum.
  3. Otherwise, position the Tag-Along to a default distance from the user.

To do this, we first must change the Interactible.cs script to call the TagalongAction.

  1. Edit Interactible.cs by completing coding exercise 6.a (uncommenting lines 84 to 87).
/* TODO: DEVELOPER CODING EXERCISE 6.a */
// 6.a: Uncomment the lines below to perform a Tagalong action.
if (interactibleAction != null)
{
    interactibleAction.PerformAction();
}

The InteractibleAction.cs script, paired with Interactible.cs performs custom actions when you tap on holograms. In this case, we'll use one specifically for tag-along.

  • In the Scripts folder click on TagalongAction.cs asset to open in Visual Studio.
  • Complete the coding exercise or change it to this:
    • At the top of the Hierarchy, in the search bar type ChestButton_Center and select the result.
    • In the Inspector panel, click the Add Component button.
    • In the menu, type in the search box Tagalong Action. Select the search result.
    • In Holograms folder find the Tagalong asset.
    • Select the ChestButton_Center object in the Hierarchy. Drag and drop the TagAlong object from the Project panel onto the Inspector into the Object To Tagalong property.
    • Drag the Tagalong Action object from the Inspector into the Interactible Action field on the Interactible script.
  • Double click the TagalongAction script to open it in Visual Studio.

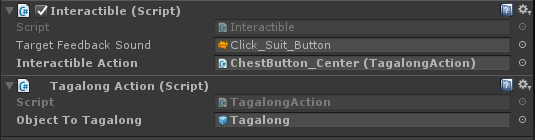

Interactible set-up

We need to add the following:

  • Add functionality to the PerformAction function in the TagalongAction script (inherited from InteractibleAction).
  • Add billboarding to the gazed-upon object, and set the pivot axis to XY.
  • Then add simple Tag-Along to the object.

Here's our solution, from TagalongAction.cs:

// Copyright (c) Microsoft Corporation. All rights reserved.
// Licensed under the MIT License. See LICENSE in the project root for license information.

using HoloToolkit.Unity;
using UnityEngine;

public class TagalongAction : InteractibleAction
{
    [SerializeField]
    [Tooltip("Drag the Tagalong prefab asset you want to display.")]
    private GameObject objectToTagalong;

    private void Awake()
    {
        if (objectToTagalong != null)
        {
            objectToTagalong = Instantiate(objectToTagalong);
            objectToTagalong.SetActive(false);

            /* TODO: DEVELOPER CODING EXERCISE 6.b */

            // 6.b: AddComponent Billboard to objectToTagAlong,
            // so it's always facing the user as they move.
            Billboard billboard = objectToTagalong.AddComponent<Billboard>();

            // 6.b: AddComponent SimpleTagalong to objectToTagAlong,
            // so it's always following the user as they move.
            objectToTagalong.AddComponent<SimpleTagalong>();

            // 6.b: Set any public properties you wish to experiment with.
            billboard.PivotAxis = PivotAxis.XY; // Already the default, but provided in case you want to edit
        }
    }

    public override void PerformAction()
    {
        // Recommend having only one tagalong.
        if (objectToTagalong == null || objectToTagalong.activeSelf)
        {
            return;
        }

        objectToTagalong.SetActive(true);
    }
}
  • Try it! Build and deploy the app.
  • Watch how the content follows the center of the gaze point, but not continuously and without blocking it.
