Office 365 Outlook

Microsoft Office 365 is a cloud-based service that is designed to help meet your organization's needs for robust security, reliability, and user productivity.

This connector is available in the following products and regions:

Service	Class	Regions
Logic Apps	Standard	All Logic Apps regions
Power Automate	Standard	All Power Automate regions
Power Apps	Standard	All Power Apps regions

Connector Metadata
Publisher	Microsoft

To learn how to use this connector in Power Apps, go to Connect to Office 365 Outlook from Power Apps. Some of operations operate with Graph API. You can find Graph API IP addresses in Office 365 URLs and IP address ranges.

Deprecated operations decommission

Due to underlying APIs decommission process, it's highly recommended to update existing solutions to avoid usage of operations marked as [DEPRECATED].

Known issues and limitations with actions

Short description	Operations	Long description
Incorrect email attachment with digitally signed emails	All	For digitally signed emails, the action output may contain incorrect attachment content, which can't be used as input in subsequent actions (for example, to create a new file with attachment content).
Support of HTML/action cards in different mail clients	Send approval email Send email with options	When sending emails with options or approvals, the action card (actionable message) rendering in Outlook won't support HTML in the body of the message (if HTML buttons are clicked, the output of the action can have null values for some fields). The rendering behavior of HTML in the body of the message depends on the options Use Only HTML Message and Hide HTML Message. If Use Only HTML Message is set to Yes, all mail clients will show only the HTML buttons. The action card buttons will not be rendered. If Use Only HTML Message is set to No, and Hide HTML Message is set to Yes, only the action card buttons will show. If Use Only HTML Message is set to No, and Hide HTML Message is set to No, some mail clients will show both the action card and the HTML message, and some mail clients will show only the action card. Actionable Messages are only supported with single user mailboxes. Group and shared mailboxes are not supported. For information on the support of action cards in different mail clients, go to Outlook version requirements for actionable messages.
Receive meeting updates	Update Event (V4)	If you use this operation and you're the organizer of the event, all the attendees will receive meeting updates. Also, due to the current design, all event fields omitted during the update will be reset to default values. Therefore, you need to fill all the event properties with intended values or re-fill current values (please use Get event (V3) action), in case you are not going to update them.
When the event is updated, only one day of the week remains	Update Event (V4)	If the event that you are updating repeats several times a week every week, do not forget to specify these days in the Selected days of week parameter. Otherwise, after the update, one day of the week will be saved, which will be taken from the 'Start Time' parameter.
Set third-party mail filters	Send email with options Send approval email	Third-party mail filters (like G Suite and Mimecast) will autoselect the user options in action. For this reason, set Show HTML confirmation dialog to Yes to avoid this problem related to the functionality.
Send action cards/HTML	Send email with options Send approval email	These actions send action cards (actionable messages) and HTML content. The response will be localized only in case you push the button in an actionable message itself (not in HTML content). In Sovereign clouds, action cards are rendered only to the sender of the email, but not to other recipients. This happens even if the HTML content is rendered for all recipients.
Send an email from a shared mailbox	Send an email from a shared mailbox (V2)	The operation is expected to work for the Microsoft 365 shared mailbox feature only.
Workaround for rooms returned over 100	Get rooms (V2)	The number of rooms returned is limited to 100. As a workaround, query for room lists using Get rooms in room list (V2). Then, search for the rooms inside the selected list.
Email encryption limitation	Reply to email (V3)	Emails that are encrypted aren't supported by the connector when using this action. Therefore, if you try to send an email to Outlook that has email encryption turned on, you'll see the error with a note that the request has failed.
Reply to email action changes datetime to UTC	Reply to email (V3)	Sent datetime of the original email is converted to UTC time zone due to underlying system limitations.
Send an email (V2) does not return message id	Send an email (V2)	There is no way to get the messageid when sending a message.
Send an email from the converted from a personal shared mailbox	Send an email from a shared mailbox (V2)	Action does not work for shared mailboxes that were converted from personal mailboxes.
Maximum number of events returned limitation	Get calendar view of events (V3)	The maximum number of events which can be returned is 256. To retrieve more than 256 events utilize the Skip Count and Top Count parameters to retrieve lists of events in incremental fashion.
Send approval email response returns null	Send approval email	When users click the Actionable Message card options at the top of an email, values for userid, useremailaddress, and usertenantid are retrieved. If users click an option from the email body, these values remain empty. Additionally, when sending an approval email, the response for userid, useremailaddress, and usertenantid is null.

Known issues and limitations with triggers

Short description	Operations	Long description
Incorrect email attachment with digitally signed emails	All	For digitally signed emails, the trigger output may contain incorrect attachment content, which can't be used as input in subsequent actions (for example, to create a new file with attachment content).
Emails are missed due to system limitations	All	If there are many emails sent at the same time, some emails could be missed by the trigger due to underlying system limitations. This issue occurs rarely and is related to the mail triggers.
Trigger may run twice on emails with attachments with Dynamic Delivery	All	If Safe Attachments in Microsoft Defender for Office 365 is configured with Dynamic Delivery option, the trigger may run twice on receiving a new email. The first time it runs, attachments array in the trigger response is empty. As a workaround for emails with attachments, have a condition after the trigger that verifies whether the length of the attachments array is greater than 0.
Monitor multiple mailboxes or calendars	All	If you want to configure a trigger to monitor multiple mailboxes or calendars, create a separate flow/LogicApp for each mailbox or calendar.
Trigger fires twice	When a new event is created (V3)	When you accept a meeting invitation, the trigger would fire second time for this meeting event. The reason that the Outlook service treats an event after acceptance as a new event and rewrites its Id and created date—it recreates event. The user can work around this issue by filtering the trigger's outputs on the Response type parameter using built-in control module and its action's condition.
Trigger fires for all events in a recurring event	When an event is added, updated or deleted (V3)	Trigger fires on each event occurrence. When you change a recurring event, it affects all events in this series. For example, if a series has 15 occurrences, the trigger will fire 15 times.
Trigger fires with Deleted value in Action Type parameter for events outside interval window	When an event is added, updated or deleted (V3)	When a flow is configured to trigger for events inside of a specific time interval, all events outside of the defined interval — create, update, or deleted — will trigger the flow as Action Type parameter with a Deleted value. This situation can occur because of the following reason: Interval periods are set at the time of the trigger creation and then updated one time per week, i.e., if 6 days have passed since the trigger was created, and the days 30 (before) and 30 (after) were set in the fields, then these dates will be relevant at the time of trigger creation. After 6 days it will look as if 36 (before) and 24 (after) were set. After 7 days, the trigger will automatically update and the dates will again be 30 (before) and 30 (after). The main reason of this limitation is because of Microsoft Graph’s delta query behavior. For more information, go to event: delta - Microsoft Graph v1.0 - Microsoft Learn.
Trigger provides unnecessary updates	When an event is added, updated or deleted (V3)	An event can be updated due to internal Exchange processes and the trigger will fire again because of that. Users can filter a trigger's outputs on the Action Type parameter to ignore unnecessary updates.
Delay in a trigger fire	When a new email arrives (V3) When a new email mentioning me arrives (V3) When an email is flagged (V3) When an event is added, updated or deleted (V3)	Triggers fire on the corresponding event's occurrence almost immediately in most cases, but there could be rare circumstances when the trigger's delay to fire may take up to one hour.
Trigger behavior when an email folder is changed	When a new email arrives (V3) When a new email arrives in a shared mailbox (V2) When a new email mentioning me arrives (V2)	Triggers are based on the date and time an email was received. Moving an email to another folder does not change the received date property value, so the triggers will skip any email that was received prior to the latest successful run.
Flow intermittently triggers for older emails when moved to folder	When a new email arrives in a shared mailbox (V2)	The flow intermittently triggers for both older emails and the latest emails moved to another folder. This is by design and may result in inconsistent behavior.
Trigger behavior on flagged email	When an email is flagged When an email is flagged (V2) When an email is flagged (V3) When an email is flagged (V4)	Triggers fire on flagging an email or receiving a flagged email. Also, if an already flagged email is modified in any way (for example, an email category is changed or an email is replied), the trigger will fire on this email. Furthermore, when multiple emails are flagged at once, it causes the trigger to run multiple times for few emails.
Trigger limitation for shared mailboxes	When a new email arrives in a shared mailbox (V2)	The trigger won't work in cases of user-to-user shared mailboxes unless one of the users has full access to the other mailbox (which includes more permissions than just sending emails).
Trigger timeout with attachments	When a new email arrives (V3)	Setting Include Attachments to Yes causes the connector to wait for all attachments to be downloaded. When many emails with attachments arrive around the same time, the connector can timeout while downloading these attachments. To avoid this, the trigger should be changed to set Include Attachments to No, and the logic should be changed to add the Get Attachment (V2) action to download the attachment. Additionally, LogicApps authors should ensure that the Office 365 mailbox and the LogicApp are hosted in the same region to reduce attachment download time.
Trigger limitation when using To Or CC filter	When a new email arrives (V3)	When filtering by the To or CC field, only that field should be populated and the others left empty. If both the To and CC fields are set, then the trigger will fire only for emails that have the emailId(s) in both of the fields.
Email encryption limitation	When a new email arrives (V3) When a new email arrives in a shared mailbox (V2)	The output of triggers does not contain actual message body but will have note mentioning the message is secured and prohibited and this response is from backend.

Common errors

Error	Solution
Access to OData is disabled or most errors when using the connector	Check that the REST API is enabled. Accounts on a dedicated (on-premise) mail server or accounts that are sandbox (test) accounts may also see an error. Your administrator can learn how to migrate a mailbox in How to migrate mailbox data by using the Exchange Admin Center in Office 365. If you are using an EWS application access policy, ensure that the following user-agents are allowed: "LogicAppsDesigner/","azure-logic-apps/","PowerApps/", "Mozilla/", "Microsoft Flow*", "Azure.Connectors.Office365Outlook.Office365OutlookConnector", "Azure.Connectors.Outlook.OutlookConnector", "PowerAutomateLocal/*", "PowerAutomateCloud/*".
REST API is not yet supported for this mailbox	The error can occur if the mailbox is on a dedicated Microsoft Exchange Server and is not a valid Office 365 mailbox. For more details, go to REST API is not yet supported for this mailbox error for request to a mailbox.
Specified object was not found in the store	Verify the permissions for the account. Verify the user account used for the trigger is a member of the shared mailbox. Verify that the original mailbox address field contains the shared mailbox address. Re-check the shared mailbox configuration in the admin center. Delete the current Outlook connection and create a new one. Also, this error is displayed when the message has been moved or deleted by the mailbox owner. To learn more, go to Configure shared mailbox settings.
AADSTS53003: Access has been blocked by Conditional Access policies and the access policy does not allow token issuance and other Conditional Access errors	Conditional Access policies can prevent the connector from running as expected. To learn more, go to the Microsoft Entra ID Conditional Access documentation.

General known issues and limitations

• To use this integration, you'll need access to an Office 365 mailbox that has the REST API enabled. To make a connection, select Sign In. You'll be prompted to provide your Office 365 account. Then, follow the instructions to create a connection.

• There are two types of email attachments:

  • File attachments: Any file, such as a .txt, .jpg, .zip, .pdf, and others. One of the few properties in a file attachment is the base64 encoded content of the file. The latest versions of all triggers support these attachments. EML, MSG, and ICS files should be attached within .zip archives to be available in trigger responses.

  • Item attachments: Email messages, calendar items, and NDR (Non-Delivery Report) emails that are attached to an email. Item attachments have many properties. These attachments, including NDR emails, are not supported by the connector at the moment. To workaround this issue, you can do the following:

    • Use Invoke an HTTP request action under the HTTP with Microsoft Entra ID connector.
    • When creating a connection for the HTTP with Microsoft Entra ID connector, input text https://graph.microsoft.com/ for both Microsoft Entra ID Resource URI and Base Resource URL connection parameters.

    Warning

    Don't use the public endpoint (https://graph.microsoft.com) for national clouds. To learn more, go to Microsoft Graph and Graph Explorer service root endpoints.

    • After connection with HTTP with Microsoft Entra ID is created, use that action with with this Get attachments endpoint.

• We have a size limit of 1MB per data uri for inline embedded images, i.e. the image cannot be more than 1MB after base64 encoding. This only applies to embedded images inside of the mail body. Bear in mind the size of an image after being converted to a base64 string increases. Depending on the image compression, format, and other characteristics it can increase anywhere between 25% to 50%. For instance, an image of more than 700KB will after being converted to a base 64 string likely exceed the 1MB limit stated above.

• An Office 365 group address can't be used as shared mailbox address.

• If the email is sent outside of the associated organization, the admin should check if the organization has specific rules to reject sending/forwarding emails outside of the associated organization (for example, using SMTP headers). To learn more, go to SMTP headers.

• Shared calendars are not supported in Office 365 Outlook connector.

• Forward slash symbol / isn't supported for folder names in case of custom input value for Folder parameter. As a workaround, use file picker, or provide folder Id value.

• In some rare cases, newly created users get a connection error despite required permissions granted to their accounts. The workaround would be to switch/re-authenticate the shared mailbox connection with the email address and password of the shared mailbox account. This way, the flow should run successfully for all users.

• After the permissions are granted for the account to access the shared mailbox, it can take about two hours until the permissions are replicated on the platform.

• Each email will count as only one API call per connection, even if there's more than one recipient in the To, Cc, or Bcc fields. To learn more about sending limits, go to sending limits.

• In some circumstances, non-Latin characters won't render as expected when sending an email with an adaptive card inside it. To learn more, go to Known issues with HTML to PDF conversion. As a potential workaround, use the same type of characters in the email subject as used in adaptive card.

Throttling limits on the Office side

In addition to the throttling limits per connection, Office imposes its own limits per inbox. This limit can be reached if the user creates different flows/Logic Apps that target the same inbox. To learn more, go to the Exchange Online limits documentation.

Connector timeouts detail

Office 365 Outlook connector makes outgoing requests to one of the following APIs:

• Graph API, which has 30 seconds timeout interval per single external request.
• Outlook REST API, which has 60 seconds timeout interval per single external request.

This error will be returned after a request to these external APIs reached the limit: { "status": 504, "message": "Request failed. Try again later"} Such failed requests will be retried up to four times in Power Automate/Azure Logic Apps (unless the default retry policy is overridden by the user). To learn more about retry policy, go to Handle errors and exceptions in Azure Logic Apps.

The 504 (gateway timeout) status code returned doesn't imply the underlying action was unsuccessful. Due to default retry policy (if applied), the same action can be executed multiple times. For example, if the Send an email action results in a 504 response, and it retries the request, then duplicate emails are possible.

Deprecation of Webhook trigger

Due to a recent change in the lifecycle of webhook subscriptions, the When a new email arrives (webhook) trigger has been deprecated. While we are working to provide a solution to this, use the When a new email arrives polling trigger instead.

Shared mailbox support

As of May 6, 2020, shared mailbox support was added for certain operations with an optional Mailbox address parameter, which allows you to specify a shared mailbox address for your operation to access. If you were using this operation prior to May 6, 2020, you'll need to explicitly update your operations to specify the shared mailbox address.

For operations that don't support shared mailboxes yet, you can use a workaround with the Invoke an HTTP request action under the HTTP with Microsoft Entra ID connector. When creating a connection for the HTTP with Microsoft Entra ID connector, input text https://graph.microsoft.com/ for both Microsoft Entra ID Resource URI and Base Resource URL connection parameters. After it's created, you can go to Outlook mail REST API to set the URL, and optionally the request body to call its shared mailbox APIs. Some of the Outlook functions will only be available on the beta version of Graph API. The HTTP with Microsoft Entra ID connector is a premium connector and won't be available if you are using the free version of Microsoft Power Automate.

Add hyperlinks to the email body

For adding hyperlinks to the email body, you can do the following:

• In the Body field, mark the text you want to link, and then select the Link icon.
• When you see the dialog, paste your link address into the Link Target field, and then select the Add button.
• To verify that everything is correct, place the cursor over your new link. When you see the small icon, select it to open the linked page.

SMTP headers

The connector is attaching the following SMTP headers (Internet message headers) to each sent email:

1. "x-ms-mail-application" with the following values:

   Service	Value
   Power Automate	Microsoft Power Automate; User-Agent: azure-logic-apps/1.0 (workflow <workflow id>; version <version id>) microsoft-flow/1.0
   Power Apps	Microsoft Power Apps; User-Agent: PowerApps/<version id> (<Player type>; AppName=<app name>)
   Logic Apps	Azure Logic Apps; User-Agent: azure-logic-apps/1.0 (workflow <workflow id>; version <version id>)

2. "x-ms-mail-operation-type" with the following values:

   Description	Value
   For reply email operations	Reply
   For forward email operations	Forward
   For send email operations (including SendEmailWithOptions and SendApprovalEmail)	Send

3. "x-ms-mail-environment-id" with Environment Id value.
   The presence of this header depends on the product you are using:

   • In Power Apps, it will always be present.
   • In Power Automate, it will only be present in newly created connections.
   • In Logic Apps, it will never be present.

4. "x-ms-mail-workflow" with the following values:

   Service	Value
   Power Automate	x-ms-workflow-name: <workflow name>; x-ms-workflow-run-id: <workflow run id>; x-ms-client-request-id: <client request id>;
   Logic Apps	x-ms-workflow-name: <workflow name>; x-ms-workflow-run-id: <workflow run id>; x-ms-client-request-id: <client request id>;
   Power Apps	x-ms-client-request-id: <client request id>;

Working with attachments

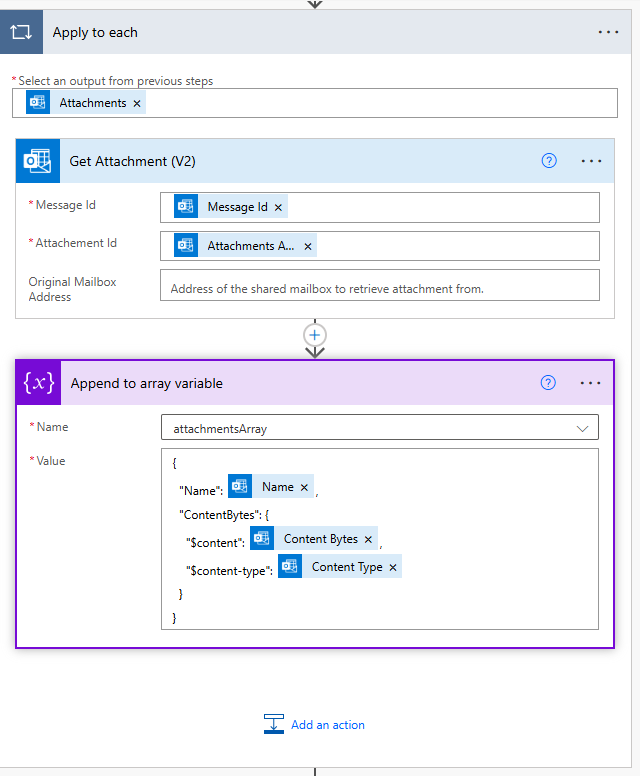

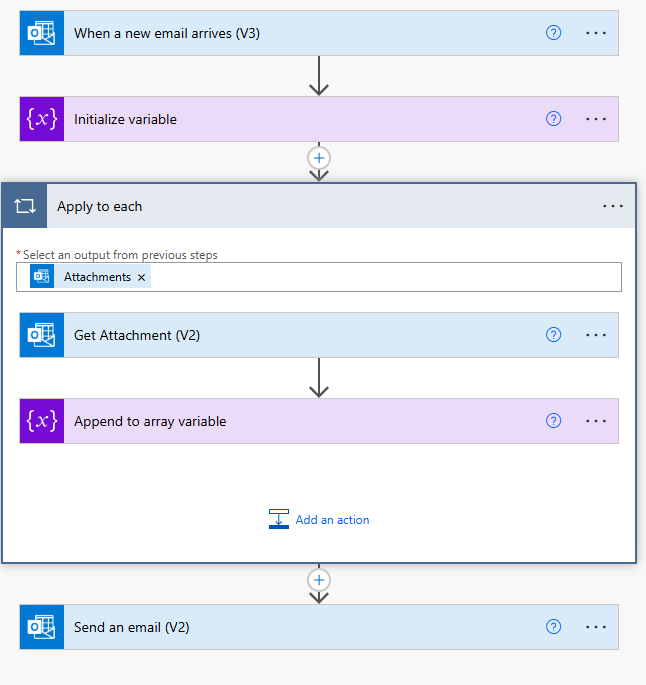

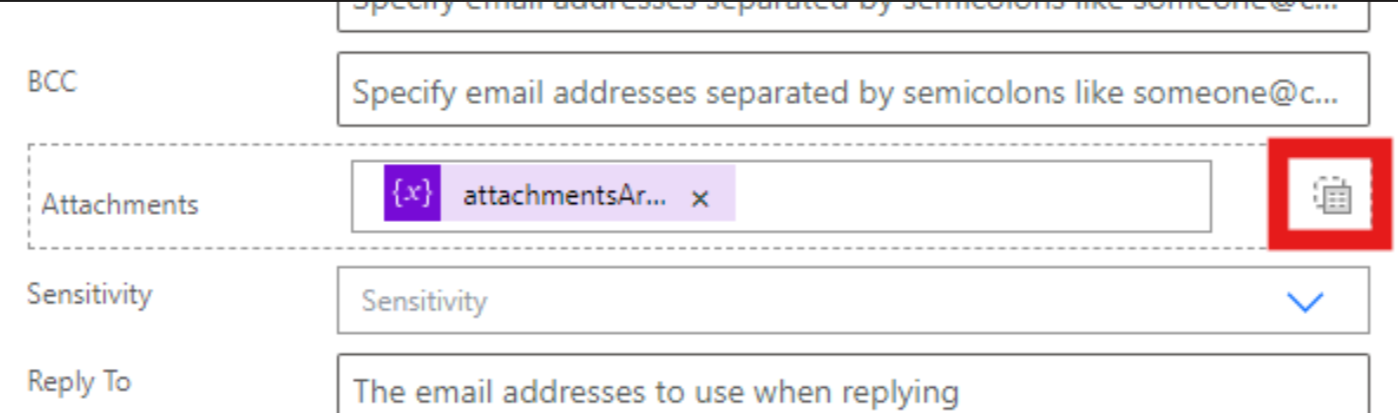

Certain triggers and actions have a parameter to control whenever attachments content should be included into the response - Include Attachments. This parameter controls only attachments content, but not the attachments metadata (like Id, Name, Content Type, Size, and Is Inline), which would be included in the response regardless of the parameter value.

Connector in-depth

To learn more about the connector, go to Connect to Office 365 Outlook using Azure Logic Apps.

General Limits

Name	Value
Maximum mails content length (in MB)	49
Maximum total mails content length per connection per 5 minutes for 'Send an email' actions (in MB)	500
Maximum total content length per connection per 5 minutes for ALL actions (in MB)	2000
Maximum number of options for options and approval mails	100
Maximum number of megabytes being transferred from the connector concurrently	300
Maximum number of requests being processed by the connector concurrently	70

Creating a connection

The connector supports the following authentication types:

Office 365 Credentials (Office GCC High)	Log in with Office 365 Credentials (Office GCC High).	Azure Government only	Not shareable
Office 365 Credentials (Office Public/Office GCC)	Log in with Office 365 Credentials (Office Public/Office GCC).	Azure Government only	Not shareable
Default	Log in with Office 365 Credentials	All regions except Azure Government	Not shareable

Office 365 Credentials (Office GCC High)

Auth ID: oauthGccHigh

Applicable: Azure Government only

Log in with Office 365 Credentials (Office GCC High).

This is not shareable connection. If the power app is shared with another user, another user will be prompted to create new connection explicitly.

Office 365 Credentials (Office Public/Office GCC)

Auth ID: oauthPublic

Applicable: Azure Government only

Log in with Office 365 Credentials (Office Public/Office GCC).

This is not shareable connection. If the power app is shared with another user, another user will be prompted to create new connection explicitly.

Default

Applicable: All regions except Azure Government

Log in with Office 365 Credentials

This is not shareable connection. If the power app is shared with another user, another user will be prompted to create new connection explicitly.

Throttling Limits

Name	Calls	Renewal Period
API calls per connection	300	60 seconds

Actions

Create contact (V2)	This operation creates a new contact in a contacts folder.
Create contact [DEPRECATED]	This action has been deprecated. Please use Create contact (V2) instead. This operation creates a new contact in a contacts folder.
Create event (V1) [DEPRECATED]	This action has been deprecated. Please use Create event (V4) instead. This operation creates a new event in a calendar. (V1)
Create event (V2) [DEPRECATED]	This action has been deprecated. Please use Create event (V4) instead. This operation creates a new event in a calendar. (V2)
Create event (V3) [DEPRECATED]	This action has been deprecated. Please use Create event (V4) instead. This operation creates a new event in a calendar.
Create event (V4)	This operation creates a new event in a calendar.
Delete contact (V2)	This operation deletes a contact from a contacts folder.
Delete contact [DEPRECATED]	This action has been deprecated. Please use Delete contact (V2) instead. This operation deletes a contact from a contacts folder.
Delete email (V2)	This operation deletes an email by id.
Delete email [DEPRECATED]	This action has been deprecated. Please use Delete email (V2) instead. This operation deletes an email by id.
Delete event (V2)	This operation deletes an event in a calendar.
Delete event [DEPRECATED]	This action has been deprecated. Please use Delete event (V2) instead. This operation deletes an event in a calendar.
Export email (V2)	Export the content of the email in the EML file format.
Export email [DEPRECATED]	This action has been deprecated. Please use Export email (V2) instead. Export the content of the email.
Find meeting times (V2)	Find meeting time suggestions based on organizer, attendee availability, and time or location constraints
Find meeting times [DEPRECATED]	This action has been deprecated. Please use Find meeting times (V2) instead. Find meeting time suggestions based on organizer, attendee availability, and time or location constraints
Flag email (V2)	This operation updates an email flag.
Flag email [DEPRECATED]	This action has been deprecated. Please use Flag email (V2) instead. This operation flags an email.
Forward an email (V2)	Forward an email.
Forward an email [DEPRECATED]	This action has been deprecated. Please use Forward an email (V2) instead. Forward an email.
Get Attachment (V2)	This operation gets an email attachment by id.
Get attachment [DEPRECATED]	This action has been deprecated. Please use Get Attachment (V2) instead. This operation gets an email attachment by id.
Get calendar view of events (V2) [DEPRECATED]	This action has been deprecated. Please use Get calendar view of events (V3) instead. This operation gets all events (including instances of recurrences) in a calendar. Recurrence property is null in this case.
Get calendar view of events (V3)	This operation gets all events (including instances of recurrences) in a calendar using Graph API. Recurrence property is null in this case.
Get calendar view of events [DEPRECATED]	This action has been deprecated. Please use Get calendar view of events (V3) instead. Get calendar view of events.
Get calendars (V2)	This operation lists available calendars.
Get calendars [DEPRECATED]	This action has been deprecated. Please use Get calendars (V2) instead. This operation lists available calendars.
Get contact (V2)	This operation gets a specific contact from a contacts folder.
Get contact [DEPRECATED]	This action has been deprecated. Please use Get contact (V2) instead. This operation gets a specific contact from a contacts folder.
Get contact folders (V2)	This operation lists available contacts folders using Graph API
Get contact folders [DEPRECATED]	This action has been deprecated. Please use Get contact folders (V2) instead. This operation lists available contacts folders.
Get contacts (V2)	This operation gets contacts from a contacts folder.
Get contacts [DEPRECATED]	This action has been deprecated. Please use Get contacts (V2) instead. This operation gets contacts from a contacts folder.
Get email (V2)	This operation gets an email by id.
Get email [DEPRECATED]	This action has been deprecated. Please use Get email (V2) instead. This operation gets an email by id.
Get emails (V2) [DEPRECATED]	This action has been deprecated. Please use Get emails (V3) instead. This operation gets emails from a folder.
Get emails (V3)	This operation gets emails from a folder via graph apis. Please note that filtering related to these fields: To, Cc, To Or Cc, From, Importance, Fetch Only With Attachments, Subject Filter, is performed using first 250 items in a given mail folder. To avoid that limitation you can use 'Search Query' field.
Get emails [DEPRECATED]	This action has been deprecated. Please use Get emails (V3) instead. This operation gets emails from a folder.
Get event (V1) [DEPRECATED]	This action has been deprecated. Please use Get event (V3) instead. This operation gets a specific event from a calendar. (V1)
Get event (V2) [DEPRECATED]	This action has been deprecated. Please use Get event (V3) instead. This operation gets a specific event from a calendar. (V2)
Get event (V3)	This operation gets a specific event from a calendar using Graph API. (V3)
Get events (V1) [DEPRECATED]	This action has been deprecated. Please use Get events (V4) instead. This operation gets events from a calendar. (V1)
Get events (V2) [DEPRECATED]	This action has been deprecated. Please use Get events (V4) instead. This operation gets events from a calendar. (V2)
Get events (V3) [DEPRECATED]	This action has been deprecated. Please use Get events (V4) instead. This operation gets events from a calendar. (V3)
Get events (V4)	This operation gets events from a calendar using Graph API. (V4)
Get mail tips for a mailbox (V2)	Get mail tips for a mailbox such as automatic replies / OOF message or if the mailbox is full. This is not available in GccHigh and Mooncake.
Get mail tips for a mailbox [DEPRECATED]	This action has been deprecated. Please use Get mail tips for a mailbox (V2) instead. Get mail tips for a mailbox such as automatic replies / OOF message or if the mailbox is full.
Get room lists (V2)	Get all the room lists defined in the user's tenant
Get room lists [DEPRECATED]	This action has been deprecated. Please use Get room lists (V2) instead. Get all the room lists defined in the user's tenant
Get rooms (V2)	Get all the meeting rooms defined in the user's tenant
Get rooms [DEPRECATED]	This action has been deprecated. Please use Get rooms (V2) instead. Get all the meeting rooms defined in the user's tenant
Get rooms in room list (V2)	Get the meeting rooms in a specific room list
Get rooms in room list [DEPRECATED]	This action has been deprecated. Please use Get rooms in room list (V2) instead. Get the meeting rooms in a specific room list
Mark as read [DEPRECATED]	This action has been deprecated. Please use Mark as read or unread (V3) instead. This operation marks an email as having been read.
Mark as read or unread (V2) [DEPRECATED]	This action has been deprecated. Please use Mark as read or unread (V3) instead. This operation marks an email as read/unread.
Mark as read or unread (V3)	This operation marks an email as read/unread.
Move email (V2)	This operation moves an email to the specified folder within the same mailbox.
Move email [DEPRECATED]	This action has been deprecated. Please use Move email (V2) instead. This operation moves an email to the specified folder within the same mailbox.
Reply to email (V2) [DEPRECATED]	This action has been deprecated. Please use Reply to email (V3) instead. This operation replies to an email.
Reply to email (V3)	This operation replies to an email.
Reply to email [DEPRECATED]	This action has been deprecated. Please use Reply to email (V3) instead. This operation replies to an email.
Respond to an event invite (V2)	Respond to an event invite.
Respond to an event invite [DEPRECATED]	This action has been deprecated. Please use Respond to an event invite (V2) instead. Respond to an event invite.
Send an email (V2)	This operation sends an email message.
Send an email [DEPRECATED]	This action has been deprecated. Please use Send an email (V2) instead. This operation sends an email message.
Send an email from a shared mailbox (V2)	This operation sends an email from a shared mailbox. Your account should have permission to access the mailbox for this operation to succeed.
Send an email from a shared mailbox [DEPRECATED]	This action has been deprecated. Please use Send an email from a shared mailbox (V2) instead. This operation sends an email from a shared mailbox. Your account should have permission to access the mailbox for this operation to succeed.
Send an HTTP request	Construct a Microsoft Graph REST API request to invoke. These segments are supported: 1st segement: /me, /users/ 2nd segment: messages, mailFolders, events, calendar, calendars, outlook, inferenceClassification. Learn more: https://docs.microsoft.com/en-us/graph/use-the-api.
Send approval email	This operation sends an approval email and waits for a response from the recipient. Please refer to the following link regarding the support of actionable messages in different mail clients: https://docs.microsoft.com/outlook/actionable-messages/#outlook-version-requirements-for-actionable-messages.
Send email with options	This operation sends an email with multiple options and waits for the recipient to respond back with one of the options. Please refer to the following link regarding the support of actionable messages in different mail clients: https://docs.microsoft.com/outlook/actionable-messages/#outlook-version-requirements-for-actionable-messages.
Set up automatic replies (V2)	Set the automatic replies setting for your mailbox.
Set up automatic replies [DEPRECATED]	This action has been deprecated. Please use Set up automatic replies (V2) instead. Set the automatic replies setting for your mailbox.
Update contact (V2)	This operation updates a contact in a contacts folder.
Update contact [DEPRECATED]	This action has been deprecated. Please use Update contact (V2) instead. This operation updates a contact in a contacts folder.
Update event (V1) [DEPRECATED]	This action has been deprecated. Please use Update event (V4) instead. This operation updates an event in a calendar. (V1)
Update event (V2) [DEPRECATED]	This action has been deprecated. Please use Update event (V4) instead. This operation updates an event in a calendar. (V2)
Update event (V3) [DEPRECATED]	This action has been deprecated. Please use Update event (V4) instead. This operation updates an event in a calendar.
Update event (V4)	This operation updates an event in a calendar using Graph API.
Update my contact's photo	Updates the photo of the specified contact of the current user. The size of the photo must be less than 4 MB.

Create contact (V2)

Operation ID:

ContactPostItem_V2

This operation creates a new contact in a contacts folder.

Parameters

Name	Key	Required	Type	Description
Folder id	folder	True	string	Select a contacts folder
Id	id		string	The contact's unique identifier.
Parent folder id	parentFolderId		string	The ID of the contact's parent folder
Birthday	birthday		date-time	The contact's birthday
File as	fileAs		string	The name the contact is filed under
Display Name	displayName		string	The contact's display name
Given name	givenName	True	string	The contact's given name
Initials	initials		string	The contact's initials
Middle name	middleName		string	The contact's middle name
Nickname	nickName		string	The contact's nickname
Surname	surname		string	The contact's surname
Title	title		string	The contact's title
Generation	generation		string	The contact's generation
name	name		string
address	address		email
IM addresses	imAddresses		array of string	The contact's instant messaging (IM) addresses
JobTitle	jobTitle		string	The contact's job title
Company name	companyName		string	The name of the contact's company
Department	department		string	The contact's department
Office location	officeLocation		string	The location of the contact's office
Profession	profession		string	The contact's profession
Business home page	businessHomePage		string	The business home page of the contact
Assistant name	assistantName		string	The name of the contact's assistant
Manager	manager		string	The name of the contact's manager
Home phones	homePhones	True	array of string	The contact's home phone numbers
Business phones	businessPhones		array of string	The contact's business phone numbers
Mobile phone	mobilePhone		string	The contact's mobile phone number
Street	street		string	The contact's street address.
City	city		string	The contact's city.
State	state		string	The contact's state.
Country Or Region	countryOrRegion		string	The contact's country of region.
Postal code	postalCode		string	The contact's postal code.
Street	street		string	The contact's street address.
City	city		string	The contact's city.
State	state		string	The contact's state.
Country Or Region	countryOrRegion		string	The contact's country of region.
Postal code	postalCode		string	The contact's postal code.
Street	street		string	The contact's street address.
City	city		string	The contact's city.
State	state		string	The contact's state.
Country Or Region	countryOrRegion		string	The contact's country of region.
Postal code	postalCode		string	The contact's postal code.
Yomi company name	yomiCompanyName		string	The phonetic Japanese company name of the contact
Yomi given name	yomiGivenName		string	The phonetic Japanese given name (first name) of the contact
Yomi surname	yomiSurname		string	The phonetic Japanese surname (last name) of the contact
Categories	categories		array of string	The categories associated with the contact
Change key	changeKey		string	Identifies the version of the event object
Created time	createdDateTime		date-time	The time the contact was created
Last modified time	lastModifiedDateTime		date-time	The time the contact was modified

Returns

Contact

Body

ContactResponse_V2

Create contact [DEPRECATED]

Operation ID:

ContactPostItem

This action has been deprecated. Please use Create contact (V2) instead.

This operation creates a new contact in a contacts folder.

Parameters

Name	Key	Required	Type	Description
Folder id	table	True	string	Select a contacts folder
Id	Id		string	The contact's unique identifier.
Parent folder id	ParentFolderId		string	The ID of the contact's parent folder
Birthday	Birthday		date-time	The contact's birthday
File as	FileAs		string	The name the contact is filed under
Display Name	DisplayName		string	The contact's display name
Given name	GivenName	True	string	The contact's given name
Initials	Initials		string	The contact's initials
Middle name	MiddleName		string	The contact's middle name
Nickname	NickName		string	The contact's nickname
Surname	Surname		string	The contact's surname
Title	Title		string	The contact's title
Generation	Generation		string	The contact's generation
Name	Name		string
Address	Address		email
IM addresses	ImAddresses		array of string	The contact's instant messaging (IM) addresses
JobTitle	JobTitle		string	The contact's job title
Company name	CompanyName		string	The name of the contact's company
Department	Department		string	The contact's department
Office location	OfficeLocation		string	The location of the contact's office
Profession	Profession		string	The contact's profession
Business home page	BusinessHomePage		string	The business home page of the contact
Assistant name	AssistantName		string	The name of the contact's assistant
Manager	Manager		string	The name of the contact's manager
Home phones	HomePhones	True	array of string	The contact's home phone numbers
Business phones	BusinessPhones		array of string	The contact's business phone numbers
Mobile phone	MobilePhone1		string	The contact's mobile phone number
Street	Street		string
City	City		string
State	State		string
CountryOrRegion	CountryOrRegion		string
PostalCode	PostalCode		string
Street	Street		string
City	City		string
State	State		string
CountryOrRegion	CountryOrRegion		string
PostalCode	PostalCode		string
Street	Street		string
City	City		string
State	State		string
CountryOrRegion	CountryOrRegion		string
PostalCode	PostalCode		string
Yomi company name	YomiCompanyName		string	The phonetic Japanese company name of the contact
Yomi given name	YomiGivenName		string	The phonetic Japanese given name (first name) of the contact
Yomi surname	YomiSurname		string	The phonetic Japanese surname (last name) of the contact
Categories	Categories		array of string	The categories associated with the contact
Change key	ChangeKey		string	Identifies the version of the event object
Created time	DateTimeCreated		date-time	The time the contact was created
Last modified time	DateTimeLastModified		date-time	The time the contact was modified

Returns

Contact response

Body

ContactResponse

Create event (V1) [DEPRECATED]

Operation ID:

CalendarPostItem

This action has been deprecated. Please use Create event (V4) instead.

This operation creates a new event in a calendar. (V1)

Parameters

Name	Key	Required	Type	Description
Calendar id	table	True	string	Select a calendar
Id	Id		string	The Event's unique identifier
Response	Response		string
Time	Time		date-time
Type	Type		string
Name	Name		string
Address	Address		email
ContentType	ContentType		string
Content	Content		string
Body preview	BodyPreview		string	The preview of the message associated with the event
Categories	Categories		array of string	The categories associated with the event
Change key	ChangeKey		string	This property identifies the version of the event object. Every time the event is changed, ChangeKey changes as well.
Created time	DateTimeCreated		date-time	The date and time that the event was created
Last modified time	DateTimeLastModified		date-time	The date and time that the event was last modified
End time	End	True	date-time	The end time of the event
End time zone	EndTimeZone		string	This property specifies the time zone of the meeting end time. The value must be as defined in Windows (example: 'Pacific Standard Time').
Has attachments?	HasAttachments		boolean	Set to true if the event has attachments
Event Unique ID	ICalUId		string	A unique identifier that is shared by all instances of an event across different calendars
Importance	Importance		string	The importance of the event: Low, Normal, or High
Is all day event?	IsAllDay		boolean	Set to true if the event lasts all day
Is cancelled?	IsCancelled		boolean	Set to true if the event has been canceled
Is Organizer	IsOrganizer		boolean	Set to true if the message sender is also the organizer
DisplayName	DisplayName		string
Street	Street		string
City	City		string
State	State		string
CountryOrRegion	CountryOrRegion		string
PostalCode	PostalCode		string
Altitude	Altitude		double
Latitude	Latitude		double
Longitude	Longitude		double
Accuracy	Accuracy		double
AltitudeAccuracy	AltitudeAccuracy		double
Name	Name		string
Address	Address		email
Type	Type		string
Interval	Interval		integer
Month	Month		integer
DayOfMonth	DayOfMonth		integer
DaysOfWeek	DaysOfWeek		array of string
FirstDayOfWeek	FirstDayOfWeek		string
Index	Index		string
Type	Type		string
StartDate	StartDate		date-time
EndDate	EndDate		date-time
NumberOfOccurrences	NumberOfOccurrences		integer
Reminder	Reminder		integer	Time in minutes before event start to remind
Response requested	ResponseRequested		boolean	Set to true if the sender would like a response when the event is accepted or declined
Response	Response		string
Time	Time		date-time
Series master id	SeriesMasterId		string	Unique identifier for Series Master event type
Show as	ShowAs		string	Shows as free or busy
Start time	Start	True	date-time	The start time of the event
Start time zone	StartTimeZone		string	This property specifies the time zone of the meeting start time. The value must be as defined in Windows (example: 'Pacific Standard Time').
Subject	Subject	True	string	Event subject
Type	Type		string	The event type: Single Instance, Occurrence, Exception, or Series Master
Web link	WebLink		uri	The preview of the message associated with the event
Reason	Reason		string	The reason property used by O365 sync events protocol, will be 'deleted' if its a deleted event.

Returns

Connector specific calendar event model class for the backend

Body

CalendarEventBackend

Create event (V2) [DEPRECATED]

Operation ID:

V2CalendarPostItem

This action has been deprecated. Please use Create event (V4) instead.

This operation creates a new event in a calendar. (V2)

Parameters

Name	Key	Required	Type	Description
Calendar id	table	True	string	Select a calendar
Subject	Subject	True	string	Event subject
Start time	Start	True	date-time	Start time of the event (example: '2016-11-01T14:30:00Z')
End time	End	True	date-time	End time of the event (example: '2016-11-01T15:30:00Z')
Time zone	TimeZone		string	Time zone of the event
Required attendees	RequiredAttendees		email	Required attendees for the event separated by semicolons
Optional attendees	OptionalAttendees		email	Optional attendees for the event separated by semicolons
Resource attendees	ResourceAttendees		string	Resource attendees for the event separated by semicolons
Body	Body		string	Body of the message associated with the event
Is HTML	IsHtml		boolean	Set to true if the body is Html
Location	Location		string	Location of the event
Importance	Importance		string	The importance of the event: Low, Normal, or High
Is all day event?	IsAllDay		boolean	Set to true if the event lasts all day
Recurrence	Recurrence		string	The recurrence pattern for the event
Recurrence end time	RecurrenceEnd		date-time	End time of the recurrence
Number of occurrences	NumberOfOccurrences		integer	How many times to repeat the event
Reminder	Reminder		integer	Time in minutes before event start to remind
Show as	ShowAs		string	Status to show during the event
Response requested	ResponseRequested		boolean	Set to true if the sender would like a response when the event is accepted or declined

Returns

Connector specific calendar event model class for the client

Body

CalendarEventClientReceiveStringEnums

Create event (V3) [DEPRECATED]

Operation ID:

V3CalendarPostItem

This action has been deprecated. Please use Create event (V4) instead.

This operation creates a new event in a calendar.

Parameters

Name	Key	Required	Type	Description
Calendar id	table	True	string	Select a calendar
Subject	Subject	True	string	Event subject
Start time	Start	True	date-time	Start time of the event (example: '2016-11-01T14:30:00Z')
End time	End	True	date-time	End time of the event (example: '2016-11-01T15:30:00Z')
Time zone	TimeZone		string	Time zone of the event
Required attendees	RequiredAttendees		email	Required attendees for the event separated by semicolons
Optional attendees	OptionalAttendees		email	Optional attendees for the event separated by semicolons
Resource attendees	ResourceAttendees		string	Resource attendees for the event separated by semicolons
Body	Body		html	Body of the message associated with the event
Location	Location		string	Location of the event
Importance	Importance		string	The importance of the event: Low, Normal, or High
Is all day event?	IsAllDay		boolean	Set to true if the event lasts all day
Recurrence	Recurrence		string	The recurrence pattern for the event
Recurrence end time	RecurrenceEnd		date-time	End time of the recurrence
Number of occurrences	NumberOfOccurrences		integer	How many times to repeat the event
Reminder	Reminder		integer	Time in minutes before event start to remind
Show as	ShowAs		string	Status to show during the event
Response requested	ResponseRequested		boolean	Set to true if the sender would like a response when the event is accepted or declined

Returns

Connector specific calendar event model class for the client

Body

CalendarEventClientReceiveStringEnums

Create event (V4)

Operation ID:

V4CalendarPostItem

This operation creates a new event in a calendar.

Parameters

Name	Key	Required	Type	Description
Calendar id	table	True	string	Select a calendar
Subject	subject	True	string	Event subject
Start time	start	True	date-no-tz	Start time of the event (example: '2017-08-29T04:00:00')
End time	end	True	date-no-tz	End time of the event (example: '2017-08-29T05:00:00')
Time zone	timeZone	True	string	Time zone of the event
Required attendees	requiredAttendees		email	Required attendees for the event separated by semicolons
Optional attendees	optionalAttendees		email	Optional attendees for the event separated by semicolons
Resource attendees	resourceAttendees		string	Resource attendees for the event separated by semicolons
Body	body		html	Body of the message associated with the event
Categories	categories		array of string	The categories associated with the event
Location	location		string	Location of the event
Importance	importance		string	The importance of the event: low, normal, or high
Is all day event?	isAllDay		boolean	Set to true if the event lasts all day
Recurrence	recurrence		string	The recurrence pattern for the event: none, daily, weekly, monthly or yearly
Selected days of week	selectedDaysOfWeek		array of string	Days of week for weekly recurrence
Recurrence end date	recurrenceEnd		date	End Date of the recurrence
Number of occurrences	numberOfOccurences		integer	How many times to repeat the event
Reminder	reminderMinutesBeforeStart		integer	Time in minutes before event start to remind
Is reminder on	isReminderOn		boolean	Set to true if an alert is set to remind the user of the event.
Show as	showAs		string	Status to show during the event: free, tentative, busy, oof, workingElsewhere or unknown
Response requested	responseRequested		boolean	Set to true if the sender would like a response when the event is accepted or declined
Sensitivity	sensitivity		string	The possible values are: normal, personal, private, confidential

Returns

Connector specific calendar event model class for the client with Graph API

Body

GraphCalendarEventClientReceive

Delete contact (V2)

Operation ID:

ContactDeleteItem_V2

This operation deletes a contact from a contacts folder.

Parameters

Name	Key	Required	Type	Description
Folder id	folder	True	string	Select a contacts folder
Id	id	True	string	Unique identifier of contact to delete

Delete contact [DEPRECATED]

Operation ID:

ContactDeleteItem

This action has been deprecated. Please use Delete contact (V2) instead.

This operation deletes a contact from a contacts folder.

Parameters

Name	Key	Required	Type	Description
Folder id	table	True	string	Select a contacts folder
Id	id	True	string	Unique identifier of contact to delete

Delete email (V2)

Operation ID:

DeleteEmail_V2

This operation deletes an email by id.

Parameters

Name	Key	Required	Type	Description
Message Id	messageId	True	string	Id of the email to delete.
Original Mailbox Address	mailboxAddress		string	Address of the shared mailbox to delete mail from.

Delete email [DEPRECATED]

Operation ID:

DeleteEmail

This action has been deprecated. Please use Delete email (V2) instead.

This operation deletes an email by id.

Parameters

Name	Key	Required	Type	Description
Message Id	messageId	True	string	Id of the email to delete.

Delete event (V2)

Operation ID:

CalendarDeleteItem_V2

This operation deletes an event in a calendar.

Parameters

Name	Key	Required	Type	Description
Calendar id	calendar	True	string	Select a calendar
Id	event	True	string	Select an event

Delete event [DEPRECATED]

Operation ID:

CalendarDeleteItem

This action has been deprecated. Please use Delete event (V2) instead.

This operation deletes an event in a calendar.

Parameters

Name	Key	Required	Type	Description
Calendar id	table	True	string	Select a calendar
Id	id	True	string	Select an event

Export email (V2)

Operation ID:

ExportEmail_V2

Export the content of the email in the EML file format.

Parameters

Name	Key	Required	Type	Description
Message Id	messageId	True	string	Id of the email to export.
Original Mailbox Address	mailboxAddress		string	Address of the shared mailbox to export from.

Returns

response

binary

Export email [DEPRECATED]

Operation ID:

ExportEmail

This action has been deprecated. Please use Export email (V2) instead.

Export the content of the email.

Parameters

Name	Key	Required	Type	Description
Message Id	messageId	True	string	Id of the email to export.

Returns

response

binary

Find meeting times (V2)

Operation ID:

FindMeetingTimes_V2

Find meeting time suggestions based on organizer, attendee availability, and time or location constraints

Parameters

Name	Key	Required	Type	Description
Required attendees	RequiredAttendees		string	List of semicolon separated email addresses
Optional attendees	OptionalAttendees		string	List of semicolon separated email addresses
Resource attendees	ResourceAttendees		string	Resource attendees for the event separated by semicolons
Meeting duration	MeetingDuration		integer	Duration of the meeting in minutes
Start time	Start		date-time	Start time for meeting time suggestions
End time	End		date-time	End time for meeting time suggestions
Max Candidates	MaxCandidates		integer	The maximum number of meeting suggestions to return in the response
Minimum Attendee Percentage	MinimumAttendeePercentage		string	The minimum required confidence for a time slot to be returned in the response
Is Organizer Optional?	IsOrganizerOptional		boolean	true if the organizer doesn't have to attend. The default is false
Activity Domain	ActivityDomain		string	Work, Personal, Unrestricted, or Unknown

Returns

Name	Path	Type	Description
Empty Suggestions Reason	emptySuggestionsReason	string	Empty Suggestions Reason
Meeting Time Suggestions	meetingTimeSuggestions	MeetingTimeSuggestions_V2	Meeting Time Suggestions

Find meeting times [DEPRECATED]

Operation ID:

FindMeetingTimes

This action has been deprecated. Please use Find meeting times (V2) instead.

Find meeting time suggestions based on organizer, attendee availability, and time or location constraints

Parameters

Name	Key	Required	Type	Description
Required attendees	RequiredAttendees		string	List of semicolon separated email addresses
Optional attendees	OptionalAttendees		string	List of semicolon separated email addresses
Resource attendees	ResourceAttendees		string	Resource attendees for the event separated by semicolons
Meeting duration	MeetingDuration		integer	Duration of the meeting in minutes
Start time	Start		date-time	Start time for meeting time suggestions
End time	End		date-time	End time for meeting time suggestions
Max Candidates	MaxCandidates		integer	The maximum number of meeting suggestions to return in the response
Minimum Attendee Percentage	MinimumAttendeePercentage		string	The minimum required confidence for a time slot to be returned in the response
Is Organizer Optional?	IsOrganizerOptional		boolean	true if the organizer doesn't have to attend. The default is false
Activity Domain	ActivityDomain		string	Work, Personal, Unrestricted, or Unknown

Returns

Name	Path	Type	Description
Empty Suggestions Reason	EmptySuggestionsReason	string	Empty Suggestions Reason
Meeting Time Suggestions	MeetingTimeSuggestions	MeetingTimeSuggestions	Meeting Time Suggestions

Flag email (V2)

Operation ID:

Flag_V2

This operation updates an email flag.

Parameters

Name	Key	Required	Type	Description
Message Id	messageId	True	string	Id of the email to be flagged.
Original Mailbox Address	mailboxAddress		string	Address of the shared mailbox to update mail.
Flag Status	flagStatus		string	Flag status

Flag email [DEPRECATED]

Operation ID:

Flag

This action has been deprecated. Please use Flag email (V2) instead.

This operation flags an email.

Parameters

Name	Key	Required	Type	Description
Message Id	messageId	True	string	Id of the email to be flagged.

Forward an email (V2)

Operation ID:

ForwardEmail_V2

Forward an email.

Parameters

Name	Key	Required	Type	Description
Message Id	message_id	True	string	Id of the message to forward. (You can use 'Message Id' from trigger or 'Get Emails' action output)
Original Mailbox Address	mailboxAddress		string	Address of the shared mailbox to forward mail from.
Comment	Comment		string	Comment
To	ToRecipients	True	string	Semicolon separated list of recipients to forward the message to

Forward an email [DEPRECATED]

Operation ID:

ForwardEmail

This action has been deprecated. Please use Forward an email (V2) instead.

Forward an email.

Parameters

Name	Key	Required	Type	Description
Message Id	message_id	True	string	Id of the message to forward.
Comment	Comment		string	Comment
To	ToRecipients	True	string	Semicolon separated list of recipients to forward the message to

Get Attachment (V2)

Operation ID:

GetAttachment_V2

This operation gets an email attachment by id.

Parameters

Name	Key	Required	Type	Description
Message Id	messageId	True	string	Id of the email.
Attachement Id	attachmentId	True	string	Id of the attachment to download.
Original Mailbox Address	mailboxAddress		string	Address of the shared mailbox to retrieve attachment from.

Returns

Name	Path	Type	Description
Id	id	string	Id of the attachment.
Name	name	string	Name of attachment.
Content Type	contentType	string	Content type of attachment.
Size	size	integer	Size of attachment.
Content Bytes	contentBytes	byte	Content of attachment.
Is Inline	isInline	boolean	Set to true if this is an inline attachment.
Last Modified DateTime	lastModifiedDateTime	date-time	The date and time when the attachment was last modified.
Content Id	contentId	string	Content Id

Get attachment [DEPRECATED]

Operation ID:

GetAttachment

This action has been deprecated. Please use Get Attachment (V2) instead.

This operation gets an email attachment by id.

Parameters

Name	Key	Required	Type	Description
Message Id	messageId	True	string	Id of the email.
Attachment Id	attachmentId	True	string	Id of the attachment to download.

Returns

response

binary

Get calendar view of events (V2) [DEPRECATED]

Operation ID:

GetEventsCalendarViewV2

This action has been deprecated. Please use Get calendar view of events (V3) instead.

This operation gets all events (including instances of recurrences) in a calendar. Recurrence property is null in this case.

Parameters

Name	Key	Required	Type	Description
Calendar Id	calendarId	True	string	Select a calendar
Start Time	startDateTimeOffset	True	string	Start time (example: '2017-01-01T08:00:00-07:00')
End Time	endDateTimeOffset	True	string	End time (example: '2017-02-01T08:00:00-07:00')
Filter Query	$filter		string	An ODATA filter query to restrict the entries returned (e.g. stringColumn eq 'string' OR numberColumn lt 123).
Order By	$orderby		string	An ODATA orderBy query for specifying the order of entries.
Top Count	$top		integer	Total number of entries to retrieve (default = all).
Skip Count	$skip		integer	The number of entries to skip (default = 0).
Search	search		string	Search text for matching event body and subject

Returns

Entity list response

Body

EntityListResponse[CalendarEventClientReceiveStringEnums]

Get calendar view of events (V3)

Operation ID:

GetEventsCalendarViewV3

This operation gets all events (including instances of recurrences) in a calendar using Graph API. Recurrence property is null in this case.

Parameters

Name	Key	Required	Type	Description
Calendar Id	calendarId	True	string	Select a calendar
Start Time	startDateTimeUtc	True	string	Start time in UTC (example: '2017-01-01T08:00:00')
End Time	endDateTimeUtc	True	string	End time in UTC (example: '2017-02-01T08:00:00')
Filter Query	$filter		string	An ODATA filter query to restrict the entries returned (e.g. stringColumn eq 'string' OR numberColumn lt 123).
Order By	$orderby		string	An ODATA orderBy query for specifying the order of entries.
Top Count	$top		integer	Total number of entries to retrieve (default = all).
Skip Count	$skip		integer	The number of entries to skip (default = 0).
Search	search		string	Search text for matching event body and subject

Returns

Entity list response

Body

EntityListResponse[GraphCalendarEventClientReceive]

Get calendar view of events [DEPRECATED]

Operation ID:

GetEventsCalendarView

This action has been deprecated. Please use Get calendar view of events (V3) instead.

Get calendar view of events.

Parameters

Name	Key	Required	Type	Description
Calendar Id	calendarId	True	string	Select a calendar.
Start Time	startDateTimeOffset	True	string	Start time (example: '2017-01-01T08:00:00-07:00').
End Time	endDateTimeOffset	True	string	End time (example: '2017-02-01T08:00:00-07:00').

Returns

Response containing a list and next link

Body

PaginatedListResponse[CalendarEventClientReceiveStringEnums]

Get calendars (V2)

Operation ID:

CalendarGetTables_V2

This operation lists available calendars.

Returns

Name	Path	Type	Description
value	value	array of object	value
ID	value.id	string	The id of the calendar. The id is used at runtime.
Name	value.name	string	The display name of the calendar.
owner	value.owner	EmailAddress_V2

Get calendars [DEPRECATED]

Operation ID:

CalendarGetTables

This action has been deprecated. Please use Get calendars (V2) instead.

This operation lists available calendars.

Returns

Entity list response

Body

EntityListResponse[Table]

Get contact (V2)

Operation ID:

ContactGetItem_V2

This operation gets a specific contact from a contacts folder.

Parameters

Name	Key	Required	Type	Description
Folder id	folder	True	string	Select a contacts folder
Item id	id	True	string	Unique identifier of a contact to retrieve

Returns

Contact

Body

ContactResponse_V2

Get contact [DEPRECATED]

Operation ID:

ContactGetItem

This action has been deprecated. Please use Get contact (V2) instead.

This operation gets a specific contact from a contacts folder.

Parameters

Name	Key	Required	Type	Description
Folder id	table	True	string	Select a contacts folder
Item id	id	True	string	Unique identifier of a contact to retrieve

Returns

Contact response

Body

ContactResponse

Get contact folders (V2)

Operation ID:

ContactGetTablesV2

This operation lists available contacts folders using Graph API

Returns

Entity list response

Body

EntityListResponse[GraphContactFolder]

Get contact folders [DEPRECATED]

Operation ID:

ContactGetTables

This action has been deprecated. Please use Get contact folders (V2) instead.

This operation lists available contacts folders.

Returns

Entity list response

Body

EntityListResponse[Table]

Get contacts (V2)

Operation ID:

ContactGetItems_V2

This operation gets contacts from a contacts folder.

Parameters

Name	Key	Required	Type	Description
Folder id	folder	True	string	Unique identifier of the contacts folder to retrieve
Filter Query	$filter		string	An ODATA filter query to restrict the entries returned (e.g. stringColumn eq 'string' OR numberColumn lt 123).
Order By	$orderby		string	An ODATA orderBy query for specifying the order of entries.
Top Count	$top		integer	Total number of entries to retrieve (default = all).
Skip Count	$skip		integer	The number of entries to skip (default = 0).

Returns

Entity list response

Body

EntityListResponse[ContactResponse]_V2

Get contacts [DEPRECATED]

Operation ID:

ContactGetItems

This action has been deprecated. Please use Get contacts (V2) instead.

This operation gets contacts from a contacts folder.

Parameters

Name	Key	Required	Type	Description
Folder id	table	True	string	Unique identifier of the contacts folder to retrieve
Filter Query	$filter		string	An ODATA filter query to restrict the entries returned (e.g. stringColumn eq 'string' OR numberColumn lt 123).
Order By	$orderby		string	An ODATA orderBy query for specifying the order of entries.
Top Count	$top		integer	Total number of entries to retrieve (default = all).
Skip Count	$skip		integer	The number of entries to skip (default = 0).

Returns

Entity list response

Body

EntityListResponse[ContactResponse]

Get email (V2)

Operation ID:

GetEmailV2

This operation gets an email by id.

Parameters

Name	Key	Required	Type	Description
Message Id	messageId	True	string	Id of the email.
Original Mailbox Address	mailboxAddress		string	Address of the shared mailbox to retrieve mail from.
Include Attachments	includeAttachments		boolean	If set to true, attachments content will also be retrieved along with the email.
Internet Message Id	internetMessageId		string	Internet Message Id.

Returns

Graph Client Receive Email Message

Body

GraphClientReceiveMessage

Get email [DEPRECATED]

Operation ID:

GetEmail

This action has been deprecated. Please use Get email (V2) instead.

This operation gets an email by id.

Parameters

Name	Key	Required	Type	Description
Message Id	messageId	True	string	Id of the email.
Original Mailbox Address	mailboxAddress		string	Address of the shared mailbox to retrieve mail from.
Include Attachments	includeAttachments		boolean	If set to true, attachments content will also be retrieved along with the email.
Internet Message Id	internetMessageId		string	Internet Message Id.

Returns

Receive Email Message

Body

ClientReceiveMessage

Get emails (V2) [DEPRECATED]

Operation ID:

GetEmailsV2

This action has been deprecated. Please use Get emails (V3) instead.

This operation gets emails from a folder.

Parameters

Name	Key	Required	Type	Description
Folder	folderPath		string	Mail folder to retrieve emails from (default: 'Inbox').
To	to		email	Recipient email addresses separated by semicolons (If any match, the trigger will run).
CC	cc		email	CC recipient email addresses separated by semicolons (If any match, the trigger will run).
To or CC	toOrCc		email	To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).
From	from		email	Sender email addresses separated by semicolons (If any match, the trigger will run).
Importance	importance		string	Importance of the email (Any, High, Normal, Low).
Only with Attachments	fetchOnlyWithAttachment		boolean	If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.
Subject Filter	subjectFilter		string	String to look for in the subject line.
Fetch Only Unread Messages	fetchOnlyUnread		boolean	Retrieve only unread emails?.
Include Attachments	includeAttachments		boolean	If set to true, attachments content will also be retrieved along with the email.
Search Query	searchQuery		string	Search query (like in the Outlook client) to filter emails.
Top	top		integer	Number of emails to retrieve (default: 10).

Returns

Represents a wrapper object for batch response

Body

BatchResponse[ClientReceiveMessage]

Get emails (V3)

Operation ID:

GetEmailsV3

This operation gets emails from a folder via graph apis. Please note that filtering related to these fields: To, Cc, To Or Cc, From, Importance, Fetch Only With Attachments, Subject Filter, is performed using first 250 items in a given mail folder. To avoid that limitation you can use 'Search Query' field.

Parameters

Name	Key	Required	Type	Description
Folder	folderPath		string	Mail folder to retrieve emails from (default: 'Inbox').
To	to		email	Recipient email addresses separated by semicolons (If any match, the trigger will run).
CC	cc		email	CC recipient email addresses separated by semicolons (If any match, the trigger will run).
To or CC	toOrCc		email	To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).
From	from		email	Sender email addresses separated by semicolons (If any match, the trigger will run).
Importance	importance		string	Importance of the email (Any, High, Normal, Low).
Only with Attachments	fetchOnlyWithAttachment		boolean	If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.
Subject Filter	subjectFilter		string	String to look for in the subject line.
Fetch Only Unread Messages	fetchOnlyUnread		boolean	Retrieve only unread emails?.
Original Mailbox Address	mailboxAddress		string	Address of the shared mailbox to retrieve mails from.
Include Attachments	includeAttachments		boolean	If set to true, attachments content will also be retrieved along with the email.
Search Query	searchQuery		string	Search query to filter emails. How to use '$search' parameter please refer to: https://docs.microsoft.com/graph/query-parameters#search-parameter.
Top	top		integer	Number of emails to retrieve (default: 10, max: 25).

Returns

Represents a wrapper object for batch response

Body

BatchResponse[GraphClientReceiveMessage]

Get emails [DEPRECATED]

Operation ID:

GetEmails

This action has been deprecated. Please use Get emails (V3) instead.

This operation gets emails from a folder.

Parameters

Name	Key	Required	Type	Description
Folder	folderPath		string	Mail folder to retrieve emails from (default: 'Inbox').
Fetch Only Unread Messages	fetchOnlyUnread		boolean	Retrieve only unread emails?.
Include Attachments	includeAttachments		boolean	If set to true, attachments content will also be retrieved along with the email.
Search Query	searchQuery		string	Search query (like in the Outlook client) to filter emails.
Top	top		integer	Number of emails to retrieve (default: 10).

Returns

response

array of ClientReceiveMessageStringEnums

Get event (V1) [DEPRECATED]

Operation ID:

CalendarGetItem

This action has been deprecated. Please use Get event (V3) instead.

This operation gets a specific event from a calendar. (V1)

Parameters

Name	Key	Required	Type	Description
Calendar id	table	True	string	Select a calendar
Item id	id	True	string	Select an event

Returns

Connector specific calendar event model class for the backend

Body

CalendarEventBackend

Get event (V2) [DEPRECATED]

Operation ID:

V2CalendarGetItem

This action has been deprecated. Please use Get event (V3) instead.

This operation gets a specific event from a calendar. (V2)

Parameters

Name	Key	Required	Type	Description
Calendar id	table	True	string	Select a calendar
Item id	id	True	string	Select an event

Returns

Connector specific calendar event model class for the client

Body

CalendarEventClientReceiveStringEnums

Get event (V3)

Operation ID:

V3CalendarGetItem

This operation gets a specific event from a calendar using Graph API. (V3)

Parameters

Name	Key	Required	Type	Description
Calendar id	table	True	string	Select a calendar
Item id	id	True	string	Select an event

Returns

Connector specific calendar event model class for the client with Graph API

Body

GraphCalendarEventClientReceive

Get events (V1) [DEPRECATED]

Operation ID:

CalendarGetItems

This action has been deprecated. Please use Get events (V4) instead.

This operation gets events from a calendar. (V1)

Parameters

Name	Key	Required	Type	Description
Calendar id	table	True	string	Select a calendar
Order By	$orderby		string	An ODATA orderBy query for specifying the order of entries.
Top Count	$top		integer	Total number of entries to retrieve (default = all).
Skip Count	$skip		integer	The number of entries to skip (default = 0).

Returns

Entity list response

Body

EntityListResponse[CalendarEventBackend]

Get events (V2) [DEPRECATED]

Operation ID:

V2CalendarGetItems

This action has been deprecated. Please use Get events (V4) instead.

This operation gets events from a calendar. (V2)

Parameters

Name	Key	Required	Type	Description
Calendar id	table	True	string	Select a calendar
Filter Query	$filter		string	An ODATA filter query to restrict the entries returned (e.g. stringColumn eq 'string' OR numberColumn lt 123).
Order By	$orderby		string	An ODATA orderBy query for specifying the order of entries.
Top Count	$top		integer	Total number of entries to retrieve (default = all).
Skip Count	$skip		integer	The number of entries to skip (default = 0).

Returns

Entity list response

Body

EntityListResponse[CalendarEventClientReceiveStringEnums]

Get events (V3) [DEPRECATED]

Operation ID:

V3CalendarGetItems

This action has been deprecated. Please use Get events (V4) instead.

This operation gets events from a calendar. (V3)

Parameters

Name	Key	Required	Type	Description
Calendar id	table	True	string	Select a calendar
Filter Query	$filter		string	An ODATA filter query to restrict the entries returned (e.g. stringColumn eq 'string' OR numberColumn lt 123).
Order By	$orderby		string	An ODATA orderBy query for specifying the order of entries.
Top Count	$top		integer	Total number of entries to retrieve (default = all).
Skip Count	$skip		integer	The number of entries to skip (default = 0).

Returns

The list of calendar items

Body

CalendarEventListClientReceive

Get events (V4)

Operation ID:

V4CalendarGetItems

This operation gets events from a calendar using Graph API. (V4)

Parameters

Name	Key	Required	Type	Description
Calendar id	table	True	string	Select a calendar
Filter Query	$filter		string	An ODATA filter query to restrict the entries returned (e.g. stringColumn eq 'string' OR numberColumn lt 123).
Order By	$orderby		string	An ODATA orderBy query for specifying the order of entries.
Top Count	$top		integer	Total number of entries to retrieve (default = all).
Skip Count	$skip		integer	The number of entries to skip (default = 0).

Returns

The list of calendar items returned by Graph API

Body

GraphCalendarEventListClientReceive

Get mail tips for a mailbox (V2)

Operation ID:

GetMailTips_V2

Get mail tips for a mailbox such as automatic replies / OOF message or if the mailbox is full. This is not available in GccHigh and Mooncake.

Parameters

Name	Key	Required	Type	Description
Email Addresses	EmailAddresses	True	array of string	Address of the mailbox to get mail tips for.

Returns

Name	Path	Type	Description
value	value	array of MailTipsClientReceive_V2

Get mail tips for a mailbox [DEPRECATED]

Operation ID:

GetMailTips

This action has been deprecated. Please use Get mail tips for a mailbox (V2) instead.

Get mail tips for a mailbox such as automatic replies / OOF message or if the mailbox is full.

Parameters

Name	Key	Required	Type	Description
Original Mailbox Address	mailboxAddress	True	string	Address of the mailbox to get mail tips for.

Returns

Mail tips client model returned to the caller

Body

MailTipsClientReceive

Get room lists (V2)

Operation ID:

GetRoomLists_V2

Get all the room lists defined in the user's tenant

Returns

Name	Path	Type	Description
value	value	array of object	value
Name	value.name	string	Name
Address	value.address	string	Address

Get room lists [DEPRECATED]

Operation ID:

GetRoomLists

This action has been deprecated. Please use Get room lists (V2) instead.

Get all the room lists defined in the user's tenant

Returns

Name	Path	Type	Description
value	value	array of object	value
Name	value.Name	string	Name
Address	value.Address	string	Address

Get rooms (V2)

Operation ID:

GetRooms_V2

Get all the meeting rooms defined in the user's tenant

Returns

Name	Path	Type	Description
value	value	array of object	value
Name	value.name	string	Name
Address	value.address	string	Address

Get rooms [DEPRECATED]

Operation ID:

GetRooms

This action has been deprecated. Please use Get rooms (V2) instead.

Get all the meeting rooms defined in the user's tenant

Returns

Name	Path	Type	Description
value	value	array of object	value
Name	value.Name	string	Name
Address	value.Address	string	Address

Get rooms in room list (V2)

Operation ID:

GetRoomsInRoomList_V2

Get the meeting rooms in a specific room list

Parameters

Name	Key	Required	Type	Description
Room list	room_list	True	string	Room list to find rooms in

Returns

Name	Path	Type	Description
value	value	array of object	value
Name	value.name	string	Name
Address	value.address	string	Address

Get rooms in room list [DEPRECATED]

Operation ID:

GetRoomsInRoomList

This action has been deprecated. Please use Get rooms in room list (V2) instead.

Get the meeting rooms in a specific room list

Parameters

Name	Key	Required	Type	Description
Room list	room_list	True	string	Room list to find rooms in

Returns

Name	Path	Type	Description
value	value	array of object	value
Name	value.Name	string	Name
Address	value.Address	string	Address

Mark as read [DEPRECATED]

Operation ID:

MarkAsRead

This action has been deprecated. Please use Mark as read or unread (V3) instead.

This operation marks an email as having been read.

Parameters

Name	Key	Required	Type	Description
Message Id	messageId	True	string	Id of the email to be marked as read.

Mark as read or unread (V2) [DEPRECATED]

Operation ID:

MarkAsRead_V2

This action has been deprecated. Please use Mark as read or unread (V3) instead.

This operation marks an email as read/unread.

Parameters

Name	Key	Required	Type	Description
Message Id	messageId	True	string	Id of the email to be marked.
Original Mailbox Address	mailboxAddress		string	Address of the shared mailbox to update mail.
Mark as	isRead		boolean	Mark as read/unread.

Mark as read or unread (V3)

Operation ID:

MarkAsRead_V3

This operation marks an email as read/unread.

Parameters

Name	Key	Required	Type	Description
Message Id	messageId	True	string	Id of the email to be marked.
Original Mailbox Address	mailboxAddress		string	Address of the shared mailbox to update mail.
Mark as	isRead	True	boolean	Mark as read/unread.

Move email (V2)

Operation ID:

MoveV2

This operation moves an email to the specified folder within the same mailbox.

Parameters

Name	Key	Required	Type	Description
Message Id	messageId	True	string	Id of the email to be moved.
Folder	folderPath	True	string	Mail folder to move the email to.
Original Mailbox Address	mailboxAddress		string	Address of the shared mailbox to move mail from.

Returns

Graph Client Receive Email Message

Body

GraphClientReceiveMessage

Move email [DEPRECATED]

Operation ID:

Move

This action has been deprecated. Please use Move email (V2) instead.

This operation moves an email to the specified folder within the same mailbox.

Parameters

Name	Key	Required	Type	Description
Message Id	messageId	True	string	Id of the email to be moved.
Folder	folderPath	True	string	Mail folder to move the email to.

Returns

Receive Email Message

Body

ClientReceiveMessageStringEnums

Reply to email (V2) [DEPRECATED]

Operation ID:

ReplyToV2

This action has been deprecated. Please use Reply to email (V3) instead.

This operation replies to an email.

Parameters

Name	Key	Required	Type	Description
Message Id	messageId	True	string	Id of the email to reply to.
To	To		email	Example: recipient1@domain.com; recipient2@domain.com
CC	Cc		email	Example: recipient1@domain.com; recipient2@domain.com
BCC	Bcc		email	Example: recipient1@domain.com; recipient2@domain.com
Subject	Subject		string	Email subject (if empty, the original subject used).
Body	Body		string	Content of the email.
Reply All	ReplyAll		boolean	True to reply to all recipients. (default: False)
Is HTML	IsHtml		boolean	True to send the reply as HTML. (default: True)
Importance	Importance		string	Pick an importance. (default: Low)
Name	Name	True	string	Attachment name
Content	ContentBytes	True	byte	Attachment content
Original Mailbox Address	mailboxAddress		string	Address of the shared mailbox to reply from.

Reply to email (V3)

Operation ID:

ReplyToV3

This operation replies to an email.

Parameters

Name	Key	Required	Type	Description
Message Id	messageId	True	string	Id of the email to reply to.
To	To		email	Example: recipient1@domain.com; recipient2@domain.com
CC	Cc		email	Example: recipient1@domain.com; recipient2@domain.com
BCC	Bcc		email	Example: recipient1@domain.com; recipient2@domain.com
Subject	Subject		string	Email subject (if empty, the original subject used).
Body	Body		html	Content of the email.
Reply All	ReplyAll		boolean	True to reply to all recipients. (default: False)
Importance	Importance		string	Pick an importance. (default: Low)
Name	Name	True	string	Attachment name
Content	ContentBytes	True	byte	Attachment content
Original Mailbox Address	mailboxAddress		string	Address of the shared mailbox to reply from.

Reply to email [DEPRECATED]

Operation ID:

ReplyTo

This action has been deprecated. Please use Reply to email (V3) instead.

This operation replies to an email.

Parameters

Name	Key	Required	Type	Description
Message Id	messageId	True	string	Id of the email to reply to.
Comment	comment	True	string	Reply comment.
Reply All	replyAll		boolean	Reply to all recipients.

Respond to an event invite (V2)

Operation ID:

RespondToEvent_V2

Respond to an event invite.

Parameters

Name	Key	Required	Type	Description
Event Id	event_id	True	string	Id of the event to respond to.
Response	response	True	string	Response for the event invite
Comment	Comment		string	Comment
Send response?	SendResponse		boolean	Send response to organizer?

Respond to an event invite [DEPRECATED]

Operation ID:

RespondToEvent

This action has been deprecated. Please use Respond to an event invite (V2) instead.

Respond to an event invite.

Parameters

Name	Key	Required	Type	Description
Event Id	event_id	True	string	Id of the event to respond to.
Response	response	True	string	Response for the event invite
Comment	Comment		string	Comment
Send response?	SendResponse		boolean	Send response to organizer?

Send an email (V2)

Operation ID:

SendEmailV2

This operation sends an email message.

Parameters

Name	Key	Required	Type	Description
To	To	True	email	Specify email addresses separated by semicolons like someone@contoso.com
Subject	Subject	True	string	Specify the subject of the mail
Body	Body	True	html	Specify the body of the mail
From (Send as)	From		email	Email address to send mail from (requires "Send as" or "Send on behalf of" permission for that mailbox). For more info on granting permissions please refer https://docs.microsoft.com/office365/admin/manage/send-email-as-distribution-list
CC	Cc		email	Specify email addresses separated by semicolons like someone@contoso.com
BCC	Bcc		email	Specify email addresses separated by semicolons like someone@contoso.com
Name	Name	True	string	Attachment name
Content	ContentBytes	True	byte	Attachment content
Sensitivity	Sensitivity		string	Sensitivity
Reply To	ReplyTo		email	The email addresses to use when replying
Importance	Importance		string	Importance

Send an email [DEPRECATED]

Operation ID:

SendEmail

This action has been deprecated. Please use Send an email (V2) instead.

This operation sends an email message.

Parameters

Name	Key	Required	Type	Description
From (Send as)	From		email	Email address to send mail from (requires "Send as" or "Send on behalf of" permission for that mailbox). For more info on granting permissions please refer https://docs.microsoft.com/office365/admin/manage/send-email-as-distribution-list
CC	Cc		email	Specify email addresses separated by semicolons like someone@contoso.com
BCC	Bcc		email	Specify email addresses separated by semicolons like someone@contoso.com
To	To	True	email	Specify email addresses separated by semicolons like someone@contoso.com
Subject	Subject	True	string	Specify the subject of the mail
Body	Body	True	string	Specify the body of the mail
Name	Name	True	string	Attachment name
Content	ContentBytes	True	byte	Attachment content
Sensitivity	Sensitivity		string	Sensitivity
Reply To	ReplyTo		email	The email addresses to use when replying
Importance	Importance		string	Importance
Is HTML	IsHtml		boolean	Is Html?

Send an email from a shared mailbox (V2)

Operation ID:

SharedMailboxSendEmailV2

This operation sends an email from a shared mailbox. Your account should have permission to access the mailbox for this operation to succeed.

Parameters

Name	Key	Required	Type	Description
Original Mailbox Address	MailboxAddress	True	email	Specify email address of a shared mailbox like someone@contoso.com
To	To	True	email	Specify email addresses separated by semicolons like someone@contoso.com
Subject	Subject	True	string	Specify the subject of the mail
Body	Body	True	html	Specify the body of the mail
CC	Cc		email	Specify email addresses separated by semicolons like someone@contoso.com
BCC	Bcc		email	Specify email addresses separated by semicolons like someone@contoso.com
Name	Name	True	string	Attachment name
Content	ContentBytes	True	byte	Attachment content
Sensitivity	Sensitivity		string	Sensitivity
Reply To	ReplyTo		email	The email addresses to use when replying
Importance	Importance		string	Importance

Send an email from a shared mailbox [DEPRECATED]

Operation ID:

SharedMailboxSendEmail

This action has been deprecated. Please use Send an email from a shared mailbox (V2) instead.

This operation sends an email from a shared mailbox. Your account should have permission to access the mailbox for this operation to succeed.

Parameters

Name	Key	Required	Type	Description
Original Mailbox Address	MailboxAddress	True	email	Specify email address of a shared mailbox like someone@contoso.com
To	To	True	email	Specify email addresses separated by semicolons like someone@contoso.com
Subject	Subject	True	string	Specify the subject of the mail
Body	Body	True	string	Specify the body of the mail
CC	Cc		email	Specify email addresses separated by semicolons like someone@contoso.com
BCC	Bcc		email	Specify email addresses separated by semicolons like someone@contoso.com
Name	Name	True	string	Attachment name
Content	ContentBytes	True	byte	Attachment content
Sensitivity	Sensitivity		string	Sensitivity
Reply To	ReplyTo		email	The email addresses to use when replying
Importance	Importance		string	Importance
Is HTML	IsHtml		boolean	Is Html?

Send an HTTP request

Operation ID:

HttpRequest

Construct a Microsoft Graph REST API request to invoke. These segments are supported: 1st segement: /me, /users/ 2nd segment: messages, mailFolders, events, calendar, calendars, outlook, inferenceClassification. Learn more: https://docs.microsoft.com/en-us/graph/use-the-api.

Parameters

Name	Key	Required	Type	Description
URI	Uri	True	string	The full or relative URI. Example: https://graph.microsoft.com/{version}/{resource}.
Method	Method	True	string	The HTTP method (default is GET).
Body	Body		binary	The request body content.
Content-Type	ContentType		string	The content-type header for the body (default is application/json).
CustomHeader1	CustomHeader1		string	Custom header 1. Specify in format: header-name: header-value
CustomHeader2	CustomHeader2		string	Custom header 2. Specify in format: header-name: header-value
CustomHeader3	CustomHeader3		string	Custom header 3. Specify in format: header-name: header-value
CustomHeader4	CustomHeader4		string	Custom header 4. Specify in format: header-name: header-value
CustomHeader5	CustomHeader5		string	Custom header 5. Specify in format: header-name: header-value

Returns

response

ObjectWithoutType

Send approval email

Operation ID:

SendApprovalMail

This operation sends an approval email and waits for a response from the recipient. Please refer to the following link regarding the support of actionable messages in different mail clients: https://docs.microsoft.com/outlook/actionable-messages/#outlook-version-requirements-for-actionable-messages.

Parameters

Name	Key	Required	Type	Description
To	To	True	email	Specify email addresses separated by semicolons like someone@contoso.com
Subject	Subject		string	Subject
User Options	Options		string	User Options
Header Text	HeaderText		string	Header text for email body
Selection Text	SelectionText		string	Header text for users options selection
Body	Body		string	Body
Importance	Importance		string	Importance
Name	Name	True	string	Attachment name
Content	ContentBytes	True	byte	Attachment content
Use only HTML message	UseOnlyHTMLMessage		boolean	Use only HTML message
Hide HTML message	HideHTMLMessage		boolean	If set to Yes, then the email body is hidden and only message card is displayed. Email clients which do not support actionable messages will display HTML message regardless of the parameter value.
Show HTML confirmation dialog	ShowHTMLConfirmationDialog		boolean	If set to Yes then a dialog wil be shown to confirm selected option of HTML message

Returns

Approval Email Response

Body

ApprovalEmailResponse

Send email with options

Operation ID:

SendMailWithOptions

This operation sends an email with multiple options and waits for the recipient to respond back with one of the options. Please refer to the following link regarding the support of actionable messages in different mail clients: https://docs.microsoft.com/outlook/actionable-messages/#outlook-version-requirements-for-actionable-messages.

Parameters

Name	Key	Required	Type	Description
To	To	True	email	Specify email addresses separated by semicolons like someone@contoso.com
Subject	Subject		string	Subject of the email
User Options	Options		string	List of comma separated options for the email response
Header Text	HeaderText		string	Header text for email body
Selection Text	SelectionText		string	Header text for users options selection
Body	Body		string	Body of the email
Importance	Importance		string	Importance
Name	Name	True	string	Attachment name
Content	ContentBytes	True	byte	Attachment content
Use only HTML message	UseOnlyHTMLMessage		boolean	Use only HTML message
Hide HTML message	HideHTMLMessage		boolean	If set to Yes, then the email body is hidden and only message card is displayed. Email clients which do not support actionable messages will display HTML message regardless of the parameter value.
Show HTML confirmation dialog	ShowHTMLConfirmationDialog		boolean	If set to Yes then a dialog wil be shown to confirm selected option of HTML message
Hide Microsoft footer	HideMicrosoftFooter		boolean	If set to Yes, then the Microsoft footer is hidden in the email body.

Returns

Approval Email Response

Body

ApprovalEmailResponse

Set up automatic replies (V2)

Operation ID:

SetAutomaticRepliesSetting_V2

Set the automatic replies setting for your mailbox.

Parameters

Name	Key	Required	Type	Description
Status	status	True	string	Automatic reply setting status
External Audience	externalAudience	True	string	The audience that will see the external reply message
DateTime	dateTime		string	Scheduled start time (example: '2017-08-29T04:00:00.0000000')
TimeZone	timeZone		string	TimeZone (example: 'Pacific Standard Time')
DateTime	dateTime		string	Scheduled end time (example: '2017-08-29T05:00:00.0000000')
TimeZone	timeZone		string	TimeZone (example: 'Pacific Standard Time')
Internal Reply Message	internalReplyMessage		string	Message for people within your organization
External Reply Message	externalReplyMessage		string	Message for people outside your organization

Returns

Name	Path	Type	Description
automaticRepliesSetting	automaticRepliesSetting	AutomaticRepliesSettingClient_V2	Automatic replies setting model for the connector

Set up automatic replies [DEPRECATED]

Operation ID:

SetAutomaticRepliesSetting

This action has been deprecated. Please use Set up automatic replies (V2) instead.

Set the automatic replies setting for your mailbox.

Parameters

Name	Key	Required	Type	Description
Status	Status	True	string	Automatic reply setting status
External Audience	ExternalAudience	True	string	The audience that will see the external reply message
Start Time	ScheduledStartDateTimeOffset		string	Scheduled start time (example: '2016-11-01T15:30:00-00:00Z')
End Time	ScheduledEndDateTimeOffset		string	Scheduled end time (example: '2016-11-01T15:30:00-00:00Z')
Internal Reply Message	InternalReplyMessage		string	Message for people within your organization
External Reply Message	ExternalReplyMessage		string	Message for people outside your organization

Update contact (V2)

Operation ID:

ContactPatchItem_V2

This operation updates a contact in a contacts folder.

Parameters

Name	Key	Required	Type	Description
Folder id	folder	True	string	Select a contacts folder
Id	id	True	string	Unique identifier of contact to update
Id	id		string	The contact's unique identifier.
Parent folder id	parentFolderId		string	The ID of the contact's parent folder
Birthday	birthday		date-time	The contact's birthday
File as	fileAs		string	The name the contact is filed under
Display Name	displayName		string	The contact's display name
Given name	givenName	True	string	The contact's given name
Initials	initials		string	The contact's initials
Middle name	middleName		string	The contact's middle name
Nickname	nickName		string	The contact's nickname
Surname	surname		string	The contact's surname
Title	title		string	The contact's title
Generation	generation		string	The contact's generation
name	name		string
address	address		email
IM addresses	imAddresses		array of string	The contact's instant messaging (IM) addresses
JobTitle	jobTitle		string	The contact's job title
Company name	companyName		string	The name of the contact's company
Department	department		string	The contact's department
Office location	officeLocation		string	The location of the contact's office
Profession	profession		string	The contact's profession
Business home page	businessHomePage		string	The business home page of the contact
Assistant name	assistantName		string	The name of the contact's assistant
Manager	manager		string	The name of the contact's manager
Home phones	homePhones	True	array of string	The contact's home phone numbers
Business phones	businessPhones		array of string	The contact's business phone numbers
Mobile phone	mobilePhone		string	The contact's mobile phone number
Street	street		string	The contact's street address.
City	city		string	The contact's city.
State	state		string	The contact's state.
Country Or Region	countryOrRegion		string	The contact's country of region.
Postal code	postalCode		string	The contact's postal code.
Street	street		string	The contact's street address.
City	city		string	The contact's city.
State	state		string	The contact's state.
Country Or Region	countryOrRegion		string	The contact's country of region.
Postal code	postalCode		string	The contact's postal code.
Street	street		string	The contact's street address.
City	city		string	The contact's city.
State	state		string	The contact's state.
Country Or Region	countryOrRegion		string	The contact's country of region.
Postal code	postalCode		string	The contact's postal code.
Yomi company name	yomiCompanyName		string	The phonetic Japanese company name of the contact
Yomi given name	yomiGivenName		string	The phonetic Japanese given name (first name) of the contact
Yomi surname	yomiSurname		string	The phonetic Japanese surname (last name) of the contact
Categories	categories		array of string	The categories associated with the contact
Change key	changeKey		string	Identifies the version of the event object
Created time	createdDateTime		date-time	The time the contact was created
Last modified time	lastModifiedDateTime		date-time	The time the contact was modified

Returns

Contact

Body

ContactResponse_V2

Update contact [DEPRECATED]

Operation ID:

ContactPatchItem

This action has been deprecated. Please use Update contact (V2) instead.

This operation updates a contact in a contacts folder.

Parameters

Name	Key	Required	Type	Description
Folder id	table	True	string	Select a contacts folder
Id	id	True	string	Unique identifier of contact to update
Id	Id		string	The contact's unique identifier.
Parent folder id	ParentFolderId		string	The ID of the contact's parent folder
Birthday	Birthday		date-time	The contact's birthday
File as	FileAs		string	The name the contact is filed under
Display Name	DisplayName		string	The contact's display name
Given name	GivenName	True	string	The contact's given name
Initials	Initials		string	The contact's initials
Middle name	MiddleName		string	The contact's middle name
Nickname	NickName		string	The contact's nickname
Surname	Surname		string	The contact's surname
Title	Title		string	The contact's title
Generation	Generation		string	The contact's generation
Name	Name		string
Address	Address		email
IM addresses	ImAddresses		array of string	The contact's instant messaging (IM) addresses
JobTitle	JobTitle		string	The contact's job title
Company name	CompanyName		string	The name of the contact's company
Department	Department		string	The contact's department
Office location	OfficeLocation		string	The location of the contact's office
Profession	Profession		string	The contact's profession
Business home page	BusinessHomePage		string	The business home page of the contact
Assistant name	AssistantName		string	The name of the contact's assistant
Manager	Manager		string	The name of the contact's manager
Home phones	HomePhones	True	array of string	The contact's home phone numbers
Business phones	BusinessPhones		array of string	The contact's business phone numbers
Mobile phone	MobilePhone1		string	The contact's mobile phone number
Street	Street		string
City	City		string
State	State		string
CountryOrRegion	CountryOrRegion		string
PostalCode	PostalCode		string
Street	Street		string
City	City		string
State	State		string
CountryOrRegion	CountryOrRegion		string
PostalCode	PostalCode		string
Street	Street		string
City	City		string
State	State		string
CountryOrRegion	CountryOrRegion		string
PostalCode	PostalCode		string
Yomi company name	YomiCompanyName		string	The phonetic Japanese company name of the contact
Yomi given name	YomiGivenName		string	The phonetic Japanese given name (first name) of the contact
Yomi surname	YomiSurname		string	The phonetic Japanese surname (last name) of the contact
Categories	Categories		array of string	The categories associated with the contact
Change key	ChangeKey		string	Identifies the version of the event object
Created time	DateTimeCreated		date-time	The time the contact was created
Last modified time	DateTimeLastModified		date-time	The time the contact was modified

Returns

Contact response

Body

ContactResponse

Update event (V1) [DEPRECATED]

Operation ID:

CalendarPatchItem

This action has been deprecated. Please use Update event (V4) instead.

This operation updates an event in a calendar. (V1)

Parameters

Name	Key	Required	Type	Description
Calendar id	table	True	string	Select a calendar
Id	id	True	string	Select an event
Id	Id		string	The Event's unique identifier
Response	Response		string
Time	Time		date-time
Type	Type		string
Name	Name		string
Address	Address		email
ContentType	ContentType		string
Content	Content		string
Body preview	BodyPreview		string	The preview of the message associated with the event
Categories	Categories		array of string	The categories associated with the event
Change key	ChangeKey		string	This property identifies the version of the event object. Every time the event is changed, ChangeKey changes as well.
Created time	DateTimeCreated		date-time	The date and time that the event was created
Last modified time	DateTimeLastModified		date-time	The date and time that the event was last modified
End time	End	True	date-time	The end time of the event
End time zone	EndTimeZone		string	This property specifies the time zone of the meeting end time. The value must be as defined in Windows (example: 'Pacific Standard Time').
Has attachments?	HasAttachments		boolean	Set to true if the event has attachments
Event Unique ID	ICalUId		string	A unique identifier that is shared by all instances of an event across different calendars
Importance	Importance		string	The importance of the event: Low, Normal, or High
Is all day event?	IsAllDay		boolean	Set to true if the event lasts all day
Is cancelled?	IsCancelled		boolean	Set to true if the event has been canceled
Is Organizer	IsOrganizer		boolean	Set to true if the message sender is also the organizer
DisplayName	DisplayName		string
Street	Street		string
City	City		string
State	State		string
CountryOrRegion	CountryOrRegion		string
PostalCode	PostalCode		string
Altitude	Altitude		double
Latitude	Latitude		double
Longitude	Longitude		double
Accuracy	Accuracy		double
AltitudeAccuracy	AltitudeAccuracy		double
Name	Name		string
Address	Address		email
Type	Type		string
Interval	Interval		integer
Month	Month		integer
DayOfMonth	DayOfMonth		integer
DaysOfWeek	DaysOfWeek		array of string
FirstDayOfWeek	FirstDayOfWeek		string
Index	Index		string
Type	Type		string
StartDate	StartDate		date-time
EndDate	EndDate		date-time
NumberOfOccurrences	NumberOfOccurrences		integer
Reminder	Reminder		integer	Time in minutes before event start to remind
Response requested	ResponseRequested		boolean	Set to true if the sender would like a response when the event is accepted or declined
Response	Response		string
Time	Time		date-time
Series master id	SeriesMasterId		string	Unique identifier for Series Master event type
Show as	ShowAs		string	Shows as free or busy
Start time	Start	True	date-time	The start time of the event
Start time zone	StartTimeZone		string	This property specifies the time zone of the meeting start time. The value must be as defined in Windows (example: 'Pacific Standard Time').
Subject	Subject	True	string	Event subject
Type	Type		string	The event type: Single Instance, Occurrence, Exception, or Series Master
Web link	WebLink		uri	The preview of the message associated with the event
Reason	Reason		string	The reason property used by O365 sync events protocol, will be 'deleted' if its a deleted event.

Returns

Connector specific calendar event model class for the backend

Body

CalendarEventBackend

Update event (V2) [DEPRECATED]

Operation ID:

V2CalendarPatchItem

This action has been deprecated. Please use Update event (V4) instead.

This operation updates an event in a calendar. (V2)

Parameters

Name	Key	Required	Type	Description
Calendar id	table	True	string	Select a calendar
Id	id	True	string	Select an event
Subject	Subject	True	string	Event subject
Start time	Start	True	date-time	Start time of the event (example: '2016-11-01T14:30:00Z')
End time	End	True	date-time	End time of the event (example: '2016-11-01T15:30:00Z')
Time zone	TimeZone		string	Time zone of the event
Required attendees	RequiredAttendees		email	Required attendees for the event separated by semicolons
Optional attendees	OptionalAttendees		email	Optional attendees for the event separated by semicolons
Resource attendees	ResourceAttendees		string	Resource attendees for the event separated by semicolons
Body	Body		string	Body of the message associated with the event
Is HTML	IsHtml		boolean	Set to true if the body is Html
Location	Location		string	Location of the event
Importance	Importance		string	The importance of the event: Low, Normal, or High
Is all day event?	IsAllDay		boolean	Set to true if the event lasts all day
Recurrence	Recurrence		string	The recurrence pattern for the event
Recurrence end time	RecurrenceEnd		date-time	End time of the recurrence
Number of occurrences	NumberOfOccurrences		integer	How many times to repeat the event
Reminder	Reminder		integer	Time in minutes before event start to remind
Show as	ShowAs		string	Status to show during the event
Response requested	ResponseRequested		boolean	Set to true if the sender would like a response when the event is accepted or declined

Returns

Connector specific calendar event model class for the client

Body

CalendarEventClientReceiveStringEnums

Update event (V3) [DEPRECATED]

Operation ID:

V3CalendarPatchItem

This action has been deprecated. Please use Update event (V4) instead.

This operation updates an event in a calendar.

Parameters

Name	Key	Required	Type	Description
Calendar id	table	True	string	Select a calendar
Id	id	True	string	Select an event
Subject	Subject	True	string	Event subject
Start time	Start	True	date-time	Start time of the event (example: '2016-11-01T14:30:00Z')
End time	End	True	date-time	End time of the event (example: '2016-11-01T15:30:00Z')
Time zone	TimeZone		string	Time zone of the event
Required attendees	RequiredAttendees		email	Required attendees for the event separated by semicolons
Optional attendees	OptionalAttendees		email	Optional attendees for the event separated by semicolons
Resource attendees	ResourceAttendees		string	Resource attendees for the event separated by semicolons
Body	Body		html	Body of the message associated with the event
Location	Location		string	Location of the event
Importance	Importance		string	The importance of the event: Low, Normal, or High
Is all day event?	IsAllDay		boolean	Set to true if the event lasts all day
Recurrence	Recurrence		string	The recurrence pattern for the event
Recurrence end time	RecurrenceEnd		date-time	End time of the recurrence
Number of occurrences	NumberOfOccurrences		integer	How many times to repeat the event
Reminder	Reminder		integer	Time in minutes before event start to remind
Show as	ShowAs		string	Status to show during the event
Response requested	ResponseRequested		boolean	Set to true if the sender would like a response when the event is accepted or declined

Returns

Connector specific calendar event model class for the client

Body

CalendarEventClientReceiveStringEnums

Update event (V4)

Operation ID:

V4CalendarPatchItem

This operation updates an event in a calendar using Graph API.

Parameters

Name	Key	Required	Type	Description
Calendar id	table	True	string	Select a calendar
Id	id	True	string	Select an event
Subject	subject	True	string	Event subject
Start time	start	True	date-no-tz	Start time of the event (example: '2017-08-29T04:00:00')
End time	end	True	date-no-tz	End time of the event (example: '2017-08-29T05:00:00')
Time zone	timeZone	True	string	Time zone of the event
Required attendees	requiredAttendees		email	Required attendees for the event separated by semicolons
Optional attendees	optionalAttendees		email	Optional attendees for the event separated by semicolons
Resource attendees	resourceAttendees		string	Resource attendees for the event separated by semicolons
Body	body		html	Body of the message associated with the event
Categories	categories		array of string	The categories associated with the event
Location	location		string	Location of the event
Importance	importance		string	The importance of the event: low, normal, or high
Is all day event?	isAllDay		boolean	Set to true if the event lasts all day
Recurrence	recurrence		string	The recurrence pattern for the event: none, daily, weekly, monthly or yearly
Selected days of week	selectedDaysOfWeek		array of string	Days of week for weekly recurrence
Recurrence end date	recurrenceEnd		date	End Date of the recurrence
Number of occurrences	numberOfOccurences		integer	How many times to repeat the event
Reminder	reminderMinutesBeforeStart		integer	Time in minutes before event start to remind
Is reminder on	isReminderOn		boolean	Set to true if an alert is set to remind the user of the event.
Show as	showAs		string	Status to show during the event: free, tentative, busy, oof, workingElsewhere or unknown
Response requested	responseRequested		boolean	Set to true if the sender would like a response when the event is accepted or declined
Sensitivity	sensitivity		string	The possible values are: normal, personal, private, confidential

Returns

Connector specific calendar event model class for the client with Graph API

Body

GraphCalendarEventClientReceive

Update my contact's photo

Operation ID:

UpdateMyContactPhoto

Updates the photo of the specified contact of the current user. The size of the photo must be less than 4 MB.

Parameters

Name	Key	Required	Type	Description
Folder id	folder	True	string	Select a contacts folder
Item id	id	True	string	Unique identifier of a contact to update photo
Image content	body	True	binary	Image content

Triggers

When a new email arrives (V2) [DEPRECATED]	This action has been deprecated. Please use When a new email arrives (V3) instead. This operation triggers a flow when a new email arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.
When a new email arrives (V3)	This operation triggers a flow when a new email arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.
When a new email arrives (webhook) [DEPRECATED]	This operation triggers a flow when a new email arrives.
When a new email arrives [DEPRECATED]	This action has been deprecated. Please use When a new email arrives (V3) instead. This operation triggers a flow when a new email arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.
When a new email arrives in a shared mailbox (V2)	This operation triggers a flow when a new email arrives in a shared mailbox. Your account should have permission to access the mailbox for this operation to succeed. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.
When a new email arrives in a shared mailbox [DEPRECATED]	This action has been deprecated. Please use When a new email arrives in a shared mailbox (V2) instead. This operation triggers a flow when a new email arrives in a shared mailbox. Your account should have permission to access the mailbox for this operation to succeed. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.
When a new email mentioning me arrives (V2) [DEPRECATED]	This action has been deprecated. Please use When a new email mentioning me arrives (V3) instead. This operation triggers a flow when a new email mentioning me arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.
When a new email mentioning me arrives (V3)	This operation triggers a flow when a new email mentioning me arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.
When a new email mentioning me arrives [DEPRECATED]	This action has been deprecated. Please use When a new email mentioning me arrives (V3) instead. This operation triggers a flow when a new email mentioning me arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.
When a new event is created (V1) [DEPRECATED]	This action has been deprecated. Please use When a new event is created (V3) instead. This operation triggers a flow when a new event is created in a calendar. (V1)
When a new event is created (V2) [DEPRECATED]	This action has been deprecated. Please use When a new event is created (V3) instead. This operation triggers a flow when a new event is created in a calendar. (V2)
When a new event is created (V3)	This operation triggers a flow when a new event is created in a calendar. (V3)
When an email is flagged (V2) [DEPRECATED]	This action has been deprecated. Please use When an email is flagged (V4) instead. This operation triggers a flow when an email is flagged.
When an email is flagged (V3)	This operation triggers a flow when an email is flagged.
When an email is flagged (V4) (Preview)	This operation triggers a flow when an email is flagged.
When an email is flagged [DEPRECATED]	This action has been deprecated. Please use When an email is flagged (V4) instead. This operation triggers a flow when an email is flagged.
When an event is added, updated or deleted (V2) [DEPRECATED]	This action has been deprecated. Please use When an event is added, updated or deleted (V3) instead. This operation triggers a flow when an event is added, updated or deleted in a calendar. (V2)
When an event is added, updated or deleted (V3)	This operation triggers a flow when an event is added, updated or deleted in a calendar. (V3) This is not available in Mooncake.
When an event is added, updated or deleted [DEPRECATED]	This action has been deprecated. Please use When an event is added, updated or deleted (V3) instead. This operation triggers a flow when an event is added, updated or deleted in a calendar.
When an event is modified (V1) [DEPRECATED]	This action has been deprecated. Please use When an event is modified (V3) instead. This operation triggers a flow when an event is modified in a calendar. (V1)
When an event is modified (V2) [DEPRECATED]	This action has been deprecated. Please use When an event is modified (V3) instead. This operation triggers a flow when an event is modified in a calendar. (V2)
When an event is modified (V3)	This operation triggers a flow when an event is modified in a calendar. (V3)
When an upcoming event is starting soon (V2) [DEPRECATED]	This action has been deprecated. Please use When an upcoming event is starting soon (V3) instead. This operation triggers a flow when an upcoming calendar event is starting.
When an upcoming event is starting soon (V3)	This operation triggers a flow when an upcoming calendar event is starting.
When an upcoming event is starting soon [DEPRECATED]	This action has been deprecated. Please use When an upcoming event is starting soon (V3) instead. This operation triggers a flow when an upcoming calendar event is starting.

When a new email arrives (V2) [DEPRECATED]

Operation ID:

OnNewEmailV2

This action has been deprecated. Please use When a new email arrives (V3) instead.

This operation triggers a flow when a new email arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

Parameters

Name	Key	Required	Type	Description
Folder	folderPath		string	Mail folder to check for new emails.
To	to		email	Recipient email addresses separated by semicolons (If any match, the trigger will run).
CC	cc		email	CC recipient email addresses separated by semicolons (If any match, the trigger will run).
To or CC	toOrCc		email	To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).
From	from		email	Sender email addresses separated by semicolons (If any match, the trigger will run).
Importance	importance		string	Importance of the email (Any, High, Normal, Low).
Only with Attachments	fetchOnlyWithAttachment		boolean	If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.
Include Attachments	includeAttachments		boolean	Should the response of the trigger include the attachments content.
Subject Filter	subjectFilter		string	String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

Body

TriggerBatchResponse[GraphClientReceiveMessage]

When a new email arrives (V3)

Operation ID:

OnNewEmailV3

This operation triggers a flow when a new email arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

Parameters

Name	Key	Required	Type	Description
Folder	folderPath		string	Mail folder to check for new emails.
To	to		email	Recipient email addresses separated by semicolons (If any match, the trigger will run).
CC	cc		email	CC recipient email addresses separated by semicolons (If any match, the trigger will run).
To or CC	toOrCc		email	To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).
From	from		email	Sender email addresses separated by semicolons (If any match, the trigger will run).
Importance	importance		string	Importance of the email (Any, High, Normal, Low).
Only with Attachments	fetchOnlyWithAttachment		boolean	If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.
Include Attachments	includeAttachments		boolean	Should the response of the trigger include the attachments content.
Subject Filter	subjectFilter		string	String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

Body

TriggerBatchResponse[GraphClientReceiveMessage]

When a new email arrives (webhook) [DEPRECATED]

Operation ID:

CreateOnNewEmailSubscription

This operation triggers a flow when a new email arrives.

Parameters

Name	Key	Required	Type	Description
Folder	folderPath		string	Mail folder to check for new emails.
Importance	importance		string	Importance of the received email ("Any", "High", "Normal", "Low").
Has Attachment	hasAttachment		string	Whether the email has attachments ("Any", "Yes", "No").

Returns

Represents a wrapper object for batch trigger response

Body

TriggerBatchResponse[ReceiveMessageMetadata]

When a new email arrives [DEPRECATED]

Operation ID:

OnNewEmail

This action has been deprecated. Please use When a new email arrives (V3) instead.

This operation triggers a flow when a new email arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

Parameters

Name	Key	Required	Type	Description
Folder	folderPath		string	Mail folder to check for new emails.
To	to		email	Recipient email addresses separated by semicolons (If any match, the trigger will run).
CC	cc		email	CC recipient email addresses separated by semicolons (If any match, the trigger will run).
To or CC	toOrCc		email	To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).
From	from		email	Sender email addresses separated by semicolons (If any match, the trigger will run).
Importance	importance		string	Importance of the email (Any, High, Normal, Low).
Only with Attachments	fetchOnlyWithAttachment		boolean	If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.
Include Attachments	includeAttachments		boolean	Should the response of the trigger include the attachments content.
Subject Filter	subjectFilter		string	String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

Body

TriggerBatchResponse[ClientReceiveMessage]

When a new email arrives in a shared mailbox (V2)

Operation ID:

SharedMailboxOnNewEmailV2

This operation triggers a flow when a new email arrives in a shared mailbox. Your account should have permission to access the mailbox for this operation to succeed. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

Parameters

Name	Key	Required	Type	Description
Original Mailbox Address	mailboxAddress	True	string	Address of the shared mailbox.
Folder	folderId		string	Mail folder to check for new emails.
To	to		email	Recipient email addresses separated by semicolons (If any match, the trigger will run).
CC	cc		email	CC recipient email addresses separated by semicolons (If any match, the trigger will run).
To or CC	toOrCc		email	To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).
From	from		email	Sender email addresses separated by semicolons (If any match, the trigger will run).
Importance	importance		string	Importance of the email (Any, High, Normal, Low).
Only with Attachments	hasAttachments		boolean	If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.
Include Attachments	includeAttachments		boolean	Should the response of the trigger include the attachments content.
Subject Filter	subjectFilter		string	String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

Body

TriggerBatchResponse[GraphClientReceiveMessage]

When a new email arrives in a shared mailbox [DEPRECATED]

Operation ID:

SharedMailboxOnNewEmail

This action has been deprecated. Please use When a new email arrives in a shared mailbox (V2) instead.

This operation triggers a flow when a new email arrives in a shared mailbox. Your account should have permission to access the mailbox for this operation to succeed. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

Parameters

Name	Key	Required	Type	Description
Original Mailbox Address	mailboxAddress	True	string	Address of the shared mailbox.
Folder	folderId		string	Mail folder to check for new emails.
To	to		email	Recipient email addresses separated by semicolons (If any match, the trigger will run).
CC	cc		email	CC recipient email addresses separated by semicolons (If any match, the trigger will run).
To or CC	toOrCc		email	To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).
From	from		email	Sender email addresses separated by semicolons (If any match, the trigger will run).
Importance	importance		string	Importance of the email (Any, High, Normal, Low).
Only with Attachments	hasAttachments		boolean	If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.
Include Attachments	includeAttachments		boolean	Should the response of the trigger include the attachments content.
Subject Filter	subjectFilter		string	String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

Body

TriggerBatchResponse[ClientReceiveMessage]

When a new email mentioning me arrives (V2) [DEPRECATED]

Operation ID:

OnNewMentionMeEmailV2

This action has been deprecated. Please use When a new email mentioning me arrives (V3) instead.

This operation triggers a flow when a new email mentioning me arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

Parameters

Name	Key	Required	Type	Description
Folder	folderPath		string	Mail folder to check for new emails.
To	to		email	Recipient email addresses separated by semicolons (If any match, the trigger will run).
CC	cc		email	CC recipient email addresses separated by semicolons (If any match, the trigger will run).
To or CC	toOrCc		email	To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).
From	from		email	Sender email addresses separated by semicolons (If any match, the trigger will run).
Importance	importance		string	Importance of the email (Any, High, Normal, Low).
Only with Attachments	fetchOnlyWithAttachment		boolean	If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.
Include Attachments	includeAttachments		boolean	Should the response of the trigger include the attachments content.
Subject Filter	subjectFilter		string	String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

Body

TriggerBatchResponse[GraphClientReceiveMessage]

When a new email mentioning me arrives (V3)

Operation ID:

OnNewMentionMeEmailV3

This operation triggers a flow when a new email mentioning me arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

Parameters

Name	Key	Required	Type	Description
Folder	folderPath		string	Mail folder to check for new emails.
To	to		email	Recipient email addresses separated by semicolons (If any match, the trigger will run).
CC	cc		email	CC recipient email addresses separated by semicolons (If any match, the trigger will run).
To or CC	toOrCc		email	To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).
From	from		email	Sender email addresses separated by semicolons (If any match, the trigger will run).
Importance	importance		string	Importance of the email (Any, High, Normal, Low).
Only with Attachments	fetchOnlyWithAttachment		boolean	If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.
Include Attachments	includeAttachments		boolean	Should the response of the trigger include the attachments content.
Subject Filter	subjectFilter		string	String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

Body

TriggerBatchResponse[GraphClientReceiveMessage]

When a new email mentioning me arrives [DEPRECATED]

Operation ID:

OnNewMentionMeEmail

This action has been deprecated. Please use When a new email mentioning me arrives (V3) instead.

This operation triggers a flow when a new email mentioning me arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

Parameters

Name	Key	Required	Type	Description
Folder	folderPath		string	Mail folder to check for new emails.
To	to		email	Recipient email addresses separated by semicolons (If any match, the trigger will run).
CC	cc		email	CC recipient email addresses separated by semicolons (If any match, the trigger will run).
To or CC	toOrCc		email	To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).
From	from		email	Sender email addresses separated by semicolons (If any match, the trigger will run).
Importance	importance		string	Importance of the email (Any, High, Normal, Low).
Only with Attachments	fetchOnlyWithAttachment		boolean	If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.
Include Attachments	includeAttachments		boolean	Should the response of the trigger include the attachments content.
Subject Filter	subjectFilter		string	String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

Body

TriggerBatchResponse[ClientReceiveMessage]

When a new event is created (V1) [DEPRECATED]

Operation ID:

CalendarGetOnNewItems

This action has been deprecated. Please use When a new event is created (V3) instead.

This operation triggers a flow when a new event is created in a calendar. (V1)

Parameters

Name	Key	Required	Type	Description
Calendar id	table	True	string	Select a calendar
Order By	$orderby		string	An ODATA orderBy query for specifying the order of entries.
Top Count	$top		integer	Total number of entries to retrieve (default = all).
Skip Count	$skip		integer	The number of entries to skip (default = 0).

Returns

The list of calendar items

Body

CalendarEventList

When a new event is created (V2) [DEPRECATED]

Operation ID:

CalendarGetOnNewItemsV2

This action has been deprecated. Please use When a new event is created (V3) instead.

This operation triggers a flow when a new event is created in a calendar. (V2)

Parameters

Name	Key	Required	Type	Description
Calendar id	table	True	string	Select a calendar
Order By	$orderby		string	An ODATA orderBy query for specifying the order of entries.
Top Count	$top		integer	Total number of entries to retrieve (default = all).
Skip Count	$skip		integer	The number of entries to skip (default = 0).

Returns

The list of calendar items

Body

CalendarEventListClientReceive

When a new event is created (V3)

Operation ID:

CalendarGetOnNewItemsV3

This operation triggers a flow when a new event is created in a calendar. (V3)

Parameters

Name	Key	Required	Type	Description
Calendar id	table	True	string	Select a calendar
Order By	$orderby		string	An ODATA orderBy query for specifying the order of entries.
Top Count	$top		integer	Total number of entries to retrieve (default = all).
Skip Count	$skip		integer	The number of entries to skip (default = 0).

Returns

The list of calendar items returned by Graph API

Body

GraphCalendarEventListClientReceive

When an email is flagged (V2) [DEPRECATED]

Operation ID:

OnFlaggedEmailV2

This action has been deprecated. Please use When an email is flagged (V4) instead.

This operation triggers a flow when an email is flagged.

Parameters

Name	Key	Required	Type	Description
Folder	folderPath		string	Mail folder to check for new emails.
To	to		email	Recipient email addresses separated by semicolons (If any match, the trigger will run).
CC	cc		email	CC recipient email addresses separated by semicolons (If any match, the trigger will run).
To or CC	toOrCc		email	To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).
From	from		email	Sender email addresses separated by semicolons (If any match, the trigger will run).
Importance	importance		string	Importance of the email (Any, High, Normal, Low).
Only with Attachments	fetchOnlyWithAttachment		boolean	If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.
Include Attachments	includeAttachments		boolean	Should the response of the trigger include the attachments content.
Subject Filter	subjectFilter		string	String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

Body

TriggerBatchResponse[GraphClientReceiveMessage]

When an email is flagged (V3)

Operation ID:

OnFlaggedEmailV3

This operation triggers a flow when an email is flagged.

Parameters

Name	Key	Required	Type	Description
Folder	folderPath		string	Mail folder to check for new emails.
To	to		email	Recipient email addresses separated by semicolons (If any match, the trigger will run).
CC	cc		email	CC recipient email addresses separated by semicolons (If any match, the trigger will run).
To or CC	toOrCc		email	To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).
From	from		email	Sender email addresses separated by semicolons (If any match, the trigger will run).
Importance	importance		string	Importance of the email (Any, High, Normal, Low).
Only with Attachments	fetchOnlyWithAttachment		boolean	If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.
Include Attachments	includeAttachments		boolean	Should the response of the trigger include the attachments content.
Subject Filter	subjectFilter		string	String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

Body

TriggerBatchResponse[GraphClientReceiveMessage]

When an email is flagged (V4) (Preview)

Operation ID:

OnFlaggedEmailV4

This operation triggers a flow when an email is flagged.

Parameters

Name	Key	Required	Type	Description
Folder	folderPath		string	Mail folder to check for new emails.
To	to		email	Recipient email addresses separated by semicolons (If any match, the trigger will run).
CC	cc		email	CC recipient email addresses separated by semicolons (If any match, the trigger will run).
To or CC	toOrCc		email	To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).
From	from		email	Sender email addresses separated by semicolons (If any match, the trigger will run).
Importance	importance		string	Importance of the email (Any, High, Normal, Low).
Only with Attachments	fetchOnlyWithAttachment		boolean	If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.
Include Attachments	includeAttachments		boolean	Should the response of the trigger include the attachments content.
Subject Filter	subjectFilter		string	String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

Body

TriggerBatchResponse[GraphClientReceiveMessage]

When an email is flagged [DEPRECATED]

Operation ID:

OnFlaggedEmail

This action has been deprecated. Please use When an email is flagged (V4) instead.

This operation triggers a flow when an email is flagged.

Parameters

Name	Key	Required	Type	Description
Folder	folderPath		string	Mail folder to check for new emails.
To	to		email	Recipient email addresses separated by semicolons (If any match, the trigger will run).
CC	cc		email	CC recipient email addresses separated by semicolons (If any match, the trigger will run).
To or CC	toOrCc		email	To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).
From	from		email	Sender email addresses separated by semicolons (If any match, the trigger will run).
Importance	importance		string	Importance of the email (Any, High, Normal, Low).
Only with Attachments	fetchOnlyWithAttachment		boolean	If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.
Include Attachments	includeAttachments		boolean	Should the response of the trigger include the attachments content.
Subject Filter	subjectFilter		string	String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

Body

TriggerBatchResponse[ClientReceiveMessage]

When an event is added, updated or deleted (V2) [DEPRECATED]

Operation ID:

CalendarGetOnChangedItemsV2

This action has been deprecated. Please use When an event is added, updated or deleted (V3) instead.

This operation triggers a flow when an event is added, updated or deleted in a calendar. (V2)

Parameters

Name	Key	Required	Type	Description
Calendar id	table	True	string	Select a calendar
Incoming Days Tracked	incomingDays		integer	Number of incoming days in calendar to be tracked
Past Days Tracked	pastDays		integer	Number of past days in calendar to be tracked

Returns

The list of calendar items with action type

Body

GraphCalendarEventListWithActionType

When an event is added, updated or deleted (V3)

Operation ID:

CalendarGetOnChangedItemsV3

This operation triggers a flow when an event is added, updated or deleted in a calendar. (V3) This is not available in Mooncake.

Parameters

Name	Key	Required	Type	Description
Calendar id	table	True	string	Select a calendar
Incoming Days Tracked	incomingDays		integer	Number of incoming days in calendar to be tracked
Past Days Tracked	pastDays		integer	Number of past days in calendar to be tracked

Returns

The list of calendar items with action type

Body

GraphCalendarEventListWithActionType

When an event is added, updated or deleted [DEPRECATED]

Operation ID:

CalendarGetOnChangedItems

This action has been deprecated. Please use When an event is added, updated or deleted (V3) instead.

This operation triggers a flow when an event is added, updated or deleted in a calendar.

Parameters

Name	Key	Required	Type	Description
Calendar id	table	True	string	Select a calendar
Incoming Days Tracked	incomingDays		integer	Number of incoming days in calendar to be tracked
Past Days Tracked	pastDays		integer	Number of past days in calendar to be tracked

Returns

The list of calendar items with action type

Body

CalendarEventListWithActionType

When an event is modified (V1) [DEPRECATED]

Operation ID:

CalendarGetOnUpdatedItems

This action has been deprecated. Please use When an event is modified (V3) instead.

This operation triggers a flow when an event is modified in a calendar. (V1)

Parameters

Name	Key	Required	Type	Description
Calendar id	table	True	string	Select a calendar
Order By	$orderby		string	An ODATA orderBy query for specifying the order of entries.
Top Count	$top		integer	Total number of entries to retrieve (default = all).
Skip Count	$skip		integer	The number of entries to skip (default = 0).

Returns

The list of calendar items

Body

CalendarEventList

When an event is modified (V2) [DEPRECATED]

Operation ID:

CalendarGetOnUpdatedItemsV2

This action has been deprecated. Please use When an event is modified (V3) instead.

This operation triggers a flow when an event is modified in a calendar. (V2)

Parameters

Name	Key	Required	Type	Description
Calendar id	table	True	string	Select a calendar
Order By	$orderby		string	An ODATA orderBy query for specifying the order of entries.
Top Count	$top		integer	Total number of entries to retrieve (default = all).
Skip Count	$skip		integer	The number of entries to skip (default = 0).

Returns

The list of calendar items

Body

CalendarEventListClientReceive

When an event is modified (V3)

Operation ID:

CalendarGetOnUpdatedItemsV3

This operation triggers a flow when an event is modified in a calendar. (V3)

Parameters

Name	Key	Required	Type	Description
Calendar id	table	True	string	Select a calendar
Order By	$orderby		string	An ODATA orderBy query for specifying the order of entries.
Top Count	$top		integer	Total number of entries to retrieve (default = all).
Skip Count	$skip		integer	The number of entries to skip (default = 0).

Returns

The list of calendar items returned by Graph API

Body

GraphCalendarEventListClientReceive

When an upcoming event is starting soon (V2) [DEPRECATED]

Operation ID:

OnUpcomingEventsV2

This action has been deprecated. Please use When an upcoming event is starting soon (V3) instead.

This operation triggers a flow when an upcoming calendar event is starting.

Parameters

Name	Key	Required	Type	Description
Calendar Id	table	True	string	Unique identifier of the calendar.
Look-Ahead Time	lookAheadTimeInMinutes		integer	Time (in minutes) to look ahead for upcoming events.

Returns

The list of calendar items

Body

CalendarEventListClientReceive

When an upcoming event is starting soon (V3)

Operation ID:

OnUpcomingEventsV3

This operation triggers a flow when an upcoming calendar event is starting.

Parameters

Name	Key	Required	Type	Description
Calendar Id	table	True	string	Unique identifier of the calendar.
Look-Ahead Time	lookAheadTimeInMinutes		integer	Time (in minutes) to look ahead for upcoming events.

Returns

The list of calendar items returned by Graph API

Body

GraphCalendarEventListClientReceive

When an upcoming event is starting soon [DEPRECATED]

Operation ID:

OnUpcomingEvents

This action has been deprecated. Please use When an upcoming event is starting soon (V3) instead.

This operation triggers a flow when an upcoming calendar event is starting.

Parameters

Name	Key	Required	Type	Description
Calendar Id	table	True	string	Unique identifier of the calendar.
Look-Ahead Time	lookAheadTimeInMinutes		integer	Time (in minutes) to look ahead for upcoming events.

Returns

The list of calendar items

Body

CalendarEventList

Definitions

CalendarEventList

The list of calendar items

Name	Path	Type	Description
value	value	array of CalendarEventBackend	List of calendar items

CalendarEventBackend

Connector specific calendar event model class for the backend

Name	Path	Type	Description
Id	Id	string	The Event's unique identifier
Attendees	Attendees	array of Attendee	List of attendees for the event
Body	Body	ItemBody
Body preview	BodyPreview	string	The preview of the message associated with the event
Categories	Categories	array of string	The categories associated with the event
Change key	ChangeKey	string	This property identifies the version of the event object. Every time the event is changed, ChangeKey changes as well.
Created time	DateTimeCreated	date-time	The date and time that the event was created
Last modified time	DateTimeLastModified	date-time	The date and time that the event was last modified
End time	End	date-time	The end time of the event
End time zone	EndTimeZone	string	This property specifies the time zone of the meeting end time. The value must be as defined in Windows (example: 'Pacific Standard Time').
Has attachments?	HasAttachments	boolean	Set to true if the event has attachments
Event Unique ID	ICalUId	string	A unique identifier that is shared by all instances of an event across different calendars
Importance	Importance	string	The importance of the event: Low, Normal, or High
Is all day event?	IsAllDay	boolean	Set to true if the event lasts all day
Is cancelled?	IsCancelled	boolean	Set to true if the event has been canceled
Is Organizer	IsOrganizer	boolean	Set to true if the message sender is also the organizer
Location	Location	Location
Organizer	Organizer	Recipient
Recurrence	Recurrence	PatternedRecurrence
Reminder	Reminder	integer	Time in minutes before event start to remind
Response requested	ResponseRequested	boolean	Set to true if the sender would like a response when the event is accepted or declined
ResponseStatus	ResponseStatus	ResponseStatus
Series master id	SeriesMasterId	string	Unique identifier for Series Master event type
Show as	ShowAs	string	Shows as free or busy
Start time	Start	date-time	The start time of the event
Start time zone	StartTimeZone	string	This property specifies the time zone of the meeting start time. The value must be as defined in Windows (example: 'Pacific Standard Time').
Subject	Subject	string	Event subject
Type	Type	string	The event type: Single Instance, Occurrence, Exception, or Series Master
Web link	WebLink	uri	The preview of the message associated with the event
Reason	Reason	string	The reason property used by O365 sync events protocol, will be 'deleted' if its a deleted event.

Attendee

Name	Path	Type	Description
Status	Status	ResponseStatus
Type	Type	string
EmailAddress	EmailAddress	EmailAddress

ItemBody

Name	Path	Type	Description
ContentType	ContentType	string
Content	Content	string

Location

Name	Path	Type	Description
DisplayName	DisplayName	string
Address	Address	PhysicalAddress
Coordinates	Coordinates	GeoCoordinates

Recipient

Name	Path	Type	Description
EmailAddress	EmailAddress	EmailAddress

PatternedRecurrence

Name	Path	Type	Description
Pattern	Pattern	RecurrencePattern
Range	Range	RecurrenceRange

ResponseStatus

Name	Path	Type	Description
Response	Response	string
Time	Time	date-time

EmailAddress

Name	Path	Type	Description
Name	Name	string
Address	Address	email

PhysicalAddress

Name	Path	Type	Description
Street	Street	string
City	City	string
State	State	string
CountryOrRegion	CountryOrRegion	string
PostalCode	PostalCode	string

GeoCoordinates

Name	Path	Type	Description
Altitude	Altitude	double
Latitude	Latitude	double
Longitude	Longitude	double
Accuracy	Accuracy	double
AltitudeAccuracy	AltitudeAccuracy	double

RecurrencePattern

Name	Path	Type	Description
Type	Type	string
Interval	Interval	integer
Month	Month	integer
DayOfMonth	DayOfMonth	integer
DaysOfWeek	DaysOfWeek	array of string
FirstDayOfWeek	FirstDayOfWeek	string
Index	Index	string

RecurrenceRange

Name	Path	Type	Description
Type	Type	string
StartDate	StartDate	date-time
EndDate	EndDate	date-time
NumberOfOccurrences	NumberOfOccurrences	integer

CalendarEventListClientReceive

The list of calendar items

Name	Path	Type	Description
value	value	array of CalendarEventClientReceive	List of calendar items

CalendarEventClientReceive

Connector specific calendar event model class for the client

Name	Path	Type	Description
Subject	Subject	string	Event subject
Start time	Start	date-time	Start time of the event (example: '2016-11-01T14:30:00Z')
End time	End	date-time	End time of the event (example: '2016-11-01T15:30:00Z')
Show as	ShowAs	integer	Status to show during the event (Unknown - -1, Free - 0, Tentative - 1, Busy - 2, Oof - 3, WorkingElsewhere - 4)
Recurrence	Recurrence	integer	The recurrence pattern for the event (None - 0, Daily - 1, Weekly - 2, Monthly - 3, Yearly - 4)
Response type	ResponseType	integer	The response type of the event (None - 0, Organizer - 1, TentativelyAccepted - 2, Accepted - 3, Declined - 4, NotResponded - 5)
Response time	ResponseTime	date-time	The response time of the event
Event Unique ID	ICalUId	string	A unique identifier that is shared by all instances of an event across different calendars
Importance	Importance	integer	The importance of the event (0 - Low, 1 - Normal, 2 - High)
Id	Id	string	The event's unique identifier
Created time	DateTimeCreated	date-time	The date and time that the event was created
Last modified time	DateTimeLastModified	date-time	The date and time that the event was last modified
Organizer	Organizer	email	The organizer of the event
Time zone	TimeZone	string	Time zone of the event
Series master id	SeriesMasterId	string	Unique identifier for Series Master event type
Categories	Categories	array of string	The categories associated with the event
Web link	WebLink	uri	The URL to open the event in Outlook Web App
Required attendees	RequiredAttendees	email	Required attendees for the event separated by semicolons
Optional attendees	OptionalAttendees	email	Optional attendees for the event separated by semicolons
Resource attendees	ResourceAttendees	string	Resource attendees for the event separated by semicolons
Body	Body	string	Body of the message associated with the event
Is HTML	IsHtml	boolean	Set to true if the body is Html
Location	Location	string	Location of the event
Is all day event?	IsAllDay	boolean	Set to true if the event lasts all day
Recurrence end time	RecurrenceEnd	date-time	End time of the recurrence
Number of occurrences	NumberOfOccurrences	integer	How many times to repeat the event
Reminder	Reminder	integer	Time in minutes before event start to remind
Response requested	ResponseRequested	boolean	Set to true if the sender would like a response when the event is accepted or declined

GraphCalendarEventListClientReceive

The list of calendar items returned by Graph API

Name	Path	Type	Description
value	value	array of GraphCalendarEventClientReceive	List of calendar items

GraphCalendarEventClientReceive

Connector specific calendar event model class for the client with Graph API

Name	Path	Type	Description
Subject	subject	string	Event subject
Start time	start	date-no-tz	Start time of the event (example: '2017-08-29T04:00:00.0000000')
End time	end	date-no-tz	End time of the event (example: '2017-08-29T05:00:00.0000000')
Start time with time zone	startWithTimeZone	date-time	Start time of the event with time zone (example: '2017-08-29T04:00:00.0000000+00:00')
End time with time zone	endWithTimeZone	date-time	End time of the event with time zone (example: '2017-08-29T05:00:00.0000000+00:00')
Body	body	html	Body of the message associated with the event
Is HTML	isHtml	boolean	Set to true if the body is Html
Response type	responseType	string	The response type of the event (none, organizer, tentativelyAccepted, accepted, declined or notResponded)
Response time	responseTime	date-time	The response time of the event
Id	id	string	The event's unique identifier
Created time	createdDateTime	date-time	The date and time that the event was created
Last modified time	lastModifiedDateTime	date-time	The date and time that the event was last modified
Organizer	organizer	email	The organizer of the event
Time zone	timeZone	string	Time zone of the event
Series master id	seriesMasterId	string	Unique identifier for Series Master event type
iCalUId	iCalUId	string	A unique identifier for an event across calendars. This ID is different for each occurrence in a recurring series
Categories	categories	array of string	The categories associated with the event
Web link	webLink	uri	The URL to open the event in Outlook Web App
Required attendees	requiredAttendees	email	Required attendees for the event separated by semicolons
Optional attendees	optionalAttendees	email	Optional attendees for the event separated by semicolons
Resource attendees	resourceAttendees	string	Resource attendees for the event separated by semicolons
Location	location	string	Location of the event
Importance	importance	string	The importance of the event: low, normal, or high
Is all day event?	isAllDay	boolean	Set to true if the event lasts all day
Recurrence	recurrence	string	The recurrence pattern for the event: none, daily, weekly, monthly or yearly
Recurrence end date	recurrenceEnd	date	End Date of the recurrence
Number of occurrences	numberOfOccurences	integer	How many times to repeat the event
Reminder	reminderMinutesBeforeStart	integer	Time in minutes before event start to remind
Is reminder on	isReminderOn	boolean	Set to true if an alert is set to remind the user of the event.
Show as	showAs	string	Status to show during the event: free, tentative, busy, oof, workingElsewhere or unknown
Response requested	responseRequested	boolean	Set to true if the sender would like a response when the event is accepted or declined
Sensitivity	sensitivity	string	The possible values are: normal, personal, private, confidential

PaginatedListResponse[CalendarEventClientReceiveStringEnums]

Response containing a list and next link

Name	Path	Type	Description
Values	Values	array of CalendarEventClientReceiveStringEnums	Values

CalendarEventClientReceiveStringEnums

Connector specific calendar event model class for the client

Name	Path	Type	Description
Importance	Importance	string	The importance of the event: Low, Normal, or High
Response type	ResponseType	string	The response type of the event: None, Organizer, TentativelyAccepted, Accepted, Declined or NotResponded
Recurrence	Recurrence	string	The recurrence pattern for the event
Show as	ShowAs	string	Status to show during the event
Subject	Subject	string	Event subject
Start time	Start	date-time	Start time of the event (example: '2016-11-01T14:30:00Z')
End time	End	date-time	End time of the event (example: '2016-11-01T15:30:00Z')
Response time	ResponseTime	date-time	The response time of the event
Event Unique ID	ICalUId	string	A unique identifier that is shared by all instances of an event across different calendars
Id	Id	string	The event's unique identifier
Created time	DateTimeCreated	date-time	The date and time that the event was created
Last modified time	DateTimeLastModified	date-time	The date and time that the event was last modified
Organizer	Organizer	email	The organizer of the event
Time zone	TimeZone	string	Time zone of the event
Series master id	SeriesMasterId	string	Unique identifier for Series Master event type
Categories	Categories	array of string	The categories associated with the event
Web link	WebLink	uri	The URL to open the event in Outlook Web App
Required attendees	RequiredAttendees	email	Required attendees for the event separated by semicolons
Optional attendees	OptionalAttendees	email	Optional attendees for the event separated by semicolons
Resource attendees	ResourceAttendees	string	Resource attendees for the event separated by semicolons
Body	Body	string	Body of the message associated with the event
Is HTML	IsHtml	boolean	Set to true if the body is Html
Location	Location	string	Location of the event
Is all day event?	IsAllDay	boolean	Set to true if the event lasts all day
Recurrence end time	RecurrenceEnd	date-time	End time of the recurrence
Number of occurrences	NumberOfOccurrences	integer	How many times to repeat the event
Reminder	Reminder	integer	Time in minutes before event start to remind
Response requested	ResponseRequested	boolean	Set to true if the sender would like a response when the event is accepted or declined

ClientReceiveMessageStringEnums

Receive Email Message

Name	Path	Type	Description
Importance	Importance	string	The importance of the message
From	From	email	The mailbox owner and sender of the message
To	To	email	The recipients for the message
CC	Cc	email	The Cc recipients for the message
BCC	Bcc	email	The Bcc recipients for the message
Reply To	ReplyTo	email	The email addresses to use when replying
Subject	Subject	string	The subject of the message
Body	Body	string	The body of the message
Body Preview	BodyPreview	string	The preview of the message
Has Attachment	HasAttachment	boolean	Indicates whether the message has attachments
Message Id	Id	string	The unique identifier of the message
Internet Message Id	InternetMessageId	string	The message ID in the format specified by RFC2822
Conversation Id	ConversationId	string	The Id of the conversation the email belongs to
Received Time	DateTimeReceived	date-time	The date and time the message was received
Is Read	IsRead	boolean	Indicates whether the message has been read
Attachments	Attachments	array of ClientReceiveFileAttachment	The file attachments for the message
Is HTML	IsHtml	boolean	Is Html?

ClientReceiveFileAttachment

File Attachment

Name	Path	Type	Description
Attachment Id	Id	string	Attachment Id
Name	Name	string	Attachment name
Content	ContentBytes	byte	Attachment content
Content-Type	ContentType	string	Attachment content type
Size	Size	integer	The size in bytes of the attachment
Is Inline	IsInline	boolean	Set to true if this is an inline attachment
Last Modified DateTime	LastModifiedDateTime	date-time	The date and time when the attachment was last modified
Content Id	ContentId	string	Content Id

BatchResponse[ClientReceiveMessage]

Represents a wrapper object for batch response

Name	Path	Type	Description
value	value	array of ClientReceiveMessage	A list of the response objects

ClientReceiveMessage

Receive Email Message

Name	Path	Type	Description
From	From	email	The mailbox owner and sender of the message
To	To	email	The recipients for the message
CC	Cc	email	The Cc recipients for the message
BCC	Bcc	email	The Bcc recipients for the message
Reply To	ReplyTo	email	The email addresses to use when replying
Subject	Subject	string	The subject of the message
Body	Body	string	The body of the message
Importance	Importance	integer	The importance of the message (0 - Low, 1 - Normal, 2 - High)
Body Preview	BodyPreview	string	The preview of the message
Has Attachment	HasAttachment	boolean	Indicates whether the message has attachments
Message Id	Id	string	The unique identifier of the message
Internet Message Id	InternetMessageId	string	The message ID in the format specified by RFC2822
Conversation Id	ConversationId	string	The Id of the conversation the email belongs to
Received Time	DateTimeReceived	date-time	The date and time the message was received
Is Read	IsRead	boolean	Indicates whether the message has been read
Attachments	Attachments	array of ClientReceiveFileAttachment	The file attachments for the message
Is HTML	IsHtml	boolean	Is Html?

GraphClientReceiveMessage

Graph Client Receive Email Message

Name	Path	Type	Description
From	from	email	The mailbox owner and sender of the message
To	toRecipients	email	The recipients for the message
CC	ccRecipients	email	The Cc recipients for the message
BCC	bccRecipients	email	The Bcc recipients for the message
Reply To	replyTo	email	The email addresses to use when replying
Subject	subject	string	The subject of the message
Body	body	string	The body of the message
Importance	importance	string	The importance of the message (low, normal, high)
Body Preview	bodyPreview	string	The preview of the message
Has Attachment	hasAttachments	boolean	Indicates whether the message has attachments
Message Id	id	string	The unique identifier of the message
Internet Message Id	internetMessageId	string	The message ID in the format specified by RFC2822
Conversation Id	conversationId	string	The Id of the conversation the email belongs to
Received Time	receivedDateTime	date-time	The date and time the message was received
Is Read	isRead	boolean	Indicates whether the message has been read
Attachments	attachments	array of GraphClientReceiveFileAttachment	The file attachments for the message
Is HTML	isHtml	boolean	Is Html?

GraphClientReceiveFileAttachment

File Attachment

Name	Path	Type	Description
Attachment Id	id	string	Attachment Id
Name	name	string	Attachment name
Content	contentBytes	byte	Attachment content
Content-Type	contentType	string	Attachment content type
Size	size	integer	The size in bytes of the attachment
Is Inline	isInline	boolean	Set to true if this is an inline attachment
Last Modified DateTime	lastModifiedDateTime	date-time	The date and time when the attachment was last modified
Content Id	contentId	string	Content Id

BatchResponse[GraphClientReceiveMessage]

Represents a wrapper object for batch response

Name	Path	Type	Description
value	value	array of GraphClientReceiveMessage	A list of the response objects

TriggerBatchResponse[ClientReceiveMessage]

Represents a wrapper object for batch trigger response

Name	Path	Type	Description
value	value	array of ClientReceiveMessage	A list of the response objects

TriggerBatchResponse[GraphClientReceiveMessage]

Represents a wrapper object for batch trigger response

Name	Path	Type	Description
value	value	array of GraphClientReceiveMessage	A list of the response objects

MailTipsClientReceive

Mail tips client model returned to the caller

Name	Path	Type	Description
AutomaticReplies	AutomaticReplies	MailTipsAutomaticReplies	Automatic replies as part of mail tips
DeliveryRestricted	DeliveryRestricted	boolean	Is delivery restricted
ExternalMemberCount	ExternalMemberCount	integer	Number of external members
IsModerated	IsModerated	boolean	Is moderated
MailboxFull	MailboxFull	boolean	Is mailbox full
MaxMessageSize	MaxMessageSize	integer	Maximum message size
TotalMemberCount	TotalMemberCount	integer	Total member count

MailTipsAutomaticReplies

Automatic replies as part of mail tips

Name	Path	Type	Description
Message	Message	string	Automatic replies message

TriggerBatchResponse[ReceiveMessageMetadata]

Represents a wrapper object for batch trigger response

Name	Path	Type	Description
value	value	array of ReceiveMessageMetadata	A list of the response objects

ReceiveMessageMetadata

Receive Email Message

Name	Path	Type	Description
From	From	email	The mailbox owner and sender of the message
To	To	email	The recipients for the message
CC	Cc	email	The Cc recipients for the message
BCC	Bcc	email	The Bcc recipients for the message
Reply To	ReplyTo	email	The email addresses to use when replying
Subject	Subject	string	The subject of the message
Importance	Importance	integer	The importance of the message (0 - Low, 1 - Normal, 2 - High)
Has Attachment	HasAttachment	boolean	Indicates whether the message has attachments
Message Id	Id	string	The unique identifier of the message
Received Time	DateTimeReceived	date-time	The date and time the message was received
Is Read	IsRead	boolean	Indicates whether the message has been read

ApprovalEmailResponse

Approval Email Response

Name	Path	Type	Description
SelectedOption	SelectedOption	string	User response
UserEmailAddress	UserEmailAddress	string	User email address. The value is the user's email address for individual users and user ID for the members in Distribution Group or Mail Enabled Security Group.
UserTenantId	UserTenantId	string	User tenant ID. The value is the tenant id of the user for both individual users and the members in Distribution Group or Mail Enabled Security Group.
UserId	UserId	string	User ID. The value is the user id for both individual users and the members in Distribution Group or Mail Enabled Security Group.

EntityListResponse[Table]

Entity list response

Name	Path	Type	Description
value	value	array of Table	List of values

Table

Represents a table.

Name	Path	Type	Description
Name	Name	string	The name of the table. The name is used at runtime.
DisplayName	DisplayName	string	The display name of the table.
DynamicProperties	DynamicProperties	object	Additional table properties provided by the connector to the clients.

EntityListResponse[CalendarEventBackend]

Entity list response

Name	Path	Type	Description
value	value	array of CalendarEventBackend	List of values

EntityListResponse[CalendarEventClientReceiveStringEnums]

Entity list response

Name	Path	Type	Description
value	value	array of CalendarEventClientReceiveStringEnums	List of values

EntityListResponse[GraphCalendarEventClientReceive]

Entity list response

Name	Path	Type	Description
value	value	array of GraphCalendarEventClientReceive	List of values

CalendarEventListWithActionType

The list of calendar items with action type

Name	Path	Type	Description
value	value	array of CalendarEventClientWithActionType	List of calendar items

CalendarEventClientWithActionType

Calendar event model with action type

Name	Path	Type	Description
Action Type	ActionType	string	Changed action type of the event - added, updated or deleted.
Is Added	IsAdded	boolean	Flag that indicates whether the event was added since the last poll of the trigger.
Is Updated	IsUpdated	boolean	Flag that indicates whether the event was updated since the last poll of the trigger.
Subject	Subject	string	Event subject
Start time	Start	date-time	Start time of the event (example: '2016-11-01T14:30:00Z')
End time	End	date-time	End time of the event (example: '2016-11-01T15:30:00Z')
Show as	ShowAs	integer	Status to show during the event (Unknown - -1, Free - 0, Tentative - 1, Busy - 2, Oof - 3, WorkingElsewhere - 4)
Recurrence	Recurrence	integer	The recurrence pattern for the event (None - 0, Daily - 1, Weekly - 2, Monthly - 3, Yearly - 4)
Response type	ResponseType	integer	The response type of the event (None - 0, Organizer - 1, TentativelyAccepted - 2, Accepted - 3, Declined - 4, NotResponded - 5)
Response time	ResponseTime	date-time	The response time of the event
Event Unique ID	ICalUId	string	A unique identifier that is shared by all instances of an event across different calendars
Importance	Importance	integer	The importance of the event (0 - Low, 1 - Normal, 2 - High)
Id	Id	string	The event's unique identifier
Created time	DateTimeCreated	date-time	The date and time that the event was created
Last modified time	DateTimeLastModified	date-time	The date and time that the event was last modified
Organizer	Organizer	email	The organizer of the event
Time zone	TimeZone	string	Time zone of the event
Series master id	SeriesMasterId	string	Unique identifier for Series Master event type
Categories	Categories	array of string	The categories associated with the event
Web link	WebLink	uri	The URL to open the event in Outlook Web App
Required attendees	RequiredAttendees	email	Required attendees for the event separated by semicolons
Optional attendees	OptionalAttendees	email	Optional attendees for the event separated by semicolons
Resource attendees	ResourceAttendees	string	Resource attendees for the event separated by semicolons
Body	Body	string	Body of the message associated with the event
Is HTML	IsHtml	boolean	Set to true if the body is Html
Location	Location	string	Location of the event
Is all day event?	IsAllDay	boolean	Set to true if the event lasts all day
Recurrence end time	RecurrenceEnd	date-time	End time of the recurrence
Number of occurrences	NumberOfOccurrences	integer	How many times to repeat the event
Reminder	Reminder	integer	Time in minutes before event start to remind
Response requested	ResponseRequested	boolean	Set to true if the sender would like a response when the event is accepted or declined

GraphCalendarEventListWithActionType

The list of calendar items with action type

Name	Path	Type	Description
value	value	array of GraphCalendarEventClientWithActionType	List of calendar items

GraphCalendarEventClientWithActionType

Graph calendar event model with action type

Name	Path	Type	Description
Action Type	ActionType	string	Changed action type of the event - added, updated or deleted.
Is Added	IsAdded	boolean	Flag that indicates whether the event was added since the last poll of the trigger.
Is Updated	IsUpdated	boolean	Flag that indicates whether the event was updated since the last poll of the trigger.
Subject	subject	string	Event subject
Start time	start	date-no-tz	Start time of the event (example: '2017-08-29T04:00:00.0000000')
End time	end	date-no-tz	End time of the event (example: '2017-08-29T05:00:00.0000000')
Start time with time zone	startWithTimeZone	date-time	Start time of the event with time zone (example: '2017-08-29T04:00:00.0000000+00:00')
End time with time zone	endWithTimeZone	date-time	End time of the event with time zone (example: '2017-08-29T05:00:00.0000000+00:00')
Body	body	html	Body of the message associated with the event
Is HTML	isHtml	boolean	Set to true if the body is Html
Response type	responseType	string	The response type of the event (none, organizer, tentativelyAccepted, accepted, declined or notResponded)
Response time	responseTime	date-time	The response time of the event
Id	id	string	The event's unique identifier
Created time	createdDateTime	date-time	The date and time that the event was created
Last modified time	lastModifiedDateTime	date-time	The date and time that the event was last modified
Organizer	organizer	email	The organizer of the event
Time zone	timeZone	string	Time zone of the event
Series master id	seriesMasterId	string	Unique identifier for Series Master event type
iCalUId	iCalUId	string	A unique identifier for an event across calendars. This ID is different for each occurrence in a recurring series
Categories	categories	array of string	The categories associated with the event
Web link	webLink	uri	The URL to open the event in Outlook Web App
Required attendees	requiredAttendees	email	Required attendees for the event separated by semicolons
Optional attendees	optionalAttendees	email	Optional attendees for the event separated by semicolons
Resource attendees	resourceAttendees	string	Resource attendees for the event separated by semicolons
Location	location	string	Location of the event
Importance	importance	string	The importance of the event: low, normal, or high
Is all day event?	isAllDay	boolean	Set to true if the event lasts all day
Recurrence	recurrence	string	The recurrence pattern for the event: none, daily, weekly, monthly or yearly
Recurrence end date	recurrenceEnd	date	End Date of the recurrence
Number of occurrences	numberOfOccurences	integer	How many times to repeat the event
Reminder	reminderMinutesBeforeStart	integer	Time in minutes before event start to remind
Is reminder on	isReminderOn	boolean	Set to true if an alert is set to remind the user of the event.
Show as	showAs	string	Status to show during the event: free, tentative, busy, oof, workingElsewhere or unknown
Response requested	responseRequested	boolean	Set to true if the sender would like a response when the event is accepted or declined
Sensitivity	sensitivity	string	The possible values are: normal, personal, private, confidential

EntityListResponse[GraphContactFolder]

Entity list response

Name	Path	Type	Description
value	value	array of GraphContactFolder	List of values

GraphContactFolder

Contact folder data model returned by Graph API

Name	Path	Type	Description
ID	id	string	The ID of the contacts folder
Display Name	displayName	string	The name of the contacts folder
Parent Folder ID	parentFolderId	string	The ID of the parent folder

EntityListResponse[ContactResponse]

Entity list response

Name	Path	Type	Description
value	value	array of ContactResponse	List of values

ContactResponse

Contact response

Name	Path	Type	Description
Given name	GivenName	string	The contact's given name
Home phones	HomePhones	array of string	The contact's home phone numbers
Id	Id	string	The contact's unique identifier.
Parent folder id	ParentFolderId	string	The ID of the contact's parent folder
Birthday	Birthday	date-time	The contact's birthday
File as	FileAs	string	The name the contact is filed under
Display Name	DisplayName	string	The contact's display name
Initials	Initials	string	The contact's initials
Middle name	MiddleName	string	The contact's middle name
Nickname	NickName	string	The contact's nickname
Surname	Surname	string	The contact's surname
Title	Title	string	The contact's title
Generation	Generation	string	The contact's generation
Email addresses	EmailAddresses	array of EmailAddress	The contact's email addresses
IM addresses	ImAddresses	array of string	The contact's instant messaging (IM) addresses
JobTitle	JobTitle	string	The contact's job title
Company name	CompanyName	string	The name of the contact's company
Department	Department	string	The contact's department
Office location	OfficeLocation	string	The location of the contact's office
Profession	Profession	string	The contact's profession
Business home page	BusinessHomePage	string	The business home page of the contact
Assistant name	AssistantName	string	The name of the contact's assistant
Manager	Manager	string	The name of the contact's manager
Business phones	BusinessPhones	array of string	The contact's business phone numbers
Mobile phone	MobilePhone1	string	The contact's mobile phone number
HomeAddress	HomeAddress	PhysicalAddress
BusinessAddress	BusinessAddress	PhysicalAddress
OtherAddress	OtherAddress	PhysicalAddress
Yomi company name	YomiCompanyName	string	The phonetic Japanese company name of the contact
Yomi given name	YomiGivenName	string	The phonetic Japanese given name (first name) of the contact
Yomi surname	YomiSurname	string	The phonetic Japanese surname (last name) of the contact
Categories	Categories	array of string	The categories associated with the contact
Change key	ChangeKey	string	Identifies the version of the event object
Created time	DateTimeCreated	date-time	The time the contact was created
Last modified time	DateTimeLastModified	date-time	The time the contact was modified

AutomaticRepliesSettingClient_V2

Automatic replies setting model for the connector

Name	Path	Type	Description
Status	status	string	Automatic reply setting status
External Audience	externalAudience	string	The audience that will see the external reply message
DateTime	scheduledStartDateTime.dateTime	string	Scheduled start time (example: '2017-08-29T04:00:00.0000000')
TimeZone	scheduledStartDateTime.timeZone	string	TimeZone (example: 'Pacific Standard Time')
DateTime	scheduledEndDateTime.dateTime	string	Scheduled end time (example: '2017-08-29T05:00:00.0000000')
TimeZone	scheduledEndDateTime.timeZone	string	TimeZone (example: 'Pacific Standard Time')
Internal Reply Message	internalReplyMessage	string	Message for people within your organization
External Reply Message	externalReplyMessage	string	Message for people outside your organization

MailTipsClientReceive_V2

Mail tips client model returned to the caller

Name	Path	Type	Description
automaticReplies	automaticReplies	MailTipsAutomaticReplies_V2	Automatic replies as part of mail tips
Is delivery restricted	deliveryRestricted	boolean	Is delivery restricted
Is moderated	externalMemberCount	integer	Number of external members
Is moderated	isModerated	boolean	Is moderated
Is mailbox full	mailboxFull	boolean	Is mailbox full
Maximum message size	maxMessageSize	integer	Maximum message size
Total member count	totalMemberCount	integer	Total member count

MailTipsAutomaticReplies_V2

Automatic replies as part of mail tips

Name	Path	Type	Description
Automatic replies message	message	string	Automatic replies message

MeetingTimeSuggestions

Meeting Time Suggestions

Name	Path	Type	Description
Confidence	Confidence	float	Confidence
Organizer Availability	OrganizerAvailability	string	Organizer Availability
Suggestion Reason	SuggestionReason	string	Suggestion Reason
DateTimeTimeZone	MeetingTimeSlot.Start	DateTimeTimeZone	DateTimeTimeZone
DateTimeTimeZone	MeetingTimeSlot.End	DateTimeTimeZone	DateTimeTimeZone
Attendee Availability	AttendeeAvailability	array of object	Attendee Availability
Availability	AttendeeAvailability.Availability	string	Availability
Type	AttendeeAvailability.Attendee.Type	string	Type
Address	AttendeeAvailability.Attendee.EmailAddress.Address	string	Address
Locations	Locations	array of object	Locations
Display Name	Locations.DisplayName	string	Display Name
Location Email Address	Locations.LocationEmailAddress	string	Location Email Address
Type	Locations.Address.Type	string	Type
Street	Locations.Address.Street	string	Street
City	Locations.Address.City	string	City
State	Locations.Address.State	string	State
Country Or Region	Locations.Address.CountryOrRegion	string	Country Or Region
Postal Code	Locations.Address.PostalCode	string	Postal Code

MeetingTimeSuggestions_V2

Meeting Time Suggestions

Name	Path	Type	Description
Confidence	confidence	float	Confidence
Organizer Availability	organizerAvailability	string	Organizer Availability
Suggestion Reason	suggestionReason	string	Suggestion Reason
DateTimeTimeZone	meetingTimeSlot.start	DateTimeTimeZone_V2	DateTimeTimeZone
DateTimeTimeZone	meetingTimeSlot.end	DateTimeTimeZone_V2	DateTimeTimeZone
Attendee Availability	attendeeAvailability	array of object	Attendee Availability
Availability	attendeeAvailability.availability	string	Availability
Type	attendeeAvailability.attendee.type	string	Type
Address	attendeeAvailability.attendee.emailAddress.address	string	Address
Locations	locations	array of object	Locations
Display Name	locations.displayName	string	Display Name
Location Email Address	locations.locationEmailAddress	string	Location Email Address
Street	locations.address.street	string	Street
City	locations.address.city	string	City
State	locations.address.state	string	State
Country Or Region	locations.address.countryOrRegion	string	Country Or Region
Postal Code	locations.address.postalCode	string	Postal Code

DateTimeTimeZone

DateTimeTimeZone

Name	Path	Type	Description
DateTime	DateTime	string	DateTime
TimeZone	TimeZone	string	TimeZone

DateTimeTimeZone_V2

DateTimeTimeZone

Name	Path	Type	Description
DateTime	dateTime	string	DateTime (example: '2017-08-29T04:00:00.0000000')
TimeZone	timeZone	string	TimeZone (example: 'Pacific Standard Time')

EntityListResponse[ContactResponse]_V2

Entity list response

Name	Path	Type	Description
value	value	array of ContactResponse_V2	List of values

EmailAddress_V2

Name	Path	Type	Description
name	name	string
address	address	email

PhysicalAddress_V2

Name	Path	Type	Description
Street	street	string	The contact's street address.
City	city	string	The contact's city.
State	state	string	The contact's state.
Country Or Region	countryOrRegion	string	The contact's country of region.
Postal code	postalCode	string	The contact's postal code.

ContactResponse_V2

Contact

Name	Path	Type	Description
Id	id	string	The contact's unique identifier.
Parent folder id	parentFolderId	string	The ID of the contact's parent folder
Birthday	birthday	date-time	The contact's birthday
File as	fileAs	string	The name the contact is filed under
Display Name	displayName	string	The contact's display name
Given name	givenName	string	The contact's given name
Initials	initials	string	The contact's initials
Middle name	middleName	string	The contact's middle name
Nickname	nickName	string	The contact's nickname
Surname	surname	string	The contact's surname
Title	title	string	The contact's title
Generation	generation	string	The contact's generation
Email addresses	emailAddresses	array of EmailAddress_V2	The contact's email addresses
IM addresses	imAddresses	array of string	The contact's instant messaging (IM) addresses
JobTitle	jobTitle	string	The contact's job title
Company name	companyName	string	The name of the contact's company
Department	department	string	The contact's department
Office location	officeLocation	string	The location of the contact's office
Profession	profession	string	The contact's profession
Business home page	businessHomePage	string	The business home page of the contact
Assistant name	assistantName	string	The name of the contact's assistant
Manager	manager	string	The name of the contact's manager
Home phones	homePhones	array of string	The contact's home phone numbers
Business phones	businessPhones	array of string	The contact's business phone numbers
Mobile phone	mobilePhone	string	The contact's mobile phone number
homeAddress	homeAddress	PhysicalAddress_V2
businessAddress	businessAddress	PhysicalAddress_V2
otherAddress	otherAddress	PhysicalAddress_V2
Yomi company name	yomiCompanyName	string	The phonetic Japanese company name of the contact
Yomi given name	yomiGivenName	string	The phonetic Japanese given name (first name) of the contact
Yomi surname	yomiSurname	string	The phonetic Japanese surname (last name) of the contact
Categories	categories	array of string	The categories associated with the contact
Change key	changeKey	string	Identifies the version of the event object
Created time	createdDateTime	date-time	The time the contact was created
Last modified time	lastModifiedDateTime	date-time	The time the contact was modified

ObjectWithoutType

binary

This is the basic data type 'binary'.
