Ingest syslog and CEF messages to Microsoft Sentinel with the Azure Monitor Agent

• Сфера застосування:

  Microsoft Sentinel in the Azure portal, Microsoft Sentinel in the Microsoft Defender portal

This article describes how to use the Syslog via AMA and Common Event Format (CEF) via AMA connectors to quickly filter and ingest syslog messages, including messages in Common Event Format (CEF), from Linux machines and from network and security devices and appliances. To learn more about these data connectors, see Syslog and Common Event Format (CEF) via AMA connectors for Microsoft Sentinel.

Note

Container Insights now supports the automatic collection of Syslog events from Linux nodes in your AKS clusters. To learn more, see Syslog collection with Container Insights.

Prerequisites

Before you begin, you must have the resources configured and the appropriate permissions assigned, as described in this section.

Microsoft Sentinel prerequisites

Install the appropriate Microsoft Sentinel solution and make sure you have the permissions to complete the steps in this article.

• Install the appropriate solution from the Content hub in Microsoft Sentinel. For more information, see Discover and manage Microsoft Sentinel out-of-the-box content.

• Identify which data connector the Microsoft Sentinel solution requires — Syslog via AMA or Common Event Format (CEF) via AMA and whether you need to install the Syslog or Common Event Format solution. To fulfill this prerequisite,

  • In the Content hub, select Manage on the installed solution and review the data connector listed.

  • If either Syslog via AMA or Common Event Format (CEF) via AMA isn't installed with the solution, identify whether you need to install the Syslog or Common Event Format solution by finding your appliance or device from one of the following articles:

    • CEF via AMA data connector - Configure specific appliance or device for Microsoft Sentinel data ingestion
    • Syslog via AMA data connector - Configure specific appliance or device for Microsoft Sentinel data ingestion

    Then install either the Syslog or Common Event Format solution from the content hub to get the related AMA data connector.

• Have an Azure account with the following Azure role-based access control (Azure RBAC) roles:

  Built-in role	Scope	Reason
  - Virtual Machine Contributor - Azure Connected Machine    Resource Administrator	Virtual machines (VM) Virtual Machine Scale Sets Azure Arc-enabled servers	To deploy the agent
  Any role that includes the action Microsoft.Resources/deployments/*	Subscription Resource group Existing data collection rule	To deploy Azure Resource Manager templates
  Monitoring Contributor	Subscription Resource group Existing data collection rule	To create or edit data collection rules

Log forwarder prerequisites

If you're collecting messages from a log forwarder, the following prerequisites apply:

• You must have a designated Linux VM as a log forwarder to collect logs.

  • Create a Linux VM in the Azure portal.
  • Supported Linux operating systems for Azure Monitor Agent.

• If your log forwarder isn't an Azure virtual machine, it must have the Azure Arc Connected Machine agent installed on it.

• The Linux log forwarder VM must have Python 2.7 or 3 installed. Use the python --version or python3 --version command to check. If you're using Python 3, make sure it's set as the default command on the machine, or run scripts with the 'python3' command instead of 'python'.

• The log forwarder must have either the syslog-ng or rsyslog daemon enabled.

• For space requirements for your log forwarder, refer to the Azure Monitor Agent Performance Benchmark. You can also review this blog post, which includes designs for scalable ingestion.

• Your log sources, security devices, and appliances, must be configured to send their log messages to the log forwarder's syslog daemon instead of to their local syslog daemon.

Machine security prerequisites

Configure the machine's security according to your organization's security policy. For example, configure your network to align with your corporate network security policy and change the ports and protocols in the daemon to align with your requirements. To improve your machine security configuration, secure your VM in Azure, or review these best practices for network security.

If your devices are sending syslog and CEF logs over TLS because, for example, your log forwarder is in the cloud, you need to configure the syslog daemon (rsyslog or syslog-ng) to communicate in TLS. For more information, see:

• Encrypt Syslog traffic with TLS – rsyslog
• Encrypt log messages with TLS – syslog-ng

Configure the data connector

The setup process for the Syslog via AMA or Common Event Format (CEF) via AMA data connectors includes the following steps:

1. Install the Azure Monitor Agent and create a Data Collection Rule (DCR) by using either of the following methods:
   • Azure or Defender portal
   • Azure Monitor Logs Ingestion API
2. If you're collecting logs from other machines using a log forwarder, run the "installation" script on the log forwarder to configure the syslog daemon to listen for messages from other machines, and to open the necessary local ports.

Select the appropriate tab for instructions.

Azure or Defender portal

Create data collection rule (DCR)

To get started, open either the Syslog via AMA or Common Event Format (CEF) via AMA data connector in Microsoft Sentinel and create a data collection rule (DCR).

1. For Microsoft Sentinel in the Azure portal, under Configuration, select Data connectors.
   For Microsoft Sentinel in the Defender portal, select Microsoft Sentinel > Configuration > Data connectors.

2. For syslog, type Syslog in the Search box. From the results, select the Syslog via AMA connector.
   For CEF, type CEF in the Search box. From the results, select the Common Event Format (CEF) via AMA connector.

3. Select Open connector page on the details pane.

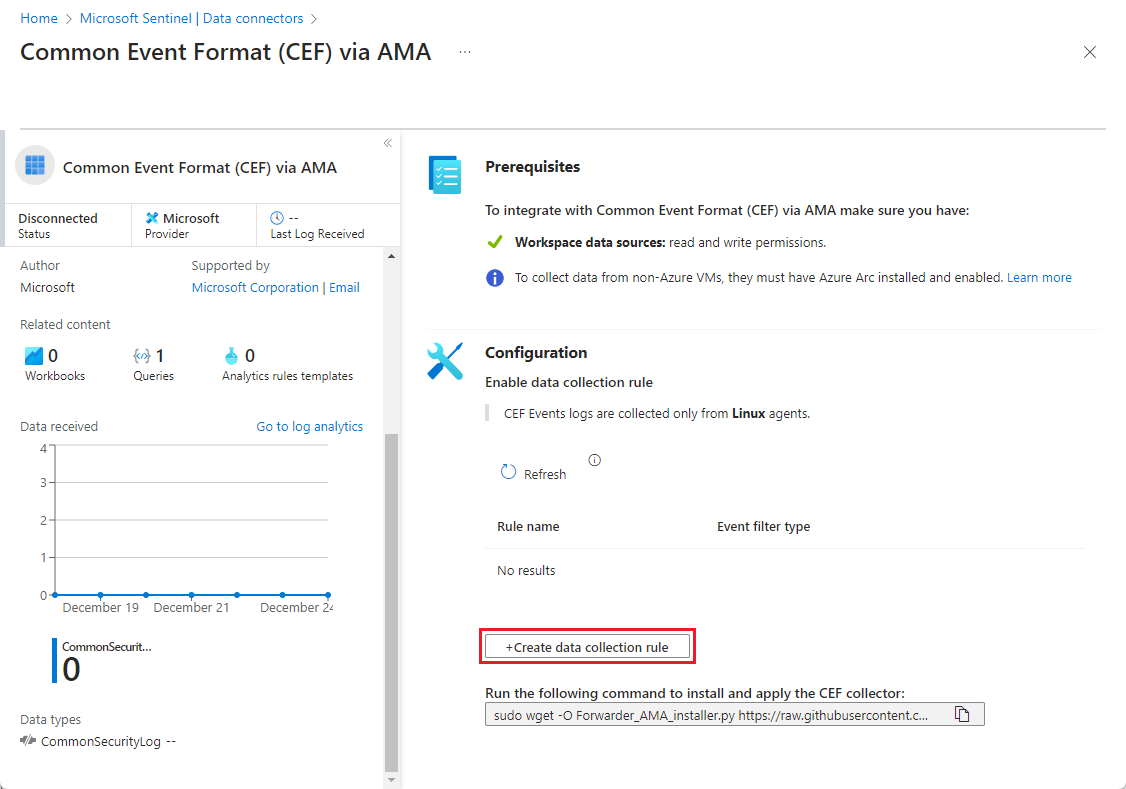

4. In the Configuration area, select +Create data collection rule.

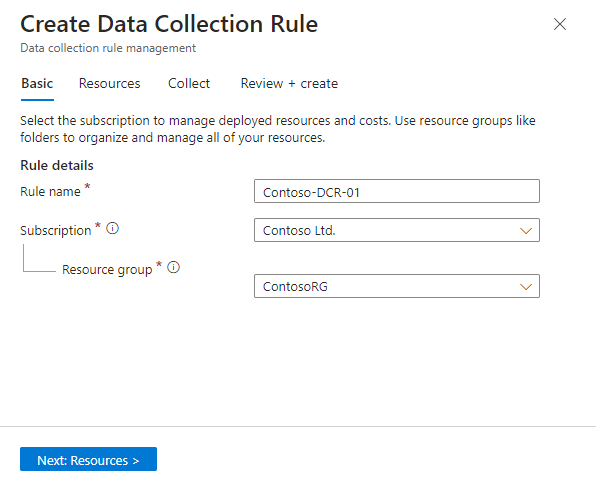

5. In the Basic tab:

   • Type a DCR name.
   • Select your subscription.
   • Select the resource group where you want to locate your DCR.



6. Select Next: Resources >.

Define VM resources

In the Resources tab, select the machines on which you want to install the AMA—in this case, your log forwarder machine. If your log forwarder doesn't appear in the list, it might not have the Azure Connected Machine agent installed.

1. Use the available filters or search box to find your log forwarder VM. Expand a subscription in the list to see its resource groups, and a resource group to see its VMs.

2. Select the log forwarder VM that you want to install the AMA on. The check box appears next to the VM name when you hover over it.



3. Review your changes and select Next: Collect >.

Select facilities and severities

Be aware that using the same facility for both syslog and CEF messages might result in data ingestion duplication. For more information, see Data ingestion duplication avoidance.

1. In the Collect tab, select the minimum log level for each facility. When you select a log level, Microsoft Sentinel collects logs for the selected level and other levels with higher severity. For example, if you select LOG_ERR, Microsoft Sentinel collects logs for the LOG_ERR, LOG_CRIT, LOG_ALERT, and LOG_EMERG levels.



2. Review your selections and select Next: Review + create.

Review and create the rule

After you complete all the tabs, review what you entered and create the data collection rule.

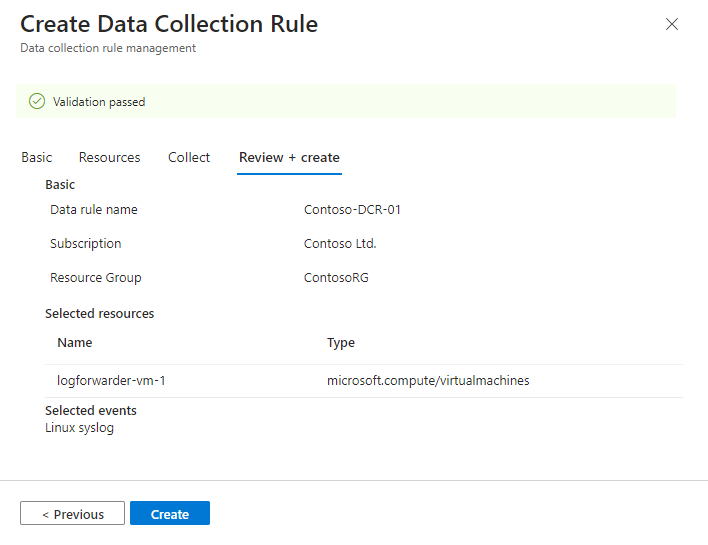

1. In the Review and create tab, select Create.



   The connector installs the Azure Monitor Agent on the machines you selected when creating your DCR.

2. Check the notifications in the Azure portal or Microsoft Defender portal to see when the DCR is created and the agent is installed.

3. Select Refresh on the connector page to see the DCR displayed in the list.

Logs Ingestion API

Install the Azure Monitor Agent

Follow the appropriate instructions from the Azure Monitor documentation to install the Azure Monitor Agent on your log forwarder. Remember to use the instructions for Linux, not for Windows.

• Install the AMA using PowerShell
• Install the AMA using the Azure CLI
• Install the AMA using an Azure Resource Manager template

You can create Data Collection Rules (DCRs) using the Azure Monitor Logs Ingestion API. For more information, see Data collection rules in Azure Monitor.

Create the data collection rule

Create a JSON file for the data collection rule, create an API request, and send the request.

1. Prepare a DCR file in JSON format. The contents of this file is the request body in your API request.

   For an example, see Syslog/CEF DCR creation request body. To collect syslog and CEF messages in the same data collection rule, see the example Syslog and CEF streams in the same DCR.

   • Verify that the streams field is set to Microsoft-Syslog for syslog messages, or to Microsoft-CommonSecurityLog for CEF messages.
   • Add the filter and facility log levels in the facilityNames and logLevels parameters. See Examples of facilities and log levels sections.

2. Create an API request in a REST API client of your choosing.

   1. For the request URL and header, copy the following request URL and header.

      PUT https://management.azure.com/subscriptions/{subscriptionId}/resourceGroups/{resourceGroupName}/providers/Microsoft.Insights/dataCollectionRules/{dataCollectionRuleName}?api-version=2022-06-01


      • Substitute the appropriate values for the {subscriptionId} and {resourceGroupName} placeholders.
      • Enter a name of your choice for the DCR in place of the {dataCollectionRuleName} placeholder.

   2. For the request body, copy and paste the contents of the DCR JSON file that you created (in step 1 above) into the request body.

3. Send the request.

   For an example of the response that you should receive, see Syslog/CEF DCR creation response.

Associate the DCR with the log forwarder

Now you need to create a DCR Association (DCRA) that ties the DCR to the VM resource that hosts your log forwarder.

1. Create an API request in a REST API client of your choosing.

2. For the request URL and header, copy the following request URL and the header.

   PUT
   https://management.azure.com/subscriptions/{subscriptionId}/resourceGroups/{resourceGroupName}/providers/Microsoft.Compute/virtualMachines/{virtualMachineName}/providers/Microsoft.Insights/dataCollectionRuleAssociations/{dataCollectionRuleAssociationName}?api-version=2022-06-01


   • Substitute the appropriate values for the {subscriptionId}, {resourceGroupName}, and {virtualMachineName} placeholders.
   • Enter a name of your choice for the DCR in place of the {dataCollectionRuleAssociationName} placeholder.

3. For the request body, copy the following request body.

   {
     "properties": {
       "dataCollectionRuleId": "/subscriptions/{subscriptionId}/resourceGroups/{resourceGroupName}/providers/Microsoft.Insights/dataCollectionRules/{dataCollectionRuleName}"
     }
   }


   • Substitute the appropriate values for the {subscriptionId} and {resourceGroupName} placeholders.
   • Enter a name of your choice for the DCR in place of the {dataCollectionRuleName} placeholder.

4. Send the request.

Examples of facilities and log levels sections

Review these examples of the facilities and log levels settings. The name field includes the filter name.

For CEF message ingestion, the value for "streams" should be "Microsoft-CommonSecurityLog" instead of "Microsoft-Syslog".

This example collects events from the cron, daemon, local0, local3 and uucp facilities, with the Warning, Error, Critical, Alert, and Emergency log levels:

    "dataSources": {
      "syslog": [
        {
        "name": "SyslogStream0",
        "streams": [
          "Microsoft-Syslog"
        ],
        "facilityNames": [
          "cron",
          "daemon",
          "local0",
          "local3",
          "uucp"
        ],
        "logLevels": [
          "Warning",
          "Error",
          "Critical",
          "Alert",
          "Emergency"
        ]
      }
    ]
  }

Syslog and CEF streams in the same DCR

This example shows how you can collect syslog and CEF messages in the same DCR.

The DCR collects CEF event messages for:

• The authpriv and mark facilities with the Info, Notice, Warning, Error, Critical, Alert, and Emergency log levels
• The daemon facility with the Warning, Error, Critical, Alert, and Emergency log levels

It collects syslog event messages for:

• The kern, local0, local5, and news facilities with the Critical, Alert, and Emergency log levels
• The mail and uucp facilities with the Emergency log level

    "dataSources": {
      "syslog": [
        {
          "name": "CEFStream1",
          "streams": [
            "Microsoft-CommonSecurityLog"
          ],
          "facilityNames": [
            "authpriv",
            "mark"
          ],
          "logLevels": [
            "Info",
            "Notice",
            "Warning",
            "Error",
            "Critical",
            "Alert",
            "Emergency"
          ]
        },
        {
          "name": "CEFStream2",
          "streams": [
            "Microsoft-CommonSecurityLog"
          ],
          "facilityNames": [
            "daemon"
          ],
          "logLevels": [
            "Warning",
            "Error",
            "Critical",
            "Alert",
            "Emergency"
          ]
        },
        {
          "name": "SyslogStream3",
          "streams": [
            "Microsoft-Syslog"
          ],
          "facilityNames": [
            "kern",
            "local0",
            "local5",
            "news"
          ],
          "logLevels": [
            "Critical",
            "Alert",
            "Emergency"
          ]
        },
        {
          "name": "SyslogStream4",
          "streams": [
            "Microsoft-Syslog"
          ],
          "facilityNames": [
            "mail",
            "uucp"
          ],
          "logLevels": [
            "Emergency"
          ]
        }
      ]
    }

Run the "installation" script

If you're using a log forwarder, configure the syslog daemon to listen for messages from other machines, and open the necessary local ports.

1. From the connector page, copy the command line that appears under Run the following command to install and apply the CEF collector:



   Or copy it from here:

   sudo wget -O Forwarder_AMA_installer.py https://raw.githubusercontent.com/Azure/Azure-Sentinel/master/DataConnectors/Syslog/Forwarder_AMA_installer.py&&sudo python Forwarder_AMA_installer.py


2. Sign in to the log forwarder machine where you just installed the AMA.

3. Paste the command you copied in the last step to launch the installation script.
   The script configures the rsyslog or syslog-ng daemon to use the required protocol and restarts the daemon. The script opens port 514 to listen to incoming messages in both UDP and TCP protocols. To change this setting, refer to the syslog daemon configuration file according to the daemon type running on the machine:

   • Rsyslog: /etc/rsyslog.conf
   • Syslog-ng: /etc/syslog-ng/syslog-ng.conf

   If you're using Python 3, and it's not set as the default command on the machine, substitute python3 for python in the pasted command. See Log forwarder prerequisites.

   Note

   To avoid Full Disk scenarios where the agent can't function, we recommend that you set the syslog-ng or rsyslog configuration not to store unneeded logs. A Full Disk scenario disrupts the function of the installed AMA. For more information, see RSyslog or Syslog-ng.

Configure the security device or appliance

Get specific instructions to configure your security device or appliance by going to one of the following articles:

• CEF via AMA data connector - Configure specific appliances and devices for Microsoft Sentinel data ingestion
• Syslog via AMA data connector - Configure specific appliances and devices for Microsoft Sentinel data ingestion

Contact the solution provider for more information or where information is unavailable for the appliance or device.

Test the connector

Verify that logs messages from your linux machine or security devices and appliances are ingested into Microsoft Sentinel.

1. To validate that the syslog daemon is running on the UDP port and that the AMA is listening, run this command:

   netstat -lnptv


   You should see the rsyslog or syslog-ng daemon listening on port 514.

2. To capture messages sent from a logger or a connected device, run this command in the background:

   tcpdump -i any port 514 -A -vv &


3. After you complete the validation, we recommend that you stop the tcpdump: Type fg and then select Ctrl+C.

4. To send demo messages, complete of the following steps:

   • Use the netcat utility. In this example, the utility reads data posted through the echo command with the newline switch turned off. The utility then writes the data to UDP port 514 on the localhost with no timeout. To execute the netcat utility, you might need to install another package.

     echo -n "<164>CEF:0|Mock-test|MOCK|common=event-format-test|end|TRAFFIC|1|rt=$common=event-formatted-receive_time" | nc -u -w0 localhost 514


   • Use the logger. This example writes the message to the local 4 facility, at severity level Warning, to port 514, on the local host, in the CEF RFC format. The -t and --rfc3164 flags are used to comply with the expected RFC format.

     logger -p local4.warn -P 514 -n 127.0.0.1 --rfc3164 -t CEF "0|Mock-test|MOCK|common=event-format-test|end|TRAFFIC|1|rt=$common=event-formatted-receive_time"


5. To verify that the connector is installed correctly, run the troubleshooting script with one of these commands:

   • For CEF logs, run:

      sudo wget -O Sentinel_AMA_troubleshoot.py https://raw.githubusercontent.com/Azure/Azure-Sentinel/master/DataConnectors/Syslog/Sentinel_AMA_troubleshoot.py&&sudo python Sentinel_AMA_troubleshoot.py --cef


   • For Cisco Adaptive Security Appliance (ASA) logs, run:

     sudo wget -O Sentinel_AMA_troubleshoot.py https://raw.githubusercontent.com/Azure/Azure-Sentinel/master/DataConnectors/Syslog/Sentinel_AMA_troubleshoot.py&&sudo python Sentinel_AMA_troubleshoot.py --asa


   • For Cisco Firepower Threat Defense (FTD) logs, run:

     sudo wget -O Sentinel_AMA_troubleshoot.py https://raw.githubusercontent.com/Azure/Azure-Sentinel/master/DataConnectors/Syslog/Sentinel_AMA_troubleshoot.py&&sudo python Sentinel_AMA_troubleshoot.py --ftd
