快速入門：將您的通話應用程式加入至小組會議

發行項
06/14/2024

在本快速入門中，您會了解如何使用適用於 JavaScript 的 Azure 通訊服務通話 SDK 加入 Teams 會議。

範例程式碼

在 GitHub 上尋找本快速入門的最終程式碼。

必要條件

運作中的通訊服務通話 Web 應用程式。
Teams 部署。
Teams 會議標識碼和密碼加入 API 支援的最低版本：1.17.1
存取權杖。

新增 Teams UI 控制項

使用下列程式碼片段取代 index.html 中的程式碼。透過 Teams 會議連結或 Teams MeetingId 和密碼加入 Teams 會議。文字輸入框是用來輸入 Teams 會議內容，而按鈕則是用來加入指定的會議：

<!DOCTYPE html>
<html>
<head>
    <title>Communication Client - Calling Sample</title>
</head>
<body>
    <h4>Azure Communication Services</h4>
    <h1>Teams meeting join quickstart</h1>
    <input id="teams-link-input" type="text" placeholder="Teams meeting link"
        style="margin-bottom:1em; width: 300px;" />
    <p><input id="teams-meetingId-input" type="text" placeholder="Teams meetingId"
        style="margin-bottom:1em; width: 300px;" /></p>
    <p><input id="teams-passcode-input" type="text" placeholder="Teams meeting Passcode"
        style="margin-bottom:1em; width: 300px;" /></p>
        <p>Call state <span style="font-weight: bold" id="call-state">-</span></p>
        <p><span style="font-weight: bold" id="recording-state"></span></p>
    <div>
        <button id="join-meeting-button" type="button" disabled="false">
            Join Teams Meeting
        </button>
        <button id="hang-up-button" type="button" disabled="true">
            Hang Up
        </button>
    </div>
    <script src="./app.js" type="module"></script>
</body>

</html>

啟用 Teams UI 控制項

使用下列程式碼片段取代 app.js 檔案的內容。

import { CallClient } from "@azure/communication-calling";
import { Features } from "@azure/communication-calling";
import { AzureCommunicationTokenCredential } from '@azure/communication-common';

let call;
let callAgent;
const meetingLinkInput = document.getElementById('teams-link-input');
const meetingIdInput = document.getElementById('teams-meetingId-input');
const meetingPasscodeInput = document.getElementById('teams-passcode-input');
const hangUpButton = document.getElementById('hang-up-button');
const teamsMeetingJoinButton = document.getElementById('join-meeting-button');
const callStateElement = document.getElementById('call-state');
const recordingStateElement = document.getElementById('recording-state');

async function init() {
    const callClient = new CallClient();
    const tokenCredential = new AzureCommunicationTokenCredential("<USER ACCESS TOKEN>");
    callAgent = await callClient.createCallAgent(tokenCredential, {displayName: 'Test user'});
    teamsMeetingJoinButton.disabled = false;
}
init();

hangUpButton.addEventListener("click", async () => {
    // end the current call
    await call.hangUp();

    // toggle button states
    hangUpButton.disabled = true;
    teamsMeetingJoinButton.disabled = false;
    callStateElement.innerText = '-';
  });

teamsMeetingJoinButton.addEventListener("click", () => {
    // join with meeting link
    call = callAgent.join({meetingLink: meetingLinkInput.value}, {});

   //(or) to join with meetingId and passcode use the below code snippet.
   //call = callAgent.join({meetingId: meetingIdInput.value, passcode: meetingPasscodeInput.value}, {});

    call.on('stateChanged', () => {
        callStateElement.innerText = call.state;
    })

    call.api(Features.Recording).on('isRecordingActiveChanged', () => {
        if (call.api(Features.Recording).isRecordingActive) {
            recordingStateElement.innerText = "This call is being recorded";
        }
        else {
            recordingStateElement.innerText = "";
        }
    });
    // toggle button states
    hangUpButton.disabled = false;
    teamsMeetingJoinButton.disabled = true;
});

取得 Teams 會議連結

您可以使用圖形 API 擷取 Teams 會議連結，如 Graph 文件所詳述。通訊服務通話 SDK 會接受完整的 Teams 會議連結。此連結也可以作為 onlineMeeting 資源的一部分傳回，並可以在 joinWebUrl 屬性底下存取。您也可以從 Teams 會議邀請本身的 [加入會議] URL 取得所需的會議資訊。

取得 Teams 會議識別碼和密碼

圖形 API：使用圖形 API 擷取 onlineMeeting 資源的相關資訊，並檢查屬性 joinMeetingIdSettings 中的物件。
Teams：在您的 Teams 應用程式中，移至 [行事曆] 應用程式並開啟會議的詳細資料。線上會議在會議定義中具有會議識別碼和密碼。
Outlook：您可以在行事曆活動或電子郵件會議邀請中找到會議識別碼和密碼。

執行程式碼

執行下列命令，在本機 Web 伺服器上組合應用程式主機：

npx webpack serve --config webpack.config.js

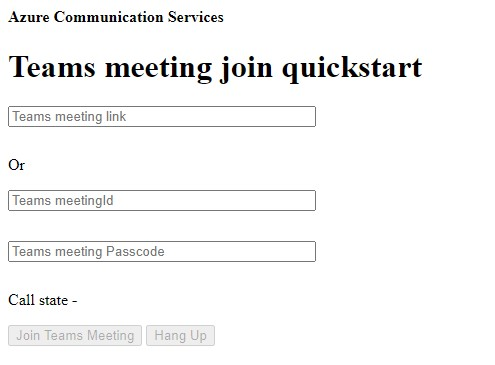

開啟瀏覽器並瀏覽至 http://localhost:8080/. 您應該看到下列內容：

已完成 JavaScript 應用程式的螢幕快照。

將 Teams 內容插入到文字方塊中，然後按 [加入 Teams 會議] 從通訊服務應用程式內加入 Teams 會議。

在本快速入門中，您將會了解如何使用適用於 Windows 的 Azure 通訊服務通話 SDK 加入 Teams 會議。

範例程式碼

在 GitHub for UWP 和 WinUI 3 上尋找本快速入門的完成程式代碼。

必要條件

運作中的通訊服務通話 Windows 應用程式。
Teams 部署。
Teams 會議標識碼和密碼加入 API 支援的最低版本：1.7.0
存取權杖。

新增 Teams UI 控制項和啟用 Teams UI 控制項

使用下列程式碼片段取代 MainPage.xaml 中的程式碼。文字方塊將用來輸入 Teams 會議內容，而按鈕則用來加入指定的會議：

<Page
    x:Class="CallingQuickstart.MainPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:local="using:CallingQuickstart"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d"
    Background="{ThemeResource ApplicationPageBackgroundThemeBrush}" Width="800" Height="600">

    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="16*"/>
            <RowDefinition Height="30*"/>
            <RowDefinition Height="200*"/>
            <RowDefinition Height="60*"/>
            <RowDefinition Height="16*"/>
        </Grid.RowDefinitions>

        <Grid Grid.Row="0" x:Name="AppTitleBar" Background="LightSeaGreen">
            <!-- Width of the padding columns is set in LayoutMetricsChanged handler. -->
            <!-- Using padding columns instead of Margin ensures that the background paints the area under the caption control buttons (for transparent buttons). -->
            <TextBlock x:Name="QuickstartTitle" Text="Calling Quickstart sample title bar" Style="{StaticResource CaptionTextBlockStyle}" Padding="7,7,0,0"/>
        </Grid>

        <StackPanel Grid.Row="1">
            <TextBox x:Name="CalleeTextBox" PlaceholderText="Who would you like to call?" TextWrapping="Wrap" VerticalAlignment="Center" />
            <TextBlock Text="or" Padding="7,7,0,0" />
            <TextBox x:Name="CalleeMeetingId" PlaceholderText="Teams Meeting Id" TextWrapping="Wrap" VerticalAlignment="Center" />
            <TextBox x:Name="CalleeMeetingPasscode" PlaceholderText="Teams Meeting Passcode" TextWrapping="Wrap" VerticalAlignment="Center" />
        </StackPanel>

        <Grid Grid.Row="2">
            <Grid.RowDefinitions>
                <RowDefinition/>
            </Grid.RowDefinitions>
            <Grid.ColumnDefinitions>
                <ColumnDefinition Width="*"/>
                <ColumnDefinition Width="*"/>
            </Grid.ColumnDefinitions>
            <MediaPlayerElement x:Name="LocalVideo" HorizontalAlignment="Center" Stretch="UniformToFill" Grid.Column="0" VerticalAlignment="Center" AutoPlay="True" />
            <MediaPlayerElement x:Name="RemoteVideo" HorizontalAlignment="Center" Stretch="UniformToFill" Grid.Column="1" VerticalAlignment="Center" AutoPlay="True" />
        </Grid>
        <StackPanel Grid.Row="3" Orientation="Vertical" Grid.RowSpan="2">
            <StackPanel Orientation="Horizontal">
                <Button x:Name="CallButton" Content="Start/Join call" Click="CallButton_Click" VerticalAlignment="Center" Margin="10,0,0,0" Height="40" Width="123"/>
                <Button x:Name="HangupButton" Content="Hang up" Click="HangupButton_Click" VerticalAlignment="Center" Margin="10,0,0,0" Height="40" Width="123"/>
            </StackPanel>
        </StackPanel>
        <TextBox Grid.Row="5" x:Name="Stats" Text="" TextWrapping="Wrap" VerticalAlignment="Center" Height="30" Margin="0,2,0,0" BorderThickness="2" IsReadOnly="True" Foreground="LightSlateGray" />
    </Grid>
</Page>

啟用 Teams UI 控制項

將 MainPage.xaml.cs 的內容取代為下列程式碼片段：

using Azure.Communication.Calling.WindowsClient;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;
using Windows.ApplicationModel;
using Windows.ApplicationModel.Core;
using Windows.Media.Core;
using Windows.UI;
using Windows.UI.ViewManagement;
using Windows.UI.Xaml;
using Windows.UI.Xaml.Controls;
using Windows.UI.Xaml.Media;
using Windows.UI.Xaml.Navigation;

namespace CallingQuickstart
{
    public sealed partial class MainPage : Page
    {
        private const string authToken = "<AUTHENTICATION_TOKEN>";
        private CallClient callClient;
        private CallTokenRefreshOptions callTokenRefreshOptions = new CallTokenRefreshOptions(false);
        private CallAgent callAgent;
        private CommunicationCall call;

        private LocalOutgoingAudioStream micStream;
        private LocalOutgoingVideoStream cameraStream;

        #region Page initialization
        public MainPage()
        {
            this.InitializeComponent();
        }

        protected override async void OnNavigatedTo(NavigationEventArgs e)
        {
            await InitCallAgentAndDeviceManagerAsync();

            base.OnNavigatedTo(e);
        }
        #endregion

        #region UI event handlers
        private async void CallButton_Click(object sender, RoutedEventArgs e)
        {
            var callString = CalleeTextBox.Text.Trim();
            var meetingId = CalleeMeetingId.Text.Trim();
            var passcode = CalleeMeetingPasscode.Text.Trim();

            // join with meeting link
            if (!string.IsNullOrEmpty(callString))
            {
                call = await JoinTeamsMeetingByLinkAsync(teamsMeetinglink);
            }

            // (or) to join with meetingId and passcode use the below code snippet.
            // call = await JoinTeamsMeetingByMeetingIdAsync(meetingId, passcode);

            if (call != null)
            {
                call.RemoteParticipantsUpdated += OnRemoteParticipantsUpdatedAsync;
                call.StateChanged += OnStateChangedAsync;
            }
        }

        private async void HangupButton_Click(object sender, RoutedEventArgs e)
        {
            var call = this.callAgent?.Calls?.FirstOrDefault();
            if (call != null)
            {
                foreach (var localVideoStream in call.OutgoingVideoStreams)
                {
                    await call.StopVideoAsync(localVideoStream);
                }

                if (cameraStream != null)
                {
                    await cameraStream.StopPreviewAsync();
                }

                await call.HangUpAsync(new HangUpOptions() { ForEveryone = false });
            }
        }
        #endregion

        #region API event handlers
        private async void OnStateChangedAsync(object sender, PropertyChangedEventArgs args)
        {
            var call = sender as CommunicationCall;

            if (call != null)
            {
                var state = call.State;

                await Dispatcher.RunAsync(Windows.UI.Core.CoreDispatcherPriority.Normal, () =>
                {
                    QuickstartTitle.Text = $"{Package.Current.DisplayName} - {state.ToString()}";
                    Window.Current.SetTitleBar(AppTitleBar);

                    HangupButton.IsEnabled = state == CallState.Connected || state == CallState.Ringing;
                    CallButton.IsEnabled = !HangupButton.IsEnabled;
                });

                switch (state)
                {
                    case CallState.Connected:
                        {
                            await call.StartAudioAsync(micStream);
                            await Dispatcher.RunAsync(Windows.UI.Core.CoreDispatcherPriority.Normal, () =>
                            {
                                Stats.Text = $"Call id: {Guid.Parse(call.Id).ToString("D")}, Remote caller id: {call.RemoteParticipants.FirstOrDefault()?.Identifier.RawId}";
                            });

                            break;
                        }
                    case CallState.Disconnected:
                        {
                            call.RemoteParticipantsUpdated -= OnRemoteParticipantsUpdatedAsync;
                            call.StateChanged -= OnStateChangedAsync;

                            await Dispatcher.RunAsync(Windows.UI.Core.CoreDispatcherPriority.Normal, () =>
                            {
                                Stats.Text = $"Call ended: {call.CallEndReason.ToString()}";
                            });

                            call.Dispose();

                            break;
                        }
                    default: break;
                }
            }
        }

        private async void OnRemoteParticipantsUpdatedAsync(object sender, ParticipantsUpdatedEventArgs args)
        {
            await OnParticipantChangedAsync(
                args.RemovedParticipants.ToList<RemoteParticipant>(),
                args.AddedParticipants.ToList<RemoteParticipant>());
        }

        private async Task OnParticipantChangedAsync(IEnumerable<RemoteParticipant> removedParticipants, IEnumerable<RemoteParticipant> addedParticipants)
        {
            foreach (var participant in removedParticipants)
            {
                foreach(var incomingVideoStream in participant.IncomingVideoStreams)
                {
                    var remoteVideoStream = incomingVideoStream as RemoteIncomingVideoStream;
                    if (remoteVideoStream != null)
                    {
                        await remoteVideoStream.StopPreviewAsync();
                    }
                }
                participant.VideoStreamStateChanged -= OnVideoStreamStateChanged;
            }

            foreach (var participant in addedParticipants)
            {
                participant.VideoStreamStateChanged += OnVideoStreamStateChanged;
            }
        }

        private void OnVideoStreamStateChanged(object sender, VideoStreamStateChangedEventArgs e)
        {
            CallVideoStream callVideoStream = e.Stream;

            switch (callVideoStream.Direction)
            {
                case StreamDirection.Outgoing:
                    OnOutgoingVideoStreamStateChanged(callVideoStream as OutgoingVideoStream);
                    break;
                case StreamDirection.Incoming:
                    OnIncomingVideoStreamStateChangedAsync(callVideoStream as IncomingVideoStream);
                    break;
            }
        }

        private async void OnIncomingVideoStreamStateChangedAsync(IncomingVideoStream incomingVideoStream)
        {
            switch (incomingVideoStream.State)
            {
                case VideoStreamState.Available:
                    switch (incomingVideoStream.Kind)
                    {
                        case VideoStreamKind.RemoteIncoming:
                            var remoteVideoStream = incomingVideoStream as RemoteIncomingVideoStream;
                            var uri = await remoteVideoStream.StartPreviewAsync();

                            await Dispatcher.RunAsync(Windows.UI.Core.CoreDispatcherPriority.Normal, () =>
                            {
                                RemoteVideo.Source = MediaSource.CreateFromUri(uri);
                            });
                            break;

                        case VideoStreamKind.RawIncoming:
                            break;
                    }
                    break;

                case VideoStreamState.Started:
                    break;

                case VideoStreamState.Stopping:
                case VideoStreamState.Stopped:
                    if (incomingVideoStream.Kind == VideoStreamKind.RemoteIncoming)
                    {
                        var remoteVideoStream = incomingVideoStream as RemoteIncomingVideoStream;
                        await remoteVideoStream.StopPreviewAsync();
                    }
                    break;

                case VideoStreamState.NotAvailable:
                    break;
            }
        }
        #endregion

        #region Helpers
        private async Task InitCallAgentAndDeviceManagerAsync()
        {
            this.callClient = new CallClient(new CallClientOptions() {
                Diagnostics = new CallDiagnosticsOptions() {
                    AppName = "CallingQuickstart",
                    AppVersion="1.0",
                    Tags = new[] { "Calling", "ACS", "Windows" }
                    }
                });

            // Set up local video stream using the first camera enumerated
            var deviceManager = await this.callClient.GetDeviceManagerAsync();
            var camera = deviceManager?.Cameras?.FirstOrDefault();
            var mic = deviceManager?.Microphones?.FirstOrDefault();
            micStream = new LocalOutgoingAudioStream();

            if (camera != null)
            {
                cameraStream = new LocalOutgoingVideoStream(selectedCamerea);
                var localUri = await cameraStream.StartPreviewAsync();
                LocalVideo.Source = MediaSource.CreateFromUri(localUri);
                if (call != null) {
                    await call?.StartVideoAsync(cameraStream);
                }
            }

            var tokenCredential = new CallTokenCredential(authToken, callTokenRefreshOptions);

            var callAgentOptions = new CallAgentOptions()
            {
                DisplayName = $"{Environment.MachineName}/{Environment.UserName}",
            };

            this.callAgent = await this.callClient.CreateCallAgentAsync(tokenCredential, callAgentOptions);
            // Sets up additional event sinks
        }

        private async Task<CommunicationCall> JoinTeamsMeetingByLinkAsync(Uri teamsCallLink)
        {
            var joinCallOptions = GetJoinCallOptions();

            var teamsMeetingLinkLocator = new TeamsMeetingLinkLocator(teamsCallLink.AbsoluteUri);
            var call = await callAgent.JoinAsync(teamsMeetingLinkLocator, joinCallOptions);
            return call;
        }

        private async Task<CommunicationCall> JoinTeamsMeetingByMeetingIdAsync(String meetingId, String passcode)
        {
            var joinCallOptions = GetJoinCallOptions();

            var teamsMeetingIdLocator = new TeamsMeetingIdLocator(meetingId, passcode);
            var call = await callAgent.JoinAsync(teamsMeetingIdLocator, joinCallOptions);
            return call;
        }

        private JoinCallOptions GetJoinCallOptions()
        {
            return new JoinCallOptions() {
                OutgoingAudioOptions = new OutgoingAudioOptions() { IsMuted = true },
                OutgoingVideoOptions = new OutgoingVideoOptions() { Streams = new OutgoingVideoStream[] { cameraStream } }
            };
        }
        #endregion
    }
}

取得 Teams 會議連結

您可以使用圖形 API 來擷取 Teams 會議連結。詳細說明請見 Graph 文件。通訊服務通話 SDK 會接受完整的 Teams 會議連結。此連結會作為 onlineMeeting 資源的一部分傳回，可在 joinWebUrl 屬性下存取。您也可以從 Teams 會議邀請本身的加入會議 URL 取得所需的會議資訊。

取得 Teams 會議識別碼和密碼

圖形 API：使用圖形 API 擷取 onlineMeeting 資源的相關信息，並在屬性 joinMeetingIdSettings中檢查物件。
Teams：在您的 Teams 應用程式中，移至 [行事曆] 應用程式並開啟會議的詳細資料。線上會議在會議定義中具有會議識別碼和密碼。
Outlook：您可以在行事曆活動或電子郵件會議邀請中找到會議識別碼和密碼。

啟動應用程式並加入 Teams 會議

您可以藉由選取 [偵錯] > [開始偵錯] 或使用 (F5) 鍵盤快速鍵，在 Visual Studio 上建置及執行您的應用程式。

將 Teams 內容插入到文字方塊中，然後按 [加入 Teams 會議] 從通訊服務應用程式內加入 Teams 會議。

在本快速入門中，您將會了解如何使用適用於 Android 的 Azure 通訊服務通話 SDK 加入 Teams 會議。

範例程式碼

在 GitHub 上尋找本快速入門的最終程式碼。

必要條件

運作中的通訊服務通話 Android 應用程式。
Teams 部署。
Teams 會議標識碼和密碼加入 API 支援的最低版本：2.9.0
存取權杖。

新增 Teams UI 控制項

使用下列程式碼片段取代 activity_main.xml 中的程式碼。文字方塊將用來輸入 Teams 會議內容，而按鈕則用來加入指定的會議：

<?xml version="1.0" encoding="utf-8"?>
<androidx.constraintlayout.widget.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <LinearLayout
    android:id="@+id/meetingInfoLinearLayout"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    android:layout_marginTop="100dp">

        <EditText
            android:id="@+id/teams_meeting_link"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:ems="10"
            android:hint="Teams meeting link"
            android:inputType="textUri" />

        <TextView
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:text="or"
            android:textAlignment="center"
            android:layout_marginTop="10dp"/>

        <EditText
            android:id="@+id/teams_meeting_id"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:ems="10"
            android:hint="Teams meeting id"
            android:inputType="textUri" />

        <EditText
            android:id="@+id/teams_meeting_passcode"
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:ems="10"
            android:hint="Teams meeting passcode"
            android:inputType="textUri" />

    </LinearLayout>

    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_marginBottom="70dp"
        android:gravity="center"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent">

        <Button
            android:id="@+id/join_meeting_button"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Join Meeting" />

        <Button
            android:id="@+id/hangup_button"
            android:layout_width="wrap_content"
            android:layout_height="wrap_content"
            android:text="Hangup" />

    </LinearLayout>

    <TextView
        android:id="@+id/call_status_bar"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginBottom="40dp"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent" />

    <TextView
        android:id="@+id/recording_status_bar"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginBottom="20dp"
        app:layout_constraintBottom_toBottomOf="parent"
        app:layout_constraintEnd_toEndOf="parent"
        app:layout_constraintStart_toStartOf="parent" />

</androidx.constraintlayout.widget.ConstraintLayout>

啟用 Teams UI 控制項

將 MainActivity.java 的內容取代為下列程式碼片段：


package com.contoso.acsquickstart;

import androidx.annotation.NonNull;
import androidx.appcompat.app.AppCompatActivity;
import androidx.core.app.ActivityCompat;

import android.Manifest;
import android.content.pm.PackageManager;
import android.os.Bundle;
import android.widget.Button;
import android.widget.EditText;
import android.widget.TextView;
import android.widget.Toast;

import java.util.ArrayList;
import java.util.concurrent.ExecutionException;

import com.azure.android.communication.calling.Call;
import com.azure.android.communication.calling.CallAgent;
import com.azure.android.communication.calling.CallClient;
import com.azure.android.communication.calling.HangUpOptions;
import com.azure.android.communication.calling.JoinCallOptions;
import com.azure.android.communication.common.CommunicationTokenCredential;
import com.azure.android.communication.calling.TeamsMeetingLinkLocator;
// import for meeting id and passcode join
// import com.azure.android.communication.calling.TeamsMeetingIdLocator;

public class MainActivity extends AppCompatActivity {
    private static final String[] allPermissions = new String[] { Manifest.permission.RECORD_AUDIO, Manifest.permission.CAMERA, Manifest.permission.WRITE_EXTERNAL_STORAGE, Manifest.permission.READ_PHONE_STATE };
    private static final String UserToken = "<User_Access_Token>";

    TextView callStatusBar;
    TextView recordingStatusBar;

    private CallAgent agent;
    private Call call;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        getAllPermissions();
        createAgent();

        Button joinMeetingButton = findViewById(R.id.join_meeting_button);
        joinMeetingButton.setOnClickListener(l -> joinTeamsMeeting());

        Button hangupButton = findViewById(R.id.hangup_button);
        hangupButton.setOnClickListener(l -> leaveMeeting());

        callStatusBar = findViewById(R.id.call_status_bar);
        recordingStatusBar = findViewById(R.id.recording_status_bar);
    }

    /**
     * Join Teams meeting
     */
    private void joinTeamsMeeting() {
        if (UserToken.startsWith("<")) {
            Toast.makeText(this, "Please enter token in source code", Toast.LENGTH_SHORT).show();
            return;
        }

        EditText calleeIdView = findViewById(R.id.teams_meeting_link);
        EditText calleeMeetingId = findViewById(R.id.teams_meeting_id);
        EditText calleeMeetingPasscode = findViewById(R.id.teams_meeting_passcode);
        String meetingLink = calleeIdView.getText().toString();
        String meetingId = calleeMeetingId.getText().toString();
        String passcode = calleeMeetingPasscode.getText().toString();

        if (meetingLink.isEmpty()) {
            Toast.makeText(this, "Please enter Teams meeting link", Toast.LENGTH_SHORT).show();
            return;
        }

        JoinCallOptions options = new JoinCallOptions();

        // join with meeting link
        TeamsMeetingLinkLocator teamsMeetingLocator = new TeamsMeetingLinkLocator(meetingLink);

        // (or) to join with meetingId and passcode use the below code snippet.
        //TeamsMeetingIdLocator teamsMeetingIdLocator = new TeamsMeetingIdLocator(meetingId, passcode);

        call = agent.join(
                getApplicationContext(),
                teamsMeetingLocator,
                options);
        call.addOnStateChangedListener(p -> setCallStatus(call.getState().toString()));
        call.addOnIsRecordingActiveChangedListener(p -> setRecordingStatus(call.isRecordingActive()));
    }

    /**
     * Leave from the meeting
     */
    private void leaveMeeting() {
        try {
            call.hangUp(new HangUpOptions()).get();
        } catch (ExecutionException | InterruptedException e) {
            Toast.makeText(this, "Unable to leave meeting", Toast.LENGTH_SHORT).show();
        }
    }

    /**
     * Create the call agent
     */
    private void createAgent() {
        try {
            CommunicationTokenCredential credential = new CommunicationTokenCredential(UserToken);
            agent = new CallClient().createCallAgent(getApplicationContext(), credential).get();
        } catch (Exception ex) {
            Toast.makeText(getApplicationContext(), "Failed to create call agent.", Toast.LENGTH_SHORT).show();
        }
    }

    /**
     * Request each required permission if the app doesn't already have it.
     */
    private void getAllPermissions() {
        ArrayList<String> permissionsToAskFor = new ArrayList<>();
        for (String permission : allPermissions) {
            if (ActivityCompat.checkSelfPermission(this, permission) != PackageManager.PERMISSION_GRANTED) {
                permissionsToAskFor.add(permission);
            }
        }
        if (!permissionsToAskFor.isEmpty()) {
            ActivityCompat.requestPermissions(this, permissionsToAskFor.toArray(new String[0]), 1);
        }
    }

    /**
     * Ensure all permissions were granted, otherwise inform the user permissions are missing.
     */
    @Override
    public void onRequestPermissionsResult(int requestCode, @NonNull String[] permissions, int[] grantResults) {
        boolean allPermissionsGranted = true;
        for (int result : grantResults) {
            allPermissionsGranted &= (result == PackageManager.PERMISSION_GRANTED);
        }
        if (!allPermissionsGranted) {
            Toast.makeText(this, "All permissions are needed to make the call.", Toast.LENGTH_LONG).show();
            finish();
        }
    }

    /**
     * Shows call status in status bar
     */
    private void setCallStatus(String status) {
        runOnUiThread(() -> callStatusBar.setText(status));
    }

    /**
     * Shows recording status bar
     */
    private void setRecordingStatus(boolean status) {
        if (status == true) {
            runOnUiThread(() -> recordingStatusBar.setText("This call is being recorded"));
        }
        else {
            runOnUiThread(() -> recordingStatusBar.setText(""));
        }
    }
}

取得 Teams 會議連結

取得 Teams 會議識別碼和密碼

圖形 API：使用圖形 API 擷取 onlineMeeting 資源的相關資訊，並檢查屬性 joinMeetingIdSettings 中的物件。
Teams：在您的 Teams 應用程式中，移至 [行事曆] 應用程式並開啟會議的詳細資料。線上會議在會議定義中具有會議識別碼和密碼。
Outlook：您可以在行事曆活動或電子郵件會議邀請中找到會議識別碼和密碼。

啟動應用程式並加入 Teams 會議

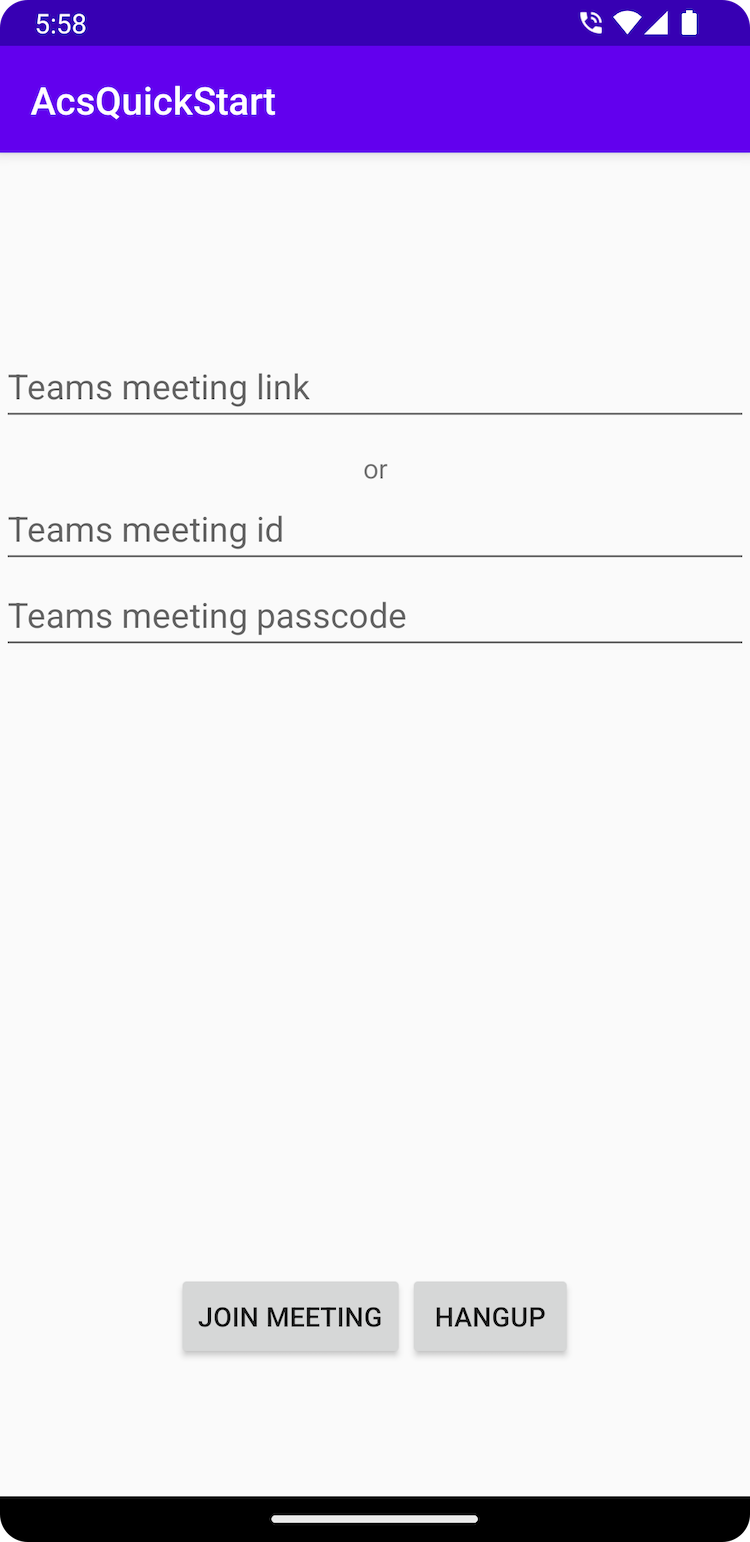

應用程式現在可以使用工具列上的 [執行應用程式] 按鈕 (Shift+F10) 來啟動。您應該看到下列內容：

顯示已完成應用程式的螢幕快照。

將 Teams 內容插入到文字方塊中，然後按 [加入會議] 從通訊服務應用程式內加入 Teams 會議。

在本快速入門中，您將會了解如何使用適用於 iOS 的 Azure 通訊服務通話 SDK 加入 Teams 會議。

必要條件

運作中的通訊服務通話 iOS 應用程式。
Teams 部署。
Teams 會議標識碼和密碼加入 API 支援的最低版本：2.11.0
存取權杖。

我們將會針對本快速入門使用 AzureCommunicationCalling SDK 的 beta.12，因此我們需要更新 Podfile 並再次安裝 Pod。

以下列程式碼取代您的 Podfile 並儲存 (請確定 "target" 與您專案的名稱相符)：

platform :ios, '13.0'
use_frameworks!

target 'AzureCommunicationCallingSample' do
  pod 'AzureCommunicationCalling', '1.0.0-beta.12'
end

刪除 Pods 資料夾、Podfile.lock 和 .xcworkspace. 檔案。

使用 Xcode 執行 pod install 並開啟 .xcworkspace。

新增 Teams UI 控制項和啟用 Teams UI 控制項

使用下列程式碼片段取代 ContentView.swift 中的程式碼。文字方塊將用來輸入 Teams 會議內容，而按鈕則用來加入指定的會議：


import SwiftUI
import AzureCommunicationCalling
import AVFoundation

struct ContentView: View {
    @State var meetingLink: String = ""
    @State var meetingId: String = ""
    @State var meetingPasscode: String = ""
    @State var callStatus: String = ""
    @State var message: String = ""
    @State var recordingStatus: String = ""
    @State var callClient: CallClient?
    @State var callAgent: CallAgent?
    @State var call: Call?
    @State var callObserver: CallObserver?

    var body: some View {
        NavigationView {
            Form {
                Section {
                    TextField("Teams meeting link", text: $meetingLink)
                    TextField("Teams meeting id", text: $meetingId)
                    TextField("Teams meeting passcode", text: $meetingPasscode)
                    Button(action: joinTeamsMeeting) {
                        Text("Join Teams Meeting")
                    }.disabled(callAgent == nil)
                    Button(action: leaveMeeting) {
                        Text("Leave Meeting")
                    }.disabled(call == nil)
                    Text(callStatus)
                    Text(message)
                    Text(recordingStatus)
                }
            }
            .navigationBarTitle("Calling Quickstart")
        }.onAppear {
            // Initialize call agent
            var userCredential: CommunicationTokenCredential?
            do {
                userCredential = try CommunicationTokenCredential(token: "<USER ACCESS TOKEN>")
            } catch {
                print("ERROR: It was not possible to create user credential.")
                self.message = "Please enter your token in source code"
                return
            }

            self.callClient = CallClient()

            // Creates the call agent
            self.callClient?.createCallAgent(userCredential: userCredential!) { (agent, error) in
                if error != nil {
                    self.message = "Failed to create CallAgent."
                    return
                } else {
                    self.callAgent = agent
                    self.message = "Call agent successfully created."
                }
            }
        }
    }

    func joinTeamsMeeting() {
        // Ask permissions
        AVAudioSession.sharedInstance().requestRecordPermission { (granted) in
            if granted {
                let joinCallOptions = JoinCallOptions()

                // join with meeting link
                let teamsMeetingLocator = TeamsMeetingLinkLocator(meetingLink: self.meetingLink)

                // (or) to join with meetingId and passcode use the below code snippet.
                // let teamsMeetingLocator = TeamsMeetingIdLocator(with: self.meetingId, passcode: self.meetingPasscode)

                self.callAgent?.join(with: teamsMeetingLocator, joinCallOptions: joinCallOptions) {(call, error) in
                    if (error == nil) {
                        self.call = call
                        self.callObserver = CallObserver(self)
                        self.call!.delegate = self.callObserver
                        self.message = "Teams meeting joined successfully"
                    } else {
                        print("Failed to get call object")
                        return
                    }
                }
            }
        }
    }

    func leaveMeeting() {
        if let call = call {
            call.hangUp(options: nil, completionHandler: { (error) in
                if error == nil {
                    self.message = "Leaving Teams meeting was successful"
                } else {
                    self.message = "Leaving Teams meeting failed"
                }
            })
        } else {
            self.message = "No active call to hangup"
        }
    }
}

class CallObserver : NSObject, CallDelegate {
    private var owner:ContentView
    init(_ view:ContentView) {
        owner = view
    }

    public func call(_ call: Call, didChangeState args: PropertyChangedEventArgs) {
        owner.callStatus = CallObserver.callStateToString(state: call.state)
        if call.state == .disconnected {
            owner.call = nil
            owner.message = "Left Meeting"
        } else if call.state == .inLobby {
            owner.message = "Waiting in lobby !!"
        } else if call.state == .connected {
            owner.message = "Joined Meeting !!"
        }
    }

    public func call(_ call: Call, didChangeRecordingState args: PropertyChangedEventArgs) {
        if (call.isRecordingActive == true) {
            owner.recordingStatus = "This call is being recorded"
        }
        else {
            owner.recordingStatus = ""
        }
    }

    private static func callStateToString(state: CallState) -> String {
        switch state {
        case .connected: return "Connected"
        case .connecting: return "Connecting"
        case .disconnected: return "Disconnected"
        case .disconnecting: return "Disconnecting"
        case .earlyMedia: return "EarlyMedia"
        case .none: return "None"
        case .ringing: return "Ringing"
        case .inLobby: return "InLobby"
        default: return "Unknown"
        }
    }
}

struct ContentView_Previews: PreviewProvider {
    static var previews: some View {
        ContentView()
    }
}

取得 Teams 會議連結

啟動應用程式並加入 Teams 會議

您可以藉由選取 [產品] > [執行] 或使用 (⌘-R) 鍵盤快速鍵，在 iOS 模擬器上建置並執行應用程式。

顯示已完成應用程式的螢幕快照。

將 Teams 內容插入到文字方塊中，然後按 [加入 Teams 會議] 從通訊服務應用程式內加入 Teams 會議。

清除資源

如果您想要清除並移除通訊服務訂用帳戶，您可以刪除資源或資源群組。刪除資源群組也會刪除與其相關聯的任何其他資源。深入了解如何清除資源。

下一步

如需詳細資訊，請參閱下列文章：

查看我們的通話 Hero 範例
開始使用 UI 程式庫
了解通話 SDK 功能
深入了解通話的運作方式

共用方式為

快速入門：將您的通話應用程式加入至小組會議

範例程式碼

必要條件

新增 Teams UI 控制項

啟用 Teams UI 控制項

取得 Teams 會議連結

取得 Teams 會議識別碼和密碼

執行程式碼

範例程式碼

必要條件

新增 Teams UI 控制項和啟用 Teams UI 控制項

啟用 Teams UI 控制項

取得 Teams 會議連結

取得 Teams 會議識別碼和密碼

啟動應用程式並加入 Teams 會議

範例程式碼

必要條件

新增 Teams UI 控制項

啟用 Teams UI 控制項

取得 Teams 會議連結

取得 Teams 會議識別碼和密碼

啟動應用程式並加入 Teams 會議

必要條件

新增 Teams UI 控制項和啟用 Teams UI 控制項

取得 Teams 會議連結

啟動應用程式並加入 Teams 會議

清除資源

下一步

意見反應

其他資源
