在Microsoft行星計算機專業版中設定可視化數據的轉譯設定

若要使用 Microsoft Planetary Computer Pro 數據瀏覽器或 Tiler API 來進行地理空間數據的可視化,您必須為您的 STAC(時空資產目錄)集合定義渲染配置。 渲染配置指定如何合併、處理及設置 STAC 項目內的數據資產,以建立地圖磚塊。

本指南會逐步引導您完成建立轉譯組態的程式,從瞭解必要條件到設定進階選項。 行星計算機專業版的轉譯功能是以開放原始碼 TiTiler 項目為基礎。

先決條件

設定轉譯之前,請確定下列必要條件步驟已完成:

  1. STAC 集合存在: 您在 行星電腦專業版中建立了 STAC 集合
  2. 數據擷取: 您已 新增包含您要在集合中可視化的地理空間數據資產的 STAC 項目
  3. item_assets 在集合中定義: 您的 STAC 集合的 JSON 定義 必須 包含定義完善的 item_assets 區段。 這些屬性會通知渲染引擎有關集合中項目共享的數據資產(及其屬性,例如數據類型或波段)。 渲染組態會參考這裡定義的資產鍵值。

建置渲染配置的流程

步驟 標題 說明
1 在集合 JSON 中定義item_assets 首先,您必須確保您的 STAC 集合 JSON 包含定義完善的 item_assets 區段,以描述專案內的一般資產。
2 瞭解您的數據和視覺效果目標 接下來,決定您正在使用的數據類型,並決定您希望其以可視化方式顯示的方式(單一波段色彩圖、多波段 RGB)。
3 建構渲染設定物件 現在,建立基本的 JSON 結構,以包含一個或多個資源管理器 UI 的渲染組態。
4 options定義字串 - 核心參數 設定字串內 options 的基本 TiTiler 參數,以選取正確的資產或頻帶,並套用基本樣式,例如色彩圖或重新調整。
5 新增進階 options 參數(視需要) 或者,使用 options 字串新增運算式、演算法、色彩更正或自定義色彩圖等進階 TiTiler 功能,以增強視覺效果。
6 將轉譯組態新增至您的集合 最後,使用 Web 介面或 API,將您建立的轉譯組態清單套用至 STAC 集合。

步驟 1:在集合 JSON 中定義item_assets

集合 JSON 中的item_assets字段對於轉譯很重要,因為它提供描述集合專案內所含資產的架構。 此架構可讓轉譯引擎和 Explorer Web 應用程式了解視覺效果的可用數據,而不需要檢查個別專案。 它會聲明資產的鍵(名稱),例如imageredNIRelevation,其會參考您的渲染配置。 此外,item_assets 可以包含多波段資產的元數據,例如 eo:bands,以便選擇特定波段進行渲染。 資源管理器會使用此資訊來填充選單,並理解整體數據結構。

4 波段 NAIP 資產的範例 item_assets

{
  "item_assets": {
    "image": {
      "type": "image/tiff; application=geotiff; profile=cloud-optimized",
      "roles": [
        "data"
      ],
      "title": "RGBIR COG tile",
      "eo:bands": [
        {
          "name": "Red",
          "common_name": "red",
          "description": "Red band, 610-680 nm"
        },
        {
          "name": "Green",
          "common_name": "green",
          "description": "Green band, 510-600 nm"
        },
        {
          "name": "Blue",
          "common_name": "blue",
          "description": "Blue band, 420-530 nm"
        },
        {
          "name": "NIR",
          "common_name": "nir",
          "description": "Near-infrared band, 830-920 nm"
        }
      ]
    }
  },
  // ... other collection properties ...
}

如需 的詳細資訊 item_assets,請參閱 STAC 概觀中的專案資產一節。 另請參閱官方 STAC 項目資產延伸模組規格

請確定您的 STAC 集合 JSON 包含本節,再繼續進行。 您可以透過 APIWeb 介面來更新集合定義。

步驟 2:瞭解您的數據和視覺效果目標

在建置組態之前,請先決定您要如何將數據可視化:

數據類型 說明 範例 視覺效果目標
Single-Band 數據 每個圖元都有一個值。 海拔, 溫度, 土地覆蓋分類, 計算索引 使用 colormap 將這些單一值對應至色彩範圍或離散色彩。
多頻數據 每個像素的數據有多個頻帶。 RGB 衛星影像,多重光譜數據 結合三個特定波段來代表輸出影像的紅色、綠色和藍色通道。
衍生數據(表達式) 從一或多個頻帶/資產計算新值。 來自紅色和 NIR 頻帶的 NDVI 定義數學表達式,並將結果可視化(單一波段使用色彩圖或直接顯示多波段)。
衍生資料(演算法) 計算跨像素的新值。 Hillshade 顯示海拔數據的輪廓 使用數學 演算法 將數據轉換成視覺效果。
資料立方體 (GRIB/NetCDF) 儲存在具有多個變數和維度之 GRIB 或 NetCDF 格式的數據。 時間,壓力水準 針對 2D 視覺化,選取特定變數,並可能透過其他維度(例如時間)進行切片呈現。

步驟 3:建構渲染配置物件

渲染設定定義為 JSON 物件的清單(如果使用 API,則為 Python 字典)。 清單中的每個物件都代表會出現在 [資源管理器] 下拉式清單中的一個視覺化選項。

基本結構:

[
  {
    "id": "unique-render-id",
    "name": "Human-Readable Name for UI",
    "description": "Optional: More details about this render.",
    "type": "raster-tile", // Usually "raster-tile"
    "options": "key1=value1&key2=value2...", // The core TiTiler parameters
    "minZoom": 8 // Optional: Minimum map zoom level to display this layer
  },
  {
    // ... another render configuration object ...
  }
]
  • id:集合中這個轉譯選項的唯一計算機可讀取標識符。
  • name:Explorer UI 中顯示的顯示名稱。
  • description:提供更多內容的選擇性文字。
  • type:通常是 "raster-tile"
  • options:包含 URL 查詢參數的字串(由key=value配對,並以&分隔),這些參數控制 TiTiler 渲染引擎。 這是大部分自定義發生的地方。
  • minZoom:選擇性整數,指定此圖層可見的最小地圖縮放層級。 有助於利用高解析度數據來提升效能管理效率。

使用相同的結構,可以有多個相同數據的轉譯組態,以便以多種方式將數據可視化。

步驟 4:定義 options 字串 - 核心參數

字串 options 是轉譯組態的核心。 它會使用 key=value&key=value 格式。 以下是最常見的參數:

1.識別資產/波段

參數 說明 用例 範例
assets={asset_key} 指定要使用的資產,其中 {asset_key} 符合集合 item_assets中定義的索引鍵。 使用單一資產的單頻渲染 assets=elevation
使用三個獨立單帶資產進行三頻段轉譯(順序決定 R、G、B) assets=B04&assets=B03&assets=B02
使用單一多頻資產進行轉譯 assets=image (常搭配 asset_bidx使用)
asset_bidx={asset_key}\|{band_index1},{band_index2},... 從單一由指定的多頻資產中選取特定的頻帶索引。 頻帶索引通常是以 1 為基礎。 三波段 RGB 來自資產image的波段1、2、3 assets=image&asset_bidx=image\|1,2,3
三波段 由資產的波段 4、1、2 組成的假彩色紅外(NIR、紅色、綠色)image assets=image&asset_bidx=image\|4,1,2
單波段轉譯僅使用資產的第 4 頻帶 assets=image&asset_bidx=image\|4

2.設定 Single-Band 數據的樣式

參數 說明 範例
colormap_name={name} 套用預先定義的命名色彩映射。 常見範例:viridis、、plasmagrayrdylgn。 請參閱可用的帶名稱的顏色映射。 assets=elevation&colormap_name=viridis
rescale={min_val},{max_val} 延展或壓縮數據值,以符合色彩地圖的完整範圍。 超出此範圍的值會限制為最小值/最大色彩。 從 100 m 到 1500 m 跨完整色彩地圖對應高度值: assets=elevation&colormap_name=viridis&rescale=100,1500

3. 設定多頻 (RGB) 數據的樣式

參數 說明 範例
RGB 頻帶順序 RGB 頻帶是根據assets的順序(針對個別資產)或asset_bidx的順序(針對資產內的頻帶)隱含定義的。 請參閱識別資產/頻帶數據表中的範例
rescale={min_val},{max_val} (選擇性) 可用來調整 R、G、B 波段的輸入值,再將它們對應至 0-255 顯示範圍。 如果您的源數據還不是 8 位,則很有用。 assets=B04&assets=B03&assets=B02&rescale=0,3000
color_formula={formula_string} (選擇性) 套用色彩更正公式。 請參閱下一節中的進階選項。

步驟 5:新增高級 options 參數(視需要)

除了基本概念之外,TiTiler 會透過 options 字串提供許多進階參數:

1. 表達式

參數 說明 格式/值 範例
expression={formula} 使用資產索引鍵作為變數來定義數學公式 標準運算子 (+、 、 -*/、 ) 和括弧 expression=(B08-B04)/(B08+B04)
asset_as_band=true 表達式使用多個 單一帶 資產時需要 truefalse expression=(B08-B04)/(B08+B04)&asset_as_band=true

其他詳細資料:

  • 單帶結果範例: expression=(B08-B04)/(B08+B04)&asset_as_band=true&colormap_name=rdylgn&rescale=-1,1
  • 多頻表示式使用分號: expression=B04*1.5;B03*1.1;B02*1.3&asset_as_band=true
  • 使用 expression時,您通常不需要 assetsasset_bidx

2. 演算法

參數 說明 格式/值 範例
algorithm={name} 套用預先定義的像素處理演算法 hillshadecontoursterrariumterrainrgbnormalizedIndex algorithm=hillshade
algorithm_params={json_string} 演算法的參數 (URL 編碼的 JSON) 依演算法而異 algorithm_params=%7B%22azimuth%22%3A%20315%2C%20%22angle_altitude%22%3A%2045%7D
buffer={integer} 在磚周圍新增像素緩衝區(演算法通常需要) 整數值 buffer=3

完整範例:assets=elevation&algorithm=hillshade&colormap_name=gray&buffer=3&algorithm_params=%7B%22azimuth%22%3A%20315%2C%20%22angle_altitude%22%3A%2045%7D

如需特定演算法的詳細資訊,請參閱 TiTiler 演算法檔和Mapbox 演算法

3. 色彩更正 (針對 RGB / 三頻輸出)

參數 說明 格式 範例
color_formula={formula_string} 套用色彩調整 空白分隔的字串,具有 Gamma、飽和度和/或 Sigmoidal 調整 color_formula=Gamma RGB 2.5 Saturation 1.4 Sigmoidal RGB 15 0.35

格式詳細資料:

  • Gamma {BANDS} {VALUE} - 調整亮度
  • Saturation {PROPORTION} - 調整色彩強度
  • Sigmoidal {BANDS} {CONTRAST} {BIAS} - 調整對比

如需色彩更正的詳細資訊,請參閱 TiTiler 檔

4. 自訂色彩映射(適用於單一頻帶輸出)

參數 說明 格式 範例
colormap={json_string} 定義自訂色彩圖 URL 編碼的 JSON 將數據值對應至 RGBA 清單 [R,G,B,Alpha] colormap={\"1\":[54,124,20,255],\"2\":[28,67,0,255],\"3\":[94, 91, 32, 255],\"4\":[234, 99, 32, 255],\"5\":[237, 232, 60, 255],\"6\":[236, 31, 175, 255],\"7\":[19, 0,239, 255], \"8\":[209, 3, 0, 255]}

範例譯碼為: 地圖值 1 到深綠色,2 到非常深綠色,3 到橄欖綠色,4 到橙色-紅色,5 到黃色,6 到粉紅色/洋紅,7 到藍色紫羅蘭,8 到紅色。

5. 數據處理

參數 說明 範例
nodata={value} 指定圖元值以讓透明 nodata=0nodata=-9999nodata=nan
unscale={true\|false} 套用 GeoTIFF 元數據的縮放/位移 unscale=true

6. 效能/平鋪行為

參數 說明 格式 範例
maxItemsPerTile={integer} 限制每個磚的 STAC 項目數目 整數 maxItemsPerTile=20
skipcovered={true\|false} 略過其他人涵蓋的專案 truefalse skipcovered=true
exitwhenfull={true\|false} 當磁磚被完全覆蓋時停止處理 truefalse exitwhenfull=true
time_limit={seconds} 渲染磚的時間上限 整數(秒) time_limit=10

7. 資料立方體參數(GRIB/NetCDF)

參數 數據類型 說明 範例
subdataset_bands={band_index} GRIB 選取特定訊息/頻帶 assets=grib_data&subdataset_bands=1&colormap_name=jet&rescale=273,300
subdataset_name={variable_name} NetCDF 選取要可視化的變數 assets=netcdf_data&subdataset_name=temperature
datetime={timestamp} NetCDF 選取時間區段(ISO 8601) datetime=2023-10-26T12:00:00Z

完整 NetCDF 範例:assets=netcdf_data&subdataset_name=temperature&datetime=2023-10-26T12:00:00Z&colormap_name=viridis&rescale=0,30

步驟 6:將渲染配置添加到您的集合中

建構轉譯組態清單(一或多個 JSON 物件)之後,請將它新增至您的 STAC 集合:

使用 Web 介面:

  1. 在 Planetary Computer Pro 入口網站中瀏覽至您的集合。
  2. 選取 [ 組態] 按鈕。
  3. 移至 渲染 索引標籤。
  4. 將您的 JSON 清單貼到編輯器中,或使用 UI 字段來建置它。
  5. 儲存變更。

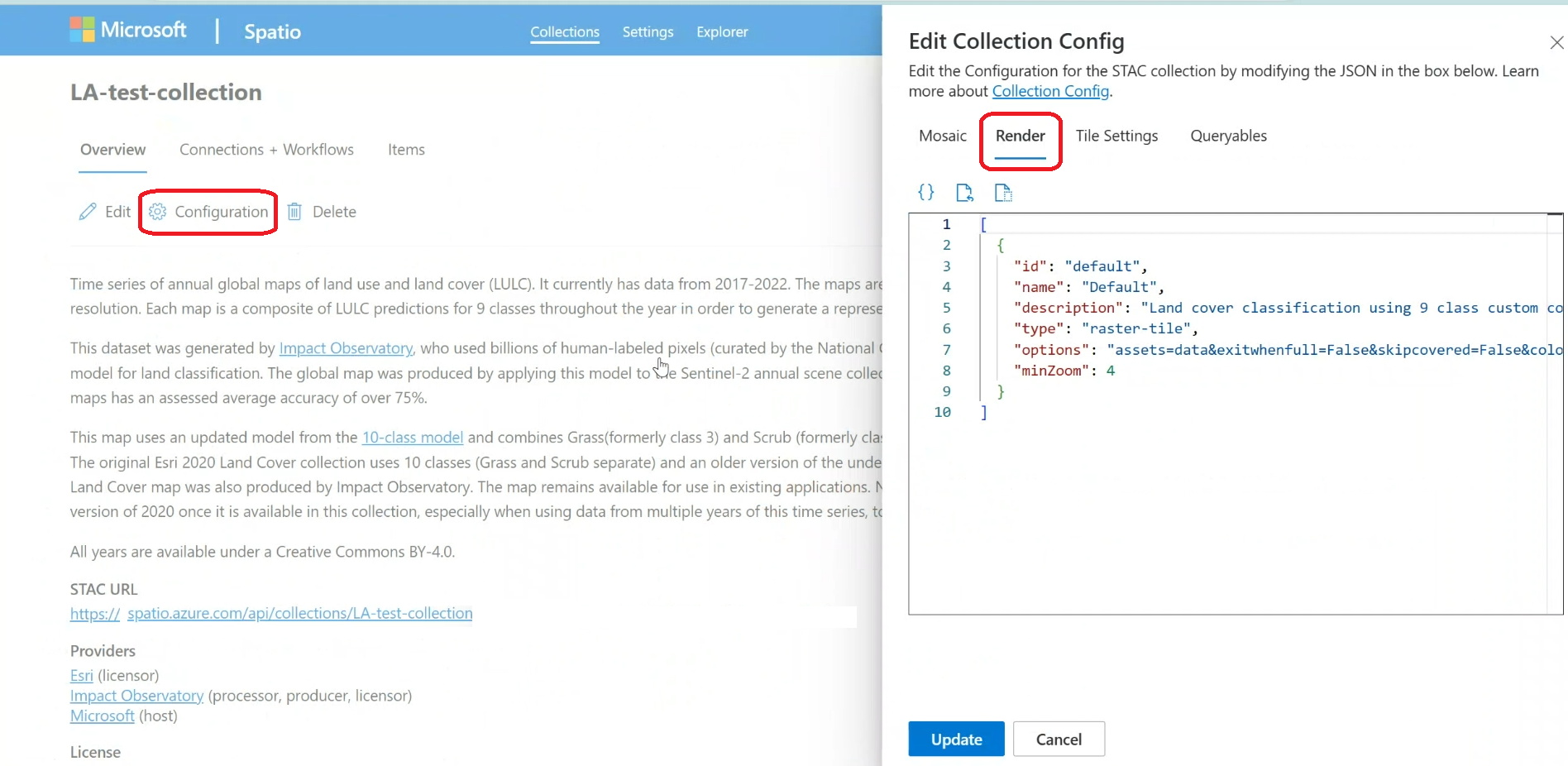

顯示設定轉譯組態 Web 介面的螢幕快照,其中顯示設定轉譯組態的選項。

如需設定集合的詳細資訊,請參閱 使用 Web 介面設定集合

使用 API:

使用 HTTP POST 請求來傳送至集合的渲染選項端點。

import requests
import json
import azure.identity

geocatalog_url = <your geocatalog url>
collection_id = <your collection id>

credential = azure.identity.AzureCliCredential()
token = credential.get_token("https://geocatalog.spatio.azure.com")
headers = {
    "Authorization": f"Bearer {token.token}"
}

response = requests.post(
    f"{geocatalog_url}/stac/collections/{collection_id}/configurations/render-options",
    json=render_config, # Your list of render config dicts
    headers=headers,
    params={"api-version": "2025-04-30-preview"} # Use the appropriate API version
)

if response.status_code == 200:
    print("Render configuration updated successfully.")
    print(response.json())
else:
    print(f"Error updating render configuration: {response.status_code}")
    print(response.text)

如需使用 STAC 集合 API 的詳細資訊,請參閱建立 STAC 集合(API 範例)。

範例

以下是options字串和完整渲染配置對象的各種範例:

1. 使用色彩圖和重新縮放來表示 Single-Band 生物質的變化:

 {
    "id": "biomass-change",
    "name": "Biomass Change from prior year (tonnes)",
    "description": "Annual estimates of changes (gains and losses) in aboveground woody biomass.",
    "type": "raster-tile",
    "options": 'assets=biomass_change_wm&colormap_name=spectral&rescale=-5000,5000',
    "minZoom": 2
  }

2. Three-Band 自然色彩(RGB)來自獨立的資產:

 {
    "id": "natural-color",
    "name": "Natural color",
    "description": "True color composite of visible bands (B04, B03, B02)",
    "type": "raster-tile",
    "options": "assets=B04&assets=B03&assets=B02&nodata=0&color_formula=Gamma RGB 3.2 Saturation 0.8 Sigmoidal RGB 25 0.35",
    "minZoom": 9
  }

3. 單一影像中的 Three-Band False Color (近紅外,紅色,綠色)頻段:

{
    "id": "color-infrared",
    "name": "Color infrared",
    "description": "Highlights healthy (red) and unhealthy (blue/gray) vegetation.",
    "type": "raster-tile",
    "options": "assets=image&asset_bidx=image|4,1,2&color_formula=Sigmoidal RGB 15 0.35",
    "minZoom": 12
  }

4. 使用表示式的 NDVI 計算:

{
    "id": "normalized-difference-veg-inde",
    "name": "Normalized Difference Veg. Index (NDVI)",
    "description": "Normalized Difference Vegetation Index (B08-B04)/(B08+B04), darker green indicates healthier vegetation.",
    "type": "raster-tile",
    "options": "nodata=0&expression=(B08-B04)/(B08+B04)&rescale=-1,1&colormap_name=rdylgn&asset_as_band=true",
    "minZoom": 9
  }

5. Hillshade 演算法:

{
    "id": "hillshade",
    "name": "Hillshade",
    "description": "Terrain visualization based on elevation.",
    "type": "raster-tile",
    "options": "assets=data&colormap_name=gray&algorithm=hillshade&buffer=3&algorithm_params=%7B%22azimuth%22%3A%20315%2C%20%22angle_altitude%22%3A%2045%7D",
    "minZoom": 7
  }

6. NetCDF 溫度視覺效果:

{
    "id": "pr-1950-07-07",
    "name": "Precipitation (1950-07-07)",
    "description": "Precipitation from NetCDF data.",
    "type": "raster-tile",
    "options": "assets=cmip&rescale=0,0.01&colormap_name=viridis&subdataset_name=pr&datetime=1950-07-07T00:00:00",
    "minZoom": 4
  }

參考:所有 options 參數

字串 options 接受下列機碼/值組(如需最 up-to日期詳細數據,請參閱 TiTiler 檔 ):

參數 類型 說明 範例使用方式
assets 字符串 來自 item_assets的資產金鑰。 針對多個資產重複使用相同的鍵。 assets=B04&assets=B03&assets=B02
expression 字符串 使用資產索引鍵的數學表達式。 expression=(B08-B04)/(B08+B04)
asset_bidx 字符串 多頻資產的頻帶索引。 格式:{asset_key}|{idx1},{idx2},... asset_bidx=image|4,1,2
asset_as_band 布爾 (bool) expression中的資產視為單一波段。 當表達式使用多個資產時必需。 asset_as_band=true
colormap_name 字符串 預先定義的 TiTiler 顏色映射名稱。 colormap_name=viridis
colormap 字符串 定義自訂色彩地圖的 URL 編碼 JSON。 colormap=%7B%221%22%3A%5B...%5D%7D
rescale 字符串 用於數據縮放的逗號分隔最小值和最大值。 rescale=0,3000
color_formula 字符串 以空格分隔的顏色校正公式(Gamma、飽和度、Sigmoidal)。 color_formula=Gamma RGB 2.2 Saturation 1.1
nodata str/float/int 將像素值視為無數據(透明)。 nodata=0nodata=-9999.0nodata=nan
unscale 布爾 (bool) 應用 GeoTIFF 元數據中的比例/偏移。 unscale=true
algorithm 字符串 TiTiler 處理演算法的名稱。 algorithm=hillshade
algorithm_params 字符串 具有演算法參數的 URL 編碼 JSON 字串。 algorithm_params=%7B%22azimuth%22%3A315%7D
buffer 浮動 磚周圍的像素緩衝區(通常需要演算法)。 buffer=3
maxItemsPerTile 整數 (int) 每個圖磚要處理的 STAC 項目上限。 maxItemsPerTile=20
skipcovered 布爾 (bool) 略過完全被其他項目遮蔽的項目。 skipcovered=true
exitwhenfull 布爾 (bool) 當圖磚已完全覆蓋時,停止處理。 exitwhenfull=true
time_limit 整數 (int) 每個磚的處理時間上限(秒)。 time_limit=10
subdataset_bands 整數 (int) GRIB 數據的頻帶/訊息索引。 subdataset_bands=1
subdataset_name 字符串 NetCDF 資料的變數名稱。 subdataset_name=temperature
datetime 字符串 在 NetCDF 中選取時間片段用的 ISO 8601 時間戳記。 datetime=2023-10-26T12:00:00Z
resampling 字符串 重新取樣方法 (nearestbilinear)。 resampling=nearest
