Enable passkeys (FIDO2) for your organization

  • Artikel

For enterprises that use passwords today, passkeys (FIDO2) provide a seamless way for workers to authenticate without entering a username or password. Passkeys (FIDO2) provide improved productivity for workers, and have better security.

This article lists requirements and steps to enable passkeys in your organization. After completing these steps, users in your organization can then register and sign in to their Microsoft Entra account using a passkey stored on a FIDO2 security key or in Microsoft Authenticator.

For more information about enabling passkeys in Microsoft Authenticator, see How to enable passkeys in Microsoft Authenticator.

For more information about passkey authentication, see Support for FIDO2 authentication with Microsoft Entra ID.

Note

Microsoft Entra ID currently supports device-bound passkeys stored on FIDO2 security keys and in Microsoft Authenticator. Microsoft is committed to securing customers and users with passkeys. We are investing in both synced and device-bound passkeys for work accounts.

Requirements

Passkeys (FIDO2) are supported across major scenarios on Windows, macOS, Android, and iOS. For more information on supported scenarios, see Support for FIDO2 authentication in Microsoft Entra ID.

Note

Support for same-device registration in Edge on Android is coming soon.

Passkey (FIDO2) Authenticator Attestation GUID (AAGUID)

The FIDO2 specification requires each security key vendor to provide an Authenticator Attestation GUID (AAGUID) during registration. An AAGUID is a 128-bit identifier indicating the key type, such as the make and model. Passkey (FIDO2) providers on desktop and mobile devices are also expected to provide an AAGUID during registration.

Note

The vendor must ensure that the AAGUID is identical across all substantially identical security keys or passkey (FIDO2) providers made by that vendor, and different (with high probability) from the AAGUIDs of all other types of security keys or passkey (FIDO2) providers. To ensure this, the AAGUID for a given security key model or passkey (FIDO2) provider should be randomly generated. For more information, see Web Authentication: An API for accessing Public Key Credentials - Level 2 (w3.org).

You can work with your security key vendor to determine the AAGUID of the passkey (FIDO2), or see FIDO2 security keys eligible for attestation with Microsoft Entra ID. If the passkey (FIDO2) is already registered, you can find the AAGUID by viewing the authentication method details of the passkey (FIDO2) for the user.

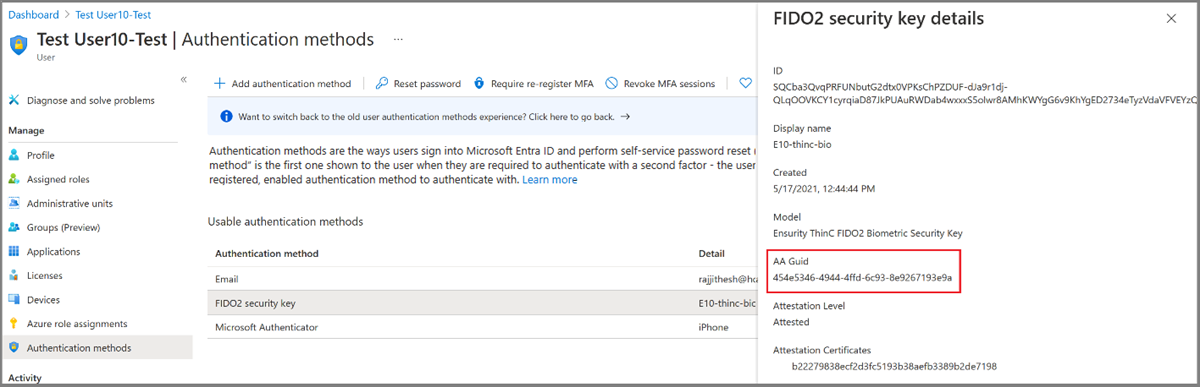

Screenshot of how to view the AAGUID for a passkey.

Enable passkey (FIDO2) authentication method

  1. Sign in to the Microsoft Entra admin center as at least an Authentication Policy Administrator.

  2. Browse to Protection > Authentication methods > Authentication method policy.

  3. Under the method Passkey (FIDO2), set the toggle to Enable. Select All users or Add groups to select specific groups. Only security groups are supported.

  4. On the Configure tab:

    • Set Allow self-service set up to Yes. If set to No, users can't register a passkey by using Security info, even if passkeys (FIDO2) are enabled by the Authentication methods policy.

    • Set Enforce attestation to Yes if your organization wants to be assured that a FIDO2 security key model or passkey provider is genuine and comes from the legitimate vendor.

      • For FIDO2 security keys, we require security key metadata to be published and verified with the FIDO Alliance Metadata Service, and also pass Microsoft's another set of validation testing. For more information, see Become a Microsoft-compatible FIDO2 security key vendor.
      • For passkeys in Microsoft Authenticator, attestation support is planned for General Availability.

      Warning

      Attestation enforcement governs whether a passkey (FIDO2) is allowed only during registration. Users who register a passkey (FIDO2) without attestation aren't blocked from sign-in if Enforce attestation is set to Yes later.

    Key Restriction Policy

    • Enforce key restrictions should be set to Yes only if your organization wants to only allow or disallow certain security key models or passkey providers, which are identified by their AAGUID. You can work with your security key vendor to determine the AAGUID of the passkey. If the passkey is already registered, you can find the AAGUID by viewing the authentication method details of the passkey for the user.

    When Enforce key restrictions is set to Yes, you can select Microsoft Authenticator (preview) to automatically add the Authenticator app AAGUIDs for you in the key restriction list. For more information, see Enable passkeys in Microsoft Authenticator (preview).

    Warning

    Key restrictions set the usability of specific models or providers for both registration and authentication. If you change key restrictions and remove an AAGUID that you previously allowed, users who previously registered an allowed method can no longer use it for sign-in.

    If your organization doesn't currently enforce key restrictions and already has active passkey usage, you should collect the AAGUIDs of the keys being used today. Add them to the Allow list, along with the Authenticator AAGUIDs, to enable this preview. This task can be done with an automated script that analyzes logs, such as registration details and sign-in logs.

    Note

    If you turn off key retrictions, make sure you clear the Microsoft Authenticator (Preview) checkbox so that users aren’t prompted to set up a passkey in the Authenticator app in Security info.

    Screenshot showing Microsoft Authenticator enabled for passkey.

  5. After you finish the configuration, select Save.

    Note

    If you see an error when you try to save, replace multiple groups with a single group in one operation, and then click Save again.

Provision FIDO2 security keys using Microsoft Graph API (preview)

Currently in preview, administrators can use Microsoft Graph and custom clients to provision FIDO2 security keys on behalf of users. Provisioning requires the Authentication Administrator role or a client application with UserAuthenticationMethod.ReadWrite.All permission. The provisioning improvements include:

  • The ability to request WebAuthn creation Options from Microsoft Entra ID
  • The ability to register the provisioned security key directly with Microsoft Entra ID

With these new APIs, organizations can build their own clients to provision passkey (FIDO2) credentials on security keys on behalf of a user. To simplify this process, three main steps are required.

  1. Request creationOptions for a user: Microsoft Entra ID returns the necessary data for your client to provision a passkey (FIDO2) credential. This includes information such as user information, relying party ID, credential policy requirements, algorithms, registration challenge and more.
  2. Provision the passkey (FIDO2) credential with the creation Options: Use the creationOptions and a client that supports the Client to Authenticator Protocol (CTAP) to provision the credential. During this step, you need to insert you will need to insert the security key and set a PIN.
  3. Register the provisioned credential with Microsoft Entra ID: Use the formatted output from the provisioning process to provide Microsoft Entra ID the necessary data to register the passkey (FIDO2) credential for the targeted user.

Conceptual diagram that shows the steps required to provision passkeys (FIDO2).

Enable passkeys (FIDO2) using Microsoft Graph API

In addition to using the Microsoft Entra admin center, you can also enable passkeys (FIDO2) by using the Microsoft Graph API. To enable passkeys (FIDO2), you need to update the Authentication methods policy as at least an Authentication Policy Administrator.

To configure the policy using Graph Explorer:

  1. Sign in to Graph Explorer and consent to the Policy.Read.All and Policy.ReadWrite.AuthenticationMethod permissions.

  2. Retrieve the Authentication methods policy:

    GET https://graph.microsoft.com/beta/authenticationMethodsPolicy/authenticationMethodConfigurations/FIDO2

  3. To disable attestation enforcement and enforce key restrictions to only allow the AAGUID for RSA DS100 for example, perform a PATCH operation using the following request body:

    PATCH https://graph.microsoft.com/beta/authenticationMethodsPolicy/authenticationMethodConfigurations/FIDO2

Request Body:
{
    "@odata.type": "#microsoft.graph.fido2AuthenticationMethodConfiguration",
    "isAttestationEnforced": false,
    "keyRestrictions": {
        "isEnforced": true,
        "enforcementType": "allow",
        "aaGuids": [
            "7e3f3d30-3557-4442-bdae-139312178b39",

            <insert previous AAGUIDs here to keep them stored in policy>
        ]
    }
}

  4. Make sure that the passkey (FIDO2) policy is updated properly.

    GET https://graph.microsoft.com/beta/authenticationMethodsPolicy/authenticationMethodConfigurations/FIDO2

Delete a passkey (FIDO2)

To remove a passkey (FIDO2) associated with a user account, delete it from the user's authentication method.

  1. Sign in to the Microsoft Entra admin center and search for the user whose passkey (FIDO2) needs to be removed.
  2. Select Authentication methods > right-click Passkey (device-bound) and select Delete.

Enforce passkey (FIDO2) sign-in

To make users sign in with a passkey (FIDO2) when they access a sensitive resource, you can:

  • Use a built-in phishing-resistant authentication strength

    Or

  • Create a custom authentication strength

The following steps show how to create a custom authentication strength Conditional Access policy that allows passkey (FIDO2) sign-in for only a specific security key model or passkey (FIDO2) provider. For a list of FIDO2 providers, see FIDO2 security keys eligible for attestation with Microsoft Entra ID.

  1. Sign in to the Microsoft Entra admin center as at least a Conditional Access Administrator.
  2. Browse to Protection > Authentication methods > Authentication strengths.
  3. Select New authentication strength.
  4. Provide a Name for your new authentication strength.
  5. Optionally provide a Description.
  6. Select Passkeys (FIDO2).
  7. Optionally, if you want to restrict by specific AAGUID(s), select Advanced options then Add AAGUID. Enter the AAGUID(s) that you allow. Select Save.
  8. Choose Next and review the policy configuration.

Known issues

Security key provisioning

Administrator provisioning of security keys is in public preview. See Microsoft Graph and custom clients to provision FIDO2 security keys on behalf of users.

B2B collaboration users

Registration of passkey (FIDO2) credentials isn't supported for B2B collaboration users in the resource tenant.

UPN changes

If a user's UPN changes, you can no longer modify passkeys (FIDO2) to account for the change. If the user has a passkey (FIDO2), they need to sign in to Security info, delete the old passkey (FIDO2), and add a new one.
