Power BI Desktop project report folder

Important

Power BI Desktop projects is currently in preview.

This article describes the files and subfolders in a Microsoft Power BI Desktop project's Report folder. The files and subfolders here represent a Power BI report. Depending on your project, the report folder can include:

1 - This file is required.
2 - This file is required when saving to PBIR-Legacy format.
3 - This file is required when saving to PBIR format.

Not every project report folder includes all of the files and subfolders described here.

Report files

.pbi\localSettings.json

Contains report settings that apply only for the current user and local computer. It should be included in gitIgnore or other source control exclusions. By default, Git ignores this file.

For more information, see the localSettings.json schema document.

CustomVisuals\

A subfolder that contains metadata for custom visuals in the report. Power BI supports three kinds of custom visuals:

  • Organizational store visuals - Organizations can approve and deploy custom visuals to Power BI for their organization. To learn more, see Organization store.
  • AppSource Power BI visuals - Also known as "Public custom visuals". These visuals are available from Microsoft AppSource. Report developers can install these visuals directly from Power BI Desktop.
  • Custom visual files - Also known as "Private custom visuals". The files can be loaded into the report by uploading a pbiviz package.

Only private custom visuals are loaded into the CustomVisuals folder. AppSource and Organization visuals are loaded automatically by Power BI Desktop.

RegisteredResources\

A subfolder that includes resource files specific to the report and loaded by the user, like custom themes, images, and custom visuals (pbiviz files).

Developers are responsible for the files here and changes are supported. For example, you can change a file and after a Power BI Desktop restart, the new file is loaded into the report. This folder can unblock some useful scenarios, like:

  • Authoring custom themes outside of Power BI Desktop by using the public schema.
  • Applying batch changes by changing the resource file on multiple reports. For example, you can switch the corporate custom theme, change between light and dark themes, and change logo images.

Every resource file must have a corresponding entry in the report.json file, which during preview doesn't support editing. Edits to RegisteredResources files are only supported for already loaded resources that cause Power BI Desktop to register the resource in report.json.

semanticModelDiagramLayout.json

Contains data model diagrams describing the structure of the semantic model associated with the report. During preview, this file doesn't support external editing.

definition.pbir

Contains the overall definition of a report and core settings. This file also holds the reference to the semantic model used by the report. Power BI Desktop can open a pbir file directly, just the same as if the report were opened from a pbip file. Opening a pbir also opens the semantic model alongside if there's a relative reference using byPath.

Example definition.pbir:

JSON
{
  "version": "1.0",
  "datasetReference": {
    "byPath": {
      "path": "../Sales.Dataset"
    },
    "byConnection": null
  }
}

The definition includes the datasetReference property, which references the semantic model used in the report. The reference can be either:

byPath - Specifies a relative path to the target semantic model folder. Absolute paths aren't supported. A forward slash (/) is used as a folder separator. When used, Power BI Desktop also opens the semantic model in full edit mode.

byConnection - Specifies a remote semantic model in the Power BI service by using a connection string. When a byConnection reference is used, Power BI Desktop doesn't open the semantic model in edit mode.

Using a byConnection reference, the following properties must be specified:

Property Description
connectionString The connection string referring to the remote semantic model.
pbiModelDatabaseName The remote semantic model ID.
connectionType Type of connection. For service remote semantic model, this value should be pbiServiceXmlaStyleLive.
pbiModelVirtualServerName An internal property that should have the value, sobe_wowvirtualserver.

Example using byConnection:

JSON
{
  "version": "1.0",
  "datasetReference": {
    "byPath": null,
    "byConnection": {
      "connectionString": "Data Source=powerbi://api.powerbi.com/v1.0/myorg/WorkpaceName;Initial Catalog=SemanticModelName;Integrated Security=ClaimsToken",
      "pbiServiceModelId": null,
      "pbiModelVirtualServerName": "sobe_wowvirtualserver",
      "pbiModelDatabaseName": "e244efd3-e253-4390-be28-6be45d9da47e",
      "connectionType": "pbiServiceXmlaStyleLive",
      "name": "EntityDataSource"
    }
  }
}

When the semantic model and report share the same workspace, Fabric Git Integration always uses a byPath reference to the semantic model. If you want to force the report to open in live connect (for example, to work with report-level measures), you can have multiple definition*.pbir files, such as one with a byPath connection and another with a byConnection connection. However, only the definition.pbir file is not ignored when importing the definition through Fabric Git.

Markdown
  ├── definition\
  ├── StaticResources\
  ├── .platform
  ├── definition-liveConnect.pbir
  └── definition.pbir

This file also specifies the supported report definition formats through the 'version' property.

Version Supported formats
1.0 Report definition must be stored as PBIR-Legacy in the report.json file.
4.0 or above Report definition can be stored as PBIR-Legacy (report.json file) or PBIR (\definition folder).

For more information, see the definition.pbir schema document.

mobileState.json

Contains report appearance and behavior settings when rendering on a mobile device. This file doesn't support external editing.

report.json

This file contains the report definition in the Power BI Report Legacy format (PBIR-Legacy) and doesn't support external editing.

definition\ folder

This folder is only available if the Power BI project is saved using the Power BI enhanced report format (PBIR). It replaces the report.json file.

.platform

Fabric platform file that holds properties vital for establishing and maintaining the connection between Fabric items and Git.

To learn more, see Git integration automatically generated system files.

PBIR format

Important

Please consider all the PBIR limitations during the preview phase.

Saving your Power BI Project files (PBIP) using the Power BI Enhanced Report Format (PBIR) greatly improves change tracking and merge conflict resolution by using properly formatted JSON files.

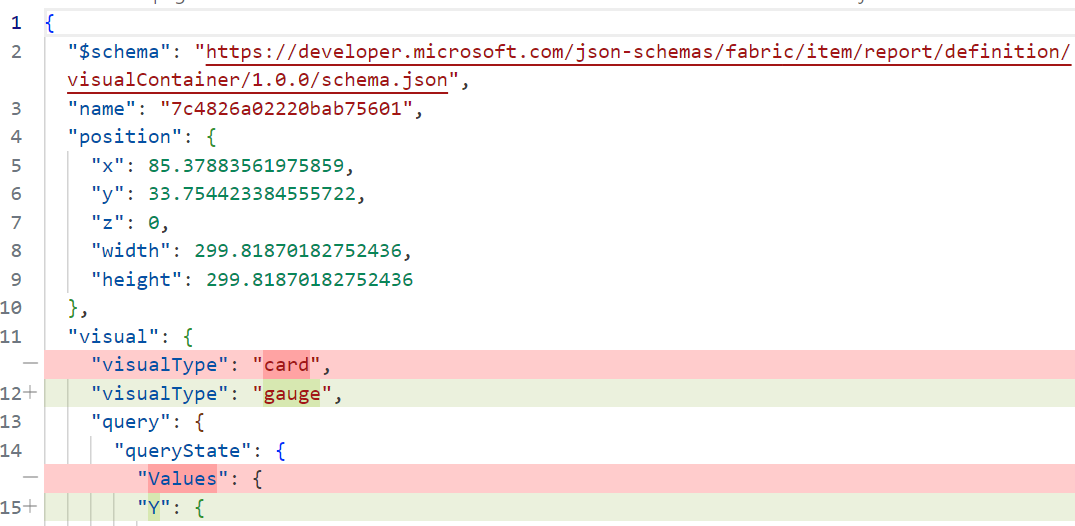

Screenshot of friendly PBIR diffs.

Each page, visual, bookmark, etc., is organized into a separate, individual file within a folder structure. This format is ideal for co-development conflict resolution.

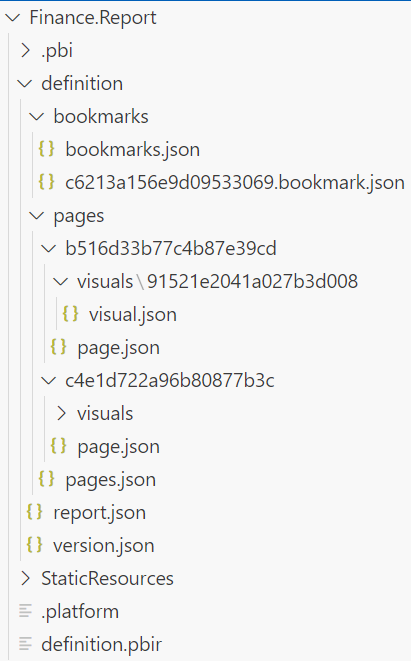

Screenshot of friendly PBIR folder.

Unlike PBIR-Legacy (report.json), PBIR is a publicly documented format that supports modifications from non-Power BI applications. Each file has a public JSON schema, which not only documents the file but also lets code editors like Visual Studio Code perform syntax validation while editing.

Some of the possible scenarios now available with PBIR include:

  • Copy pages/visuals/bookmarks between reports.
  • Ensure consistency of a set of visuals across all pages, by copying & pasting the visual files.
  • Easy find and replace across multiple reports files.
  • Apply a batch edit across all visuals using a script (for example, hide visual level filters)

Enable PBIR format Preview feature

Saving as a Power BI Project using PBIR is currently in preview. Before using it, enable it in Power BI Desktop preview features:

Go to File > Options and settings > Options > Preview features and check the box next to Store reports using enhanced metadata format (PBIR).

Save as a project using PBIR

With the PBIR Preview feature enabled, when you save a project, your report is saved within a folder named \definition inside of report folder:

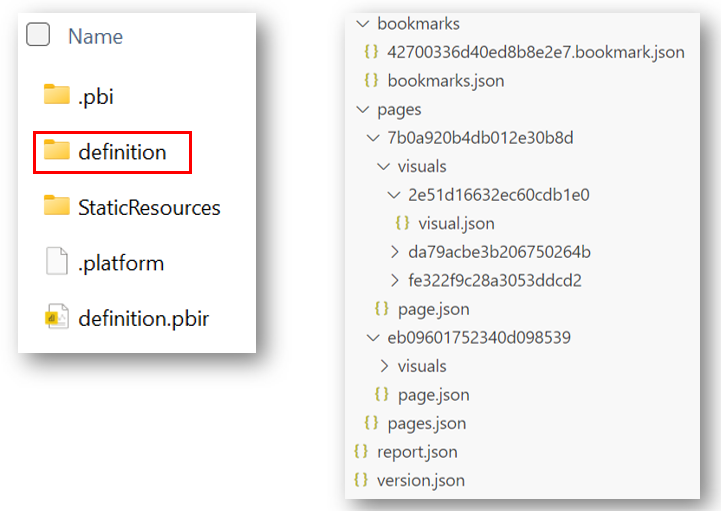

Screenshot of the definition folder inside a report pbip folder.

Learn more about the PBIR folder structure.

Convert existing PBIP to PBIR

If you already have a PBIP using PBIR-Legacy format, you can convert it to PBIR as follows:

  1. Open the PBIP in Power BI Desktop.

  2. Ensure the Preview Feature is enabled.

  3. Save the project. A prompt appears asking you to upgrade into PBIR.

  4. Select Upgrade.

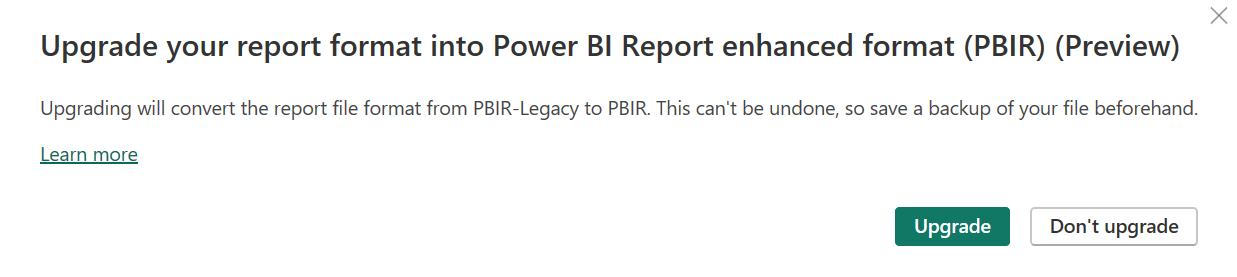

    Screenshot of prompt to upgrade to PBIR.

    Important

    Once you upgrade to PBIR, you can't revert back to PBIR-Legacy. If you think you might want to revert back to PBIR-Legacy, save a copy of your PBIP files first.

The existing PBIR-Legacy file (report.json) is replaced with a \definition folder containing the PBIR representation of the report.

If you select to Keep current format, Desktop don't prompt again to upgrade.

Publish a PBIR report to service

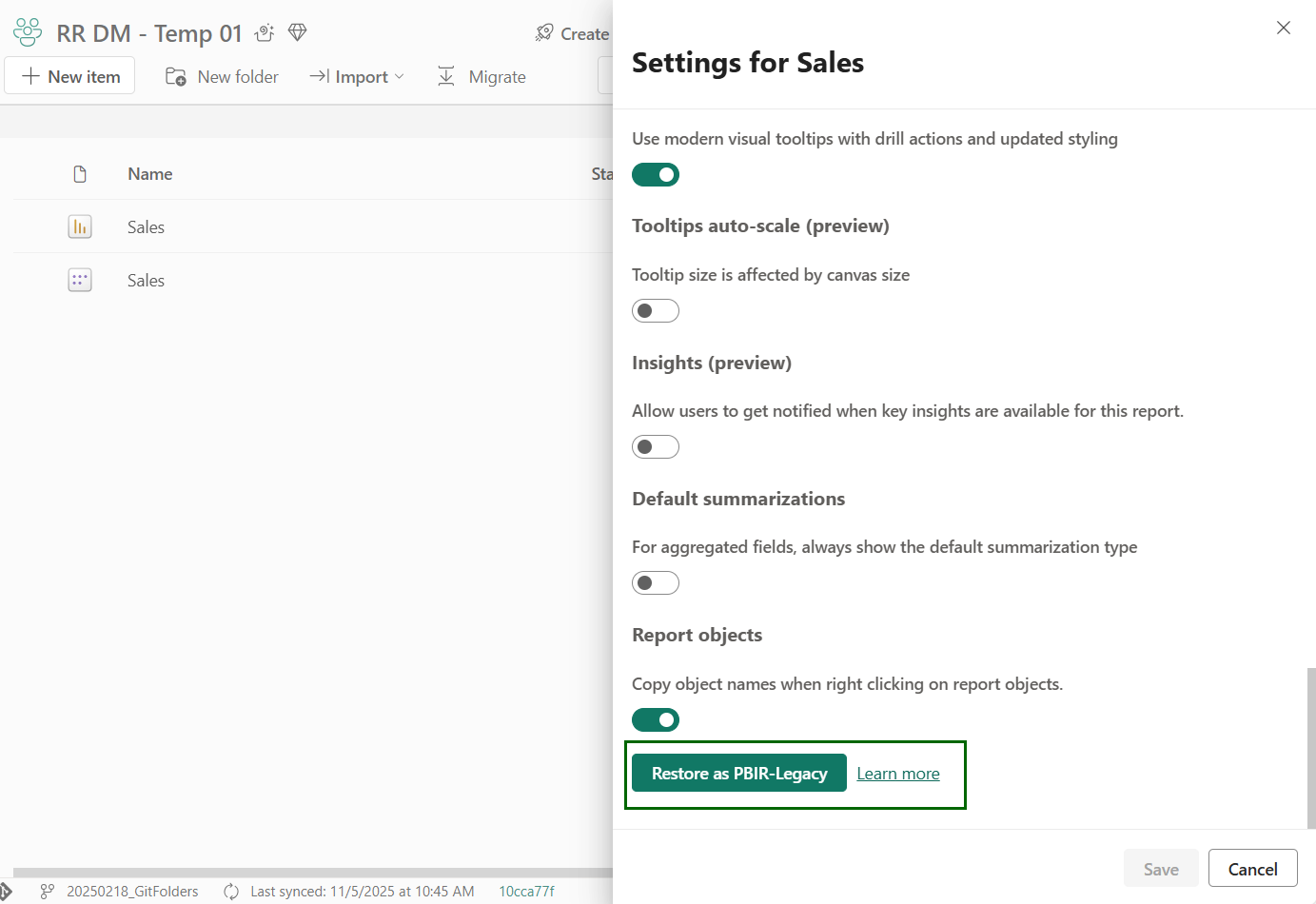

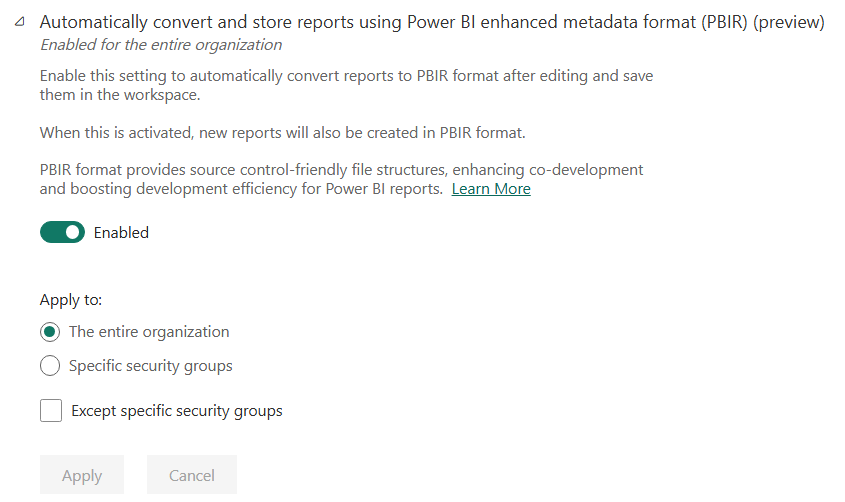

While in the preview phase, the only way to publish a report with the PBIR format is through Fabric Git Integration. This involves connecting the workspace to a Git repository and pushing the PBIR report to it, which can then be synchronized with the service workspace at a later stage.

If you wish to convert an existing report to PBIR in the service, follow these steps:

  1. Connect your workspace to Git.
  2. Clone the Git repository to your local file system.
  3. Open the report in Power BI Desktop by opening the definition.pbir file.
  4. Save the report and choose to upgrade to PBIR.
  5. Commit and sync the changes to Git.
  6. Update the workspace with the latest changes from Git.

PBIR folder and files

The report definition is stored inside the definition\ folder with the following structure:

Markdown
├── bookmarks\
│   ├── [bookmarkName].bookmark.json
|   └── bookmarks.json
├── pages\
│   ├── [pageName]\
│   |   ├── \visuals
|   │   |   ├── [visualName]\
|   |   │   │   |── mobile.json
|   |   |   └   └── visual.json
|   |   └── page.json
|   └── pages.json
├── version.json
├── reportExtensions.json
└── report.json
File/Folder Required Description
bookmarks\ No Folder holding all bookmark files of the report.
── [bookmarkName].bookmark.json No Bookmark metadata, such as target visuals and filters.
More information at schema.
── bookmarks.json No Bookmarks metadata, such as bookmark order and groups.
More information at schema.
pages\ Yes Folder holding all pages of the report.
── [pageName]\ Yes One folder per page.
──── visuals\ No Folder holding all visuals of the page.
────── [visualName]\ No One folder per visual.
──────── mobile.json No Visual mobile layout metadata, such as mobile position and formatting.
More information at schema.
──────── visual.json Yes Visual metadata, such as position and formatting, query.
More information at schema.
──── page.json Yes Page metadata, such as page level filters and formatting.
More information at schema.
── pages.json No Pages metadata, such as page order and active page.
More information at schema.
version.json Yes PBIR file version, among other factors, determines the required files to be loaded.
More information at schema
reportExtensions.json No Report extensions, such as report level measures.
More information at schema
report.json Yes Report metadata, such as report level filters and formatting.
More information at schema

Important

Some report metadata files, such as visual.json or bookmarks.json, may be saved with data values from your semantic model. For instance, if you apply a filter to a visual for the field 'Company' = 'Contoso', the value 'Contoso' will be persisted as part of the metadata. This also applies to other configurations like slicer selections, matrix custom columns width, and formatting for specific series.

PBIR naming convention

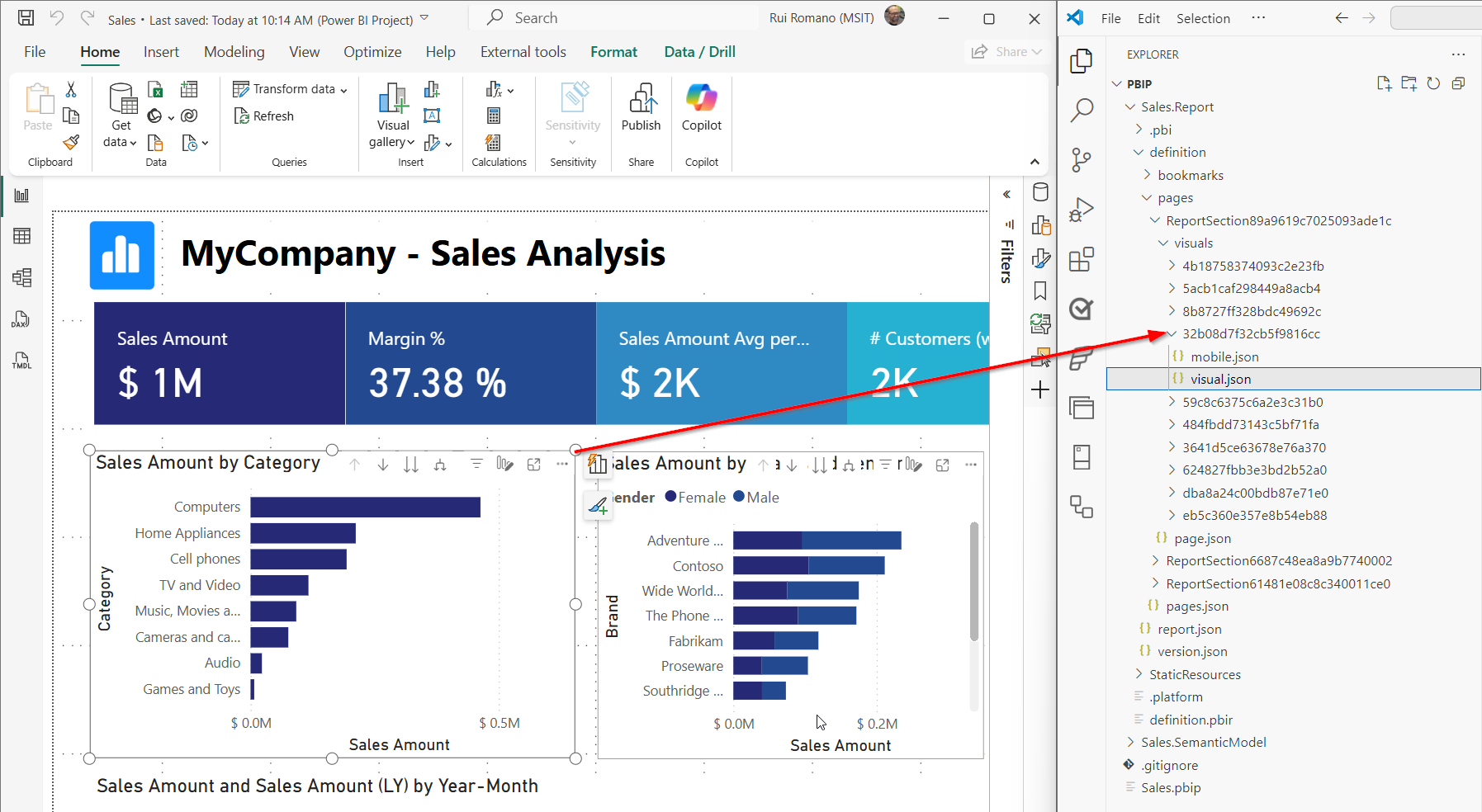

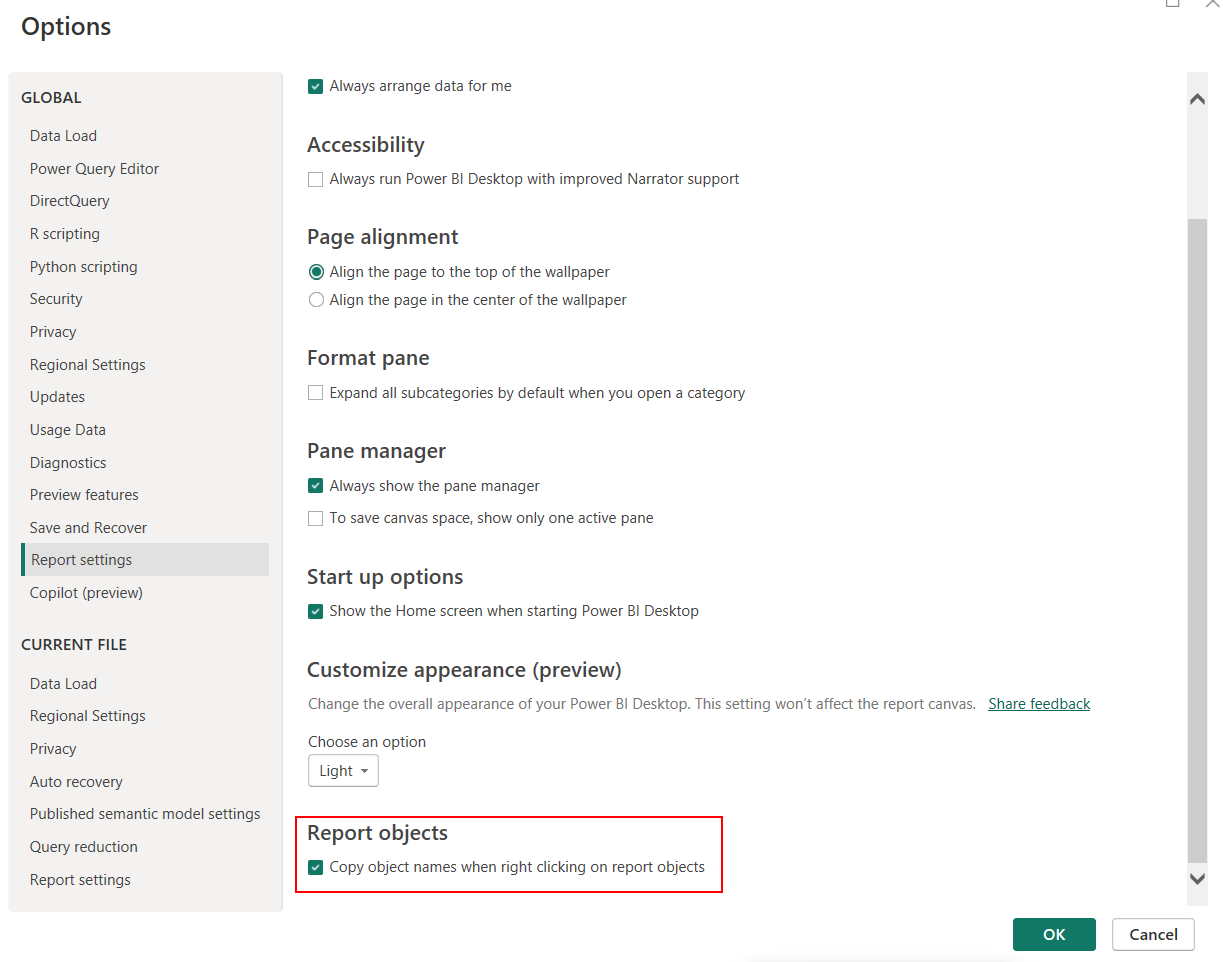

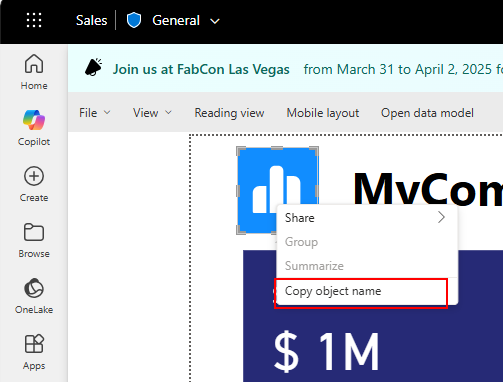

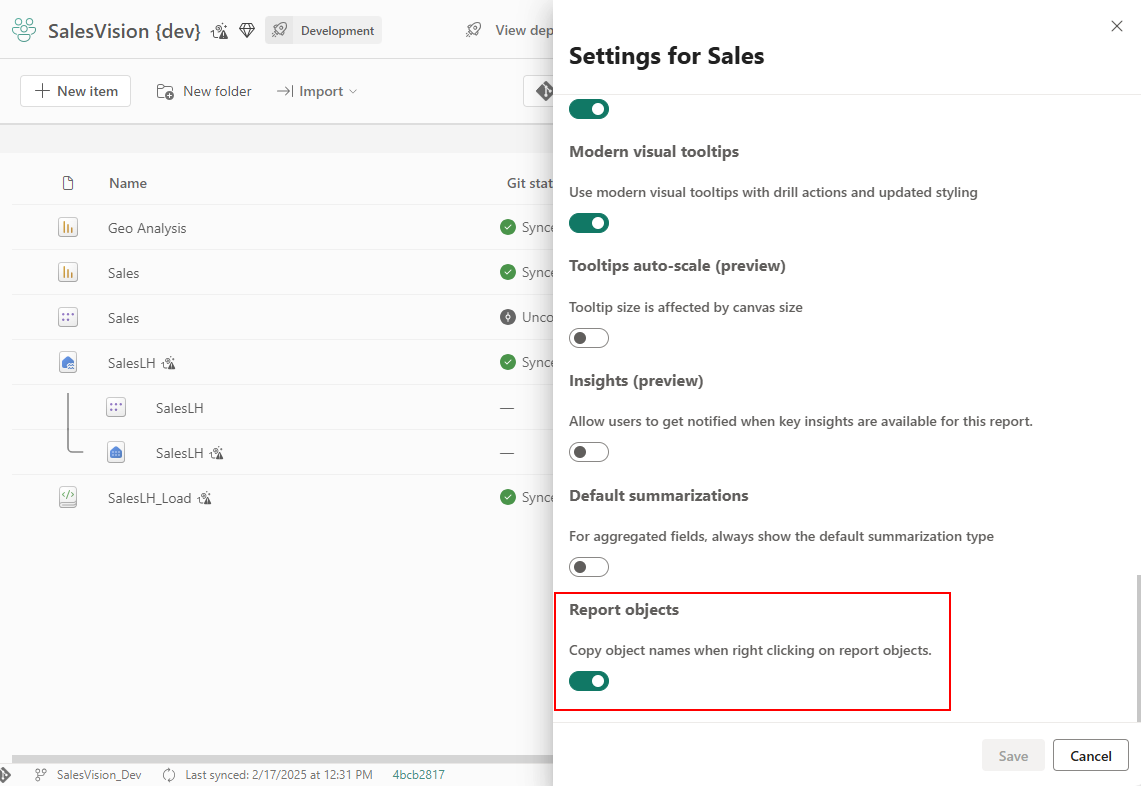

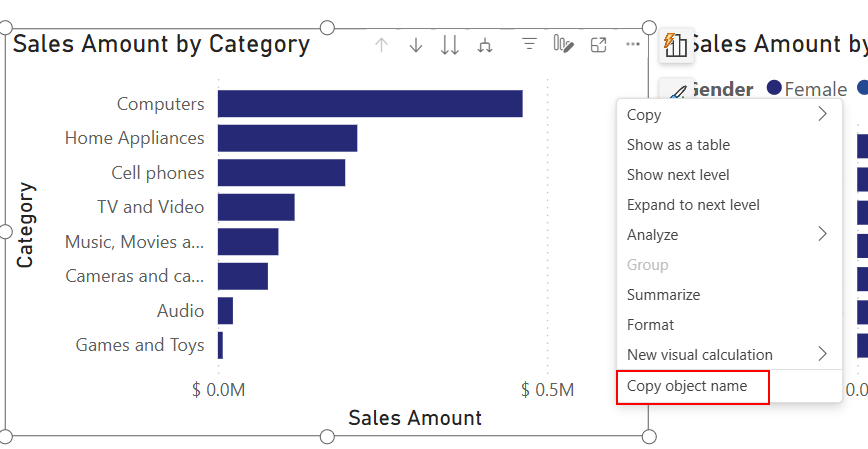

All names inside the square brackets ([]) in the preceding table follow a default naming convention but can be renamed to more user-friendly names. By default, pages, visuals, and bookmarks use their report object name as their file or folder name. These object names are initially a 20-character unique identifier, such as '90c2e07d8e84e7d5c026'.

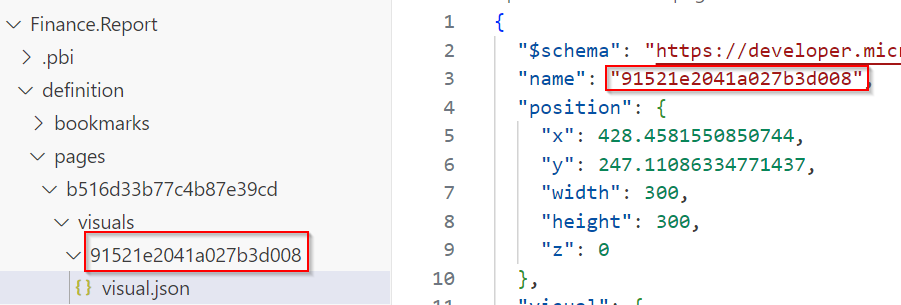

Screenshot of PBIR name property.

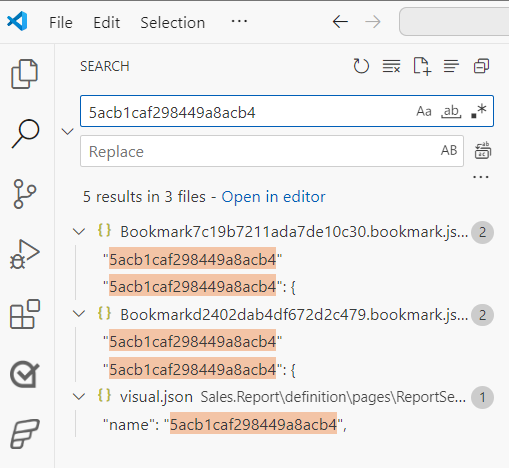

Renaming the 'name' property within each JSON file is supported but might break external references both inside and outside the report. The object name and/or file/folder name must consist of one or more word characters (letters, digits, underscores) or hyphens.

After renaming any PBIR files or folders, you must restart Power BI Desktop. Upon restart, Power BI Desktop will preserve the original file or folder names when saving.

PBIR Json Schemas

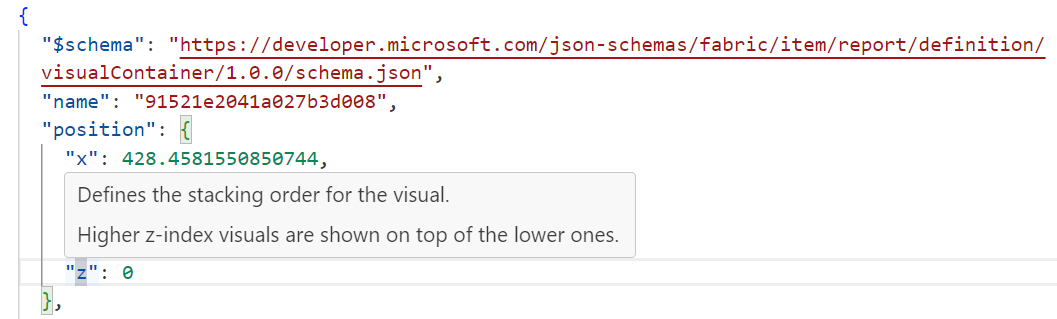

Each PBIR JSON file includes a JSON schema declaration at the top of the document. This schema URL is publicly accessible and can be used to learn more about the available properties and objects for each file. Additionally, it provides built-in IntelliSense and validation when editing with code editors like Visual Studio Code.

Screenshot of prompt PBIR JSON Schema tooltip.

The schema URL also defines the version of the document, which is expected to change as the report definition evolves.

All the JSON schemas are published here.

PBIR annotations

You can include annotations as name-value pairs within the report definition for each visual, page and report. While Power BI Desktop will ignore these annotations, they can be valuable for external applications like scripts.

For instance, you could specify the defaultPage for the report at the report.json file, which can then be utilized by a deployment script.

JSON
{
  "$schema": "https://developer.microsoft.com/json-schemas/fabric/item/report/definition/report/1.0.0/schema.json",
  "themeCollection": {
    "baseTheme": {
      "name": "CY24SU06",
      "reportVersionAtImport": "5.55",
      "type": "SharedResources"
    }
  },
  ...
  "annotations": [
    {
      "name": "defaultPage",
      "value": "c2d9b4b1487b2eb30e98"
    }
  ]
}

External changes to PBIR files

You can edit the PBIR JSON files using a code editor like Visual Studio Code or an external tool, as long as the file obey the JSON schema. Using a wrong property name or type can be easily detected directly in Visual Studio Code:

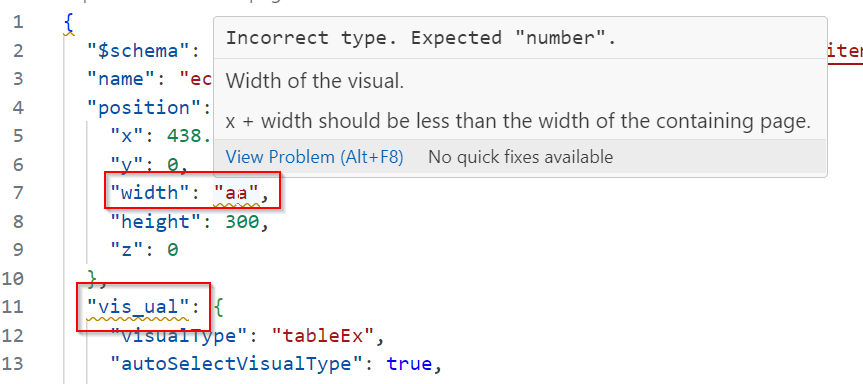

Screenshot of prompt PBIR JSON Schema validation.

External changes to PBIR content might result in errors when reopening the files in Power BI Desktop. These errors can be of two types:

Blocking errors prevent Power BI Desktop from opening the report. These errors help identify the issue and the offending file that must be fixed before reopening:

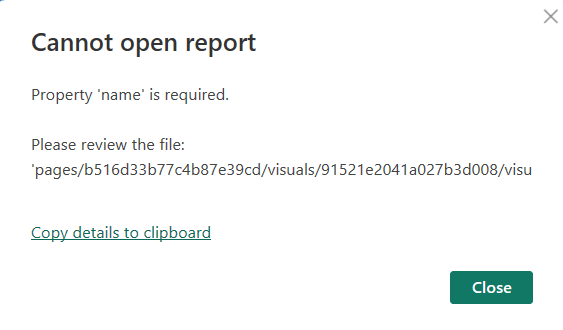

Screenshot of prompt PBIR blocking error.

Errors such as an invalid schema or missing required properties are considered blocking errors. Those errors can be easily identified by opening the file in Visual Studio Code and inspecting the schema errors.

Non-blocking errors don't prevent Power BI Desktop from opening the report and are automatically resolved.

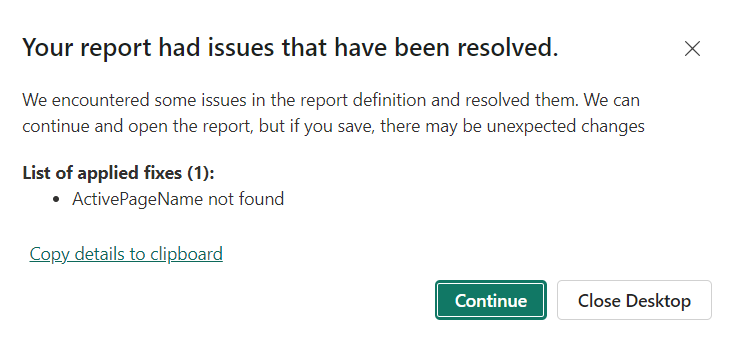

Screenshot of prompt PBIR nonblocking error.

Errors such as an invalid activePageName configuration are examples of nonblocking errors that are automatically fixed. The warning is necessary to give you the chance to avoid saving the report with the autofix, by that preventing any potential loss of work.

Common PBIR errors

Scenario: After rename visual or page folder names, my visual or page no longer appears when opening the report.

Solution: Verify whether the name complies with the naming convention. If it doesn't, Power BI Desktop ignores the file, or folder and treats it as private user files.

Scenario: New report objects are named differently from others. For example, most page folders are named 'ReportSection0e71dafbc949c0853608', while a few are named '1b3c2ab12b603618070b'.

Solution: PBIR adopted a new naming convention for every object, but it only applies to new objects. When you save an existing report as PBIP, the current names must be preserved to prevent breaking references. If you want consistency, a script a batch rename is allowed.

Scenario: I copied a bookmark file, and upon saving, most of the bookmark configuration was deleted.

Solution: This behavior is intentional, report bookmarks capture the state of a report page along with all its visuals. Since the captured state originates from another report page with different visuals, any invalid visuals are removed from the bookmark configuration. If you also copy the dependent visuals and page, the bookmark maintain its configuration.

Scenario: I copied a page folder from another report and encountered an error stating, "Values for the 'pageBinding.name' property must be unique."

Solution: The pageBinding object is necessary to support drillthrough and page tooltips. Since they might be referenced by other pages, the name must be unique within the report. On the newly copied page, assign a unique value to resolve the error. After June 2024, this situation is no longer an issue because the pageBinding name is a GUID by default.

PBIR considerations and limitations

PBIR is currently in preview. Keep the following in mind:

  • Service limitations/bugs
    • Mobile views are not displayed in Power BI Apps.
    • Hidden pages are exposed in Power BI Apps navigation.
    • Can't be deployed with deployment pipelines.
    • Can't be saved as a copy.
  • Large reports with more than 500 files experience authoring performance issues (report viewing isn't affected), including:
    • Saving in Power BI Desktop
    • Synchronization in Fabric Git Integration
  • Once a report is converted from PBIR-Legacy to PBIR, it isn't possible to roll it back.
  • Converting a PBIP file to a PBIX file using the "Save As" feature embeds the PBIR report within the PBIX file, carrying over all PBIR limitations to the PBIX.

PBIR size limitations enforced by the service:

  • 1,000 max pages per report.
  • 300 max visuals per page.
  • 5 mb max for each bookmark file.
  • 1 mb max for each file.
  • 1,000 max resource package files per report.
  • 300 mb max size for all resource package files.
  • 20 mb max size of all report files.

During the Public Preview, Fabric Git Integration and Fabric REST APIs continue to use PBIR-Legacy (report.json) when exporting the report definitions. However, if the report is imported into Fabric using PBIR format, then both features start exporting the report definition using PBIR format.
