Send reaction WhatsApp messages using Advanced Messages

Azure Communication Services enables you to send and receive WhatsApp messages. This article describes how to integrate your app with Azure Communication Advanced Messages SDK to start sending and receiving WhatsApp reaction messages. Completing this article incurs a small cost of a few USD cents or less in your Azure account.

Prerequisites

• WhatsApp Business Account registered with your Azure Communication Services resource.
• Active WhatsApp phone number to receive messages.
• .NET development environment, such as Visual Studio, Visual Studio Code, or .NET CLI.

Set up environment

Create the .NET project

Visual Studio

To create your project, follow the tutorial at Create a .NET console application using Visual Studio.

To compile your code, press Ctrl+F7.

Visual Studio Code

To create your project, follow the tutorial at Create a .NET console application using Visual Studio Code.

Build and run your program by running the following commands in the Visual Studio Code Terminal (View > Terminal).

dotnet build
dotnet run

.NET CLI

Create your project.

dotnet new console -o AdvancedMessagingQuickstart

Navigate to your project directory and build your project.

cd AdvancedMessagingQuickstart
dotnet build

Install the package

Install the Azure.Communication.Messages NuGet package to your C# project.

Visual Studio

1. Open the NuGet Package Manager at Project > Manage NuGet Packages....
2. Search for the package Azure.Communication.Messages.
3. Install the latest release.

Visual Studio Code

1. Open the Visual Studio Code terminal ( View > Terminal ).
2. Install the package by running the following command.

dotnet add package Azure.Communication.Messages

.NET CLI

Install the package by running the following command.

dotnet add package Azure.Communication.Messages

Set up the app framework

Open the Program.cs file in a text editor.

Replace the contents of your Program.cs with the following code:

using System;
using System.Collections.Generic;
using System.Threading.Tasks;
using Azure;
using Azure.Communication.Messages;

namespace AdvancedMessagingQuickstart
{
    class Program
    {
        public static async Task Main(string[] args)
        {
            Console.WriteLine("Azure Communication Services - Advanced Messages quickstart samples.");

            // Quickstart code goes here
        }
    }
}

To use the Advanced Messaging features, add a using directive to include the Azure.Communication.Messages namespace.

using Azure.Communication.Messages;

Object model

The following classes and interfaces handle some of the major features of the Azure Communication Services Advanced Messaging SDK for .NET.

Class Name	Description
NotificationMessagesClient	Connects to your Azure Communication Services resource. It sends the messages.
ReactionNotificationContent	Defines reaction message content.

Note

For more information, see the Azure SDK for .NET reference Azure.Communication.Messages Namespace.

Common configuration

To configure your application, complete the following steps:

• Authenticate the client.
• Set channel registration ID.
• Set recipient list.
• Start sending messages between a business and a WhatsApp user.

Authenticate the client

The Messages SDK uses the NotificationMessagesClient to send messages. The NotificationMessagesClient method authenticates using your connection string acquired from Azure Communication Services resource in the Azure portal. For more information about connection strings, see access-your-connection-strings-and-service-endpoints.

Connection String

For simplicity, this article uses a connection string to authenticate. In production environments, we recommend using service principals.

Get the connection string from your Azure Communication Services resource in the Azure portal. On the left, navigate to the Keys tab. Copy the Connection string field for the primary key. The connection string is in the format endpoint=https://{your Azure Communication Services resource name}.communication.azure.com/;accesskey={secret key}.

Set the environment variable COMMUNICATION_SERVICES_CONNECTION_STRING to the value of your connection string.
Open a console window and enter the following command:

setx COMMUNICATION_SERVICES_CONNECTION_STRING "<your connection string>"

After you add the environment variable, you might need to restart any running programs that will need to read the environment variable, including the console window. For example, if you're using Visual Studio as your editor, restart Visual Studio before running the example.

For more information on how to set an environment variable for your system, follow the steps at Store your connection string in an environment variable.

To instantiate a NotificationMessagesClient, add the following code to the Main method:

// Retrieve connection string from environment variable
string connectionString =
    Environment.GetEnvironmentVariable("COMMUNICATION_SERVICES_CONNECTION_STRING");

// Instantiate the client
var notificationMessagesClient = new NotificationMessagesClient(connectionString);

Microsoft Entra ID

You can also authenticate with Microsoft Entra ID using the Azure Identity library.

The Azure.Identity package provides various credential types that your application can use to authenticate. You can choose from the various options to authenticate the identity client detailed at Azure Identity - Credential providers and Azure Identity - Authenticate the client. This option walks through one way of using the DefaultAzureCredential.

The DefaultAzureCredential attempts to authenticate via several mechanisms and might obtain its authentication credentials if you're signed into Visual Studio or Azure CLI. However, this option walks you through setting up with environment variables.

To create a DefaultAzureCredential object:

1. To set up your service principle app, follow the instructions at Creating a Microsoft Entra registered Application.

2. Set the environment variables AZURE_CLIENT_ID, AZURE_CLIENT_SECRET, and AZURE_TENANT_ID using the output of your app's creation.
   Open a console window and enter the following commands:

   setx AZURE_CLIENT_ID "<your app's appId>"
   setx AZURE_CLIENT_SECRET "<your app's password>"
   setx AZURE_TENANT_ID "<your app's tenant>"


   After you add the environment variables, you might need to restart any running programs that will need to read the environment variables, including the console window. For example, if you're using Visual Studio as your editor, restart Visual Studio before running the example.

3. To use the DefaultAzureCredential provider, or other credential providers provided with the Azure SDK, install the Azure.Identity NuGet package and add the following using directive to your Program.cs file.

   using Azure.Identity;


4. To instantiate a NotificationMessagesClient, add the following code to the Main method.

   // Configure authentication
   var endpoint = new Uri("https://<resource name>.communication.azure.com");
   var credential = new DefaultAzureCredential();

   // Instantiate the client
   var notificationMessagesClient =
       new NotificationMessagesClient(endpoint, credential);


AzureKeyCredential

You can also authenticate with an AzureKeyCredential.

Get the endpoint and key from your Azure Communication Services resource in the Azure portal. On the left, navigate to the Keys tab. Copy the Endpoint and the Key field for the primary key.

Set the environment variable COMMUNICATION_SERVICES_KEY to the value of your connection string.
Open a console window and enter the following command:

setx COMMUNICATION_SERVICES_KEY "<your key>"

After you add the environment variable, you might need to restart any running programs that will need to read the environment variable, including the console window. For example, if you're using Visual Studio as your editor, restart Visual Studio before running the example.

For more information on how to set an environment variable for your system, follow the steps at Store your connection string in an environment variable.

To instantiate a NotificationMessagesClient, add the following code to the Main method:

// Retrieve key from environment variable
string key =
    Environment.GetEnvironmentVariable("COMMUNICATION_SERVICES_KEY");

// Configure authentication
var endpoint = new Uri("https://<resource name>.communication.azure.com");
var credential = new AzureKeyCredential(key);

// Instantiate the client
var notificationMessagesClient =
    new NotificationMessagesClient(endpoint, credential);

Set channel registration ID

You created the Channel Registration ID GUID during channel registration. Find it in the portal on the Channels tab of your Azure Communication Services resource.

Assign it to a variable called channelRegistrationId.

var channelRegistrationId = new Guid("<your channel registration ID GUID>");

Set recipient list

You need to supply an active phone number associated with a WhatsApp account. This WhatsApp account receives the template, text, and media messages sent in this quickstart.

For this example, you can use your personal phone number.

The recipient phone number can't be the business phone number (Sender ID) associated with the WhatsApp channel registration. The Sender ID appears as the sender of the text and media messages sent to the recipient.

The phone number must include the country code. For more information about phone number formatting, see WhatsApp documentation for Phone Number Formats.

Note

Only one phone number is currently supported in the recipient list.

Create the recipient list like this:

var recipientList = new List<string> { "<to WhatsApp phone number>" };

Example:

// Example only
var recipientList = new List<string> { "+14255550199" };

Start sending messages between a business and a WhatsApp user

Conversations between a WhatsApp Business Account and a WhatsApp user can be initiated in one of two ways:

• The business sends a template message to the WhatsApp user.
• The WhatsApp user sends any message to the business number.

A business can't initiate an interactive conversation. A business can only send an interactive message after receiving a message from the user. The business can only send interactive messages to the user during the active conversation. Once the 24 hour conversation window expires, only the user can restart the interactive conversation. For more information about conversations, see the definition at WhatsApp Business Platform.

To initiate an interactive conversation from your personal WhatsApp account, send a message to your business number (Sender ID).

Code examples

Follow these steps to add the required code snippets to the Main method in your Program.cs file.

Send a reaction message to a WhatsApp user

The Azure Communication Services SDK enables Contoso to send reaction messages to WhatsApp users when initiated by the users. To send a reaction message, you need:

• Authenticated NotificationMessagesClient.
• WhatsApp channel ID.
• Recipient phone number in E.164 format.
• Emoji representing the reaction.
• Message ID of the original message being reacted to.

Action Type	Description
ReactionNotificationContent	Class defining the reaction message content.
Emoji	Specifies the emoji reaction, such as 😄.
MessageId	ID of the message being replied to.

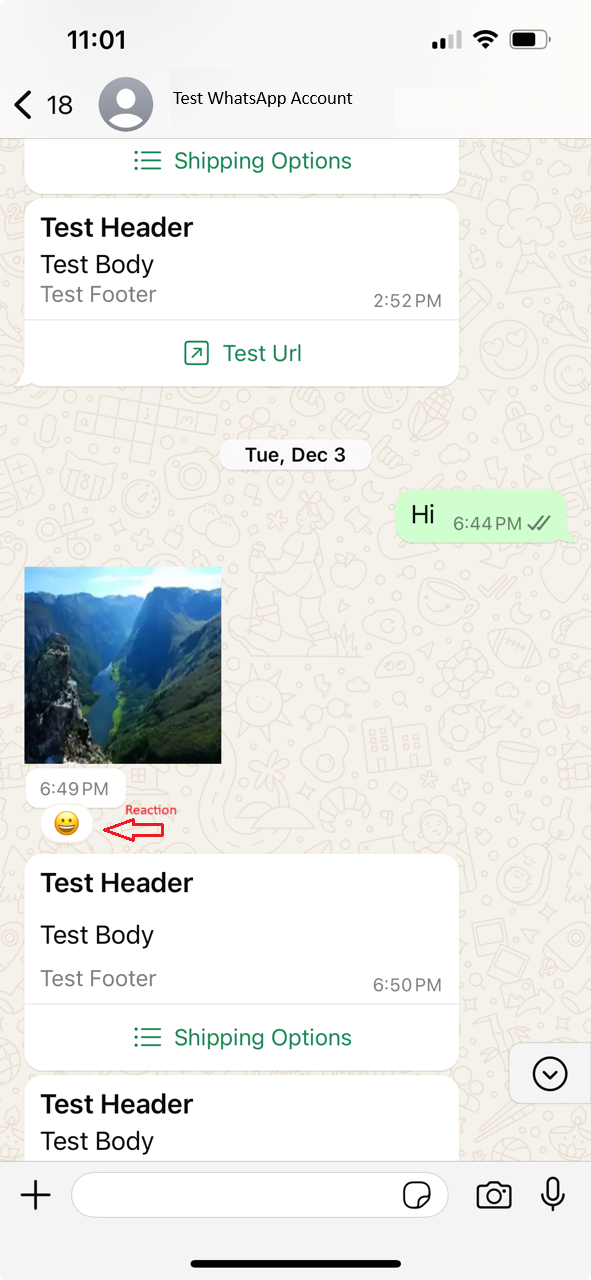

In this example, the business sends a reaction message to the WhatsApp user:

Assemble the reaction content:

var reactionNotificationContent = new ReactionNotificationContent(channelRegistrationId, recipientList, "\uD83D\uDE00", "<ReplyMessageIdGuid>");

Send the reaction message:

var reactionResponse = await notificationMessagesClient.SendAsync(reactionNotificationContent);

Run the code

Visual Studio

1. To compile your code, press Ctrl+F7.
2. To run the program without debugging, press Ctrl+F5.

Visual Studio Code

Build and run your program using the following commands in the Visual Studio Code Terminal (View > Terminal).

dotnet build
dotnet run

.NET CLI

Build and run your program.

dotnet build
dotnet run

Full sample code

Note

Replace all placeholder variables in the code with your values.

using Azure;
using Azure.Communication.Messages;

namespace AdvancedMessagingQuickstart
{
    class Program
    {
        public static async Task Main(string[] args)
        {
            Console.WriteLine("Azure Communication Services - Send WhatsApp Reaction Messages\n");

            string connectionString = Environment.GetEnvironmentVariable("COMMUNICATION_SERVICES_CONNECTION_STRING");
            NotificationMessagesClient notificationMessagesClient =
                new NotificationMessagesClient(connectionString);

            var channelRegistrationId = new Guid("<Your Channel ID>");
            var recipientList = new List<string> { "<Recipient's WhatsApp Phone Number>" };

            // Send a reaction message
            var emojiReaction = "\uD83D\uDE00"; // 😄 emoji
            var replyMessageId = "<ReplyMessageIdGuid>"; // Message ID of the original message
            var reactionNotificationContent = new ReactionNotificationContent(channelRegistrationId, recipientList, emojiReaction, replyMessageId);
            var reactionResponse = await notificationMessagesClient.SendAsync(reactionNotificationContent);

            Console.WriteLine("Reaction message sent.\nPress any key to exit.\n");
            Console.ReadKey();
        }
    }
}

Prerequisites

• WhatsApp Business Account registered with your Azure Communication Services resource.
• Active WhatsApp phone number to receive messages.
• Java Development Kit (JDK) version 8 or later.
• Apache Maven.

Set up environment

To set up an environment for sending messages, complete the steps in the following sections.

Create a new Java application

Open a terminal or command window and navigate to the directory where you want to create your Java application. Run the following command to generate the Java project from the maven-archetype-quickstart template.

mvn archetype:generate -DgroupId="com.communication.quickstart" -DartifactId="communication-quickstart" -DarchetypeArtifactId="maven-archetype-quickstart" -DarchetypeVersion="1.4" -DinteractiveMode="false"

The generate goal creates a directory with the same name as the artifactId value. Under this directory, the src/main/java directory contains the project source code, the src/test/java directory contains the test source, and the pom.xml file is the project's Project Object Model (POM).

Install the package

Open the pom.xml file in your text editor. Add the following dependency element to the group of dependencies.

<dependency>
    <groupId>com.azure</groupId>
    <artifactId>azure-communication-messages</artifactId>
</dependency>

Set up the app framework

Open /src/main/java/com/communication/quickstart/App.java in a text editor, add import directives, and remove the System.out.println("Hello world!"); statement:

package com.communication.quickstart;

import com.azure.communication.messages.*;
import com.azure.communication.messages.models.*;

import java.util.ArrayList;
import java.util.List;
public class App
{
    public static void main( String[] args )
    {
        // Quickstart code goes here.
    }
}

Object model

The following classes and interfaces handle some of the major features of the Azure Communication Services Messages SDK for Java.

Class Name	Description
NotificationMessagesClient	Connects to your Azure Communication Services resource. It sends the messages.
ReactionNotificationContent	Defines the reaction content of the messages with emoji and reply message ID.

Note

For more information, see the Azure SDK for Java reference at com.azure.communication.messages Package.

Common configuration

Follow these steps to add required code snippets to the main function of your App.java file.

• Start sending messages between a business and a WhatsApp user.
• Authenticate the client.
• Set channel registration ID.
• Set recipient list.

Start sending messages between a business and a WhatsApp user

Conversations between a WhatsApp Business Account and a WhatsApp user can be initiated in one of two ways:

• The business sends a template message to the WhatsApp user.
• The WhatsApp user sends any message to the business number.

Regardless of how the conversation was started, a business can only send template messages until the user sends a message to the business. Only after the user sends a message to the business, the business is allowed to send text or media messages to the user during the active conversation. Once the 24 hour conversation window expires, the conversation must be reinitiated. To learn more about conversations, see the definition at WhatsApp Business Platform.

Authenticate the client

There are a few different options available for authenticating a Message client:

Connection String

To authenticate a client, you instantiate an NotificationMessagesClient or MessageTemplateClient with your connection string. You can also initialize the client with any custom HTTP client that implements the com.azure.core.http.HttpClient interface.

For simplicity, this article uses a connection string to authenticate. In production environments, we recommend using service principals.

Get the connection string from your Azure Communication Services resource in the Azure portal. On the left, navigate to the Keys tab. Copy the Connection string field for the Primary key. The connection string is in the format endpoint=https://{your Azure Communication Services resource name}.communication.azure.com/;accesskey={secret key}.

Set the environment variable COMMUNICATION_SERVICES_CONNECTION_STRING to the value of your connection string.
Open a console window and enter the following command:

setx COMMUNICATION_SERVICES_CONNECTION_STRING "<your connection string>"

For more information on how to set an environment variable for your system, follow the steps at Store your connection string in an environment variable.

To instantiate a NotificationMessagesClient, add the following code to the main method:

// You can get your connection string from your resource in the Azure portal.
String connectionString = System.getenv("COMMUNICATION_SERVICES_CONNECTION_STRING");

NotificationMessagesClient notificationClient = new NotificationMessagesClientBuilder()
    .connectionString(connectionString)
    .buildClient();

Microsoft Entra ID

You can also authenticate with Microsoft Entra ID using the Azure Identity library.

The Azure.Identity package provides various credential types that your application can use to authenticate. You can choose from the various options to authenticate the identity client detailed at Azure Identity - Credential providers and Azure Identity - Authenticate the client. This option walks through one way of using the DefaultAzureCredential.

The DefaultAzureCredential attempts to authenticate via several mechanisms and it might be able to find its authentication credentials if you're signed into Visual Studio or Azure CLI. However, this option walks you through setting up with environment variables.

To create a DefaultAzureCredential object:

1. To set up your service principle app, follow the instructions at Creating a Microsoft Entra registered Application.

2. Set the environment variables AZURE_CLIENT_ID, AZURE_CLIENT_SECRET, and AZURE_TENANT_ID using the output of your app's creation.
   Open a console window and enter the following commands:

   setx AZURE_CLIENT_ID "<your app's appId>"
   setx AZURE_CLIENT_SECRET "<your app's password>"
   setx AZURE_TENANT_ID "<your app's tenant>"


   After you add the environment variables, you might need to restart any running programs that will need to read the environment variables, including the console window. For example, if you're using Visual Studio as your editor, restart Visual Studio before running the example.

3. To use the DefaultAzureCredential provider, or other credential providers provided with the Azure SDK, follow the instruction to include the azure-identity package at Azure Identity - Include the package.

4. To instantiate a NotificationMessagesClient, add the following code to the Main method.

   String endpoint = "https://<resource name>.communication.azure.com/";
   NotificationMessagesClient notificationClient =  new NotificationMessagesClientBuilder()
       .endpoint(endpoint)
       .credential(new DefaultAzureCredentialBuilder().build())
       .buildClient();


   A DefaultAzureCredential object must be passed to the ClientBuilder via the credential() method. An endpoint must also be set via the endpoint() method.

AzureKeyCredential

NotificationMessage or MessageTemplate clients can also be created and authenticated using the endpoint and Azure Key Credential acquired from an Azure Communication Resource in the Azure portal.

1. Add the import

   import com.azure.core.credential.AzureKeyCredential;


2. To instantiate a NotificationMessagesClient, add the following code to the Main method.

   String endpoint = "https://<resource name>.communication.azure.com";
   AzureKeyCredential azureKeyCredential = new AzureKeyCredential("<access key>");
   NotificationMessagesClient notificationClient = new NotificationMessagesClientBuilder()
       .endpoint(endpoint)
       .credential(azureKeyCredential)
       .buildClient();


Set channel registration ID

The Channel Registration ID GUID was created during channel registration. You can look it up in the portal on the Channels tab of your Azure Communication Services resource.

Assign it to a variable called channelRegistrationId.

String channelRegistrationId = "<your channel registration id GUID>";

Set recipient list

You need to supply a real phone number that has a WhatsApp account associated with it. This WhatsApp account receives the text and media messages sent in this article. For this article, this phone number can be your personal phone number.

The recipient phone number can't be the business phone number (Sender ID) associated with the WhatsApp channel registration. The Sender ID appears as the sender of the text and media messages sent to the recipient.

The phone number should include the country code. For more information on phone number formatting, see WhatsApp documentation for Phone Number Formats.

Note

Only one phone number is currently supported in the recipient list.

Create the recipient list like this:

List<String> recipientList = new ArrayList<>();
recipientList.add("<to WhatsApp phone number>");

Example:

// Example only
List<String> recipientList = new ArrayList<>();
recipientList.add("+14255550199");

Code examples

Follow these steps to add required code snippets to the main function of your App.java file.

• Send a Reaction messages to a WhatsApp user message.

Send a Reaction messages to a WhatsApp user message

The Messages SDK enables Contoso to send reaction WhatsApp messages, when initiated by WhatsApp users. To send text messages:

• WhatsApp Channel ID.
• Recipient Phone Number in E16 format.
• Unicode escape sequence of the emoji.
• Message ID of message you want to apply the emoji to.

Important

To send a reaction to user message, the WhatsApp user must first send a message to the WhatsApp Business Account. For more information, see Start sending messages between business and WhatsApp user.

Assemble and send the reaction to a message:

// Assemble reaction to a message
String emoji = "\uD83D\uDE00";
ReactionNotificationContent reaction = new ReactionNotificationContent("<CHANNEL_ID>", recipients, emoji, "<REPLY_MESSAGE_ID>");

// Send reaction to a message
SendMessageResult textMessageResult = notificationClient.send(reaction);

// Process result
for (MessageReceipt messageReceipt : textMessageResult.getReceipts()) {
    System.out.println("Message sent to:" + messageReceipt.getTo() + " and message id:" + messageReceipt.getMessageId());
}

Run the code

1. Open to the directory that contains the pom.xml file and compile the project using the mvn command.

   mvn compile


2. Run the app by executing the following mvn command.

   mvn exec:java -D"exec.mainClass"="com.communication.quickstart.App" -D"exec.cleanupDaemonThreads"="false"


Full sample code

Find the finalized code for this sample on GitHub at Java Messages SDK.

Prerequisites

• WhatsApp Business Account registered with your Azure Communication Services resource.
• Active WhatsApp phone number to receive messages.
• Node.js Active LTS and Maintenance LTS versions (8.11.1 and 10.14.1 are recommended).
  • In a terminal or command window, run node --version to check that Node.js is installed.

Setting up

Create a new Node.js application

1. Create a new directory for your app and open it in a terminal or command window.

2. Run the following command.

   mkdir advance-messages-quickstart && cd advance-messages-quickstart


3. Run the following command to create a package.json file with default settings.

   npm init -y


4. Use a text editor to create a file called send-messages.js in the project root directory.

5. Add the following code snippet to the file send-messages.js.

   async function main() {
       // Quickstart code goes here.
   }

   main().catch((error) => {
       console.error("Encountered an error while sending message: ", error);
       process.exit(1);
   });


Complete the following section to add your source code for this example to the send-messages.js file that you created.

Install the package

Use the npm install command to install the Azure Communication Services Advance Messaging SDK for JavaScript.

npm install @azure-rest/communication-messages --save

The --save option lists the library as a dependency in your package.json file.

Object model

The following classes and interfaces handle some of the major features of the Azure Communication Services Messages SDK for JavaScript.

Class Name	Description
NotificationMessagesClient	Connects to your Azure Communication Services resource. It sends the messages.
ReactionNotificationContent	Defines reaction message content.

Note

For more information, see the Azure SDK for JavaScript reference @Azure-rest/communication-messages package

Common configuration

Follow these steps to add required code snippets to your send-messages.js file.

• Start sending messages between a business and a WhatsApp user.
• Authenticate the client.
• Set channel registration ID.
• Set recipient list.
• Start sending messages between a business and a WhatsApp user.

Start sending messages between a business and a WhatsApp user

Conversations between a WhatsApp Business Account and a WhatsApp user can be initiated in one of two ways:

• The business sends a template message to the WhatsApp user.
• The WhatsApp user sends any message to the business number.

Regardless of how the conversation was started, a business can only send template messages until the user sends a message to the business. Only after the user sends a message to the business, the business is allowed to send text or media messages to the user during the active conversation. Once the 24 hour conversation window expires, the conversation must be reinitiated. To learn more about conversations, see the definition at WhatsApp Business Platform.

Authenticate the client

Connection String

The following code retrieves the connection string for the resource from an environment variable named COMMUNICATION_SERVICES_CONNECTION_STRING using the dotenv package.

For simplicity, this article uses a connection string to authenticate. In production environments, we recommend using service principals.

Get the connection string from your Azure Communication Services resource in the Azure portal. On the left, navigate to the Keys tab. Copy the Connection string field for the Primary key. The connection string is in the format endpoint=https://{your Azure Communication Services resource name}.communication.azure.com/;accesskey={secret key}.

Set the environment variable COMMUNICATION_SERVICES_CONNECTION_STRING to the value of your connection string.
Open a console window and enter the following command:

setx COMMUNICATION_SERVICES_CONNECTION_STRING "<your connection string>"

For more information on how to set an environment variable for your system, follow the steps at Store your connection string in an environment variable.

To instantiate a NotificationClient, add the following code to the Main method:

const NotificationClient = require("@azure-rest/communication-messages").default;

// Set Connection string
const connectionString = process.env["COMMUNICATION_SERVICES_CONNECTION_STRING"];

// Instantiate the client
const client = NotificationClient(connectionString);

Microsoft Entra ID

You can also authenticate with Microsoft Entra ID using the Azure Identity library.

The @Azure/identity package provides various credential types that your application can use to authenticate. You can choose from the various options to authenticate the identity client detailed at Azure Identity - Credential providers and Azure Identity - Authenticate the client. This option walks through one way of using the DefaultAzureCredential.

The DefaultAzureCredential attempts to authenticate via several mechanisms and it might be able to find its authentication credentials if you're signed into Visual Studio or Azure CLI. However, this option walks you through setting up with environment variables.

To create a DefaultAzureCredential object:

1. To set up your service principle app, follow the instructions at Creating a Microsoft Entra registered Application.

2. Set the environment variables AZURE_CLIENT_ID, AZURE_CLIENT_SECRET, and AZURE_TENANT_ID using the output of your app's creation.
   Open a console window and enter the following commands:

   setx AZURE_CLIENT_ID "<your app's appId>"
   setx AZURE_CLIENT_SECRET "<your app's password>"
   setx AZURE_TENANT_ID "<your app's tenant>"


   After you add the environment variables, you might need to restart any running programs that will need to read the environment variables, including the console window. For example, if you're using Visual Studio as your editor, restart Visual Studio before running the example.

3. To use the DefaultAzureCredential provider, or other credential providers provided with the Azure SDK, install the @azure/identity package.

   npm install @azure/identity


4. To instantiate a NotificationClient, add the following code to the Main method.

   const DefaultAzureCredential = require("@azure/identity").DefaultAzureCredential;
   const NotificationClient = require("@azure-rest/communication-messages").default;

   // Configure authentication
   const endpoint = "https://<resource name>.communication.azure.com";
   let credential = new DefaultAzureCredential();

   // Instantiate the client
   const client = NotificationClient(endpoint, credential);


AzureKeyCredential

You can also authenticate with an AzureKeyCredential.

Get the endpoint and key from your Azure Communication Services resource in the Azure portal. On the left, navigate to the Keys tab. Copy the Endpoint and the Key field for the primary key.

Set the environment variable COMMUNICATION_SERVICES_KEY to the value of your connection string.
Open a console window and enter the following command:

setx COMMUNICATION_SERVICES_KEY "<your key>"

After you add the environment variable, you might need to restart any running programs that will need to read the environment variable, including the console window. For example, if you're using Visual Studio as your editor, restart Visual Studio before running the example.

For more information on how to set an environment variable for your system, follow the steps at Store your connection string in an environment variable.

To instantiate a NotificationClient, add the following code to the Main method:

const AzureKeyCredential = require("@azure/core-auth").AzureKeyCredential;
const NotificationClient = require("@azure-rest/communication-messages").default;

// Configure authentication
const endpoint = "https://<resource name>.communication.azure.com";
const credential = new AzureKeyCredential("<your key credential>");

// Instantiate the client
const client = NotificationClient(endpoint, credential);

Set channel registration ID

The Channel Registration ID GUID was created during channel registration. You can look it up in the portal on the Channels tab of your Azure Communication Services resource.

Assign it to a variable called channelRegistrationId.

const channelRegistrationId = "<your channel registration id GUID>";

Set recipient list

You need to supply a real phone number that has a WhatsApp account associated with it. This WhatsApp account receives the template, text, and media messages sent in this article. For this article, this phone number can be your personal phone number.

The recipient phone number can't be the business phone number (Sender ID) associated with the WhatsApp channel registration. The Sender ID appears as the sender of the text and media messages sent to the recipient.

The phone number should include the country code. For more information on phone number formatting, see WhatsApp documentation for Phone Number Formats.

Note

Only one phone number is currently supported in the recipient list.

Create the recipient list like this:

const recipientList = ["<to WhatsApp phone number>"];

Example:

// Example only
const recipientList = ["+14255550199"];

Code examples

Follow these steps to add required code snippets to your send-messages.js file.

• Send a Reaction messages to a WhatsApp user message.

Start sending messages between a business and a WhatsApp user

Conversations between a WhatsApp Business Account and a WhatsApp user can be initiated in one of two ways:

• The business sends a template message to the WhatsApp user.
• The WhatsApp user sends any message to the business number.

Regardless of how the conversation was started, a business can only send template messages until the user sends a message to the business. Only after the user sends a message to the business, the business is allowed to send text or media messages to the user during the active conversation. Once the 24 hour conversation window expires, the conversation must be reinitiated. To learn more about conversations, see the definition at WhatsApp Business Platform.

Authenticate the client

Connection String

The following code retrieves the connection string for the resource from an environment variable named COMMUNICATION_SERVICES_CONNECTION_STRING using the dotenv package.

For simplicity, this article uses a connection string to authenticate. In production environments, we recommend using service principals.

Get the connection string from your Azure Communication Services resource in the Azure portal. On the left, navigate to the Keys tab. Copy the Connection string field for the Primary key. The connection string is in the format endpoint=https://{your Azure Communication Services resource name}.communication.azure.com/;accesskey={secret key}.

Set the environment variable COMMUNICATION_SERVICES_CONNECTION_STRING to the value of your connection string.
Open a console window and enter the following command:

setx COMMUNICATION_SERVICES_CONNECTION_STRING "<your connection string>"

For more information on how to set an environment variable for your system, follow the steps at Store your connection string in an environment variable.

To instantiate a NotificationClient, add the following code to the Main method:

const NotificationClient = require("@azure-rest/communication-messages").default;

// Set Connection string
const connectionString = process.env["COMMUNICATION_SERVICES_CONNECTION_STRING"];

// Instantiate the client
const client = NotificationClient(connectionString);

Microsoft Entra ID

You can also authenticate with Microsoft Entra ID using the Azure Identity library.

The @Azure/identity package provides various credential types that your application can use to authenticate. You can choose from the various options to authenticate the identity client detailed at Azure Identity - Credential providers and Azure Identity - Authenticate the client. This option walks through one way of using the DefaultAzureCredential.

The DefaultAzureCredential attempts to authenticate via several mechanisms and it might be able to find its authentication credentials if you're signed into Visual Studio or Azure CLI. However, this option walks you through setting up with environment variables.

To create a DefaultAzureCredential object:

1. To set up your service principle app, follow the instructions at Creating a Microsoft Entra registered Application.

2. Set the environment variables AZURE_CLIENT_ID, AZURE_CLIENT_SECRET, and AZURE_TENANT_ID using the output of your app's creation.
   Open a console window and enter the following commands:

   setx AZURE_CLIENT_ID "<your app's appId>"
   setx AZURE_CLIENT_SECRET "<your app's password>"
   setx AZURE_TENANT_ID "<your app's tenant>"


   After you add the environment variables, you might need to restart any running programs that will need to read the environment variables, including the console window. For example, if you're using Visual Studio as your editor, restart Visual Studio before running the example.

3. To use the DefaultAzureCredential provider, or other credential providers provided with the Azure SDK, install the @azure/identity package.

   npm install @azure/identity


4. To instantiate a NotificationClient, add the following code to the Main method.

   const DefaultAzureCredential = require("@azure/identity").DefaultAzureCredential;
   const NotificationClient = require("@azure-rest/communication-messages").default;

   // Configure authentication
   const endpoint = "https://<resource name>.communication.azure.com";
   let credential = new DefaultAzureCredential();

   // Instantiate the client
   const client = NotificationClient(endpoint, credential);


AzureKeyCredential

You can also authenticate with an AzureKeyCredential.

Get the endpoint and key from your Azure Communication Services resource in the Azure portal. On the left, navigate to the Keys tab. Copy the Endpoint and the Key field for the primary key.

Set the environment variable COMMUNICATION_SERVICES_KEY to the value of your connection string.
Open a console window and enter the following command:

setx COMMUNICATION_SERVICES_KEY "<your key>"

After you add the environment variable, you might need to restart any running programs that will need to read the environment variable, including the console window. For example, if you're using Visual Studio as your editor, restart Visual Studio before running the example.

For more information on how to set an environment variable for your system, follow the steps at Store your connection string in an environment variable.

To instantiate a NotificationClient, add the following code to the Main method:

const AzureKeyCredential = require("@azure/core-auth").AzureKeyCredential;
const NotificationClient = require("@azure-rest/communication-messages").default;

// Configure authentication
const endpoint = "https://<resource name>.communication.azure.com";
const credential = new AzureKeyCredential("<your key credential>");

// Instantiate the client
const client = NotificationClient(endpoint, credential);

Set channel registration ID

The Channel Registration ID GUID was created during channel registration. You can look it up in the portal on the Channels tab of your Azure Communication Services resource.

Assign it to a variable called channelRegistrationId.

const channelRegistrationId = "<your channel registration id GUID>";

Set recipient list

You need to supply a real phone number that has a WhatsApp account associated with it. This WhatsApp account receives the template, text, and media messages sent in this article. For this article, this phone number can be your personal phone number.

The recipient phone number can't be the business phone number (Sender ID) associated with the WhatsApp channel registration. The Sender ID appears as the sender of the text and media messages sent to the recipient.

The phone number should include the country code. For more information on phone number formatting, see WhatsApp documentation for Phone Number Formats.

Note

Only one phone number is currently supported in the recipient list.

Create the recipient list like this:

const recipientList = ["<to WhatsApp phone number>"];

Example:

// Example only
const recipientList = ["+14255550199"];

Send a reaction messages to a WhatsApp user message

The Messages SDK enables Contoso to send reaction WhatsApp messages, when initiated by WhatsApp users. To send text messages:

• WhatsApp Channel ID.
• Recipient Phone Number in E16 format.
• Emoji.
• Message ID of message you want to apply the emoji to.

Important

To send a reaction to user message, the WhatsApp user must first send a message to the WhatsApp Business Account. For more information, see Start sending messages between business and WhatsApp user.

In this example, the business sends a reaction to the user message:

/**
 * @summary Send a reaction message
 */

const { AzureKeyCredential } = require("@azure/core-auth");
const NotificationClient = require("@azure-rest/communication-messages").default,
  { isUnexpected } = require("@azure-rest/communication-messages");
// Load the .env file if it exists
require("dotenv").config();

async function main() {
  const credential = new AzureKeyCredential(process.env.ACS_ACCESS_KEY || "");
  const endpoint = process.env.ACS_URL || "";
  const client = NotificationClient(endpoint, credential);
  console.log("Sending message...");
  const result = await client.path("/messages/notifications:send").post({
    contentType: "application/json",
    body: {
      channelRegistrationId: process.env.CHANNEL_ID || "",
      to: [process.env.RECIPIENT_PHONE_NUMBER || ""],
      kind: "reaction",
      emoji: "😍",
      messageId: "<incoming_message_id>",
    },
  });

  console.log("Response: " + JSON.stringify(result, null, 2));

  if (isUnexpected(result)) {
    throw new Error("Failed to send message");
  }

  const response = result;
  response.body.receipts.forEach((receipt) => {
    console.log("Message sent to:" + receipt.to + " with message id:" + receipt.messageId);
  });
}

main().catch((error) => {
  console.error("Encountered an error while sending message: ", error);
  throw error;
});

Run the code

Use the node command to run the code you added to the send-messages.js file.

node ./send-messages.js

Full sample code

Find the finalized code for this sample on GitHub at JavaScript Messages SDK.

Prerequisites

• WhatsApp Business Account registered with your Azure Communication Services resource.

• Active WhatsApp phone number to receive messages.

• Python 3.7+ for your operating system.

Set up the environment

Create a new Python application

In a terminal or console window, create a new folder for your application and open it.

mkdir messages-quickstart && cd messages-quickstart

Install the package

Use the Azure Communication Messages client library for Python 1.1.0 or above.

From a console prompt, run the following command:

pip install azure-communication-messages

For InteractiveMessages, Reactions and Stickers, please use below Beta version:

pip install azure-communication-messages==1.2.0b1

Set up the app framework

Create a new file called messages-quickstart.py and add the basic program structure.

type nul > messages-quickstart.py

Basic program structure

import os

class MessagesQuickstart(object):
    print("Azure Communication Services - Advanced Messages SDK Quickstart")

if __name__ == '__main__':
    messages = MessagesQuickstart()

Object model

The following classes and interfaces handle some of the major features of the Azure Communication Services Messages SDK for Python.

Class Name	Description
NotificationMessagesClient	Connects to your Azure Communication Services resource. It sends the messages.
ReactionNotificationContent	Defines the reaction content of the messages with emoji and reply message ID.

Note

For more information, see the Azure SDK for Python reference messages Package.

Common configuration

Follow these steps to add required code snippets to the messages-quickstart.py python program.

• Authenticate the client.
• Set channel registration ID.
• Set recipient list.

Authenticate the client

Messages sending uses NotificationMessagesClient. NotificationMessagesClient authenticates using your connection string acquired from Azure Communication Services resource in the Azure portal.F

For more information on connection strings, see access-your-connection-strings-and-service-endpoints.

Connection String

Get Azure Communication Resource connection string from Azure portal as given in screenshot. On the left, navigate to the Keys tab. Copy the Connection string field for the primary key. The connection string is in the format endpoint=https://{your Azure Communication Services resource name}.communication.azure.com/;accesskey={secret key}.

Set the environment variable COMMUNICATION_SERVICES_CONNECTION_STRING to the value of your connection string.
Open a console window and enter the following command:

setx COMMUNICATION_SERVICES_CONNECTION_STRING "<your connection string>"

After you add the environment variable, you might need to restart any running programs that will need to read the environment variable, including the console window. For example, if you're using Visual Studio as your editor, restart Visual Studio before running the example.

For more information on how to set an environment variable for your system, follow the steps at Store your connection string in an environment variable.

    # Get a connection string to our Azure Communication Services resource.
    connection_string = os.getenv("COMMUNICATION_SERVICES_CONNECTION_STRING")

    def send_template_message(self):
        from azure.communication.messages import NotificationMessagesClient

        # Create NotificationMessagesClient Client
        messaging_client = NotificationMessagesClient.from_connection_string(self.connection_string)

Microsoft Entra ID

NotificationMessagesClient is also authenticated using Microsoft Entra ID/TokenCredentials. For more information, see access-Azure-Communication-Resources-using-TokenCredentials.

The azure.identity package provides various credential types that your application can use to authenticate. You can choose from the various options to authenticate the identity client detailed at Azure Identity - Credential providers and Azure Identity - Authenticate the client. This option walks through one way of using the DefaultAzureCredential.

The DefaultAzureCredential attempts to authenticate via several mechanisms and it might be able to find its authentication credentials if you're signed into Visual Studio or Azure CLI. However, this option walks you through setting up with environment variables.

To create a DefaultAzureCredential object:

1. To set up your service principle app, follow the instructions at Creating a Microsoft Entra registered Application.

2. Set the environment variables AZURE_CLIENT_ID, AZURE_CLIENT_SECRET, and AZURE_TENANT_ID using the output of your app's creation.
   Open a console window and enter the following commands:

   setx COMMUNICATION_SERVICES_ENDPOINT_STRING "<https://<resource name>.communication.azure.com>"
   setx AZURE_CLIENT_ID "<your app's appId>"
   setx AZURE_CLIENT_SECRET "<your app's password>"
   setx AZURE_TENANT_ID "<your app's tenant>"


   After you add the environment variables, you might need to restart any running programs that will need to read the environment variables, including the console window. For example, if you're using Visual Studio as your editor, restart Visual Studio before running the example.

3. To use the DefaultAzureCredential provider, or other credential providers provided with the Azure SDK, install the azure.identity python package and then instantiate client.

    # Get a connection string to our Azure Communication Services resource.
    endpoint_string = os.getenv("COMMUNICATION_SERVICES_ENDPOINT_STRING")

    def send_template_message(self):
        from azure.communication.messages import NotificationMessagesClient
        from azure.identity import DefaultAzureCredential

        # Create NotificationMessagesClient Client
        messaging_client = NotificationMessagesClient(endpoint=self.endpoint_string,
                                                    credential=DefaultAzureCredential())

AzureKeyCredential

You can also authenticate with an AzureKeyCredential.

Get the endpoint and key from your Azure Communication Services resource in the Azure portal. On the left, navigate to the Keys tab. Copy the Endpoint and the Key field for the primary key.

Set the environment variable COMMUNICATION_SERVICES_KEY to the value of your connection string.
Open a console window and enter the following command:

setx COMMUNICATION_SERVICES_ENDPOINT_STRING "<https://<resource name>.communication.azure.com>"
setx COMMUNICATION_SERVICES_KEY "<your key>"

After you add the environment variable, you might need to restart any running programs that will need to read the environment variable, including the console window. For example, if you're using Visual Studio as your editor, restart Visual Studio before running the example.

For more information on how to set an environment variable for your system, follow the steps at Store your connection string in an environment variable.

To instantiate a NotificationMessagesClient, add the following code:

    # Get a connection string to our Azure Communication Services resource.
    endpoint_string = os.getenv("COMMUNICATION_SERVICES_ENDPOINT_STRING")
    key = os.getenv("COMMUNICATION_SERVICES_KEY")

    def send_template_message(self):
        from azure.core.credentials import AzureKeyCredential
        from azure.communication.messages import NotificationMessagesClient

        # Create NotificationMessagesClient Client
        messaging_client = NotificationMessagesClient(endpoint=self.endpoint_string,
                                                    credential=AzureKeyCredential(self.key))

Set channel registration ID

You created the Channel Registration ID GUID during channel registration. Find it in the portal on the Channels tab of your Azure Communication Services resource.

Assign it to a variable called channelRegistrationId.

    channelRegistrationId = os.getenv("WHATSAPP_CHANNEL_ID_GUID")

Set recipient list

You need to supply an active phone number associated with a WhatsApp account. This WhatsApp account receives the template, text, and media messages sent in this article.

For this example, you can use your personal phone number.

The recipient phone number can't be the business phone number (Sender ID) associated with the WhatsApp channel registration. The Sender ID appears as the sender of the text and media messages sent to the recipient.

The phone number must include the country code. For more information about phone number formatting, see WhatsApp documentation for Phone Number Formats.

Note

Only one phone number is currently supported in the recipient list.

Set the recipient list like this:

    phone_number = os.getenv("RECIPIENT_WHATSAPP_PHONE_NUMBER")

Usage Example:

    # Example only
    to=[self.phone_number],

Start sending messages between a business and a WhatsApp user

Conversations between a WhatsApp Business Account and a WhatsApp user can be initiated in one of two ways:

• The business sends a template message to the WhatsApp user.
• The WhatsApp user sends any message to the business number.

A business can't initiate an interactive conversation. A business can only send an interactive message after receiving a message from the user. The business can only send interactive messages to the user during the active conversation. Once the 24 hour conversation window expires, only the user can restart the interactive conversation. For more information about conversations, see the definition at WhatsApp Business Platform.

To initiate an interactive conversation from your personal WhatsApp account, send a message to your business number (Sender ID).

Code examples

Follow these steps to add required code snippets to the messages-quickstart.py python program.

• Send a Reaction messages to a WhatsApp user message.

Send a reaction messages to a WhatsApp user message

The Messages SDK enables Contoso to send reaction WhatsApp messages, when initiated by WhatsApp users. To send text messages:

• WhatsApp Channel ID.

• Recipient Phone Number in E16 format.

• Reaction content can be created using given properties:

  Action type	Description
  ReactionNotificationContent	This class defines title of the group content and array of the group.
  Emoji	This property defines the unicode for emoji character.
  Reply Message ID	This property defines ID of the message to be replied with emoji.

Important

To send a text message to a WhatsApp user, the WhatsApp user must first send a message to the WhatsApp Business Account. For more information, see Start sending messages between business and WhatsApp user.

In this example, the business sends a reaction to the user message:

    def send_reaction_message(self):

        from azure.communication.messages import NotificationMessagesClient
        from azure.communication.messages.models import ReactionNotificationContent

        messaging_client = NotificationMessagesClient.from_connection_string(self.connection_string)

        video_options = ReactionNotificationContent(
            channel_registration_id=self.channel_id,
            to=[self.phone_number],
            emoji="\uD83D\uDE00",
            message_id="<<ReplyMessageIdGuid>>",
        )

        # calling send() with whatsapp message details
        message_responses = messaging_client.send(video_options)
        response = message_responses.receipts[0]
        print("Message with message ID {} was successful sent to {}".format(response.message_id, response.to))

To run send_reaction_message(), update the main method:

    #Calling send_reaction_message()
    messages.send_reaction_message()

Run the code

To run the code, make sure you are in the directory where your reaction-messages-quickstart.py file is located.

python reaction-messages-quickstart.py

Azure Communication Services - Advanced Messages Quickstart
WhatsApp Reaction Message with message ID <<GUID>> was successfully sent to <<ToRecipient>>

Full sample code

Note

Replace all placeholder variables in the code with your values.

import os

class MessagesQuickstart(object):
    print("Azure Communication Services - Advanced Messages SDK Quickstart using connection string.")
    # Advanced Messages SDK implementations goes in this section.

    connection_string = os.getenv("COMMUNICATION_SERVICES_CONNECTION_STRING")
    phone_number = os.getenv("RECIPIENT_PHONE_NUMBER")
    channelRegistrationId = os.getenv("WHATSAPP_CHANNEL_ID")

    def send_reaction_message(self):

        from azure.communication.messages import NotificationMessagesClient
        from azure.communication.messages.models import ReactionNotificationContent

        messaging_client = NotificationMessagesClient.from_connection_string(self.connection_string)

        video_options = ReactionNotificationContent(
            channel_registration_id=self.channel_id,
            to=[self.phone_number],
            emoji="\uD83D\uDE00",
            message_id="<<ReplyMessageIdGuid>>",
        )

        # calling send() with whatsapp message details
        message_responses = messaging_client.send(video_options)
        response = message_responses.receipts[0]
        print("WhatsApp Reaction Message with message ID {} was successful sent to {}".format(response.message_id, response.to))

if __name__ == '__main__':
    messages = MessagesQuickstart()
    messages.send_reaction_message()

Other samples

You can review and download other sample codes on GitHub at Python Messages SDK.

Next steps

For more information, see:

• Handle Advanced Messaging events.
• Send WhatsApp template messages.
• Send WhatsApp media messages.
