Overview of sample reports using OData queries

Azure DevOps Services | Azure DevOps Server 2022 - Azure DevOps Server 2019

In this article, we provide samples for the most popular reports:

All sample report articles provide the following sections and information:

  • Sample queries - The Power BI Query and raw OData query used to pull data into Power BI along with other sample queries.
  • Transform data in Power BI - Steps to transform the data into a reportable format
  • Create the report - Steps to create a simple report from the data.


  • To view Analytics data and query the service, you need to be a member of a project with Basic access or greater. By default, all project members are granted permissions to query Analytics and define Analytics views.
  • To learn about other prerequisites regarding service and feature enablement and general data tracking activities, see Permissions and prerequisites to access Analytics.

A Power BI query

Get started quickly with the following steps that embed the OData query in the Power BI query. The query can be pasted directly into Power BI's Advanced Query editor as follows:

  1. Select Get Data, and then Blank Query.

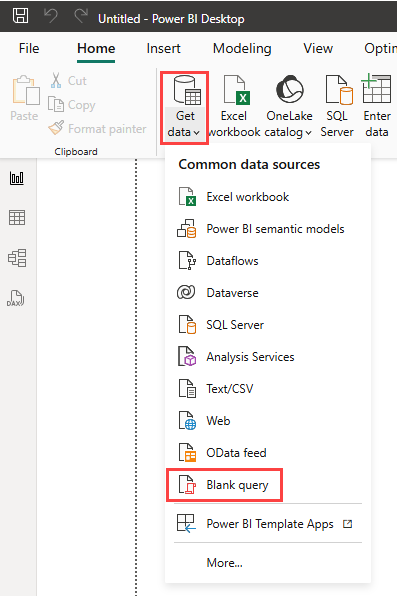

    Screenshot of Power BI, Blank Query.

  2. From the Power BI Query editor, select Advanced Editor.

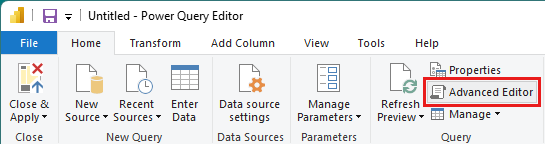

    Screenshot of Power BI, Select Advanced Editor.

  3. The Advanced Editor window opens.

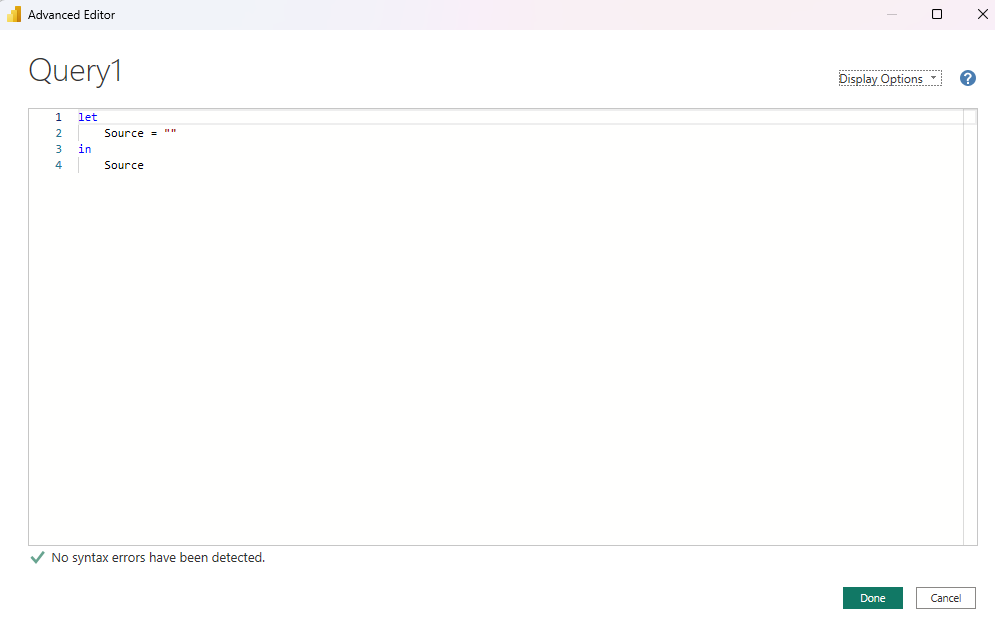

    Screenshot of Power BI, Advanced Editor.

  4. Replace the contents with one of the sample queries provided in the linked articles listed earlier in this article.

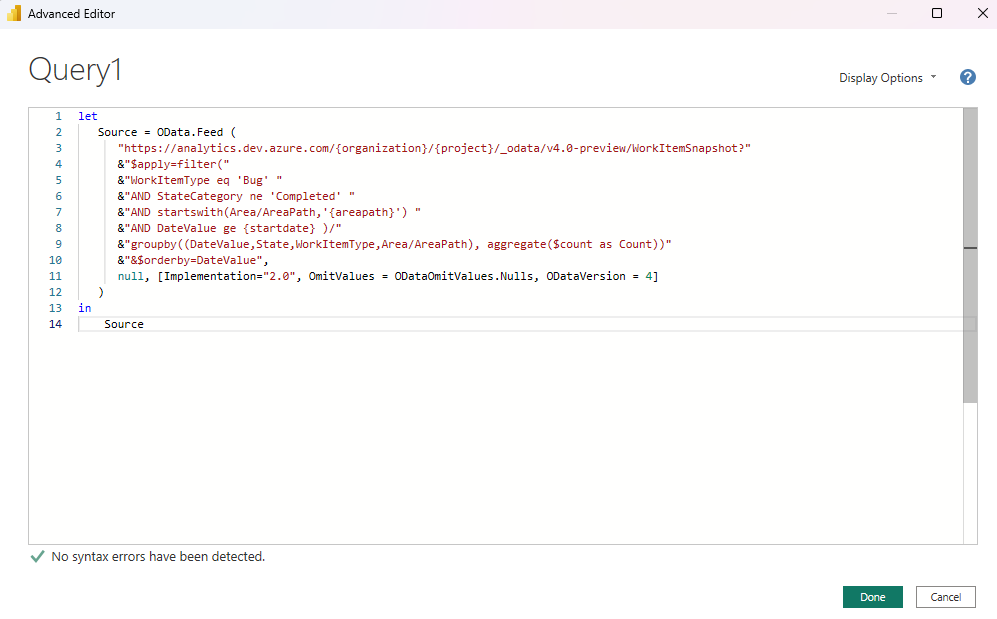

    Screenshot of Power BI, Advanced Editor, Pasted Query.

  5. The sample queries have strings that must be substituted with your values, such as {organization} and {project}.

    • {organization} - Your organization name
    • {project} - Your team project name. Or omit "/{project}" entirely, for a cross-project query.

    Depending on the sample query, there may be one or more other strings to replace, like:

    • {areapath} - Your Area path. Format: Project\Level1\Level2
    • {iterationpath} - Your Iteration path. Format: Project\Level1\Level2
    • {startdate} - The date to start your trend report on. Format: YYYY-MM-DDZ. Example: 2019-04-01Z represents 2019-April-01. Don't enclose in quotes.

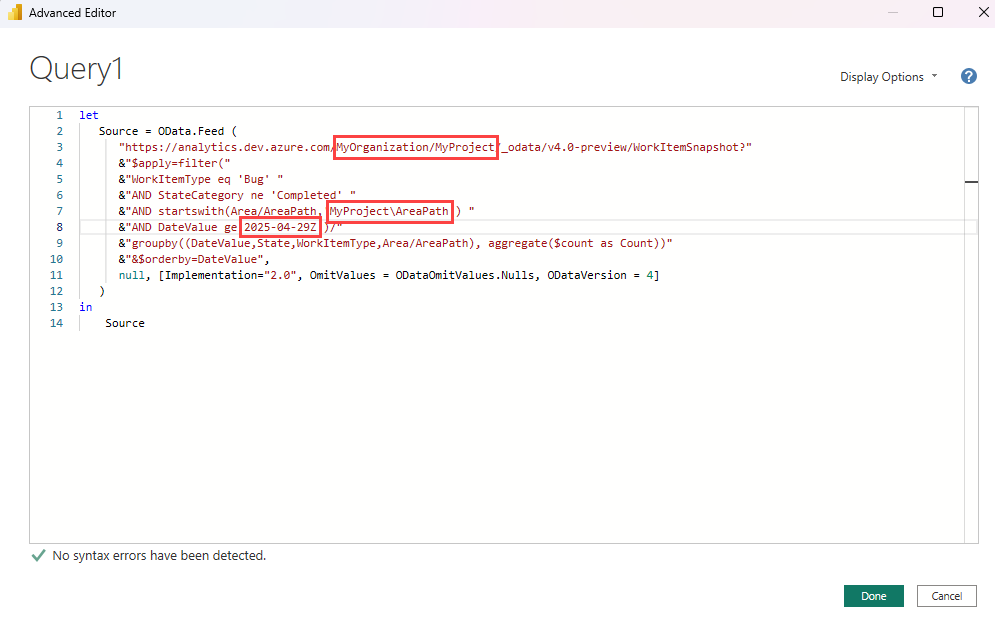

    Screenshot of Power BI, Advanced Editor, Replace strings in query.

  6. To execute the query, select Done.

    If you've never connected to your account, Power BI may require you to authenticate. For details, see Client authentication options.

Raw OData query

Most sample reports provide an OData query in case you want to modify and test the OData query separately before using it in Power BI. This method provides more flexibility, but involves other steps before using the OData Query in Power BI as described in Connect using Power BI and OData queries

For more information on how to write OData queries against Analytics, see OData Query Quick Reference
