High availability of SAP HANA Scale-up with Azure NetApp Files on SUSE Enterprise Linux

  • Article

This article describes how to configure SAP HANA System Replication in Scale-up deployment, when the HANA file systems are mounted via NFS using Azure NetApp Files (ANF). In the example configurations and installation commands, instance number 03, and HANA System ID HN1 are used. SAP HANA Replication consists of one primary node and at least one secondary node.

When steps in this document are marked with the following prefixes, the meaning is as follows:

  • [A]: The step applies to all nodes
  • [1]: The step applies to node1 only
  • [2]: The step applies to node2 only

Read the following SAP Notes and papers first:

Note

This article contains references to the term slave, a term that Microsoft no longer uses. When the term is removed from the software, we’ll remove it from this article.

Overview

Traditionally in scale-up environment all file systems for SAP HANA are mounted from local storage. Setting up High Availability of SAP HANA System Replication on SUSE Enterprise Linux is published in guide Set up SAP HANA System Replication on SLES

To achieve SAP HANA High Availability of scale-up system on Azure NetApp Files NFS shares, we need some extra resource configuration in the cluster in order for HANA resources to recover, when one node loses access to the NFS shares on ANF.

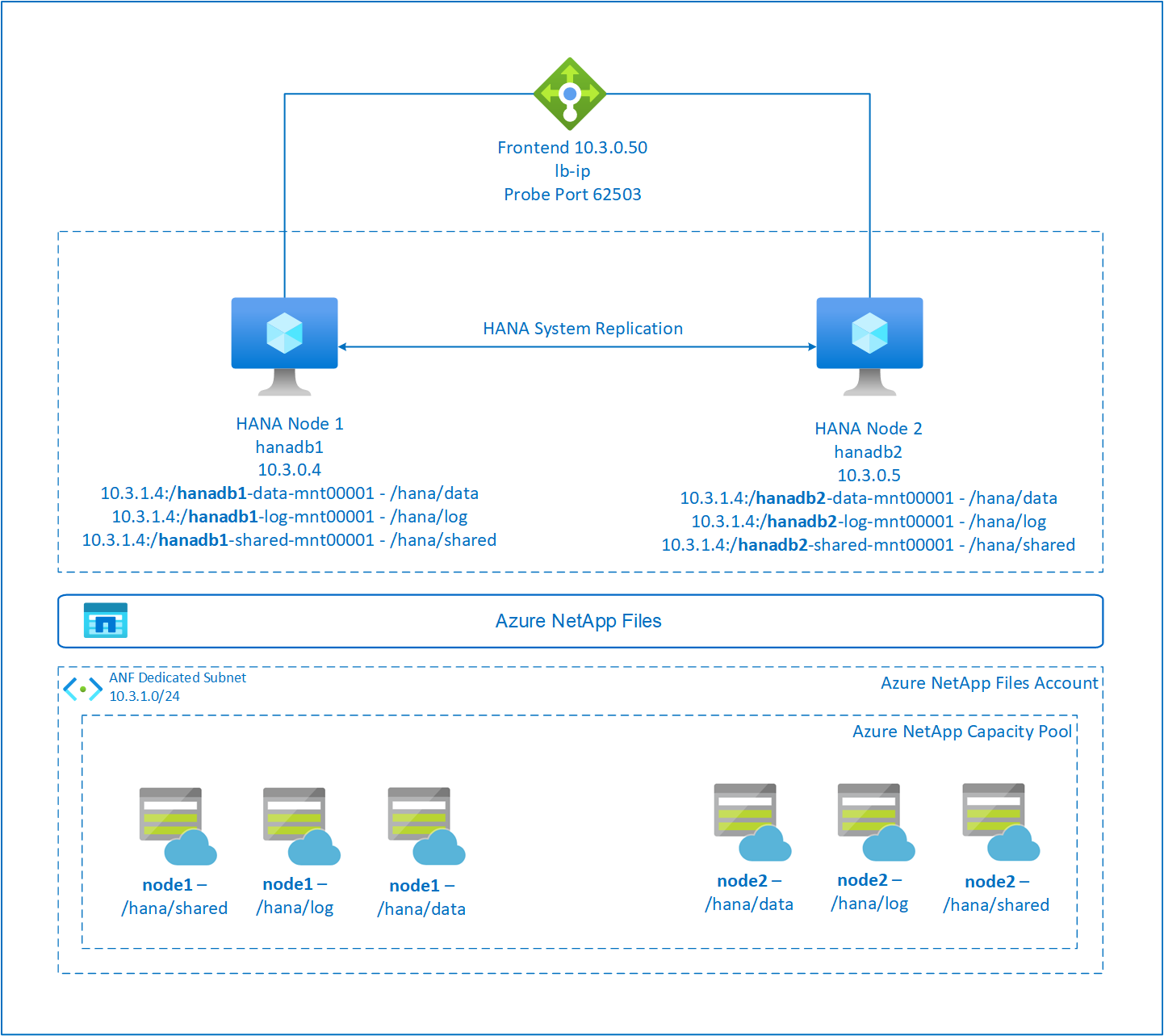

SAP HANA HA Scale-up on ANF

SAP HANA filesystems are mounted on NFS shares using Azure NetApp Files on each node. File systems /hana/data, /hana/log, and /hana/shared are unique to each node.

Mounted on node1 (hanadb1)

  • 10.3.1.4:/hanadb1-data-mnt00001 on /hana/data
  • 10.3.1.4:/hanadb1-log-mnt00001 on /hana/log
  • 10.3.1.4:/hanadb1-shared-mnt00001 on /hana/shared

Mounted on node2 (hanadb2)

  • 10.3.1.4:/hanadb2-data-mnt00001 on /hana/data
  • 10.3.1.4:/hanadb2-log-mnt00001 on /hana/log
  • 10.3.1.4:/hanadb2-shared-mnt0001 on /hana/shared

Note

File systems /hana/shared, /hana/data and /hana/log are not shared between the two nodes. Each cluster node has its own, separate file systems.

SAP high availability HANA System Replication configuration uses a dedicated virtual hostname and virtual IP addresses. On Azure, a load balancer is required to use a virtual IP address. The presented configuration shows a load balancer with:

  • Front-end configuration IP address: 10.3.0.50 for hn1-db
  • Probe Port: 62503

Set up the Azure NetApp File infrastructure

Before you continue with the set up for Azure NetApp Files infrastructure, familiarize yourself with the Azure NetApp Files documentation.

Azure NetApp Files is available in several Azure regions. Check to see whether your selected Azure region offers Azure NetApp Files.

For information about the availability of Azure NetApp Files by Azure region, see Azure NetApp Files Availability by Azure Region.

Deploy Azure NetApp Files resources

The following instructions assume that you've already deployed your Azure virtual network. The Azure NetApp Files resources and VMs, where the Azure NetApp Files resources will be mounted, must be deployed in the same Azure virtual network or in peered Azure virtual networks.

  1. Create a NetApp account in your selected Azure region by following the instructions in Create a NetApp account.

  2. Set up Azure NetApp Files capacity pool by following the instructions in Set up an Azure NetApp Files capacity pool.

    The HANA architecture presented in this article uses a single Azure NetApp Files capacity pool at the Ultra Service level. For HANA workloads on Azure, we recommend using Azure NetApp Files Ultra or Premium service Level.

  3. Delegate a subnet to Azure NetApp Files, as described in the instructions in Delegate a subnet to Azure NetApp Files.

  4. Deploy Azure NetApp Files volumes by following the instructions in Create an NFS volume for Azure NetApp Files.

    As you deploy the volumes, be sure to select the NFSv4.1 version. Deploy the volumes in the designated Azure NetApp Files subnet. The IP addresses of the Azure NetApp volumes are assigned automatically.

    Keep in mind that the Azure NetApp Files resources and the Azure VMs must be in the same Azure virtual network or in peered Azure virtual networks. For example, hanadb1-data-mnt00001, hanadb1-log-mnt00001, and so on, are the volume names and nfs://10.3.1.4/hanadb1-data-mnt00001, nfs://10.3.1.4/hanadb1-log-mnt00001, and so on, are the file paths for the Azure NetApp Files volumes.

    On hanadb1

    • Volume hanadb1-data-mnt00001 (nfs://10.3.1.4:/hanadb1-data-mnt00001)
    • Volume hanadb1-log-mnt00001 (nfs://10.3.1.4:/hanadb1-log-mnt00001)
    • Volume hanadb1-shared-mnt00001 (nfs://10.3.1.4:/hanadb1-shared-mnt00001)

    On hanadb2

    • Volume hanadb2-data-mnt00001 (nfs://10.3.1.4:/hanadb2-data-mnt00001)
    • Volume hanadb2-log-mnt00001 (nfs://10.3.1.4:/hanadb2-log-mnt00001)
    • Volume hanadb2-shared-mnt00001 (nfs://10.3.1.4:/hanadb2-shared-mnt00001)

Important considerations

As you create your Azure NetApp Files for SAP HANA Scale-up systems, be aware of the following consideration:

  • The minimum capacity pool is 4 tebibytes (TiB).
  • The minimum volume size is 100 gibibytes (GiB).
  • Azure NetApp Files and all virtual machines where the Azure NetApp Files volumes will be mounted, must be in the same Azure virtual network or in peered virtual networks in the same region.
  • The selected virtual network must have a subnet that is delegated to Azure NetApp Files.
  • The throughput of an Azure NetApp Files volume is a function of the volume quota and service level, as documented in Service level for Azure NetApp Files. While sizing the HANA Azure NetApp volumes, make sure that the resulting throughput meets the HANA system requirements.
  • With the Azure NetApp Files export policy, you can control the allowed clients, the access type (read-write, read only, and so on).
  • The Azure NetApp Files feature is not zone-aware yet. Currently, the feature is not deployed in all availability zones in an Azure region. Be aware of the potential latency implications in some Azure regions.

Important

For SAP HANA workloads, low latency is critical. Work with your Microsoft representative to ensure that the virtual machines and the Azure NetApp Files volumes are deployed in proximity.

Sizing of HANA database on Azure NetApp Files

The throughput of an Azure NetApp Files volume is a function of the volume size and service level, as documented in Service level for Azure NetApp Files.

While designing the infrastructure for SAP in Azure, be aware of some minimum storage requirements by SAP, which translate into minimum throughput characteristics:

  • Read-write on /hana/log of 250 megabytes per second (MB/s) with 1-MB I/O sizes.
  • Read activity of at least 400 MB/s for /hana/data for 16-MB and 64-MB I/O sizes.
  • Write activity of at least 250 MB/s for /hana/data with 16-MB and 64-MB I/O sizes.

The Azure NetApp Files throughput limits per 1 TiB of volume quota are:

  • Premium Storage tier - 64 MiB/s.
  • Ultra Storage tier - 128 MiB/s.

To meet the SAP minimum throughput requirements for /hana/data and /hana/log, and the guidelines for /hana/shared, the recommended sizes would be:

Volume Size of Premium Storage Tier Size of Ultra Storage Tier Supported NFS Protocol
/hana/log 4 TiB 2 TiB v4.1
/hana/data 6.3 TiB 3.2 TiB v4.1
/hana/shared 1 x RAM 1 x RAM v3 or v4.1

Note

The Azure NetApp Files sizing recommendations stated here are targeted to meet the minimum requirements that SAP recommends for their infrastructure providers. In real customer deployments and workload scenarios, these sizes may not be sufficient. Use these recommendations as a starting point and adapt, based on the requirements of your specific workload.

Tip

You can resize Azure NetApp Files volumes dynamically, without having to unmount the volumes, stop the virtual machines, or stop SAP HANA. This approach allows flexibility to meet both the expected and unforeseen throughput demands of your application.

Note

All commands to mount /hana/shared in this article are presented for NFSv4.1 /hana/shared volumes. If you deployed the /hana/shared volumes as NFSv3 volumes, don't forget to adjust the mount commands for /hana/shared for NFSv3.

Deploy Linux virtual machine via Azure portal

First you need to create the Azure NetApp Files volumes. Then do the following steps:

  1. Create a resource group.
  2. Create a virtual network.
  3. Create an availability set. Set the max update domain.
  4. Create a load balancer (internal). We recommend standard load balancer. Select the virtual network created in step 2.
  5. Create Virtual Machine 1 (hanadb1).
  6. Create Virtual Machine 2 (hanadb2).
  7. While creating virtual machine, we won't be adding any disk as all our mount points will be on NFS shares from Azure NetApp Files.

Important

Floating IP is not supported on a NIC secondary IP configuration in load-balancing scenarios. For details see Azure Load balancer Limitations. If you need additional IP address for the VM, deploy a second NIC.

Note

When VMs without public IP addresses are placed in the backend pool of internal (no public IP address) Standard Azure load balancer, there will be no outbound internet connectivity, unless additional configuration is performed to allow routing to public end points. For details on how to achieve outbound connectivity see Public endpoint connectivity for Virtual Machines using Azure Standard Load Balancer in SAP high-availability scenarios.

  1. To set up standard load balancer, follow these configuration steps:

    1. First, create a front-end IP pool:
      1. Open the load balancer, select frontend IP configuration, and select Add.
      2. Enter the name of the new front-end IP (for example, hana-frontend).
      3. Set the Assignment to Static and enter the IP address (for example, 10.3.0.50).
      4. Select OK.
      5. After the new front-end IP pool is created, note the pool IP address.

  2. Create a single back-end pool:

    1. Open the load balancer, select Backend pools, and then select Add.
    2. Enter the name of the new back-end pool (for example, hana-backend).
    3. Select NIC for Backend Pool Configuration.
    4. Select Add a virtual machine.
    5. Select the virtual machines of the HANA cluster.
    6. Select Add.
    7. Select Save.

  3. Next, create a health probe:

    1. Open the load balancer, select health probes, and select Add.
    2. Enter the name of the new health probe (for example, hana-hp).
    3. Select TCP as the protocol and port 62503. Keep the Interval value set to 5.
    4. Select OK.

  4. Next, create the load-balancing rules:

    1. Open the load balancer, select load balancing rules, and select Add.
    2. Enter the name of the new load balancer rule (for example, hana-lb).
    3. Select the front-end IP address, the back-end pool, and the health probe that you created earlier (for example, hana-frontend, hana-backend and hana-hp).
    4. Increase idle timeout to 30 minutes
    5. Select HA Ports.
    6. Make sure to enable Floating IP.
    7. Select OK.

For more information about the required ports for SAP HANA, read the chapter Connections to Tenant Databases in the SAP HANA Tenant Databases guide or SAP Note 2388694.

Important

Do not enable TCP timestamps on Azure VMs placed behind Azure Load Balancer. Enabling TCP timestamps will cause the health probes to fail. Set parameter net.ipv4.tcp_timestamps to 0. For details see Load Balancer health probes. See also SAP note 2382421.

Mount the Azure NetApp Files volume

1.[A] Create mount points for the HANA database volumes.

sudo mkdir -p /hana/data/HN1/mnt00001
sudo mkdir -p /hana/log/HN1/mnt00001
sudo mkdir -p /hana/shared/HN1

2.[A] Verify the NFS domain setting. Make sure that the domain is configured as the default Azure NetApp Files domain, that is, defaultv4iddomain.com and the mapping is set to nobody.

sudo cat /etc/idmapd.conf

Example output

[General]
Domain = defaultv4iddomain.com
[Mapping]
Nobody-User = nobody
Nobody-Group = nobody

Important

Make sure to set the NFS domain in /etc/idmapd.conf on the VM to match the default domain configuration on Azure NetApp Files: defaultv4iddomain.com. If there's a mismatch between the domain configuration on the NFS client (i.e. the VM) and the NFS server, i.e. the Azure NetApp configuration, then the permissions for files on Azure NetApp volumes that are mounted on the VMs will be displayed as nobody.

3.[A] Edit the /etc/fstab on both nodes to permanently mount the volumes relevant to each node. Below is an example of how you mount the volumes permanently.

sudo vi /etc/fstab

Add the following entries in /etc/fstab on both nodes

Example for hanadb1

10.3.1.4:/hanadb1-data-mnt00001 /hana/data/HN1/mnt00001  nfs   rw,nfsvers=4.1,hard,timeo=600,rsize=262144,wsize=262144,noatime,lock,_netdev,sec=sys  0  0
10.3.1.4:/hanadb1-log-mnt00001 /hana/log/HN1/mnt00001  nfs   rw,nfsvers=4.1,hard,timeo=600,rsize=262144,wsize=262144,noatime,lock,_netdev,sec=sys  0  0
10.3.1.4:/hanadb1-shared-mnt00001 /hana/shared/HN1  nfs   rw,nfsvers=4.1,hard,timeo=600,rsize=262144,wsize=262144,noatime,lock,_netdev,sec=sys  0  0

Example for hanadb2

10.3.1.4:/hanadb2-data-mnt00001 /hana/data/HN1/mnt00001  nfs   rw,nfsvers=4.1,hard,timeo=600,rsize=262144,wsize=262144,noatime,lock,_netdev,sec=sys  0  0
10.3.1.4:/hanadb2-log-mnt00001 /hana/log/HN1/mnt00001  nfs   rw,nfsvers=4.1,hard,timeo=600,rsize=262144,wsize=262144,noatime,lock,_netdev,sec=sys  0  0
10.3.1.4:/hanadb2-shared-mnt00001 /hana/shared/HN1  nfs   rw,nfsvers=4.1,hard,timeo=600,rsize=262144,wsize=262144,noatime,lock,_netdev,sec=sys  0  0

Mount all volumes

sudo mount -a

For workloads, that require higher throughput, consider using the nconnect mount option, as described in NFS v4.1 volumes on Azure NetApp Files for SAP HANA. Check if nconnect is supported by Azure NetApp Files on your Linux release.

4.[A] Verify that all HANA volumes are mounted with NFS protocol version NFSv4.

sudo nfsstat -m

Verify that flag vers is set to 4.1

Example from hanadb1

/hana/log/HN1/mnt00001 from 10.3.1.4:/hanadb1-log-mnt00001
Flags: rw,noatime,vers=4.1,rsize=262144,wsize=262144,namlen=255,hard,proto=tcp,timeo=600,retrans=2,sec=sys,clientaddr=10.3.0.4,local_lock=none,addr=10.3.1.4
/hana/data/HN1/mnt00001 from 10.3.1.4:/hanadb1-data-mnt00001
Flags: rw,noatime,vers=4.1,rsize=262144,wsize=262144,namlen=255,hard,proto=tcp,timeo=600,retrans=2,sec=sys,clientaddr=10.3.0.4,local_lock=none,addr=10.3.1.4
/hana/shared/HN1 from 10.3.1.4:/hanadb1-shared-mnt00001
Flags: rw,noatime,vers=4.1,rsize=262144,wsize=262144,namlen=255,hard,proto=tcp,timeo=600,retrans=2,sec=sys,clientaddr=10.3.0.4,local_lock=none,addr=10.3.1.4

5.[A] Verify nfs4_disable_idmapping. It should be set to Y. To create the directory structure where nfs4_disable_idmapping is located, execute the mount command. You won't be able to manually create the directory under /sys/modules, because access is reserved for the kernel / drivers.

Check nfs4_disable_idmapping

sudo cat /sys/module/nfs/parameters/nfs4_disable_idmapping

If you need to set nfs4_disable_idmapping to Y

sudo echo "Y" > /sys/module/nfs/parameters/nfs4_disable_idmapping

Make the configuration permanent

sudo echo "options nfs nfs4_disable_idmapping=Y" >> /etc/modprobe.d/nfs.conf

SAP HANA Installation

1.[A] Set up host name resolution for all hosts.

You can either use a DNS server or modify the /etc/hosts file on all nodes. This example shows you how to use the /etc/hosts file. Replace the IP address and the hostname in the following commands:

sudo vi /etc/hosts

Insert the following lines in the /etc/hosts file. Change the IP address and hostname to match your environment

10.3.0.4   hanadb1
10.3.0.5   hanadb2

2.[A] Prepare the OS for running SAP HANA on Azure NetApp with NFS, as described in SAP note 3024346 - Linux Kernel Settings for NetApp NFS. Create configuration file /etc/sysctl.d/91-NetApp-HANA.conf for the NetApp configuration settings.

sudo vi /etc/sysctl.d/91-NetApp-HANA.conf

Add the following entries in the configuration file

net.core.rmem_max = 16777216
net.core.wmem_max = 16777216
net.ipv4.tcp_rmem = 4096 131072 16777216
net.ipv4.tcp_wmem = 4096 16384 16777216
net.core.netdev_max_backlog = 300000
net.ipv4.tcp_slow_start_after_idle=0
net.ipv4.tcp_no_metrics_save = 1
net.ipv4.tcp_moderate_rcvbuf = 1
net.ipv4.tcp_window_scaling = 1
net.ipv4.tcp_sack = 1

3.[A] Create configuration file /etc/sysctl.d/ms-az.conf with additional optimization settings.

sudo vi /etc/sysctl.d/ms-az.conf

Add the following entries in the configuration file

net.ipv6.conf.all.disable_ipv6 = 1
net.ipv4.tcp_max_syn_backlog = 16348
net.ipv4.conf.all.rp_filter = 0
sunrpc.tcp_slot_table_entries = 128
vm.swappiness=10

Tip

Avoid setting net.ipv4.ip_local_port_range and net.ipv4.ip_local_reserved_ports explicitly in the sysctl configuration files to allow SAP Host Agent to manage the port ranges. For more information, see SAP note 2382421.

4.[A] Adjust the sunrpc settings, as recommended in SAP note 3024346 - Linux Kernel Settings for NetApp NFS.

sudo vi /etc/modprobe.d/sunrpc.conf

Insert the following line

options sunrpc tcp_max_slot_table_entries=128

5.[A] SLES for HANA Configuration

​ Configure SLES as described in below SAP Note based on your SLES version

6.[A] Install the SAP HANA

Starting with HANA 2.0 SPS 01, MDC is the default option. When you install HANA system, SYSTEMDB and a tenant with same SID will be created together. In some cases, you do not want the default tenant. In case, if you don’t want to create initial tenant along with the installation you can follow SAP Note 2629711.

a. Start the hdblcm program from the HANA installation software directory.

./hdblcm

b. At the prompt, enter the following values:

  • For Choose installation: Enter 1 (for install)
  • For Select additional components for installation: Enter 1.
  • For Enter Installation Path [/hana/shared]: press Enter to accept the default
  • For Enter Local Host Name [..]: Press Enter to accept the default
  • Under, Do you want to add additional hosts to the system? (y/n) [n]: n
  • For Enter SAP HANA System ID: Enter HN1.
  • For Enter Instance Number [00]: Enter 03
  • For Select Database Mode / Enter Index [1]: press Enter to accept the default
  • For Select System Usage / Enter Index [4]: enter 4 (for custom)
  • For Enter Location of Data Volumes [/hana/data]: press Enter to accept the default
  • For Enter Location of Log Volumes [/hana/log]: press Enter to accept the default
  • For Restrict maximum memory allocation? [n]: press Enter to accept the default
  • For Enter Certificate Host Name For Host '...' [...]: press Enter to accept the default
  • For Enter SAP Host Agent User (sapadm) Password: Enter the host agent user password
  • For Confirm SAP Host Agent User (sapadm) Password: Enter the host agent user password again to confirm
  • For Enter System Administrator (hn1adm) Password: Enter the system administrator password
  • For Confirm System Administrator (hn1adm) Password: Enter the system administrator password again to confirm
  • For Enter System Administrator Home Directory [/usr/sap/HN1/home]: press Enter to accept the default
  • For Enter System Administrator Login Shell [/bin/sh]: press Enter to accept the default
  • For Enter System Administrator User ID [1001]: press Enter to accept the default
  • For Enter ID of User Group (sapsys) [79]: press Enter to accept the default
  • For Enter Database User (SYSTEM) Password: Enter the database user password
  • For Confirm Database User (SYSTEM) Password: Enter the database user password again to confirm
  • For Restart system after machine reboot? [n]: press Enter to accept the default
  • For Do you want to continue? (y/n): Validate the summary. Enter y to continue

7.[A] Upgrade SAP Host Agent

Download the latest SAP Host Agent archive from the SAP Software Center and run the following command to upgrade the agent. Replace the path to the archive to point to the file that you downloaded:

sudo /usr/sap/hostctrl/exe/saphostexec -upgrade -archive <path to SAP Host Agent SAR>

Configure SAP HANA system replication

Follow the steps in setup SAP HANA System Replication to configure SAP HANA System Replication.

Cluster configuration

This section describes necessary steps required for cluster to operate seamlessly when SAP HANA is installed on NFS shares using Azure NetApp Files.

Create a Pacemaker cluster

Follow the steps in, Setting up Pacemaker on SUSE Enterprise Linux in Azure to create a basic Pacemaker cluster for this HANA server.

Implement HANA hooks SAPHanaSR and susChkSrv

This is an important step to optimize the integration with the cluster and improve the detection, when a cluster failover is needed. It is highly recommended to configure both SAPHanaSR and susChkSrv Python hooks. Follow the steps mentioned in, Implement the Python System Replication hooks SAPHanaSR and susChkSrv

Configure SAP HANA cluster resources

This section describes the necessary steps required to configure the SAP HANA Cluster resources.

Create SAP HANA cluster resources

Follow the steps in creating SAP HANA cluster resources to create the cluster resources for the HANA server. Once the resources are created, you should see the status of the cluster with the below command

sudo crm_mon -r

Example output

# Online: [ hn1-db-0 hn1-db-1 ]
# Full list of resources:
# stonith-sbd     (stonith:external/sbd): Started hn1-db-0
# Clone Set: cln_SAPHanaTopology_HN1_HDB03 [rsc_SAPHanaTopology_HN1_HDB03]
#     Started: [ hn1-db-0 hn1-db-1 ]
# Master/Slave Set: msl_SAPHana_HN1_HDB03 [rsc_SAPHana_HN1_HDB03]
#     Masters: [ hn1-db-0 ]
#     Slaves: [ hn1-db-1 ]
# Resource Group: g_ip_HN1_HDB03
#     rsc_ip_HN1_HDB03   (ocf::heartbeat:IPaddr2):       Started hn1-db-0
#     rsc_nc_HN1_HDB03   (ocf::heartbeat:azure-lb):      Started hn1-db-0

Create File System resources

Create a dummy file system cluster resource, which will monitor and report failures, in case there is a problem accessing the NFS-mounted file system /hana/shared. That allows the cluster to trigger failover, in case there is a problem accessing /hana/shared. For more information, see Handling failed NFS share in SUSE HA cluster for HANA system replication.

1.[A] Create the directory structure on both nodes.

sudo mkdir -p /hana/shared/HN1/check
sudo mkdir -p /hana/shared/check

2.[1] Configure the cluster to add the directory structure for monitoring

sudo crm configure primitive rsc_fs_check_HN1_HDB03 Filesystem params \
    device="/hana/shared/HN1/check/" \
    directory="/hana/shared/check/" fstype=nfs4  \
    options="bind,defaults,rw,hard,rsize=262144,wsize=262144,proto=tcp,noatime,_netdev,nfsvers=4.1,lock,sec=sys" \
    op monitor interval=120 timeout=120 on-fail=fence \
    op_params OCF_CHECK_LEVEL=20 \
    op start interval=0 timeout=120 \
    op stop interval=0 timeout=120

3.[1] Clone and check the newly configured volume in the cluster

sudo crm configure clone cln_fs_check_HN1_HDB03 rsc_fs_check_HN1_HDB03 meta clone-node-max=1 interleave=true

sudo  crm status

Example output

#Cluster Summary:
# Stack: corosync
# Current DC: hanadb1 (version 2.0.5+20201202.ba59be712-4.9.1-2.0.5+20201202.ba59be712) - partition with quorum
# Last updated: Tue Nov  2 17:57:39 2021
# Last change:  Tue Nov  2 17:57:38 2021 by root via crm_attribute on hanadb1
# 2 nodes configured
# 11 resource instances configured

# Node List:
# Online: [ hanadb1 hanadb2 ]

# Full List of Resources:
# Clone Set: cln_azure-events [rsc_azure-events]:
 # Started: [ hanadb1 hanadb2 ]
# Clone Set: cln_SAPHanaTopology_HN1_HDB03 [rsc_SAPHanaTopology_HN1_HDB03]:
 # rsc_SAPHanaTopology_HN1_HDB03     (ocf::suse:SAPHanaTopology):     Started hanadb1 (Monitoring)
 # rsc_SAPHanaTopology_HN1_HDB03     (ocf::suse:SAPHanaTopology):     Started hanadb2 (Monitoring)
# Clone Set: msl_SAPHana_HN1_HDB03 [rsc_SAPHana_HN1_HDB03] (promotable):
 # rsc_SAPHana_HN1_HDB03     (ocf::suse:SAPHana):     Master hanadb1 (Monitoring)
 # Slaves: [ hanadb2 ]
# Resource Group: g_ip_HN1_HDB03:
 # rsc_ip_HN1_HDB03  (ocf::heartbeat:IPaddr2):        Started hanadb1
 # rsc_nc_HN1_HDB03  (ocf::heartbeat:azure-lb):       Started hanadb1
# rsc_st_azure        (stonith:fence_azure_arm):       Started hanadb2
# Clone Set: cln_fs_check_HN1_HDB03 [rsc_fs_check_HN1_HDB03]:
 # Started: [ hanadb1 hanadb2 ]

OCF_CHECK_LEVEL=20 attribute is added to the monitor operation, so that monitor operations perform a read/write test on the file system. Without this attribute, the monitor operation only verifies that the file system is mounted. This can be a problem because when connectivity is lost, the file system may remain mounted, despite being inaccessible.

on-fail=fence attribute is also added to the monitor operation. With this option, if the monitor operation fails on a node, that node is immediately fenced.

Important

Timeouts in the above configuration may need to be adapted to the specific HANA set up to avoid unnecessary fence actions. Don’t set the timeout values too low. Be aware that the filesystem monitor is not related to the HANA system replication. For details see SUSE documentation.

Test the cluster setup

This section describes how you can test your setup.

1.Before you start a test, make sure that Pacemaker does not have any failed action (via crm status), no unexpected location constraints (for example leftovers of a migration test) and that HANA system replication is sync state, for example with systemReplicationStatus:

sudo su - hn1adm -c "python /usr/sap/HN1/HDB03/exe/python_support/systemReplicationStatus.py"

2.Verify the status of the HANA Resources using the command below

SAPHanaSR-showAttr

# You should see something like below
# hanadb1:~ SAPHanaSR-showAttr
# Global cib-time                 maintenance
# --------------------------------------------
# global Mon Nov  8 22:50:30 2021 false
# Sites srHook
# -------------
# SITE1 PRIM
# SITE2 SOK
# Site2 SOK
# Hosts   clone_state lpa_hn1_lpt node_state op_mode   remoteHost roles                            score site  srmode sync_state version                vhost
# --------------------------------------------------------------------------------------------------------------------------------------------------------------
# hanadb1 PROMOTED    1636411810  online     logreplay hanadb2    4:P:master1:master:worker:master 150   SITE1 sync   PRIM       2.00.058.00.1634122452 hanadb1
# hanadb2 DEMOTED     30          online     logreplay hanadb1    4:S:master1:master:worker:master 100   SITE2 sync   SOK        2.00.058.00.1634122452 hanadb2

3.Verify the cluster configuration for a failure scenario when a node is shutdown (below, for example shows shutting down node 1)

sudo crm status
sudo crm resource move msl_SAPHana_HN1_HDB03 hanadb2 force
sudo crm resource cleanup

sudo crm status

Example output

#Cluster Summary:
 # Stack: corosync
   # Current DC: hanadb2 (version 2.0.5+20201202.ba59be712-4.9.1-2.0.5+20201202.ba59be712) - partition with quorum
   # Last updated: Mon Nov  8 23:25:36 2021
   # Last change:  Mon Nov  8 23:25:19 2021 by root via crm_attribute on hanadb2
   # 2 nodes configured
   # 11 resource instances configured

   #Node List:

   # Online: [ hanadb1 hanadb2 ]

   #Full List of Resources:

   # Clone Set: cln_azure-events [rsc_azure-events]:
     # Started: [ hanadb1 hanadb2 ]
   # Clone Set: cln_SAPHanaTopology_HN1_HDB03 [rsc_SAPHanaTopology_HN1_HDB03]:
     # Started: [ hanadb1 hanadb2 ]
   # Clone Set: msl_SAPHana_HN1_HDB03 [rsc_SAPHana_HN1_HDB03] (promotable):
     # Masters: [ hanadb2 ]
     # Stopped: [ hanadb1 ]
   # Resource Group: g_ip_HN1_HDB03:
     # rsc_ip_HN1_HDB03  (ocf::heartbeat:IPaddr2):        Started hanadb2
     # rsc_nc_HN1_HDB03  (ocf::heartbeat:azure-lb):       Started hanadb2
   # rsc_st_azure        (stonith:fence_azure_arm):       Started hanadb2
   # Clone Set: cln_fs_check_HN1_HDB03 [rsc_fs_check_HN1_HDB03]:
     # Started: [ hanadb1 hanadb2 ]

Stop the HANA on Node1

sudo su - hn1adm

sapcontrol -nr 03 -function StopWait 600 10

Register Node 1 as the Secondary Node and check status

hdbnsutil -sr_register --remoteHost=hanadb2 --remoteInstance=03 --replicationMode=sync --name=SITE1 --operationMode=logreplay

Example output

#adding site ...
#nameserver hanadb1:30301 not responding.
#collecting information ...
#updating local ini files ...
#done.

sudo crm status

sudo SAPHanaSR-showAttr

4.Verify the cluster configuration for a failure scenario when a node loses access to the NFS share (/hana/shared)

The SAP HANA resource agents depend on binaries stored on /hana/shared to perform operations during failover. File system /hana/shared is mounted over NFS in the presented scenario.
It is difficult to simulate a failure, where one of the servers loses access to the NFS share. A test that can be performed is to re-mount the file system as read-only. This approach validates that the cluster will be able to failover, if access to /hana/shared is lost on the active node.

Expected Result: On making /hana/shared as read-only file system, the OCF_CHECK_LEVEL attribute of the resource hana_shared1, which performs read/write operation on file system will fail as it is not able to write anything on the file system and will perform HANA resource failover. The same result is expected when your HANA node loses access to the NFS shares.

Resource state before starting the test:

sudo crm  status

Example output

#Cluster Summary:
 # Stack: corosync
 # Current DC: hanadb2 (version 2.0.5+20201202.ba59be712-4.9.1-2.0.5+20201202.ba59be712) - partition with quorum
 # Last updated: Mon Nov  8 23:01:27 2021
 # Last change:  Mon Nov  8 23:00:46 2021 by root via crm_attribute on hanadb1
 # 2 nodes configured
 # 11 resource instances configured

 #Node List:
 # Online: [ hanadb1 hanadb2 ]

 #Full List of Resources:
 # Clone Set: cln_azure-events [rsc_azure-events]:
   # Started: [ hanadb1 hanadb2 ]
 # Clone Set: cln_SAPHanaTopology_HN1_HDB03 [rsc_SAPHanaTopology_HN1_HDB03]:
   # Started: [ hanadb1 hanadb2 ]
 # Clone Set: msl_SAPHana_HN1_HDB03 [rsc_SAPHana_HN1_HDB03] (promotable):
   # Masters: [ hanadb1 ]
   # Slaves: [ hanadb2 ]
 # Resource Group: g_ip_HN1_HDB03:
   # rsc_ip_HN1_HDB03  (ocf::heartbeat:IPaddr2):        Started hanadb1
   # rsc_nc_HN1_HDB03  (ocf::heartbeat:azure-lb):       Started hanadb1
 # rsc_st_azure        (stonith:fence_azure_arm):       Started hanadb2
 # Clone Set: cln_fs_check_HN1_HDB03 [rsc_fs_check_HN1_HDB03]:
   # Started: [ hanadb1 hanadb2 ]

You can place /hana/shared in read-only mode on the active cluster node, using below command:

sudo mount -o ro 10.3.1.4:/hanadb1-shared-mnt00001 /hana/shared

hanadb1 will either reboot or poweroff based on the action set. Once the server (hanadb1) is down, HANA resource move to hanadb2. You can check the status of cluster from hanadb2.

sudo crm status

Example output

#Cluster Summary:
 # Stack: corosync
 # Current DC: hanadb2 (version 2.0.5+20201202.ba59be712-4.9.1-2.0.5+20201202.ba59be712) - partition with quorum
 # Last updated: Wed Nov 10 22:00:27 2021
 # Last change:  Wed Nov 10 21:59:47 2021 by root via crm_attribute on hanadb2
 # 2 nodes configured
 # 11 resource instances configured

 #Node List:
 # Online: [ hanadb1 hanadb2 ]

 #Full List of Resources:
 # Clone Set: cln_azure-events [rsc_azure-events]:
   # Started: [ hanadb1 hanadb2 ]
 # Clone Set: cln_SAPHanaTopology_HN1_HDB03 [rsc_SAPHanaTopology_HN1_HDB03]:
   # Started: [ hanadb1 hanadb2 ]
 # Clone Set: msl_SAPHana_HN1_HDB03 [rsc_SAPHana_HN1_HDB03] (promotable):
   # Masters: [ hanadb2 ]
   # Stopped: [ hanadb1 ]
 # Resource Group: g_ip_HN1_HDB03:
      # rsc_ip_HN1_HDB03  (ocf::heartbeat:IPaddr2):        Started hanadb2
   # rsc_nc_HN1_HDB03  (ocf::heartbeat:azure-lb):       Started hanadb2
 # rsc_st_azure        (stonith:fence_azure_arm):       Started hanadb2
 # Clone Set: cln_fs_check_HN1_HDB03 [rsc_fs_check_HN1_HDB03]:
   # Started: [ hanadb1 hanadb2 ]

We recommend testing the SAP HANA cluster configuration thoroughly, by also doing the tests described in SAP HANA System Replication.

Next steps
