Basic: Use routing intent with static routes

Note

This design pattern is compatible with any supported next hop security solution deployed in the Virtual WAN hub, including Azure Firewall, an integrated NVA, or a Software as a Service (SaaS) solution. Additionally, use static route configuration option 1 when configuring static routes on the virtual network connection to ensure proper propagation of the static routes to the hub and other connected spokes. Configuration option 2 is not supported when using routing intent.

Scenario overview

This design pattern explains how to combine routing intent and routing policies with static routes on a virtual network connection in Azure Virtual WAN. This pattern is useful when you want a security solution deployed in the virtual hub to inspect traffic first, while still allowing selected destinations to be reached through a network virtual appliance (NVA) deployed in a spoke virtual network.

Typical examples include sending traffic to:

• Indirect spokes that are peered to the NVA virtual network, but not directly connected to the Virtual WAN hub.
• VPN or SDWAN tunnels terminating on the NVA in the spoke virtual network.
• Internet-bound traffic (forced tunnel)

Traffic patterns

The following connectivity matrix summarizes the common traffic patterns in this design.

Source/Destination	Direct Spoke	On-premises	Indirect spoke and NVA connected sites	Internet
Direct Spoke	Via routing intent next hop in the hub	Via routing intent next hop in the hub	Via routing intent next hop in the hub, then via the spoke NVA	Via routing intent next hop in the hub, then via the spoke NVA when the hub is configured in forced tunnel mode
On-premises	Via routing intent next hop in the hub	Via routing intent next hop in the hub	Via routing intent next hop in the hub, then via the spoke NVA	Via routing intent next hop in the hub, then via the spoke NVA when the hub is configured in forced tunnel mode
Indirect spoke and NVA connected sites	Via the spoke NVA, then via routing intent next hop in the hub	Via the spoke NVA, then via routing intent next hop in the hub	Via the spoke NVA	Via the spoke NVA

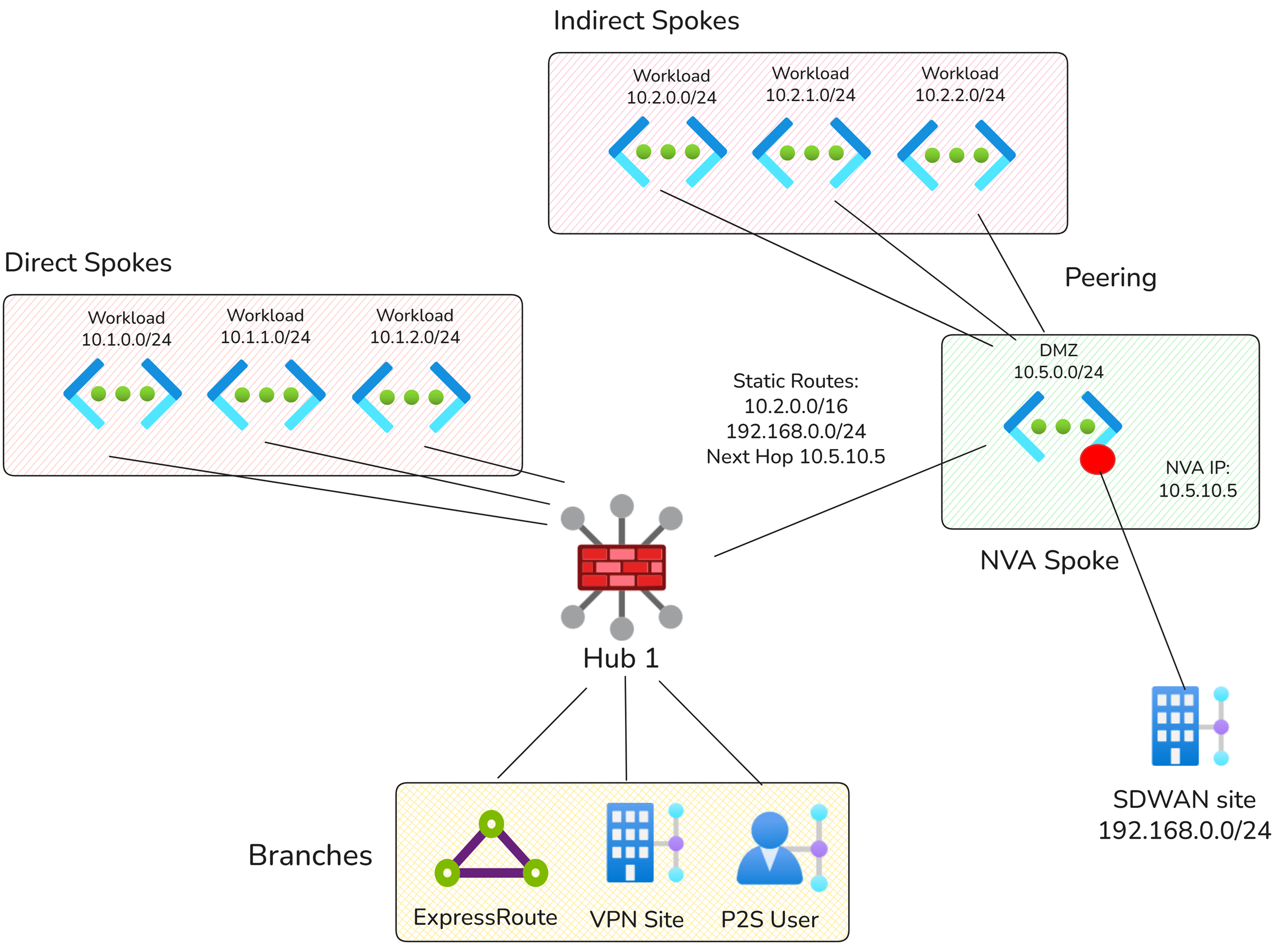

Network Diagram

In the diagram above, there are three types of spokes:

• Directly connected spokes: connected directly to the Virtual WAN hub.
• NVA spoke: connected directly to the Virtual WAN hub and deployed with an NVA.
• Indirect spoke: not connected directly to the Virtual WAN hub. The indirect spoke is peered to the NVA spoke. Traffic to and from these spokes must traverse the NVA before reaching any other connection to the Virtual WAN hub.

Configuration

Routing intent and routing policies

The virtual hub must use routing intent. Use a Private Traffic routing policy with next hop set to the security solution deployed in the virtual hub, such as Azure Firewall, a supported integrated NVA, or a software-as-a-service (SaaS) security solution.

Static routes on the NVA virtual network connection

Note

For routing intent hubs, the only supported static route integration pattern is static route configuration option 1. Configure static routes on the virtual network connection with Propagate static route set to true.

Prefix type	Example prefixes	Reasoning
Indirect spoke prefixes	10.20.0.0/16	Allows traffic inspected in the hub to be forwarded to prefixes that are reachable behind the NVA deployed in the spoke.
SDWAN prefixes	192.168.0.0/24	Allows traffic inspected in the hub to be forwarded to SDWAN-connected sites or prefixes that are reachable through tunnels terminated on the NVA deployed in the spoke.

Additional considerations

• For deployments where static routes are specified on a virtual network connection with Propagate static route enabled, the bypass next hop IP behavior is ignored when routing intent is applied. For more information, see Bypass next hop IP for workloads within this VNet.
• If there are multiple static routes configured where the destination CIDRs are not in IANA RFC1918, all static routes with non-RFC1918 destinations must use the same next hop IP address.
• Routing intent is the only supported mechanism in Virtual WAN to inspect inter-hub traffic through security solutions deployed in the virtual hub.
• If you need a design where an NVA deployed in a spoke is used only for Internet breakout, while the virtual hub security solution inspects private traffic, see Combining Azure Firewall and NVAs deployed in spokes. In this scenario, Internet traffic is only inspected by the NVA deployed in the spoke.
• If you need a design where an NVA deployed in a spoke is used to route traffic to indirect spokes or the Internet without routing intent, see Route traffic to indirect spokes.
