Use lists of rows in flows

Use the List rows action to retrieve multiple rows at once from Microsoft Dataverse with a structured query.

Get a list of rows

Follow these steps to add the List rows action to your flow to return up to 5000 accounts from the Accounts table in Dataverse.

  1. Select New step to add an action to your flow.

  2. Enter list row into the Search connectors and actions search box on the Choose an operation card.

  3. Select Microsoft Dataverse to filter the search results to display only actions and triggers for Microsoft Dataverse.

  4. Select List rows.

    Filter to list rows actions.

  5. Select the Accounts table from the Table name list.

    Select the Accounts table.

  6. Save and run your flow to confirm that no more than 5,000 rows are returned.

Turn on pagination to request more than 5,000 rows

To get more than 5,000 rows from a query automatically, turn on the Pagination feature from Settings as the following steps indicate:

  1. In the upper-right corner of the List rows card, select the menu (...).

  2. Select Settings.

    Settings for List rows card.

  3. Move the Pagination slider to the On position if it's not already turned on.

  4. In Threshold, enter the maximum number of rows requested. Internally, this number is rounded off in increments of the default page size. For example, if that page size is 5,000, and you enter 7,000, the number of rows returned is 10,000.

    Pagination settings for the List rows card.

Note

Content throughput limits and message size limits apply to ensure general service guarantees. When pagination is not set, the response includes an @odata.nextLink parameter that can be used to request the next set of rows. See the Skip token section later in this article to learn how to use it.

Advanced options

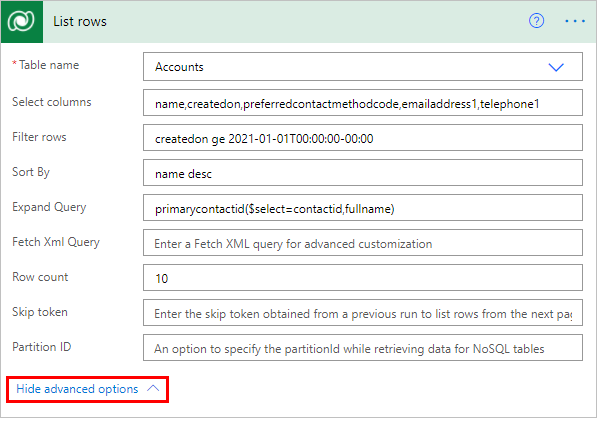

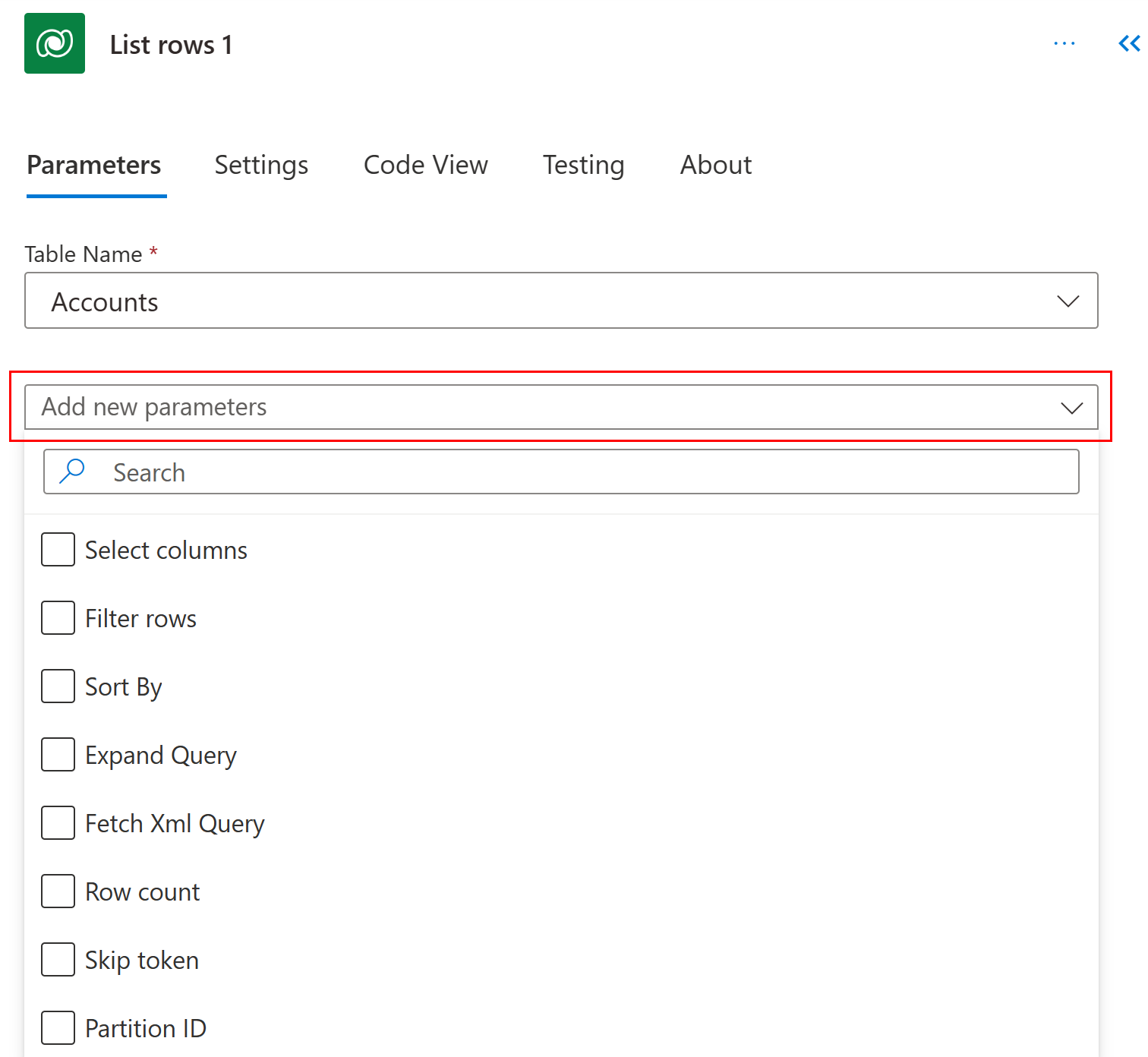

The advanced options for the List Rows action allow you to sort, filter, arrange, and extend the results of a query. Here's an example of how they can be put together:

Advanced options example for List Rows action.

Select columns

Enter a comma-separated list of columns to return, such as "name,createdon,preferredcontactmethodcode,emailaddress1,telephone1" for the Account table.

Filter rows

Use to define an OData-style filter expression to narrow down the set of rows that Dataverse returns, such as "createdon ge 2021-01-01T00:00:00-00:00" for rows with createdon greater than or equal to the year 2021.

Tip

Learn how to use standard filter operators and query functions to construct Filter Query expressions.

Important

Filter expressions cannot contain this string, $filter=, because it only applies when you use the APIs directly.

Sort by

Use to define an OData-style expression that defines the order in which items are returned, such as "name desc". Use the asc or desc suffix to indicate ascending or descending order, respectively. The default order is ascending.

Expand query

Use to specify an OData-style expression that defines the data that Dataverse returns from the related tables, such as "primarycontactid($select=contactid,fullname)" to use the account's primarycontactid to retrieve the fullname column from the related contact with ID contactid in the response.

There are two types of navigation properties that you can use in Expand Query:

  1. Single-valued navigation properties correspond to lookup columns that support many-to-one relationships and allow you to set a reference to another table.

  2. Collection-valued navigation properties correspond to one-to-many or many-to-many relationships.

If you include only the name of the navigation property, you’ll receive all the properties for the related rows. To learn more, see Retrieve related table rows with a query.

To use it in a flow step, enter an Odata expression as shown in the following image. This example shows how to get the contactid and fullname columns for the primarycontactid of each account.

Screenshot of an image that displays how to get the contactid and fullname

Row count

Use to indicate the specific number of rows for Dataverse to return. Here's an example that shows how to request 10 rows.

Fetch Xml query

Important

The distinct operator and aggregation queries are not currently supported in FetchXML queries from the List rows connector.

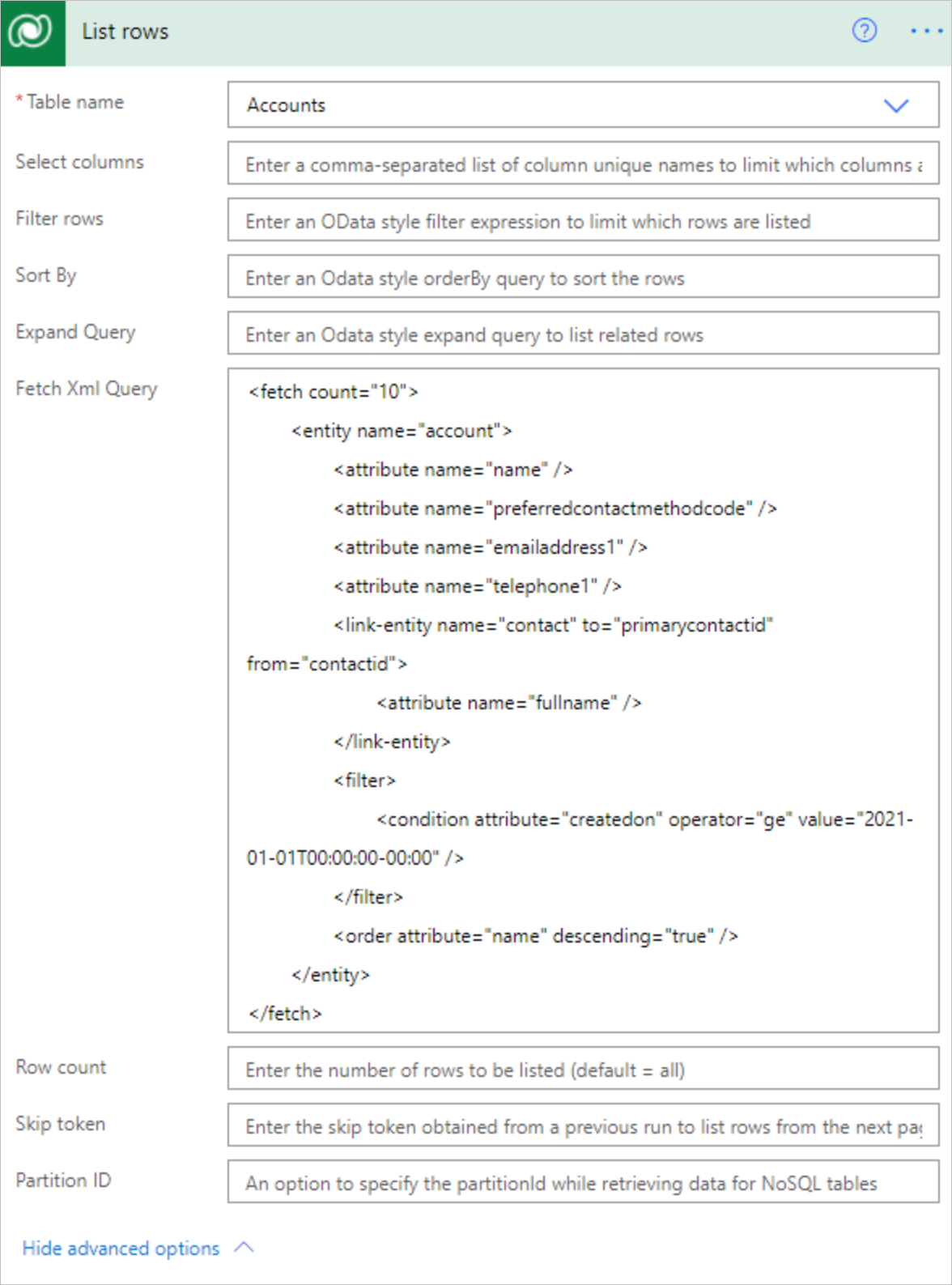

Use a Dataverse-style FetchXML query, which allows more flexibility in building custom queries. These queries can be useful when you work with a table that has multiple related tables, or handling pagination. The following screenshot shows how to use FetchXML for the same filters and sort conditions as the previous example:

List accounts example with FetchXML.

Example FetchXML query for the Account table:

<fetch count="10">
	<entity name="account">
		<attribute name="name" />
		<attribute name="preferredcontactmethodcode" />
		<attribute name="emailaddress1" />
		<attribute name="telephone1" />
   		<link-entity name="contact" to="primarycontactid" from="contactid">
      			<attribute name="fullname" />
		</link-entity>
		<filter>
			<condition attribute="createdon" operator="ge" value="2021-01-01T00:00:00-00:00" />
		</filter>
		<order attribute="name" descending="true" />
	</entity>
</fetch>

As the distinct operator isn't currently supported directly in FetchXML queries from the List rows action, the union function can be used to remove duplicate rows. For example, you can use the Select action to transform the response of the List rows connection to the specific array format you need, then create a variable with the expression union(body(‘Select’),body(‘Select’)) to get an array with distinct rows.

Skip token

Because Power Automate applies content throughput limits and message size limits to ensure general service guarantees, it's often useful to use pagination to return a smaller number of rows in a batch, rather than the default limits on number of table rows returned.

The default page limit of 5,000 rows applies if you don't use pagination.

To use it, implement a loop to parse the @odata.nextLink value in the JSON response, extract the skip token, and then send another request until you've listed the number of rows that you need.

HTTP/1.1 200 OK
Content-Type: application/json; odata.metadata=minimal
OData-Version: 4.0
Content-Length: 402
Preference-Applied: odata.maxpagesize=3

{
   "@odata.context":"[Organization URI]/api/data/v9.1/$metadata#accounts(name)",
   "value":[
      {
         "@odata.etag":"W/\"437194\"",
         "name":"Fourth Coffee (sample)",
         "accountid":"7d51925c-cde2-e411-80db-00155d2a68cb"
      },
      {
         "@odata.etag":"W/\"437195\"",
         "name":"Litware, Inc. (sample)",
         "accountid":"7f51925c-cde2-e411-80db-00155d2a68cb"
      },
      {
         "@odata.etag":"W/\"468026\"",
         "name":"Adventure Works (sample)",
         "accountid":"8151925c-cde2-e411-80db-00155d2a68cb"
      }
   ],
   "@odata.nextLink":"[Organization URI]/api/data/v9.1/accounts?$select=name&$skiptoken=%3Ccookie%20pagenumber=%222%22%20pagingcookie=%22%253ccookie%2520page%253d%25221%2522%253e%253caccountid%2520last%253d%2522%257b8151925C-CDE2-E411-80DB-00155D2A68CB%257d%2522%2520first%253d%2522%257b7D51925C-CDE2-E411-80DB-00155D2A68CB%257d%2522%2520%252f%253e%253c%252fcookie%253e%22%20/%3E"
}

Partition ID

An option to specify the partitionId while retrieving data for NoSQL tables. To learn more, see Improve performance using storage partitions when accessing table data.
