Combine files overview

  • Article

With Power Query, you can combine multiple files that have the same schema into a single logical table.

This feature is useful when you want to combine all the files you have in the same folder. For example, if you have a folder that contains monthly files with all the purchase orders for your company, you can combine these files to consolidate the orders into a single view.

Files can come from various sources, such as (but not limited to):

  • Local folders
  • SharePoint sites
  • Azure Blob storage
  • Azure Data Lake Storage (Gen1 and Gen2)

When you work with these sources, notice that they share the same table schema, commonly referred to as the file system view. The following screenshot shows an example of the file system view.

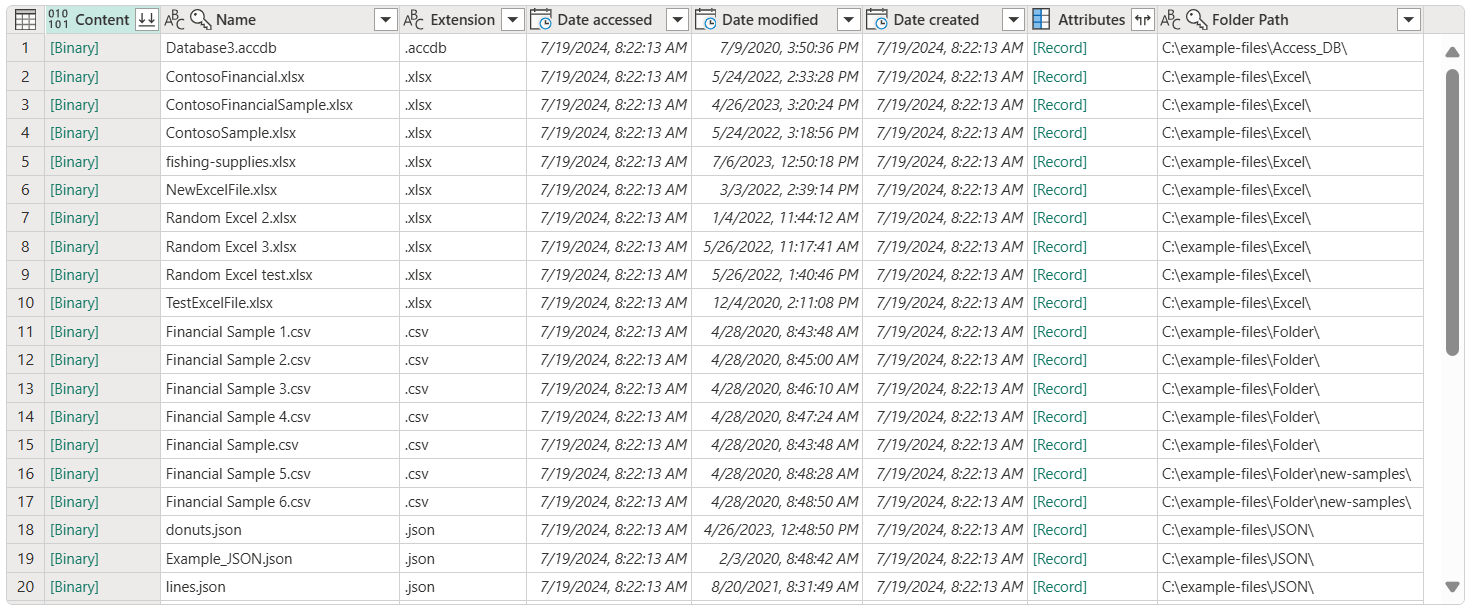

Screenshot of the file system view with multiple sample files displayed.

In the file system view, the Content column contains the binary representation of each file.

Note

You can filter the list of files in the file system view by using any of the available fields. It's good practice to filter this view to show only the files you need to combine, for example by filtering fields such as Extension or Folder Path. More information: Folder

Selecting any of the [Binary] values in the Content column automatically creates a series of navigation steps to that specific file. Power Query tries to interpret the binary by using one of the available connectors, such as Text/CSV, Excel, JSON, or XML.

Combining files takes place in the following stages:

Table preview

When you connect to a data source by using any of the previously mentioned connectors, a table preview opens. If you're certain that you want to combine all the files in the folder, select Combine in the lower-right corner of the screen.

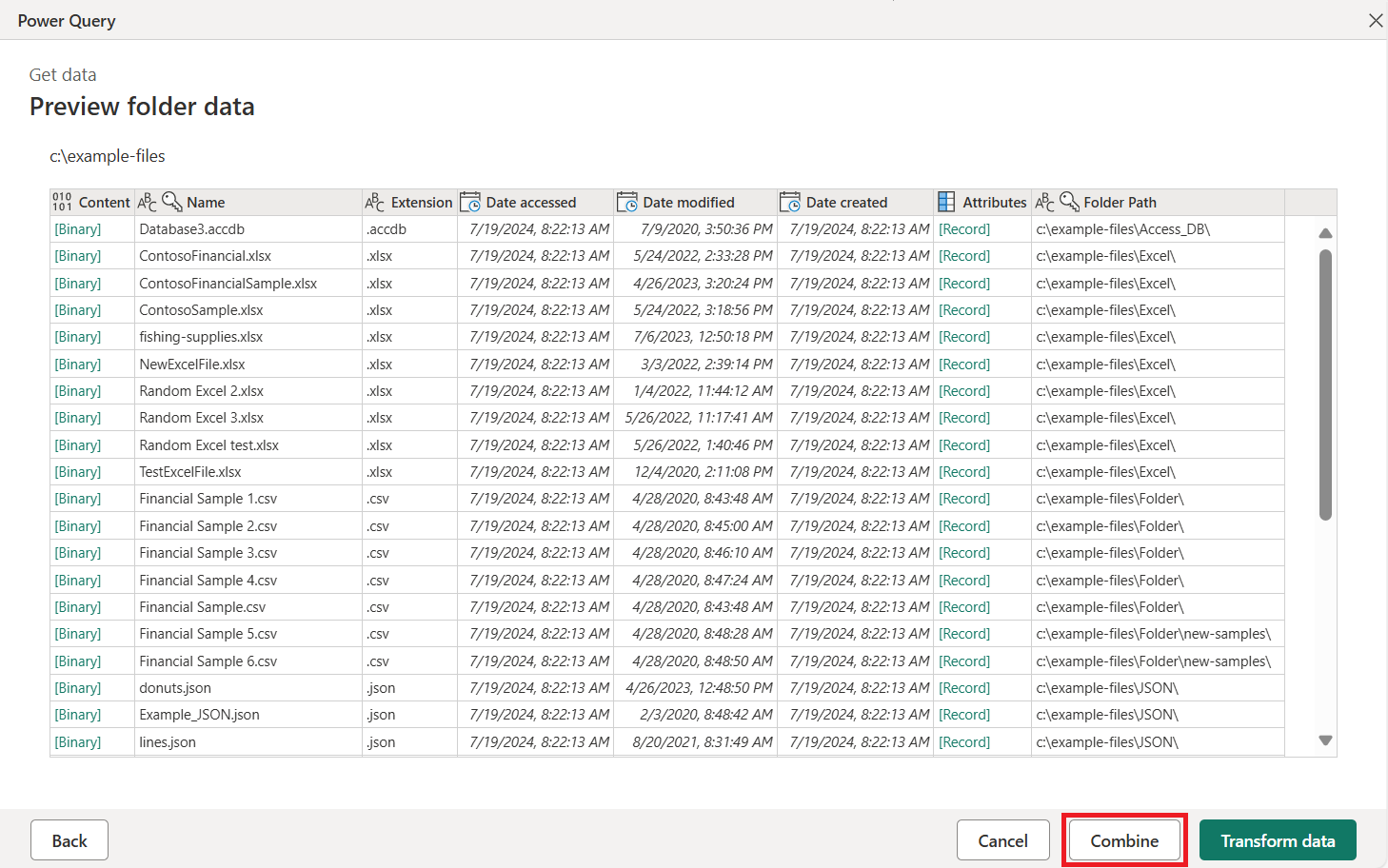

Screenshot of the table preview with the Combine option emphasized.

Alternatively, you can select Transform data to access the Power Query editor and create a subset of the list of files (for example, by using filters on the folder path column to only include files from a specific subfolder). Then combine files by selecting the column that contains the binaries in the Content column and then selecting either:

  • The Combine files command in the Combine group on the Home tab.

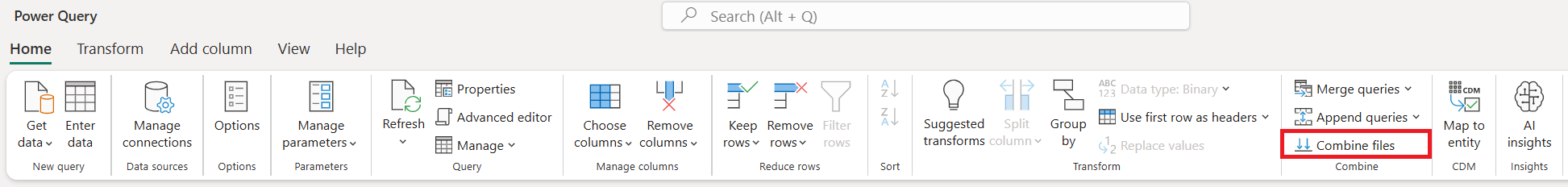

    Screenshot with the Combine files command emphasized on the Home tab.

  • The Combine files icon in the column header of the column that contains [Binary] values.

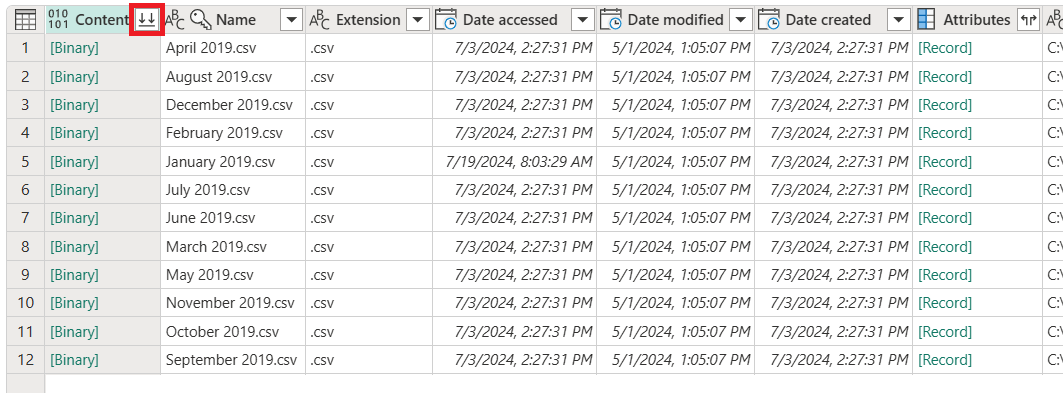

    Screenshot with the Combine files icon emphasized in the column header.

Combine files dialog

After you select the Combine or Combine files command, the Combine files dialog opens and the following actions occur:

  1. Power Query analyzes the example file (by default, the first file in the list) and determines the correct file connector to use to open that file.
  2. The dialog provides the file connector experience exactly as if you were to connect directly to that example file.
    • If you want to use a different file for the example file, you can choose it from the Example file drop-down menu.
    • Optional: You can select Skip files with errors to exclude from the final output any files that result in errors.

In the following image, Power Query detects that the first file has a .csv file name extension, so it uses the Text/CSV connector to interpret the file.

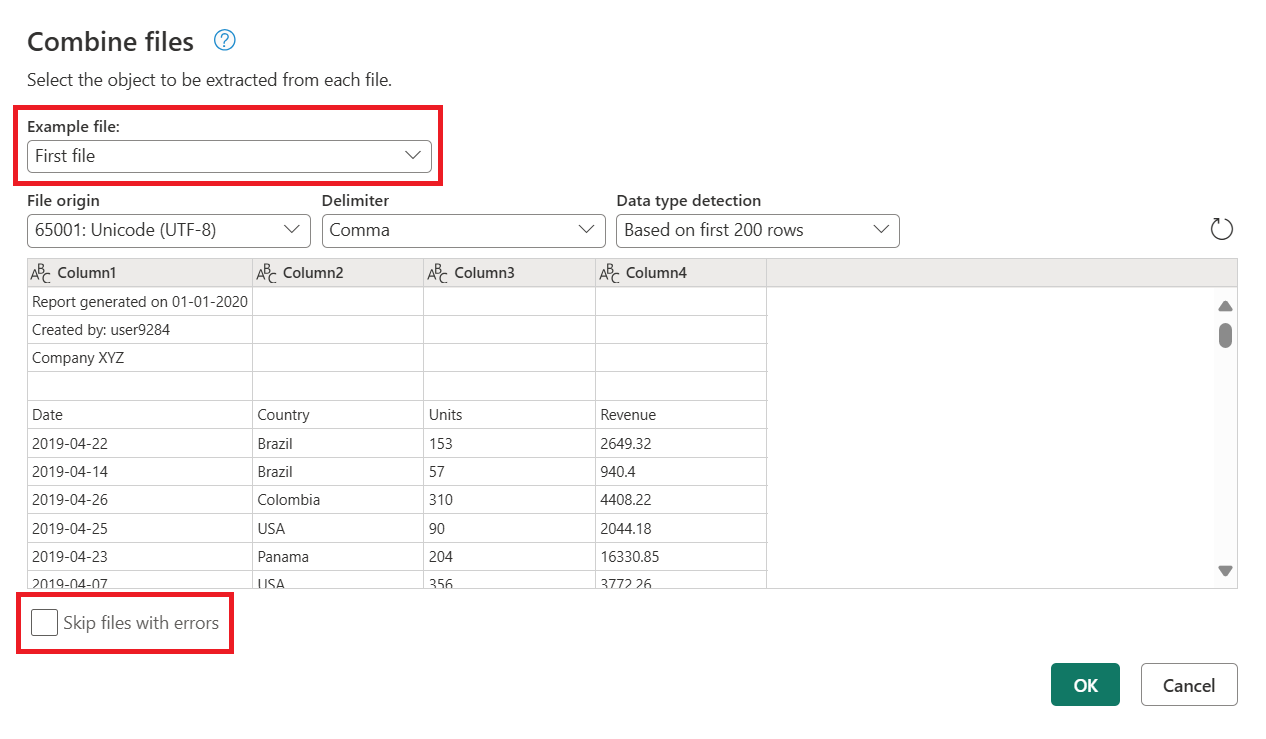

Screenshot of the Combine files dialog with the example file and the skip files with errors options emphasized.

Combined files output

After the Combine files process is finished, Power Query automatically performs the following actions:

  1. Creates an example query that performs all the required extraction steps for a single file. It uses the file that was selected as the example file in the Combine files dialog.

    This example query has the name Transform Sample file in the Queries pane.

  2. Creates a function query that parameterizes the file/binary input to the example query. The example query and the function query are linked, so that changes to the example query are reflected in the function query.

    These queries are listed in the Helper queries group.

  3. Applies the function query to the original query with input binaries (for example, the folder query). So it applies the function query for binary inputs on each row, and then expands the resulting data extraction as top-level columns.

  4. Creates a new group with the prefix Transform file from and the initial query as the suffix, and organizes all the components used to create these combined files in that group.

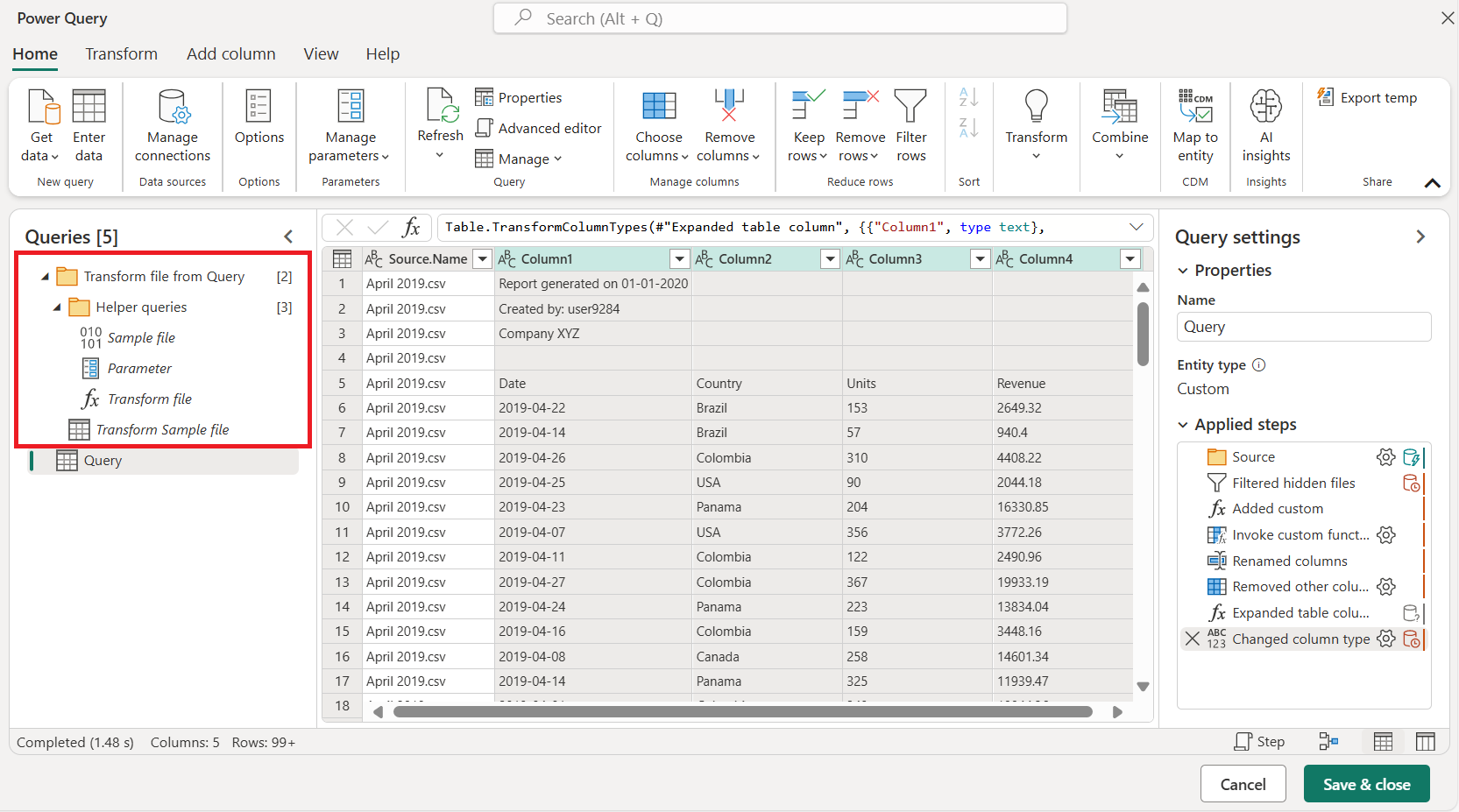

    Screenshot of the Combined files output.

You can easily combine all files within a given folder, as long as they have the same file type and structure (including the same columns). You can also apply more transformation or extraction steps by modifying the automatically generated example query, without having to worry about modifying or creating other function query steps.

Note

You can modify the steps inside the example query to change the function applied to each binary in your query. The example query is linked to the function, so any changes made to the example query is reflected in the function query.

If any of the changes affect column names or column data types, be sure to check the last step of your output query. Adding a Change column type step can introduce a step-level error that prevents you from visualizing your table. More information: Dealing with errors
