Integrate with coding agents

Important

This feature is in Beta. Account admins can control access to this feature from the Previews page.

With the Azure Databricks coding agent integration, you can manage access and usage for coding agents like Cursor, Gemini CLI, Codex CLI, and Claude Code. Built on AI Gateway, it provides rate limiting, usage tracking, and inference tables for your coding tools.

Features

• Access: Direct access to various coding tools and models, all under one invoice.
• Observability: A single unified dashboard to track usage, spend, and metrics across all your coding tools.
• Unified governance: Admins can manage model permissions and rate limits directly through AI Gateway.

Requirements

• AI Gateway (Beta) preview enabled for your account.
• A Azure Databricks workspace in a AI Gateway (Beta) supported region.
• Unity Catalog enabled for your workspace. See Enable a workspace for Unity Catalog.

Supported agents

The following coding agents are supported:

• Cursor
• Codex CLI
• Gemini CLI
• Claude Code

Setup

Cursor

To configure Cursor to use AI Gateway endpoints:

Step 1: Configure base URL and API key

1. Open Cursor and navigate to Settings > Cursor Settings > Models > API Keys.

2. Enable Override OpenAI Base URL and enter the URL:

   https://<ai-gateway-url>/cursor/v1


   Replace <ai-gateway-url> with your AI Gateway endpoint URL.

3. Paste your Azure Databricks personal access token into the OpenAI API Key field.

Step 2: Add custom models

1. Click + Add Custom Model in Cursor Settings.
2. Add your AI Gateway endpoint name and enable the toggle.

Note

Currently, only Azure Databricks-created foundation model endpoints are supported.

Step 3: Test the integration

1. Open Ask mode with Cmd+L (macOS) or Ctrl+L (Windows/Linux) and select your model.
2. Send a message. All requests now route through Azure Databricks.

Codex CLI

Step 1: Set the DATABRICKS_TOKEN environment variable

export DATABRICKS_TOKEN=<databricks_pat_token>

Step 2: Configure the Codex client

Create or edit the Codex configuration file at ~/.codex/config.toml:

profile = "default"

[profiles.default]
model_provider = "proxy"
model = "databricks-gpt-5-2"

[model_providers.proxy]
name = "Databricks Proxy"
base_url = "https://<ai-gateway-url>/openai/v1"
env_key = "DATABRICKS_TOKEN"
wire_api = "responses"

Replace <ai-gateway-url> with your AI Gateway endpoint URL.

Gemini CLI

Step 1: Install the latest version of Gemini CLI

npm install -g @google/gemini-cli@nightly

Step 2: Configure environment variables

Create a file ~/.gemini/.env and add the following configuration. See the Gemini CLI authentication docs for more details.

GEMINI_MODEL=databricks-gemini-2-5-flash
GOOGLE_GEMINI_BASE_URL=https://<ai-gateway-url>/gemini
GEMINI_API_KEY_AUTH_MECHANISM="bearer"
GEMINI_API_KEY=<databricks_pat_token>

Replace <ai-gateway-url> with your AI Gateway endpoint URL and <databricks_pat_token> with your personal access token.

Claude Code

Step 1: Configure the Claude Code client

Add the following configuration to ~/.claude/settings.json. See the Claude Code settings docs for more details.

{
  "env": {
    "ANTHROPIC_MODEL": "databricks-claude-opus-4-6",
    "ANTHROPIC_BASE_URL": "https://<ai-gateway-url>/anthropic",
    "ANTHROPIC_AUTH_TOKEN": "<databricks_pat_token>",
    "ANTHROPIC_CUSTOM_HEADERS": "x-databricks-use-coding-agent-mode: true",
    "CLAUDE_CODE_DISABLE_EXPERIMENTAL_BETAS": "1"
  }
}

Replace <ai-gateway-url> with your AI Gateway endpoint URL and <databricks_pat_token> with your personal access token.

Step 2 (optional): Set up OpenTelemetry metrics collection

See Set up OpenTelemetry data collection for details on exporting metrics and logs from Claude Code to Unity Catalog managed Delta tables.

Dashboard

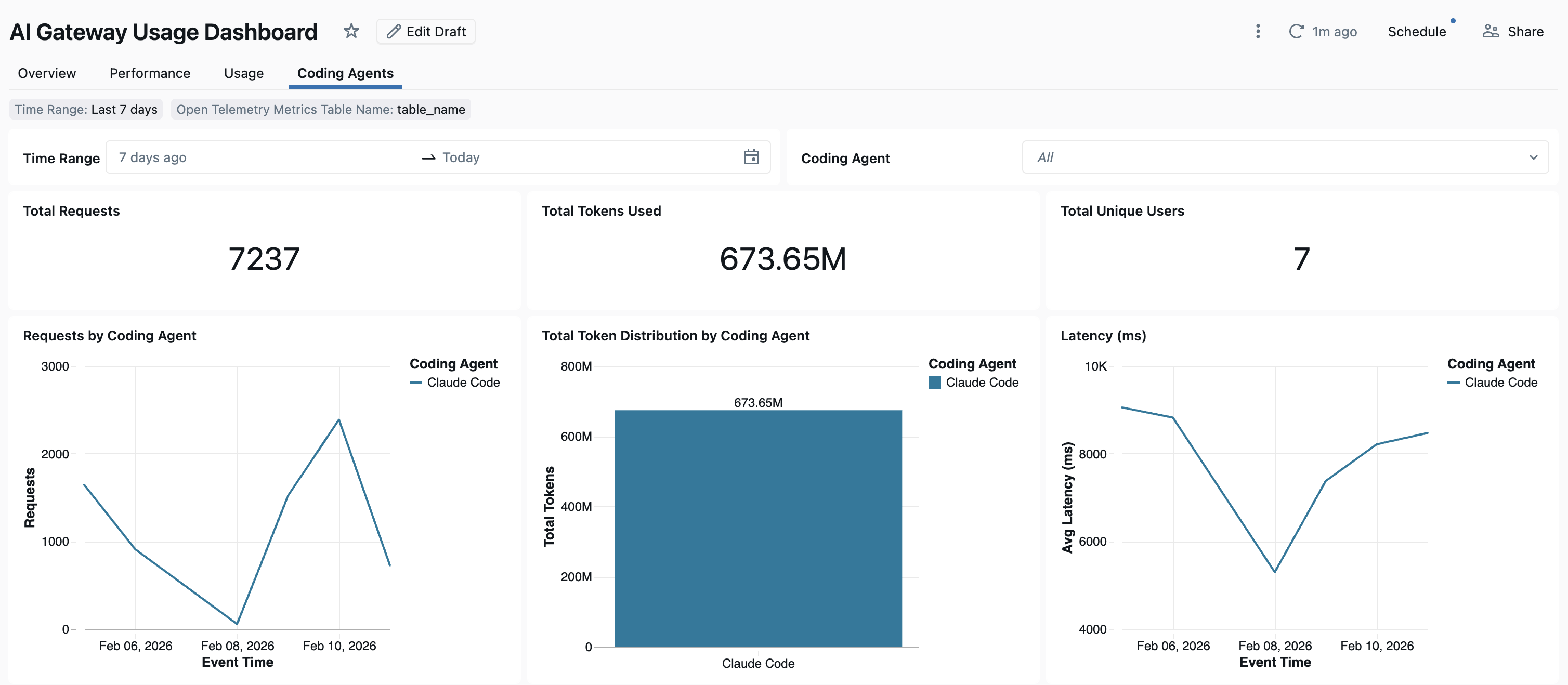

Once coding agent usage is tracked through AI Gateway, you can view and monitor your metrics in the out-of-the-box dashboard.

To access the dashboard, select View dashboard from the AI Gateway page. This creates a pre-configured dashboard with graphs for coding tool usage.

Set up OpenTelemetry data collection

Azure Databricks supports exporting OpenTelemetry metrics and logs from Claude Code to Unity Catalog managed Delta tables. All metrics are time series data exported using the OpenTelemetry standard metrics protocol, and logs are exported using the OpenTelemetry logs protocol. For available metrics and events, see Claude Code monitoring usage.

Requirements

• OpenTelemetry on Azure Databricks preview enabled. See Manage Azure Databricks previews.

Step 1: Create OpenTelemetry tables in Unity Catalog

Create Unity Catalog managed tables preconfigured with the OpenTelemetry metrics and logs schemas.

Metrics table

CREATE TABLE <catalog>.<schema>.<table_prefix>_otel_metrics (
  name STRING,
  description STRING,
  unit STRING,
  metric_type STRING,
  gauge STRUCT<
    start_time_unix_nano: LONG,
    time_unix_nano: LONG,
    value: DOUBLE,
    exemplars: ARRAY<STRUCT<
      time_unix_nano: LONG,
      value: DOUBLE,
      span_id: STRING,
      trace_id: STRING,
      filtered_attributes: MAP<STRING, STRING>
    >>,
    attributes: MAP<STRING, STRING>,
    flags: INT
  >,
  sum STRUCT<
    start_time_unix_nano: LONG,
    time_unix_nano: LONG,
    value: DOUBLE,
    exemplars: ARRAY<STRUCT<
      time_unix_nano: LONG,
      value: DOUBLE,
      span_id: STRING,
      trace_id: STRING,
      filtered_attributes: MAP<STRING, STRING>
    >>,
    attributes: MAP<STRING, STRING>,
    flags: INT,
    aggregation_temporality: STRING,
    is_monotonic: BOOLEAN
  >,
  histogram STRUCT<
    start_time_unix_nano: LONG,
    time_unix_nano: LONG,
    count: LONG,
    sum: DOUBLE,
    bucket_counts: ARRAY<LONG>,
    explicit_bounds: ARRAY<DOUBLE>,
    exemplars: ARRAY<STRUCT<
      time_unix_nano: LONG,
      value: DOUBLE,
      span_id: STRING,
      trace_id: STRING,
      filtered_attributes: MAP<STRING, STRING>
    >>,
    attributes: MAP<STRING, STRING>,
    flags: INT,
    min: DOUBLE,
    max: DOUBLE,
    aggregation_temporality: STRING
  >,
  exponential_histogram STRUCT<
    attributes: MAP<STRING, STRING>,
    start_time_unix_nano: LONG,
    time_unix_nano: LONG,
    count: LONG,
    sum: DOUBLE,
    scale: INT,
    zero_count: LONG,
    positive_bucket: STRUCT<
      offset: INT,
      bucket_counts: ARRAY<LONG>
    >,
    negative_bucket: STRUCT<
      offset: INT,
      bucket_counts: ARRAY<LONG>
    >,
    flags: INT,
    exemplars: ARRAY<STRUCT<
      time_unix_nano: LONG,
      value: DOUBLE,
      span_id: STRING,
      trace_id: STRING,
      filtered_attributes: MAP<STRING, STRING>
    >>,
    min: DOUBLE,
    max: DOUBLE,
    zero_threshold: DOUBLE,
    aggregation_temporality: STRING
  >,
  summary STRUCT<
    start_time_unix_nano: LONG,
    time_unix_nano: LONG,
    count: LONG,
    sum: DOUBLE,
    quantile_values: ARRAY<STRUCT<
      quantile: DOUBLE,
      value: DOUBLE
    >>,
    attributes: MAP<STRING, STRING>,
    flags: INT
  >,
  metadata MAP<STRING, STRING>,
  resource STRUCT<
    attributes: MAP<STRING, STRING>,
    dropped_attributes_count: INT
  >,
  resource_schema_url STRING,
  instrumentation_scope STRUCT<
    name: STRING,
    version: STRING,
    attributes: MAP<STRING, STRING>,
    dropped_attributes_count: INT
  >,
  metric_schema_url STRING
) USING DELTA
TBLPROPERTIES (
  'otel.schemaVersion' = 'v1'
)

Logs table

CREATE TABLE <catalog>.<schema>.<table_prefix>_otel_logs (
  event_name STRING,
  trace_id STRING,
  span_id STRING,
  time_unix_nano LONG,
  observed_time_unix_nano LONG,
  severity_number STRING,
  severity_text STRING,
  body STRING,
  attributes MAP<STRING, STRING>,
  dropped_attributes_count INT,
  flags INT,
  resource STRUCT<
    attributes: MAP<STRING, STRING>,
    dropped_attributes_count: INT
  >,
  resource_schema_url STRING,
  instrumentation_scope STRUCT<
    name: STRING,
    version: STRING,
    attributes: MAP<STRING, STRING>,
    dropped_attributes_count: INT
  >,
  log_schema_url STRING
) USING DELTA
TBLPROPERTIES (
  'otel.schemaVersion' = 'v1'
)

Step 2: Update the Claude Code settings file

Add the following environment variables to the env block in your ~/.claude/settings.json file to enable metrics and logs export:

{
  "env": {
    "CLAUDE_CODE_ENABLE_TELEMETRY": "1",
    "OTEL_METRICS_EXPORTER": "otlp",
    "OTEL_EXPORTER_OTLP_METRICS_PROTOCOL": "http/protobuf",
    "OTEL_EXPORTER_OTLP_METRICS_ENDPOINT": "https://<workspace-url>/api/2.0/otel/v1/metrics",
    "OTEL_EXPORTER_OTLP_METRICS_HEADERS": "content-type=application/x-protobuf,Authorization=Bearer <databricks_pat_token>,X-Databricks-UC-Table-Name=<catalog>.<schema>.<table_prefix>_otel_metrics",
    "OTEL_METRIC_EXPORT_INTERVAL": "10000",
    "OTEL_LOGS_EXPORTER": "otlp",
    "OTEL_EXPORTER_OTLP_LOGS_PROTOCOL": "http/protobuf",
    "OTEL_EXPORTER_OTLP_LOGS_ENDPOINT": "https://<workspace-url>/api/2.0/otel/v1/logs",
    "OTEL_EXPORTER_OTLP_LOGS_HEADERS": "content-type=application/x-protobuf,Authorization=Bearer <databricks_pat_token>,X-Databricks-UC-Table-Name=<catalog>.<schema>.<table_prefix>_otel_logs",
    "OTEL_LOGS_EXPORT_INTERVAL": "5000"
  }
}

Replace the following:

• <workspace-url> with your Azure Databricks workspace URL.
• <databricks_pat_token> with your personal access token.
• <catalog>.<schema>.<table_prefix> with the catalog, schema, and table prefix used when creating the OpenTelemetry tables.

Note

The OTEL_METRIC_EXPORT_INTERVAL defaults to 60000 ms (60 seconds). The example above sets it to 10000 ms (10 seconds). The OTEL_LOGS_EXPORT_INTERVAL defaults to 5000 ms (5 seconds).

Step 3: Run Claude Code

claude

Your data should propagate to the Unity Catalog tables within 5 minutes.
