Protect your network
Applies to:
- Microsoft Defender for Endpoint Plan 1
- Microsoft Defender for Endpoint Plan 2
- Microsoft Defender XDR
- Microsoft Defender Antivirus
Platforms
- Windows
- macOS
- Linux
Want to experience Microsoft Defender for Endpoint? Sign up for a free trial.
Overview of network protection
Network protection helps protect devices from Internet-based events. Network protection is an attack surface reduction capability. It helps prevent employees from accessing dangerous domains through applications. Domains that host phishing scams, exploits, and other malicious content on the Internet are considered dangerous. Network protection expands the scope of Microsoft Defender SmartScreen to block all outbound HTTP(S) traffic that attempts to connect to low-reputation sources (based on the domain or hostname).
Network protection extends the protection in Web protection to the operating system level, and is a core component for Web Content Filtering (WCF). It provides the web protection functionality found in Microsoft Edge to other supported browsers and non-browser applications. Network protection also provides visibility and blocking of indicators of compromise (IOCs) when used with Endpoint detection and response. For example, network protection works with your custom indicators that you can use to block specific domains or host names.
Network protection coverage
The following table summarizes network protection areas of coverage.
| Feature | Microsoft Edge | 3rd-party browsers | Non-browser processes (e.g. PowerShell) |
|---|---|---|---|
| Web Threat Protection | SmartScreen must be enabled | Network protection must be in block mode | Network protection must be in block mode |
| Custom Indicators | SmartScreen must be enabled | Network protection must be in block mode | Network protection must be in block mode |
| Web Content Filtering | SmartScreen must be enabled | Network protection must be in block mode | Not supported |
Note
On Mac and Linux, you must have network protection in block mode to get support for these features in Edge. On Windows, network protection does not monitor Microsoft Edge. For processes other than Microsoft Edge and Internet Explorer, web protection scenarios leverage network protection for inspection and enforcement.
- IP is supported for all three protocols (TCP, HTTP, and HTTPS (TLS)).
- Only single IP addresses are supported (no CIDR blocks or IP ranges) in custom indicators.
- Encrypted URLs (full path) can only be blocked on first party browsers (Internet Explorer, Edge).
- Encrypted URLs (FQDN only) can be blocked in third party browsers (i.e. other than Internet Explorer, Edge).
- Full URL path blocks can be applied for unencrypted URLs.
There might be up to 2 hours of latency (usually less) between the time the action is taken, and the URL and IP being blocked.
Watch this video to learn how Network protection helps reduce the attack surface of your devices from phishing scams, exploits, and other malicious content.
Requirements for network protection
Network protection requires Windows 10 or 11 (Pro or Enterprise), Windows Server version 1803 or later, macOS version 11 or later, or Defender Supported Linux versions, and Microsoft Defender Antivirus real-time protection.
| Windows version | Microsoft Defender Antivirus |
|---|---|
| Windows 10 version 1709 or later, Windows 11, Windows Server 1803 or later | Make sure that Microsoft Defender Antivirus real-time protection, behavior monitoring and cloud-delivered protection are enabled (active) |
| Windows Server 2012 R2 and Windows Server 2016 with the unified agent | Platform Update version 4.18.2001.x.x or newer |
Why network protection is important
Network protection is a part of the attack surface reduction group of solutions in Microsoft Defender for Endpoint. Network protection enables the network layer to block URLs and IP addresses. Network protection can block URLs from being accessed by using certain browsers and standard network connections. By default, network protection guards your computers from known malicious URLs using the SmartScreen feed, which blocks malicious URLs in a manner similar to SmartScreen in Microsoft Edge browser. The network protection functionality can be extended to:
- Block IP/URL addresses from your own threat intelligence (indicators)
- Block unsanctioned services from Microsoft Defender for Cloud Apps
- Block browser access to websites based on category (Web content filtering)
Network protection is a critical part of the Microsoft protection and response stack.
Tip
For details about network protection for Windows Server, Linux, MacOS and Mobile Threat Defense (MTD), see Proactively hunt for threats with advanced hunting.
Block Command and Control attacks
Command and Control (C2) server computers are used by malicious users to send commands to systems previously compromised by malware. C2 attacks typically hide in cloud-based services such as file-sharing and webmail services, enabling the C2 servers to avoid detection by blending in with typical traffic.
C2 servers can be used to initiate commands that can:
- Steal data
- Control compromised computers in a botnet
- Disrupt legitimate applications
- Spread malware, such as ransomware
The network protection component of Defender for Endpoint identifies and blocks connections to C2 infrastructures used in human-operated ransomware attacks, using techniques like machine learning and intelligent indicator-of-compromise (IoC) identification.
Network protection: C2 detection and remediation
In its initial form, ransomware is a commodity threat, pre-programmed and focused on limited, specific outcomes (for example, encrypting a computer). However, ransomware has evolved into a sophisticated threat that is human-driven, adaptive, and focused on larger scale and more widespread outcomes, like holding an entire organization's assets or data for ransom.
Support for Command and Control servers (C2) is a key part of this ransomware evolution and is what enables these attacks to adapt to the environment they target. Breaking the link to the command-and-control infrastructure stops the progression of an attack to its next stage. For additional information about C2 detection and remediation, see Detecting and remediating command and control attacks at the network layer.
Network protection: New toast notifications
| New mapping | Response category | Sources |
|---|---|---|
| phishing | Phishing | SmartScreen |
| malicious | Malicious | SmartScreen |
| command and control | C2 | SmartScreen |
| command and control | COCO | SmartScreen |
| malicious | Untrusted | SmartScreen |
| by your IT admin | CustomBlockList | |
| by your IT admin | CustomPolicy |
Note
customAllowList does not generate notifications on endpoints.
New notifications for network protection determination
A new, publicly available capability in network protection utilizes functions in SmartScreen to block phishing activities from malicious command and control sites.
When an end user attempts to visit a website in an environment in which network protection is enabled, three scenarios are possible:
- The URL has a known good reputation - In this case the user is permitted access without obstruction, and there's no toast notification presented on the endpoint. In effect, the domain or URL is set to Allowed.
- The URL has an unknown or uncertain reputation - The user's access is blocked, but with the ability to circumvent (unblock) the block. In effect, the domain or url is set to Audit.
- The URL has a known bad (malicious) reputation - The user is prevented from access. In effect, the domain or url is set to Block.
Warn experience
A user visits a website:
If the url has an unknown or uncertain reputation, a toast notification will present the user with the following options:
Ok - The toast notification is released (removed), and the attempt to access the site is ended.
Unblock - The user will have access to the site for 24 hours; at which point the block is reenabled. The user can continue to use Unblock to access the site until such time that the administrator prohibits (blocks) the site, thus removing the option to Unblock.
Feedback - The toast notification presents the user with a link to submit a ticket, which the user can use to submit feedback to the administrator in an attempt to justify access to the site.
Note
The images shown here for warn experience and block experience (below) both list "blocked url" as example placeholder text; in a functioning environment the actual url or domain will be listed.

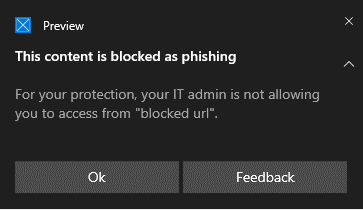

Block experience
A user visits a website:
- If the url has a bad reputation, a toast notification will present the user with the following options:
Ok The toast notification is released (removed), and the attempt to access the site is ended.
Feedback The toast notification presents the user with a link to submit a ticket, which the user can use to submit feedback to the administrator in an attempt to justify access to the site.
SmartScreen Unblock
With indicators in Defender for Endpoint, administrators can allow end users to bypass warnings that are generated for some URLs and IPs. Depending on why the URL was blocked, when a SmartScreen block is encountered it may offer the ability to unblock the site for up to 24 hours. In such cases, a Windows Security toast notification will appear, permitting the end-user to Unblock the URL or IP for the defined period of time.
Microsoft Defender for Endpoint administrators can configure SmartScreen Unblock functionality in the Microsoft Defender portal using an "allow" indicator for IPs, URLs, and domains.
See Create indicators for IPs and URLs/domains.
Using network protection
Network protection is enabled per device, which is typically done using your management infrastructure. For supported methods, see Turn on network protection.
Note
Microsoft Defender Antivirus must be active to enable network protection.
You can enable network protection in Audit mode or Block mode. If you want to evaluate the impact of enabling network protection before actually blocking IP addresses or URLs, you can enable network protection in Audit mode for time to gather data on what would be blocked. Audit mode logs when end users have connected to an address or site that would otherwise have been blocked by network protection. Note that in order for indicators of compromise (IoC) or Web content filtering (WCF) to work, network protection must be in "Block mode"
For information about network protection for Linux and macOS see: Network protection for Linux and Network protection for macOS.
Advanced hunting
If you're using advanced hunting to identify audit events, you'll have up to 30 days history available from the console. See Advanced hunting.
You can find the audit events in Advanced hunting in the Defender for Endpoint portal (https://security.microsoft.com).
Audit events are in DeviceEvents with an ActionType of ExploitGuardNetworkProtectionAudited. Blocks are shown with an ActionType of ExploitGuardNetworkProtectionBlocked.

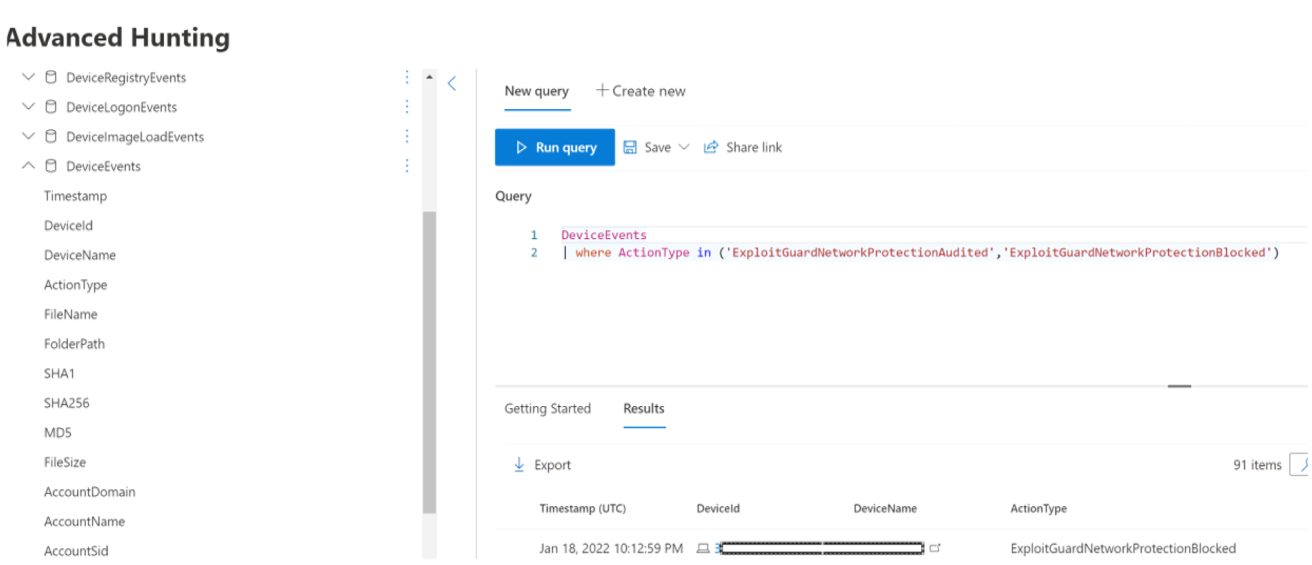

Here's an example query for viewing Network Protection events for third-party browsers:
DeviceEvents
|where ActionType in ('ExploitGuardNetworkProtectionAudited','ExploitGuardNetworkProtectionBlocked')
Tip
These entries have data in the AdditionalFields column which gives you great info around the action, if you expand AdditionalFields you can also get the fields: IsAudit, ResponseCategory, and DisplayName.
Here's another example:
DeviceEvents
|where ActionType contains "ExploitGuardNetworkProtection"
|extend ParsedFields=parse_json(AdditionalFields)
|project DeviceName, ActionType, Timestamp, RemoteUrl, InitiatingProcessFileName, IsAudit=tostring(ParsedFields.IsAudit), ResponseCategory=tostring(ParsedFields.ResponseCategory), DisplayName=tostring(ParsedFields.DisplayName)
|sort by Timestamp desc
The Response category tells you what caused the event, for example:
| ResponseCategory | Feature responsible for the event |
|---|---|
| CustomPolicy | WCF |
| CustomBlockList | Custom indicators |
| CasbPolicy | Defender for Cloud Apps |
| Malicious | Web threats |
| Phishing | Web threats |
For more information, see Troubleshoot endpoint blocks.
Note that Microsoft Defender SmartScreen events for the Microsoft Edge browser specifically, needs a different query:
DeviceEvents
| where ActionType == "SmartScreenUrlWarning"
| extend ParsedFields=parse_json(AdditionalFields)
| project DeviceName, ActionType, Timestamp, RemoteUrl, InitiatingProcessFileName
You can use the resulting list of URLs and IPs to determine what would have been blocked if the device was in block mode, and which feature blocked them. Review each item on the list to identify URLS or IPs whether any are necessary to your environment. If you find any entries that have been audited which are critical to your environment, create an Indicator to allow them in your network. Allow URL / IP indicators take precedence over any block.
Once you've created an indicator, you can look at resolving the underlying issue:
- SmartScreen – request review
- Indicator – modify existing indicator
- MCA – review unsanctioned APP
- WCF – request recategorization
Using this data you can make an informed decision on enabling Network protection in Block mode. See Order of precedence for Network protection blocks.
Note
As this is a per-device setting, if there are devices that cannot move to Block mode you can simply leave them on audit until you can rectify the challenge and you will still receive the auditing events.
For information about how to report false positives see Report false positives.
For details on how to create your own Power BI reports, see Create custom reports using Power BI.
Configuring network protection
For more information about how to enable network protection, see Enable network protection. Use Group Policy, PowerShell, or MDM CSPs to enable and manage network protection in your network.
After you've enabled network protection, you might need to configure your network or firewall to allow the connections between your endpoint devices and the web services:
.smartscreen.microsoft.com.smartscreen-prod.microsoft.com
Viewing network protection events
Network protection works best with Microsoft Defender for Endpoint, which gives you detailed reporting into exploit protection events and blocks as part of alert investigation scenarios.
When network protection blocks a connection, a notification is displayed from the Action Center. Your security operations team can customize the notification with your organization's details and contact information. In addition, individual attack surface reduction rules can be enabled and customized to suit certain techniques to monitor.
You can also use audit mode to evaluate how network protection would impact your organization if it were enabled.
Review network protection events in the Microsoft Defender portal
Defender for Endpoint provides detailed reporting into events and blocks as part of its alert investigation scenarios. You can view these details in the Microsoft Defender portal (https://security.microsoft.com) in the alerts queue or by using advanced hunting. If you're using audit mode, you can use advanced hunting to see how network protection settings would affect your environment if they were enabled.
Review network protection events in Windows Event Viewer
You can review the Windows event log to see events that are created when network protection blocks (or audits) access to a malicious IP or domain:
Select OK.
This procedure creates a custom view that filters to only show the following events related to network protection:
| Event ID | Description |
|---|---|
| 5007 | Event when settings are changed |
| 1125 | Event when network protection fires in audit mode |
| 1126 | Event when network protection fires in block mode |
Network protection and the TCP three-way handshake
With network protection, the determination of whether to allow or block access to a site is made after the completion of the three-way handshake via TCP/IP. Thus, when a site is blocked by network protection, you might see an action type of ConnectionSuccess under DeviceNetworkEvents in the Microsoft Defender portal, even though the site was blocked. DeviceNetworkEvents are reported from the TCP layer, and not from network protection. After the three-way handshake has completed, access to the site is allowed or blocked by network protection.
Here's an example of how that works:
Suppose that a user attempts to access a website on their device. The site happens to be hosted on a dangerous domain, and it should be blocked by network protection.
The three-way handshake via TCP/IP commences. Before it completes, a
DeviceNetworkEventsaction is logged, and itsActionTypeis listed asConnectionSuccess. However, as soon as the three-way handshake process completes, network protection blocks access to the site. All of this happens quickly. A similar process occurs with Microsoft Defender SmartScreen; it's when the three-way handshake completes that a determination is made, and access to a site is either blocked or allowed.In the Microsoft Defender portal, an alert is listed in the alerts queue. Details of that alert include both
DeviceNetworkEventsandAlertEvidence. You can see that the site was blocked, even though you also have aDeviceNetworkEventsitem with the ActionType ofConnectionSuccess.
Considerations for Windows virtual desktop running Windows 10 Enterprise Multi-Session
Due to the multi-user nature of Windows 10 Enterprise, keep the following points in mind:
Network protection is a device-wide feature and can't be targeted to specific user sessions.
Web content filtering policies are also device-wide.
If you need to differentiate between user groups, consider creating separate Windows Virtual Desktop host pools and assignments.
Test network protection in audit mode to assess its behavior before rolling out.
Consider resizing your deployment if you have a large number of users or a large number of multi-user sessions.
Alternative option for network protection
For Windows Server 2012R2/2016 unified MDE client, Windows Server version 1803 or newer, Windows Server 2019 or newer, and Windows 10 Enterprise Multi-Session 1909 and up, used in Windows Virtual Desktop on Azure, network protection for Microsoft Edge can be enabled using the following method:
Use Turn on network protection and follow the instructions to apply your policy.
Execute the following PowerShell commands:
Set-MpPreference -EnableNetworkProtection EnabledSet-MpPreference -AllowNetworkProtectionOnWinServer 1Set-MpPreference -AllowNetworkProtectionDownLevel 1Set-MpPreference -AllowDatagramProcessingOnWinServer 1Note
In some cases, depending on your infrastructure, volume of traffic, and other conditions,
Set-MpPreference -AllowDatagramProcessingOnWinServer 1can have an effect on network performance.
Network protection for Windows Servers
Following is information specific to Windows Servers.
Verify that network protection is enabled
Verify whether network protection is enabled on a local device by using Registry Editor.
Select the Start button in the task bar and type regedit to open the Registry Editor.
Select HKEY_LOCAL_MACHINE from the side menu.
Navigate through the nested menus to SOFTWARE > Policies > Microsoft > Windows defender > Windows Defender Exploit Guard > Network Protection.
(If the key is not present, navigate to SOFTWARE > Microsoft > Windows Defender > Windows Defender Exploit Guard > Network Protection)
Select EnableNetworkProtection to see the current state of network protection on the device:
- 0 = Off
- 1 = On (enabled)
- 2 = Audit mode
For additional information, see: Turn on network protection
Network protection suggestion
For Windows Server 2012R2/2016 unified MDE client, Windows Server version 1803 or newer, Windows Server 2019 or newer, and Windows 10 Enterprise Multi-Session 1909 and up (used in Windows Virtual Desktop on Azure), there are additional registry keys that must be enabled:
HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows Defender\Windows Defender Exploit Guard\Network Protection
- AllowNetworkProtectionOnWinServer (dword) 1 (hex)
- EnableNetworkProtection (dword) 1 (hex)
- AllowNetworkProtectionDownLevel (dword) 1 (hex) - Windows Server 2012R2 and Windows Server 2016 only
Note
Depending on your infrastructure, volume of traffic, and other conditions, HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Windows Defender \NIS\Consumers\IPS - AllowDatagramProcessingOnWinServer (dword) 1 (hex) can have an effect on network performance.
For additional information, see: Turn on network protection
Windows Servers and Windows Multi-session configuration requires PowerShell
For Windows Servers and Windows Multi-session, there are additional items that you must enable by using PowerShell cmdlets. For Windows Server 2012R2/2016 unified MDE client, Windows Server version 1803 or newer, Windows Server 2019 or newer, and Windows 10 Enterprise Multi-Session 1909 and up, used in Windows Virtual Desktop on Azure.
- Set-MpPreference -EnableNetworkProtection Enabled
- Set-MpPreference -AllowNetworkProtectionOnWinServer 1
- Set-MpPreference -AllowNetworkProtectionDownLevel 1
- Set-MpPreference -AllowDatagramProcessingOnWinServer 1
Note
In some cases, depending on your infrastructure, volume of traffic, and other conditions, Set-MpPreference -AllowDatagramProcessingOnWinServer 1 can have an effect on network performance.
Network protection troubleshooting
Due to the environment where network protection runs, the feature might not be able to detect operating system proxy settings. In some cases, network protection clients are unable to reach the cloud service. To resolve the connectivity problem, configure a static proxy for Microsoft Defender Antivirus.
Note
Before starting troubleshooting, make sure to set the QUIC protocol to disabled in browsers that are used. QUIC protocol is not supported with Network Protection functionality.
Optimizing network protection performance
Network protection now has a performance optimization that allows Block mode to start asynchronously inspecting long-lived connections, which might provide a performance improvement and can also help with app compatibility problems. This optimization capability is on by default. You can turn off this capability by using the following PowerShell cmdlet:
Set-MpPreference -AllowSwitchToAsyncInspection $false
