Monitor Azure IoT Hub Device Provisioning Service

  • Bài viết

This article describes:

  • The types of monitoring data you can collect for this service.
  • Ways to analyze that data.

Note

If you're already familiar with this service and/or Azure Monitor and just want to know how to analyze monitoring data, see the Analyze section near the end of this article.

When you have critical applications and business processes that rely on Azure resources, you need to monitor and get alerts for your system. The Azure Monitor service collects and aggregates metrics and logs from every component of your system. Azure Monitor provides you with a view of availability, performance, and resilience, and notifies you of issues. You can use the Azure portal, PowerShell, Azure CLI, REST API, or client libraries to set up and view monitoring data.

This article describes the monitoring data generated by Azure IoT Hub Device Provisioning Service (DPS). DPS uses Azure Monitor.

Resource types

Azure uses the concept of resource types and IDs to identify everything in a subscription. Resource types are also part of the resource IDs for every resource running in Azure. For example, one resource type for a virtual machine is Microsoft.Compute/virtualMachines. For a list of services and their associated resource types, see Resource providers.

Azure Monitor similarly organizes core monitoring data into metrics and logs based on resource types, also called namespaces. Different metrics and logs are available for different resource types. Your service might be associated with more than one resource type.

For more information about the resource types for IoT Hub DPS, see Azure IoT Hub Device Provisioning Service monitoring data reference.

Data storage

For Azure Monitor:

  • Metrics data is stored in the Azure Monitor metrics database.
  • Log data is stored in the Azure Monitor logs store. Log Analytics is a tool in the Azure portal that can query this store.
  • The Azure activity log is a separate store with its own interface in the Azure portal.

You can optionally route metric and activity log data to the Azure Monitor logs store. You can then use Log Analytics to query the data and correlate it with other log data.

Many services can use diagnostic settings to send metric and log data to other storage locations outside Azure Monitor. Examples include Azure Storage, hosted partner systems, and non-Azure partner systems, by using Event Hubs.

For detailed information on how Azure Monitor stores data, see Azure Monitor data platform.

Collection and routing

Resource Logs aren't collected and stored until you create a diagnostic setting and route them to one or more locations.

In Azure portal, you can select Diagnostic settings under Monitoring on the left-pane of your DPS instance followed by Add diagnostic setting to create diagnostic settings scoped to the logs and platform metrics emitted by your instance.

The following screenshot shows a diagnostic setting for routing to a Log Analytics workspace.

Diagnostic Settings pane for a DPS instance.

See Create diagnostic setting to collect platform logs and metrics in Azure for the detailed process for creating a diagnostic setting using the Azure portal, CLI, or PowerShell. When you create a diagnostic setting, you specify which categories of logs to collect. The categories for DPS are listed in Resource logs in the Azure IoT Hub Device Provisioning Service monitoring data reference.

Azure Monitor platform metrics

Azure Monitor provides platform metrics for most services. These metrics are:

  • Individually defined for each namespace.
  • Stored in the Azure Monitor time-series metrics database.
  • Lightweight and capable of supporting near real-time alerting.
  • Used to track the performance of a resource over time.

Collection: Azure Monitor collects platform metrics automatically. No configuration is required.

Routing: You can also usually route platform metrics to Azure Monitor Logs / Log Analytics so you can query them with other log data. For more information, see the Metrics diagnostic setting. For how to configure diagnostic settings for a service, see Create diagnostic settings in Azure Monitor.

For a list of all metrics it's possible to gather for all resources in Azure Monitor, see Supported metrics in Azure Monitor.

For a list of available metrics for IoT Hub DPS, see IoT Hub DPS monitoring data reference.

Using Azure Monitor to view metrics and set up alerts

To view and set up alerts on IoT Hub Device Provisioning Service metrics:

  1. Sign in to the Azure portal.
  2. Browse to your IoT Hub Device Provisioning Service.
  3. Select Metrics.
  4. Select the desired metric. For supported metrics, see Metrics.
  5. Select desired aggregation method to create a visual view of the metric.
  6. To set up an alert of a metric, select New alert rules from the top right of the metric area, similarly you can go to Alert pane and select New alert rules.
  7. Select Add condition, then select the desired metric and threshold by following prompts.

To learn more about viewing metrics and setting up alerts on your DPS instance, see Analyzing metrics and Alerts in Monitor Device Provisioning Service.

Analyzing metrics

You can analyze metrics for DPS with metrics from other Azure services using metrics explorer by opening Metrics from the Azure Monitor menu. See Analyze metrics with Azure Monitor metrics explorer for details on using this tool.

In Azure portal, you can select Metrics under Monitoring on the left-pane of your DPS instance to open metrics explorer scoped, by default, to the platform metrics emitted by your instance:

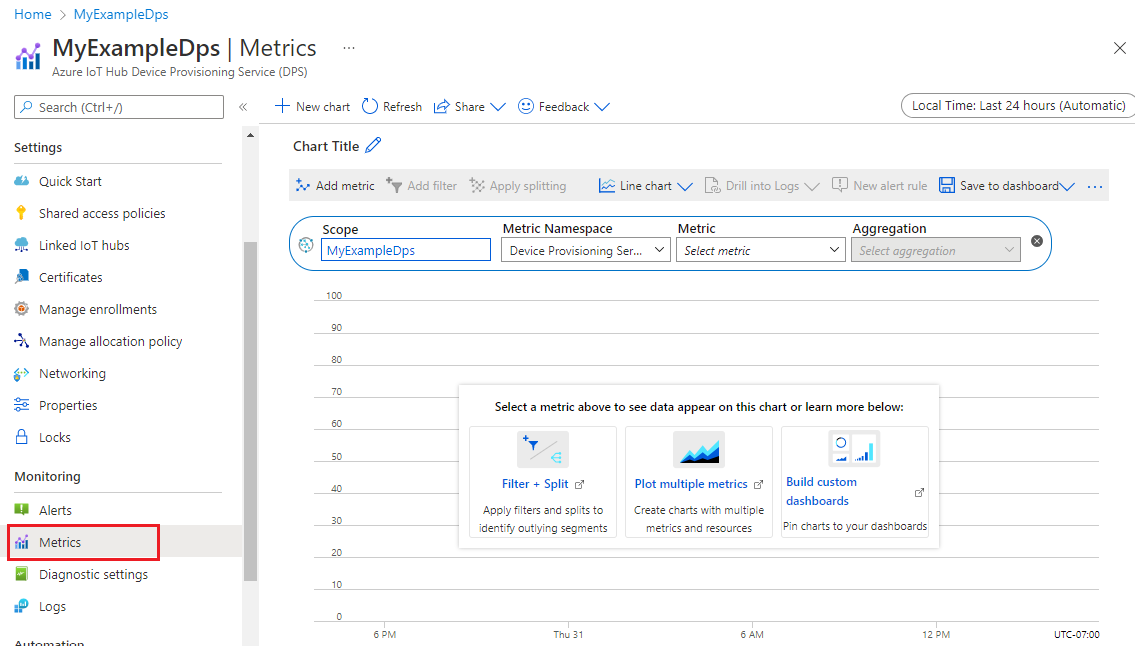

Screenshot showing the metrics explorer page for a DPS instance.

For a list of the platform metrics collected for DPS, see Metrics. For reference, you can see a list of all resource metrics supported in Azure Monitor.

Azure Monitor resource logs

Resource logs provide insight into operations that were done by an Azure resource. Logs are generated automatically, but you must route them to Azure Monitor logs to save or query them. Logs are organized in categories. A given namespace might have multiple resource log categories.

Collection: Resource logs aren't collected and stored until you create a diagnostic setting and route the logs to one or more locations. When you create a diagnostic setting, you specify which categories of logs to collect. There are multiple ways to create and maintain diagnostic settings, including the Azure portal, programmatically, and though Azure Policy.

Routing: The suggested default is to route resource logs to Azure Monitor Logs so you can query them with other log data. Other locations such as Azure Storage, Azure Event Hubs, and certain Microsoft monitoring partners are also available. For more information, see Azure resource logs and Resource log destinations.

For detailed information about collecting, storing, and routing resource logs, see Diagnostic settings in Azure Monitor.

For a list of all available resource log categories in Azure Monitor, see Supported resource logs in Azure Monitor.

All resource logs in Azure Monitor have the same header fields, followed by service-specific fields. The common schema is outlined in Azure Monitor resource log schema.

For the available resource log categories, their associated Log Analytics tables, and the log schemas for IoT Hub DPS, see IoT Hub DPS monitoring data reference.

Azure activity log

The activity log contains subscription-level events that track operations for each Azure resource as seen from outside that resource; for example, creating a new resource or starting a virtual machine.

Collection: Activity log events are automatically generated and collected in a separate store for viewing in the Azure portal.

Routing: You can send activity log data to Azure Monitor Logs so you can analyze it alongside other log data. Other locations such as Azure Storage, Azure Event Hubs, and certain Microsoft monitoring partners are also available. For more information on how to route the activity log, see Overview of the Azure activity log.

Analyzing logs

Data in Azure Monitor Logs is stored in tables where each table has its own set of unique properties.

To route data to Azure Monitor Logs, you must create a diagnostic setting to send resource logs or platform metrics to a Log Analytics workspace. To learn more, see Collection and routing.

In Azure portal, you can select Logs under Monitoring on the left-pane of your DPS instance to perform Log Analytics queries scoped, by default, to the logs and metrics collected in Azure Monitor Logs for your instance.

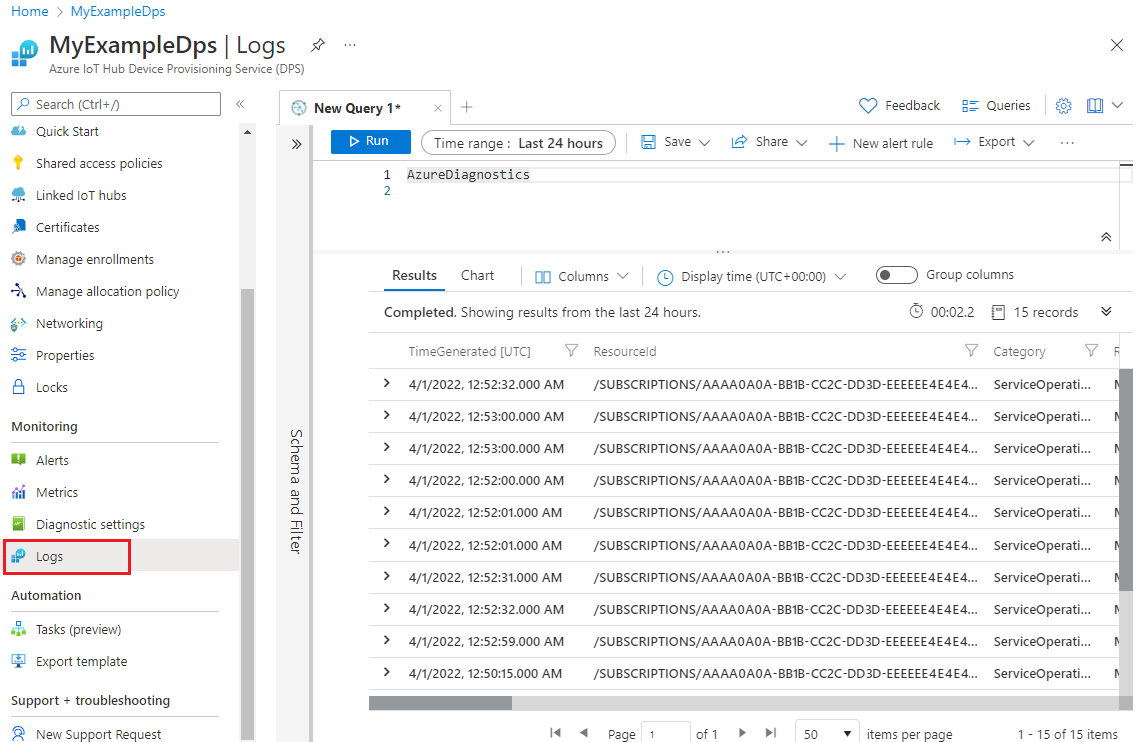

Screenshot shows the Logs page for a DPS instance.

Important

When you select Logs from the DPS menu, Log Analytics is opened with the query scope set to the current DPS instance. This means that log queries will only include data from that resource. If you want to run a query that includes data from other DPS instances or data from other Azure services, select Logs from the Azure Monitor menu. See Log query scope and time range in Azure Monitor Log Analytics for details.

Run queries against the AzureDiagnostics table to see the resource logs collected for the diagnostic settings you created for your DPS instance.

AzureDiagnostics

All resource logs in Azure Monitor have the same fields followed by service-specific fields. The common schema is outlined in Azure Monitor resource log schema The schema for DPS resource logs is found in Resource logs in the Monitoring Azure IoT Hub Device Provisioning Service data reference.

Using Log Analytics to view and resolve errors

  1. Sign in to the Azure portal.
  2. Browse to your Device Provisioning Service.
  3. Select Diagnostics settings.
  4. Select Add diagnostic setting.
  5. Configure the desired logs to be collected. For supported categories, see Resource logs.
  6. Select the box Send to Log Analytics (see pricing) and save.
  7. Go to Logs tab in the Azure portal under Device Provisioning Service resource.
  8. Write AzureDiagnostics as a query and select Run to view recent events.
  9. If there are results, look for OperationName, ResultType, ResultSignature, and ResultDescription (error message) to get more detail on the error.

Analyze monitoring data

There are many tools for analyzing monitoring data.

Azure Monitor tools

Azure Monitor supports the following basic tools:

Tools that allow more complex visualization include:

  • Dashboards that let you combine different kinds of data into a single pane in the Azure portal.
  • Workbooks, customizable reports that you can create in the Azure portal. Workbooks can include text, metrics, and log queries.
  • Grafana, an open platform tool that excels in operational dashboards. You can use Grafana to create dashboards that include data from multiple sources other than Azure Monitor.
  • Power BI, a business analytics service that provides interactive visualizations across various data sources. You can configure Power BI to automatically import log data from Azure Monitor to take advantage of these visualizations.

Azure Monitor export tools

You can get data out of Azure Monitor into other tools by using the following methods:

To get started with the REST API for Azure Monitor, see Azure monitoring REST API walkthrough.

Kusto queries

You can analyze monitoring data in the Azure Monitor Logs / Log Analytics store by using the Kusto query language (KQL).

Important

When you select Logs from the service's menu in the portal, Log Analytics opens with the query scope set to the current service. This scope means that log queries will only include data from that type of resource. If you want to run a query that includes data from other Azure services, select Logs from the Azure Monitor menu. See Log query scope and time range in Azure Monitor Log Analytics for details.

For a list of common queries for any service, see the Log Analytics queries interface.

Alerts

Azure Monitor alerts proactively notify you when specific conditions are found in your monitoring data. Alerts allow you to identify and address issues in your system before your customers notice them. For more information, see Azure Monitor alerts.

There are many sources of common alerts for Azure resources. For examples of common alerts for Azure resources, see Sample log alert queries. The Azure Monitor Baseline Alerts (AMBA) site provides a semi-automated method of implementing important platform metric alerts, dashboards, and guidelines. The site applies to a continually expanding subset of Azure services, including all services that are part of the Azure Landing Zone (ALZ).

The common alert schema standardizes the consumption of Azure Monitor alert notifications. For more information, see Common alert schema.

Types of alerts

You can alert on any metric or log data source in the Azure Monitor data platform. There are many different types of alerts depending on the services you're monitoring and the monitoring data you're collecting. Different types of alerts have various benefits and drawbacks. For more information, see Choose the right monitoring alert type.

The following list describes the types of Azure Monitor alerts you can create:

  • Metric alerts evaluate resource metrics at regular intervals. Metrics can be platform metrics, custom metrics, logs from Azure Monitor converted to metrics, or Application Insights metrics. Metric alerts can also apply multiple conditions and dynamic thresholds.
  • Log alerts allow users to use a Log Analytics query to evaluate resource logs at a predefined frequency.
  • Activity log alerts trigger when a new activity log event occurs that matches defined conditions. Resource Health alerts and Service Health alerts are activity log alerts that report on your service and resource health.

Some Azure services also support smart detection alerts, Prometheus alerts, or recommended alert rules.

For some services, you can monitor at scale by applying the same metric alert rule to multiple resources of the same type that exist in the same Azure region. Individual notifications are sent for each monitored resource. For supported Azure services and clouds, see Monitor multiple resources with one alert rule.

IoT Hub Device Provisioning Service alert rules

You can set alerts for any metric, log entry, or activity log entry listed in the IoT Hub DPS monitoring data reference.

Advisor recommendations

For some services, if critical conditions or imminent changes occur during resource operations, an alert displays on the service Overview page in the portal. You can find more information and recommended fixes for the alert in Advisor recommendations under Monitoring in the left menu. During normal operations, no advisor recommendations display.

For more information on Azure Advisor, see Azure Advisor overview.
