Quickstart: Configure the Microsoft Dev Box Preview service

This quickstart describes how to configure the Microsoft Dev Box service by using the Azure portal to enable development teams to self-serve dev boxes.

This quickstart will take you through the process of setting up your Dev Box environment. You'll create a dev center to organize your dev box resources, configure network components to enable dev boxes to connect to your organizational resources, and create a dev box definition that will form the basis of your dev boxes. You’ll then create a project and a dev box pool, which work together to help you give access to users who will manage or use the dev boxes.

After you've completed this quickstart, you'll have a Dev Box configuration ready for users to create and connect to dev boxes.

Prerequisites

To complete this quick start, make sure that you have:

  • An Azure account with an active subscription. Create an account for free.
  • Owner or Contributor permissions on an Azure Subscription or a specific resource group.
  • Network Contributor permissions on an existing virtual network (owner or contributor) or permission to create a new virtual network and subnet.
  • User licenses. To use Dev Box, each user must be licensed for Windows 11 Enterprise or Windows 10 Enterprise, Microsoft Intune, and Azure Active Directory P1.
    • These licenses are available independently and also included in the following subscriptions:
      • Microsoft 365 F3
      • Microsoft 365 E3, Microsoft 365 E5
      • Microsoft 365 A3, Microsoft 365 A5
      • Microsoft 365 Business Premium
      • Microsoft 365 Education Student Use Benefit
  • Azure Hybrid Benefit allows you to use your Windows licenses on Azure with Dev Box.

Create a dev center

To begin the configuration, you'll create a dev center to enable you to manage your dev box resources. The following steps show you how to create and configure a dev center.

  1. Sign in to the Azure portal.

  2. In the search box, type Dev centers and then select Dev centers in the search results.

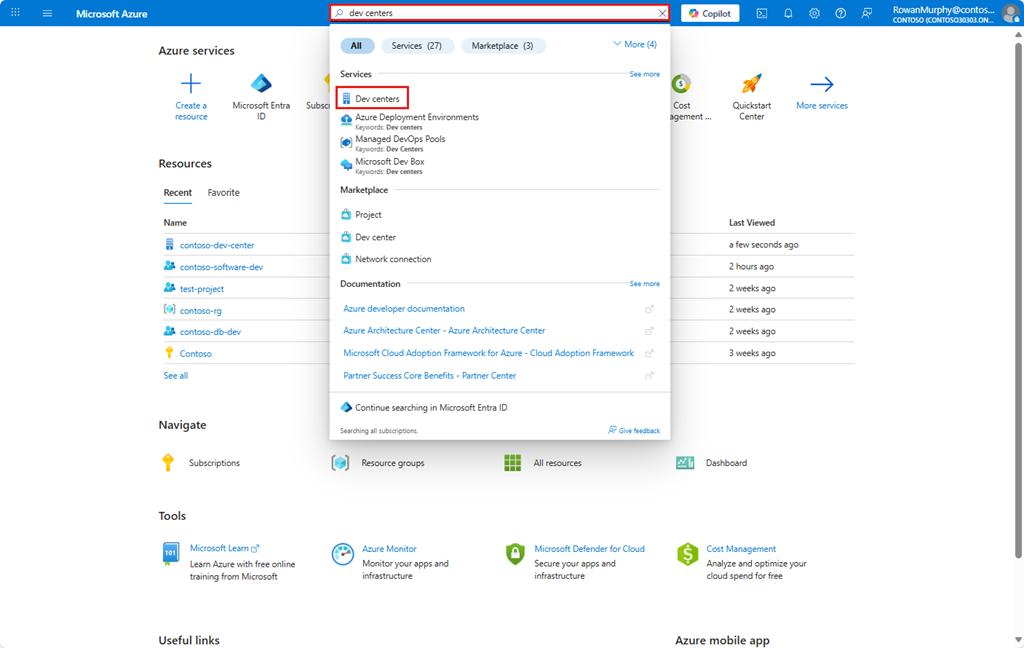

    Screenshot showing the Azure portal with the search box and dev centers result highlighted.

  3. On the dev centers page, select +Create.

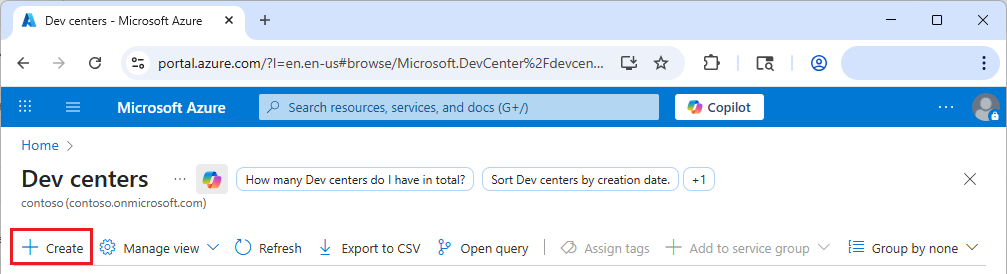

    Screenshot showing the Azure portal Dev center with create highlighted.

  4. On the Create a dev center page, on the Basics tab, enter the following values:

    Name Value
    Subscription Select the subscription in which you want to create the dev center.
    Resource group Select an existing resource group or select Create new, and enter a name for the resource group.
    Name Enter a name for your dev center.
    Location Select the location/region you want the dev center to be created in.

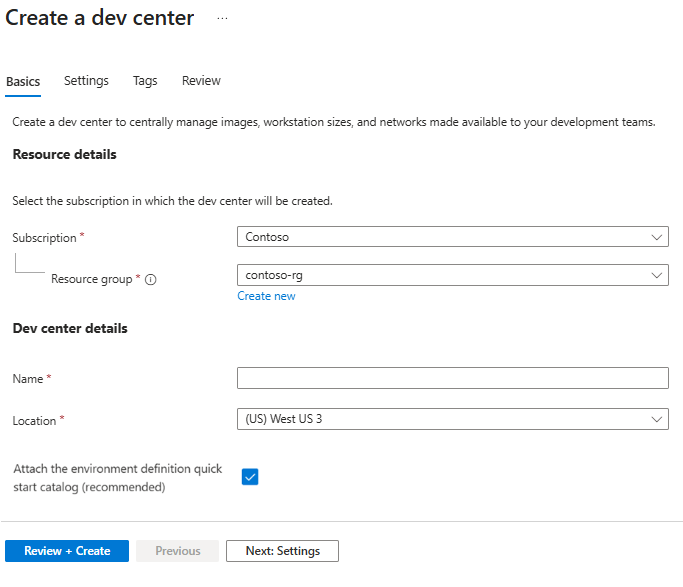

    Screenshot showing the Create dev center Basics tab.

    The currently supported Azure locations with capacity are listed here: Microsoft Dev Box Preview.

  5. [Optional] On the Tags tab, enter a name and value pair that you want to assign. Screenshot showing the Create dev center Tags tab.

  6. Select Review + Create.

  7. On the Review tab, select Create.

  8. You can check on the progress of the dev center creation from any page in the Azure portal by opening the notifications pane.

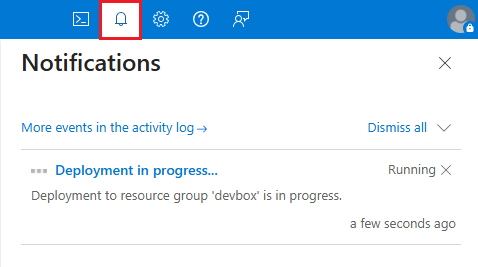

    Screenshot showing Azure portal notifications pane.

  9. When the deployment is complete, select Go to resource. You'll see the dev center page.

Create a network connection

Network connections determine the region into which dev boxes are deployed and allow them to be connected to your existing virtual networks. The following steps show you how to create and configure a network connection in Microsoft Dev Box.

To create a network connection, you must have:

Create a virtual network and subnet

You must have a vnet and subnet available for your network connection; create them using these steps:

  1. In the search box, type Virtual Network and then select Virtual Network in the search results.

  2. On the Virtual Network page, select Create.

  3. In Create virtual network, enter or select this information in the Basics tab:

    Screenshot of creating a virtual network in Azure portal.

    Setting Value
    Project details
    Subscription Select your subscription.
    Resource group Select an existing resource group or select Create new, and enter a name for the resource group.
    Instance details
    Name Enter a name for your vnet.
    Region Enter the location/region you want the vnet to be created in.
  4. On the IP Addresses tab, note the default IP address assignment and subnet. You can accept the defaults unless they conflict with your existing configuration.

  5. Select the Review + create tab. Review the vnet and subnet configuration.

  6. Select Create.

Create a network connection

Now that you have an available vnet and subnet, you need a network connection to associate the vnet and subnet with the dev center. Follow these steps to create a network connection:

  1. In the search box, type Network connections and then select Network connections in the search results.

  2. On the Network Connections page, select +Create. Screenshot showing the Network Connections page with Create highlighted.

  3. Follow the steps on the appropriate tab to create your network connection.

    On the Create a network connection page, on the Basics tab, enter the following values:

    Name Value
    Domain join type Select Azure active directory join.
    Subscription Select the subscription in which you want to create the network connection.
    Resource group Select an existing resource group or select Create new, and enter a name for the resource group.
    Name Enter a descriptive name for your network connection.
    Virtual network Select the virtual network you want the network connection to use.
    Subnet Select the subnet you want the network connection to use.

    Screenshot showing the create network connection basics tab with Azure Active Directory join highlighted.


  1. Select Review + Create.

  2. On the Review tab, select Create.

  3. When the deployment is complete, select Go to resource. You'll see the Network Connection overview page.

Attach network connection to dev center

To provide networking configuration information for dev boxes, you need to associate a network connection with a dev center. In this step, you'll attach the network connection to your dev center.

  1. In the search box, type Dev centers and then select Dev centers in the search results.

  2. Select the dev center you created and select Networking.

  3. Select + Add.

  4. In the Add network connection pane, select the network connection you created earlier, and then select Add.

After creation, several health checks are run on the network. You can view the status of the checks on the resource overview page. Network connections that pass all the health checks can be added to a dev center and used in the creation of dev box pools. The dev boxes within the dev box pools will be created and domain joined in the location of the vnet assigned to the network connection.

Screenshot showing the status of a network connection.

To resolve any errors, refer to the Troubleshoot Azure network connections.

Create a dev box definition

The following steps show you how to create and configure a dev box definition. Dev box definitions define the image and SKU (compute + storage) that will be used in creation of the dev boxes.

  1. Open the dev center in which you want to create the dev box definition.

  2. Select Dev box definitions.

  3. On the Dev box definitions page, select +Create.

  4. On the Create dev box definition page, enter the following values:

    Enter the following values:

    Name Value Note
    Name Enter a descriptive name for your dev box definition.
    Image Select the base operating system for the dev box. You can select an image from the Azure Marketplace or from an Azure Compute Gallery.
    If you're creating a dev box definition for testing purposes, consider using the Visual Studio 2022 Enterprise on Windows 11 Enterprise + Microsoft 365 Apps 22H2 image.
    To use custom images while creating a dev box definition, you can attach an Azure Compute Gallery that has the custom images. Learn How to configure an Azure Compute Gallery.
    Image version Select a specific, numbered version to ensure all the dev boxes in the pool always use the same version of the image. Select Latest to ensure new dev boxes use the latest image available. Selecting the Latest image version enables the dev box pool to use the most recent image version for your chosen image from the gallery. This way, the dev boxes created will stay up to date with the latest tools and code on your image. Existing dev boxes won't be modified when an image version is updated.
    Compute Select the compute combination for your dev box definition.
    Storage Select the amount of storage for your dev box definition.

    Screenshot showing the Create dev box definition page.

  5. Select Create.

Create a project

Dev box projects enable you to manage team level settings, including providing access to development teams so developers can create dev boxes.

The following steps show you how to create and configure a project in dev box.

  1. In the search box, type Projects and then select Projects in the search results.

  2. On the Projects page, select +Create.

  3. On the Create a project page, on the Basics tab, enter the following values:

    Name Value
    Subscription Select the subscription in which you want to create the project.
    Resource group Select an existing resource group or select Create new, and enter a name for the resource group.
    Dev center Select the dev center to which you want to associate this project. All the dev center level settings will be applied to the project.
    Name Enter a name for your project.
    Description Enter a brief description of the project.

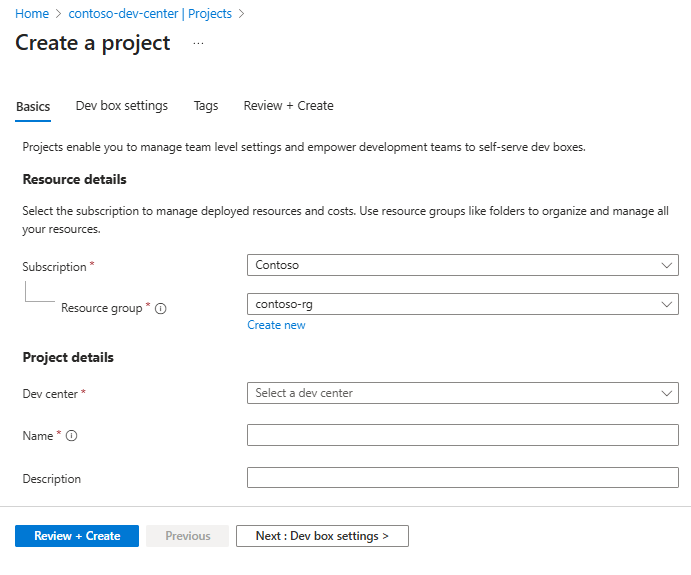

    Screenshot of the Create a dev box project basics tab.

  4. [Optional] On the Tags tab, enter a name and value pair that you want to assign.

  5. Select Review + Create.

  6. On the Review tab, select Create.

  7. Confirm that the project is created successfully by checking the notifications. Select Go to resource.

  8. Verify that you see the Project page.

Create a dev box pool

A dev box pool is a collection of dev boxes that have similar settings. Dev box pools specify the dev box definitions and network connections dev boxes will use. You must have at least one pool associated with your project before users can create a dev box.

The following steps show you how to create a dev box pool associated with a project.

  1. In the search box, type Projects and then select Projects in the search results.

  2. Open the project in which you want to create the dev box pool.

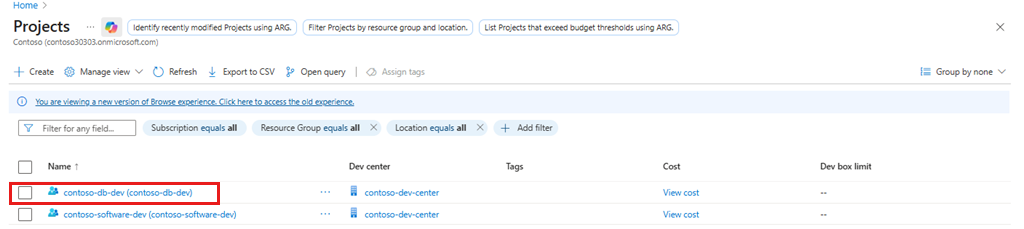

    Screenshot of the list of existing projects.

  3. Select Dev box pools and then select + Create.

    Screenshot of the list of dev box pools within a project. The list is empty.

  4. On the Create a dev box pool page, enter the following values:

    Name Value
    Name Enter a name for the pool. The pool name is visible to developers to select when they're creating dev boxes, and must be unique within a project.
    Dev box definition Select an existing dev box definition. The definition determines the base image and size for the dev boxes created within this pool.
    Network connection Select an existing network connection. The network connection determines the region of the dev boxes created within this pool.
    Dev Box Creator Privileges Select Local Administrator or Standard User.
    Enable Auto-stop Yes is the default. Select No to disable an Auto-stop schedule. You can configure an Auto-stop schedule after the pool has been created.
    Stop time Select a time to shutdown all the dev boxes in the pool. All Dev Boxes in this pool will be shut down at this time, everyday.
    Time zone Select the time zone that the stop time is in.
    Licensing Select this check box to confirm that your organization has Azure Hybrid Benefit licenses that you want to apply to the dev boxes in this pool.

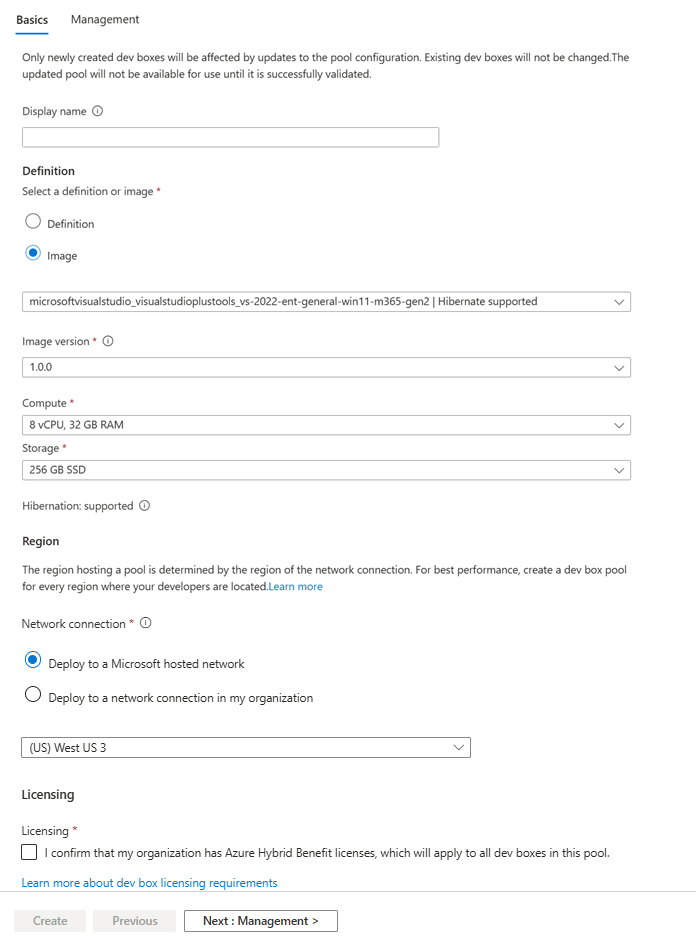

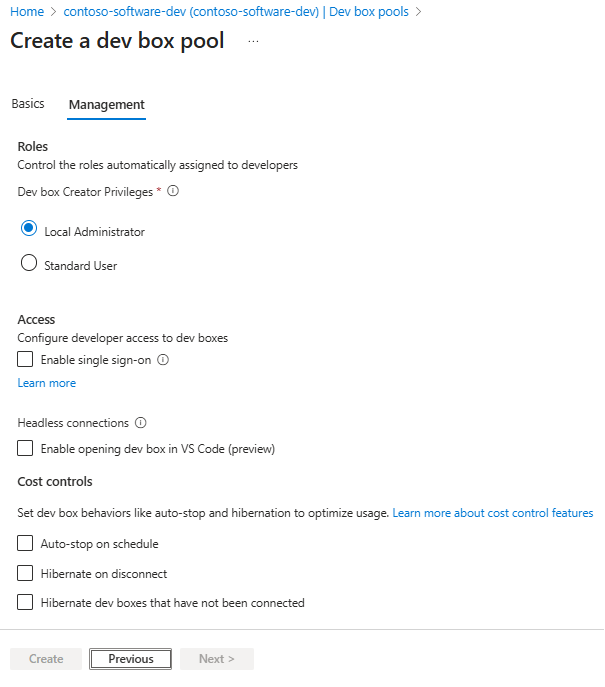

    Screenshot of the Create dev box pool dialog.

  5. Select Create.

  6. Verify that the new dev box pool appears in the list. You may need to refresh the screen.

The dev box pool will be deployed and health checks will be run to ensure the image and network pass the validation criteria to be used for dev boxes. The following screenshot shows four dev box pools, each with a different status.

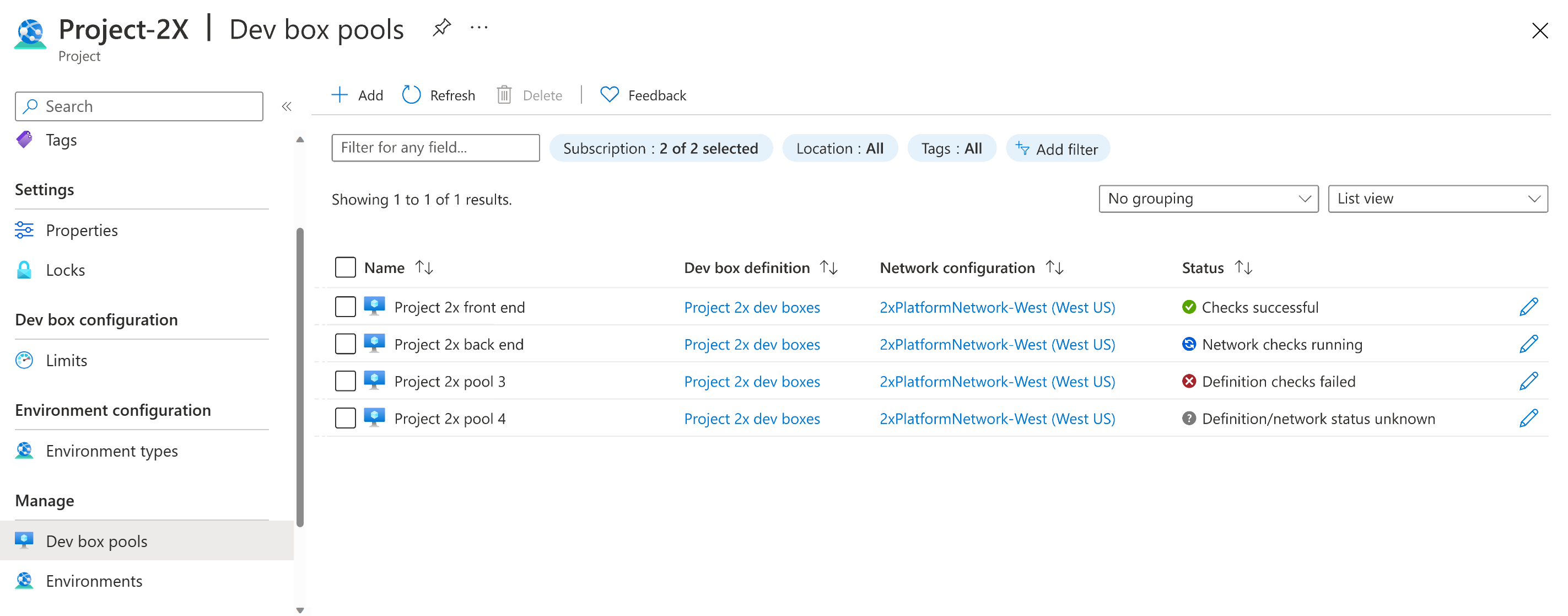

Screenshot showing a list of existing pools.

Provide access to a dev box project

Before users can create dev boxes based on the dev box pools in a project, you must provide access for them through a role assignment. The Dev Box User role enables dev box users to create, manage and delete their own dev boxes. You must have sufficient permissions to a project before you can add users to it.

  1. In the search box, type Projects and then select Projects in the search results.

  2. Select the project you want to provide your team members access to.

    Screenshot of the list of existing projects.

  3. Select Access Control (IAM) from the left menu.

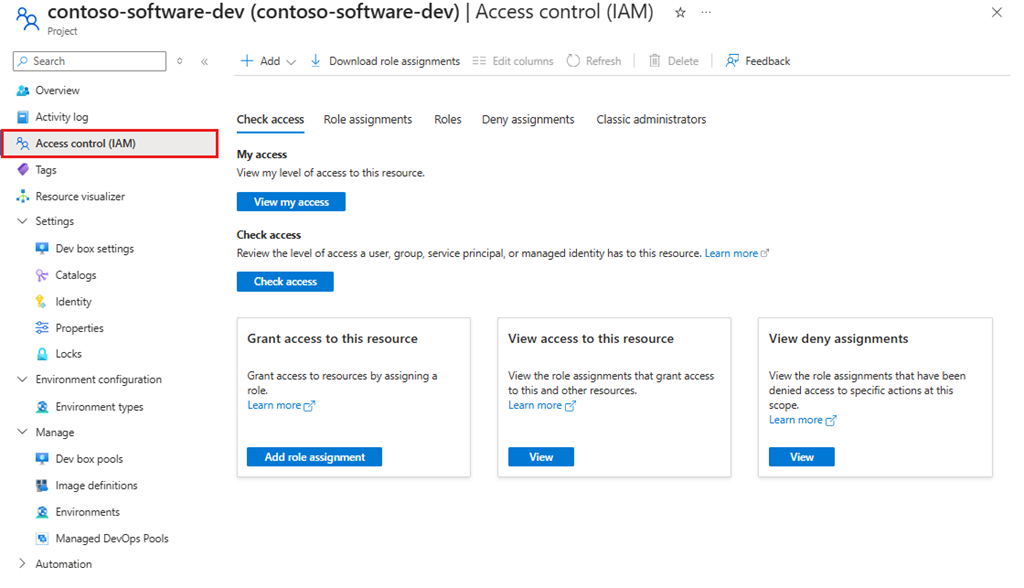

    Screenshot showing the Project Access control page with the Access Control link highlighted.

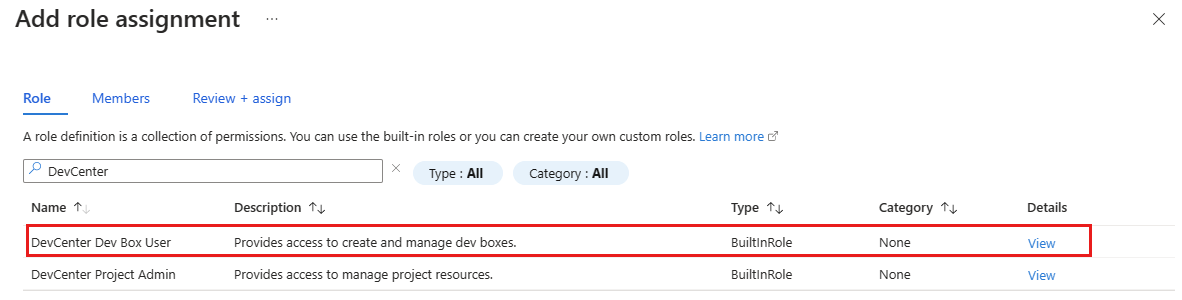

  4. Select Add > Add role assignment.

  5. Assign the following role. For detailed steps, see Assign Azure roles using the Azure portal.

    Setting Value
    Role DevCenter Dev Box User
    Assign access to User
    Members Your account

    The user will now be able to view the project and all the pools within it. They can create dev boxes from any of the pools and manage those dev boxes from the developer portal.

Note

Microsoft Dev Box Preview doesn't support the use of guest accounts or Microsoft Accounts (Live IDs).

Project admins

The Microsoft Dev Box service makes it possible for you to delegate administration of projects to a member of the project team. Project administrators can assist with the day-to-day management of projects for their team, like creating and managing dev box pools. To provide users permissions to manage projects, add them to the DevCenter Project Admin role.

You can assign the DevCenter Project Admin role by using the Provide access to a dev box project steps, but selecting the Project Admin role instead of the Dev Box User role. For more information, go to Provide access to projects for project admins.

Important

Users assigned the Dev Box User role or Project Admin role can create dev boxes.

Next steps

In this quickstart, you created a dev box project and the resources necessary to support it. You created a dev center, added a network connection, created a dev box definition, and a project. You then created a dev box pool within an existing project and assigned a user permission to create dev boxes based on the new pool.

To learn about how to create and connect to a dev box, advance to the next quickstart:
