Add Azure SQL Database CDC source to an eventstream

This article shows you how to add an Azure SQL Database Change Data Capture (CDC) source to an eventstream.

The Azure SQL Database CDC source connector for Microsoft Fabric event streams allows you to capture a snapshot of the current data in an Azure SQL database. The connector then monitors and records any future row-level changes to this data. Once the changes are captured in the eventstream, you can process this CDC data in real-time and send it to different destinations within Fabric for further processing or analysis.

Prerequisites

  • Access to a workspace in the Fabric capacity license mode (or) the Trial license mode with Contributor or higher permissions.
  • A running Azure SQL server with an Azure SQL database.
  • Your Azure SQL database must be publicly accessible and not be behind a firewall or secured in a virtual network.
  • Enabled CDC in your Azure SQL database by running the stored procedure sys.sp_cdc_enable_db. For details, see Enable and disable change data capture.
  • If you don't have an eventstream, create an eventstream.

Note that you must not enable mirroring in your Azure SQL database.

Enable CDC in your Azure SQL Database

  1. Go to the Azure portal, open your Azure SQL database, and select Query editor. Choose an authentication method to log in.

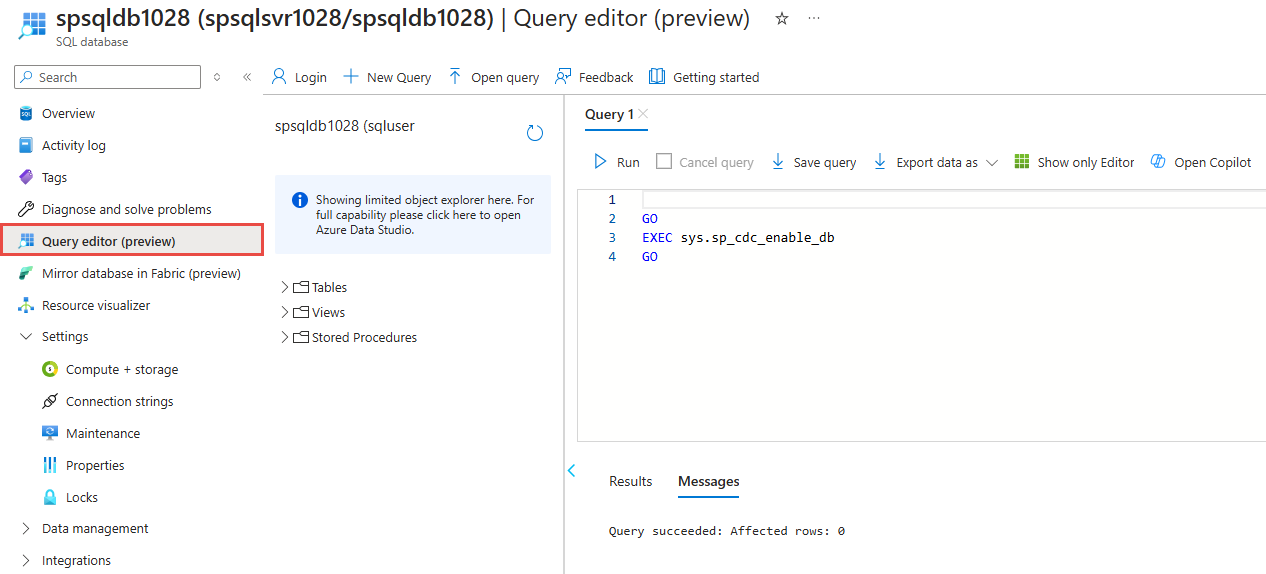

    A screenshot of opening Azure SQL database.

  2. Run the following SQL commands to enable CDC in your database:

    -- Enable Database for CDC
EXEC sys.sp_cdc_enable_db;

-- Enable CDC for a table using a gating role option
EXEC sys.sp_cdc_enable_table
    @source_schema = N'dbo',
    @source_name   = N'MyTable',
    @role_name     = NULL
GO

Launch the Select a data source wizard

If you haven't added any source to your eventstream yet, select the Use external source tile.

Screenshot that shows the selection of the tile for using an external source.

If you're adding the source to an already published eventstream, switch to Edit mode. On the ribbon, select Add source > External sources.

Screenshot that shows selections for adding external sources.

On the Select a data source page, search for and select Connect on the Azure SQL DB (CDC) tile.

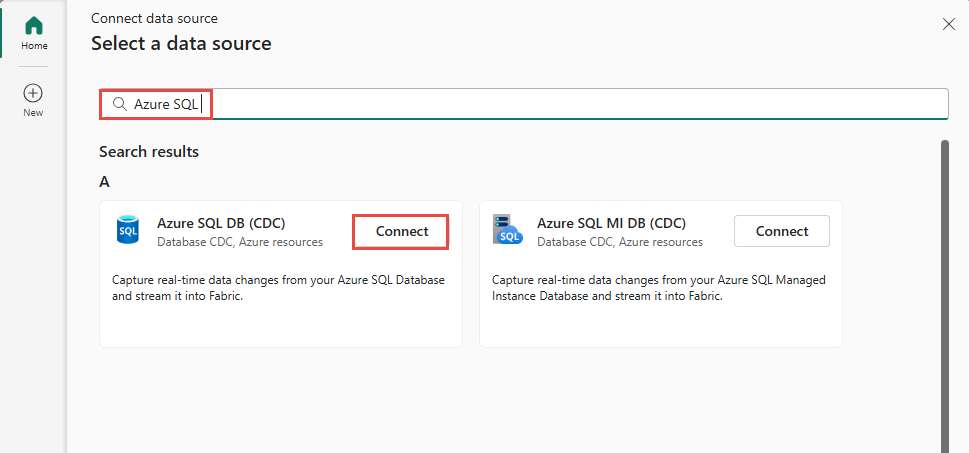

Screenshot that shows the selection of Azure SQL DB CDC as the source type in the Get events wizard.

Configure and connect to Azure SQL Database CDC

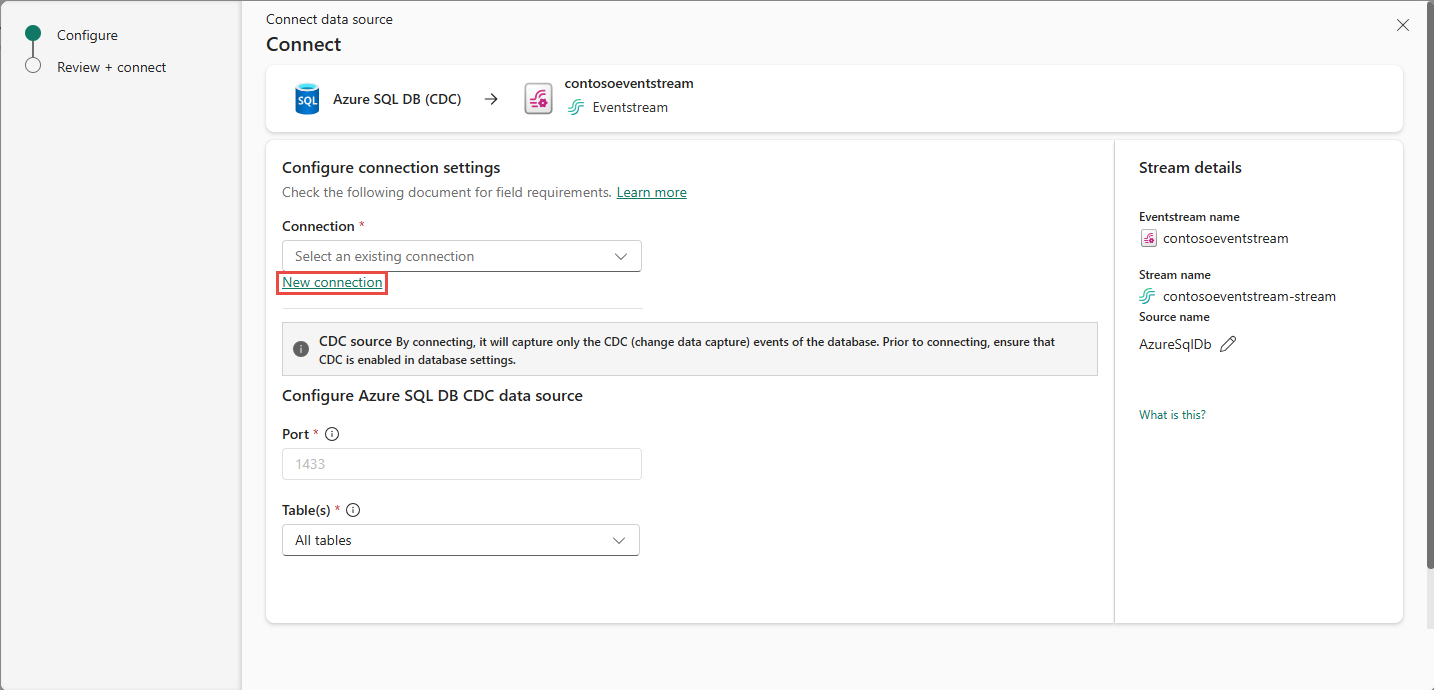

  1. On the Connect page, select New connection.

    Screenshot that shows the Connect page of the Get events wizard with the **New connection** link highlighted.

  2. In the Connection settings section, enter the following values for your Azure SQL database:

    • Server: Enter the Azure SQL server name from the Azure portal. It's in this form: mysqlservername.database.windows.net.

    • Database: Enter the Azure SQL database name from the Azure portal.

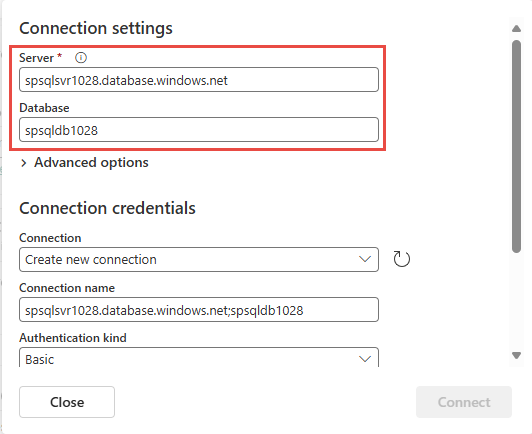

      Screenshot that shows the Connection settings section of the New connection page.

  3. Scroll down, and in the Connection credentials section, follow these steps.

    • For Connection name, enter a name for the connection.

    • For Authentication kind, select Basic.

      Note

      Currently, Fabric Eventstream supports only Basic authentication.

    • Enter Username and Password for the database.

  4. Select Connect.

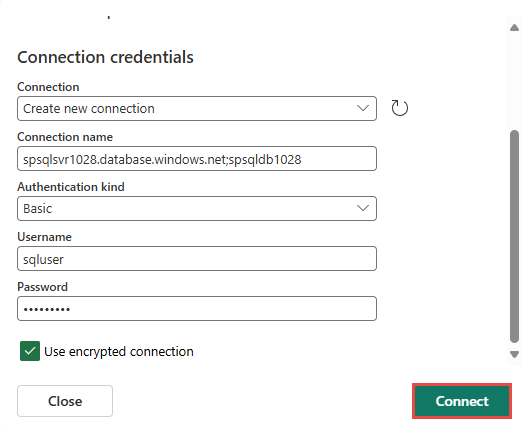

    Screenshot that shows the Connection credentials section of the New connection page.

  5. Now, on the Connect page, select All tables, or Enter table name(s). If you select the latter, specify tables using a comma-separated list of full table identifiers (schemaName.tableName) or valid regular expressions. For example:

    • Use dbo.test.* to select all tables whose names start with dbo.test.
    • Use dbo\.(test1|test2) to select dbo.test1 and dbo.test2.

    You can mix both formats using commas. The total character limit for the entire entry is 102,400 characters.

  6. You may expand Advanced settings to access additional configuration options for the Azure SQL Database CDC source:

    • Decimal handling mode: Defines how the connector handles DECIMAL and NUMERIC column values:
      • Precise: Represents values using exact decimal types (for example, Java BigDecimal) to ensure full precision and accuracy in data representation.
      • Double: Converts values to double-precision floating-point numbers. This setting improves usability and performance but might result in a loss of precision.
      • String: Encodes values as formatted strings. This setting makes it easy to consume in downstream systems but loses semantic information about the original numeric type.
    • Snapshot mode: Specify the criteria for performing a snapshot when the connector starts:
      • Initial: The connector runs a snapshot only when no offsets have been recorded for the logical server name, or if it detects that an earlier snapshot failed to complete. After the snapshot completes, the connector begins to stream event records for subsequent database changes.
      • InitialOnly: The connector runs a snapshot only when no offsets have been recorded for the logical server name. After the snapshot completes, the connector stops. It does not transition to streaming to read change events from the binlog.
      • NoData: The connector runs a snapshot that captures only the schema, but not any table data. Set this option if you do not need a consistent snapshot of the data, but you need only the changes happening since the connector starts.
    • Column exclude list: Specifies columns to exclude from change event values using fully qualified names (schemaName.tableName.columnName).
    • Database applicationIntent: Determines routing behavior in SQL Server Always On availability groups:
      • ReadWrite: Connects to the primary replica. Use this if the connection needs to perform both read and write operations.
      • ReadOnly: Allows routing to a readable secondary replica for read-only operations. Use it to enable CDC directly on replicas. It requires to set snapshot.isolation.mode to snapshot, which is the only one transaction isolation mode supported for read-only replicas.
    • Snapshot select statement override: Use the property if you want a snapshot to include only a subset of the rows in a table. This property affects snapshots only. It does not apply to events that the connector reads from the log.

  7. Select Next.

    Screenshot that shows the Connect page of the Get events wizard filled.

  8. On the Review and create screen, review the summary, and then select Add.

    Screenshot that shows the Review and create page of the Get events wizard filled.

Ingest change data from Azure SQL databases with automatic table schema registration via CDC into Eventstream.

  1. On the Connect page, select New connection.

    Screenshot that shows the Connect page of the Get events wizard with the New connection link highlighted.

  2. In the Connection settings section, enter the following values for your Azure SQL database:

    • Server: Enter the Azure SQL server name from the Azure portal. It's in this form: mysqlservername.database.windows.net.

    • Database: Enter the Azure SQL database name from the Azure portal.

      Screenshot that shows the Connection settings section of the New connection page.

  3. Scroll down, and in the Connection credentials section, follow these steps.

    • For Connection name, enter a name for the connection.

    • For Authentication kind, select Basic.

      Note

      Currently, Fabric Eventstream support only Basic authentication.

    • Enter Username and Password for the database.

  4. Select Connect.

    Screenshot that shows the Connection credentials section of the New connection page.

  5. Now, on the Connect page, select All tables, or Enter table name(s). If you select the latter, specify tables using a comma-separated list of full table identifiers (schemaName.tableName) or valid regular expressions. For example:

    • Use dbo.test.* to select all tables whose names start with dbo.test.
    • Use dbo\.(test1|test2) to select dbo.test1 and dbo.test2.

    You can mix both formats using commas. The total character limit for the entire entry is 102,400 characters.

  6. You may expand Advanced settings to access additional configuration options for the Azure SQL Database CDC source:

    • Decimal handling mode: Defines how the connector handles DECIMAL and NUMERIC column values:
      • Precise: Represents values using exact decimal types (for example, Java BigDecimal) to ensure full precision and accuracy in data representation.
      • Double: Converts values to double-precision floating-point numbers. This setting improves usability and performance but might result in a loss of precision.
      • String: Encodes values as formatted strings. This setting makes it easy to consume in downstream systems but loses semantic information about the original numeric type.
    • Snapshot mode: Specify the criteria for performing a snapshot when the connector starts:
      • Initial: The connector runs a snapshot only when no offsets have been recorded for the logical server name, or if it detects that an earlier snapshot failed to complete. After the snapshot completes, the connector begins to stream event records for subsequent database changes.
      • InitialOnly: The connector runs a snapshot only when no offsets have been recorded for the logical server name. After the snapshot completes, the connector stops. It does not transition to streaming to read change events from the binlog.
      • NoData: The connector runs a snapshot that captures only the schema, but not any table data. Set this option if you do not need a consistent snapshot of the data, but you need only the changes happening since the connector starts.
    • Column exclude list: Specifies columns to exclude from change event values using fully qualified names (schemaName.tableName.columnName).
    • Database applicationIntent: Determines routing behavior in SQL Server Always On availability groups:
      • ReadWrite: Connects to the primary replica. Use this if the connection needs to perform both read and write operations.
      • ReadOnly: Allows routing to a readable secondary replica for read-only operations. Use it to enable CDC directly on replicas. It requires to set snapshot.isolation.mode to snapshot, which is the only one transaction isolation mode supported for read-only replicas.
    • Snapshot select statement override: Use the property if you want a snapshot to include only a subset of the rows in a table. This property affects snapshots only. It does not apply to events that the connector reads from the log.

  7. Enable event schema association.

  8. For Workspace, select a Fabric workspace for the schema set.

  9. For Schema set, + Create is selected by default, which creates a new schema set. You can change it to select an existing event schema set.

  10. If you selected the + Create option in the previous step, enter a name for the schema set.

    Screenshot that shows the schema setting for an Azure SQL Database CDC source.

  11. On the Review + connect page, select Add.

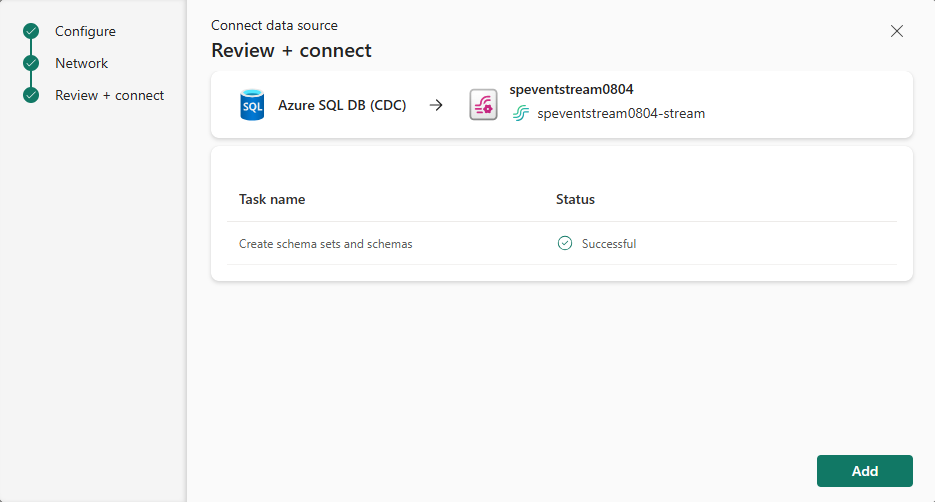

    Screenshot that shows the review + connect page for the Azure SQL Database CDC source.

    For all tables or selected tables in the Azure SQL database, the connector autodiscovers and creates schemas, and registers them with the schema registry.

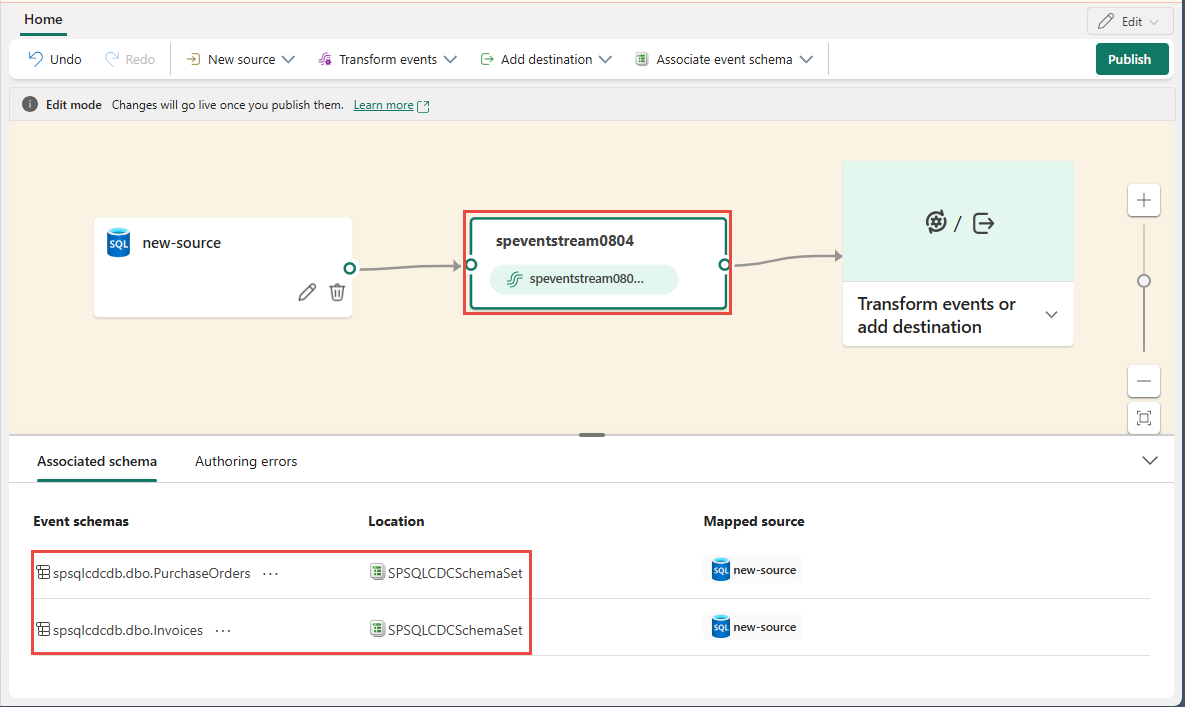

  12. Select the eventstream node in the middle, and switch to the Associated schemas tab in the bottom pane.

    Screenshot that shows the Associated schema window in the bottom pane.

Schema set

  1. Navigate to the workspace you selected in the previous step. In the following example, it's My workspace.

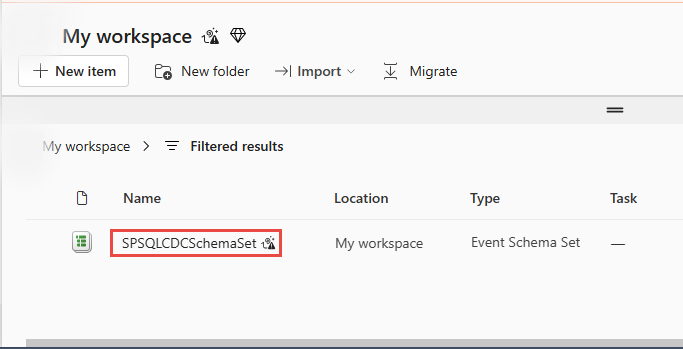

  2. Select the schema set that the Azure SQL Database (CDC) connector created.

    Screenshot that shows the generated schema set in the My workspace page.

  3. You see the schemas in the schema set as shown in the following image.

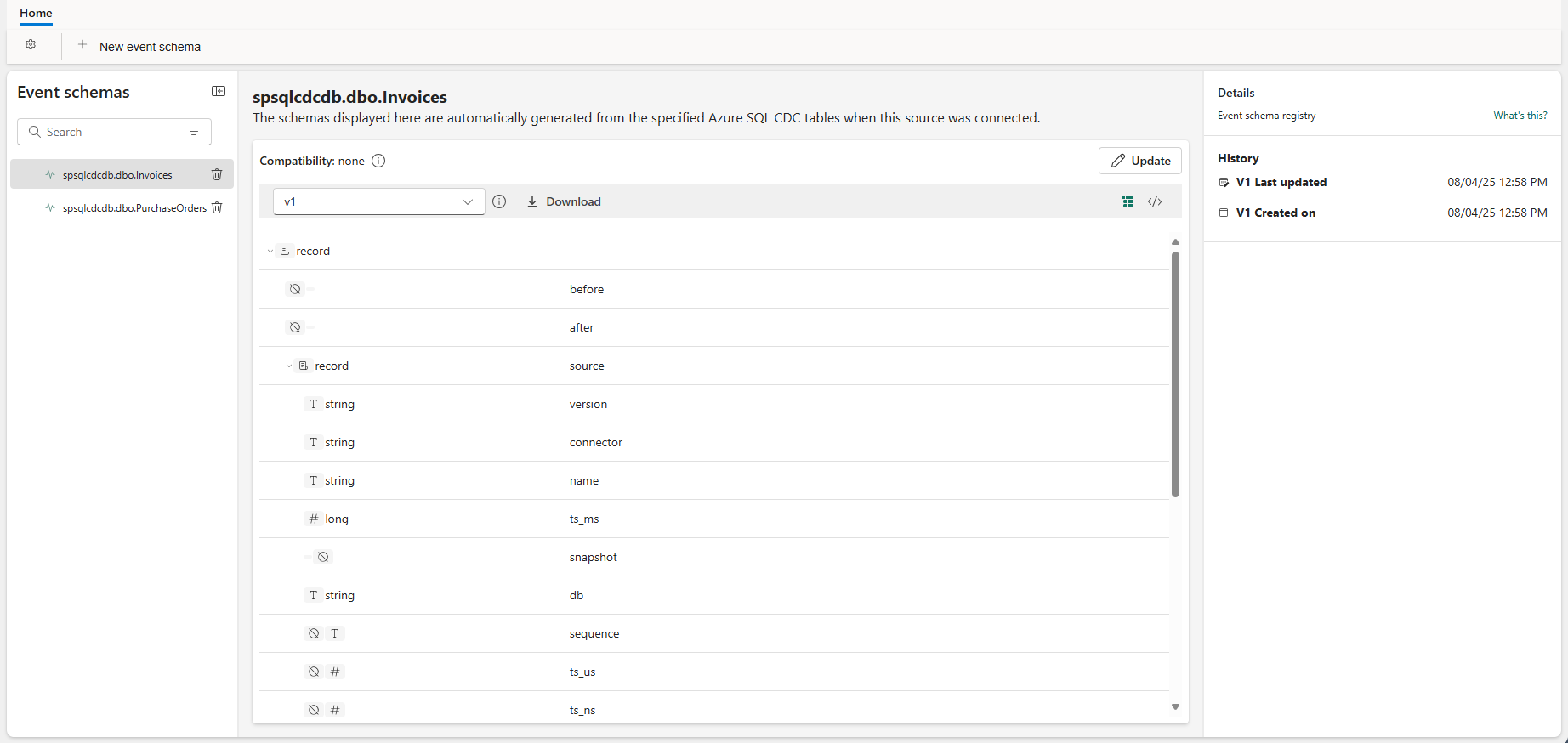

    Screenshot that shows schemas in the generated schema set.

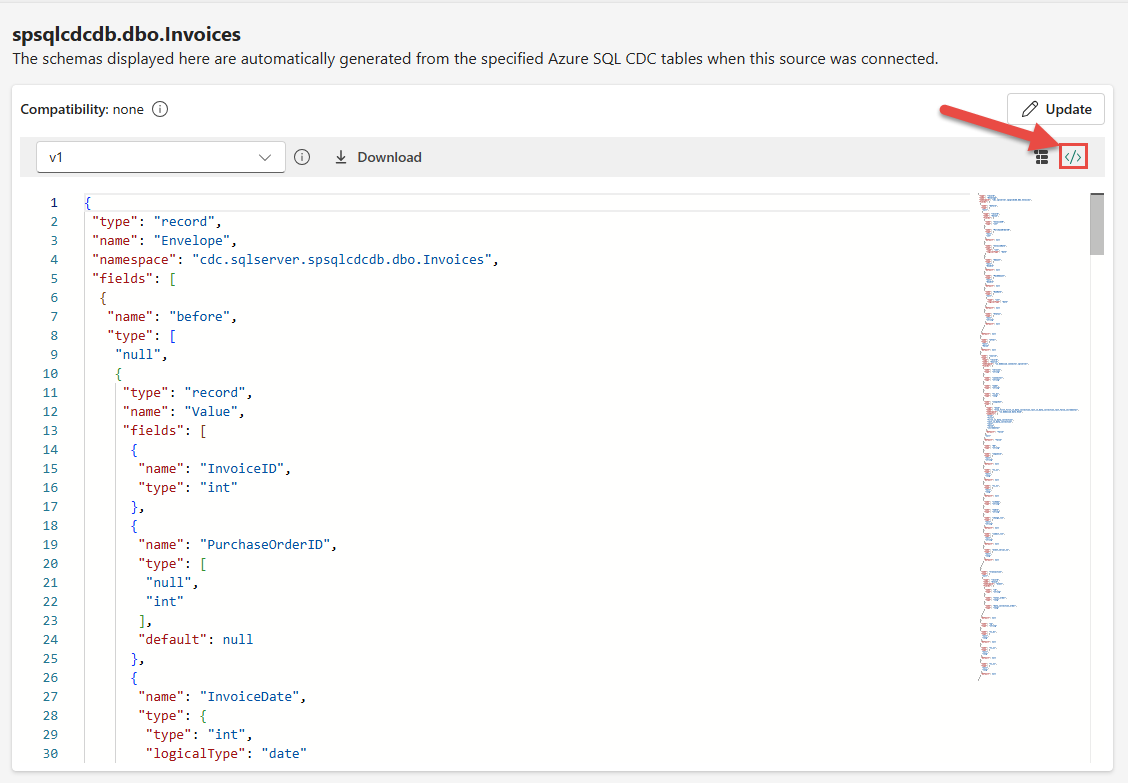

  4. To see the JSON version of the schema, switch to the JSON schema view.

    Screenshot that shows the JSON schema view.

    Don't change these discovered schemas using this editor as it becomes nonconfirmant with the schema of tables in the Azure SQL database source.

View updated eventstream

  1. You can see the Azure SQL Database (CDC) source added to your eventstream in Edit mode.

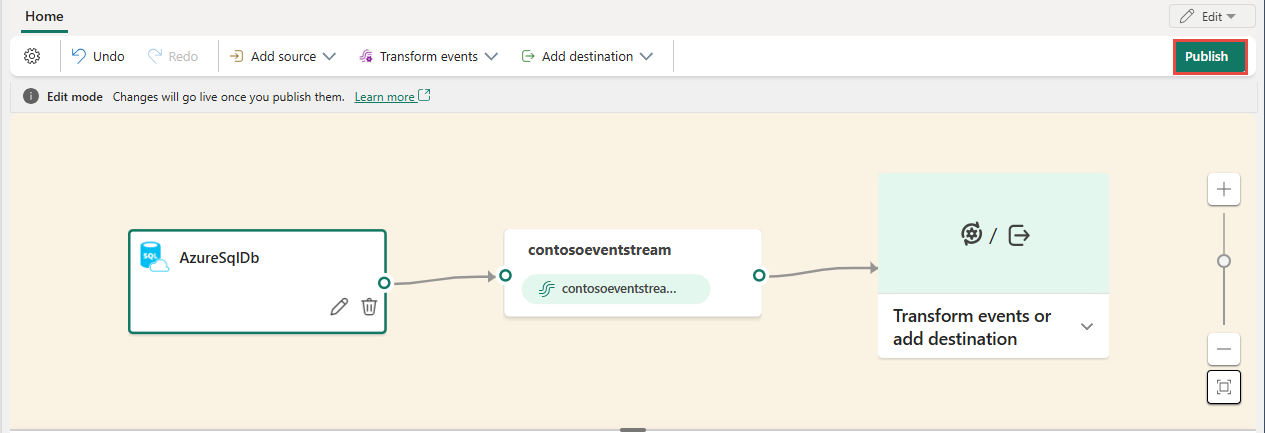

    Screenshot of streaming Azure SQL Database CDC source in Edit view.

  2. To implement this newly added Azure SQL Database CDC source, select Publish. After you complete these steps, your Azure SQL Database CDC source is available for visualization in the Live view.

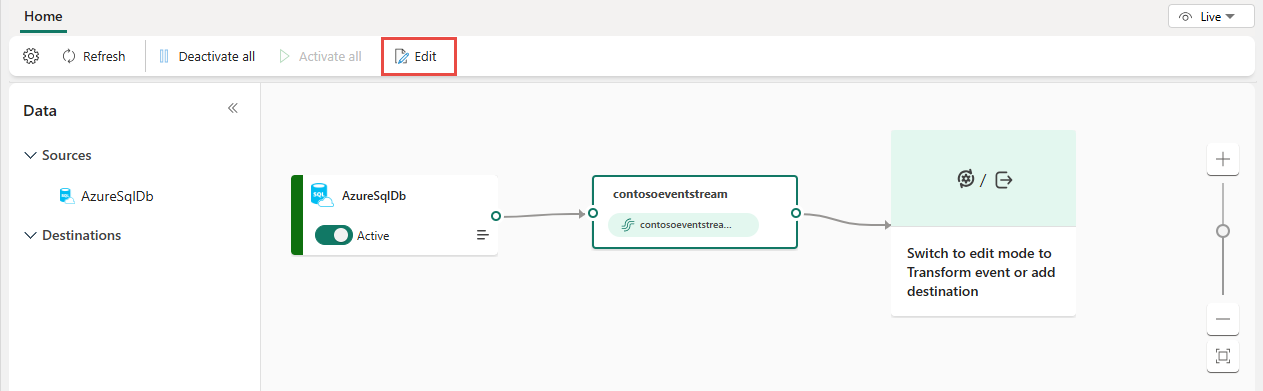

    Screenshot of streaming Azure SQL Database CDC source in Live view.

Configure eventstream destinations to use schemas

Currently, only the eventhouse, custom endpoint, and derived stream destinations are supported for eventstreams with extended features enabled. This section shows you how to add and configure an eventhouse destination when extended features (like schema support) are enabled for the eventstream.

Configure a schema for a custom endpoint destination

  1. Select Transform events or add destination, and then select CustomEndpoint.

  2. On the Custom endpoint pane, specify a name for the destination.

  3. For Input schema, select the schema for events. You make a selection in this box when you enable schema support for an eventstream.

Screenshot that shows the pane for configuring a custom endpoint.

For detailed steps on configuring a custom endpoint destination, see Add a custom endpoint or custom app destination to an eventstream.

Configure schemas for an eventhouse destination

  1. Select Transform events or add destination, and then select Eventhouse.

  2. On the Eventhouse pane, configure the following schema-related settings:

    1. For Input schema, select one or more schemas from the dropdown list.

      Screenshot that shows the eventhouse configuration pane with an input schema selected.

      Note

      If you selected the Dynamic schema via headers option when configuring an Event Hubs source, you might have configured multiple schemas for the source and mapped them to various properties and their values.

    2. For Table creation method, select A single table with all schemas combined or Separate tables for each schema, depending on your requirements.

      Screenshot that shows the eventhouse configuration pane with table creation methods.

    3. For Write data with, select one of the following options:

      • Payload only: Write extracted payload data to the table. If there are multiple input schemas, data is sent to multiple tables.
      • Metadata and payload: Write metadata and payload data to a single table. Example columns include source , subject, type, and data.

      Screenshot that shows the eventhouse configuration pane with the options for writing data.

For detailed steps on configuring an eventhouse destination, see Add an eventhouse destination to an eventstream.
