Add a screen to a canvas app and navigate between screens

  • Article
  • 2 minutes to read

Create a canvas app with multiple screens, and add ways for users to navigate between them.

Add and rename a screen

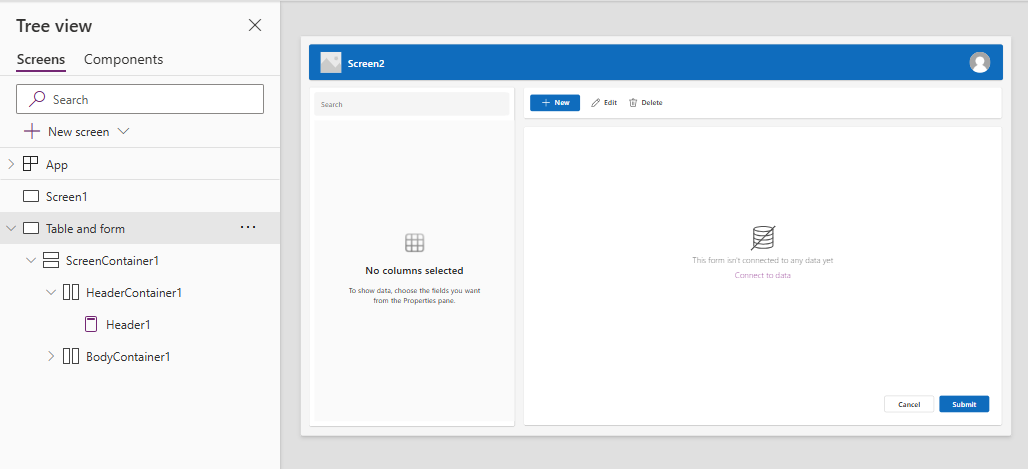

  1. On the Home tab, select New screen, and then select the type of screen that you want to add.

    Add Screen option on the Home tab.

  2. In the right-hand pane, select the name of the screen (just above the Properties tab), and then type Source.

    Rename the default screen.

  3. Add another screen, and name it Target.

    Two screens in the left navigation bar.

Reorder screens

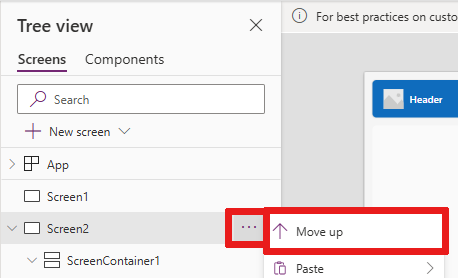

In the left navigation bar, hover over a screen that you want to move up or down, select the ellipsis button that appears, and then select Move up or Move down.

Reorder screen.

Note

When the app is opened, the screen at the top of the hierarchical list of controls usually appears first. But you can specify a different screen by setting the OnStart property to a formula that includes the Navigate function.

Add navigation

  1. With the Source screen selected, open the Insert tab, select Icons, and then select Next arrow.

    The Shapes option on the Insert tab.

  2. (optional) Move the arrow so that it appears in the lower-right corner of the screen.

  3. With the arrow still selected, select the Action tab, and then select Navigate.

    The OnSelect property for the arrow is automatically set to a Navigate function.

    OnSelect property set to Navigate function.

    When a user selects the arrow, the Target screen fades in.

  4. On the Target screen, add a Back arrow, and set its OnSelect property to this formula:

    Navigate(Source, ScreenTransition.Fade)

  5. While holding down the Alt key, toggle between screens by selecting the arrow on each screen.
