Limits and configuration reference for Azure Logic Apps

Applies to: Azure Logic Apps (Consumption + Standard)

For Power Automate, review Limits and configuration in Power Automate.

This reference guide describes the limits and configuration information for Azure Logic Apps and related resources. Based on your scenario, solution requirements, the capabilities that you want, and the environment where you want to run your workflows, you choose whether to create a Consumption logic app workflow that runs in multitenant Azure Logic Apps or an integration service environment (ISE). Or, create a Standard logic app workflow that runs in single-tenant Azure Logic Apps or an App Service Environment (v3 - Windows plans only).

Note

Many limits are the same across the available environments where Azure Logic Apps runs, but differences are noted where they exist.

The following table briefly summarizes differences between a Consumption logic app and a Standard logic app. You'll also learn how single-tenant Azure Logic Apps compares to multitenant Azure Logic Apps and an ISE for deploying, hosting, and running your logic app workflows.

Resource type Benefits Resource sharing and usage Pricing and billing model Limits management
Logic App (Consumption)

Host environment: Multi-tenant Azure Logic Apps
- Easiest to get started

- Pay-for-what-you-use

- Fully managed
A single logic app can have only one workflow.

Logic apps across Microsoft Entra tenants share the same processing (compute), storage, network, and so on.

For redundancy purposes, data is replicated in the paired region. For high availability, geo-redundant storage (GRS) is enabled.
Consumption (pay-per-execution) Azure Logic Apps manages the default values for these limits, but you can change some of these values, if that option exists for a specific limit.
Logic App (Consumption)

Host environment:
Integration service environment (ISE)

Note: On August 31, 2024, the ISE option will retire. Since November 1, 2022, you can no longer create an ISE. Instead, you can create a Standard logic app, which runs in single-tenant Azure Logic Apps, can include multiple workflows, and provides the same capabilities as an ISE plus more.
- Enterprise scale for large workloads

- 20+ ISE-specific connectors that connect directly to virtual networks

- Predictable pricing with included usage and customer-controlled scaling
A single logic app can have only one workflow.

Logic apps in the same environment share the same processing (compute), storage, network, and so on.

Data stays in the same region where you deploy the ISE.
ISE (fixed) Azure Logic Apps manages the default values for these limits, but you can change some of these values, if that option exists for a specific limit.
Logic App (Standard)

Host environment:
Single-tenant Azure Logic Apps

Note: If your scenario requires containers, create single-tenant based logic apps using Azure Arc enabled Logic Apps. For more information, review What is Azure Arc enabled Logic Apps?
- Run using the single-tenant Azure Logic Apps runtime. Deployment slots are currently not supported.

- More built-in connectors for higher throughput and lower costs at scale

- More control and fine-tuning capability around runtime and performance settings

- Integrated support for virtual networks and private endpoints.

- Create your own built-in connectors.
A single logic app can have multiple stateful and stateless workflows.

Workflows in a single logic app and tenant share the same processing (compute), storage, network, and so on.

Data stays in the same region where you deploy your logic apps.
Standard, based on a hosting plan with a selected pricing tier.

If you run stateful workflows, which use external storage, the Azure Logic Apps runtime makes storage transactions that follow Azure Storage pricing.
You can change the default values for many limits, based on your scenario's needs.

Important: Some limits have hard upper maximums. In Visual Studio Code, the changes you make to the default limit values in your logic app project configuration files won't appear in the designer experience. For more information, see Edit app and environment settings for logic apps in single-tenant Azure Logic Apps.
Logic App (Standard)

Host environment:
App Service Environment v3 (ASEv3) - Windows plans only
Same capabilities as single-tenant plus the following benefits:

- Fully isolate your logic apps.

- Create and run more logic apps than in single-tenant Azure Logic Apps.

- Pay only for the ASE App Service plan, no matter the number of logic apps that you create and run.

- Can enable autoscaling or manually scale with more virtual machine instances or a different App Service plan.

- Inherit the network setup from the selected ASEv3. For example, when deployed to an internal ASE, workflows can access the resources in a virtual network associated with the ASE and have internal access points.

Note: If accessed from outside an internal ASE, run histories for workflows in that ASE can't access action inputs and outputs.
A single logic app can have multiple stateful and stateless workflows.

Workflows in a single logic app and tenant share the same processing (compute), storage, network, and so on.

Data stays in the same region where you deploy your logic apps.
App Service plan You can change the default values for many limits, based on your scenario's needs.

Important: Some limits have hard upper maximums. In Visual Studio Code, the changes you make to the default limit values in your logic app project configuration files won't appear in the designer experience. For more information, see Edit app and environment settings for logic apps in single-tenant Azure Logic Apps.

Workflow definition limits

The following tables list the values for a single workflow definition:

Name Limit Notes
Workflows per region per Azure subscription - Consumption: 1,000 workflows where each logic app always has only 1 workflow

- Standard: Unlimited, based on the selected hosting plan, app activity, size of machine instances, and resource usage, where each logic app can have multiple workflows
For optimal performance guidelines around Standard logic app workflows, see Best practices and recommendations.
Workflow - Maximum name length - Consumption: 80 characters

- Standard: 32 characters
Triggers per workflow - Consumption (designer): 1 trigger
- Consumption (JSON): 10 triggers

- Standard: 1 trigger
- Consumption: Multiple triggers are possible only when you work on the JSON workflow definition, whether in code view or an Azure Resource Manager (ARM) template, not the designer.

- Standard: Only one trigger is possible, whether in the designer, code view, or an Azure Resource Manager (ARM) template.
Actions per workflow 500 actions To extend this limit, you can use nested workflows as necessary.
Actions nesting depth 8 actions To extend this limit, you can use nested workflows as necessary.
Single trigger or action - Maximum name length 80 characters
Single trigger or action - Maximum input or output size 104,857,600 bytes
(105 MB)
To change the default value in the single-tenant service, review Edit host and app settings for logic apps in single-tenant Azure Logic Apps.
Single action - Maximum combined inputs and outputs size 209,715,200 bytes
(210 MB)
To change the default value in the single-tenant service, review Edit host and app settings for logic apps in single-tenant Azure Logic Apps.
Expression character limit 8,192 characters
description - Maximum length 256 characters
parameters - Maximum number of parameters per workflow - Consumption: 50 parameters

- Standard: 500 parameters
outputs - Maximum number of outputs 10 outputs
trackedProperties - Maximum number of characters 8,000 characters

Run duration and history retention limits

The following table lists the values for a single workflow run:

Name Multitenant Single-tenant Integration service environment Notes
Run history retention in storage 90 days 90 days
(Default)
366 days The amount of time to keep a workflow's run history in storage after a run starts.

Note: If the workflow's run duration exceeds the retention limit, this run is removed from the run history in storage. If a run isn't immediately removed after reaching the retention limit, the run is removed within 7 days.

Whether a run completes or times out, run history retention is always calculated by using the run's start time and the current limit specified in the workflow setting, Run history retention in days. No matter the previous limit, the current limit is always used for calculating retention.

For more information, review Change duration and run history retention in storage.
Run duration 90 days - Stateful workflow: 90 days
(Default)

- Stateless workflow: 5 min
(Default)
366 days The amount of time that a workflow can continue running before forcing a timeout. The run duration is calculated by using a run's start time and the limit that's specified in the workflow setting, Run history retention in days at that start time.

Important: Make sure the run duration value is always less than or equal to the run history retention in storage value. Otherwise, run histories might be deleted before the associated jobs are complete.

For more information, review Change run duration and history retention in storage.
Recurrence interval - Min: 1 sec

- Max: 500 days
- Min: 1 sec

- Max: 500 days
- Min: 1 sec

- Max: 500 days

Change run duration and history retention in storage

If a run's duration exceeds the current run history retention limit, the run is removed from the runs history in storage. To avoid losing run history, make sure that the retention limit is always more than the run's longest possible duration.

For Consumption logic app workflows, the same setting controls the maximum number of days that a workflow can run and for keeping run history in storage.

  • In multitenant Azure Logic Apps, the 90-day default limit is the same as the maximum limit. You can only decrease this value.

  • In an ISE, you can decrease or increase the 90-day default limit.

For example, suppose that you reduce the retention limit from 90 days to 30 days. A 60-day-old run is removed from the runs history. If you increase the retention period from 30 days to 60 days, a 20-day-old run stays in the runs history for another 40 days.

Portal

  1. In the Azure portal search box, open your logic app workflow in the designer.

  2. On the logic app menu, select Workflow settings.

  3. Under Runtime options, from the Run history retention in days list, select Custom.

  4. Drag the slider to change the number of days that you want.

  5. When you're done, on the Workflow settings toolbar, select Save.

ARM template

If you use an Azure Resource Manager template, this setting appears as a property in your workflow's resource definition, which is described in the Microsoft.Logic workflows template reference:

{
   "name": "{logic-app-name}",
   "type": "Microsoft.Logic/workflows",
   "location": "{Azure-region}",
   "apiVersion": "2019-05-01",
   "properties": {
      "definition": {},
      "parameters": {},
      "runtimeConfiguration": {
         "lifetime": {
            "unit": "day",
            "count": {number-of-days}
         }
      }
   }
}

Looping, concurrency, and debatching limits

The following table lists the values for a single workflow run:

Loop actions

For each loop

The following table lists the values for a For each loop:

Name Multitenant Single-tenant Integration service environment Notes
Array items 100,000 items - Stateful workflow: 100,000 items
(Default)

- Stateless workflow: 100 items
(Default)
100,000 items The number of array items that a For each loop can process.

To filter larger arrays, you can use the query action.

To change the default limit in the single-tenant service, review Edit host and app settings for logic apps in single-tenant Azure Logic Apps.
Concurrent iterations Concurrency off: 20

Concurrency on:

- Default: 20
- Min: 1
- Max: 50
Concurrency off: 20
(Default)

Concurrency on:

- Default: 20
- Min: 1
- Max: 50
Concurrency off: 20

Concurrency on:

- Default: 20
- Min: 1
- Max: 50
The number of For each loop iterations that can run at the same time, or in parallel.

To change this value in multitenant Azure Logic Apps, see Change For each concurrency limit or Run For each loops sequentially.

To change the default limit in the single-tenant service, review Edit host and app settings for logic apps in single-tenant Azure Logic Apps.

Until loop

The following table lists the values for an Until loop:

Name Multitenant Single-tenant Integration service environment Notes
Iterations - Default: 60
- Min: 1
- Max: 5,000
Stateful workflow:

- Default: 60
- Min: 1
- Max: 5,000

Stateless workflow:

- Default: 60
- Min: 1
- Max: 100
- Default: 60
- Min: 1
- Max: 5,000
The number of cycles that an Until loop can have during a workflow run.

To change this value in multitenant Azure Logic Apps, in the Until loop shape, select Change limits, and specify the value for the Count property.

To change the default value in the single-tenant service, review Edit host and app settings for logic apps in single-tenant Azure Logic Apps.
Timeout Default: PT1H (1 hour) Stateful workflow: PT1H (1 hour)

Stateless workflow: PT5M (5 min)
Default: PT1H (1 hour) The amount of time that the Until loop can run before exiting and is specified in ISO 8601 format. The timeout value is evaluated for each loop cycle. If any action in the loop takes longer than the timeout limit, the current cycle doesn't stop. However, the next cycle doesn't start because the limit condition isn't met.

To change this value in multitenant Azure Logic Apps, in the Until loop shape, select Change limits, and specify the value for the Timeout property.

To change the default value in the single-tenant service, review Edit host and app settings for logic apps in single-tenant Azure Logic Apps.

Concurrency and debatching

Name Multitenant Single-tenant Integration service environment Notes
Trigger - concurrent runs Concurrency off: Unlimited

Concurrency on (irreversible):

- Default: 25
- Min: 1
- Max: 100
Concurrency off: Unlimited

Concurrency on (irreversible):

- Default: 100
- Min: 1
- Max: 100
Concurrency off: Unlimited

Concurrency on (irreversible):

- Default: 25
- Min: 1
- Max: 100
The number of concurrent runs that a trigger can start at the same time, or in parallel.

Note: When concurrency is turned on, the SplitOn limit is reduced to 100 items for debatching arrays.

To change this value in multitenant Azure Logic Apps, see Change trigger concurrency limit or Trigger instances sequentially.

To change the default value in the single-tenant service, review Edit host and app settings for logic apps in single-tenant Azure Logic Apps.
Maximum waiting runs Concurrency on:

- Min: 10 runs plus the number of concurrent runs
(Default)
- Max: 100 runs
Concurrency on:

- Min: 10 runs plus the number of concurrent runs
(Default)
- Max: 200 runs
Concurrency on:

- Min: 10 runs plus the number of concurrent runs
(Default)
- Max: 100 runs
The number of workflow instances that can wait to run when your current workflow instance is already running the maximum concurrent instances. This setting takes effect only if concurrency is turned on.

To change this value in multitenant Azure Logic Apps, see Change waiting runs limit.

To change the default value in the single-tenant service, review Edit host and app settings for logic apps in single-tenant Azure Logic Apps.
SplitOn items Concurrency off: 100,000 items

Concurrency on: 100 items
Concurrency off: 100,000 items

Concurrency on: 100 items
Concurrency off: 100,000 items
(Default)

Concurrency on: 100 items
(Default)
For triggers that return an array, you can specify an expression that uses a SplitOn property that splits or debatches array items into multiple workflow instances for processing, rather than use a For each loop. This expression references the array to use for creating and running a workflow instance for each array item.

Note: When concurrency is turned on, the SplitOn limit is reduced to 100 items.

Throughput limits

The following table lists the values for a single workflow definition:

Name Multitenant Single-tenant Notes
Action - Executions per 5-minute rolling interval Default: 100,000 executions
- High throughput mode: 300,000 executions

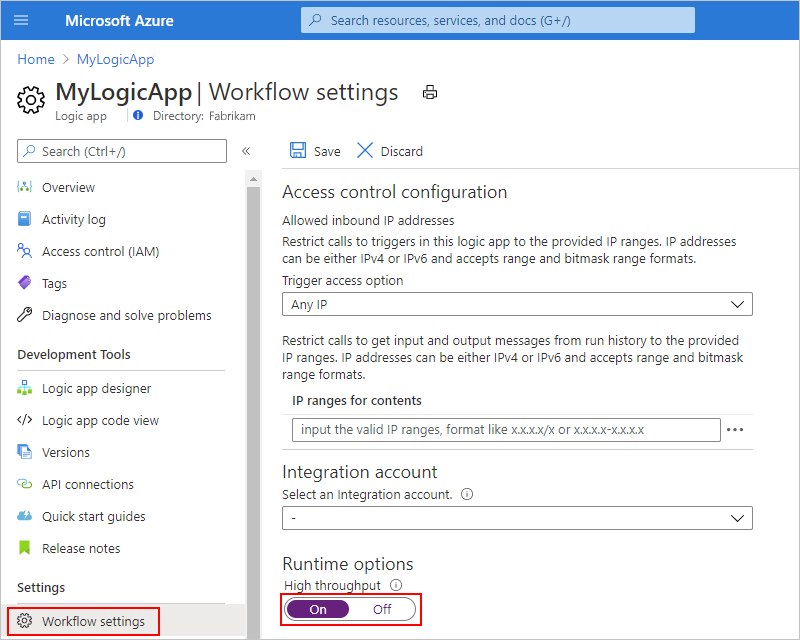

None In multitenant Azure Logic Apps, you can raise the default value to the maximum value for your workflow. For more information, see Run in high throughput mode, which is in preview. Or, you can distribute the workload across more than one workflow as necessary.
Action - Concurrent outbound calls ~2,500 calls None You can reduce the number of concurrent requests or reduce the duration as necessary.
Managed connector throttling Throttling limit varies based on connector Throttling limit varies based on connector For multitenant, review each managed connector's technical reference page.

For more information about handling connector throttling, review Handle throttling problems ("429 - Too many requests" errors).
Runtime endpoint - Concurrent inbound calls ~1,000 calls None You can reduce the number of concurrent requests or reduce the duration as necessary.
Runtime endpoint- Concurrent inbound calls for API Management REST API 56 calls per 5 minutes Applies only to API Management REST API calls to the Request trigger in a Standard logic app workflow.

Use the callback URL to send the request to the Request trigger in a Standard logic app workflow, rather than use API Management calls, which have a hard throttling limit of 56 calls per 5-minute interval.
Runtime endpoint - Read calls per 5 min 60,000 read calls None This limit applies to calls that get the raw inputs and outputs from a workflow's run history. You can distribute the workload across more than one workflow as necessary.
Runtime endpoint - Invoke calls per 5 min 45,000 invoke calls None You can distribute workload across more than one workflow as necessary.
Content throughput per 5 min 6 GB None For example, suppose the backend has 100 workers. Each worker has a limit of 60 MB, which is the result from dividing 6 GB by 100 workers. You can distribute workload across more than one workflow as necessary.

Scale for high throughput

Multitenant Azure Logic Apps has a default limit on the number of actions that run every 5 minutes. To raise the default value to the maximum value, you can enable high throughput mode, which is in preview. Or, distribute the workload across multiple logic apps and workflows, rather than rely on a single logic app and workflow.

Enable high throughput in the portal

  1. In the Azure portal, on your logic app's menu, under Settings, select Workflow settings.

  2. Under Runtime options > High throughput, change the setting to On.

    Screenshot that shows logic app menu in Azure portal with "Workflow settings" and "High throughput" set to "On".

Enable high throughput in a Resource Manager template

To enable this setting in an ARM template for deploying your logic app, in the properties object for your logic app's resource definition, add the runtimeConfiguration object with the operationOptions property set to OptimizedForHighThroughput:

{
   <template-properties>
   "resources": [
      // Start logic app resource definition
      {
         "properties": {
            <logic-app-resource-definition-properties>,
            <logic-app-workflow-definition>,
            <more-logic-app-resource-definition-properties>,
            "runtimeConfiguration": {
               "operationOptions": "OptimizedForHighThroughput"
            }
         },
         "name": "[parameters('LogicAppName')]",
         "type": "Microsoft.Logic/workflows",
         "location": "[parameters('LogicAppLocation')]",
         "tags": {},
         "apiVersion": "2016-06-01",
         "dependsOn": [
         ]
      }
      // End logic app resource definition
   ],
   "outputs": {}
}

For more information about your logic app resource definition, review Overview: Automate deployment for Azure Logic Apps by using Azure Resource Manager templates.

Integration service environment (ISE)

  • Developer ISE SKU: Provides up to 500 executions per minute, but note these considerations:

    • Make sure that you use this SKU only for exploration, experiments, development, or testing - not for production or performance testing. This SKU has no service-level agreement (SLA), scale up capability, or redundancy during recycling, which means that you might experience delays or downtime.

    • Backend updates might intermittently interrupt service.

  • Premium ISE SKU: The following table describes this SKU's throughput limits, but to exceed these limits in normal processing, or run load testing that might go above these limits, contact the Logic Apps team for help with your requirements.

    Name Limit Notes
    Base unit execution limit System-throttled when infrastructure capacity reaches 80% Provides ~4,000 action executions per minute, which is ~160 million action executions per month
    Scale unit execution limit System-throttled when infrastructure capacity reaches 80% Each scale unit can provide ~2,000 more action executions per minute, which is ~80 million more action executions per month
    Maximum scale units that you can add 10 scale units

Data gateway limits

Azure Logic Apps supports write operations, including inserts and updates, through the on-premises data gateway. However, these operations have limits on their payload size.

Retry policy limits

The following table lists the retry policy limits for a trigger or action, based on whether you have a Consumption or Standard logic app workflow.

Name Consumption limit Standard limit Notes
Retry attempts - Default: 4 attempts
- Max: 90 attempts
- Default: 4 attempts To change the default limit in Consumption logic app workflows, use the retry policy parameter. To change the default limit in Standard logic app workflows, review Edit host and app settings for logic apps in single-tenant Azure Logic Apps.
Retry interval None Default: 7 sec To change the default limit in Consumption logic app workflows, use the retry policy parameter.

To change the default limit in Standard logic app workflows, review Edit host and app settings for logic apps in single-tenant Azure Logic Apps.

Variables action limits

The following table lists the values for a single workflow definition:

Name Multitenant Single-tenant Integration service environment Notes
Variables per workflow 250 variables 250 variables
(Default)
250 variables
Variable - Maximum content size 104,857,600 characters Stateful workflow: 104,857,600 characters
(Default)

Stateless workflow: 1,024 characters
(Default)
104,857,600 characters To change the default value in the single-tenant service, review Edit host and app settings for logic apps in single-tenant Azure Logic Apps.
Variable (Array type) - Maximum number of array items 100,000 items 100,000 items
(Default)
Premium SKU: 100,000 items

Developer SKU: 5,000 items
To change the default value in the single-tenant service, review Edit host and app settings for logic apps in single-tenant Azure Logic Apps.

HTTP request limits

The following tables list the values for a single inbound or outbound call:

Timeout duration

By default, the HTTP action and APIConnection actions follow the standard asynchronous operation pattern, while the Response action follows the synchronous operation pattern. Some managed connector operations make asynchronous calls or listen for webhook requests, so the timeout for these operations might be longer than the following limits. For more information, review each connector's technical reference page and also the Workflow triggers and actions documentation.

Note

For the Logic App (Standard) resource type in the single-tenant service, stateless workflows can only run synchronously.

Name Multitenant Single-tenant Integration service environment Notes
Outbound request 120 sec
(2 min)
235 sec
(3.9 min)
(Default)
240 sec
(4 min)
Examples of outbound requests include calls made by the HTTP trigger or action.

Tip: For longer running operations, use an asynchronous polling pattern or an "Until" loop. To work around timeout limits when you call another workflow that has a callable endpoint, you can use the built-in Azure Logic Apps action instead, which you can find in the designer's operation picker under Built-in.

To change the default limit in the single-tenant service, review Edit host and app settings for logic apps in single-tenant Azure Logic Apps.
Inbound request 120 sec
(2 min)
235 sec
(3.9 min)
(Default)
240 sec
(4 min)
Examples of inbound requests include calls received by the Request trigger, HTTP Webhook trigger, and HTTP Webhook action.

Note: For the original caller to get the response, all steps in the response must finish within the limit unless you call another nested workflow. For more information, see Call, trigger, or nest logic apps.

To change the default limit in the single-tenant service, review Edit host and app settings for logic apps in single-tenant Azure Logic Apps.

Request trigger and webhook trigger size limits

Name Multitenant Single-tenant Notes
Request trigger (inbound) and webhook-based triggers - Content size limit per 5-minute rolling interval per workflow 3,145,728 KB None This limit applies only to the content size for inbound requests received by the Request trigger or any webhook trigger.

For example, suppose the backend has 100 workers. Each worker has a limit of 31,457,280 bytes, which is the result from dividing 3,145,728,000 bytes by 100 workers. To avoid experiencing premature throttling for the Request trigger, use a new HTTP client for each request, which helps evenly distribute the calls across all nodes. For a webhook trigger, you might have to use multiple workflows, which split the load and avoids throttling.

Messages

Name Chunking enabled Multitenant Single-tenant Integration service environment Notes
Content download - Maximum number of requests Yes 1,000 requests 1,000 requests
(Default)
1,000 requests
Message size No 100 MB 100 MB 200 MB To work around this limit, see Handle large messages with chunking. However, some connectors and APIs don't support chunking or even the default limit.

- Connectors such as AS2, X12, and EDIFACT have their own B2B message limits.

- ISE connectors use the ISE limit, not the non-ISE connector limits.

To change the default value in the single-tenant service, review Edit host and app settings for logic apps in single-tenant Azure Logic Apps.
Message size per action Yes 1 GB 1,073,741,824 bytes
(1 GB)
(Default)
5 GB This limit applies to actions that either natively support chunking or let you enable chunking in their runtime configuration.

If you're using an ISE, the Azure Logic Apps engine supports this limit, but connectors have their own chunking limits up to the engine limit, for example, see the Azure Blob Storage connector's API reference. For more information about chunking, see Handle large messages with chunking.

To change the default value in the single-tenant service, review Edit host and app settings for logic apps in single-tenant Azure Logic Apps.
Content chunk size per action Yes Varies per connector 52,428,800 bytes (52 MB)
(Default)
Varies per connector This limit applies to actions that either natively support chunking or let you enable chunking in their runtime configuration.

To change the default value in the single-tenant service, review Edit host and app settings for logic apps in single-tenant Azure Logic Apps.

Character limits

Name Limit Notes
Expression evaluation limit 131,072 characters The @concat(), @base64(), @string() expressions can't be longer than this limit.
Request URL character limit 16,384 characters

Authentication limits

The following table lists the values for a workflow that starts with a Request trigger and enables Microsoft Entra ID Open Authentication (Microsoft Entra ID OAuth) for authorizing inbound calls to the Request trigger:

Name Limit Notes
Microsoft Entra authorization policies 5 policies
Claims per authorization policy 10 claims
Claim value - Maximum number of characters 150 characters

Switch action limits

The following table lists the values for a single workflow definition:

Name Limit Notes
Maximum number of cases per action 25

Inline Code action limits

The following table lists the values for a single workflow definition:

Name Multitenant Single-tenant Integration service environment Notes
Maximum number of code characters 1,024 characters 100,000 characters 1,024 characters To use the higher limit, create a Logic App (Standard) resource, which runs in single-tenant Azure Logic Apps, either by using the Azure portal or by using Visual Studio Code and the Azure Logic Apps (Standard) extension.
Maximum duration for running code 5 sec 15 sec 1,024 characters To use the higher limit, create a Logic App (Standard) resource, which runs in single-tenant Azure Logic Apps, either by using the Azure portal or by using Visual Studio Code and the Azure Logic Apps (Standard) extension.

Custom connector limits

In multitenant Azure Logic Apps and the integration service environment only, you can create and use custom managed connectors, which are wrappers around an existing REST API or SOAP API. In single-tenant Azure Logic Apps, you can create and use only custom built-in connectors.

The following table lists the values for custom connectors:

Name Multitenant Single-tenant Integration service environment Notes
Custom connectors 1,000 per Azure subscription Unlimited 1,000 per Azure subscription
APIs per service SOAP-based: 50 Not applicable SOAP-based: 50
Parameters per API SOAP-based: 50 Not applicable SOAP-based: 50
Requests per minute for a custom connector 500 requests per minute per connection Based on your implementation 2,000 requests per minute per custom connector
Connection timeout 2 min Idle connection:
4 min

Active connection:
10 min
2 min

For more information, review the following documentation:

Managed identity limits

Name Limit
Managed identities per logic app resource - Consumption: Either the system-assigned identity or only one user-assigned identity

- Standard: The system-assigned identity and any number of user-assigned identities

Note: By default, a Logic App (Standard) resource has the system-assigned managed identity automatically enabled to authenticate connections at runtime. This identity differs from the authentication credentials or connection string that you use when you create a connection. If you disable this identity, connections won't work at runtime. To view this setting, on your logic app's menu, under Settings, select Identity.
Number of logic apps that have a managed identity in an Azure subscription per region - Consumption: 5,000 logic apps
- Standard: Per Azure App Service limits, if any

Integration account limits

Each Azure subscription has these integration account limits:

  • One Free tier integration account per Azure region. This tier is available only for public regions in Azure, for example, West US or Southeast Asia, but not for Microsoft Azure operated by 21Vianet or Azure Government.

  • 1,000 total integration accounts, including integration accounts in any integration service environments (ISE) across both Developer and Premium SKUs.

  • Each ISE, whether Developer or Premium, can use a single integration account at no extra cost, although the included account type varies by ISE SKU. You can create more integration accounts for your ISE up to the total limit for an extra cost.

    ISE SKU Integration account limits
    Premium 20 total accounts, including one Standard account at no extra cost. With this SKU, you can have only Standard accounts. No Free or Basic accounts are permitted.
    Developer 20 total accounts, including one Free account (limited to 1). With this SKU, you can have either combination:

    - A Free account and up to 19 Standard accounts.
    - No Free account and up to 20 Standard accounts.

    No Basic or more Free accounts are permitted.

    Important: Use the Developer SKU for experimenting, development, and testing, but not for production or performance testing.

To learn how pricing and billing work for ISEs, see the Logic Apps pricing model. For pricing rates, see Logic Apps pricing.

Artifact limits per integration account

The following tables list the values for the number of artifacts limited to each integration account tier. For pricing rates, see Logic Apps pricing. To learn how pricing and billing work for integration accounts, see the Logic Apps pricing model.

Note

Use the Free tier only for exploratory scenarios, not production scenarios. This tier restricts throughput and usage, and has no service-level agreement (SLA).

Artifact Free Basic Standard Premium (preview)
EDI trading agreements 10 1 1,000 Unlimited
EDI trading partners 25 2 1,000 Unlimited
Maps 25 500 1,000 Unlimited
Schemas 25 500 1,000 Unlimited
Assemblies 10 25 1,000 Unlimited, but currently unsupported for export from an ISE.
Certificates 25 2 1,000 Unlimited
Batch configurations 5 1 50 Unlimited
RosettaNet partner interface process (PIP) 10 1 500 Unlimited, but currently unsupported for export from an ISE.

Artifact capacity limits

Artifact Limit Notes
Assembly 8 MB To upload files larger than 2 MB, use an Azure storage account and blob container.
Map (XSLT file) 8 MB To upload files larger than 2 MB, use the Azure Logic Apps REST API - Maps.

Note: The amount of data or records that a map can successfully process is based on the message size and action timeout limits in Azure Logic Apps. For example, if you use an HTTP action, based on HTTP message size and timeout limits, a map can process data up to the HTTP message size limit if the operation completes within the HTTP timeout limit.
Schema 8 MB To upload files larger than 2 MB, use an Azure storage account and blob container.

Throughput limits

Runtime endpoint Free Basic Standard Notes
Read calls per 5 min 3,000 30,000 60,000 This limit applies to calls that get the raw inputs and outputs from a logic app's run history. You can distribute the workload across more than one account as necessary.
Invoke calls per 5 min 3,000 30,000 45,000 You can distribute the workload across more than one account as necessary.
Tracking calls per 5 min 3,000 30,000 45,000 You can distribute the workload across more than one account as necessary.
Blocking concurrent calls ~1,000 ~1,000 ~1,000 Same for all SKUs. You can reduce the number of concurrent requests or reduce the duration as necessary.

B2B protocol (AS2, X12, EDIFACT) message size

The following table lists the message size limits that apply to B2B protocols:

Name Multitenant Single-tenant Integration service environment Notes
AS2 v2 - 100 MB
v1 - 25 MB
Unavailable v2 - 200 MB
v1 - 25 MB
Applies to decode and encode
X12 50 MB Unavailable 50 MB Applies to decode and encode
EDIFACT 50 MB Unavailable 50 MB Applies to decode and encode

Firewall configuration: IP addresses and service tags

If your environment has strict network requirements and uses a firewall that limits traffic to specific IP addresses, your environment or firewall needs to permit incoming communication received by Azure Logic Apps and outgoing communication sent by Azure Logic Apps. To set up this access, you can create Azure Firewall rules for your firewall to allow access for both inbound and outbound IP addresses used by Azure Logic Apps in your logic app's Azure region. All logic apps in the same region use the same IP address ranges.

Note

If you're using Power Automate, some actions, such as HTTP and HTTP + OpenAPI, go directly through the Azure Logic Apps service and come from the IP addresses that are listed here. For more information about the IP addresses used by Power Automate, see Limits and configuration for Power Automate.

For example, suppose your logic apps are deployed in the West US region. To support calls that your logic apps send or receive through built-in triggers and actions, such as the HTTP trigger or action, your firewall needs to allow access for all the Azure Logic Apps service inbound IP addresses and outbound IP addresses that exist in the West US region.

If your workflow uses managed connectors, such as the Office 365 Outlook connector or SQL connector, or uses custom connectors, the firewall also needs to allow access for all the managed connector outbound IP addresses in your logic app's Azure region. If your workflow uses custom connectors that access on-premises resources through the on-premises data gateway resource in Azure, you need to set up the gateway installation to allow access for the corresponding managed connector outbound IP addresses. For more information about setting up communication settings on the gateway, review these topics:

Firewall IP configuration considerations

Before you set up your firewall with IP addresses, review these considerations:

  • To help you simplify any security rules that you want to create, you can optionally use service tags instead, rather than specify IP address prefixes for each region. These tags represent a group of IP address prefixes from a specific Azure service and work across the regions where the Azure Logic Apps service is available:

    • LogicAppsManagement: Represents the inbound IP address prefixes for the Azure Logic Apps service.

    • LogicApps: Represents the outbound IP address prefixes for the Azure Logic Apps service.

    • AzureConnectors: Represents the IP address prefixes for managed connectors that make inbound webhook callbacks to the Azure Logic Apps service and outbound calls to their respective services, such as Azure Storage or Azure Event Hubs.

  • For Standard logic app workflows that run in single-tenant Azure Logic Apps, you have to allow access for any trigger or action connections in your workflows. You can allow traffic from service tags and use the same level of restrictions or policies as Azure App Service. You also need to find and use the fully qualified domain names (FQDNs) for your connections. For more information, review the corresponding sections in the following documentation:

  • If your logic apps have problems accessing Azure storage accounts that use firewalls and firewall rules, you have various other options to enable access.

    For example, logic apps can't directly access storage accounts that use firewall rules and exist in the same region. However, if you permit the outbound IP addresses for managed connectors in your region, your logic apps can access storage accounts that are in a different region except when you use the Azure Table Storage or Azure Queue Storage connectors. To access your Table Storage or Queue Storage, you can use the HTTP trigger and actions instead. For other options, see Access storage accounts behind firewalls.

Inbound IP addresses

For Azure Logic Apps to receive incoming communication through your firewall, you have to allow traffic through the inbound IP addresses described in this section for your logic app's Azure region. To help reduce complexity when you create security rules, you can optionally use the service tag, LogicAppsManagement, rather than specify the Azure Logic Apps inbound IP address prefixes for each region. If you're using Azure Government, see Azure Government - Inbound IP addresses.

Note

Some managed connectors make inbound webhook callbacks to Azure Logic Apps. If you use access control on the logic app resource, you must make sure that the calls from these target systems (IP addresses) have permissions to access your logic app. The following connectors make inbound webhook callbacks to Azure Logic Apps:

Adobe Creative Cloud, Adobe Sign, Adobe Sign Demo, Adobe Sign Preview, Adobe Sign Stage, Microsoft Sentinel, Event Grid, Microsoft Form, Business Central, Calendly, Common Data Service, DocuSign, DocuSign Demo, Dynamics 365 for Fin & Ops, LiveChat, Office 365* Outlook, Outlook.com, Parserr, SAP*, Shifts for Microsoft Teams, Teamwork Projects, Typeform, and so on:

  • Office 365: The return caller is actually the Office 365 connector. You can specify the managed connector outbound IP address prefixes for each region, or optionally, you can use the AzureConnectors service tag for these managed connectors.

  • SAP: The return caller depends on whether the deployment environment is either multitenant Azure or ISE. In the multitenant environment, the on-premises data gateway makes the call back to the Azure Logic Apps service. In an ISE, the SAP connector makes the call back to Azure Logic Apps.

Multitenant - Inbound IP addresses

Region Azure Logic Apps IP
Australia East 13.75.153.66, 104.210.89.222, 104.210.89.244, 52.187.231.161, 20.53.94.103, 20.53.107.215
Australia Southeast 13.73.115.153, 40.115.78.70, 40.115.78.237, 52.189.216.28, 52.255.42.110, 20.70.114.64, 20.211.194.165, 20.70.118.30, 4.198.78.245, 20.70.114.85, 20.70.116.201, 20.92.62.87, 20.211.194.79, 20.92.62.64
Brazil South 191.235.86.199, 191.235.95.229, 191.235.94.220, 191.234.166.198, 20.201.66.147, 20.201.25.72, 20.201.111.44, 20.201.110.210, 20.201.95.184, 20.201.111.106, 20.201.110.239, 20.201.111.218, 20.201.111.204, 4.228.78.206
Brazil Southeast 20.40.32.59, 20.40.32.162, 20.40.32.80, 20.40.32.49, 20.206.42.14, 20.206.43.33
Canada Central 13.88.249.209, 52.233.30.218, 52.233.29.79, 40.85.241.105, 20.104.14.9, 20.48.133.182, 20.175.241.90, 20.116.229.122, 4.172.59.88, 52.237.58.32, 20.116.231.233, 20.116.229.68, 4.172.57.90, 20.116.230.165
Canada East 52.232.129.143, 52.229.125.57, 52.232.133.109, 40.86.202.42, 20.200.63.149, 52.229.126.142, 40.86.205.75, 40.86.229.191, 40.69.102.29, 40.69.96.69, 40.86.248.230, 52.229.114.121, 20.220.76.245, 52.229.99.183
Central India 52.172.157.194, 52.172.184.192, 52.172.191.194, 104.211.73.195, 20.204.203.110, 20.204.212.77, 4.186.8.164, 20.235.200.244, 20.235.200.100, 20.235.200.92, 4.188.187.112, 4.188.187.170, 4.188.187.173, 4.188.188.52
Central US 13.67.236.76, 40.77.111.254, 40.77.31.87, 104.43.243.39, 13.86.98.126, 20.109.202.37
East Asia 168.63.200.173, 13.75.89.159, 23.97.68.172, 40.83.98.194, 20.187.254.129, 20.187.189.246, 20.6.149.94, 4.144.32.35, 20.255.186.54, 20.6.149.151, 20.255.121.88, 20.255.104.187, 20.255.121.57, 20.6.177.230
East US 137.135.106.54, 40.117.99.79, 40.117.100.228, 137.116.126.165, 52.226.216.209, 40.76.151.124, 20.84.29.150, 40.76.174.148, 4.156.26.80, 4.156.25.14, 4.156.25.189, 20.242.168.44, 4.156.241.183, 4.156.243.174, 4.156.242.86, 4.156.243.165, 52.224.145.162, 4.156.242.96, 4.156.243.173, 4.156.241.195, 4.156.242.97, 4.156.242.26, 4.156.242.13, 172.212.37.35
East US 2 40.84.25.234, 40.79.44.7, 40.84.59.136, 40.70.27.253, 20.96.58.28, 20.96.89.98, 20.96.90.28
France Central 52.143.162.83, 20.188.33.169, 52.143.156.55, 52.143.158.203, 20.40.139.209, 51.11.237.239, 20.74.20.86, 20.74.22.248, 20.74.94.80, 20.74.91.234, 20.74.106.82, 20.74.35.121, 20.19.63.163, 20.19.56.186
France South 52.136.131.145, 52.136.129.121, 52.136.130.89, 52.136.131.4, 52.136.134.128, 52.136.143.218, 51.138.154.147, 51.138.152.107, 51.138.154.171, 51.138.154.241, 51.138.154.167, 51.138.152.46, 51.138.154.191, 51.138.154.153
Germany North 51.116.211.29, 51.116.208.132, 51.116.208.37, 51.116.208.64, 20.113.206.147, 20.113.197.46
Germany West Central 51.116.168.222, 51.116.171.209, 51.116.233.40, 51.116.175.0, 20.113.12.69, 20.113.11.8, 98.67.210.83, 98.67.210.94, 98.67.210.49, 98.67.144.141, 98.67.146.59, 98.67.145.222, 98.67.146.65, 98.67.146.238
Israel Central 20.217.134.130, 20.217.134.135
Italy North 4.232.12.165, 4.232.12.191
Japan East 13.71.146.140, 13.78.84.187, 13.78.62.130, 13.78.43.164, 20.191.174.52, 20.194.207.50, 20.18.198.232, 20.18.197.179, 20.18.198.148, 20.18.238.86, 4.189.8.207, 4.189.9.80, 4.189.10.88, 4.189.8.209
Japan West 40.74.140.173, 40.74.81.13, 40.74.85.215, 40.74.68.85, 20.89.226.241, 20.89.227.25, 40.74.129.115, 138.91.22.178, 40.74.120.8, 138.91.27.244, 138.91.28.97, 138.91.26.244, 23.100.110.250, 138.91.27.82
Jio India West 20.193.206.48, 20.193.206.49, 20.193.206.50, 20.193.206.51, 20.193.173.174, 20.193.168.121
Korea Central 52.231.14.182, 52.231.103.142, 52.231.39.29, 52.231.14.42, 20.200.207.29, 20.200.231.229, 20.249.169.92, 20.249.169.87, 20.249.169.155, 20.249.171.205, 4.230.149.190, 20.249.170.248, 20.249.171.120, 20.249.171.7
Korea South 52.231.166.168, 52.231.163.55, 52.231.163.150, 52.231.192.64, 20.200.177.151, 20.200.177.147
North Central US 168.62.249.81, 157.56.12.202, 65.52.211.164, 65.52.9.64, 52.162.177.104, 23.101.174.98, 20.98.61.245, 172.183.50.180, 172.183.52.146, 172.183.51.138, 172.183.48.31, 172.183.48.9, 172.183.48.234, 40.116.65.34
North Europe 13.79.173.49, 52.169.218.253, 52.169.220.174, 40.112.90.39, 40.127.242.203, 51.138.227.94, 40.127.145.51, 40.67.252.16, 4.207.0.242, 4.207.204.28, 4.207.203.201, 20.67.143.247, 20.67.138.43, 68.219.40.237, 20.105.14.98, 4.207.203.15, 4.207.204.121, 4.207.201.247, 20.107.145.46
Norway East 51.120.88.93, 51.13.66.86, 51.120.89.182, 51.120.88.77, 20.100.27.17, 20.100.36.102, 4.235.15.184, 4.235.37.41, 4.235.38.187, 4.235.15.175, 4.235.39.110, 4.235.38.223, 4.235.39.218, 20.251.128.60
Norway West 51.120.220.160, 51.120.220.161, 51.120.220.162, 51.120.220.163, 51.13.155.184, 51.13.151.90
Poland Central 20.215.144.231, 20.215.145.0
Qatar Central 20.21.211.241, 20.21.211.242
South Africa North 102.133.228.4, 102.133.224.125, 102.133.226.199, 102.133.228.9, 20.87.92.64, 20.87.91.171
South Africa West 102.133.72.190, 102.133.72.145, 102.133.72.184, 102.133.72.173, 40.117.9.225, 102.133.98.91, 20.87.177.187, 102.133.70.42, 20.87.176.228, 20.87.178.76, 20.87.176.32, 20.87.176.245, 20.87.176.215, 20.87.178.32
South Central US 13.65.98.39, 13.84.41.46, 13.84.43.45, 40.84.138.132, 20.94.151.41, 20.88.209.113
South India 52.172.9.47, 52.172.49.43, 52.172.51.140, 104.211.225.152, 104.211.221.215,104.211.205.148, 52.140.4.233, 52.172.100.99, 52.140.5.154, 52.140.1.153, 52.172.96.103, 52.140.2.150, 52.172.103.116, 52.172.99.31
Southeast Asia 52.163.93.214, 52.187.65.81, 52.187.65.155, 104.215.181.6, 20.195.49.246, 20.198.130.155, 23.98.121.180, 4.144.200.166, 4.144.203.255, 4.144.203.73, 4.144.201.132, 20.247.196.3, 52.230.58.240, 20.247.197.6, 20.247.198.8, 20.247.195.123, 20.247.197.207, 20.247.197.108, 20.247.198.132
Sweden Central 20.91.178.13, 20.240.10.125
Switzerland North 51.103.128.52, 51.103.132.236, 51.103.134.138, 51.103.136.209, 20.203.230.170, 20.203.227.226, 4.226.35.171, 20.250.239.241, 20.250.238.113, 20.250.238.80, 20.250.233.38, 20.250.235.79, 20.250.235.177, 20.250.235.117
Switzerland West 51.107.225.180, 51.107.225.167, 51.107.225.163, 51.107.239.66, 51.107.235.139,51.107.227.18, 20.199.218.139, 20.199.219.180, 20.199.216.255, 20.199.217.34, 20.208.231.200, 20.199.217.39, 20.199.216.16, 20.199.216.98
UAE Central 20.45.75.193, 20.45.64.29, 20.45.64.87, 20.45.71.213, 40.126.212.77, 40.126.209.97
UAE North 20.46.42.220, 40.123.224.227, 40.123.224.143, 20.46.46.173, 20.74.255.147, 20.74.255.37, 20.233.241.162, 20.233.241.99, 20.174.64.131, 20.233.241.184, 20.174.48.155, 20.233.241.200, 20.174.56.89, 20.174.41.1
UK South 51.140.79.109, 51.140.78.71, 51.140.84.39, 51.140.155.81, 20.108.102.180, 20.90.204.232, 20.108.148.173, 20.254.10.157, 4.159.25.35, 4.159.25.50, 4.250.87.43, 4.158.106.183, 4.250.53.153, 4.159.26.160, 4.159.25.103, 4.159.59.224
UK West 51.141.48.98, 51.141.51.145, 51.141.53.164, 51.141.119.150, 51.104.62.166, 51.141.123.161
West Central US 52.161.26.172, 52.161.8.128, 52.161.19.82, 13.78.137.247, 52.161.64.217, 52.161.91.215
West Europe 13.95.155.53, 52.174.54.218, 52.174.49.6, 20.103.21.113, 20.103.18.84, 20.103.57.210, 20.101.174.52, 20.93.236.81, 20.103.94.255, 20.82.87.229, 20.76.171.34, 20.103.84.61, 98.64.193.78, 98.64.194.143, 98.64.198.223, 98.64.198.203, 98.64.208.186, 98.64.209.52, 172.211.196.189, 172.211.195.251, 98.64.154.66, 98.64.156.81, 98.64.156.180, 98.64.156.68, 20.238.229.165, 20.8.128.2, 20.238.230.113, 108.141.139.111, 108.142.111.162, 108.142.111.174, 108.142.111.178, 108.142.111.183, 108.142.111.152, 108.142.111.156, 108.142.111.179, 108.142.111.169, 98.64.203.30, 98.64.156.172, 20.56.202.157, 20.56.203.30, 57.153.19.33, 57.153.59.202, 108.141.95.140, 20.61.147.216, 57.153.83.52, 57.153.38.174, 57.153.3.13, 57.153.1.223, 108.142.29.55, 108.142.31.220, 108.142.31.202, 20.61.153.22
West India 104.211.164.112, 104.211.165.81, 104.211.164.25, 104.211.157.237, 104.211.167.12,104.211.166.35
West US 52.160.90.237, 138.91.188.137, 13.91.252.184, 157.56.160.212, 104.40.34.112, 52.160.68.27, 13.88.168.158, 104.42.40.164, 13.87.207.79, 13.87.204.210, 168.62.9.100, 13.88.169.158, 13.88.171.218, 13.91.81.69, 13.64.215.62, 13.83.10.141, 13.91.40.58, 13.91.103.48, 52.160.93.229, 13.93.215.87, 13.88.177.160, 13.88.18.200, 13.91.105.180, 13.91.18.168, 13.83.15.162, 52.160.32.120, 13.91.35.39, 13.93.177.253, 13.93.180.131, 13.93.179.126, 13.91.130.111, 13.64.236.166, 13.64.239.120, 13.93.233.226, 40.83.133.96, 13.93.239.166, 13.64.240.133, 13.86.209.140, 13.91.40.136, 40.112.147.242, 40.112.136.59, 104.42.142.214, 104.42.128.212, 13.91.65.198, 13.93.193.254, 13.93.211.175, 13.91.46.140
West US 2 13.66.224.169, 52.183.30.10, 52.183.39.67, 13.66.128.68, 20.99.190.19, 20.72.244.108
West US 3 20.150.172.240, 20.150.172.242, 20.150.172.243, 20.150.172.241, 20.106.116.172, 20.106.116.225

Azure Government - Inbound IP addresses

Azure Government region Azure Logic Apps IP
US Gov Arizona 52.244.67.164, 52.244.67.64, 52.244.66.82, 52.126.52.254, 52.126.53.145, 52.182.49.105, 52.182.49.175
US Gov Texas 52.238.119.104, 52.238.112.96, 52.238.119.145, 52.245.171.151, 52.245.163.42
US Gov Virginia 52.227.159.157, 52.227.152.90, 23.97.4.36, 13.77.239.182, 13.77.239.190
US DoD Central 52.182.49.204, 52.182.52.106

Outbound IP addresses

For Azure Logic Apps to send outgoing communication through your firewall, you have to allow traffic in your logic app's Azure region for all the outbound IP addresses described in this section. If you're using Azure Government, see Azure Government - Outbound IP addresses.

Tip

To help reduce complexity when you create security rules, you can optionally use the service tag, LogicApps, rather than specify the Azure Logic Apps outbound IP address prefixes for each region. Optionally, you can also use the AzureConnectors service tag for managed connectors that make outbound calls to their respective services, such as Azure Storage or Azure Event Hubs, rather than specify the outbound managed connector IP address prefixes for each region. These tags work across the regions where Azure Logic Apps is available.

If your workflow also uses any managed connectors, such as the Office 365 Outlook connector or SQL connector, or uses any custom connectors, your firewall has to allow traffic in your logic app's Azure region for all the managed connector outbound IP addresses. If your workflow uses custom connectors that access on-premises resources through the on-premises data gateway resource in Azure, you need to set up the gateway installation to allow access for the corresponding managed connector outbound IP addresses. For more information about setting up communication settings on the gateway, review these topics:

Multitenant - Outbound IP addresses

This section lists the outbound IP addresses that Azure Logic Apps requires in your logic app's Azure region to communicate through your firewall. Also, if your workflow uses any managed connectors or custom connectors, your firewall has to allow traffic in your logic app's Azure region for all the managed connectors' outbound IP addresses. If you have custom connectors that access on-premises resources through the on-premises data gateway resource in Azure, set up your gateway installation to allow access for the corresponding managed connector outbound IP addresses.

Region Azure Logic Apps IP
Australia East 13.75.149.4, 104.210.91.55, 104.210.90.241, 52.187.227.245, 52.187.226.96, 52.187.231.184, 52.187.229.130, 52.187.226.139, 20.53.93.188, 20.53.72.170, 20.53.107.208, 20.53.106.182
Australia Southeast 13.73.114.207, 13.77.3.139, 13.70.159.205, 52.189.222.77, 13.77.56.167, 13.77.58.136, 52.189.214.42, 52.189.220.75, 52.255.36.185, 52.158.133.57, 20.70.114.125, 20.70.114.10, 20.70.117.240, 20.70.116.106, 20.70.114.97, 20.211.194.242, 20.70.109.46, 20.11.136.137, 20.70.116.240, 20.211.194.233, 20.11.154.170, 4.198.89.96, 20.92.61.254, 20.70.95.150, 20.70.117.21, 20.211.194.127, 20.92.61.242, 20.70.93.143
Brazil South 191.235.82.221, 191.235.91.7, 191.234.182.26, 191.237.255.116, 191.234.161.168, 191.234.162.178, 191.234.161.28, 191.234.162.131, 20.201.66.44, 20.201.64.135, 20.201.24.212, 191.237.207.21, 20.201.111.36, 20.201.110.208, 20.201.91.95, 20.201.110.244, 20.201.110.234, 20.201.111.212, 20.201.111.203, 4.228.72.24
Brazil Southeast 20.40.32.81, 20.40.32.19, 20.40.32.85, 20.40.32.60, 20.40.32.116, 20.40.32.87, 20.40.32.61, 20.40.32.113, 20.206.41.94, 20.206.41.20, 20.206.42.67, 20.206.40.250
Canada Central 52.233.29.92, 52.228.39.244, 40.85.250.135, 40.85.250.212, 13.71.186.1, 40.85.252.47, 13.71.184.150, 20.104.13.249, 20.104.9.221, 20.48.133.133, 20.48.132.222, 20.175.241.76, 20.116.229.92, 4.172.57.144, 52.237.56.228, 20.116.231.222, 20.116.229.57, 4.172.57.52, 20.116.230.54
Canada East 52.232.128.155, 52.229.120.45, 52.229.126.25, 40.86.203.228, 40.86.228.93, 40.86.216.241, 40.86.226.149, 40.86.217.241, 20.200.60.151, 20.200.59.228, 52.229.126.67, 52.229.105.109, 40.86.226.221, 40.86.228.72, 40.69.98.14, 40.86.208.137, 40.86.229.179, 40.86.227.188, 40.86.202.35, 40.86.206.74, 52.229.100.167, 40.86.240.237, 40.69.120.161, 40.69.102.71, 20.220.75.33, 20.220.74.16, 40.69.101.66, 52.229.114.105
Central India 52.172.154.168, 52.172.186.159, 52.172.185.79, 104.211.101.108, 104.211.102.62, 104.211.90.169, 104.211.90.162, 104.211.74.145, 20.204.204.74, 20.204.202.72, 20.204.212.60, 20.204.212.8, 4.186.8.62, 4.186.8.18, 20.235.200.242, 20.235.200.237, 20.235.200.79, 20.235.200.44, 20.235.200.70, 20.235.200.32, 4.188.187.109, 4.188.187.86, 4.188.187.140, 4.188.185.15, 4.188.187.145, 4.188.187.107, 4.188.187.184, 4.188.187.64
Central US 13.67.236.125, 104.208.25.27, 40.122.170.198, 40.113.218.230, 23.100.86.139, 23.100.87.24, 23.100.87.56, 23.100.82.16, 52.141.221.6, 52.141.218.55, 20.109.202.36, 20.109.202.29
East Asia 13.75.94.173, 40.83.127.19, 52.175.33.254, 40.83.73.39, 65.52.175.34, 40.83.77.208, 40.83.100.69, 40.83.75.165, 20.187.254.110, 20.187.250.221, 20.187.189.47, 20.187.188.136, 20.239.240.181, 20.6.152.201, 20.2.52.61, 20.255.43.37, 20.255.41.243, 4.192.72.182, 20.6.177.234, 20.255.113.33
East US 13.92.98.111, 40.121.91.41, 40.114.82.191, 23.101.139.153, 23.100.29.190, 23.101.136.201, 104.45.153.81, 23.101.132.208, 52.226.216.197, 52.226.216.187, 40.76.151.25, 40.76.148.50, 20.84.29.29, 20.84.29.18, 40.76.174.83, 40.76.174.39, 4.156.27.7, 4.156.28.117, 4.156.25.188, 20.242.168.24, 4.156.241.165, 4.156.243.170, 4.156.242.49, 4.156.243.164, 52.224.145.30, 4.156.242.92, 4.156.243.172, 4.156.241.191, 4.156.241.47, 4.156.241.229, 4.156.242.12, 172.212.32.196
East US 2 40.84.30.147, 104.208.155.200, 104.208.158.174, 104.208.140.40, 40.70.131.151, 40.70.29.214, 40.70.26.154, 40.70.27.236, 20.96.58.140, 20.96.58.139, 20.96.89.54, 20.96.89.48, 20.96.89.254, 20.96.89.234
France Central 52.143.164.80, 52.143.164.15, 40.89.186.30, 20.188.39.105, 40.89.191.161, 40.89.188.169, 40.89.186.28, 40.89.190.104, 20.40.138.112, 20.40.140.149, 51.11.237.219, 51.11.237.216, 20.74.18.58, 20.74.18.36, 20.74.22.121, 20.74.20.147, 20.74.94.62, 20.74.88.179, 20.74.23.87, 20.74.22.119, 20.74.106.61, 20.74.105.214, 20.74.34.113, 20.74.33.177, 20.19.61.105, 20.74.109.28, 20.19.113.120, 20.74.106.31
France South 52.136.132.40, 52.136.129.89, 52.136.131.155, 52.136.133.62, 52.136.139.225, 52.136.130.144, 52.136.140.226, 52.136.129.51, 52.136.139.71, 52.136.135.74, 52.136.133.225, 52.136.139.96, 51.138.154.137, 51.138.153.121, 51.138.152.26, 51.138.155.43, 51.138.154.125, 51.138.153.24, 51.138.152.141, 51.138.152.170
Germany North 51.116.211.168, 51.116.208.165, 51.116.208.175, 51.116.208.192, 51.116.208.200, 51.116.208.222, 51.116.208.217, 51.116.208.51, 20.113.195.253, 20.113.196.183, 20.113.206.134, 20.113.206.170
Germany West Central 51.116.233.35, 51.116.171.49, 51.116.233.33, 51.116.233.22, 51.116.168.104, 51.116.175.17, 51.116.233.87, 51.116.175.51, 20.113.11.136, 20.113.11.85, 20.113.10.168, 20.113.8.64, 98.67.210.79, 98.67.210.78, 98.67.210.85, 98.67.210.84, 98.67.210.14, 98.67.210.24, 98.67.144.136, 98.67.144.122, 98.67.145.221, 98.67.144.207, 98.67.146.88, 98.67.146.81, 98.67.146.51, 98.67.145.122, 98.67.146.229, 98.67.146.218
Israel Central 20.217.134.127, 20.217.134.126, 20.217.134.132, 20.217.129.229
Italy North 4.232.12.164, 4.232.12.173, 4.232.12.190, 4.232.12.169
Japan East 13.71.158.3, 13.73.4.207, 13.71.158.120, 13.78.18.168, 13.78.35.229, 13.78.42.223, 13.78.21.155, 13.78.20.232, 20.191.172.255, 20.46.187.174, 20.194.206.98, 20.194.205.189, 20.18.198.224, 20.18.197.177, 20.18.198.141, 20.18.238.83, 4.189.14.67, 4.189.8.211, 4.189.9.135, 4.189.8.208
Japan West 40.74.140.4, 104.214.137.243, 138.91.26.45, 40.74.64.207, 40.74.76.213, 40.74.77.205, 40.74.74.21, 40.74.68.85, 20.89.227.63, 20.89.226.188, 20.89.227.14, 20.89.226.101, 40.74.128.79, 40.74.75.184, 138.91.16.164, 138.91.21.233, 40.74.119.237, 40.74.119.158, 138.91.22.248, 138.91.26.236, 138.91.17.197, 138.91.17.144, 138.91.17.137, 104.46.237.16, 23.100.109.62, 138.91.17.15, 138.91.26.67, 104.46.234.170
Jio India West 20.193.206.128, 20.193.206.129, 20.193.206.130, 20.193.206.131, 20.193.206.132, 20.193.206.133, 20.193.206.134, 20.193.206.135, 20.193.173.7, 20.193.172.11, 20.193.170.88, 20.193.171.252
Korea Central 52.231.14.11, 52.231.14.219, 52.231.15.6, 52.231.10.111, 52.231.14.223, 52.231.77.107, 52.231.8.175, 52.231.9.39, 20.200.206.170, 20.200.202.75, 20.200.231.222, 20.200.231.139, 20.249.169.25, 20.249.169.18, 20.249.169.147, 20.249.171.130, 4.230.149.189, 20.249.169.207, 20.249.171.17, 20.249.169.238
Korea South 52.231.204.74, 52.231.188.115, 52.231.189.221, 52.231.203.118, 52.231.166.28, 52.231.153.89, 52.231.155.206, 52.231.164.23, 20.200.177.148, 20.200.177.135, 20.200.177.146, 20.200.180.213
North Central US 168.62.248.37, 157.55.210.61, 157.55.212.238, 52.162.208.216, 52.162.213.231, 65.52.10.183, 65.52.9.96, 65.52.8.225, 52.162.177.90, 52.162.177.30, 23.101.160.111, 23.101.167.207, 20.80.33.190, 20.88.47.77, 172.183.51.180, 40.116.65.125, 20.88.51.31, 40.116.66.226, 40.116.64.218, 20.88.55.77, 172.183.49.208, 20.102.251.70, 20.102.255.252, 20.88.49.23, 172.183.50.30, 20.88.49.21, 20.102.255.209, 172.183.48.255
North Europe 40.113.12.95, 52.178.165.215, 52.178.166.21, 40.112.92.104, 40.112.95.216, 40.113.4.18, 40.113.3.202, 40.113.1.181, 40.127.242.159, 40.127.240.183, 51.138.226.19, 51.138.227.160, 40.127.144.251, 40.127.144.121, 40.67.251.175, 40.67.250.247, 4.207.0.229, 4.207.0.197, 4.207.204.8, 4.207.203.217, 4.207.203.190, 4.207.203.59, 20.67.141.244, 20.67.139.133, 20.67.137.144, 20.67.136.162, 68.219.40.225, 68.219.40.39, 20.105.12.63, 20.105.11.53, 4.207.202.106, 4.207.202.95, 4.207.204.91, 4.207.204.89, 4.207.201.234, 20.105.15.225, 20.67.191.232, 20.67.190.37
Norway East 51.120.88.52, 51.120.88.51, 51.13.65.206, 51.13.66.248, 51.13.65.90, 51.13.65.63, 51.13.68.140, 51.120.91.248, 20.100.26.148, 20.100.26.52, 20.100.36.49, 20.100.36.10 , 4.235.15.181, 4.235.33.240, 4.235.38.121, 4.235.9.253, 4.235.39.107, 4.235.36.134, 4.235.39.215, 4.235.39.238
Norway West 51.120.220.128, 51.120.220.129, 51.120.220.130, 51.120.220.131, 51.120.220.132, 51.120.220.133, 51.120.220.134, 51.120.220.135, 51.13.153.172, 51.13.148.178, 51.13.148.11, 51.13.149.162
Poland Central 20.215.144.229, 20.215.128.160, 20.215.144.235, 20.215.144.246
Qatar Central 20.21.211.240, 20.21.209.216, 20.21.211.245, 20.21.210.251
South Africa North 102.133.231.188, 102.133.231.117, 102.133.230.4, 102.133.227.103, 102.133.228.6, 102.133.230.82, 102.133.231.9, 102.133.231.51, 20.87.92.40, 20.87.91.122, 20.87.91.169, 20.87.88.47
South Africa West 102.133.72.98, 102.133.72.113, 102.133.75.169, 102.133.72.179, 102.133.72.37, 102.133.72.183, 102.133.72.132, 102.133.75.191, 102.133.101.220, 40.117.9.125, 40.117.10.230, 40.117.9.229, 20.87.177.51, 102.133.70.122, 20.87.178.214, 20.87.177.83, 20.87.176.146, 20.87.178.80, 20.87.177.204, 20.87.177.252
South Central US 104.210.144.48, 13.65.82.17, 13.66.52.232, 23.100.124.84, 70.37.54.122, 70.37.50.6, 23.100.127.172, 23.101.183.225, 20.94.150.220, 20.94.149.199, 20.88.209.97, 20.88.209.88
South India 52.172.50.24, 52.172.55.231, 52.172.52.0, 104.211.229.115, 104.211.230.129, 104.211.230.126, 104.211.231.39, 104.211.227.229, 104.211.211.221, 104.211.210.192, 104.211.213.78, 104.211.218.202, 52.172.101.114, 52.172.101.181, 52.140.5.116, 52.172.98.23, 52.140.2.252, 52.140.0.225, 52.140.7.114, 52.172.101.204
Southeast Asia 13.76.133.155, 52.163.228.93, 52.163.230.166, 13.76.4.194, 13.67.110.109, 13.67.91.135, 13.76.5.96, 13.67.107.128, 20.195.49.240, 20.195.49.29, 20.198.130.152, 20.198.128.124, 23.98.121.179, 23.98.121.115, 4.144.203.116, 4.144.203.254, 4.144.203.72, 4.144.204.223, 20.247.192.203, 20.247.192.18, 20.247.197.137, 20.247.197.3, 20.247.196.123, 20.247.197.249, 20.247.195.111, 20.247.195.8, 20.247.197.146, 20.247.197.100, 20.247.197.40, 20.247.198.128, 20.247.198.96
Sweden Central 20.91.178.11, 20.91.177.115, 20.240.10.91, 20.240.10.89
Switzerland North 51.103.137.79, 51.103.135.51, 51.103.139.122, 51.103.134.69, 51.103.138.96, 51.103.138.28, 51.103.136.37, 51.103.136.210, 20.203.230.58, 20.203.229.127, 20.203.224.37, 20.203.225.242, 4.226.35.166, 20.250.239.202, 20.250.239.33, 20.250.239.55, 20.250.233.27, 20.250.235.76, 20.250.235.169, 20.250.235.96
Switzerland West 51.107.239.66, 51.107.231.86, 51.107.239.112, 51.107.239.123, 51.107.225.190, 51.107.225.179, 51.107.225.186, 51.107.225.151, 51.107.239.83, 51.107.232.61, 51.107.234.254, 51.107.226.253, 20.199.193.249, 20.199.217.37, 20.199.219.154, 20.199.216.246, 20.199.219.21, 20.208.230.30, 20.199.216.63, 20.199.218.36, 20.199.216.44
UAE Central 20.45.75.200, 20.45.72.72, 20.45.75.236, 20.45.79.239, 20.45.67.170, 20.45.72.54, 20.45.67.134, 20.45.67.135, 40.126.210.93, 40.126.209.151, 40.126.208.156, 40.126.214.92
UAE North 40.123.230.45, 40.123.231.179, 40.123.231.186, 40.119.166.152, 40.123.228.182, 40.123.217.165, 40.123.216.73, 40.123.212.104, 20.74.255.28, 20.74.250.247, 20.216.16.75, 20.74.251.30, 20.233.241.106, 20.233.241.102, 20.233.241.85, 20.233.241.25, 20.174.64.128, 20.174.64.55, 20.233.240.41, 20.233.241.206, 20.174.48.149, 20.174.48.147, 20.233.241.187, 20.233.241.165, 20.174.56.83, 20.174.56.74, 20.174.40.222, 20.174.40.91
UK South 51.140.74.14, 51.140.73.85, 51.140.78.44, 51.140.137.190, 51.140.153.135, 51.140.28.225, 51.140.142.28, 51.140.158.24, 20.108.102.142, 20.108.102.123, 20.90.204.228, 20.90.204.188, 20.108.146.132, 20.90.223.4, 20.26.15.70, 20.26.13.151, 4.159.24.241, 4.250.55.134, 4.159.24.255, 4.250.55.217, 172.165.88.82, 4.250.82.111, 4.158.106.101, 4.158.105.106, 4.250.51.127, 4.250.49.230, 4.159.26.128, 172.166.86.30, 4.159.26.151, 4.159.26.77, 4.159.59.140, 4.159.59.13
UK West 51.141.54.185, 51.141.45.238, 51.141.47.136, 51.141.114.77, 51.141.112.112, 51.141.113.36, 51.141.118.119, 51.141.119.63, 51.104.58.40, 51.104.57.160, 51.141.121.72, 51.141.121.220
West Central US 52.161.27.190, 52.161.18.218, 52.161.9.108, 13.78.151.161, 13.78.137.179, 13.78.148.140, 13.78.129.20, 13.78.141.75, 13.71.199.128 - 13.71.199.159, 13.78.212.163, 13.77.220.134, 13.78.200.233, 13.77.219.128
West Europe 40.68.222.65, 40.68.209.23, 13.95.147.65, 23.97.218.130, 51.144.182.201, 23.97.211.179, 104.45.9.52, 23.97.210.126, 13.69.71.160, 13.69.71.161, 13.69.71.162, 13.69.71.163, 13.69.71.164, 13.69.71.165, 13.69.71.166, 13.69.71.167, 20.103.21.81, 20.103.17.247, 20.103.17.223, 20.103.16.47, 20.103.58.116, 20.103.57.29, 20.101.174.49, 20.101.174.23, 20.93.236.26, 20.93.235.107, 20.103.94.250, 20.76.174.72, 20.82.87.192, 20.82.87.16, 20.76.170.145, 20.103.91.39, 20.103.84.41, 20.76.161.156, 98.64.193.64, 98.64.194.135, 98.64.198.219, 98.64.198.194, 98.64.208.46, 98.64.209.43, 172.211.196.188, 172.211.195.181, 98.64.157.37, 98.64.156.69, 98.64.156.152, 98.64.156.62, 20.238.229.108, 108.141.139.225, 20.238.230.87, 108.141.139.80, 108.142.111.161, 108.142.111.173, 108.142.111.175, 108.142.111.182, 108.142.111.151, 108.142.111.155, 108.142.111.157, 108.142.111.167, 98.64.203.5, 98.64.156.150, 20.56.202.134, 20.56.202.244, 57.153.19.27, 57.153.59.193, 108.141.95.129, 20.61.147.200, 57.153.83.40, 57.153.38.60, 57.153.2.162, 57.153.1.215, 108.142.24.182, 108.142.31.170, 108.142.31.143, 20.61.152.226
West India 104.211.164.80, 104.211.162.205, 104.211.164.136, 104.211.158.127, 104.211.156.153, 104.211.158.123, 104.211.154.59, 104.211.154.7, 104.211.155.179, 104.211.142.119, 104.211.153.240, 104.211.156.193
West US 52.160.92.112, 40.118.244.241, 40.118.241.243, 157.56.162.53, 157.56.167.147, 104.42.49.145, 40.83.164.80, 104.42.38.32, 13.86.223.0, 13.86.223.1, 13.86.223.2, 13.86.223.3, 13.86.223.4, 13.86.223.5, 104.40.34.169, 104.40.32.148, 52.160.70.221, 52.160.70.105, 13.91.81.221, 13.64.231.196, 13.87.204.182, 40.78.65.193, 13.87.207.39, 104.42.44.28, 40.83.134.97, 40.78.65.112, 168.62.9.74, 168.62.28.191, 13.91.81.188, 13.88.169.213, 13.64.224.17, 13.91.70.215, 13.83.14.75, 13.91.231.159, 13.91.102.122, 52.160.94.54, 13.91.17.147, 13.93.163.29, 13.93.223.133, 13.88.19.4, 13.91.33.16, 13.91.247.124, 52.160.39.166, 13.91.20.94, 13.93.180.161, 13.93.161.57, 13.93.183.170, 13.93.180.221, 13.64.236.222, 13.64.237.74, 13.93.203.72, 13.88.56.138, 13.93.239.25, 13.83.10.112, 13.64.241.219, 13.64.243.209, 104.42.134.185, 40.112.138.23, 104.42.226.197, 104.42.129.159, 13.91.87.195, 13.93.167.155, 13.91.46.132, 13.91.247.104
West US 2 13.66.210.167, 52.183.30.169, 52.183.29.132, 13.66.201.169, 13.77.149.159, 52.175.198.132, 13.66.246.219, 20.99.189.158, 20.99.189.70, 20.72.244.58, 20.72.243.225
West US 3 20.150.181.32, 20.150.181.33, 20.150.181.34, 20.150.181.35, 20.150.181.36, 20.150.181.37, 20.150.181.38, 20.150.173.192, 20.106.85.228, 20.150.159.163, 20.106.116.207, 20.106.116.186

Azure Government - Outbound IP addresses

Region Azure Logic Apps IP
US DoD Central 52.182.48.215, 52.182.92.143, 52.182.53.147, 52.182.52.212, 52.182.49.162, 52.182.49.151
US Gov Arizona 52.244.67.143, 52.244.65.66, 52.244.65.190, 52.126.50.197, 52.126.49.223, 52.126.53.144, 52.126.36.100
US Gov Texas 52.238.114.217, 52.238.115.245, 52.238.117.119, 20.141.120.209, 52.245.171.152, 20.141.123.226, 52.245.163.1
US Gov Virginia 13.72.54.205, 52.227.138.30, 52.227.152.44, 13.77.239.177, 13.77.239.140, 13.77.239.187, 13.77.239.184

Next steps
