Password spray investigation

  • מאמר

This article provides guidance on identifying and investigating password spray attacks within your organization and taking the required remediation actions to protect information and minimize further risks.

This article contains the following sections:

  • Prerequisites: Covers the specific requirements you need to complete before starting the investigation. For example, logging that should be turned on, roles and permissions required, among others.
  • Workflow: Shows the logical flow that you should follow to perform this investigation.
  • Checklist: Contains a list of tasks for each of the steps in the flow chart. This checklist can be helpful in highly regulated environments to verify what you did or simply as a quality gate for yourself.
  • Investigation steps: Includes a detailed step-by-step guidance for this specific investigation.
  • Recovery: Contains high-level steps on how to recover/mitigate from a password spray attack.
  • References: Contains more reading and reference materials.

Prerequisites

Before starting the investigation, make sure you have completed the setup for logs and alerts and other system requirements.

For Microsoft Entra monitoring, follow our recommendations and guidance in our Microsoft Entra SecOps Guide.

Set up AD FS logging

Event logging on ADFS 2016

By default, the Microsoft Active Directory Federation Services (ADFS) in Windows Server 2016 has a basic level of auditing enabled. With basic auditing, administrators can see five or less events for a single request. Set logging to the highest level and send the AD FS (& security) logs to a SIEM to correlate with AD authentication and Microsoft Entra ID.

To view the current auditing level, use this PowerShell command:

Get-AdfsProperties

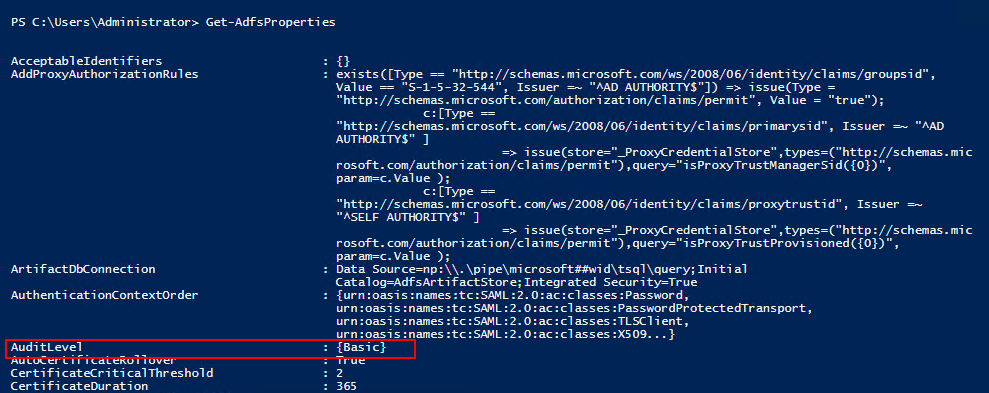

Screenshot example of the Get-AdfsProperties PowerShell command.

This table lists the auditing levels that are available.

Audit level PowerShell syntax Description
None Set-AdfsProperties -AuditLevel None Auditing is disabled and no events are logged
Basic (Default) Set-AdfsProperties -AuditLevel Basic No more than five events will be logged for a single request
Verbose Set-AdfsProperties -AuditLevel Verbose All events are logged. This level logs a significant amount of information per request.

To raise or lower the auditing level, use this PowerShell command:

Set-AdfsProperties -AuditLevel <None | Basic | Verbose>

Set up ADFS 2012 R2/2016/2019 security logging

  1. Select Start, navigate to Programs > Administrative Tools, and then select Local Security Policy.

  2. Navigate to the Security Settings\Local Policies\User Rights Management folder, and then double-click Generate security audits.

  3. On the Local Security Setting tab, verify that the ADFS service account is listed. If it isn't present, select Add User or Group and add it to the list, and then select OK.

  4. To enable auditing, open a command prompt with elevated privileges and run the following command:

    auditpol.exe /set /subcategory:"Application Generated" /failure:enable /success:enable

  5. Close Local Security Policy.

  6. Next, open the ADFS Management snap-in, select Start, navigate to Programs > Administrative Tools, and then select ADFS Management.

  7. In the Actions pane, select Edit Federation Service Properties.

  8. In the Federation Service Properties dialog box, select the Events tab.

  9. Select the Success audits and Failure audits check boxes.

  10. Select OK to finish and save the configuration.

Install Microsoft Entra Connect Health for ADFS

The Microsoft Entra Connect Health for ADFS agent allows you to have greater visibility into your federation environment. It provides you with several preconfigured dashboards like usage, performance monitoring and risky IP reports.

To install ADFS Connect Health, go through the requirements for using Microsoft Entra Connect Health, and then install the Azure ADFS Connect Health Agent.

Set up risky IP alerts using the ADFS Risky IP Report Workbook

After Microsoft Entra Connect Health for ADFS is configured, you should monitor and set up alerting using the ADFS Risky IP report workbook and Azure Monitor. The benefits of using this report are:

  • Detection of IP addresses that exceed a threshold of failed password-based logins.
  • Supports failed logins due to bad password or due to extranet lockout state.
  • Supports enabling alerts through Azure Alerts.
  • Customizable threshold settings that match with the security policy of an organization.
  • Customizable queries and expanded visualizations for further analysis.
  • Expanded functionality from the previous Risky IP report, which is deprecated as of January 24, 2022.

Set up SIEM tool alerts on Microsoft Sentinel

To set up SIEM tool alerts, go through the tutorial on out of the box alerting.

SIEM integration into Microsoft Defender for Cloud Apps

Connect the Security Information and Event Management (SIEM) tool to Microsoft Defender for Cloud Apps, which currently supports Micro Focus ArcSight and generic common event format (CEF).

For more information, see Generic SIEM Integration.

SIEM integration with Graph API

You can connect SIEM with the Microsoft Graph Security API by using any of the following options:

  • Directly using the supported integration options – Refer to the list of supported integration options like writing code to directly connect your application to derive rich insights. Use samples to get started.
  • Use native integrations and connectors built by Microsoft partners – Refer to the Microsoft Graph Security API partner solutions to use these integrations.
  • Use connectors built by Microsoft – Refer to the list of connectors that you can use to connect with the API through various solutions for Security Incident and Event Management (SIEM), Security Response and Orchestration (SOAR), Incident Tracking and Service Management (ITSM), reporting, and so on.

For more information, see Security solution integrations using the Microsoft Graph Security API.

Using Splunk

You can also use the Splunk platform to set up alerts.

Workflow

The following flowchart shows the password spray investigation workflow.

Flowchart of how to conduct a password spray investigation.

You can also:

  • Download the password spray and other incident response playbook workflows as a PDF.
  • Download the password spray and other incident response playbook workflows as a Visio file.

Checklist

Investigation triggers

  • Received a trigger from SIEM, firewall logs, or Microsoft Entra ID
  • Microsoft Entra ID Protection Password Spray feature or Risky IP
  • Large number of failed sign-ins (Event ID 411)
  • Spike in Microsoft Entra Connect Health for ADFS
  • Another security incident (for example, phishing)
  • Unexplained activity, such as a sign-in from unfamiliar location or a user getting unexpected MFA prompts

Investigation

  • What is being alerted?
  • Can you confirm this attack is a password spray?
  • Determine timeline for attack.
  • Determine one or more IP addresses of the attack.
  • Filter on successful sign-ins for this time period and IP address, including successful password but failed MFA
  • Check MFA reporting
  • Is there anything out of the ordinary on the account, such as new device, new OS, new IP address used? Use Defender for Cloud Apps or Azure Information Protection to detect suspicious activity.
  • Inform local authorities/third parties for assistance.
  • If you suspect a compromise, check for data exfiltration.
  • Check associated account for suspicious behavior and look to correlate to other possible accounts and services as well as other malicious IP addresses.
  • Check accounts of anyone working in the same office/delegated access - password hygiene (make sure they aren't using the same password as the compromised account)
  • Run ADFS help

Mitigations

Check the References section for guidance on how to enable the following features:

Recovery

You can also download the password spray and other incident playbook checklists as an Excel file.

Investigation steps

Password spray incident response

Let's understand a few password spray attack techniques before proceeding with the investigation.

Password compromise: An attacker guessed the user's password but hasn't been able to access the account due to other controls such as multifactor authentication (MFA).

Account compromise: An attacker guessed the user's password and gained access to the account.

Environment discovery

Identify authentication type

As the first step, you need to check what authentication type is used for a tenant/verified domain that you're investigating.

To obtain the authentication status for a specific domain name, use the Get-MgDomain PowerShell command. Here's an example:

Connect-MgGraph -Scopes "Domain.Read.All"
Get-MgDomain -DomainId "contoso.com"

Is the authentication federated or managed?

If the authentication is federated, then successful sign-ins are stored in Microsoft Entra ID. The failed sign-ins are in their Identity Provider (IDP). For more information, see AD FS troubleshooting and event logging.

If the authentication type is managed–cloud-only, password hash sync (PHS), or pass-through authentication (PTA)–then successful and failed sign-ins are stored in the Microsoft Entra sign-in logs.

Note

The Staged Rollout feature allows the tenant domain name to be federated but specific users to be managed. Determine if any users are members of this group.

Is Microsoft Entra Connect Health enabled for ADFS?

Is the advanced logging enabled in ADFS?

Are the logs stored in SIEM?

To check whether you're storing and correlating logs in a Security Information and Event Management (SIEM) or in any other system:

  • Log analytics- prebuilt queries
  • Microsoft Sentinel- prebuilt queries
  • Splunk – prebuilt queries
  • Firewall logs
  • UAL if > 30 days

Understanding Microsoft Entra ID and MFA reporting

It's important that you understand the logs that you're seeing to be able to determine compromise. Here are quick guides to understanding Microsoft Entra sign-ins and MFA reporting:

Incident triggers

An incident trigger is an event or a series of events that causes predefined alert to trigger. An example is the number of bad password attempts above your predefined threshold. Here are further examples of triggers that can be alerted in password spray attacks and where these alerts are surfaced. Incident triggers include:

  • Users

  • IP

  • User agent strings

  • Date/time

  • Anomalies

  • Bad password attempts

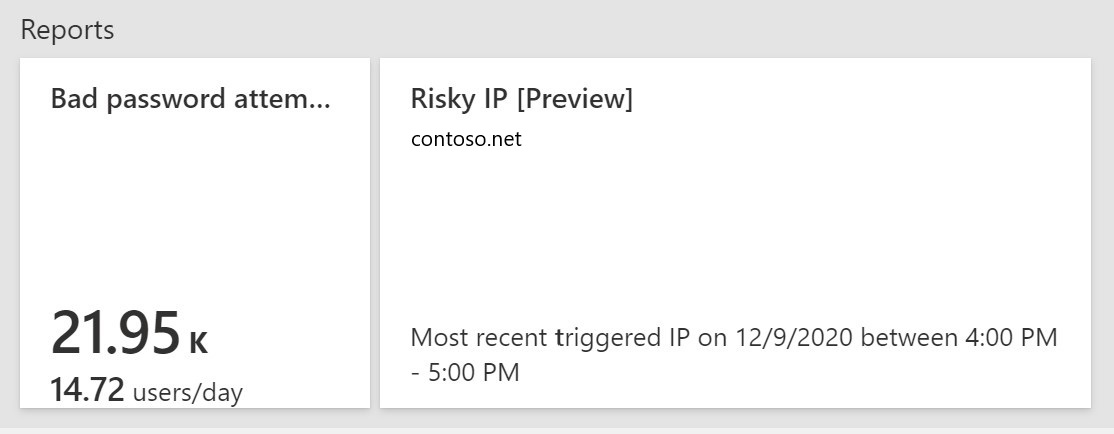

    Screenshot of how to track bad password attempts.

Unusual spikes in activity are key indicators through Microsoft Entra Health Connect (assuming this component is installed). Other indicators are:

  • Alerting through SIEM shows a spike when you collate the logs.
  • Larger than normal log size for ADFS failed sign-ins, which can be an alert in SIEM tool).
  • Increased amounts of 342/411 event IDs – username or password is incorrect. Or 516 for extranet lockout.
  • Hit failed authentication request threshold – Risky IP in Microsoft Entra ID or SIEM tool alert/both 342 and 411 errors (To be able to view this information, the advanced logging should be turned on.)

Risky IP in Microsoft Entra Health Connect portal

Risky IP alerts occur when the customized threshold has been reached for bad passwords in an hour and bad password count in a day and extranet lockouts.

Screenshot example of risky IP report data.

The details of failed attempts are available in the tabs IP address and extranet lockouts.

Screenshot example of the IP address table.

Detect password spray in Azure Identity Protection

Azure Identity Protection is a Microsoft Entra ID P2 feature that has a password-spray detection risk alert and search feature that provides more information or automatic remediation.

Screenshot example of password spray attack.

Low and slow attack indicators

Low and slow attack indicators are when thresholds for account lockout or bad passwords aren't being hit. You can detect these indicators through:

  • Failures in GAL order
  • Failures with repetitive attributes (UA, target AppID, IP block/location)
  • Timing – automated sprays tend to have a more regular time interval between attempts.

Investigation and mitigation

Note

You can perform investigation and mitigation simultaneously during sustained/ongoing attacks.

  1. Turn advanced logging on ADFS if it isn't already turned on.

  2. Determine the date and time of start of the attack.

  3. Determine the attacker IP address (might be multiple sources and multiple IP addresses) from the firewall, ADFS, SIEM, or Microsoft Entra ID.

  4. Once password spray confirmed, you might have to inform the local agencies (police, third parties, among others).

  5. Collate and monitor the following Event IDs for ADFS:

    ADFS 2012 R2

    • Audit event 403 – user agent making the request
    • Audit event 411 – failed authentication requests
    • Audit event 516 – extranet lockout
    • Audit Event 342 – failed authentication requests
    • Audit Event 412 - Successful sign-in

  6. To collect the Audit Event 411 - failed authentication requests, use the following script:

    PARAM ($PastDays = 1, $PastHours)
#************************************************
#ADFSBadCredsSearch.ps1
#Version 1.0
#Date: 6-20-2016
#Author: Tim Springston [MSFT]
#Description: This script will parse the ADFS server's (not proxy) security ADFS
#for events which indicate an incorrectly entered username or password. The script can specify a
#past period to search the log for and it defaults to the past 24 hours. Results >#will be placed into a CSV for
#review of UPN, IP address of submitter, and timestamp.
#************************************************
cls
if ($PastHours -gt 0)
{$PastPeriod = (Get-Date).AddHours(-($PastHours))}
else
{$PastPeriod = (Get-Date).AddDays(-($PastDays))}
$Outputfile = $Pwd.path + "\BadCredAttempts.csv"
$CS = get-wmiobject -class win32_computersystem
$Hostname = $CS.Name + '.' + $CS.Domain
$Instances = @{}
$OSVersion = gwmi win32_operatingsystem
[int]$BN = $OSVersion.Buildnumber
if ($BN -lt 9200){$ADFSLogName = "AD FS 2.0/Admin"}
else {$ADFSLogName = "AD FS/Admin"}
$Users = @()
$IPAddresses = @()
$Times = @()
$AllInstances = @()
Write-Host "Searching event log for bad credential events..."
if ($BN -ge 9200) {Get-Winevent -FilterHashTable @{LogName= "Security"; >StartTime=$PastPeriod; ID=411} -ErrorAction SilentlyContinue | Where-Object{$_.Message -match "The user name or password is incorrect"} | % {
$Instance = New-Object PSObject
$UPN = $_.Properties[2].Value
$UPN = $UPN.Split("-")[0]
$IPAddress = $_.Properties[4].Value
$Users += $UPN
$IPAddresses += $IPAddress
$Times += $_.TimeCreated
add-member -inputobject $Instance -membertype noteproperty -name >"UserPrincipalName" -value $UPN
add-member -inputobject $Instance -membertype noteproperty -name "IP Address" ->value $IPAddress
add-member -inputobject $Instance -membertype noteproperty -name "Time" -value >($_.TimeCreated).ToString()
$AllInstances += $Instance
$Instance = $null
}
}
$AllInstances | select * | Export-Csv -Path $Outputfile -append -force ->NoTypeInformation
Write-Host "Data collection finished. The output file can be found at >$outputfile`."
$AllInstances = $null

ADFS 2016/2019

Along with the above event IDs, collate the Audit Event 1203 – Fresh Credential Validation Error.

  1. Collate all successful sign-ins for this time on ADFS (if federated). A quick sign-in and sign out (at the same second) can be an indicator of a password being guessed successfully and being tried by the attacker.
  2. Collate any Microsoft Entra successful or interrupted events for this time-period for both federated and managed scenarios.

Monitor and collate Event IDs from Microsoft Entra ID

See how to find the meaning of error logs.

The following Event IDs from Microsoft Entra ID are relevant:

  • 50057 - User account was disabled
  • 50055 - Password expired
  • 50072 - User prompted to provide MFA
  • 50074 - MFA required
  • 50079 - user needs to register security info
  • 53003 - User blocked by Conditional Access
  • 53004 - Can't configure MFA due to suspicious activity
  • 530032 - Blocked by Conditional Access on Security Policy
  • Sign-In status Success, Failure, Interrupt

Collate event IDs from Microsoft Sentinel playbook

You can get all the Event IDs from the Microsoft Sentinel Playbook that is available on GitHub.

Isolate and confirm attack

Isolate the ADFS and Microsoft Entra successful and interrupted sign-in events. These are your accounts of interest.

Block the IP Address ADFS 2012R2 and above for federated authentication. Here's an example:

Set-AdfsProperties -AddBannedIps "1.2.3.4", "::3", "1.2.3.4/16"

Collect ADFS logs

Collect multiple event IDs within a time frame. Here's an example:

Get-WinEvent -ProviderName 'ADFS' | Where-Object { $_.ID -eq '412' -or $_.ID -eq '411' -or $_.ID -eq '342' -or $_.ID -eq '516' -and $_.TimeCreated -gt ((Get-Date).AddHours(-"8")) }

Collate ADFS logs in Microsoft Entra ID

Microsoft Entra Sign-In reports include ADFS sign-in activity when you use Microsoft Entra Connect Health. Filter sign-in logs by Token Issuer Type "Federated".

Here's an example PowerShell command to retrieve sign-in logs for a specific IP address:

Get-AzureADIRSignInDetail -TenantId b446a536-cb76-4360-a8bb-6593cf4d9c7f -IpAddress 131.107.128.76

Also, search the Azure portal for time frame, IP address and successful and interrupted sign-in as shown in these images.

Screenshot of how to select the time frame range.

Screenshot showing how to search for sign-ins on a specific IP address.

Searching for sign-ins based on the status.

You can then download this data as a .csv file for analysis. For more information, see Sign-in activity reports in the Microsoft Entra admin center.

Prioritize findings

It's important to be able to react to the most critical threat. This threat can indicate that the attacker has successfully obtained access to an account and therefore can access/exfiltrate data; the attacker has the password but might not be able to access the account. For example, they have the password but aren't passing the MFA challenge. Also, the attacker couldn't be guessing passwords correctly but continuing to try. During analysis, prioritize these findings:

  • Successful sign-ins by known attacker IP address
  • Interrupted sign-in by known attacker IP address
  • Unsuccessful sign-ins by known attacker IP address
  • Other unknown IP address successful sign-ins

Check legacy authentication

Most attacks use legacy authentication. There are many ways to determine the protocol of the attack.

  1. In Microsoft Entra ID, navigate to Sign-Ins and filter on Client App.

  2. Select all the legacy authentication protocols that are listed.

    Screenshot showing a list of legacy protocols.

  3. Or if you have an Azure workspace, you can use the prebuilt legacy authentication workbook located in the Microsoft Entra admin center under Monitoring and Workbooks.

    Screenshot showing the legacy authentication workbook.

Block IP address Microsoft Entra ID for managed scenario (PHS including staging)

  1. Navigate to New named locations.

    Screenshot example of a new named location.

  2. Create a CA policy to target all applications and block for this named location only.

Has the user used this operating system, IP, ISP, device, or browser before?

If they haven't and this activity is unusual, flag the user and investigate all of their activities.

Is the IP marked as "risky"?

Ensure you record successful passwords but failed MFA responses, as this activity indicates that the attacker is getting the password but not passing MFA.

Set aside any account that appears to be a normal sign-in, for example, passed MFA, location and IP not out of the ordinary.

MFA reporting

It's important to also check MFA logs to determine if an attacker guessed a password but are failing the MFA prompt. The Microsoft Entra multifactor authentication logs show authentication details for events when a user is prompted for multifactor authentication. Check and make sure there are no large suspicious MFA logs in Microsoft Entra ID. For more information, see how to use the sign-ins report to review Microsoft Entra multifactor authentication events.

Extra checks

In Defender for Cloud Apps, investigate activities and file access of the compromised account. For more information, see:

Check whether the user has access to more resources, such as virtual machines (VMs), domain account permissions, storage, among others. If there's a data breach, you should inform more agencies, such as the police.

Immediate remedial actions

  1. Change the password of any account that you suspect has been breached or the account password discovered. Additionally, block the user. Make sure you follow the guidelines for revoking emergency access.
  2. Mark any compromised account as "compromised" in Microsoft Entra ID Identity Protection.
  3. Block the IP address of the attacker. Be cautious while performing this action as attackers can use legitimate VPNs and could create more risk as they change IP addresses as well. If you're using Cloud Authentication, then block the IP address in Defender for Cloud Apps or Microsoft Entra ID. If federated, you need to block the IP address at the firewall level in front of the ADFS service.
  4. Block legacy authentication if it's being used (this action, however, could impact business).
  5. Enable MFA if it isn't already done.
  6. Enable Identity Protection for the user risk and sign-in risk
  7. Check the compromised data (emails, SharePoint, OneDrive, apps). See how to use the activity filter in Defender for Cloud Apps.
  8. Maintain password hygiene. For more information, see Microsoft Entra password protection.
  9. You can also refer to ADFS Help.

Recovery

Password protection

Implement password protection on Microsoft Entra ID and on-premises by enabling the custom-banned password lists. This configuration prevents users from setting weak passwords or passwords associated with your organization:

Screenshot of how to enable password protection.

For more information, see how to defend against password spray attacks.

Tagging IP address

Tag the IP addresses in Defender for Cloud Apps to receive alerts related to future use:

Screenshot example of how to tag an IP address.

Tagging IP addresses

In Defender for Cloud Apps, "tag" IP address for the IP scope and set up an alert for this IP range for future reference and accelerated response.

Screenshot example of setting up an IP address alert.

Setting alerts for a specific IP address

Configure alerts

Depending on your organization needs, you can configure alerts.

Set up alerting in your SIEM tool and look at improving logging gaps. Integrate ADFS, Microsoft Entra ID, Office 365 and Defender for Cloud Apps logging.

Configure the threshold and alerts in ADFS Health Connect and Risky IP portal.

Example of how to configure threshold settings.

Screenshot example of configuring notifications.

See how to configure alerts in the Identity Protection portal.

Set up sign-in risk policies with either Conditional Access or Identity Protection

  • Educate end users, key stakeholders, frontline operations, technical teams, cyber security and communications teams
  • Review security control and make necessary changes to improve or strengthen security control within your organization
  • Suggest Microsoft Entra configuration assessment
  • Run regular attack simulator exercises

References

Prerequisites

Mitigations

Recovery

Extra incident response playbooks

Examine guidance for identifying and investigating these extra types of attacks:

Incident response resources
