Office 365 Outlook

  • Reference

Microsoft Office 365 is a cloud-based service that is designed to help meet your organization's needs for robust security, reliability, and user productivity.

This connector is available in the following products and regions:

Service Class Regions
Logic Apps Standard All Logic Apps regions
Power Automate Standard All Power Automate regions
Power Apps Standard All Power Apps regions
Connector Metadata
Publisher Microsoft

To learn how to use this connector in Power Apps, go to Connect to Office 365 Outlook from Power Apps. Some of operations operate with Graph API. You can find Graph API IP addresses in Office 365 URLs and IP address ranges.

Deprecated operations decommission

Due to underlying APIs decommission process, it's highly recommended to update existing solutions to avoid usage of operations marked as [DEPRECATED].

Known issues and limitations with actions

Short description Operations Long description
Incorrect email attachment with digitally signed emails All For digitally signed emails, the action output may contain incorrect attachment content, which can't be used as input in subsequent actions (for example, to create a new file with attachment content).
Support of HTML/action cards in different mail clients Send approval email
Send email with options		 When sending emails with options or approvals, the action card (actionable message) rendering in Outlook won't support HTML in the body of the message (if HTML buttons are clicked, the output of the action can have null values for some fields). The rendering behavior of HTML in the body of the message depends on the options Use Only HTML Message and Hide HTML Message.

If Use Only HTML Message is set to Yes, all mail clients will show only the HTML buttons. The action card buttons will not be rendered.

If Use Only HTML Message is set to No, and Hide HTML Message is set to Yes, only the action card buttons will show.

If Use Only HTML Message is set to No, and Hide HTML Message is set to No, some mail clients will show both the action card and the HTML message, and some mail clients will show only the action card.

Actionable Messages are only supported with single user mailboxes. Group and shared mailboxes are not supported.

For information on the support of action cards in different mail clients, go to Outlook version requirements for actionable messages.
Receive meeting updates Update Event (V4) If you use this operation and you're the organizer of the event, all the attendees will receive meeting updates. Also, due to the current design, all event fields omitted during the update will be reset to default values. Therefore, you need to fill all the event properties with intended values or re-fill current values (please use Get event (V3) action), in case you are not going to update them.
When the event is updated, only one day of the week remains Update Event (V4) If the event that you are updating repeats several times a week every week, do not forget to specify these days in the Selected days of week parameter. Otherwise, after the update, one day of the week will be saved, which will be taken from the 'Start Time' parameter.
Set third-party mail filters Send email with options
Send approval email		 Third-party mail filters (like G Suite and Mimecast) will autoselect the user options in action. For this reason, set Show HTML confirmation dialog to Yes to avoid this problem related to the functionality.
Send action cards/HTML Send email with options
Send approval email		 These actions send action cards (actionable messages) and HTML content. The response will be localized only in case you push the button in an actionable message itself (not in HTML content). In Sovereign clouds, action cards are rendered only to the sender of the email, but not to other recipients. This happens even if the HTML content is rendered for all recipients.
Send an email from a shared mailbox Send an email from a shared mailbox (V2) The operation is expected to work for the Microsoft 365 shared mailbox feature only.
Workaround for rooms returned over 100 Get rooms (V2) The number of rooms returned is limited to 100. As a workaround, query for room lists using Get rooms in room list (V2). Then, search for the rooms inside the selected list.
Email encryption limitation Reply to email (V3) Emails that are encrypted aren't supported by the connector when using this action. Therefore, if you try to send an email to Outlook that has email encryption turned on, you'll see the error with a note that the request has failed.
Reply to email action changes datetime to UTC Reply to email (V3) Sent datetime of the original email is converted to UTC time zone due to underlying system limitations.
Send an email (V2) does not return message id Send an email (V2) There is no way to get the messageid when sending a message.
Send an email from the converted from a personal shared mailbox Send an email from a shared mailbox (V2) Action does not work for shared mailboxes that were converted from personal mailboxes.
Maximum number of events returned limitation Get calendar view of events (V3) The maximum number of events which can be returned is 256. To retrieve more than 256 events utilize the Skip Count and Top Count parameters to retrieve lists of events in incremental fashion.
Send approval email response returns null Send approval email When users click the Actionable Message card options at the top of an email, values for userid, useremailaddress, and usertenantid are retrieved.

If users click an option from the email body, these values remain empty. Additionally, when sending an approval email, the response for userid, useremailaddress, and usertenantid is null.

Known issues and limitations with triggers

Short description Operations Long description
Incorrect email attachment with digitally signed emails All For digitally signed emails, the trigger output may contain incorrect attachment content, which can't be used as input in subsequent actions (for example, to create a new file with attachment content).
Emails are missed due to system limitations All If there are many emails sent at the same time, some emails could be missed by the trigger due to underlying system limitations. This issue occurs rarely and is related to the mail triggers.
Trigger may run twice on emails with attachments with Dynamic Delivery All If Safe Attachments in Microsoft Defender for Office 365 is configured with Dynamic Delivery option, the trigger may run twice on receiving a new email. The first time it runs, attachments array in the trigger response is empty. As a workaround for emails with attachments, have a condition after the trigger that verifies whether the length of the attachments array is greater than 0.
Monitor multiple mailboxes or calendars All If you want to configure a trigger to monitor multiple mailboxes or calendars, create a separate flow/LogicApp for each mailbox or calendar.
Trigger fires twice When a new event is created (V3) When you accept a meeting invitation, the trigger would fire second time for this meeting event. The reason that the Outlook service treats an event after acceptance as a new event and rewrites its Id and created date—it recreates event. The user can work around this issue by filtering the trigger's outputs on the Response type parameter using built-in control module and its action's condition.
Trigger fires for all events in a recurring event When an event is added, updated or deleted (V3) Trigger fires on each event occurrence. When you change a recurring event, it affects all events in this series. For example, if a series has 15 occurrences, the trigger will fire 15 times.
Trigger fires with Deleted value in Action Type parameter for events outside interval window When an event is added, updated or deleted (V3) When a flow is configured to trigger for events inside of a specific time interval, all events outside of the defined interval — create, update, or deleted — will trigger the flow as Action Type parameter with a Deleted value. This situation can occur because of the following reason:

Interval periods are set at the time of the trigger creation and then updated one time per week, i.e., if 6 days have passed since the trigger was created, and the days 30 (before) and 30 (after) were set in the fields, then these dates will be relevant at the time of trigger creation. After 6 days it will look as if 36 (before) and 24 (after) were set. After 7 days, the trigger will automatically update and the dates will again be 30 (before) and 30 (after).

The main reason of this limitation is because of Microsoft Graph’s delta query behavior. For more information, go to event: delta - Microsoft Graph v1.0 - Microsoft Learn.
Trigger provides unnecessary updates When an event is added, updated or deleted (V3) An event can be updated due to internal Exchange processes and the trigger will fire again because of that. Users can filter a trigger's outputs on the Action Type parameter to ignore unnecessary updates.
Delay in a trigger fire When a new email arrives (V3)
When a new email mentioning me arrives (V3)
When an email is flagged (V3)
When an event is added, updated or deleted (V3)		 Triggers fire on the corresponding event's occurrence almost immediately in most cases, but there could be rare circumstances when the trigger's delay to fire may take up to one hour.
Trigger behavior when an email folder is changed When a new email arrives (V3)
When a new email arrives in a shared mailbox (V2)
When a new email mentioning me arrives (V2)		 Triggers are based on the date and time an email was received. Moving an email to another folder does not change the received date property value, so the triggers will skip any email that was received prior to the latest successful run.
 Flow intermittently triggers for older emails when moved to folder   When a new email arrives in a shared mailbox (V2)   The flow intermittently triggers for both older emails and the latest emails moved to another folder. This is by design and may result in inconsistent behavior.
Trigger behavior on flagged email When an email is flagged
When an email is flagged (V2)
When an email is flagged (V3)
When an email is flagged (V4)		 Triggers fire on flagging an email or receiving a flagged email. Also, if an already flagged email is modified in any way (for example, an email category is changed or an email is replied), the trigger will fire on this email. Furthermore, when multiple emails are flagged at once, it causes the trigger to run multiple times for few emails.
Trigger limitation for shared mailboxes When a new email arrives in a shared mailbox (V2) The trigger won't work in cases of user-to-user shared mailboxes unless one of the users has full access to the other mailbox (which includes more permissions than just sending emails).
Trigger timeout with attachments When a new email arrives (V3) Setting Include Attachments to Yes causes the connector to wait for all attachments to be downloaded. When many emails with attachments arrive around the same time, the connector can timeout while downloading these attachments.

To avoid this, the trigger should be changed to set Include Attachments to No, and the logic should be changed to add the Get Attachment (V2) action to download the attachment.

Additionally, LogicApps authors should ensure that the Office 365 mailbox and the LogicApp are hosted in the same region to reduce attachment download time.
Trigger limitation when using To Or CC filter When a new email arrives (V3) When filtering by the To or CC field, only that field should be populated and the others left empty. If both the To and CC fields are set, then the trigger will fire only for emails that have the emailId(s) in both of the fields.
Email encryption limitation When a new email arrives (V3)

When a new email arrives in a shared mailbox (V2)		 The output of triggers does not contain actual message body but will have note mentioning the message is secured and prohibited and this response is from backend.

Common errors

Error Solution
Access to OData is disabled or most errors when using the connector Check that the REST API is enabled. Accounts on a dedicated (on-premise) mail server or accounts that are sandbox (test) accounts may also see an error. Your administrator can learn how to migrate a mailbox in How to migrate mailbox data by using the Exchange Admin Center in Office 365. If you are using an EWS application access policy, ensure that the following user-agents are allowed: "LogicAppsDesigner/","azure-logic-apps/","PowerApps/", "Mozilla/", "Microsoft Flow*", "Azure.Connectors.Office365Outlook.Office365OutlookConnector", "Azure.Connectors.Outlook.OutlookConnector", "PowerAutomateLocal/*", "PowerAutomateCloud/*".
REST API is not yet supported for this mailbox The error can occur if the mailbox is on a dedicated Microsoft Exchange Server and is not a valid Office 365 mailbox. For more details, go to REST API is not yet supported for this mailbox error for request to a mailbox.
Specified object was not found in the store
  • Verify the permissions for the account.
  • Verify the user account used for the trigger is a member of the shared mailbox.
  • Verify that the original mailbox address field contains the shared mailbox address.
  • Re-check the shared mailbox configuration in the admin center.
  • Delete the current Outlook connection and create a new one.
Also, this error is displayed when the message has been moved or deleted by the mailbox owner. To learn more, go to Configure shared mailbox settings.
AADSTS53003: Access has been blocked by Conditional Access policies and the access policy does not allow token issuance and other Conditional Access errors Conditional Access policies can prevent the connector from running as expected. To learn more, go to the Microsoft Entra ID Conditional Access documentation.

General known issues and limitations

  • To use this integration, you'll need access to an Office 365 mailbox that has the REST API enabled. To make a connection, select Sign In. You'll be prompted to provide your Office 365 account. Then, follow the instructions to create a connection.

  • There are two types of email attachments:

    • File attachments: Any file, such as a .txt, .jpg, .zip, .pdf, and others. One of the few properties in a file attachment is the base64 encoded content of the file. The latest versions of all triggers support these attachments. EML, MSG, and ICS files should be attached within .zip archives to be available in trigger responses.

    • Item attachments: Email messages, calendar items, and NDR (Non-Delivery Report) emails that are attached to an email. Item attachments have many properties. These attachments, including NDR emails, are not supported by the connector at the moment. To workaround this issue, you can do the following:

      Warning

      Don't use the public endpoint (https://graph.microsoft.com) for national clouds. To learn more, go to Microsoft Graph and Graph Explorer service root endpoints.

  • We have a size limit of 1MB per data uri for inline embedded images, i.e. the image cannot be more than 1MB after base64 encoding. This only applies to embedded images inside of the mail body. Bear in mind the size of an image after being converted to a base64 string increases. Depending on the image compression, format, and other characteristics it can increase anywhere between 25% to 50%. For instance, an image of more than 700KB will after being converted to a base 64 string likely exceed the 1MB limit stated above.

  • An Office 365 group address can't be used as shared mailbox address.

  • If the email is sent outside of the associated organization, the admin should check if the organization has specific rules to reject sending/forwarding emails outside of the associated organization (for example, using SMTP headers). To learn more, go to SMTP headers.

  • Shared calendars are not supported in Office 365 Outlook connector.

  • Forward slash symbol / isn't supported for folder names in case of custom input value for Folder parameter. As a workaround, use file picker, or provide folder Id value.

  • In some rare cases, newly created users get a connection error despite required permissions granted to their accounts. The workaround would be to switch/re-authenticate the shared mailbox connection with the email address and password of the shared mailbox account. This way, the flow should run successfully for all users.

  • After the permissions are granted for the account to access the shared mailbox, it can take about two hours until the permissions are replicated on the platform.

  • Each email will count as only one API call per connection, even if there's more than one recipient in the To, Cc, or Bcc fields. To learn more about sending limits, go to sending limits.

  • In some circumstances, non-Latin characters won't render as expected when sending an email with an adaptive card inside it. To learn more, go to Known issues with HTML to PDF conversion. As a potential workaround, use the same type of characters in the email subject as used in adaptive card.

Throttling limits on the Office side

In addition to the throttling limits per connection, Office imposes its own limits per inbox. This limit can be reached if the user creates different flows/Logic Apps that target the same inbox. To learn more, go to the Exchange Online limits documentation.

Connector timeouts detail

Office 365 Outlook connector makes outgoing requests to one of the following APIs:

  • Graph API, which has 30 seconds timeout interval per single external request.
  • Outlook REST API, which has 60 seconds timeout interval per single external request.

This error will be returned after a request to these external APIs reached the limit: { "status": 504, "message": "Request failed. Try again later"} Such failed requests will be retried up to four times in Power Automate/Azure Logic Apps (unless the default retry policy is overridden by the user). To learn more about retry policy, go to Handle errors and exceptions in Azure Logic Apps.

The 504 (gateway timeout) status code returned doesn't imply the underlying action was unsuccessful. Due to default retry policy (if applied), the same action can be executed multiple times. For example, if the Send an email action results in a 504 response, and it retries the request, then duplicate emails are possible.

Deprecation of Webhook trigger

Due to a recent change in the lifecycle of webhook subscriptions, the When a new email arrives (webhook) trigger has been deprecated. While we are working to provide a solution to this, use the When a new email arrives polling trigger instead.

Shared mailbox support

As of May 6, 2020, shared mailbox support was added for certain operations with an optional Mailbox address parameter, which allows you to specify a shared mailbox address for your operation to access. If you were using this operation prior to May 6, 2020, you'll need to explicitly update your operations to specify the shared mailbox address.

For operations that don't support shared mailboxes yet, you can use a workaround with the Invoke an HTTP request action under the HTTP with Microsoft Entra ID connector. When creating a connection for the HTTP with Microsoft Entra ID connector, input text https://graph.microsoft.com/ for both Microsoft Entra ID Resource URI and Base Resource URL connection parameters. After it's created, you can go to Outlook mail REST API to set the URL, and optionally the request body to call its shared mailbox APIs. Some of the Outlook functions will only be available on the beta version of Graph API. The HTTP with Microsoft Entra ID connector is a premium connector and won't be available if you are using the free version of Microsoft Power Automate.

Add hyperlinks to the email body

For adding hyperlinks to the email body, you can do the following:

  • In the Body field, mark the text you want to link, and then select the Link icon.
  • When you see the dialog, paste your link address into the Link Target field, and then select the Add button.
  • To verify that everything is correct, place the cursor over your new link. When you see the small icon, select it to open the linked page.

SMTP headers

The connector is attaching the following SMTP headers (Internet message headers) to each sent email:

  1. "x-ms-mail-application" with the following values:

    Service Value
    Power Automate Microsoft Power Automate; User-Agent: azure-logic-apps/1.0 (workflow <workflow id>; version <version id>) microsoft-flow/1.0
    Power Apps Microsoft Power Apps; User-Agent: PowerApps/<version id> (<Player type>; AppName=<app name>)
    Logic Apps Azure Logic Apps; User-Agent: azure-logic-apps/1.0 (workflow <workflow id>; version <version id>)

  2. "x-ms-mail-operation-type" with the following values:

    Description Value
    For reply email operations Reply
    For forward email operations Forward
    For send email operations (including SendEmailWithOptions and SendApprovalEmail) Send

  3. "x-ms-mail-environment-id" with Environment Id value.
    The presence of this header depends on the product you are using:

    • In Power Apps, it will always be present.
    • In Power Automate, it will only be present in newly created connections.
    • In Logic Apps, it will never be present.

  4. "x-ms-mail-workflow" with the following values:

    Service Value
    Power Automate x-ms-workflow-name: <workflow name>; x-ms-workflow-run-id: <workflow run id>; x-ms-client-request-id: <client request id>;
    Logic Apps x-ms-workflow-name: <workflow name>; x-ms-workflow-run-id: <workflow run id>; x-ms-client-request-id: <client request id>;
    Power Apps x-ms-client-request-id: <client request id>;

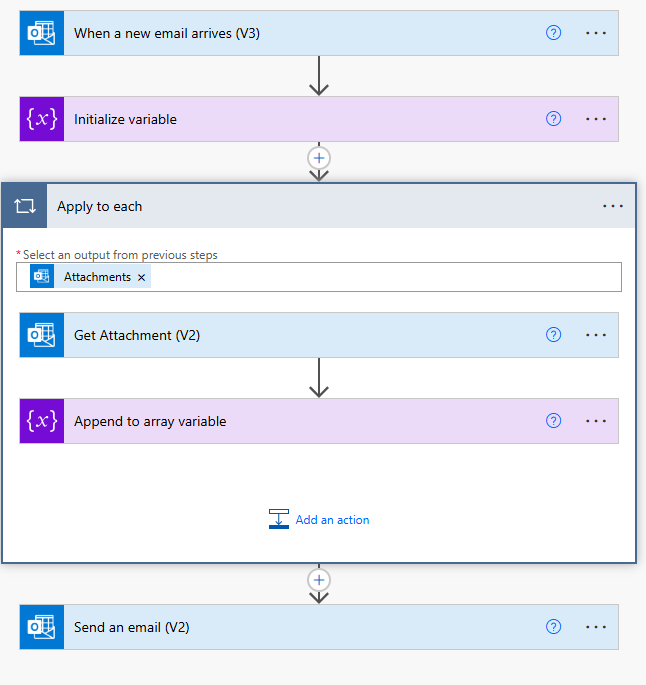

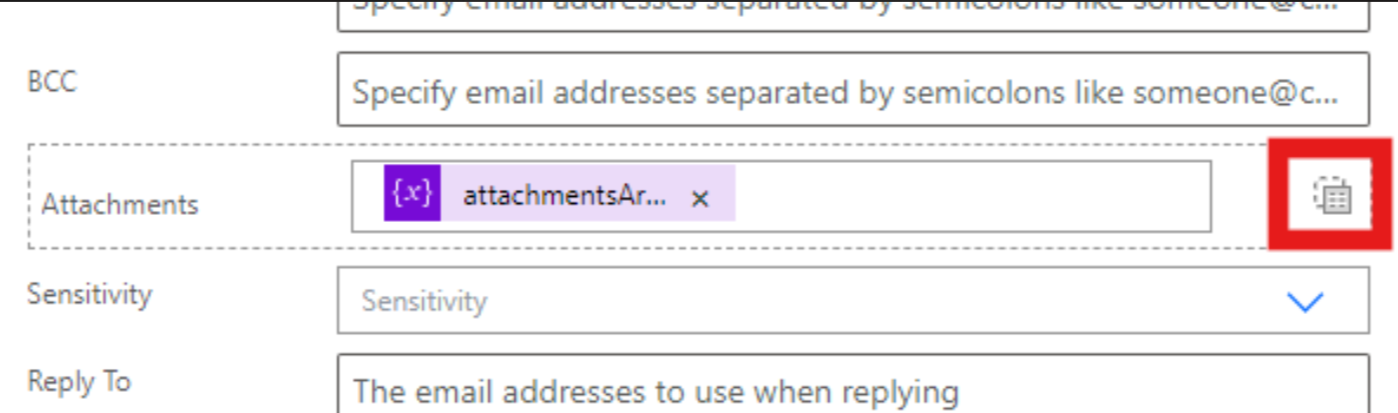

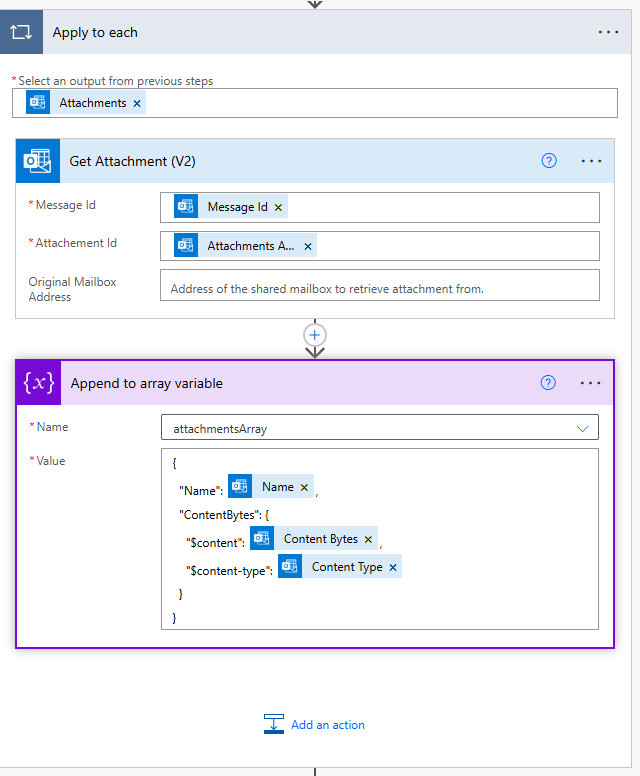

Working with attachments

Certain triggers and actions have a parameter to control whenever attachments content should be included into the response - Include Attachments. This parameter controls only attachments content, but not the attachments metadata (like Id, Name, Content Type, Size, and Is Inline), which would be included in the response regardless of the parameter value.

Connector in-depth

To learn more about the connector, go to Connect to Office 365 Outlook using Azure Logic Apps.

General Limits

Name Value
Maximum mails content length (in MB) 49
Maximum total mails content length per connection per 5 minutes for 'Send an email' actions (in MB) 500
Maximum total content length per connection per 5 minutes for ALL actions (in MB) 2000
Maximum number of options for options and approval mails 100
Maximum number of megabytes being transferred from the connector concurrently 300
Maximum number of requests being processed by the connector concurrently 70

Creating a connection

The connector supports the following authentication types:
Office 365 Credentials (Office GCC High) Log in with Office 365 Credentials (Office GCC High). Azure Government only Not shareable
Office 365 Credentials (Office Public/Office GCC) Log in with Office 365 Credentials (Office Public/Office GCC). Azure Government only Not shareable
Default Log in with Office 365 Credentials All regions except Azure Government Not shareable

Office 365 Credentials (Office GCC High)

Auth ID: oauthGccHigh

Applicable: Azure Government only

Log in with Office 365 Credentials (Office GCC High).

This is not shareable connection. If the power app is shared with another user, another user will be prompted to create new connection explicitly.

Office 365 Credentials (Office Public/Office GCC)

Auth ID: oauthPublic

Applicable: Azure Government only

Log in with Office 365 Credentials (Office Public/Office GCC).

This is not shareable connection. If the power app is shared with another user, another user will be prompted to create new connection explicitly.

Default

Applicable: All regions except Azure Government

Log in with Office 365 Credentials

This is not shareable connection. If the power app is shared with another user, another user will be prompted to create new connection explicitly.

Throttling Limits

Name Calls Renewal Period
API calls per connection 300 60 seconds

Actions

Create contact (V2)

This operation creates a new contact in a contacts folder.
Create contact [DEPRECATED]

This action has been deprecated. Please use Create contact (V2) instead.

This operation creates a new contact in a contacts folder.
Create event (V1) [DEPRECATED]

This action has been deprecated. Please use Create event (V4) instead.

This operation creates a new event in a calendar. (V1)
Create event (V2) [DEPRECATED]

This action has been deprecated. Please use Create event (V4) instead.

This operation creates a new event in a calendar. (V2)
Create event (V3) [DEPRECATED]

This action has been deprecated. Please use Create event (V4) instead.

This operation creates a new event in a calendar.
Create event (V4)

This operation creates a new event in a calendar.
Delete contact (V2)

This operation deletes a contact from a contacts folder.
Delete contact [DEPRECATED]

This action has been deprecated. Please use Delete contact (V2) instead.

This operation deletes a contact from a contacts folder.
Delete email (V2)

This operation deletes an email by id.
Delete email [DEPRECATED]

This action has been deprecated. Please use Delete email (V2) instead.

This operation deletes an email by id.
Delete event (V2)

This operation deletes an event in a calendar.
Delete event [DEPRECATED]

This action has been deprecated. Please use Delete event (V2) instead.

This operation deletes an event in a calendar.
Export email (V2)

Export the content of the email in the EML file format.
Export email [DEPRECATED]

This action has been deprecated. Please use Export email (V2) instead.

Export the content of the email.
Find meeting times (V2)

Find meeting time suggestions based on organizer, attendee availability, and time or location constraints
Find meeting times [DEPRECATED]

This action has been deprecated. Please use Find meeting times (V2) instead.

Find meeting time suggestions based on organizer, attendee availability, and time or location constraints
Flag email (V2)

This operation updates an email flag.
Flag email [DEPRECATED]

This action has been deprecated. Please use Flag email (V2) instead.

This operation flags an email.
Forward an email (V2)

Forward an email.
Forward an email [DEPRECATED]

This action has been deprecated. Please use Forward an email (V2) instead.

Forward an email.
Get Attachment (V2)

This operation gets an email attachment by id.
Get attachment [DEPRECATED]

This action has been deprecated. Please use Get Attachment (V2) instead.

This operation gets an email attachment by id.
Get calendar view of events (V2) [DEPRECATED]

This action has been deprecated. Please use Get calendar view of events (V3) instead.

This operation gets all events (including instances of recurrences) in a calendar. Recurrence property is null in this case.
Get calendar view of events (V3)

This operation gets all events (including instances of recurrences) in a calendar using Graph API. Recurrence property is null in this case.
Get calendar view of events [DEPRECATED]

This action has been deprecated. Please use Get calendar view of events (V3) instead.

Get calendar view of events.
Get calendars (V2)

This operation lists available calendars.
Get calendars [DEPRECATED]

This action has been deprecated. Please use Get calendars (V2) instead.

This operation lists available calendars.
Get contact (V2)

This operation gets a specific contact from a contacts folder.
Get contact [DEPRECATED]

This action has been deprecated. Please use Get contact (V2) instead.

This operation gets a specific contact from a contacts folder.
Get contact folders (V2)

This operation lists available contacts folders using Graph API
Get contact folders [DEPRECATED]

This action has been deprecated. Please use Get contact folders (V2) instead.

This operation lists available contacts folders.
Get contacts (V2)

This operation gets contacts from a contacts folder.
Get contacts [DEPRECATED]

This action has been deprecated. Please use Get contacts (V2) instead.

This operation gets contacts from a contacts folder.
Get email (V2)

This operation gets an email by id.
Get email [DEPRECATED]

This action has been deprecated. Please use Get email (V2) instead.

This operation gets an email by id.
Get emails (V2) [DEPRECATED]

This action has been deprecated. Please use Get emails (V3) instead.

This operation gets emails from a folder.
Get emails (V3)

This operation gets emails from a folder via graph apis. Please note that filtering related to these fields: To, Cc, To Or Cc, From, Importance, Fetch Only With Attachments, Subject Filter, is performed using first 250 items in a given mail folder. To avoid that limitation you can use 'Search Query' field.
Get emails [DEPRECATED]

This action has been deprecated. Please use Get emails (V3) instead.

This operation gets emails from a folder.
Get event (V1) [DEPRECATED]

This action has been deprecated. Please use Get event (V3) instead.

This operation gets a specific event from a calendar. (V1)
Get event (V2) [DEPRECATED]

This action has been deprecated. Please use Get event (V3) instead.

This operation gets a specific event from a calendar. (V2)
Get event (V3)

This operation gets a specific event from a calendar using Graph API. (V3)
Get events (V1) [DEPRECATED]

This action has been deprecated. Please use Get events (V4) instead.

This operation gets events from a calendar. (V1)
Get events (V2) [DEPRECATED]

This action has been deprecated. Please use Get events (V4) instead.

This operation gets events from a calendar. (V2)
Get events (V3) [DEPRECATED]

This action has been deprecated. Please use Get events (V4) instead.

This operation gets events from a calendar. (V3)
Get events (V4)

This operation gets events from a calendar using Graph API. (V4)
Get mail tips for a mailbox (V2)

Get mail tips for a mailbox such as automatic replies / OOF message or if the mailbox is full. This is not available in GccHigh and Mooncake.
Get mail tips for a mailbox [DEPRECATED]

This action has been deprecated. Please use Get mail tips for a mailbox (V2) instead.

Get mail tips for a mailbox such as automatic replies / OOF message or if the mailbox is full.
Get room lists (V2)

Get all the room lists defined in the user's tenant
Get room lists [DEPRECATED]

This action has been deprecated. Please use Get room lists (V2) instead.

Get all the room lists defined in the user's tenant
Get rooms (V2)

Get all the meeting rooms defined in the user's tenant
Get rooms [DEPRECATED]

This action has been deprecated. Please use Get rooms (V2) instead.

Get all the meeting rooms defined in the user's tenant
Get rooms in room list (V2)

Get the meeting rooms in a specific room list
Get rooms in room list [DEPRECATED]

This action has been deprecated. Please use Get rooms in room list (V2) instead.

Get the meeting rooms in a specific room list
Mark as read [DEPRECATED]

This action has been deprecated. Please use Mark as read or unread (V3) instead.

This operation marks an email as having been read.
Mark as read or unread (V2) [DEPRECATED]

This action has been deprecated. Please use Mark as read or unread (V3) instead.

This operation marks an email as read/unread.
Mark as read or unread (V3)

This operation marks an email as read/unread.
Move email (V2)

This operation moves an email to the specified folder within the same mailbox.
Move email [DEPRECATED]

This action has been deprecated. Please use Move email (V2) instead.

This operation moves an email to the specified folder within the same mailbox.
Reply to email (V2) [DEPRECATED]

This action has been deprecated. Please use Reply to email (V3) instead.

This operation replies to an email.
Reply to email (V3)

This operation replies to an email.
Reply to email [DEPRECATED]

This action has been deprecated. Please use Reply to email (V3) instead.

This operation replies to an email.
Respond to an event invite (V2)

Respond to an event invite.
Respond to an event invite [DEPRECATED]

This action has been deprecated. Please use Respond to an event invite (V2) instead.

Respond to an event invite.
Send an email (V2)

This operation sends an email message.
Send an email [DEPRECATED]

This action has been deprecated. Please use Send an email (V2) instead.

This operation sends an email message.
Send an email from a shared mailbox (V2)

This operation sends an email from a shared mailbox. Your account should have permission to access the mailbox for this operation to succeed.
Send an email from a shared mailbox [DEPRECATED]

This action has been deprecated. Please use Send an email from a shared mailbox (V2) instead.

This operation sends an email from a shared mailbox. Your account should have permission to access the mailbox for this operation to succeed.
Send an HTTP request

Construct a Microsoft Graph REST API request to invoke. These segments are supported: 1st segement: /me, /users/ 2nd segment: messages, mailFolders, events, calendar, calendars, outlook, inferenceClassification. Learn more: https://docs.microsoft.com/en-us/graph/use-the-api.
Send approval email

This operation sends an approval email and waits for a response from the recipient. Please refer to the following link regarding the support of actionable messages in different mail clients: https://docs.microsoft.com/outlook/actionable-messages/#outlook-version-requirements-for-actionable-messages.
Send email with options

This operation sends an email with multiple options and waits for the recipient to respond back with one of the options. Please refer to the following link regarding the support of actionable messages in different mail clients: https://docs.microsoft.com/outlook/actionable-messages/#outlook-version-requirements-for-actionable-messages.
Set up automatic replies (V2)

Set the automatic replies setting for your mailbox.
Set up automatic replies [DEPRECATED]

This action has been deprecated. Please use Set up automatic replies (V2) instead.

Set the automatic replies setting for your mailbox.
Update contact (V2)

This operation updates a contact in a contacts folder.
Update contact [DEPRECATED]

This action has been deprecated. Please use Update contact (V2) instead.

This operation updates a contact in a contacts folder.
Update event (V1) [DEPRECATED]

This action has been deprecated. Please use Update event (V4) instead.

This operation updates an event in a calendar. (V1)
Update event (V2) [DEPRECATED]

This action has been deprecated. Please use Update event (V4) instead.

This operation updates an event in a calendar. (V2)
Update event (V3) [DEPRECATED]

This action has been deprecated. Please use Update event (V4) instead.

This operation updates an event in a calendar.
Update event (V4)

This operation updates an event in a calendar using Graph API.
Update my contact's photo

Updates the photo of the specified contact of the current user. The size of the photo must be less than 4 MB.

Create contact (V2)

Operation ID:
ContactPostItem_V2

This operation creates a new contact in a contacts folder.

Parameters

Name Key Required Type Description
Folder id
 folder True string

Select a contacts folder
Id
 id string

The contact's unique identifier.
Parent folder id
 parentFolderId string

The ID of the contact's parent folder
Birthday
 birthday date-time

The contact's birthday
File as
 fileAs string

The name the contact is filed under
Display Name
 displayName string

The contact's display name
Given name
 givenName True string

The contact's given name
Initials
 initials string

The contact's initials
Middle name
 middleName string

The contact's middle name
Nickname
 nickName string

The contact's nickname
Surname
 surname string

The contact's surname
Title
 title string

The contact's title
Generation
 generation string

The contact's generation
name
 name string
address
 address email
IM addresses
 imAddresses array of string

The contact's instant messaging (IM) addresses
JobTitle
 jobTitle string

The contact's job title
Company name
 companyName string

The name of the contact's company
Department
 department string

The contact's department
Office location
 officeLocation string

The location of the contact's office
Profession
 profession string

The contact's profession
Business home page
 businessHomePage string

The business home page of the contact
Assistant name
 assistantName string

The name of the contact's assistant
Manager
 manager string

The name of the contact's manager
Home phones
 homePhones True array of string

The contact's home phone numbers
Business phones
 businessPhones array of string

The contact's business phone numbers
Mobile phone
 mobilePhone string

The contact's mobile phone number
Street
 street string

The contact's street address.
City
 city string

The contact's city.
State
 state string

The contact's state.
Country Or Region
 countryOrRegion string

The contact's country of region.
Postal code
 postalCode string

The contact's postal code.
Street
 street string

The contact's street address.
City
 city string

The contact's city.
State
 state string

The contact's state.
Country Or Region
 countryOrRegion string

The contact's country of region.
Postal code
 postalCode string

The contact's postal code.
Street
 street string

The contact's street address.
City
 city string

The contact's city.
State
 state string

The contact's state.
Country Or Region
 countryOrRegion string

The contact's country of region.
Postal code
 postalCode string

The contact's postal code.
Yomi company name
 yomiCompanyName string

The phonetic Japanese company name of the contact
Yomi given name
 yomiGivenName string

The phonetic Japanese given name (first name) of the contact
Yomi surname
 yomiSurname string

The phonetic Japanese surname (last name) of the contact
Categories
 categories array of string

The categories associated with the contact
Change key
 changeKey string

Identifies the version of the event object
Created time
 createdDateTime date-time

The time the contact was created
Last modified time
 lastModifiedDateTime date-time

The time the contact was modified

Returns

Contact

Body
ContactResponse_V2

Create contact [DEPRECATED]

Operation ID:
ContactPostItem

This action has been deprecated. Please use Create contact (V2) instead.

This operation creates a new contact in a contacts folder.

Parameters

Name Key Required Type Description
Folder id
 table True string

Select a contacts folder
Id
 Id string

The contact's unique identifier.
Parent folder id
 ParentFolderId string

The ID of the contact's parent folder
Birthday
 Birthday date-time

The contact's birthday
File as
 FileAs string

The name the contact is filed under
Display Name
 DisplayName string

The contact's display name
Given name
 GivenName True string

The contact's given name
Initials
 Initials string

The contact's initials
Middle name
 MiddleName string

The contact's middle name
Nickname
 NickName string

The contact's nickname
Surname
 Surname string

The contact's surname
Title
 Title string

The contact's title
Generation
 Generation string

The contact's generation
Name
 Name string
Address
 Address email
IM addresses
 ImAddresses array of string

The contact's instant messaging (IM) addresses
JobTitle
 JobTitle string

The contact's job title
Company name
 CompanyName string

The name of the contact's company
Department
 Department string

The contact's department
Office location
 OfficeLocation string

The location of the contact's office
Profession
 Profession string

The contact's profession
Business home page
 BusinessHomePage string

The business home page of the contact
Assistant name
 AssistantName string

The name of the contact's assistant
Manager
 Manager string

The name of the contact's manager
Home phones
 HomePhones True array of string

The contact's home phone numbers
Business phones
 BusinessPhones array of string

The contact's business phone numbers
Mobile phone
 MobilePhone1 string

The contact's mobile phone number
Street
 Street string
City
 City string
State
 State string
CountryOrRegion
 CountryOrRegion string
PostalCode
 PostalCode string
Street
 Street string
City
 City string
State
 State string
CountryOrRegion
 CountryOrRegion string
PostalCode
 PostalCode string
Street
 Street string
City
 City string
State
 State string
CountryOrRegion
 CountryOrRegion string
PostalCode
 PostalCode string
Yomi company name
 YomiCompanyName string

The phonetic Japanese company name of the contact
Yomi given name
 YomiGivenName string

The phonetic Japanese given name (first name) of the contact
Yomi surname
 YomiSurname string

The phonetic Japanese surname (last name) of the contact
Categories
 Categories array of string

The categories associated with the contact
Change key
 ChangeKey string

Identifies the version of the event object
Created time
 DateTimeCreated date-time

The time the contact was created
Last modified time
 DateTimeLastModified date-time

The time the contact was modified

Returns

Contact response

Body
ContactResponse

Create event (V1) [DEPRECATED]

Operation ID:
CalendarPostItem

This action has been deprecated. Please use Create event (V4) instead.

This operation creates a new event in a calendar. (V1)

Parameters

Name Key Required Type Description
Calendar id
 table True string

Select a calendar
Id
 Id string

The Event's unique identifier
Response
 Response string
Time
 Time date-time
Type
 Type string
Name
 Name string
Address
 Address email
ContentType
 ContentType string
Content
 Content string
Body preview
 BodyPreview string

The preview of the message associated with the event
Categories
 Categories array of string

The categories associated with the event
Change key
 ChangeKey string

This property identifies the version of the event object. Every time the event is changed, ChangeKey changes as well.
Created time
 DateTimeCreated date-time

The date and time that the event was created
Last modified time
 DateTimeLastModified date-time

The date and time that the event was last modified
End time
 End True date-time

The end time of the event
End time zone
 EndTimeZone string

This property specifies the time zone of the meeting end time. The value must be as defined in Windows (example: 'Pacific Standard Time').
Has attachments?
 HasAttachments boolean

Set to true if the event has attachments
Event Unique ID
 ICalUId string

A unique identifier that is shared by all instances of an event across different calendars
Importance
 Importance string

The importance of the event: Low, Normal, or High
Is all day event?
 IsAllDay boolean

Set to true if the event lasts all day
Is cancelled?
 IsCancelled boolean

Set to true if the event has been canceled
Is Organizer
 IsOrganizer boolean

Set to true if the message sender is also the organizer
DisplayName
 DisplayName string
Street
 Street string
City
 City string
State
 State string
CountryOrRegion
 CountryOrRegion string
PostalCode
 PostalCode string
Altitude
 Altitude double
Latitude
 Latitude double
Longitude
 Longitude double
Accuracy
 Accuracy double
AltitudeAccuracy
 AltitudeAccuracy double
Name
 Name string
Address
 Address email
Type
 Type string
Interval
 Interval integer
Month
 Month integer
DayOfMonth
 DayOfMonth integer
DaysOfWeek
 DaysOfWeek array of string
FirstDayOfWeek
 FirstDayOfWeek string
Index
 Index string
Type
 Type string
StartDate
 StartDate date-time
EndDate
 EndDate date-time
NumberOfOccurrences
 NumberOfOccurrences integer
Reminder
 Reminder integer

Time in minutes before event start to remind
Response requested
 ResponseRequested boolean

Set to true if the sender would like a response when the event is accepted or declined
Response
 Response string
Time
 Time date-time
Series master id
 SeriesMasterId string

Unique identifier for Series Master event type
Show as
 ShowAs string

Shows as free or busy
Start time
 Start True date-time

The start time of the event
Start time zone
 StartTimeZone string

This property specifies the time zone of the meeting start time. The value must be as defined in Windows (example: 'Pacific Standard Time').
Subject
 Subject True string

Event subject
Type
 Type string

The event type: Single Instance, Occurrence, Exception, or Series Master
Web link
 WebLink uri

The preview of the message associated with the event
Reason
 Reason string

The reason property used by O365 sync events protocol, will be 'deleted' if its a deleted event.

Returns

Connector specific calendar event model class for the backend

Body
CalendarEventBackend

Create event (V2) [DEPRECATED]

Operation ID:
V2CalendarPostItem

This action has been deprecated. Please use Create event (V4) instead.

This operation creates a new event in a calendar. (V2)

Parameters

Name Key Required Type Description
Calendar id
 table True string

Select a calendar
Subject
 Subject True string

Event subject
Start time
 Start True date-time

Start time of the event (example: '2016-11-01T14:30:00Z')
End time
 End True date-time

End time of the event (example: '2016-11-01T15:30:00Z')
Time zone
 TimeZone string

Time zone of the event
Required attendees
 RequiredAttendees email

Required attendees for the event separated by semicolons
Optional attendees
 OptionalAttendees email

Optional attendees for the event separated by semicolons
Resource attendees
 ResourceAttendees string

Resource attendees for the event separated by semicolons
Body
 Body string

Body of the message associated with the event
Is HTML
 IsHtml boolean

Set to true if the body is Html
Location
 Location string

Location of the event
Importance
 Importance string

The importance of the event: Low, Normal, or High
Is all day event?
 IsAllDay boolean

Set to true if the event lasts all day
Recurrence
 Recurrence string

The recurrence pattern for the event
Recurrence end time
 RecurrenceEnd date-time

End time of the recurrence
Number of occurrences
 NumberOfOccurrences integer

How many times to repeat the event
Reminder
 Reminder integer

Time in minutes before event start to remind
Show as
 ShowAs string

Status to show during the event
Response requested
 ResponseRequested boolean

Set to true if the sender would like a response when the event is accepted or declined

Returns

Connector specific calendar event model class for the client

Body
CalendarEventClientReceiveStringEnums

Create event (V3) [DEPRECATED]

Operation ID:
V3CalendarPostItem

This action has been deprecated. Please use Create event (V4) instead.

This operation creates a new event in a calendar.

Parameters

Name Key Required Type Description
Calendar id
 table True string

Select a calendar
Subject
 Subject True string

Event subject
Start time
 Start True date-time

Start time of the event (example: '2016-11-01T14:30:00Z')
End time
 End True date-time

End time of the event (example: '2016-11-01T15:30:00Z')
Time zone
 TimeZone string

Time zone of the event
Required attendees
 RequiredAttendees email

Required attendees for the event separated by semicolons
Optional attendees
 OptionalAttendees email

Optional attendees for the event separated by semicolons
Resource attendees
 ResourceAttendees string

Resource attendees for the event separated by semicolons
Body
 Body html

Body of the message associated with the event
Location
 Location string

Location of the event
Importance
 Importance string

The importance of the event: Low, Normal, or High
Is all day event?
 IsAllDay boolean

Set to true if the event lasts all day
Recurrence
 Recurrence string

The recurrence pattern for the event
Recurrence end time
 RecurrenceEnd date-time

End time of the recurrence
Number of occurrences
 NumberOfOccurrences integer

How many times to repeat the event
Reminder
 Reminder integer

Time in minutes before event start to remind
Show as
 ShowAs string

Status to show during the event
Response requested
 ResponseRequested boolean

Set to true if the sender would like a response when the event is accepted or declined

Returns

Connector specific calendar event model class for the client

Body
CalendarEventClientReceiveStringEnums

Create event (V4)

Operation ID:
V4CalendarPostItem

This operation creates a new event in a calendar.

Parameters

Name Key Required Type Description
Calendar id
 table True string

Select a calendar
Subject
 subject True string

Event subject
Start time
 start True date-no-tz

Start time of the event (example: '2017-08-29T04:00:00')
End time
 end True date-no-tz

End time of the event (example: '2017-08-29T05:00:00')
Time zone
 timeZone True string

Time zone of the event
Required attendees
 requiredAttendees email

Required attendees for the event separated by semicolons
Optional attendees
 optionalAttendees email

Optional attendees for the event separated by semicolons
Resource attendees
 resourceAttendees string

Resource attendees for the event separated by semicolons
Body
 body html

Body of the message associated with the event
Categories
 categories array of string

The categories associated with the event
Location
 location string

Location of the event
Importance
 importance string

The importance of the event: low, normal, or high
Is all day event?
 isAllDay boolean

Set to true if the event lasts all day
Recurrence
 recurrence string

The recurrence pattern for the event: none, daily, weekly, monthly or yearly
Selected days of week
 selectedDaysOfWeek array of string

Days of week for weekly recurrence
Recurrence end date
 recurrenceEnd date

End Date of the recurrence
Number of occurrences
 numberOfOccurences integer

How many times to repeat the event
Reminder
 reminderMinutesBeforeStart integer

Time in minutes before event start to remind
Is reminder on
 isReminderOn boolean

Set to true if an alert is set to remind the user of the event.
Show as
 showAs string

Status to show during the event: free, tentative, busy, oof, workingElsewhere or unknown
Response requested
 responseRequested boolean

Set to true if the sender would like a response when the event is accepted or declined
Sensitivity
 sensitivity string

The possible values are: normal, personal, private, confidential

Returns

Connector specific calendar event model class for the client with Graph API

Body
GraphCalendarEventClientReceive

Delete contact (V2)

Operation ID:
ContactDeleteItem_V2

This operation deletes a contact from a contacts folder.

Parameters

Name Key Required Type Description
Folder id
 folder True string

Select a contacts folder
Id
 id True string

Unique identifier of contact to delete

Delete contact [DEPRECATED]

Operation ID:
ContactDeleteItem

This action has been deprecated. Please use Delete contact (V2) instead.

This operation deletes a contact from a contacts folder.

Parameters

Name Key Required Type Description
Folder id
 table True string

Select a contacts folder
Id
 id True string

Unique identifier of contact to delete

Delete email (V2)

Operation ID:
DeleteEmail_V2

This operation deletes an email by id.

Parameters

Name Key Required Type Description
Message Id
 messageId True string

Id of the email to delete.
Original Mailbox Address
 mailboxAddress string

Address of the shared mailbox to delete mail from.

Delete email [DEPRECATED]

Operation ID:
DeleteEmail

This action has been deprecated. Please use Delete email (V2) instead.

This operation deletes an email by id.

Parameters

Name Key Required Type Description
Message Id
 messageId True string

Id of the email to delete.

Delete event (V2)

Operation ID:
CalendarDeleteItem_V2

This operation deletes an event in a calendar.

Parameters

Name Key Required Type Description
Calendar id
 calendar True string

Select a calendar
Id
 event True string

Select an event

Delete event [DEPRECATED]

Operation ID:
CalendarDeleteItem

This action has been deprecated. Please use Delete event (V2) instead.

This operation deletes an event in a calendar.

Parameters

Name Key Required Type Description
Calendar id
 table True string

Select a calendar
Id
 id True string

Select an event

Export email (V2)

Operation ID:
ExportEmail_V2

Export the content of the email in the EML file format.

Parameters

Name Key Required Type Description
Message Id
 messageId True string

Id of the email to export.
Original Mailbox Address
 mailboxAddress string

Address of the shared mailbox to export from.

Returns

response
binary

Export email [DEPRECATED]

Operation ID:
ExportEmail

This action has been deprecated. Please use Export email (V2) instead.

Export the content of the email.

Parameters

Name Key Required Type Description
Message Id
 messageId True string

Id of the email to export.

Returns

response
binary

Find meeting times (V2)

Operation ID:
FindMeetingTimes_V2

Find meeting time suggestions based on organizer, attendee availability, and time or location constraints

Parameters

Name Key Required Type Description
Required attendees
 RequiredAttendees string

List of semicolon separated email addresses
Optional attendees
 OptionalAttendees string

List of semicolon separated email addresses
Resource attendees
 ResourceAttendees string

Resource attendees for the event separated by semicolons
Meeting duration
 MeetingDuration integer

Duration of the meeting in minutes
Start time
 Start date-time

Start time for meeting time suggestions
End time
 End date-time

End time for meeting time suggestions
Max Candidates
 MaxCandidates integer

The maximum number of meeting suggestions to return in the response
Minimum Attendee Percentage
 MinimumAttendeePercentage string

The minimum required confidence for a time slot to be returned in the response
Is Organizer Optional?
 IsOrganizerOptional boolean

true if the organizer doesn't have to attend. The default is false
Activity Domain
 ActivityDomain string

Work, Personal, Unrestricted, or Unknown

Returns

Name Path Type Description
Empty Suggestions Reason
 emptySuggestionsReason string

Empty Suggestions Reason
Meeting Time Suggestions
 meetingTimeSuggestions MeetingTimeSuggestions_V2

Meeting Time Suggestions

Find meeting times [DEPRECATED]

Operation ID:
FindMeetingTimes

This action has been deprecated. Please use Find meeting times (V2) instead.

Find meeting time suggestions based on organizer, attendee availability, and time or location constraints

Parameters

Name Key Required Type Description
Required attendees
 RequiredAttendees string

List of semicolon separated email addresses
Optional attendees
 OptionalAttendees string

List of semicolon separated email addresses
Resource attendees
 ResourceAttendees string

Resource attendees for the event separated by semicolons
Meeting duration
 MeetingDuration integer

Duration of the meeting in minutes
Start time
 Start date-time

Start time for meeting time suggestions
End time
 End date-time

End time for meeting time suggestions
Max Candidates
 MaxCandidates integer

The maximum number of meeting suggestions to return in the response
Minimum Attendee Percentage
 MinimumAttendeePercentage string

The minimum required confidence for a time slot to be returned in the response
Is Organizer Optional?
 IsOrganizerOptional boolean

true if the organizer doesn't have to attend. The default is false
Activity Domain
 ActivityDomain string

Work, Personal, Unrestricted, or Unknown

Returns

Name Path Type Description
Empty Suggestions Reason
 EmptySuggestionsReason string

Empty Suggestions Reason
Meeting Time Suggestions
 MeetingTimeSuggestions MeetingTimeSuggestions

Meeting Time Suggestions

Flag email (V2)

Operation ID:
Flag_V2

This operation updates an email flag.

Parameters

Name Key Required Type Description
Message Id
 messageId True string

Id of the email to be flagged.
Original Mailbox Address
 mailboxAddress string

Address of the shared mailbox to update mail.
Flag Status
 flagStatus string

Flag status

Flag email [DEPRECATED]

Operation ID:
Flag

This action has been deprecated. Please use Flag email (V2) instead.

This operation flags an email.

Parameters

Name Key Required Type Description
Message Id
 messageId True string

Id of the email to be flagged.

Forward an email (V2)

Operation ID:
ForwardEmail_V2

Forward an email.

Parameters

Name Key Required Type Description
Message Id
 message_id True string

Id of the message to forward. (You can use 'Message Id' from trigger or 'Get Emails' action output)
Original Mailbox Address
 mailboxAddress string

Address of the shared mailbox to forward mail from.
Comment
 Comment string

Comment
To
 ToRecipients True string

Semicolon separated list of recipients to forward the message to

Forward an email [DEPRECATED]

Operation ID:
ForwardEmail

This action has been deprecated. Please use Forward an email (V2) instead.

Forward an email.

Parameters

Name Key Required Type Description
Message Id
 message_id True string

Id of the message to forward.
Comment
 Comment string

Comment
To
 ToRecipients True string

Semicolon separated list of recipients to forward the message to

Get Attachment (V2)

Operation ID:
GetAttachment_V2

This operation gets an email attachment by id.

Parameters

Name Key Required Type Description
Message Id
 messageId True string

Id of the email.
Attachement Id
 attachmentId True string

Id of the attachment to download.
Original Mailbox Address
 mailboxAddress string

Address of the shared mailbox to retrieve attachment from.

Returns

Name Path Type Description
Id
 id string

Id of the attachment.
Name
 name string

Name of attachment.
Content Type
 contentType string

Content type of attachment.
Size
 size integer

Size of attachment.
Content Bytes
 contentBytes byte

Content of attachment.
Is Inline
 isInline boolean

Set to true if this is an inline attachment.
Last Modified DateTime
 lastModifiedDateTime date-time

The date and time when the attachment was last modified.
Content Id
 contentId string

Content Id

Get attachment [DEPRECATED]

Operation ID:
GetAttachment

This action has been deprecated. Please use Get Attachment (V2) instead.

This operation gets an email attachment by id.

Parameters

Name Key Required Type Description
Message Id
 messageId True string

Id of the email.
Attachment Id
 attachmentId True string

Id of the attachment to download.

Returns

response
binary

Get calendar view of events (V2) [DEPRECATED]

Operation ID:
GetEventsCalendarViewV2

This action has been deprecated. Please use Get calendar view of events (V3) instead.

This operation gets all events (including instances of recurrences) in a calendar. Recurrence property is null in this case.

Parameters

Name Key Required Type Description
Calendar Id
 calendarId True string

Select a calendar
Start Time
 startDateTimeOffset True string

Start time (example: '2017-01-01T08:00:00-07:00')
End Time
 endDateTimeOffset True string

End time (example: '2017-02-01T08:00:00-07:00')
Filter Query
 $filter string

An ODATA filter query to restrict the entries returned (e.g. stringColumn eq 'string' OR numberColumn lt 123).
Order By
 $orderby string

An ODATA orderBy query for specifying the order of entries.
Top Count
 $top integer

Total number of entries to retrieve (default = all).
Skip Count
 $skip integer

The number of entries to skip (default = 0).
Search
 search string

Search text for matching event body and subject

Returns

Entity list response

Body
EntityListResponse[CalendarEventClientReceiveStringEnums]

Get calendar view of events (V3)

Operation ID:
GetEventsCalendarViewV3

This operation gets all events (including instances of recurrences) in a calendar using Graph API. Recurrence property is null in this case.

Parameters

Name Key Required Type Description
Calendar Id
 calendarId True string

Select a calendar
Start Time
 startDateTimeUtc True string

Start time in UTC (example: '2017-01-01T08:00:00')
End Time
 endDateTimeUtc True string

End time in UTC (example: '2017-02-01T08:00:00')
Filter Query
 $filter string

An ODATA filter query to restrict the entries returned (e.g. stringColumn eq 'string' OR numberColumn lt 123).
Order By
 $orderby string

An ODATA orderBy query for specifying the order of entries.
Top Count
 $top integer

Total number of entries to retrieve (default = all).
Skip Count
 $skip integer

The number of entries to skip (default = 0).
Search
 search string

Search text for matching event body and subject

Returns

Entity list response

Body
EntityListResponse[GraphCalendarEventClientReceive]

Get calendar view of events [DEPRECATED]

Operation ID:
GetEventsCalendarView

This action has been deprecated. Please use Get calendar view of events (V3) instead.

Get calendar view of events.

Parameters

Name Key Required Type Description
Calendar Id
 calendarId True string

Select a calendar.
Start Time
 startDateTimeOffset True string

Start time (example: '2017-01-01T08:00:00-07:00').
End Time
 endDateTimeOffset True string

End time (example: '2017-02-01T08:00:00-07:00').

Returns

Response containing a list and next link

Body
PaginatedListResponse[CalendarEventClientReceiveStringEnums]

Get calendars (V2)

Operation ID:
CalendarGetTables_V2

This operation lists available calendars.

Returns

Name Path Type Description
value
 value array of object

value
ID
 value.id string

The id of the calendar. The id is used at runtime.
Name
 value.name string

The display name of the calendar.
owner
 value.owner EmailAddress_V2

Get calendars [DEPRECATED]

Operation ID:
CalendarGetTables

This action has been deprecated. Please use Get calendars (V2) instead.

This operation lists available calendars.

Returns

Entity list response

Body
EntityListResponse[Table]

Get contact (V2)

Operation ID:
ContactGetItem_V2

This operation gets a specific contact from a contacts folder.

Parameters

Name Key Required Type Description
Folder id
 folder True string

Select a contacts folder
Item id
 id True string

Unique identifier of a contact to retrieve

Returns

Contact

Body
ContactResponse_V2

Get contact [DEPRECATED]

Operation ID:
ContactGetItem

This action has been deprecated. Please use Get contact (V2) instead.

This operation gets a specific contact from a contacts folder.

Parameters

Name Key Required Type Description
Folder id
 table True string

Select a contacts folder
Item id
 id True string

Unique identifier of a contact to retrieve

Returns

Contact response

Body
ContactResponse

Get contact folders (V2)

Operation ID:
ContactGetTablesV2

This operation lists available contacts folders using Graph API

Returns

Entity list response

Body
EntityListResponse[GraphContactFolder]

Get contact folders [DEPRECATED]

Operation ID:
ContactGetTables

This action has been deprecated. Please use Get contact folders (V2) instead.

This operation lists available contacts folders.

Returns

Entity list response

Body
EntityListResponse[Table]

Get contacts (V2)

Operation ID:
ContactGetItems_V2

This operation gets contacts from a contacts folder.

Parameters

Name Key Required Type Description
Folder id
 folder True string

Unique identifier of the contacts folder to retrieve
Filter Query
 $filter string

An ODATA filter query to restrict the entries returned (e.g. stringColumn eq 'string' OR numberColumn lt 123).
Order By
 $orderby string

An ODATA orderBy query for specifying the order of entries.
Top Count
 $top integer

Total number of entries to retrieve (default = all).
Skip Count
 $skip integer

The number of entries to skip (default = 0).

Returns

Entity list response

Body
EntityListResponse[ContactResponse]_V2

Get contacts [DEPRECATED]

Operation ID:
ContactGetItems

This action has been deprecated. Please use Get contacts (V2) instead.

This operation gets contacts from a contacts folder.

Parameters

Name Key Required Type Description
Folder id
 table True string

Unique identifier of the contacts folder to retrieve
Filter Query
 $filter string

An ODATA filter query to restrict the entries returned (e.g. stringColumn eq 'string' OR numberColumn lt 123).
Order By
 $orderby string

An ODATA orderBy query for specifying the order of entries.
Top Count
 $top integer

Total number of entries to retrieve (default = all).
Skip Count
 $skip integer

The number of entries to skip (default = 0).

Returns

Entity list response

Body
EntityListResponse[ContactResponse]

Get email (V2)

Operation ID:
GetEmailV2

This operation gets an email by id.

Parameters

Name Key Required Type Description
Message Id
 messageId True string

Id of the email.
Original Mailbox Address
 mailboxAddress string

Address of the shared mailbox to retrieve mail from.
Include Attachments
 includeAttachments boolean

If set to true, attachments content will also be retrieved along with the email.
Internet Message Id
 internetMessageId string

Internet Message Id.

Returns

Graph Client Receive Email Message

Body
GraphClientReceiveMessage

Get email [DEPRECATED]

Operation ID:
GetEmail

This action has been deprecated. Please use Get email (V2) instead.

This operation gets an email by id.

Parameters

Name Key Required Type Description
Message Id
 messageId True string

Id of the email.
Original Mailbox Address
 mailboxAddress string

Address of the shared mailbox to retrieve mail from.
Include Attachments
 includeAttachments boolean

If set to true, attachments content will also be retrieved along with the email.
Internet Message Id
 internetMessageId string

Internet Message Id.

Returns

Receive Email Message

Body
ClientReceiveMessage

Get emails (V2) [DEPRECATED]

Operation ID:
GetEmailsV2

This action has been deprecated. Please use Get emails (V3) instead.

This operation gets emails from a folder.

Parameters

Name Key Required Type Description
Folder
 folderPath string

Mail folder to retrieve emails from (default: 'Inbox').
To
 to email

Recipient email addresses separated by semicolons (If any match, the trigger will run).
CC
 cc email

CC recipient email addresses separated by semicolons (If any match, the trigger will run).
To or CC
 toOrCc email

To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).
From
 from email

Sender email addresses separated by semicolons (If any match, the trigger will run).
Importance
 importance string

Importance of the email (Any, High, Normal, Low).
Only with Attachments
 fetchOnlyWithAttachment boolean

If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.
Subject Filter
 subjectFilter string

String to look for in the subject line.
Fetch Only Unread Messages
 fetchOnlyUnread boolean

Retrieve only unread emails?.
Include Attachments
 includeAttachments boolean

If set to true, attachments content will also be retrieved along with the email.
Search Query
 searchQuery string

Search query (like in the Outlook client) to filter emails.
Top
 top integer

Number of emails to retrieve (default: 10).

Returns

Represents a wrapper object for batch response

Body
BatchResponse[ClientReceiveMessage]

Get emails (V3)

Operation ID:
GetEmailsV3

This operation gets emails from a folder via graph apis. Please note that filtering related to these fields: To, Cc, To Or Cc, From, Importance, Fetch Only With Attachments, Subject Filter, is performed using first 250 items in a given mail folder. To avoid that limitation you can use 'Search Query' field.

Parameters

Name Key Required Type Description
Folder
 folderPath string

Mail folder to retrieve emails from (default: 'Inbox').
To
 to email

Recipient email addresses separated by semicolons (If any match, the trigger will run).
CC
 cc email

CC recipient email addresses separated by semicolons (If any match, the trigger will run).
To or CC
 toOrCc email

To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).
From
 from email

Sender email addresses separated by semicolons (If any match, the trigger will run).
Importance
 importance string

Importance of the email (Any, High, Normal, Low).
Only with Attachments
 fetchOnlyWithAttachment boolean

If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.
Subject Filter
 subjectFilter string

String to look for in the subject line.
Fetch Only Unread Messages
 fetchOnlyUnread boolean

Retrieve only unread emails?.
Original Mailbox Address
 mailboxAddress string

Address of the shared mailbox to retrieve mails from.
Include Attachments
 includeAttachments boolean

If set to true, attachments content will also be retrieved along with the email.
Search Query
 searchQuery string

Search query to filter emails. How to use '$search' parameter please refer to: https://docs.microsoft.com/graph/query-parameters#search-parameter.
Top
 top integer

Number of emails to retrieve (default: 10, max: 25).

Returns

Represents a wrapper object for batch response

Body
BatchResponse[GraphClientReceiveMessage]

Get emails [DEPRECATED]

Operation ID:
GetEmails

This action has been deprecated. Please use Get emails (V3) instead.

This operation gets emails from a folder.

Parameters

Name Key Required Type Description
Folder
 folderPath string

Mail folder to retrieve emails from (default: 'Inbox').
Fetch Only Unread Messages
 fetchOnlyUnread boolean

Retrieve only unread emails?.
Include Attachments
 includeAttachments boolean

If set to true, attachments content will also be retrieved along with the email.
Search Query
 searchQuery string

Search query (like in the Outlook client) to filter emails.
Top
 top integer

Number of emails to retrieve (default: 10).

Returns

response
array of ClientReceiveMessageStringEnums

Get event (V1) [DEPRECATED]

Operation ID:
CalendarGetItem

This action has been deprecated. Please use Get event (V3) instead.

This operation gets a specific event from a calendar. (V1)

Parameters

Name Key Required Type Description
Calendar id
 table True string

Select a calendar
Item id
 id True string

Select an event

Returns

Connector specific calendar event model class for the backend

Body
CalendarEventBackend

Get event (V2) [DEPRECATED]

Operation ID:
V2CalendarGetItem

This action has been deprecated. Please use Get event (V3) instead.

This operation gets a specific event from a calendar. (V2)

Parameters

Name Key Required Type Description
Calendar id
 table True string

Select a calendar
Item id
 id True string

Select an event

Returns

Connector specific calendar event model class for the client

Body
CalendarEventClientReceiveStringEnums

Get event (V3)

Operation ID:
V3CalendarGetItem

This operation gets a specific event from a calendar using Graph API. (V3)

Parameters

Name Key Required Type Description
Calendar id
 table True string

Select a calendar
Item id
 id True string

Select an event

Returns

Connector specific calendar event model class for the client with Graph API

Body
GraphCalendarEventClientReceive

Get events (V1) [DEPRECATED]

Operation ID:
CalendarGetItems

This action has been deprecated. Please use Get events (V4) instead.

This operation gets events from a calendar. (V1)

Parameters

Name Key Required Type Description
Calendar id
 table True string

Select a calendar
Order By
 $orderby string

An ODATA orderBy query for specifying the order of entries.
Top Count
 $top integer

Total number of entries to retrieve (default = all).
Skip Count
 $skip integer

The number of entries to skip (default = 0).

Returns

Entity list response

Body
EntityListResponse[CalendarEventBackend]

Get events (V2) [DEPRECATED]

Operation ID:
V2CalendarGetItems

This action has been deprecated. Please use Get events (V4) instead.

This operation gets events from a calendar. (V2)

Parameters

Name Key Required Type Description
Calendar id
 table True string

Select a calendar
Filter Query
 $filter string

An ODATA filter query to restrict the entries returned (e.g. stringColumn eq 'string' OR numberColumn lt 123).
Order By
 $orderby string

An ODATA orderBy query for specifying the order of entries.
Top Count
 $top integer

Total number of entries to retrieve (default = all).
Skip Count
 $skip integer

The number of entries to skip (default = 0).

Returns

Entity list response

Body
EntityListResponse[CalendarEventClientReceiveStringEnums]

Get events (V3) [DEPRECATED]

Operation ID:
V3CalendarGetItems

This action has been deprecated. Please use Get events (V4) instead.

This operation gets events from a calendar. (V3)

Parameters

Name Key Required Type Description
Calendar id
 table True string

Select a calendar
Filter Query
 $filter string

An ODATA filter query to restrict the entries returned (e.g. stringColumn eq 'string' OR numberColumn lt 123).
Order By
 $orderby string

An ODATA orderBy query for specifying the order of entries.
Top Count
 $top integer

Total number of entries to retrieve (default = all).
Skip Count
 $skip integer

The number of entries to skip (default = 0).

Returns

The list of calendar items

Body
CalendarEventListClientReceive

Get events (V4)

Operation ID:
V4CalendarGetItems

This operation gets events from a calendar using Graph API. (V4)

Parameters

Name Key Required Type Description
Calendar id
 table True string

Select a calendar
Filter Query
 $filter string

An ODATA filter query to restrict the entries returned (e.g. stringColumn eq 'string' OR numberColumn lt 123).
Order By
 $orderby string

An ODATA orderBy query for specifying the order of entries.
Top Count
 $top integer

Total number of entries to retrieve (default = all).
Skip Count
 $skip integer

The number of entries to skip (default = 0).

Returns

The list of calendar items returned by Graph API

Body
GraphCalendarEventListClientReceive

Get mail tips for a mailbox (V2)

Operation ID:
GetMailTips_V2

Get mail tips for a mailbox such as automatic replies / OOF message or if the mailbox is full. This is not available in GccHigh and Mooncake.

Parameters

Name Key Required Type Description
Email Addresses
 EmailAddresses True array of string

Address of the mailbox to get mail tips for.

Returns

Name Path Type Description
value
 value array of MailTipsClientReceive_V2

Get mail tips for a mailbox [DEPRECATED]

Operation ID:
GetMailTips

This action has been deprecated. Please use Get mail tips for a mailbox (V2) instead.

Get mail tips for a mailbox such as automatic replies / OOF message or if the mailbox is full.

Parameters

Name Key Required Type Description
Original Mailbox Address
 mailboxAddress True string

Address of the mailbox to get mail tips for.

Returns

Mail tips client model returned to the caller

Body
MailTipsClientReceive

Get room lists (V2)

Operation ID:
GetRoomLists_V2

Get all the room lists defined in the user's tenant

Returns

Name Path Type Description
value
 value array of object

value
Name
 value.name string

Name
Address
 value.address string

Address

Get room lists [DEPRECATED]

Operation ID:
GetRoomLists

This action has been deprecated. Please use Get room lists (V2) instead.

Get all the room lists defined in the user's tenant

Returns

Name Path Type Description
value
 value array of object

value
Name
 value.Name string

Name
Address
 value.Address string

Address

Get rooms (V2)

Operation ID:
GetRooms_V2

Get all the meeting rooms defined in the user's tenant

Returns

Name Path Type Description
value
 value array of object

value
Name
 value.name string

Name
Address
 value.address string

Address

Get rooms [DEPRECATED]

Operation ID:
GetRooms

This action has been deprecated. Please use Get rooms (V2) instead.

Get all the meeting rooms defined in the user's tenant

Returns

Name Path Type Description
value
 value array of object

value
Name
 value.Name string

Name
Address
 value.Address string

Address

Get rooms in room list (V2)

Operation ID:
GetRoomsInRoomList_V2

Get the meeting rooms in a specific room list

Parameters

Name Key Required Type Description
Room list
 room_list True string

Room list to find rooms in

Returns

Name Path Type Description
value
 value array of object

value
Name
 value.name string

Name
Address
 value.address string

Address

Get rooms in room list [DEPRECATED]

Operation ID:
GetRoomsInRoomList

This action has been deprecated. Please use Get rooms in room list (V2) instead.

Get the meeting rooms in a specific room list

Parameters

Name Key Required Type Description
Room list
 room_list True string

Room list to find rooms in

Returns

Name Path Type Description
value
 value array of object

value
Name
 value.Name string

Name
Address
 value.Address string

Address

Mark as read [DEPRECATED]

Operation ID:
MarkAsRead

This action has been deprecated. Please use Mark as read or unread (V3) instead.

This operation marks an email as having been read.

Parameters

Name Key Required Type Description
Message Id
 messageId True string

Id of the email to be marked as read.

Mark as read or unread (V2) [DEPRECATED]

Operation ID:
MarkAsRead_V2

This action has been deprecated. Please use Mark as read or unread (V3) instead.

This operation marks an email as read/unread.

Parameters

Name Key Required Type Description
Message Id
 messageId True string

Id of the email to be marked.
Original Mailbox Address
 mailboxAddress string

Address of the shared mailbox to update mail.
Mark as
 isRead boolean

Mark as read/unread.

Mark as read or unread (V3)

Operation ID:
MarkAsRead_V3

This operation marks an email as read/unread.

Parameters

Name Key Required Type Description
Message Id
 messageId True string

Id of the email to be marked.
Original Mailbox Address
 mailboxAddress string

Address of the shared mailbox to update mail.
Mark as
 isRead True boolean

Mark as read/unread.

Move email (V2)

Operation ID:
MoveV2

This operation moves an email to the specified folder within the same mailbox.

Parameters

Name Key Required Type Description
Message Id
 messageId True string

Id of the email to be moved.
Folder
 folderPath True string

Mail folder to move the email to.
Original Mailbox Address
 mailboxAddress string

Address of the shared mailbox to move mail from.

Returns

Graph Client Receive Email Message

Body
GraphClientReceiveMessage

Move email [DEPRECATED]

Operation ID:
Move

This action has been deprecated. Please use Move email (V2) instead.

This operation moves an email to the specified folder within the same mailbox.

Parameters

Name Key Required Type Description
Message Id
 messageId True string

Id of the email to be moved.
Folder
 folderPath True string

Mail folder to move the email to.

Returns

Receive Email Message

Body
ClientReceiveMessageStringEnums

Reply to email (V2) [DEPRECATED]

Operation ID:
ReplyToV2

This action has been deprecated. Please use Reply to email (V3) instead.

This operation replies to an email.

Parameters

Name Key Required Type Description
Message Id
 messageId True string

Id of the email to reply to.
To
 To email

Example: recipient1@domain.com; recipient2@domain.com
CC
 Cc email

Example: recipient1@domain.com; recipient2@domain.com
BCC
 Bcc email

Example: recipient1@domain.com; recipient2@domain.com
Subject
 Subject string

Email subject (if empty, the original subject used).
Body
 Body string

Content of the email.
Reply All
 ReplyAll boolean

True to reply to all recipients. (default: False)
Is HTML
 IsHtml boolean

True to send the reply as HTML. (default: True)
Importance
 Importance string

Pick an importance. (default: Low)
Name
 Name True string

Attachment name
Content
 ContentBytes True byte

Attachment content
Original Mailbox Address
 mailboxAddress string

Address of the shared mailbox to reply from.

Reply to email (V3)

Operation ID:
ReplyToV3

This operation replies to an email.

Parameters

Name Key Required Type Description
Message Id
 messageId True string

Id of the email to reply to.
To
 To email

Example: recipient1@domain.com; recipient2@domain.com
CC
 Cc email

Example: recipient1@domain.com; recipient2@domain.com
BCC
 Bcc email

Example: recipient1@domain.com; recipient2@domain.com
Subject
 Subject string

Email subject (if empty, the original subject used).
Body
 Body html

Content of the email.
Reply All
 ReplyAll boolean

True to reply to all recipients. (default: False)
Importance
 Importance string

Pick an importance. (default: Low)
Name
 Name True string

Attachment name
Content
 ContentBytes True byte

Attachment content
Original Mailbox Address
 mailboxAddress string

Address of the shared mailbox to reply from.

Reply to email [DEPRECATED]

Operation ID:
ReplyTo

This action has been deprecated. Please use Reply to email (V3) instead.

This operation replies to an email.

Parameters

Name Key Required Type Description
Message Id
 messageId True string

Id of the email to reply to.
Comment
 comment True string

Reply comment.
Reply All
 replyAll boolean

Reply to all recipients.

Respond to an event invite (V2)

Operation ID:
RespondToEvent_V2

Respond to an event invite.

Parameters

Name Key Required Type Description
Event Id
 event_id True string

Id of the event to respond to.
Response
 response True string

Response for the event invite
Comment
 Comment string

Comment
Send response?
 SendResponse boolean

Send response to organizer?

Respond to an event invite [DEPRECATED]

Operation ID:
RespondToEvent

This action has been deprecated. Please use Respond to an event invite (V2) instead.

Respond to an event invite.

Parameters

Name Key Required Type Description
Event Id
 event_id True string

Id of the event to respond to.
Response
 response True string

Response for the event invite
Comment
 Comment string

Comment
Send response?
 SendResponse boolean

Send response to organizer?

Send an email (V2)

Operation ID:
SendEmailV2

This operation sends an email message.

Parameters

Name Key Required Type Description
To
 To True email

Specify email addresses separated by semicolons like someone@contoso.com
Subject
 Subject True string

Specify the subject of the mail
Body
 Body True html

Specify the body of the mail
From (Send as)
 From email

Email address to send mail from (requires "Send as" or "Send on behalf of" permission for that mailbox). For more info on granting permissions please refer https://docs.microsoft.com/office365/admin/manage/send-email-as-distribution-list
CC
 Cc email

Specify email addresses separated by semicolons like someone@contoso.com
BCC
 Bcc email

Specify email addresses separated by semicolons like someone@contoso.com
Name
 Name True string

Attachment name
Content
 ContentBytes True byte

Attachment content
Sensitivity
 Sensitivity string

Sensitivity
Reply To
 ReplyTo email

The email addresses to use when replying
Importance
 Importance string

Importance

Send an email [DEPRECATED]

Operation ID:
SendEmail

This action has been deprecated. Please use Send an email (V2) instead.

This operation sends an email message.

Parameters

Name Key Required Type Description
From (Send as)
 From email

Email address to send mail from (requires "Send as" or "Send on behalf of" permission for that mailbox). For more info on granting permissions please refer https://docs.microsoft.com/office365/admin/manage/send-email-as-distribution-list
CC
 Cc email

Specify email addresses separated by semicolons like someone@contoso.com
BCC
 Bcc email

Specify email addresses separated by semicolons like someone@contoso.com
To
 To True email

Specify email addresses separated by semicolons like someone@contoso.com
Subject
 Subject True string

Specify the subject of the mail
Body
 Body True string

Specify the body of the mail
Name
 Name True string

Attachment name
Content
 ContentBytes True byte

Attachment content
Sensitivity
 Sensitivity string

Sensitivity
Reply To
 ReplyTo email

The email addresses to use when replying
Importance
 Importance string

Importance
Is HTML
 IsHtml boolean

Is Html?

Send an email from a shared mailbox (V2)

Operation ID:
SharedMailboxSendEmailV2

This operation sends an email from a shared mailbox. Your account should have permission to access the mailbox for this operation to succeed.

Parameters

Name Key Required Type Description
Original Mailbox Address
 MailboxAddress True email

Specify email address of a shared mailbox like someone@contoso.com
To
 To True email

Specify email addresses separated by semicolons like someone@contoso.com
Subject
 Subject True string

Specify the subject of the mail
Body
 Body True html

Specify the body of the mail
CC
 Cc email

Specify email addresses separated by semicolons like someone@contoso.com
BCC
 Bcc email

Specify email addresses separated by semicolons like someone@contoso.com
Name
 Name True string

Attachment name
Content
 ContentBytes True byte

Attachment content
Sensitivity
 Sensitivity string

Sensitivity
Reply To
 ReplyTo email

The email addresses to use when replying
Importance
 Importance string

Importance

Send an email from a shared mailbox [DEPRECATED]

Operation ID:
SharedMailboxSendEmail

This action has been deprecated. Please use Send an email from a shared mailbox (V2) instead.

This operation sends an email from a shared mailbox. Your account should have permission to access the mailbox for this operation to succeed.

Parameters

Name Key Required Type Description
Original Mailbox Address
 MailboxAddress True email

Specify email address of a shared mailbox like someone@contoso.com
To
 To True email

Specify email addresses separated by semicolons like someone@contoso.com
Subject
 Subject True string

Specify the subject of the mail
Body
 Body True string

Specify the body of the mail
CC
 Cc email

Specify email addresses separated by semicolons like someone@contoso.com
BCC
 Bcc email

Specify email addresses separated by semicolons like someone@contoso.com
Name
 Name True string

Attachment name
Content
 ContentBytes True byte

Attachment content
Sensitivity
 Sensitivity string

Sensitivity
Reply To
 ReplyTo email

The email addresses to use when replying
Importance
 Importance string

Importance
Is HTML
 IsHtml boolean

Is Html?

Send an HTTP request

Operation ID:
HttpRequest

Construct a Microsoft Graph REST API request to invoke. These segments are supported: 1st segement: /me, /users/ 2nd segment: messages, mailFolders, events, calendar, calendars, outlook, inferenceClassification. Learn more: https://docs.microsoft.com/en-us/graph/use-the-api.

Parameters

Name Key Required Type Description
URI
 Uri True string

The full or relative URI. Example: https://graph.microsoft.com/{version}/{resource}.
Method
 Method True string

The HTTP method (default is GET).
Body
 Body binary

The request body content.
Content-Type
 ContentType string

The content-type header for the body (default is application/json).
CustomHeader1
 CustomHeader1 string

Custom header 1. Specify in format: header-name: header-value
CustomHeader2
 CustomHeader2 string

Custom header 2. Specify in format: header-name: header-value
CustomHeader3
 CustomHeader3 string

Custom header 3. Specify in format: header-name: header-value
CustomHeader4
 CustomHeader4 string

Custom header 4. Specify in format: header-name: header-value
CustomHeader5
 CustomHeader5 string

Custom header 5. Specify in format: header-name: header-value

Returns

response
ObjectWithoutType

Send approval email

Operation ID:
SendApprovalMail

This operation sends an approval email and waits for a response from the recipient. Please refer to the following link regarding the support of actionable messages in different mail clients: https://docs.microsoft.com/outlook/actionable-messages/#outlook-version-requirements-for-actionable-messages.

Parameters

Name Key Required Type Description
To
 To True email

Specify email addresses separated by semicolons like someone@contoso.com
Subject
 Subject string

Subject
User Options
 Options string

User Options
Header Text
 HeaderText string

Header text for email body
Selection Text
 SelectionText string

Header text for users options selection
Body
 Body string

Body
Importance
 Importance string

Importance
Name
 Name True string

Attachment name
Content
 ContentBytes True byte

Attachment content
Use only HTML message
 UseOnlyHTMLMessage boolean

Use only HTML message
Hide HTML message
 HideHTMLMessage boolean

If set to Yes, then the email body is hidden and only message card is displayed. Email clients which do not support actionable messages will display HTML message regardless of the parameter value.
Show HTML confirmation dialog
 ShowHTMLConfirmationDialog boolean

If set to Yes then a dialog wil be shown to confirm selected option of HTML message

Returns

Approval Email Response

Body
ApprovalEmailResponse

Send email with options

Operation ID:
SendMailWithOptions

This operation sends an email with multiple options and waits for the recipient to respond back with one of the options. Please refer to the following link regarding the support of actionable messages in different mail clients: https://docs.microsoft.com/outlook/actionable-messages/#outlook-version-requirements-for-actionable-messages.

Parameters

Name Key Required Type Description
To
 To True email

Specify email addresses separated by semicolons like someone@contoso.com
Subject
 Subject string

Subject of the email
User Options
 Options string

List of comma separated options for the email response
Header Text
 HeaderText string

Header text for email body
Selection Text
 SelectionText string

Header text for users options selection
Body
 Body string

Body of the email
Importance
 Importance string

Importance
Name
 Name True string

Attachment name
Content
 ContentBytes True byte

Attachment content
Use only HTML message
 UseOnlyHTMLMessage boolean

Use only HTML message
Hide HTML message
 HideHTMLMessage boolean

If set to Yes, then the email body is hidden and only message card is displayed. Email clients which do not support actionable messages will display HTML message regardless of the parameter value.
Show HTML confirmation dialog
 ShowHTMLConfirmationDialog boolean

If set to Yes then a dialog wil be shown to confirm selected option of HTML message
Hide Microsoft footer
 HideMicrosoftFooter boolean

If set to Yes, then the Microsoft footer is hidden in the email body.

Returns

Approval Email Response

Body
ApprovalEmailResponse

Set up automatic replies (V2)

Operation ID:
SetAutomaticRepliesSetting_V2

Set the automatic replies setting for your mailbox.

Parameters

Name Key Required Type Description
Status
 status True string

Automatic reply setting status
External Audience
 externalAudience True string

The audience that will see the external reply message
DateTime
 dateTime string

Scheduled start time (example: '2017-08-29T04:00:00.0000000')
TimeZone
 timeZone string

TimeZone (example: 'Pacific Standard Time')
DateTime
 dateTime string

Scheduled end time (example: '2017-08-29T05:00:00.0000000')
TimeZone
 timeZone string

TimeZone (example: 'Pacific Standard Time')
Internal Reply Message
 internalReplyMessage string

Message for people within your organization
External Reply Message
 externalReplyMessage string

Message for people outside your organization

Returns

Name Path Type Description
automaticRepliesSetting
 automaticRepliesSetting AutomaticRepliesSettingClient_V2

Automatic replies setting model for the connector

Set up automatic replies [DEPRECATED]

Operation ID:
SetAutomaticRepliesSetting

This action has been deprecated. Please use Set up automatic replies (V2) instead.

Set the automatic replies setting for your mailbox.

Parameters

Name Key Required Type Description
Status
 Status True string

Automatic reply setting status
External Audience
 ExternalAudience True string

The audience that will see the external reply message
Start Time
 ScheduledStartDateTimeOffset string

Scheduled start time (example: '2016-11-01T15:30:00-00:00Z')
End Time
 ScheduledEndDateTimeOffset string

Scheduled end time (example: '2016-11-01T15:30:00-00:00Z')
Internal Reply Message
 InternalReplyMessage string

Message for people within your organization
External Reply Message
 ExternalReplyMessage string

Message for people outside your organization

Update contact (V2)

Operation ID:
ContactPatchItem_V2

This operation updates a contact in a contacts folder.

Parameters

Name Key Required Type Description
Folder id
 folder True string

Select a contacts folder
Id
 id True string

Unique identifier of contact to update
Id
 id string

The contact's unique identifier.
Parent folder id
 parentFolderId string

The ID of the contact's parent folder
Birthday
 birthday date-time

The contact's birthday
File as
 fileAs string

The name the contact is filed under
Display Name
 displayName string

The contact's display name
Given name
 givenName True string

The contact's given name
Initials
 initials string

The contact's initials
Middle name
 middleName string

The contact's middle name
Nickname
 nickName string

The contact's nickname
Surname
 surname string

The contact's surname
Title
 title string

The contact's title
Generation
 generation string

The contact's generation
name
 name string
address
 address email
IM addresses
 imAddresses array of string

The contact's instant messaging (IM) addresses
JobTitle
 jobTitle string

The contact's job title
Company name
 companyName string

The name of the contact's company
Department
 department string

The contact's department
Office location
 officeLocation string

The location of the contact's office
Profession
 profession string

The contact's profession
Business home page
 businessHomePage string

The business home page of the contact
Assistant name
 assistantName string

The name of the contact's assistant
Manager
 manager string

The name of the contact's manager
Home phones
 homePhones True array of string

The contact's home phone numbers
Business phones
 businessPhones array of string

The contact's business phone numbers
Mobile phone
 mobilePhone string

The contact's mobile phone number
Street
 street string

The contact's street address.
City
 city string

The contact's city.
State
 state string

The contact's state.
Country Or Region
 countryOrRegion string

The contact's country of region.
Postal code
 postalCode string

The contact's postal code.
Street
 street string

The contact's street address.
City
 city string

The contact's city.
State
 state string

The contact's state.
Country Or Region
 countryOrRegion string

The contact's country of region.
Postal code
 postalCode string

The contact's postal code.
Street
 street string

The contact's street address.
City
 city string

The contact's city.
State
 state string

The contact's state.
Country Or Region
 countryOrRegion string

The contact's country of region.
Postal code
 postalCode string

The contact's postal code.
Yomi company name
 yomiCompanyName string

The phonetic Japanese company name of the contact
Yomi given name
 yomiGivenName string

The phonetic Japanese given name (first name) of the contact
Yomi surname
 yomiSurname string

The phonetic Japanese surname (last name) of the contact
Categories
 categories array of string

The categories associated with the contact
Change key
 changeKey string

Identifies the version of the event object
Created time
 createdDateTime date-time

The time the contact was created
Last modified time
 lastModifiedDateTime date-time

The time the contact was modified

Returns

Contact

Body
ContactResponse_V2

Update contact [DEPRECATED]

Operation ID:
ContactPatchItem

This action has been deprecated. Please use Update contact (V2) instead.

This operation updates a contact in a contacts folder.

Parameters

Name Key Required Type Description
Folder id
 table True string

Select a contacts folder
Id
 id True string

Unique identifier of contact to update
Id
 Id string

The contact's unique identifier.
Parent folder id
 ParentFolderId string

The ID of the contact's parent folder
Birthday
 Birthday date-time

The contact's birthday
File as
 FileAs string

The name the contact is filed under
Display Name
 DisplayName string

The contact's display name
Given name
 GivenName True string

The contact's given name
Initials
 Initials string

The contact's initials
Middle name
 MiddleName string

The contact's middle name
Nickname
 NickName string

The contact's nickname
Surname
 Surname string

The contact's surname
Title
 Title string

The contact's title
Generation
 Generation string

The contact's generation
Name
 Name string
Address
 Address email
IM addresses
 ImAddresses array of string

The contact's instant messaging (IM) addresses
JobTitle
 JobTitle string

The contact's job title
Company name
 CompanyName string

The name of the contact's company
Department
 Department string

The contact's department
Office location
 OfficeLocation string

The location of the contact's office
Profession
 Profession string

The contact's profession
Business home page
 BusinessHomePage string

The business home page of the contact
Assistant name
 AssistantName string

The name of the contact's assistant
Manager
 Manager string

The name of the contact's manager
Home phones
 HomePhones True array of string

The contact's home phone numbers
Business phones
 BusinessPhones array of string

The contact's business phone numbers
Mobile phone
 MobilePhone1 string

The contact's mobile phone number
Street
 Street string
City
 City string
State
 State string
CountryOrRegion
 CountryOrRegion string
PostalCode
 PostalCode string
Street
 Street string
City
 City string
State
 State string
CountryOrRegion
 CountryOrRegion string
PostalCode
 PostalCode string
Street
 Street string
City
 City string
State
 State string
CountryOrRegion
 CountryOrRegion string
PostalCode
 PostalCode string
Yomi company name
 YomiCompanyName string

The phonetic Japanese company name of the contact
Yomi given name
 YomiGivenName string

The phonetic Japanese given name (first name) of the contact
Yomi surname
 YomiSurname string

The phonetic Japanese surname (last name) of the contact
Categories
 Categories array of string

The categories associated with the contact
Change key
 ChangeKey string

Identifies the version of the event object
Created time
 DateTimeCreated date-time

The time the contact was created
Last modified time
 DateTimeLastModified date-time

The time the contact was modified

Returns

Contact response

Body
ContactResponse

Update event (V1) [DEPRECATED]

Operation ID:
CalendarPatchItem

This action has been deprecated. Please use Update event (V4) instead.

This operation updates an event in a calendar. (V1)

Parameters

Name Key Required Type Description
Calendar id
 table True string

Select a calendar
Id
 id True string

Select an event
Id
 Id string

The Event's unique identifier
Response
 Response string
Time
 Time date-time
Type
 Type string
Name
 Name string
Address
 Address email
ContentType
 ContentType string
Content
 Content string
Body preview
 BodyPreview string

The preview of the message associated with the event
Categories
 Categories array of string

The categories associated with the event
Change key
 ChangeKey string

This property identifies the version of the event object. Every time the event is changed, ChangeKey changes as well.
Created time
 DateTimeCreated date-time

The date and time that the event was created
Last modified time
 DateTimeLastModified date-time

The date and time that the event was last modified
End time
 End True date-time

The end time of the event
End time zone
 EndTimeZone string

This property specifies the time zone of the meeting end time. The value must be as defined in Windows (example: 'Pacific Standard Time').
Has attachments?
 HasAttachments boolean

Set to true if the event has attachments
Event Unique ID
 ICalUId string

A unique identifier that is shared by all instances of an event across different calendars
Importance
 Importance string

The importance of the event: Low, Normal, or High
Is all day event?
 IsAllDay boolean

Set to true if the event lasts all day
Is cancelled?
 IsCancelled boolean

Set to true if the event has been canceled
Is Organizer
 IsOrganizer boolean

Set to true if the message sender is also the organizer
DisplayName
 DisplayName string
Street
 Street string
City
 City string
State
 State string
CountryOrRegion
 CountryOrRegion string
PostalCode
 PostalCode string
Altitude
 Altitude double
Latitude
 Latitude double
Longitude
 Longitude double
Accuracy
 Accuracy double
AltitudeAccuracy
 AltitudeAccuracy double
Name
 Name string
Address
 Address email
Type
 Type string
Interval
 Interval integer
Month
 Month integer
DayOfMonth
 DayOfMonth integer
DaysOfWeek
 DaysOfWeek array of string
FirstDayOfWeek
 FirstDayOfWeek string
Index
 Index string
Type
 Type string
StartDate
 StartDate date-time
EndDate
 EndDate date-time
NumberOfOccurrences
 NumberOfOccurrences integer
Reminder
 Reminder integer

Time in minutes before event start to remind
Response requested
 ResponseRequested boolean

Set to true if the sender would like a response when the event is accepted or declined
Response
 Response string
Time
 Time date-time
Series master id
 SeriesMasterId string

Unique identifier for Series Master event type
Show as
 ShowAs string

Shows as free or busy
Start time
 Start True date-time

The start time of the event
Start time zone
 StartTimeZone string

This property specifies the time zone of the meeting start time. The value must be as defined in Windows (example: 'Pacific Standard Time').
Subject
 Subject True string

Event subject
Type
 Type string

The event type: Single Instance, Occurrence, Exception, or Series Master
Web link
 WebLink uri

The preview of the message associated with the event
Reason
 Reason string

The reason property used by O365 sync events protocol, will be 'deleted' if its a deleted event.

Returns

Connector specific calendar event model class for the backend

Body
CalendarEventBackend

Update event (V2) [DEPRECATED]

Operation ID:
V2CalendarPatchItem

This action has been deprecated. Please use Update event (V4) instead.

This operation updates an event in a calendar. (V2)

Parameters

Name Key Required Type Description
Calendar id
 table True string

Select a calendar
Id
 id True string

Select an event
Subject
 Subject True string

Event subject
Start time
 Start True date-time

Start time of the event (example: '2016-11-01T14:30:00Z')
End time
 End True date-time

End time of the event (example: '2016-11-01T15:30:00Z')
Time zone
 TimeZone string

Time zone of the event
Required attendees
 RequiredAttendees email

Required attendees for the event separated by semicolons
Optional attendees
 OptionalAttendees email

Optional attendees for the event separated by semicolons
Resource attendees
 ResourceAttendees string

Resource attendees for the event separated by semicolons
Body
 Body string

Body of the message associated with the event
Is HTML
 IsHtml boolean

Set to true if the body is Html
Location
 Location string

Location of the event
Importance
 Importance string

The importance of the event: Low, Normal, or High
Is all day event?
 IsAllDay boolean

Set to true if the event lasts all day
Recurrence
 Recurrence string

The recurrence pattern for the event
Recurrence end time
 RecurrenceEnd date-time

End time of the recurrence
Number of occurrences
 NumberOfOccurrences integer

How many times to repeat the event
Reminder
 Reminder integer

Time in minutes before event start to remind
Show as
 ShowAs string

Status to show during the event
Response requested
 ResponseRequested boolean

Set to true if the sender would like a response when the event is accepted or declined

Returns

Connector specific calendar event model class for the client

Body
CalendarEventClientReceiveStringEnums

Update event (V3) [DEPRECATED]

Operation ID:
V3CalendarPatchItem

This action has been deprecated. Please use Update event (V4) instead.

This operation updates an event in a calendar.

Parameters

Name Key Required Type Description
Calendar id
 table True string

Select a calendar
Id
 id True string

Select an event
Subject
 Subject True string

Event subject
Start time
 Start True date-time

Start time of the event (example: '2016-11-01T14:30:00Z')
End time
 End True date-time

End time of the event (example: '2016-11-01T15:30:00Z')
Time zone
 TimeZone string

Time zone of the event
Required attendees
 RequiredAttendees email

Required attendees for the event separated by semicolons
Optional attendees
 OptionalAttendees email

Optional attendees for the event separated by semicolons
Resource attendees
 ResourceAttendees string

Resource attendees for the event separated by semicolons
Body
 Body html

Body of the message associated with the event
Location
 Location string

Location of the event
Importance
 Importance string

The importance of the event: Low, Normal, or High
Is all day event?
 IsAllDay boolean

Set to true if the event lasts all day
Recurrence
 Recurrence string

The recurrence pattern for the event
Recurrence end time
 RecurrenceEnd date-time

End time of the recurrence
Number of occurrences
 NumberOfOccurrences integer

How many times to repeat the event
Reminder
 Reminder integer

Time in minutes before event start to remind
Show as
 ShowAs string

Status to show during the event
Response requested
 ResponseRequested boolean

Set to true if the sender would like a response when the event is accepted or declined

Returns

Connector specific calendar event model class for the client

Body
CalendarEventClientReceiveStringEnums

Update event (V4)

Operation ID:
V4CalendarPatchItem

This operation updates an event in a calendar using Graph API.

Parameters

Name Key Required Type Description
Calendar id
 table True string

Select a calendar
Id
 id True string

Select an event
Subject
 subject True string

Event subject
Start time
 start True date-no-tz

Start time of the event (example: '2017-08-29T04:00:00')
End time
 end True date-no-tz

End time of the event (example: '2017-08-29T05:00:00')
Time zone
 timeZone True string

Time zone of the event
Required attendees
 requiredAttendees email

Required attendees for the event separated by semicolons
Optional attendees
 optionalAttendees email

Optional attendees for the event separated by semicolons
Resource attendees
 resourceAttendees string

Resource attendees for the event separated by semicolons
Body
 body html

Body of the message associated with the event
Categories
 categories array of string

The categories associated with the event
Location
 location string

Location of the event
Importance
 importance string

The importance of the event: low, normal, or high
Is all day event?
 isAllDay boolean

Set to true if the event lasts all day
Recurrence
 recurrence string

The recurrence pattern for the event: none, daily, weekly, monthly or yearly
Selected days of week
 selectedDaysOfWeek array of string

Days of week for weekly recurrence
Recurrence end date
 recurrenceEnd date

End Date of the recurrence
Number of occurrences
 numberOfOccurences integer

How many times to repeat the event
Reminder
 reminderMinutesBeforeStart integer

Time in minutes before event start to remind
Is reminder on
 isReminderOn boolean

Set to true if an alert is set to remind the user of the event.
Show as
 showAs string

Status to show during the event: free, tentative, busy, oof, workingElsewhere or unknown
Response requested
 responseRequested boolean

Set to true if the sender would like a response when the event is accepted or declined
Sensitivity
 sensitivity string

The possible values are: normal, personal, private, confidential

Returns

Connector specific calendar event model class for the client with Graph API

Body
GraphCalendarEventClientReceive

Update my contact's photo

Operation ID:
UpdateMyContactPhoto

Updates the photo of the specified contact of the current user. The size of the photo must be less than 4 MB.

Parameters

Name Key Required Type Description
Folder id
 folder True string

Select a contacts folder
Item id
 id True string

Unique identifier of a contact to update photo
Image content
 body True binary

Image content

Triggers

When a new email arrives (V2) [DEPRECATED]

This action has been deprecated. Please use When a new email arrives (V3) instead.

This operation triggers a flow when a new email arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.
When a new email arrives (V3)

This operation triggers a flow when a new email arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.
When a new email arrives (webhook) [DEPRECATED]

This operation triggers a flow when a new email arrives.
When a new email arrives [DEPRECATED]

This action has been deprecated. Please use When a new email arrives (V3) instead.

This operation triggers a flow when a new email arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.
When a new email arrives in a shared mailbox (V2)

This operation triggers a flow when a new email arrives in a shared mailbox. Your account should have permission to access the mailbox for this operation to succeed. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.
When a new email arrives in a shared mailbox [DEPRECATED]

This action has been deprecated. Please use When a new email arrives in a shared mailbox (V2) instead.

This operation triggers a flow when a new email arrives in a shared mailbox. Your account should have permission to access the mailbox for this operation to succeed. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.
When a new email mentioning me arrives (V2) [DEPRECATED]

This action has been deprecated. Please use When a new email mentioning me arrives (V3) instead.

This operation triggers a flow when a new email mentioning me arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.
When a new email mentioning me arrives (V3)

This operation triggers a flow when a new email mentioning me arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.
When a new email mentioning me arrives [DEPRECATED]

This action has been deprecated. Please use When a new email mentioning me arrives (V3) instead.

This operation triggers a flow when a new email mentioning me arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.
When a new event is created (V1) [DEPRECATED]

This action has been deprecated. Please use When a new event is created (V3) instead.

This operation triggers a flow when a new event is created in a calendar. (V1)
When a new event is created (V2) [DEPRECATED]

This action has been deprecated. Please use When a new event is created (V3) instead.

This operation triggers a flow when a new event is created in a calendar. (V2)
When a new event is created (V3)

This operation triggers a flow when a new event is created in a calendar. (V3)
When an email is flagged (V2) [DEPRECATED]

This action has been deprecated. Please use When an email is flagged (V4) instead.

This operation triggers a flow when an email is flagged.
When an email is flagged (V3)

This operation triggers a flow when an email is flagged.
When an email is flagged (V4) (Preview)

This operation triggers a flow when an email is flagged.
When an email is flagged [DEPRECATED]

This action has been deprecated. Please use When an email is flagged (V4) instead.

This operation triggers a flow when an email is flagged.
When an event is added, updated or deleted (V2) [DEPRECATED]

This action has been deprecated. Please use When an event is added, updated or deleted (V3) instead.

This operation triggers a flow when an event is added, updated or deleted in a calendar. (V2)
When an event is added, updated or deleted (V3)

This operation triggers a flow when an event is added, updated or deleted in a calendar. (V3) This is not available in Mooncake.
When an event is added, updated or deleted [DEPRECATED]

This action has been deprecated. Please use When an event is added, updated or deleted (V3) instead.

This operation triggers a flow when an event is added, updated or deleted in a calendar.
When an event is modified (V1) [DEPRECATED]

This action has been deprecated. Please use When an event is modified (V3) instead.

This operation triggers a flow when an event is modified in a calendar. (V1)
When an event is modified (V2) [DEPRECATED]

This action has been deprecated. Please use When an event is modified (V3) instead.

This operation triggers a flow when an event is modified in a calendar. (V2)
When an event is modified (V3)

This operation triggers a flow when an event is modified in a calendar. (V3)
When an upcoming event is starting soon (V2) [DEPRECATED]

This action has been deprecated. Please use When an upcoming event is starting soon (V3) instead.

This operation triggers a flow when an upcoming calendar event is starting.
When an upcoming event is starting soon (V3)

This operation triggers a flow when an upcoming calendar event is starting.
When an upcoming event is starting soon [DEPRECATED]

This action has been deprecated. Please use When an upcoming event is starting soon (V3) instead.

This operation triggers a flow when an upcoming calendar event is starting.

When a new email arrives (V2) [DEPRECATED]

Operation ID:
OnNewEmailV2

This action has been deprecated. Please use When a new email arrives (V3) instead.

This operation triggers a flow when a new email arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

Parameters

Name Key Required Type Description
Folder
 folderPath string

Mail folder to check for new emails.
To
 to email

Recipient email addresses separated by semicolons (If any match, the trigger will run).
CC
 cc email

CC recipient email addresses separated by semicolons (If any match, the trigger will run).
To or CC
 toOrCc email

To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).
From
 from email

Sender email addresses separated by semicolons (If any match, the trigger will run).
Importance
 importance string

Importance of the email (Any, High, Normal, Low).
Only with Attachments
 fetchOnlyWithAttachment boolean

If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.
Include Attachments
 includeAttachments boolean

Should the response of the trigger include the attachments content.
Subject Filter
 subjectFilter string

String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

Body
TriggerBatchResponse[GraphClientReceiveMessage]

When a new email arrives (V3)

Operation ID:
OnNewEmailV3

This operation triggers a flow when a new email arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

Parameters

Name Key Required Type Description
Folder
 folderPath string

Mail folder to check for new emails.
To
 to email

Recipient email addresses separated by semicolons (If any match, the trigger will run).
CC
 cc email

CC recipient email addresses separated by semicolons (If any match, the trigger will run).
To or CC
 toOrCc email

To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).
From
 from email

Sender email addresses separated by semicolons (If any match, the trigger will run).
Importance
 importance string

Importance of the email (Any, High, Normal, Low).
Only with Attachments
 fetchOnlyWithAttachment boolean

If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.
Include Attachments
 includeAttachments boolean

Should the response of the trigger include the attachments content.
Subject Filter
 subjectFilter string

String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

Body
TriggerBatchResponse[GraphClientReceiveMessage]

When a new email arrives (webhook) [DEPRECATED]

Operation ID:
CreateOnNewEmailSubscription

This operation triggers a flow when a new email arrives.

Parameters

Name Key Required Type Description
Folder
 folderPath string

Mail folder to check for new emails.
Importance
 importance string

Importance of the received email ("Any", "High", "Normal", "Low").
Has Attachment
 hasAttachment string

Whether the email has attachments ("Any", "Yes", "No").

Returns

Represents a wrapper object for batch trigger response

Body
TriggerBatchResponse[ReceiveMessageMetadata]

When a new email arrives [DEPRECATED]

Operation ID:
OnNewEmail

This action has been deprecated. Please use When a new email arrives (V3) instead.

This operation triggers a flow when a new email arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

Parameters

Name Key Required Type Description
Folder
 folderPath string

Mail folder to check for new emails.
To
 to email

Recipient email addresses separated by semicolons (If any match, the trigger will run).
CC
 cc email

CC recipient email addresses separated by semicolons (If any match, the trigger will run).
To or CC
 toOrCc email

To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).
From
 from email

Sender email addresses separated by semicolons (If any match, the trigger will run).
Importance
 importance string

Importance of the email (Any, High, Normal, Low).
Only with Attachments
 fetchOnlyWithAttachment boolean

If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.
Include Attachments
 includeAttachments boolean

Should the response of the trigger include the attachments content.
Subject Filter
 subjectFilter string

String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

Body
TriggerBatchResponse[ClientReceiveMessage]

When a new email arrives in a shared mailbox (V2)

Operation ID:
SharedMailboxOnNewEmailV2

This operation triggers a flow when a new email arrives in a shared mailbox. Your account should have permission to access the mailbox for this operation to succeed. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

Parameters

Name Key Required Type Description
Original Mailbox Address
 mailboxAddress True string

Address of the shared mailbox.
Folder
 folderId string

Mail folder to check for new emails.
To
 to email

Recipient email addresses separated by semicolons (If any match, the trigger will run).
CC
 cc email

CC recipient email addresses separated by semicolons (If any match, the trigger will run).
To or CC
 toOrCc email

To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).
From
 from email

Sender email addresses separated by semicolons (If any match, the trigger will run).
Importance
 importance string

Importance of the email (Any, High, Normal, Low).
Only with Attachments
 hasAttachments boolean

If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.
Include Attachments
 includeAttachments boolean

Should the response of the trigger include the attachments content.
Subject Filter
 subjectFilter string

String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

Body
TriggerBatchResponse[GraphClientReceiveMessage]

When a new email arrives in a shared mailbox [DEPRECATED]

Operation ID:
SharedMailboxOnNewEmail

This action has been deprecated. Please use When a new email arrives in a shared mailbox (V2) instead.

This operation triggers a flow when a new email arrives in a shared mailbox. Your account should have permission to access the mailbox for this operation to succeed. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

Parameters

Name Key Required Type Description
Original Mailbox Address
 mailboxAddress True string

Address of the shared mailbox.
Folder
 folderId string

Mail folder to check for new emails.
To
 to email

Recipient email addresses separated by semicolons (If any match, the trigger will run).
CC
 cc email

CC recipient email addresses separated by semicolons (If any match, the trigger will run).
To or CC
 toOrCc email

To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).
From
 from email

Sender email addresses separated by semicolons (If any match, the trigger will run).
Importance
 importance string

Importance of the email (Any, High, Normal, Low).
Only with Attachments
 hasAttachments boolean

If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.
Include Attachments
 includeAttachments boolean

Should the response of the trigger include the attachments content.
Subject Filter
 subjectFilter string

String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

Body
TriggerBatchResponse[ClientReceiveMessage]

When a new email mentioning me arrives (V2) [DEPRECATED]

Operation ID:
OnNewMentionMeEmailV2

This action has been deprecated. Please use When a new email mentioning me arrives (V3) instead.

This operation triggers a flow when a new email mentioning me arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

Parameters

Name Key Required Type Description
Folder
 folderPath string

Mail folder to check for new emails.
To
 to email

Recipient email addresses separated by semicolons (If any match, the trigger will run).
CC
 cc email

CC recipient email addresses separated by semicolons (If any match, the trigger will run).
To or CC
 toOrCc email

To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).
From
 from email

Sender email addresses separated by semicolons (If any match, the trigger will run).
Importance
 importance string

Importance of the email (Any, High, Normal, Low).
Only with Attachments
 fetchOnlyWithAttachment boolean

If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.
Include Attachments
 includeAttachments boolean

Should the response of the trigger include the attachments content.
Subject Filter
 subjectFilter string

String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

Body
TriggerBatchResponse[GraphClientReceiveMessage]

When a new email mentioning me arrives (V3)

Operation ID:
OnNewMentionMeEmailV3

This operation triggers a flow when a new email mentioning me arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

Parameters

Name Key Required Type Description
Folder
 folderPath string

Mail folder to check for new emails.
To
 to email

Recipient email addresses separated by semicolons (If any match, the trigger will run).
CC
 cc email

CC recipient email addresses separated by semicolons (If any match, the trigger will run).
To or CC
 toOrCc email

To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).
From
 from email

Sender email addresses separated by semicolons (If any match, the trigger will run).
Importance
 importance string

Importance of the email (Any, High, Normal, Low).
Only with Attachments
 fetchOnlyWithAttachment boolean

If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.
Include Attachments
 includeAttachments boolean

Should the response of the trigger include the attachments content.
Subject Filter
 subjectFilter string

String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

Body
TriggerBatchResponse[GraphClientReceiveMessage]

When a new email mentioning me arrives [DEPRECATED]

Operation ID:
OnNewMentionMeEmail

This action has been deprecated. Please use When a new email mentioning me arrives (V3) instead.

This operation triggers a flow when a new email mentioning me arrives. It will skip any email that has a total message size greater than the limit put by your Exchange Admin or 50 MB, whichever is less. It may also skip protected emails and emails with invalid body or attachments.

Parameters

Name Key Required Type Description
Folder
 folderPath string

Mail folder to check for new emails.
To
 to email

Recipient email addresses separated by semicolons (If any match, the trigger will run).
CC
 cc email

CC recipient email addresses separated by semicolons (If any match, the trigger will run).
To or CC
 toOrCc email

To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).
From
 from email

Sender email addresses separated by semicolons (If any match, the trigger will run).
Importance
 importance string

Importance of the email (Any, High, Normal, Low).
Only with Attachments
 fetchOnlyWithAttachment boolean

If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.
Include Attachments
 includeAttachments boolean

Should the response of the trigger include the attachments content.
Subject Filter
 subjectFilter string

String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

Body
TriggerBatchResponse[ClientReceiveMessage]

When a new event is created (V1) [DEPRECATED]

Operation ID:
CalendarGetOnNewItems

This action has been deprecated. Please use When a new event is created (V3) instead.

This operation triggers a flow when a new event is created in a calendar. (V1)

Parameters

Name Key Required Type Description
Calendar id
 table True string

Select a calendar
Order By
 $orderby string

An ODATA orderBy query for specifying the order of entries.
Top Count
 $top integer

Total number of entries to retrieve (default = all).
Skip Count
 $skip integer

The number of entries to skip (default = 0).

Returns

The list of calendar items

Body
CalendarEventList

When a new event is created (V2) [DEPRECATED]

Operation ID:
CalendarGetOnNewItemsV2

This action has been deprecated. Please use When a new event is created (V3) instead.

This operation triggers a flow when a new event is created in a calendar. (V2)

Parameters

Name Key Required Type Description
Calendar id
 table True string

Select a calendar
Order By
 $orderby string

An ODATA orderBy query for specifying the order of entries.
Top Count
 $top integer

Total number of entries to retrieve (default = all).
Skip Count
 $skip integer

The number of entries to skip (default = 0).

Returns

The list of calendar items

Body
CalendarEventListClientReceive

When a new event is created (V3)

Operation ID:
CalendarGetOnNewItemsV3

This operation triggers a flow when a new event is created in a calendar. (V3)

Parameters

Name Key Required Type Description
Calendar id
 table True string

Select a calendar
Order By
 $orderby string

An ODATA orderBy query for specifying the order of entries.
Top Count
 $top integer

Total number of entries to retrieve (default = all).
Skip Count
 $skip integer

The number of entries to skip (default = 0).

Returns

The list of calendar items returned by Graph API

Body
GraphCalendarEventListClientReceive

When an email is flagged (V2) [DEPRECATED]

Operation ID:
OnFlaggedEmailV2

This action has been deprecated. Please use When an email is flagged (V4) instead.

This operation triggers a flow when an email is flagged.

Parameters

Name Key Required Type Description
Folder
 folderPath string

Mail folder to check for new emails.
To
 to email

Recipient email addresses separated by semicolons (If any match, the trigger will run).
CC
 cc email

CC recipient email addresses separated by semicolons (If any match, the trigger will run).
To or CC
 toOrCc email

To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).
From
 from email

Sender email addresses separated by semicolons (If any match, the trigger will run).
Importance
 importance string

Importance of the email (Any, High, Normal, Low).
Only with Attachments
 fetchOnlyWithAttachment boolean

If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.
Include Attachments
 includeAttachments boolean

Should the response of the trigger include the attachments content.
Subject Filter
 subjectFilter string

String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

Body
TriggerBatchResponse[GraphClientReceiveMessage]

When an email is flagged (V3)

Operation ID:
OnFlaggedEmailV3

This operation triggers a flow when an email is flagged.

Parameters

Name Key Required Type Description
Folder
 folderPath string

Mail folder to check for new emails.
To
 to email

Recipient email addresses separated by semicolons (If any match, the trigger will run).
CC
 cc email

CC recipient email addresses separated by semicolons (If any match, the trigger will run).
To or CC
 toOrCc email

To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).
From
 from email

Sender email addresses separated by semicolons (If any match, the trigger will run).
Importance
 importance string

Importance of the email (Any, High, Normal, Low).
Only with Attachments
 fetchOnlyWithAttachment boolean

If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.
Include Attachments
 includeAttachments boolean

Should the response of the trigger include the attachments content.
Subject Filter
 subjectFilter string

String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

Body
TriggerBatchResponse[GraphClientReceiveMessage]

When an email is flagged (V4) (Preview)

Operation ID:
OnFlaggedEmailV4

This operation triggers a flow when an email is flagged.

Parameters

Name Key Required Type Description
Folder
 folderPath string

Mail folder to check for new emails.
To
 to email

Recipient email addresses separated by semicolons (If any match, the trigger will run).
CC
 cc email

CC recipient email addresses separated by semicolons (If any match, the trigger will run).
To or CC
 toOrCc email

To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).
From
 from email

Sender email addresses separated by semicolons (If any match, the trigger will run).
Importance
 importance string

Importance of the email (Any, High, Normal, Low).
Only with Attachments
 fetchOnlyWithAttachment boolean

If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.
Include Attachments
 includeAttachments boolean

Should the response of the trigger include the attachments content.
Subject Filter
 subjectFilter string

String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

Body
TriggerBatchResponse[GraphClientReceiveMessage]

When an email is flagged [DEPRECATED]

Operation ID:
OnFlaggedEmail

This action has been deprecated. Please use When an email is flagged (V4) instead.

This operation triggers a flow when an email is flagged.

Parameters

Name Key Required Type Description
Folder
 folderPath string

Mail folder to check for new emails.
To
 to email

Recipient email addresses separated by semicolons (If any match, the trigger will run).
CC
 cc email

CC recipient email addresses separated by semicolons (If any match, the trigger will run).
To or CC
 toOrCc email

To or CC recipient email addresses separated by semicolons (If any match, the trigger will run).
From
 from email

Sender email addresses separated by semicolons (If any match, the trigger will run).
Importance
 importance string

Importance of the email (Any, High, Normal, Low).
Only with Attachments
 fetchOnlyWithAttachment boolean

If set to true, only emails with an attachment will be retrieved. Emails without any attachments will be skipped. If set to false, all emails will be retrieved.
Include Attachments
 includeAttachments boolean

Should the response of the trigger include the attachments content.
Subject Filter
 subjectFilter string

String to look for in the subject line.

Returns

Represents a wrapper object for batch trigger response

Body
TriggerBatchResponse[ClientReceiveMessage]

When an event is added, updated or deleted (V2) [DEPRECATED]

Operation ID:
CalendarGetOnChangedItemsV2

This action has been deprecated. Please use When an event is added, updated or deleted (V3) instead.

This operation triggers a flow when an event is added, updated or deleted in a calendar. (V2)

Parameters

Name Key Required Type Description
Calendar id
 table True string

Select a calendar
Incoming Days Tracked
 incomingDays integer

Number of incoming days in calendar to be tracked
Past Days Tracked
 pastDays integer

Number of past days in calendar to be tracked

Returns

The list of calendar items with action type

Body
GraphCalendarEventListWithActionType

When an event is added, updated or deleted (V3)

Operation ID:
CalendarGetOnChangedItemsV3

This operation triggers a flow when an event is added, updated or deleted in a calendar. (V3) This is not available in Mooncake.

Parameters

Name Key Required Type Description
Calendar id
 table True string

Select a calendar
Incoming Days Tracked
 incomingDays integer

Number of incoming days in calendar to be tracked
Past Days Tracked
 pastDays integer

Number of past days in calendar to be tracked

Returns

The list of calendar items with action type

Body
GraphCalendarEventListWithActionType

When an event is added, updated or deleted [DEPRECATED]

Operation ID:
CalendarGetOnChangedItems

This action has been deprecated. Please use When an event is added, updated or deleted (V3) instead.

This operation triggers a flow when an event is added, updated or deleted in a calendar.

Parameters

Name Key Required Type Description
Calendar id
 table True string

Select a calendar
Incoming Days Tracked
 incomingDays integer

Number of incoming days in calendar to be tracked
Past Days Tracked
 pastDays integer

Number of past days in calendar to be tracked

Returns

The list of calendar items with action type

Body
CalendarEventListWithActionType

When an event is modified (V1) [DEPRECATED]

Operation ID:
CalendarGetOnUpdatedItems

This action has been deprecated. Please use When an event is modified (V3) instead.

This operation triggers a flow when an event is modified in a calendar. (V1)

Parameters

Name Key Required Type Description
Calendar id
 table True string

Select a calendar
Order By
 $orderby string

An ODATA orderBy query for specifying the order of entries.
Top Count
 $top integer

Total number of entries to retrieve (default = all).
Skip Count
 $skip integer

The number of entries to skip (default = 0).

Returns

The list of calendar items

Body
CalendarEventList

When an event is modified (V2) [DEPRECATED]

Operation ID:
CalendarGetOnUpdatedItemsV2

This action has been deprecated. Please use When an event is modified (V3) instead.

This operation triggers a flow when an event is modified in a calendar. (V2)

Parameters

Name Key Required Type Description
Calendar id
 table True string

Select a calendar
Order By
 $orderby string

An ODATA orderBy query for specifying the order of entries.
Top Count
 $top integer

Total number of entries to retrieve (default = all).
Skip Count
 $skip integer

The number of entries to skip (default = 0).

Returns

The list of calendar items

Body
CalendarEventListClientReceive

When an event is modified (V3)

Operation ID:
CalendarGetOnUpdatedItemsV3

This operation triggers a flow when an event is modified in a calendar. (V3)

Parameters

Name Key Required Type Description
Calendar id
 table True string

Select a calendar
Order By
 $orderby string

An ODATA orderBy query for specifying the order of entries.
Top Count
 $top integer

Total number of entries to retrieve (default = all).
Skip Count
 $skip integer

The number of entries to skip (default = 0).

Returns

The list of calendar items returned by Graph API

Body
GraphCalendarEventListClientReceive

When an upcoming event is starting soon (V2) [DEPRECATED]

Operation ID:
OnUpcomingEventsV2

This action has been deprecated. Please use When an upcoming event is starting soon (V3) instead.

This operation triggers a flow when an upcoming calendar event is starting.

Parameters

Name Key Required Type Description
Calendar Id
 table True string

Unique identifier of the calendar.
Look-Ahead Time
 lookAheadTimeInMinutes integer

Time (in minutes) to look ahead for upcoming events.

Returns

The list of calendar items

Body
CalendarEventListClientReceive

When an upcoming event is starting soon (V3)

Operation ID:
OnUpcomingEventsV3

This operation triggers a flow when an upcoming calendar event is starting.

Parameters

Name Key Required Type Description
Calendar Id
 table True string

Unique identifier of the calendar.
Look-Ahead Time
 lookAheadTimeInMinutes integer

Time (in minutes) to look ahead for upcoming events.

Returns

The list of calendar items returned by Graph API

Body
GraphCalendarEventListClientReceive

When an upcoming event is starting soon [DEPRECATED]

Operation ID:
OnUpcomingEvents

This action has been deprecated. Please use When an upcoming event is starting soon (V3) instead.

This operation triggers a flow when an upcoming calendar event is starting.

Parameters

Name Key Required Type Description
Calendar Id
 table True string

Unique identifier of the calendar.
Look-Ahead Time
 lookAheadTimeInMinutes integer

Time (in minutes) to look ahead for upcoming events.

Returns

The list of calendar items

Body
CalendarEventList

Definitions

CalendarEventList

The list of calendar items

Name Path Type Description
value
 value array of CalendarEventBackend

List of calendar items

CalendarEventBackend

Connector specific calendar event model class for the backend

Name Path Type Description
Id
 Id string

The Event's unique identifier
Attendees
 Attendees array of Attendee

List of attendees for the event
Body
 Body ItemBody
Body preview
 BodyPreview string

The preview of the message associated with the event
Categories
 Categories array of string

The categories associated with the event
Change key
 ChangeKey string

This property identifies the version of the event object. Every time the event is changed, ChangeKey changes as well.
Created time
 DateTimeCreated date-time

The date and time that the event was created
Last modified time
 DateTimeLastModified date-time

The date and time that the event was last modified
End time
 End date-time

The end time of the event
End time zone
 EndTimeZone string

This property specifies the time zone of the meeting end time. The value must be as defined in Windows (example: 'Pacific Standard Time').
Has attachments?
 HasAttachments boolean

Set to true if the event has attachments
Event Unique ID
 ICalUId string

A unique identifier that is shared by all instances of an event across different calendars
Importance
 Importance string

The importance of the event: Low, Normal, or High
Is all day event?
 IsAllDay boolean

Set to true if the event lasts all day
Is cancelled?
 IsCancelled boolean

Set to true if the event has been canceled
Is Organizer
 IsOrganizer boolean

Set to true if the message sender is also the organizer
Location
 Location Location
Organizer
 Organizer Recipient
Recurrence
 Recurrence PatternedRecurrence
Reminder
 Reminder integer

Time in minutes before event start to remind
Response requested
 ResponseRequested boolean

Set to true if the sender would like a response when the event is accepted or declined
ResponseStatus
 ResponseStatus ResponseStatus
Series master id
 SeriesMasterId string

Unique identifier for Series Master event type
Show as
 ShowAs string

Shows as free or busy
Start time
 Start date-time

The start time of the event
Start time zone
 StartTimeZone string

This property specifies the time zone of the meeting start time. The value must be as defined in Windows (example: 'Pacific Standard Time').
Subject
 Subject string

Event subject
Type
 Type string

The event type: Single Instance, Occurrence, Exception, or Series Master
Web link
 WebLink uri

The preview of the message associated with the event
Reason
 Reason string

The reason property used by O365 sync events protocol, will be 'deleted' if its a deleted event.

Attendee

Name Path Type Description
Status
 Status ResponseStatus
Type
 Type string
EmailAddress
 EmailAddress EmailAddress

ItemBody

Name Path Type Description
ContentType
 ContentType string
Content
 Content string

Location

Name Path Type Description
DisplayName
 DisplayName string
Address
 Address PhysicalAddress
Coordinates
 Coordinates GeoCoordinates

Recipient

Name Path Type Description
EmailAddress
 EmailAddress EmailAddress

PatternedRecurrence

Name Path Type Description
Pattern
 Pattern RecurrencePattern
Range
 Range RecurrenceRange

ResponseStatus

Name Path Type Description
Response
 Response string
Time
 Time date-time

EmailAddress

Name Path Type Description
Name
 Name string
Address
 Address email

PhysicalAddress

Name Path Type Description
Street
 Street string
City
 City string
State
 State string
CountryOrRegion
 CountryOrRegion string
PostalCode
 PostalCode string

GeoCoordinates

Name Path Type Description
Altitude
 Altitude double
Latitude
 Latitude double
Longitude
 Longitude double
Accuracy
 Accuracy double
AltitudeAccuracy
 AltitudeAccuracy double

RecurrencePattern

Name Path Type Description
Type
 Type string
Interval
 Interval integer
Month
 Month integer
DayOfMonth
 DayOfMonth integer
DaysOfWeek
 DaysOfWeek array of string
FirstDayOfWeek
 FirstDayOfWeek string
Index
 Index string

RecurrenceRange

Name Path Type Description
Type
 Type string
StartDate
 StartDate date-time
EndDate
 EndDate date-time
NumberOfOccurrences
 NumberOfOccurrences integer

CalendarEventListClientReceive

The list of calendar items

Name Path Type Description
value
 value array of CalendarEventClientReceive

List of calendar items

CalendarEventClientReceive

Connector specific calendar event model class for the client

Name Path Type Description
Subject
 Subject string

Event subject
Start time
 Start date-time

Start time of the event (example: '2016-11-01T14:30:00Z')
End time
 End date-time

End time of the event (example: '2016-11-01T15:30:00Z')
Show as
 ShowAs integer

Status to show during the event (Unknown - -1, Free - 0, Tentative - 1, Busy - 2, Oof - 3, WorkingElsewhere - 4)
Recurrence
 Recurrence integer

The recurrence pattern for the event (None - 0, Daily - 1, Weekly - 2, Monthly - 3, Yearly - 4)
Response type
 ResponseType integer

The response type of the event (None - 0, Organizer - 1, TentativelyAccepted - 2, Accepted - 3, Declined - 4, NotResponded - 5)
Response time
 ResponseTime date-time

The response time of the event
Event Unique ID
 ICalUId string

A unique identifier that is shared by all instances of an event across different calendars
Importance
 Importance integer

The importance of the event (0 - Low, 1 - Normal, 2 - High)
Id
 Id string

The event's unique identifier
Created time
 DateTimeCreated date-time

The date and time that the event was created
Last modified time
 DateTimeLastModified date-time

The date and time that the event was last modified
Organizer
 Organizer email

The organizer of the event
Time zone
 TimeZone string

Time zone of the event
Series master id
 SeriesMasterId string

Unique identifier for Series Master event type
Categories
 Categories array of string

The categories associated with the event
Web link
 WebLink uri

The URL to open the event in Outlook Web App
Required attendees
 RequiredAttendees email

Required attendees for the event separated by semicolons
Optional attendees
 OptionalAttendees email

Optional attendees for the event separated by semicolons
Resource attendees
 ResourceAttendees string

Resource attendees for the event separated by semicolons
Body
 Body string

Body of the message associated with the event
Is HTML
 IsHtml boolean

Set to true if the body is Html
Location
 Location string

Location of the event
Is all day event?
 IsAllDay boolean

Set to true if the event lasts all day
Recurrence end time
 RecurrenceEnd date-time

End time of the recurrence
Number of occurrences
 NumberOfOccurrences integer

How many times to repeat the event
Reminder
 Reminder integer

Time in minutes before event start to remind
Response requested
 ResponseRequested boolean

Set to true if the sender would like a response when the event is accepted or declined

GraphCalendarEventListClientReceive

The list of calendar items returned by Graph API

Name Path Type Description
value
 value array of GraphCalendarEventClientReceive

List of calendar items

GraphCalendarEventClientReceive

Connector specific calendar event model class for the client with Graph API

Name Path Type Description
Subject
 subject string

Event subject
Start time
 start date-no-tz

Start time of the event (example: '2017-08-29T04:00:00.0000000')
End time
 end date-no-tz

End time of the event (example: '2017-08-29T05:00:00.0000000')
Start time with time zone
 startWithTimeZone date-time

Start time of the event with time zone (example: '2017-08-29T04:00:00.0000000+00:00')
End time with time zone
 endWithTimeZone date-time

End time of the event with time zone (example: '2017-08-29T05:00:00.0000000+00:00')
Body
 body html

Body of the message associated with the event
Is HTML
 isHtml boolean

Set to true if the body is Html
Response type
 responseType string

The response type of the event (none, organizer, tentativelyAccepted, accepted, declined or notResponded)
Response time
 responseTime date-time

The response time of the event
Id
 id string

The event's unique identifier
Created time
 createdDateTime date-time

The date and time that the event was created
Last modified time
 lastModifiedDateTime date-time

The date and time that the event was last modified
Organizer
 organizer email

The organizer of the event
Time zone
 timeZone string

Time zone of the event
Series master id
 seriesMasterId string

Unique identifier for Series Master event type
iCalUId
 iCalUId string

A unique identifier for an event across calendars. This ID is different for each occurrence in a recurring series
Categories
 categories array of string

The categories associated with the event
Web link
 webLink uri

The URL to open the event in Outlook Web App
Required attendees
 requiredAttendees email

Required attendees for the event separated by semicolons
Optional attendees
 optionalAttendees email

Optional attendees for the event separated by semicolons
Resource attendees
 resourceAttendees string

Resource attendees for the event separated by semicolons
Location
 location string

Location of the event
Importance
 importance string

The importance of the event: low, normal, or high
Is all day event?
 isAllDay boolean

Set to true if the event lasts all day
Recurrence
 recurrence string

The recurrence pattern for the event: none, daily, weekly, monthly or yearly
Recurrence end date
 recurrenceEnd date

End Date of the recurrence
Number of occurrences
 numberOfOccurences integer

How many times to repeat the event
Reminder
 reminderMinutesBeforeStart integer

Time in minutes before event start to remind
Is reminder on
 isReminderOn boolean

Set to true if an alert is set to remind the user of the event.
Show as
 showAs string

Status to show during the event: free, tentative, busy, oof, workingElsewhere or unknown
Response requested
 responseRequested boolean

Set to true if the sender would like a response when the event is accepted or declined
Sensitivity
 sensitivity string

The possible values are: normal, personal, private, confidential

PaginatedListResponse[CalendarEventClientReceiveStringEnums]

Response containing a list and next link

Name Path Type Description
Values
 Values array of CalendarEventClientReceiveStringEnums

Values

CalendarEventClientReceiveStringEnums

Connector specific calendar event model class for the client

Name Path Type Description
Importance
 Importance string

The importance of the event: Low, Normal, or High
Response type
 ResponseType string

The response type of the event: None, Organizer, TentativelyAccepted, Accepted, Declined or NotResponded
Recurrence
 Recurrence string

The recurrence pattern for the event
Show as
 ShowAs string

Status to show during the event
Subject
 Subject string

Event subject
Start time
 Start date-time

Start time of the event (example: '2016-11-01T14:30:00Z')
End time
 End date-time

End time of the event (example: '2016-11-01T15:30:00Z')
Response time
 ResponseTime date-time

The response time of the event
Event Unique ID
 ICalUId string

A unique identifier that is shared by all instances of an event across different calendars
Id
 Id string

The event's unique identifier
Created time
 DateTimeCreated date-time

The date and time that the event was created
Last modified time
 DateTimeLastModified date-time

The date and time that the event was last modified
Organizer
 Organizer email

The organizer of the event
Time zone
 TimeZone string

Time zone of the event
Series master id
 SeriesMasterId string

Unique identifier for Series Master event type
Categories
 Categories array of string

The categories associated with the event
Web link
 WebLink uri

The URL to open the event in Outlook Web App
Required attendees
 RequiredAttendees email

Required attendees for the event separated by semicolons
Optional attendees
 OptionalAttendees email

Optional attendees for the event separated by semicolons
Resource attendees
 ResourceAttendees string

Resource attendees for the event separated by semicolons
Body
 Body string

Body of the message associated with the event
Is HTML
 IsHtml boolean

Set to true if the body is Html
Location
 Location string

Location of the event
Is all day event?
 IsAllDay boolean

Set to true if the event lasts all day
Recurrence end time
 RecurrenceEnd date-time

End time of the recurrence
Number of occurrences
 NumberOfOccurrences integer

How many times to repeat the event
Reminder
 Reminder integer

Time in minutes before event start to remind
Response requested
 ResponseRequested boolean

Set to true if the sender would like a response when the event is accepted or declined

ClientReceiveMessageStringEnums

Receive Email Message

Name Path Type Description
Importance
 Importance string

The importance of the message
From
 From email

The mailbox owner and sender of the message
To
 To email

The recipients for the message
CC
 Cc email

The Cc recipients for the message
BCC
 Bcc email

The Bcc recipients for the message
Reply To
 ReplyTo email

The email addresses to use when replying
Subject
 Subject string

The subject of the message
Body
 Body string

The body of the message
Body Preview
 BodyPreview string

The preview of the message
Has Attachment
 HasAttachment boolean

Indicates whether the message has attachments
Message Id
 Id string

The unique identifier of the message
Internet Message Id
 InternetMessageId string

The message ID in the format specified by RFC2822
Conversation Id
 ConversationId string

The Id of the conversation the email belongs to
Received Time
 DateTimeReceived date-time

The date and time the message was received
Is Read
 IsRead boolean

Indicates whether the message has been read
Attachments
 Attachments array of ClientReceiveFileAttachment

The file attachments for the message
Is HTML
 IsHtml boolean

Is Html?

ClientReceiveFileAttachment

File Attachment

Name Path Type Description
Attachment Id
 Id string

Attachment Id
Name
 Name string

Attachment name
Content
 ContentBytes byte

Attachment content
Content-Type
 ContentType string

Attachment content type
Size
 Size integer

The size in bytes of the attachment
Is Inline
 IsInline boolean

Set to true if this is an inline attachment
Last Modified DateTime
 LastModifiedDateTime date-time

The date and time when the attachment was last modified
Content Id
 ContentId string

Content Id

BatchResponse[ClientReceiveMessage]

Represents a wrapper object for batch response

Name Path Type Description
value
 value array of ClientReceiveMessage

A list of the response objects

ClientReceiveMessage

Receive Email Message

Name Path Type Description
From
 From email

The mailbox owner and sender of the message
To
 To email

The recipients for the message
CC
 Cc email

The Cc recipients for the message
BCC
 Bcc email

The Bcc recipients for the message
Reply To
 ReplyTo email

The email addresses to use when replying
Subject
 Subject string

The subject of the message
Body
 Body string

The body of the message
Importance
 Importance integer

The importance of the message (0 - Low, 1 - Normal, 2 - High)
Body Preview
 BodyPreview string

The preview of the message
Has Attachment
 HasAttachment boolean

Indicates whether the message has attachments
Message Id
 Id string

The unique identifier of the message
Internet Message Id
 InternetMessageId string

The message ID in the format specified by RFC2822
Conversation Id
 ConversationId string

The Id of the conversation the email belongs to
Received Time
 DateTimeReceived date-time

The date and time the message was received
Is Read
 IsRead boolean

Indicates whether the message has been read
Attachments
 Attachments array of ClientReceiveFileAttachment

The file attachments for the message
Is HTML
 IsHtml boolean

Is Html?

GraphClientReceiveMessage

Graph Client Receive Email Message

Name Path Type Description
From
 from email

The mailbox owner and sender of the message
To
 toRecipients email

The recipients for the message
CC
 ccRecipients email

The Cc recipients for the message
BCC
 bccRecipients email

The Bcc recipients for the message
Reply To
 replyTo email

The email addresses to use when replying
Subject
 subject string

The subject of the message
Body
 body string

The body of the message
Importance
 importance string

The importance of the message (low, normal, high)
Body Preview
 bodyPreview string

The preview of the message
Has Attachment
 hasAttachments boolean

Indicates whether the message has attachments
Message Id
 id string

The unique identifier of the message
Internet Message Id
 internetMessageId string

The message ID in the format specified by RFC2822
Conversation Id
 conversationId string

The Id of the conversation the email belongs to
Received Time
 receivedDateTime date-time

The date and time the message was received
Is Read
 isRead boolean

Indicates whether the message has been read
Attachments
 attachments array of GraphClientReceiveFileAttachment

The file attachments for the message
Is HTML
 isHtml boolean

Is Html?

GraphClientReceiveFileAttachment

File Attachment

Name Path Type Description
Attachment Id
 id string

Attachment Id
Name
 name string

Attachment name
Content
 contentBytes byte

Attachment content
Content-Type
 contentType string

Attachment content type
Size
 size integer

The size in bytes of the attachment
Is Inline
 isInline boolean

Set to true if this is an inline attachment
Last Modified DateTime
 lastModifiedDateTime date-time

The date and time when the attachment was last modified
Content Id
 contentId string

Content Id

BatchResponse[GraphClientReceiveMessage]

Represents a wrapper object for batch response

Name Path Type Description
value
 value array of GraphClientReceiveMessage

A list of the response objects

TriggerBatchResponse[ClientReceiveMessage]

Represents a wrapper object for batch trigger response

Name Path Type Description
value
 value array of ClientReceiveMessage

A list of the response objects

TriggerBatchResponse[GraphClientReceiveMessage]

Represents a wrapper object for batch trigger response

Name Path Type Description
value
 value array of GraphClientReceiveMessage

A list of the response objects

MailTipsClientReceive

Mail tips client model returned to the caller

Name Path Type Description
AutomaticReplies
 AutomaticReplies MailTipsAutomaticReplies

Automatic replies as part of mail tips
DeliveryRestricted
 DeliveryRestricted boolean

Is delivery restricted
ExternalMemberCount
 ExternalMemberCount integer

Number of external members
IsModerated
 IsModerated boolean

Is moderated
MailboxFull
 MailboxFull boolean

Is mailbox full
MaxMessageSize
 MaxMessageSize integer

Maximum message size
TotalMemberCount
 TotalMemberCount integer

Total member count

MailTipsAutomaticReplies

Automatic replies as part of mail tips

Name Path Type Description
Message
 Message string

Automatic replies message

TriggerBatchResponse[ReceiveMessageMetadata]

Represents a wrapper object for batch trigger response

Name Path Type Description
value
 value array of ReceiveMessageMetadata

A list of the response objects

ReceiveMessageMetadata

Receive Email Message

Name Path Type Description
From
 From email

The mailbox owner and sender of the message
To
 To email

The recipients for the message
CC
 Cc email

The Cc recipients for the message
BCC
 Bcc email

The Bcc recipients for the message
Reply To
 ReplyTo email

The email addresses to use when replying
Subject
 Subject string

The subject of the message
Importance
 Importance integer

The importance of the message (0 - Low, 1 - Normal, 2 - High)
Has Attachment
 HasAttachment boolean

Indicates whether the message has attachments
Message Id
 Id string

The unique identifier of the message
Received Time
 DateTimeReceived date-time

The date and time the message was received
Is Read
 IsRead boolean

Indicates whether the message has been read

ApprovalEmailResponse

Approval Email Response

Name Path Type Description
SelectedOption
 SelectedOption string

User response
UserEmailAddress
 UserEmailAddress string

User email address. The value is the user's email address for individual users and user ID for the members in Distribution Group or Mail Enabled Security Group.
UserTenantId
 UserTenantId string

User tenant ID. The value is the tenant id of the user for both individual users and the members in Distribution Group or Mail Enabled Security Group.
UserId
 UserId string

User ID. The value is the user id for both individual users and the members in Distribution Group or Mail Enabled Security Group.

EntityListResponse[Table]

Entity list response

Name Path Type Description
value
 value array of Table

List of values

Table

Represents a table.

Name Path Type Description
Name
 Name string

The name of the table. The name is used at runtime.
DisplayName
 DisplayName string

The display name of the table.
DynamicProperties
 DynamicProperties object

Additional table properties provided by the connector to the clients.

EntityListResponse[CalendarEventBackend]

Entity list response

Name Path Type Description
value
 value array of CalendarEventBackend

List of values

EntityListResponse[CalendarEventClientReceiveStringEnums]

Entity list response

Name Path Type Description
value
 value array of CalendarEventClientReceiveStringEnums

List of values

EntityListResponse[GraphCalendarEventClientReceive]

Entity list response

Name Path Type Description
value
 value array of GraphCalendarEventClientReceive

List of values

CalendarEventListWithActionType

The list of calendar items with action type

Name Path Type Description
value
 value array of CalendarEventClientWithActionType

List of calendar items

CalendarEventClientWithActionType

Calendar event model with action type

Name Path Type Description
Action Type
 ActionType string

Changed action type of the event - added, updated or deleted.
Is Added
 IsAdded boolean

Flag that indicates whether the event was added since the last poll of the trigger.
Is Updated
 IsUpdated boolean

Flag that indicates whether the event was updated since the last poll of the trigger.
Subject
 Subject string

Event subject
Start time
 Start date-time

Start time of the event (example: '2016-11-01T14:30:00Z')
End time
 End date-time

End time of the event (example: '2016-11-01T15:30:00Z')
Show as
 ShowAs integer

Status to show during the event (Unknown - -1, Free - 0, Tentative - 1, Busy - 2, Oof - 3, WorkingElsewhere - 4)
Recurrence
 Recurrence integer

The recurrence pattern for the event (None - 0, Daily - 1, Weekly - 2, Monthly - 3, Yearly - 4)
Response type
 ResponseType integer

The response type of the event (None - 0, Organizer - 1, TentativelyAccepted - 2, Accepted - 3, Declined - 4, NotResponded - 5)
Response time
 ResponseTime date-time

The response time of the event
Event Unique ID
 ICalUId string

A unique identifier that is shared by all instances of an event across different calendars
Importance
 Importance integer

The importance of the event (0 - Low, 1 - Normal, 2 - High)
Id
 Id string

The event's unique identifier
Created time
 DateTimeCreated date-time

The date and time that the event was created
Last modified time
 DateTimeLastModified date-time

The date and time that the event was last modified
Organizer
 Organizer email

The organizer of the event
Time zone
 TimeZone string

Time zone of the event
Series master id
 SeriesMasterId string

Unique identifier for Series Master event type
Categories
 Categories array of string

The categories associated with the event
Web link
 WebLink uri

The URL to open the event in Outlook Web App
Required attendees
 RequiredAttendees email

Required attendees for the event separated by semicolons
Optional attendees
 OptionalAttendees email

Optional attendees for the event separated by semicolons
Resource attendees
 ResourceAttendees string

Resource attendees for the event separated by semicolons
Body
 Body string

Body of the message associated with the event
Is HTML
 IsHtml boolean

Set to true if the body is Html
Location
 Location string

Location of the event
Is all day event?
 IsAllDay boolean

Set to true if the event lasts all day
Recurrence end time
 RecurrenceEnd date-time

End time of the recurrence
Number of occurrences
 NumberOfOccurrences integer

How many times to repeat the event
Reminder
 Reminder integer

Time in minutes before event start to remind
Response requested
 ResponseRequested boolean

Set to true if the sender would like a response when the event is accepted or declined

GraphCalendarEventListWithActionType

The list of calendar items with action type

Name Path Type Description
value
 value array of GraphCalendarEventClientWithActionType

List of calendar items

GraphCalendarEventClientWithActionType

Graph calendar event model with action type

Name Path Type Description
Action Type
 ActionType string

Changed action type of the event - added, updated or deleted.
Is Added
 IsAdded boolean

Flag that indicates whether the event was added since the last poll of the trigger.
Is Updated
 IsUpdated boolean

Flag that indicates whether the event was updated since the last poll of the trigger.
Subject
 subject string

Event subject
Start time
 start date-no-tz

Start time of the event (example: '2017-08-29T04:00:00.0000000')
End time
 end date-no-tz

End time of the event (example: '2017-08-29T05:00:00.0000000')
Start time with time zone
 startWithTimeZone date-time

Start time of the event with time zone (example: '2017-08-29T04:00:00.0000000+00:00')
End time with time zone
 endWithTimeZone date-time

End time of the event with time zone (example: '2017-08-29T05:00:00.0000000+00:00')
Body
 body html

Body of the message associated with the event
Is HTML
 isHtml boolean

Set to true if the body is Html
Response type
 responseType string

The response type of the event (none, organizer, tentativelyAccepted, accepted, declined or notResponded)
Response time
 responseTime date-time

The response time of the event
Id
 id string

The event's unique identifier
Created time
 createdDateTime date-time

The date and time that the event was created
Last modified time
 lastModifiedDateTime date-time

The date and time that the event was last modified
Organizer
 organizer email

The organizer of the event
Time zone
 timeZone string

Time zone of the event
Series master id
 seriesMasterId string

Unique identifier for Series Master event type
iCalUId
 iCalUId string

A unique identifier for an event across calendars. This ID is different for each occurrence in a recurring series
Categories
 categories array of string

The categories associated with the event
Web link
 webLink uri

The URL to open the event in Outlook Web App
Required attendees
 requiredAttendees email

Required attendees for the event separated by semicolons
Optional attendees
 optionalAttendees email

Optional attendees for the event separated by semicolons
Resource attendees
 resourceAttendees string

Resource attendees for the event separated by semicolons
Location
 location string

Location of the event
Importance
 importance string

The importance of the event: low, normal, or high
Is all day event?
 isAllDay boolean

Set to true if the event lasts all day
Recurrence
 recurrence string

The recurrence pattern for the event: none, daily, weekly, monthly or yearly
Recurrence end date
 recurrenceEnd date

End Date of the recurrence
Number of occurrences
 numberOfOccurences integer

How many times to repeat the event
Reminder
 reminderMinutesBeforeStart integer

Time in minutes before event start to remind
Is reminder on
 isReminderOn boolean

Set to true if an alert is set to remind the user of the event.
Show as
 showAs string

Status to show during the event: free, tentative, busy, oof, workingElsewhere or unknown
Response requested
 responseRequested boolean

Set to true if the sender would like a response when the event is accepted or declined
Sensitivity
 sensitivity string

The possible values are: normal, personal, private, confidential

EntityListResponse[GraphContactFolder]

Entity list response

Name Path Type Description
value
 value array of GraphContactFolder

List of values

GraphContactFolder

Contact folder data model returned by Graph API

Name Path Type Description
ID
 id string

The ID of the contacts folder
Display Name
 displayName string

The name of the contacts folder
Parent Folder ID
 parentFolderId string

The ID of the parent folder

EntityListResponse[ContactResponse]

Entity list response

Name Path Type Description
value
 value array of ContactResponse

List of values

ContactResponse

Contact response

Name Path Type Description
Given name
 GivenName string

The contact's given name
Home phones
 HomePhones array of string

The contact's home phone numbers
Id
 Id string

The contact's unique identifier.
Parent folder id
 ParentFolderId string

The ID of the contact's parent folder
Birthday
 Birthday date-time

The contact's birthday
File as
 FileAs string

The name the contact is filed under
Display Name
 DisplayName string

The contact's display name
Initials
 Initials string

The contact's initials
Middle name
 MiddleName string

The contact's middle name
Nickname
 NickName string

The contact's nickname
Surname
 Surname string

The contact's surname
Title
 Title string

The contact's title
Generation
 Generation string

The contact's generation
Email addresses
 EmailAddresses array of EmailAddress

The contact's email addresses
IM addresses
 ImAddresses array of string

The contact's instant messaging (IM) addresses
JobTitle
 JobTitle string

The contact's job title
Company name
 CompanyName string

The name of the contact's company
Department
 Department string

The contact's department
Office location
 OfficeLocation string

The location of the contact's office
Profession
 Profession string

The contact's profession
Business home page
 BusinessHomePage string

The business home page of the contact
Assistant name
 AssistantName string

The name of the contact's assistant
Manager
 Manager string

The name of the contact's manager
Business phones
 BusinessPhones array of string

The contact's business phone numbers
Mobile phone
 MobilePhone1 string

The contact's mobile phone number
HomeAddress
 HomeAddress PhysicalAddress
BusinessAddress
 BusinessAddress PhysicalAddress
OtherAddress
 OtherAddress PhysicalAddress
Yomi company name
 YomiCompanyName string

The phonetic Japanese company name of the contact
Yomi given name
 YomiGivenName string

The phonetic Japanese given name (first name) of the contact
Yomi surname
 YomiSurname string

The phonetic Japanese surname (last name) of the contact
Categories
 Categories array of string

The categories associated with the contact
Change key
 ChangeKey string

Identifies the version of the event object
Created time
 DateTimeCreated date-time

The time the contact was created
Last modified time
 DateTimeLastModified date-time

The time the contact was modified

AutomaticRepliesSettingClient_V2

Automatic replies setting model for the connector

Name Path Type Description
Status
 status string

Automatic reply setting status
External Audience
 externalAudience string

The audience that will see the external reply message
DateTime
 scheduledStartDateTime.dateTime string

Scheduled start time (example: '2017-08-29T04:00:00.0000000')
TimeZone
 scheduledStartDateTime.timeZone string

TimeZone (example: 'Pacific Standard Time')
DateTime
 scheduledEndDateTime.dateTime string

Scheduled end time (example: '2017-08-29T05:00:00.0000000')
TimeZone
 scheduledEndDateTime.timeZone string

TimeZone (example: 'Pacific Standard Time')
Internal Reply Message
 internalReplyMessage string

Message for people within your organization
External Reply Message
 externalReplyMessage string

Message for people outside your organization

MailTipsClientReceive_V2

Mail tips client model returned to the caller

Name Path Type Description
automaticReplies
 automaticReplies MailTipsAutomaticReplies_V2

Automatic replies as part of mail tips
Is delivery restricted
 deliveryRestricted boolean

Is delivery restricted
Is moderated
 externalMemberCount integer

Number of external members
Is moderated
 isModerated boolean

Is moderated
Is mailbox full
 mailboxFull boolean

Is mailbox full
Maximum message size
 maxMessageSize integer

Maximum message size
Total member count
 totalMemberCount integer

Total member count

MailTipsAutomaticReplies_V2

Automatic replies as part of mail tips

Name Path Type Description
Automatic replies message
 message string

Automatic replies message

MeetingTimeSuggestions

Meeting Time Suggestions

Name Path Type Description
Confidence
 Confidence float

Confidence
Organizer Availability
 OrganizerAvailability string

Organizer Availability
Suggestion Reason
 SuggestionReason string

Suggestion Reason
DateTimeTimeZone
 MeetingTimeSlot.Start DateTimeTimeZone

DateTimeTimeZone
DateTimeTimeZone
 MeetingTimeSlot.End DateTimeTimeZone

DateTimeTimeZone
Attendee Availability
 AttendeeAvailability array of object

Attendee Availability
Availability
 AttendeeAvailability.Availability string

Availability
Type
 AttendeeAvailability.Attendee.Type string

Type
Address
 AttendeeAvailability.Attendee.EmailAddress.Address string

Address
Locations
 Locations array of object

Locations
Display Name
 Locations.DisplayName string

Display Name
Location Email Address
 Locations.LocationEmailAddress string

Location Email Address
Type
 Locations.Address.Type string

Type
Street
 Locations.Address.Street string

Street
City
 Locations.Address.City string

City
State
 Locations.Address.State string

State
Country Or Region
 Locations.Address.CountryOrRegion string

Country Or Region
Postal Code
 Locations.Address.PostalCode string

Postal Code

MeetingTimeSuggestions_V2

Meeting Time Suggestions

Name Path Type Description
Confidence
 confidence float

Confidence
Organizer Availability
 organizerAvailability string

Organizer Availability
Suggestion Reason
 suggestionReason string

Suggestion Reason
DateTimeTimeZone
 meetingTimeSlot.start DateTimeTimeZone_V2

DateTimeTimeZone
DateTimeTimeZone
 meetingTimeSlot.end DateTimeTimeZone_V2

DateTimeTimeZone
Attendee Availability
 attendeeAvailability array of object

Attendee Availability
Availability
 attendeeAvailability.availability string

Availability
Type
 attendeeAvailability.attendee.type string

Type
Address
 attendeeAvailability.attendee.emailAddress.address string

Address
Locations
 locations array of object

Locations
Display Name
 locations.displayName string

Display Name
Location Email Address
 locations.locationEmailAddress string

Location Email Address
Street
 locations.address.street string

Street
City
 locations.address.city string

City
State
 locations.address.state string

State
Country Or Region
 locations.address.countryOrRegion string

Country Or Region
Postal Code
 locations.address.postalCode string

Postal Code

DateTimeTimeZone

DateTimeTimeZone

Name Path Type Description
DateTime
 DateTime string

DateTime
TimeZone
 TimeZone string

TimeZone

DateTimeTimeZone_V2

DateTimeTimeZone

Name Path Type Description
DateTime
 dateTime string

DateTime (example: '2017-08-29T04:00:00.0000000')
TimeZone
 timeZone string

TimeZone (example: 'Pacific Standard Time')

EntityListResponse[ContactResponse]_V2

Entity list response

Name Path Type Description
value
 value array of ContactResponse_V2

List of values

EmailAddress_V2

Name Path Type Description
name
 name string
address
 address email

PhysicalAddress_V2

Name Path Type Description
Street
 street string

The contact's street address.
City
 city string

The contact's city.
State
 state string

The contact's state.
Country Or Region
 countryOrRegion string

The contact's country of region.
Postal code
 postalCode string

The contact's postal code.

ContactResponse_V2

Contact

Name Path Type Description
Id
 id string

The contact's unique identifier.
Parent folder id
 parentFolderId string

The ID of the contact's parent folder
Birthday
 birthday date-time

The contact's birthday
File as
 fileAs string

The name the contact is filed under
Display Name
 displayName string

The contact's display name
Given name
 givenName string

The contact's given name
Initials
 initials string

The contact's initials
Middle name
 middleName string

The contact's middle name
Nickname
 nickName string

The contact's nickname
Surname
 surname string

The contact's surname
Title
 title string

The contact's title
Generation
 generation string

The contact's generation
Email addresses
 emailAddresses array of EmailAddress_V2

The contact's email addresses
IM addresses
 imAddresses array of string

The contact's instant messaging (IM) addresses
JobTitle
 jobTitle string

The contact's job title
Company name
 companyName string

The name of the contact's company
Department
 department string

The contact's department
Office location
 officeLocation string

The location of the contact's office
Profession
 profession string

The contact's profession
Business home page
 businessHomePage string

The business home page of the contact
Assistant name
 assistantName string

The name of the contact's assistant
Manager
 manager string

The name of the contact's manager
Home phones
 homePhones array of string

The contact's home phone numbers
Business phones
 businessPhones array of string

The contact's business phone numbers
Mobile phone
 mobilePhone string

The contact's mobile phone number
homeAddress
 homeAddress PhysicalAddress_V2
businessAddress
 businessAddress PhysicalAddress_V2
otherAddress
 otherAddress PhysicalAddress_V2
Yomi company name
 yomiCompanyName string

The phonetic Japanese company name of the contact
Yomi given name
 yomiGivenName string

The phonetic Japanese given name (first name) of the contact
Yomi surname
 yomiSurname string

The phonetic Japanese surname (last name) of the contact
Categories
 categories array of string

The categories associated with the contact
Change key
 changeKey string

Identifies the version of the event object
Created time
 createdDateTime date-time

The time the contact was created
Last modified time
 lastModifiedDateTime date-time

The time the contact was modified

ObjectWithoutType

binary

This is the basic data type 'binary'.
