Issue with doing Certificate Based Authentication to Graph API from Java code

Question

I have done. as suggested in the documentation where x5t is based on certificate thumbprint while the JSW token is signed with private key of the certificate. I also updated the certificate in the app (xanadufinancials.com domain).

While. trying to add I am geting. below error:

,"error_description":"AADSTS700027: The certificate with identifier used to sign the client assertion is not registered on application. [Reason - The key was not found., Thumbprint of key used by client: '37313131413430454539363337333431434431374131443745444545353437443635433542333541', Please visit the Azure Portal, Graph Explorer or directly use MS Graph to see configured keys for app Id 'd9e98c63-d918-4f05-b859-e077acbed37c'. Review the documentation at https://docs.microsoft.com/en-us/graph/deployments to determine the corresponding service endpoint and https://docs.microsoft.com/en-us/graph/api/application-get?view=graph-rest-1.0&tabs=http to build a query request URL, such as 'https://graph.microsoft.com/beta/applications/d9e98c63-d918-4f05-b859-e077acbed37c'].\r\nTrace ID: b1b49b1d-7244-4531-b8a8-df53cf3a1b00\r\nCorrelation ID: c7bdea9d-f335-4851-9edf-bc507c88c1bf\r\nTimestamp: 2023-02-22 18:29:39Z","error_codes":[700027],"timestamp":"2023-02-22 18:29:39Z","trace_id":"b1b49b1d-7244-4531-b8a8-df53cf3a1b00","correlation_id":"c7bdea9d-f335-4851-9edf-bc507c88c1bf","error_uri":"https://login.microsoftonline.com/error?code=700027"

Any directions on what could be going. wrong here?

Answer 1

Hi @Ashish Jhunjhunwala

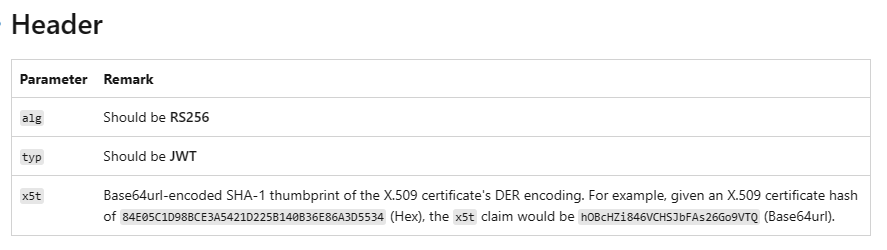

Please use Base64 format to encode your certificate thumbprint.

Reference certificate credentials:

Hope this helps.

If the reply is helpful, please click Accept Answer and kindly upvote it. If you have additional questions about this answer, please click Comment.

Answer 2

I have used that only to use in x5t Is there any other thing to be done. I did the following:

1. Created self signed certificate
2. Uploaded into Application under Certificates
3. Build JWT token to send as. client_assertion The Token is being signed using private key from certificate generated in. (1)
