Create a dual-protocol volume for Azure NetApp Files

Azure NetApp Files supports creating volumes using NFS (NFSv3 or NFSv4.1), SMB3, or dual protocol (NFSv3 and SMB, or NFSv4.1 and SMB). This article shows you how to create a volume that uses dual protocol with support for LDAP user mapping.

To create NFS volumes, see Create an NFS volume. To create SMB volumes, see Create an SMB volume.

Before you begin


If you're using a custom RBAC/IAM role, you must have the Microsoft.Network/virtualNetworks/subnets/read permission configured to create or update a volume.

For more information about permissions and to confirm permissions configuration, see Create or update Azure custom roles using the Azure portal.

  1. Register the feature:

    Register-AzProviderFeature -ProviderNamespace Microsoft.NetApp -FeatureName ANFSmbNonBrowsable
    Register-AzProviderFeature -ProviderNamespace Microsoft.NetApp -FeatureName ANFSMBAccessBasedEnumeration
  2. Check the status of the feature registration:


    The RegistrationState may be in the Registering state for up to 60 minutes before changing to Registered. Wait until the status is Registered before continuing.

    Get-AzProviderFeature -ProviderNamespace Microsoft.NetApp -FeatureName ANFSmbNonBrowsable
    Get-AzProviderFeature -ProviderNamespace Microsoft.NetApp -FeatureName ANFSMBAccessBasedEnumeration

You can also use Azure CLI commands az feature register and az feature show to register the feature and display the registration status.


  • Ensure that you meet the Requirements for Active Directory connections.

  • Create a reverse lookup zone on the DNS server and then add a pointer (PTR) record of the AD host machine in that reverse lookup zone. Otherwise, the dual-protocol volume creation will fail.

  • The Allow local NFS users with LDAP option in Active Directory connections intends to provide occasional and temporary access to local users. When this option is enabled, user authentication and lookup from the LDAP server stop working, and the number of group memberships that Azure NetApp Files will support will be limited to 16. As such, you should keep this option disabled on Active Directory connections, except for the occasion when a local user needs to access LDAP-enabled volumes. In that case, you should disable this option as soon as local user access is no longer required for the volume. See Allow local NFS users with LDAP to access a dual-protocol volume about managing local user access.

  • Ensure that the NFS client is up to date and running the latest updates for the operating system.

  • Dual-protocol volumes support both Active Directory Domain Services (AD DS) and Microsoft Entra Domain Services.

  • Dual-protocol volumes do not support the use of LDAP over TLS with Microsoft Entra Domain Services. LDAP over TLS is supported with Active Directory Domain Services (AD DS). See LDAP over TLS considerations.

  • The NFS version used by a dual-protocol volume can be NFSv3 or NFSv4.1. The following considerations apply:

    • Dual protocol does not support the Windows ACLS extended attributes set/get from NFS clients.

    • NFS clients cannot change permissions for the NTFS security style, and Windows clients cannot change permissions for UNIX-style dual-protocol volumes.

      The following table describes the security styles and their effects:

      Security style Clients that can modify permissions Permissions that clients can use Resulting effective security style Clients that can access files
      Unix NFS NFSv3 or NFSv4.1 mode bits UNIX NFS and Windows
      Ntfs Windows NTFS ACLs NTFS NFS and Windows
    • The direction in which the name mapping occurs (Windows to UNIX, or UNIX to Windows) depends on which protocol is used and which security style is applied to a volume. A Windows client always requires a Windows-to-UNIX name mapping. Whether a user is applied to review permissions depends on the security style. Conversely, an NFS client only needs to use a UNIX-to-Windows name mapping if the NTFS security style is in use.

      The following table describes the name mappings and security styles:

      Protocol Security style Name-mapping direction Permissions applied
      SMB Unix Windows to UNIX UNIX (mode bits or NFSv4.x ACLs)
      SMB Ntfs Windows to UNIX NTFS ACLs (based on Windows SID accessing share)
      NFSv3 Unix None UNIX (mode bits or NFSv4.x ACLs)

      NFSv4.x ACLs can be applied using an NFSv4.x administrative client and honored by NFSv3 clients.
      NFS Ntfs UNIX to Windows NTFS ACLs (based on mapped Windows user SID)
  • The LDAP with extended groups feature supports the dual protocol of both [NFSv3 and SMB] and [NFSv4.1 and SMB] with the Unix security style. See Configure AD DS LDAP with extended groups for NFS volume access for more information.

  • If you have large topologies, and you use the Unix security style with a dual-protocol volume or LDAP with extended groups, you should use the LDAP Search Scope option on the Active Directory Connections page to avoid "access denied" errors on Linux clients for Azure NetApp Files. See Configure AD DS LDAP with extended groups for NFS volume access for more information.

  • You don't need a server root CA certificate for creating a dual-protocol volume. It is required only if LDAP over TLS is enabled.

  • To understand Azure NetApp Files dual protocols and related considerations, see the Dual Protocols section in Understand NAS protocols in Azure NetApp Files.

Create a dual-protocol volume

  1. Click the Volumes blade from the Capacity Pools blade. Click + Add volume to create a volume.

    Navigate to Volumes

  2. In the Create a Volume window, click Create, and provide information for the following fields under the Basics tab:

    • Volume name
      Specify the name for the volume that you are creating.

      Refer to Naming rules and restrictions for Azure resources for naming conventions on volumes. Additionally, you can't use default or bin as the volume name.

    • Capacity pool
      Specify the capacity pool where you want the volume to be created.

    • Quota
      Specify the amount of logical storage that is allocated to the volume.

      The Available quota field shows the amount of unused space in the chosen capacity pool that you can use towards creating a new volume. The size of the new volume must not exceed the available quota.

    • Large Volume

      Regular volumes quotas are between 100 GiB and 100 TiB. Large volume quotas range from 50 TiB to 500 TiB in size. If you intend for the volume quota to fall in the large volume range, select Yes.


      If this is your first time using large volumes, you must first register the feature and request an increase in regional capacity quota.

      Regular volumes cannot be converted to large volumes. Large volumes can't be resized to less than 50 TiB. To understand the requirements and considerations of large volumes, see Requirements and considerations for large volumes. For other limits, see Resource limits.

    • Throughput (MiB/S)
      If the volume is created in a manual QoS capacity pool, specify the throughput you want for the volume.

      If the volume is created in an auto QoS capacity pool, the value displayed in this field is (quota x service level throughput).

    • Enable Cool Access, Coolness Period, and Cool Access Retrieval Policy
      These fields configure standard storage with cool access in Azure NetApp Files. For descriptions, see Manage Azure NetApp Files standard storage with cool access.

    • Virtual network
      Specify the Azure virtual network (VNet) from which you want to access the volume.

      The VNet you specify must have a subnet delegated to Azure NetApp Files. Azure NetApp Files can be accessed only from the same VNet or from a VNet that is in the same region as the volume through VNet peering. You can also access the volume from your on-premises network through Express Route.

    • Subnet
      Specify the subnet that you want to use for the volume.
      The subnet you specify must be delegated to Azure NetApp Files.

      If you have not delegated a subnet, you can click Create new on the Create a Volume page. Then in the Create Subnet page, specify the subnet information, and select Microsoft.NetApp/volumes to delegate the subnet for Azure NetApp Files. In each VNet, only one subnet can be delegated to Azure NetApp Files.

      Create subnet

    • Network features
      In supported regions, you can specify whether you want to use Basic or Standard network features for the volume. See Configure network features for a volume and Guidelines for Azure NetApp Files network planning for details.

    • Encryption key source You can select Microsoft Managed Key or Customer Managed Key. See Configure customer-managed keys for Azure NetApp Files volume encryption and Azure NetApp Files double encryption at rest about using this field.

    • Availability zone
      This option lets you deploy the new volume in the logical availability zone that you specify. Select an availability zone where Azure NetApp Files resources are present. For details, see Manage availability zone volume placement.

    • If you want to apply an existing snapshot policy to the volume, click Show advanced section to expand it, specify whether you want to hide the snapshot path, and select a snapshot policy in the pull-down menu.

      For information about creating a snapshot policy, see Manage snapshot policies.

      Show advanced selection

  3. Select the Protocol tab, and then complete the following actions:

    • Select Dual-protocol as the protocol type for the volume.

    • Specify the Active Directory connection to use.

    • Specify a unique Volume Path. This path is used when you create mount targets. The requirements for the path are as follows:

      • For volumes not in an availability zone or volumes in the same availability zone, the volume path must be unique within each subnet in the region.
      • For volumes in availability zones, the volume path must be unique within each availability zone. This feature is currently in preview and requires you to register the feature. For more information, see Manage availability zone volume placement.
      • It must start with an alphabetical character.
      • It can contain only letters, numbers, or dashes (-).
      • The length must not exceed 80 characters.
    • Specify the versions to use for dual protocol: NFSv4.1 and SMB, or NFSv3 and SMB.

    • Specify the Security Style to use: NTFS (default) or UNIX.

    • If you want to enable SMB3 protocol encryption for the dual-protocol volume, select Enable SMB3 Protocol Encryption.

      This feature enables encryption for only in-flight SMB3 data. It does not encrypt NFSv3 in-flight data. SMB clients not using SMB3 encryption will not be able to access this volume. Data at rest is encrypted regardless of this setting. See SMB encryption for more information.

    • If you selected NFSv4.1 and SMB for the dual-protocol volume versions, indicate whether you want to enable Kerberos encryption for the volume.

      Additional configurations are required for Kerberos. Follow the instructions in Configure NFSv4.1 Kerberos encryption.

    • If you want to enable access-based enumeration, select Enable Access Based Enumeration.

      This feature will hide directories and files created under a share from users who do not have access permissions. Users will still be able to view the share. You can only enable access-based enumeration if the dual-protocol volume uses NTFS security style.

    • You can enable the non-browsable-share feature.

      This feature prevents the Windows client from browsing the share. The share does not show up in the Windows File Browser or in the list of shares when you run the net view \\server /all command.


    The access-based enumeration and non-browsable shares features are currently in preview. If this is your first time using either, refer to the steps in Before you begin to register the features.

    • Customize Unix Permissions as needed to specify change permissions for the mount path. The setting does not apply to the files under the mount path. The default setting is 0770. This default setting grants read, write, and execute permissions to the owner and the group, but no permissions are granted to other users.
      Registration requirement and considerations apply for setting Unix Permissions. Follow instructions in Configure Unix permissions and change ownership mode.

    • Optionally, configure export policy for the volume.

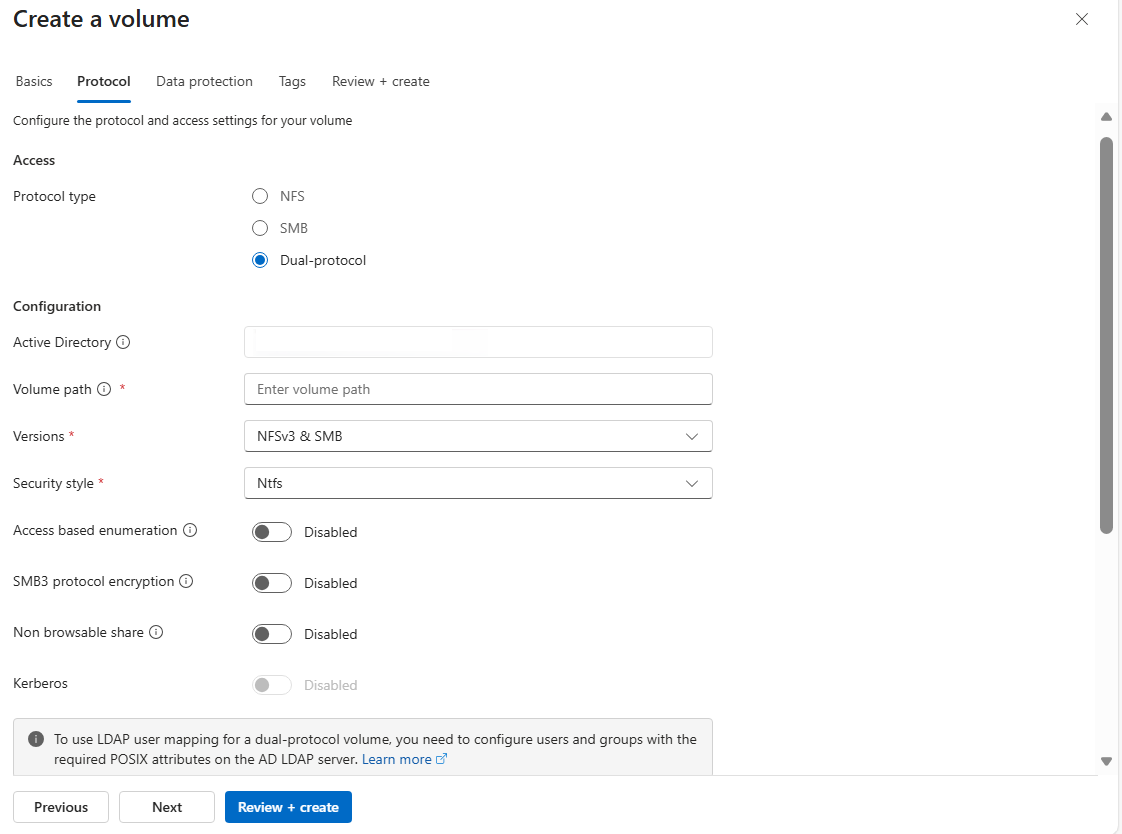

    Specify dual-protocol

  4. Click Review + Create to review the volume details. Then click Create to create the volume.

    The volume you created appears in the Volumes page.

    A volume inherits subscription, resource group, location attributes from its capacity pool. To monitor the volume deployment status, you can use the Notifications tab.

Allow local NFS users with LDAP to access a dual-protocol volume

The Allow local NFS users with LDAP option in Active Directory connections enables local NFS client users not present on the Windows LDAP server to access a dual-protocol volume that has LDAP with extended groups enabled.


Before enabling this option, you should understand the considerations.
The Allow local NFS users with LDAP option is part of the LDAP with extended groups feature and requires registration. See Configure AD DS LDAP with extended groups for NFS volume access for details.

  1. Select Active Directory connections. On an existing Active Directory connection, click the context menu (the three dots ), and select Edit.

  2. On the Edit Active Directory settings window that appears, select the Allow local NFS users with LDAP option.

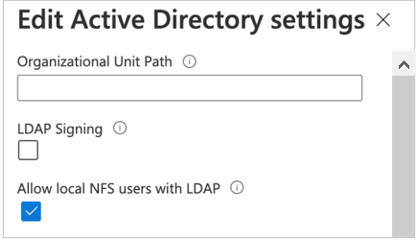

    Screenshot that shows the Allow local NFS users with LDAP option

Manage LDAP POSIX Attributes

You can manage POSIX attributes such as UID, Home Directory, and other values by using the Active Directory Users and Computers MMC snap-in. The following example shows the Active Directory Attribute Editor:

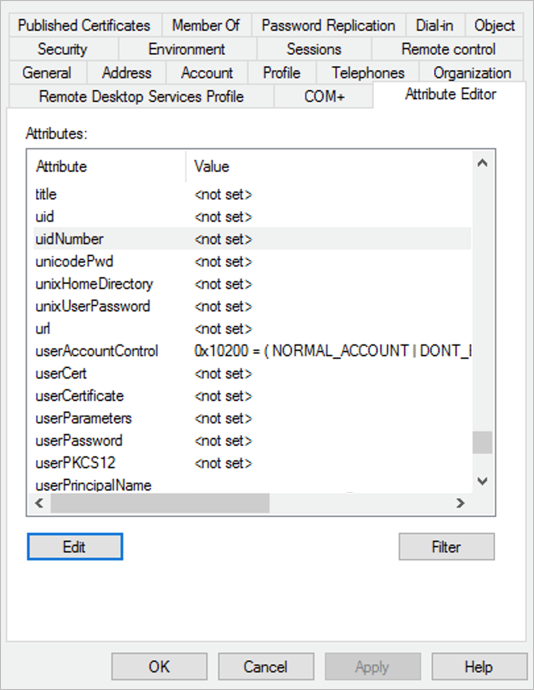

Active Directory Attribute Editor

You need to set the following attributes for LDAP users and LDAP groups:

  • Required attributes for LDAP users:
    uid: Alice,
    uidNumber: 139,
    gidNumber: 555,
    objectClass: user, posixAccount
  • Required attributes for LDAP groups:
    objectClass: group, posixGroup,
    gidNumber: 555
  • All users and groups must have unique uidNumber and gidNumber, respectively.

The values specified for objectClass are separate entries. For example, in Multi-valued String Editor, objectClass would have separate values (user and posixAccount) specified as follows for LDAP users:

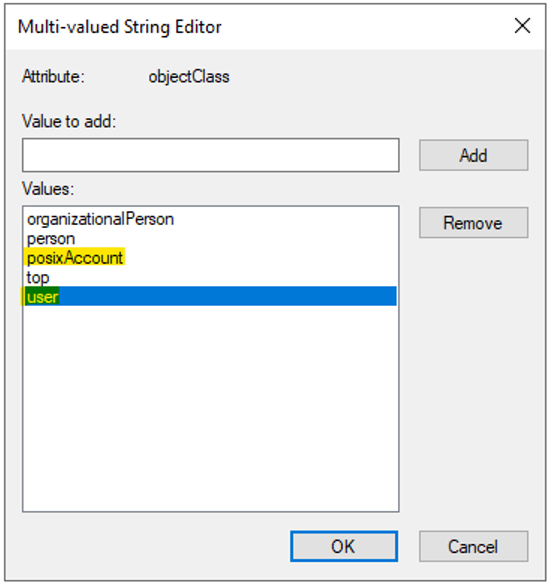

Screenshot of Multi-valued String Editor that shows multiple values specified for Object Class.

Microsoft Entra Domain Services doesn’t allow you to modify the objectClass POSIX attribute on users and groups created in the organizational AADDC Users OU. As a workaround, you can create a custom OU and create users and groups in the custom OU.

If you are synchronizing the users and groups in your Microsoft Entra tenancy to users and groups in the AADDC Users OU, you cannot move users and groups into a custom OU. Users and groups created in the custom OU will not be synchronized to your AD tenancy. For more information, see the Microsoft Entra Domain Services Custom OU considerations and limitations.

Access Active Directory Attribute Editor

On a Windows system, you can access the Active Directory Attribute Editor as follows:

  1. Click Start, navigate to Windows Administrative Tools, and then click Active Directory Users and Computers to open the Active Directory Users and Computers window.
  2. Click the domain name that you want to view, and then expand the contents.
  3. To display the advanced Attribute Editor, enable the Advanced Features option in the Active Directory Users Computers View menu.

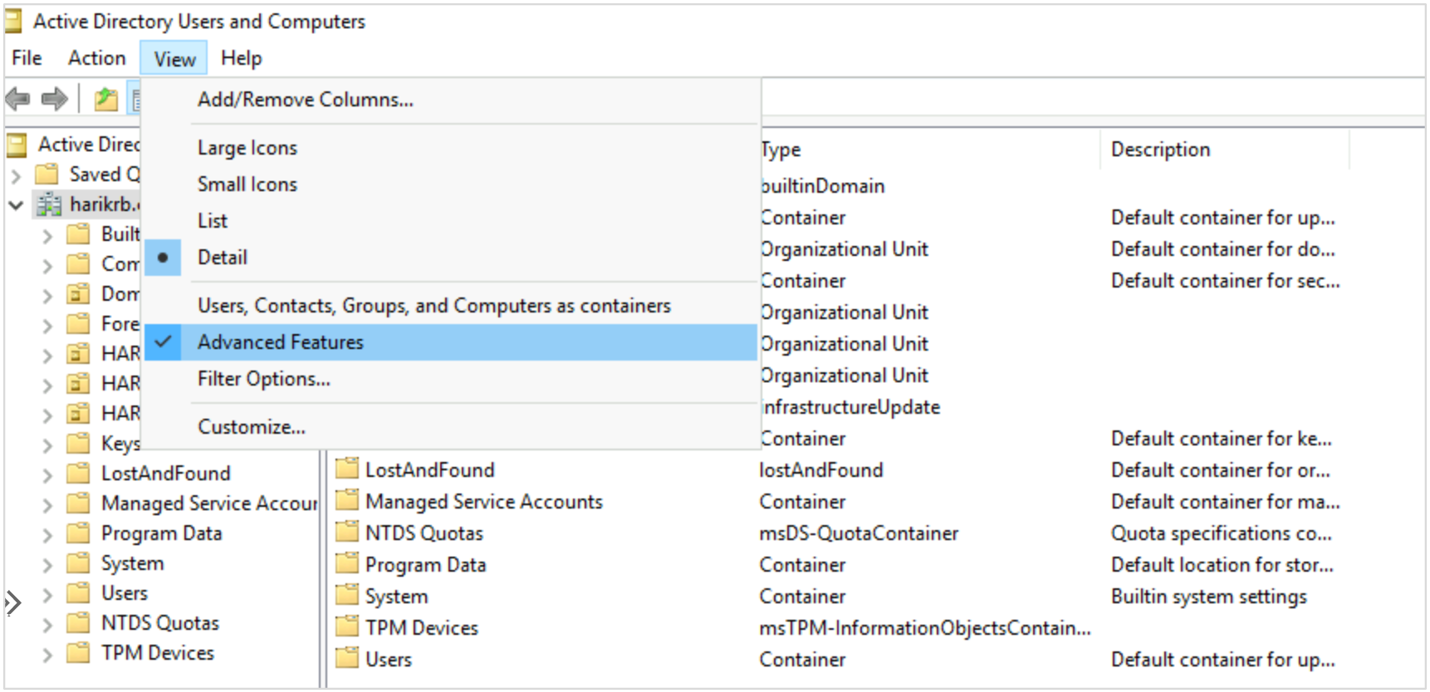

    Screenshot that shows how to access the Attribute Editor Advanced Features menu.
  4. Double-click Users on the left pane to see the list of users.
  5. Double-click a particular user to see its Attribute Editor tab.

Configure the NFS client

Follow instructions in Configure an NFS client for Azure NetApp Files to configure the NFS client.
