Creating and Configuring a Model
EF Core uses a metadata model to describe how the application's entity types are mapped to the underlying database. This model is built using a set of conventions - heuristics that look for common patterns. The model can then be customized using mapping attributes (also known as data annotations) and/or calls to the ModelBuilder methods (also known as fluent API) in OnModelCreating, both of which will override the configuration performed by conventions.
Most configuration can be applied to a model targeting any data store. Providers may also enable configuration that is specific to a particular data store and they can also ignore configuration that is not supported or not applicable. For documentation on provider-specific configuration see the Database providers section.
Tip
You can view this article's samples on GitHub.
You can override the OnModelCreating
method in your derived context and use the fluent API to configure your model. This is the most powerful method of configuration and allows configuration to be specified without modifying your entity classes. Fluent API configuration has the highest precedence and will override conventions and data annotations. The configuration is applied in the order the methods are called and if there are any conflicts the latest call will override previously specified configuration.
using Microsoft.EntityFrameworkCore;
namespace EFModeling.EntityProperties.FluentAPI.Required;
internal class MyContext : DbContext
{
public DbSet<Blog> Blogs { get; set; }
#region Required
protected override void OnModelCreating(ModelBuilder modelBuilder)
{
modelBuilder.Entity<Blog>()
.Property(b => b.Url)
.IsRequired();
}
#endregion
}
public class Blog
{
public int BlogId { get; set; }
public string Url { get; set; }
}
Tip
To apply the same configuration to multiple objects in the model see bulk configuration.
To reduce the size of the OnModelCreating
method all configuration for an entity type can be extracted to a separate class implementing IEntityTypeConfiguration<TEntity>.
public class BlogEntityTypeConfiguration : IEntityTypeConfiguration<Blog>
{
public void Configure(EntityTypeBuilder<Blog> builder)
{
builder
.Property(b => b.Url)
.IsRequired();
}
}
Then just invoke the Configure
method from OnModelCreating
.
new BlogEntityTypeConfiguration().Configure(modelBuilder.Entity<Blog>());
It is possible to apply all configuration specified in types implementing IEntityTypeConfiguration
in a given assembly.
modelBuilder.ApplyConfigurationsFromAssembly(typeof(BlogEntityTypeConfiguration).Assembly);
Note
The order in which the configurations will be applied is undefined, therefore this method should only be used when the order doesn't matter.
Rather than explicitly calling Configure
, an EntityTypeConfigurationAttribute can instead be placed on the entity type such that EF Core can find and use appropriate configuration. For example:
[EntityTypeConfiguration(typeof(BookConfiguration))]
public class Book
{
public int Id { get; set; }
public string Title { get; set; }
public string Isbn { get; set; }
}
This attribute means that EF Core will use the specified IEntityTypeConfiguration
implementation whenever the Book
entity type is included in a model. The entity type is included in a model using one of the normal mechanisms. For example, by creating a DbSet<TEntity> property for the entity type:
public class BooksContext : DbContext
{
public DbSet<Book> Books { get; set; }
//...
Or by registering it in OnModelCreating:
protected override void OnModelCreating(ModelBuilder modelBuilder)
{
modelBuilder.Entity<Book>();
}
Note
EntityTypeConfigurationAttribute
types will not be automatically discovered in an assembly. Entity types must be added to the model before the attribute will be discovered on that entity type.
You can also apply certain attributes (known as Data Annotations) to your classes and properties. Data annotations will override conventions, but will be overridden by Fluent API configuration.
using System.ComponentModel.DataAnnotations;
using System.ComponentModel.DataAnnotations.Schema;
using Microsoft.EntityFrameworkCore;
namespace EFModeling.EntityProperties.DataAnnotations.Annotations;
internal class MyContext : DbContext
{
public DbSet<Blog> Blogs { get; set; }
}
[Table("Blogs")]
public class Blog
{
public int BlogId { get; set; }
[Required]
public string Url { get; set; }
}
EF Core includes many model building conventions that are enabled by default. You can find all of them in the list of classes that implement the IConvention interface. However, that list doesn't include conventions introduced by third-party database providers and plugins.
Applications can remove or replace any of these conventions, as well as add new custom conventions that apply configuration for patterns that are not recognized by EF out of the box.
Tip
The code shown below comes from ModelBuildingConventionsSample.cs.
Sometimes one of the built-in conventions may not appropriate for your application, in which case it can be removed.
Tip
If your model doesn't use mapping attributes (aka data annotations) for configuration, then all conventions with the name ending in AttributeConvention
can be safely removed to speed up model building.
It usually makes sense to create indexes for foreign key (FK) columns, and hence there is a built-in convention for this: ForeignKeyIndexConvention. Looking at the model debug view for a Post
entity type with relationships to Blog
and Author
, we can see two indexes are created--one for the BlogId
FK, and the other for the AuthorId
FK.
EntityType: Post
Properties:
Id (int) Required PK AfterSave:Throw ValueGenerated.OnAdd
AuthorId (no field, int?) Shadow FK Index
BlogId (no field, int) Shadow Required FK Index
Navigations:
Author (Author) ToPrincipal Author Inverse: Posts
Blog (Blog) ToPrincipal Blog Inverse: Posts
Keys:
Id PK
Foreign keys:
Post {'AuthorId'} -> Author {'Id'} ToDependent: Posts ToPrincipal: Author ClientSetNull
Post {'BlogId'} -> Blog {'Id'} ToDependent: Posts ToPrincipal: Blog Cascade
Indexes:
AuthorId
BlogId
However, indexes have overhead, and it may not always be appropriate to create them for all FK columns. To achieve this, the ForeignKeyIndexConvention
can be removed when building the model:
protected override void ConfigureConventions(ModelConfigurationBuilder configurationBuilder)
{
configurationBuilder.Conventions.Remove(typeof(ForeignKeyIndexConvention));
}
Looking at the debug view of the model for Post
now, we see that the indexes on FKs have not been created:
EntityType: Post
Properties:
Id (int) Required PK AfterSave:Throw ValueGenerated.OnAdd
AuthorId (no field, int?) Shadow FK
BlogId (no field, int) Shadow Required FK
Navigations:
Author (Author) ToPrincipal Author Inverse: Posts
Blog (Blog) ToPrincipal Blog Inverse: Posts
Keys:
Id PK
Foreign keys:
Post {'AuthorId'} -> Author {'Id'} ToDependent: Posts ToPrincipal: Author ClientSetNull
Post {'BlogId'} -> Blog {'Id'} ToDependent: Posts ToPrincipal: Blog Cascade
When desired, indexes can still be explicitly created for foreign key columns, either using the IndexAttribute or with configuration in OnModelCreating
.

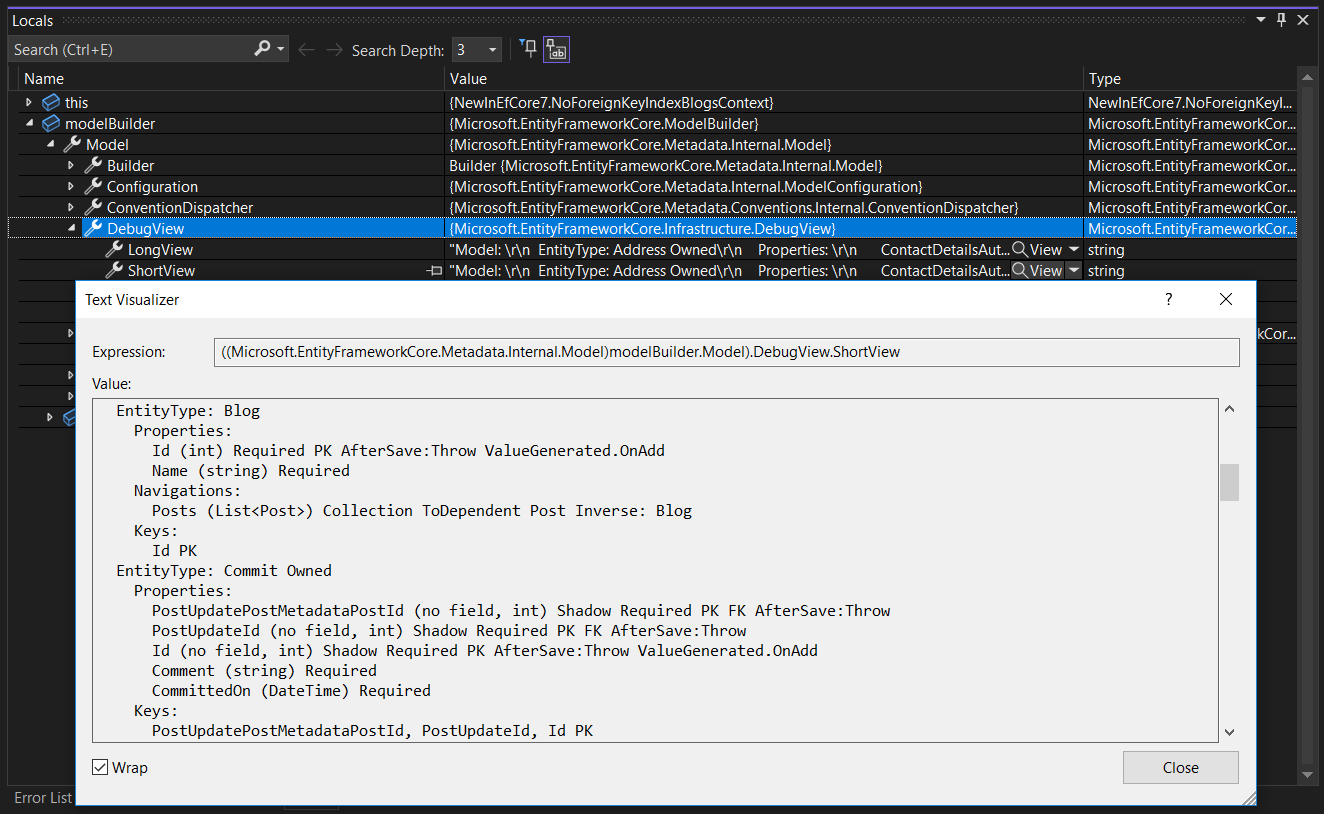

The model builder debug view can be accessed in the debugger of your IDE. For example, with Visual Studio:
It can also be accessed directly from code, for example to send the debug view to the console:
Console.WriteLine(context.Model.ToDebugString());
The debug view has a short form and a long form. The long form also includes all the annotations, which could be useful if you need to view relational or provider-specific metadata. The long view can be accessed from code as well:
Console.WriteLine(context.Model.ToDebugString(MetadataDebugStringOptions.LongDefault));
