Deploy your client-side web part to a SharePoint page (Hello World part 3)

Ensure that you've completed the procedures in the following articles before you start:

• Build your first SharePoint client-side web part
• Connect your client-side web part to SharePoint

You can also follow these steps by watching this video on the Microsoft 365 Platform Communtiy (PnP) YouTube Channel:

Package the HelloWorld web part

1. In the console window, go to the web part project directory created in Build your first SharePoint client-side web part.

   Console

   cd helloworld-webpart


2. If gulp serve is still running, stop it from running by selecting CTRL+C.

Unlike in the Workbench, to use client-side web parts on modern SharePoint server-side pages, you need to deploy and register the web part with SharePoint. First you need to package the web part.

1. Open the HelloWorldWebPart web part solution in Visual Studio Code, or your preferred IDE.

2. Open package-solution.json from the config folder.

   The package-solution.json file defines the package metadata as shown in the following code:

   JSON

   {
       "$schema": "https://developer.microsoft.com/json-schemas/spfx-build/package-solution.schema.json",
       "solution": {
           "name": "hello-world-client-side-solution",
           "id": "e8905bc9-2718-4bc8-aea6-03a2b5cf8e76",
           "version": "1.0.0.0",
           "includeClientSideAssets": true,
           "skipFeatureDeployment": true,
           "isDomainIsolated": false,
           "developer": {
               "name": "",
               "websiteUrl": "",
               "privacyUrl": "",
               "termsOfUseUrl": "",
               "mpnId": "Undefined-1.18.0"
           },
           "metadata": {
               "shortDescription": {
               "default": "HelloWorld description"
           },
           "longDescription": {
               "default": "HelloWorld description"
           },
           "screenshotPaths": [],
           "videoUrl": "",
           "categories": []
           },
       "features": [
           {
               "title": "hello-world Feature",
               "description": "The feature that activates elements of the hello-world solution.",
               "id": "45108667-812b-46ee-a8c3-7edc40b6a933",
               "version": "1.0.0.0"
           }
       ]
       },
       "paths": {
       "zippedPackage": "solution/hello-world.sppkg"
       }
   }


3. In the console window, enter the following command to bundle your client-side solution:

   Console

   gulp bundle


4. In the console window, enter the following command to package your client-side solution that contains the web part:

   Console

   gulp package-solution


   The command creates the following package: ./sharepoint/solution/helloworld-webpart.sppkg.

Package contents

The package uses SharePoint Feature to package your web part. By default, the gulp task creates a feature for your web part.

You can view the raw package contents in the ./sharepoint/solution/debug folder.

The contents are then packaged into an .sppkg file. The package format is similar to a SharePoint add-ins package and uses Microsoft Open Packaging Conventions to package your solution.

The JavaScript files, CSS, and other assets are packaged in the package when the --ship option is used. In this tutorial, however, we'll first test deployment and capabilities by hosting JavaScript files from localhost. Automated packaging and hosting option is explained in the next tutorial.

Note

Starting from the SharePoint Framework v1.4, static assets are by default packaged inside of the sppkg package. When a package is deployed in the app catalog, the assets are automatically hosted either from Office 365 CDN (if enabled) or from an app catalog URL. You can control this behavior with the includeClientSideAssets setting in the package-solution.json file.

Deploy the HelloWorld package to app catalog

Next, you need to deploy the package that was generated to the app catalog.

Note

If you do not have an app catalog, a SharePoint Online Admin can create one by following the instructions in this guide: Use the App Catalog to make custom business apps available for your SharePoint Online environment.

1. Go to your site's app catalog.

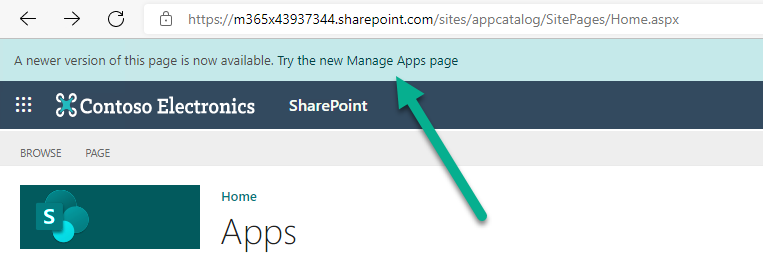

2. If you see classic experience in the app catalog, choose to move the new experience by clicking Try the new Manage Apps page in the header

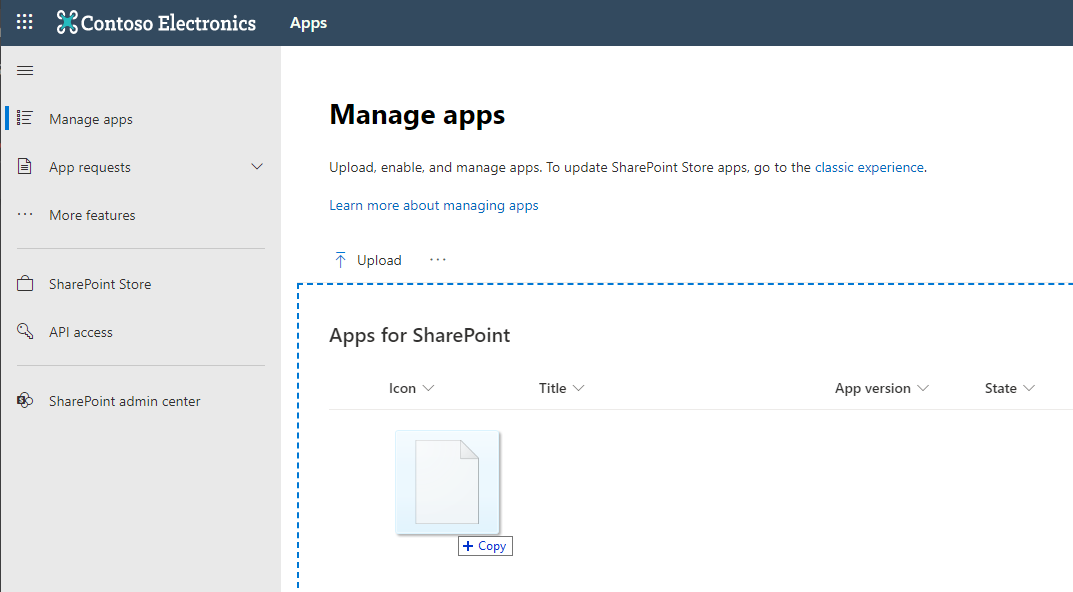

3. Upload or drag and drop the helloworld-webpart.sppkg to the app catalog.

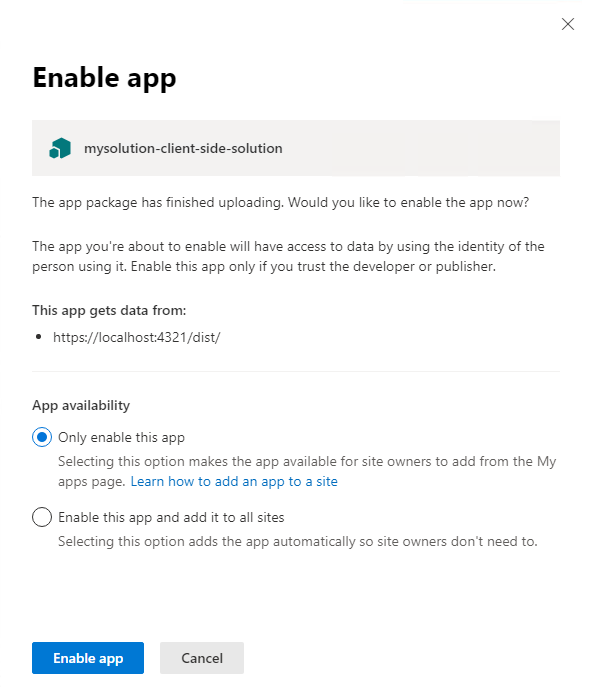

   This deploys the client-side solution package. Because this is a full trust client-side solution, SharePoint displays a dialog and asks you to trust the client-side solution to deploy.



4. Select Enable app.

Notice that you can see if there's any exceptions or issues in the package by looking the App Package Error Message column in the app catalog.

Install the client-side solution on your site

1. Go to your developer site collection or site collection that you want to use for testing

2. Select the gears icon on the top nav bar on the right, and then select Add an app to go to your Apps page.

3. In the Search box, enter helloworld, and select ENTER to filter your apps.

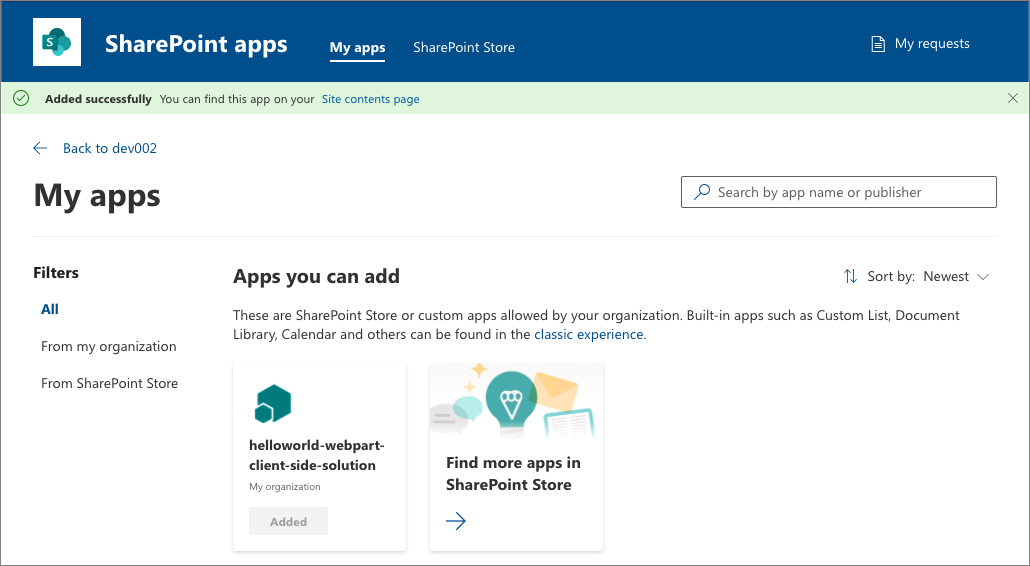

4. Select the helloworld-webpart-client-side-solution app to install the app on the site.



   The client-side solution and the web part are installed on your developer site.

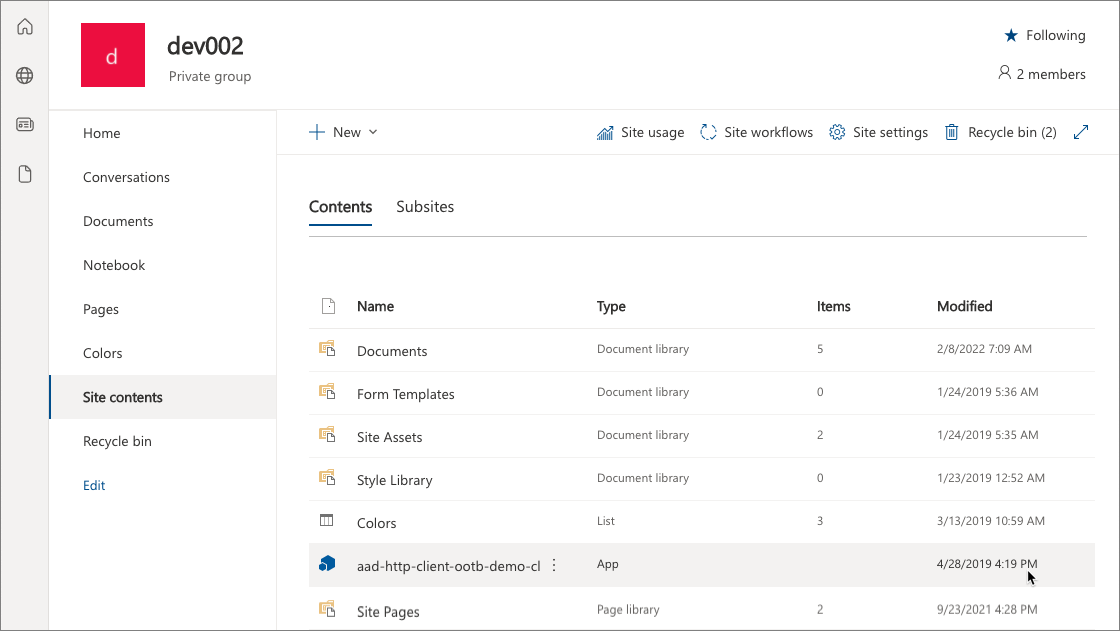

The Site Contents page shows you the installation status of your client-side solution. Make sure the installation is complete before going to the next step.

Preview the web part on a SharePoint page

Now that you've deployed and installed the client-side solution, add the web part to a SharePoint page. Remember that resources such as JavaScript and CSS are available from the local computer, so rendering of the web parts will fail unless your localhost is running.

1. Open the {{your-webpart-guid}}.manifest.json from the dist folder.

   Notice that the internalModuleBaseUrls property in the loaderConfig entry still refers to your local computer:

   JSON

   "internalModuleBaseUrls": [
     "https://localhost:4321/dist/"
   ],


2. Before adding the web part to a SharePoint server-side page, run the local server.

3. In the console window that has the helloworld-webpart project directory, run the gulp task to start serving from localhost:

   JSON

   gulp serve --nobrowser


   Note

   --nobrowser will not automatically launch the SharePoint workbench as that's not needed in this case as we will host the web part in SharePoint page.

Add the HelloWorld web part to modern page

1. In your browser, go to your site where the solution was installed.

2. Select the gears icon in the top nav bar on the right, and then select Add a page.

3. Edit the page.

4. Open the web part picker and select your HelloWorld web part.

   Note

   Screenshots are from a site which is using modern experience.

The web part assets are loaded from the local environment. To load the scripts hosted on your local computer, you need to enable the browser to load unsafe scripts. Depending on the browser, you're using, make sure you enable loading unsafe scripts for this session.

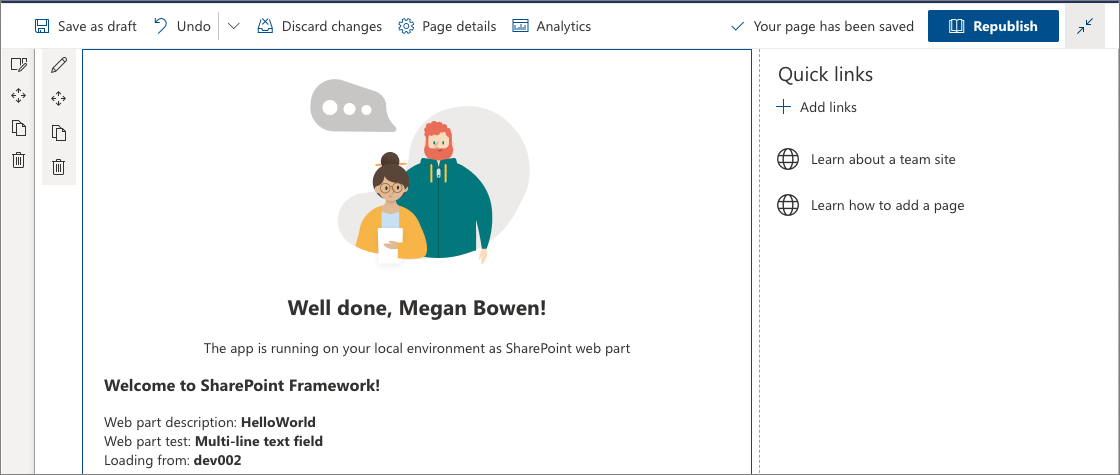

You should see the HelloWorld web part you built in the previous article that retrieves lists from the current site.

Edit web part properties

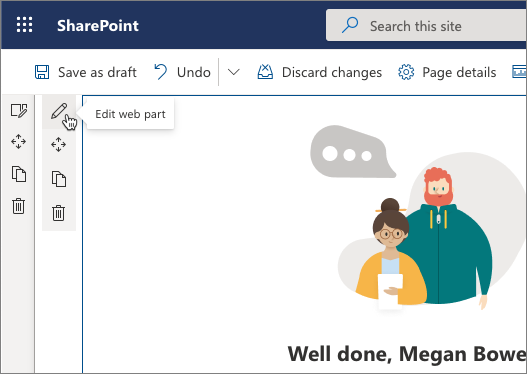

1. Select the Configure element icon (pen) in the web part to open the property pane for the web part.

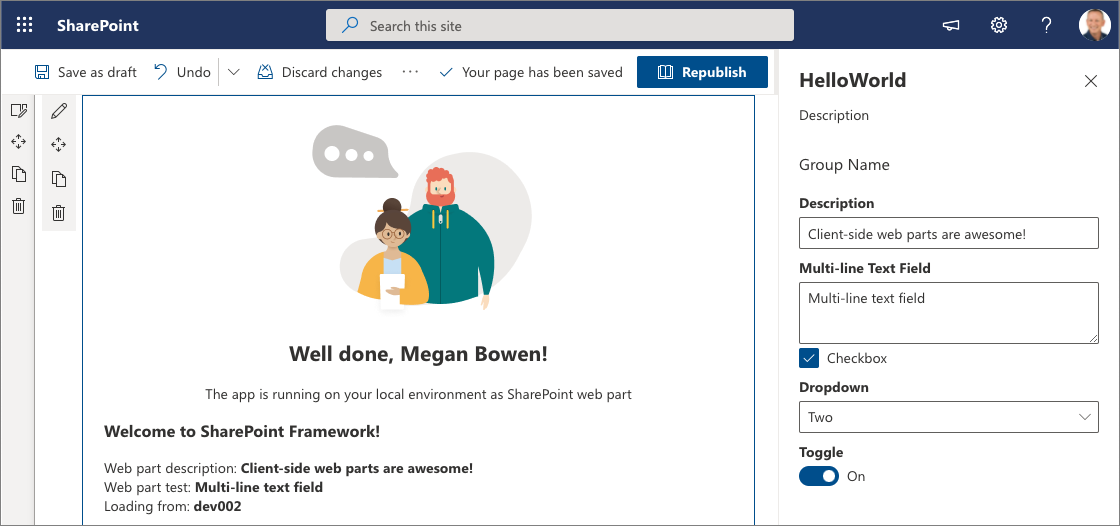

   This is the same property pane you built and previewed in the Workbench.

2. Edit the Description property, and enter Client-side web parts are awesome!



3. Notice that you still have the same behaviors such as a reactive pane where the web part is updated as you type.

4. Select the x icon to close the client-side property pane.

5. On the toolbar, select Save and close to save the page.

Next steps

Congratulations! You've deployed a client-side web part to a modern SharePoint page.

You can continue building out your Hello World web part in the next topic Hosting client-side web part from Office 365 CDN, where you'll learn how to deploy and load the web part assets from an Office 365 CDN instead of localhost, which means that you're preparing this solution for shipping or using it in production environment.
