Tutorial: Azure Active Directory integration with Datahug

In this tutorial, you'll learn how to integrate Datahug with Azure Active Directory (Azure AD). When you integrate Datahug with Azure AD, you can:

  • Control in Azure AD who has access to Datahug.
  • Enable your users to be automatically signed-in to Datahug with their Azure AD accounts.
  • Manage your accounts in one central location - the Azure portal.


To get started, you need the following items:

  • An Azure AD subscription. If you don't have a subscription, you can get a free account.
  • Datahug single sign-on (SSO) enabled subscription.

Scenario description

In this tutorial, you configure and test Azure AD single sign-on in a test environment.

  • Datahug supports SP and IDP initiated SSO.

To configure the integration of Datahug into Azure AD, you need to add Datahug from the gallery to your list of managed SaaS apps.

  1. Sign in to the Azure portal using either a work or school account, or a personal Microsoft account.
  2. On the left navigation pane, select the Azure Active Directory service.
  3. Navigate to Enterprise Applications and then select All Applications.
  4. To add new application, select New application.
  5. In the Add from the gallery section, type Datahug in the search box.
  6. Select Datahug from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Azure AD SSO for Datahug

Configure and test Azure AD SSO with Datahug using a test user called B.Simon. For SSO to work, you need to establish a link relationship between an Azure AD user and the related user in Datahug.

To configure and test Azure AD SSO with Datahug, perform the following steps:

  1. Configure Azure AD SSO - to enable your users to use this feature.
    1. Create an Azure AD test user - to test Azure AD single sign-on with B.Simon.
    2. Assign the Azure AD test user - to enable B.Simon to use Azure AD single sign-on.
  2. Configure Datahug SSO - to configure the single sign-on settings on application side.
    1. Create Datahug test user - to have a counterpart of B.Simon in Datahug that is linked to the Azure AD representation of user.
  3. Test SSO - to verify whether the configuration works.

Configure Azure AD SSO

Follow these steps to enable Azure AD SSO in the Azure portal.

  1. In the Azure portal, on the Datahug application integration page, find the Manage section and select single sign-on.

  2. On the Select a single sign-on method page, select SAML.

  3. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.

    Edit Basic SAML Configuration

  4. On the Basic SAML Configuration section, If you wish to configure the application in IDP initiated mode, perform the following steps:

    a. In the Identifier text box, type a URL using the following pattern: https://apps.datahug.com/identity/<uniqueID>

    b. In the Reply URL text box, type a URL using the following pattern: https://apps.datahug.com/identity/<uniqueID>/acs

  5. Click Set additional URLs and perform the following step if you wish to configure the application in SP initiated mode:

    In the Sign-on URL text box, type the URL: https://apps.datahug.com/


    These values are not real. Update these values with the actual Identifier and Reply URL. Contact Datahug Client support team to get these values. You can also refer to the patterns shown in the Basic SAML Configuration section in the Azure portal.

  6. On the Set-up Single Sign-On with SAML page, in the SAML Signing Certificate section, click Download to download the Federation Metadata XML from the given options as per your requirement and save it on your computer.

    The Certificate download link

  7. In the SAML Signing Certificate section, click Edit button to open SAML Signing Certificate dialog and perform the following steps.

    Edit SAML Signing Certificate

    a. Select Sign SAML assertion from the Signing Option.

    b. Select SHA-1 from the Signing Algorithm.

    c. Click Save.

  8. On the Set up Datahug section, copy the appropriate URL(s) as per your requirement.

    Copy configuration URLs

Create an Azure AD test user

In this section, you'll create a test user in the Azure portal called B.Simon.

  1. From the left pane in the Azure portal, select Azure Active Directory, select Users, and then select All users.
  2. Select New user at the top of the screen.
  3. In the User properties, follow these steps:
    1. In the Name field, enter B.Simon.
    2. In the User name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
    3. Select the Show password check box, and then write down the value that's displayed in the Password box.
    4. Click Create.

Assign the Azure AD test user

In this section, you'll enable B.Simon to use Azure single sign-on by granting access to Datahug.

  1. In the Azure portal, select Enterprise Applications, and then select All applications.
  2. In the applications list, select Datahug.
  3. In the app's overview page, find the Manage section and select Users and groups.
  4. Select Add user, then select Users and groups in the Add Assignment dialog.
  5. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
  6. If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
  7. In the Add Assignment dialog, click the Assign button.

Configure Datahug SSO

To configure single sign-on on Datahug side, you need to send the downloaded Federation Metadata XML and appropriate copied URLs from Azure portal to Datahug support team. They set this setting to have the SAML SSO connection set properly on both sides.

Create Datahug test user

To enable Azure AD users to sign in to Datahug, they must be provisioned into Datahug.
When Datahug, provisioning is a manual task.

To provision a user account, perform the following steps:

  1. Sign in to your Datahug company site as an administrator.

  2. Hover over the cog in the top right-hand corner and click Settings.

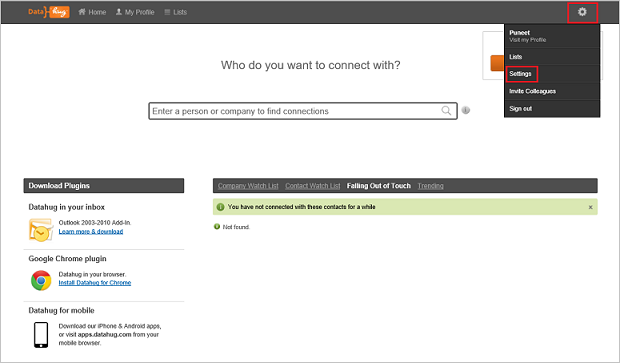

    Screenshot that shows the "Datahug" homepage with "Cog" icon selected and "Settings" selected in the drop-down menu.

  3. Choose People and click the Add Users tab.

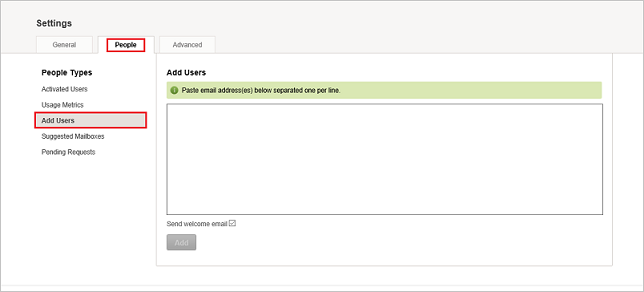

    Screenshot that shows the "Settings" page with the "People" tab and "Add Users" selected.

  4. Type the email of the person you would like to create an account for and click Add.

    Screenshot that shows to Add Employee.


    You can send registration mail to user by selecting Send welcome email checkbox. If you are creating an account for Salesforce do not send the welcome email.

Test SSO

In this section, you test your Azure AD single sign-on configuration with following options.

SP initiated:

  • Click on Test this application in Azure portal. This will redirect to Datahug Sign on URL where you can initiate the login flow.

  • Go to Datahug Sign-on URL directly and initiate the login flow from there.

IDP initiated:

  • Click on Test this application in Azure portal and you should be automatically signed in to the Datahug for which you set up the SSO.

You can also use Microsoft My Apps to test the application in any mode. When you click the Datahug tile in the My Apps, if configured in SP mode you would be redirected to the application sign on page for initiating the login flow and if configured in IDP mode, you should be automatically signed in to the Datahug for which you set up the SSO. For more information about the My Apps, see Introduction to the My Apps.

Next steps

Once you configure Datahug you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
