Azure Functions is the data collection engine for Azure Monitor for SAP solutions. You must create a new subnet to host Azure Functions.
Create a new subnet with an IPv4/25 block or larger because you need at least 100 IP addresses for monitoring resources.

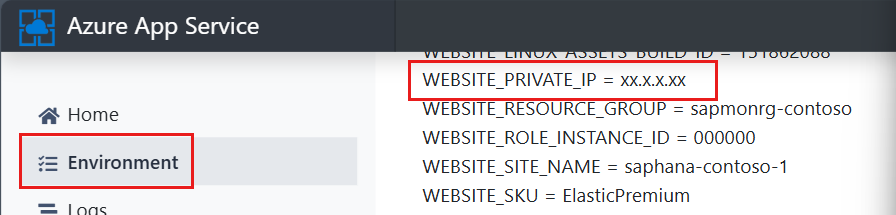

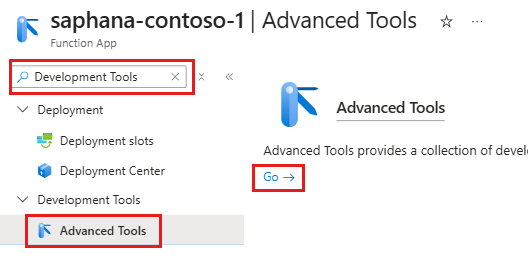

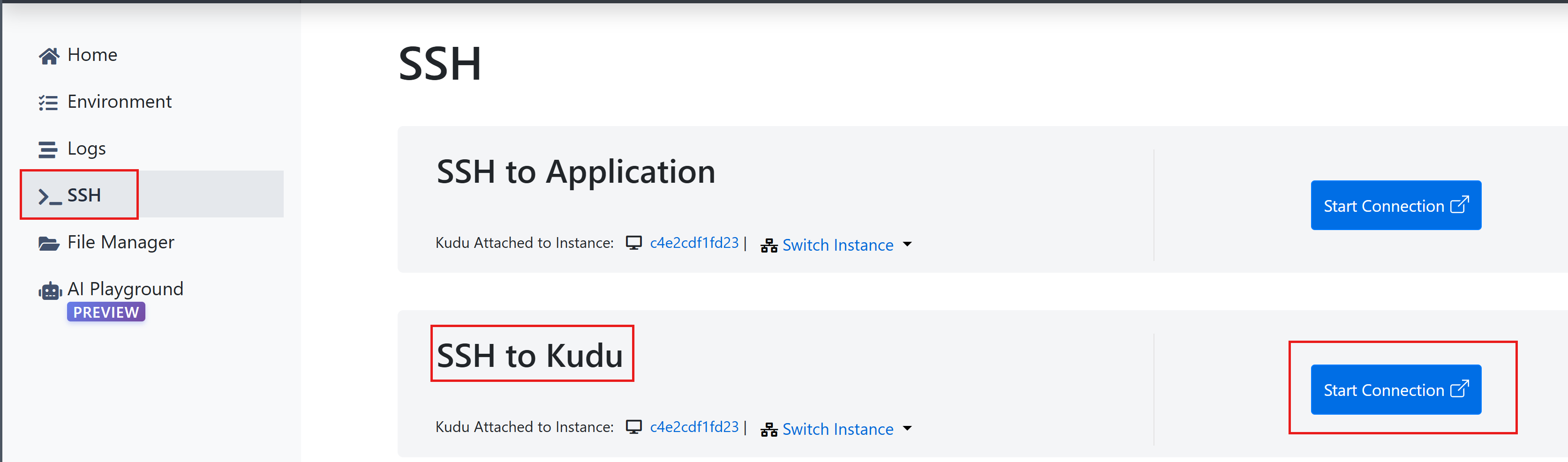

After you successfully create a subnet, verify the following steps to ensure connectivity between the Azure Monitor for SAP solutions subnet and your SAP environment subnet:
If both the subnets are in different virtual networks, do a virtual network peering between the virtual networks.

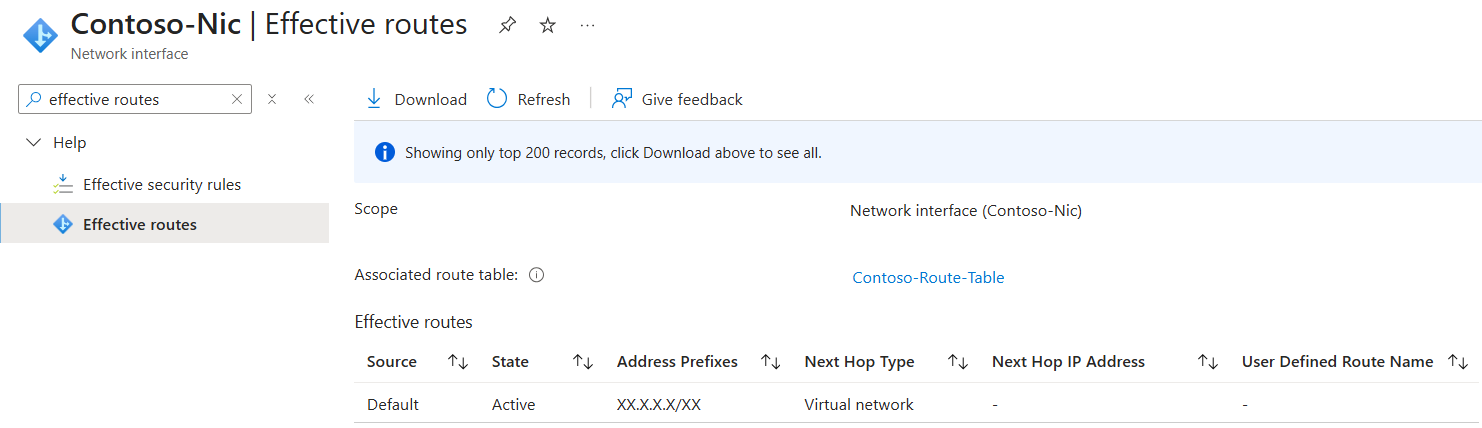

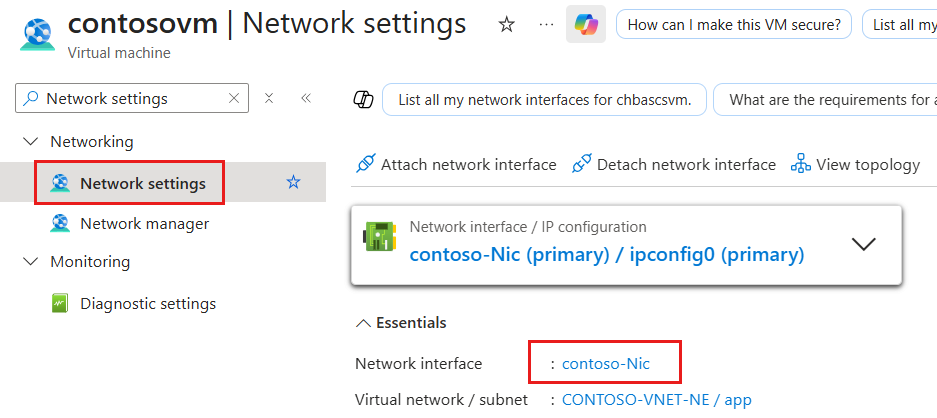

If the subnets are associated with user-defined routes, make sure the routes are configured to allow traffic between the subnets.
If the SAP environment subnets have network security group (NSG) rules, make sure the rules are configured to allow inbound traffic from the Azure Monitor for SAP solutions subnet.
If you have a firewall in your SAP environment, make sure the firewall is configured to allow inbound traffic from the Azure Monitor for SAP solutions subnet.

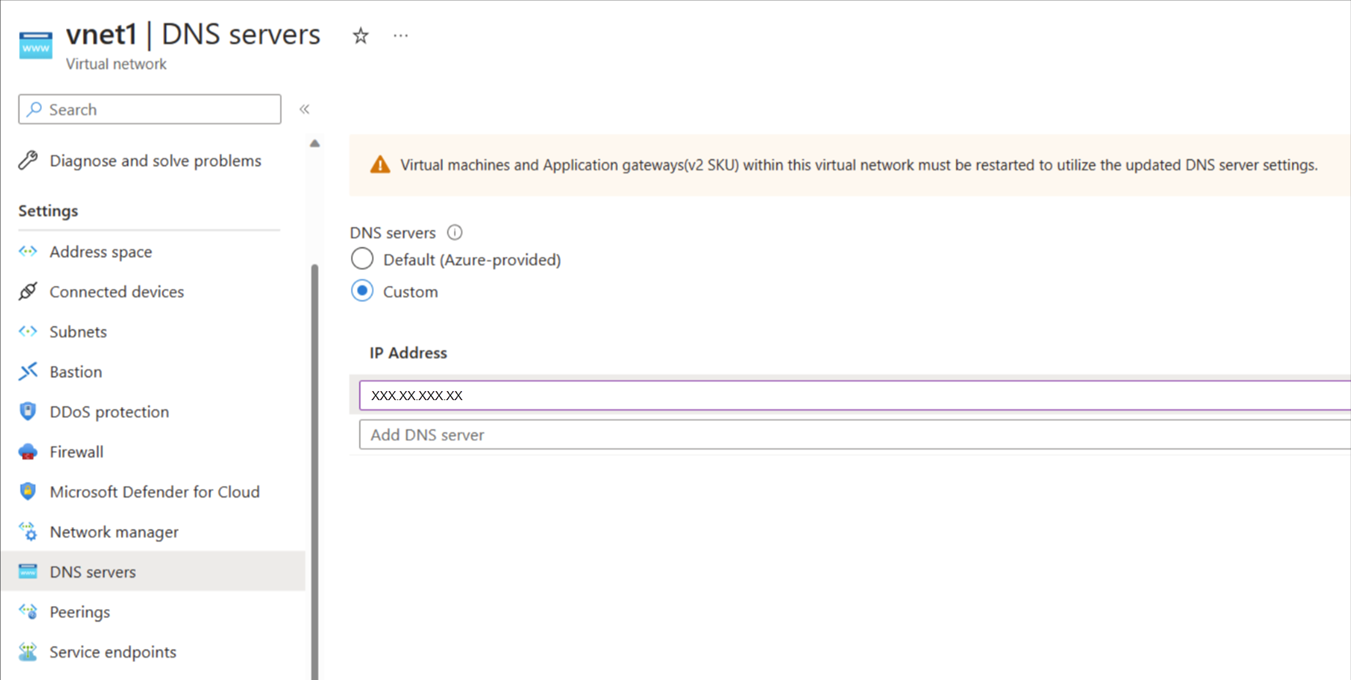

This section only applies if you're using Custom DNS for your virtual network. Add the IP address 168.63.129.16, which points to Azure DNS Server. This arrangement resolves the storage account and other resource URLs that are required for proper functioning of Azure Monitor for SAP solutions.
Configure outbound internet access
In many use cases, you might choose to restrict or block outbound internet access to your SAP network environment. However, Azure Monitor for SAP solutions requires network connectivity between the subnet that you configured and the systems that you want to monitor. Before you deploy an Azure Monitor for SAP solutions resource, you must configure outbound internet access or the deployment fails.
There are multiple methods to address restricted or blocked outbound internet access. Choose the method that works best for your use case:
Route All is a standard feature of virtual network integration in Azure Functions, which is deployed as part of Azure Monitor for SAP solutions. Enabling or disabling this setting only affects traffic from Azure Functions. This setting doesn't affect any other incoming or outgoing traffic within your virtual network.
You can configure the Route All setting when you create an Azure Monitor for SAP solutions resource through the Azure portal. If your SAP environment doesn't allow outbound internet access, disable Route All. If your SAP environment allows outbound internet access, keep the default setting to enable Route All.
You can only use this option before you deploy an Azure Monitor for SAP solutions resource. It's not possible to change the Route All setting after you create the Azure Monitor for SAP solutions resource.
Allow inbound traffic
If you have NSG or User-Defined Route rules that block inbound traffic to your SAP environment, you must modify the rules to allow the inbound traffic. Also, depending on the types of providers you're trying to add, you must unblock a few ports, as shown in the following table.
Provider type
Port number
Prometheus OS
9100
Prometheus HA Cluster on RHEL
44322
Prometheus HA Cluster on SUSE
9100
SQL Server
1433 (can be different if you aren't using the default port)
DB2 Server
25000 (can be different if you aren't using the default port)
SAP HANA DB
3<instance number>13, 3<instance number>15
SAP NetWeaver
5<instance number>13, 5<instance number>15
Use service tags
If you use NSGs, you can create Azure Monitor for SAP solutions-related virtual network service tags to allow appropriate traffic flow for your deployment. A service tag represents a group of IP address prefixes from a specific Azure service.
You can use this option after you deploy an Azure Monitor for SAP solutions resource.

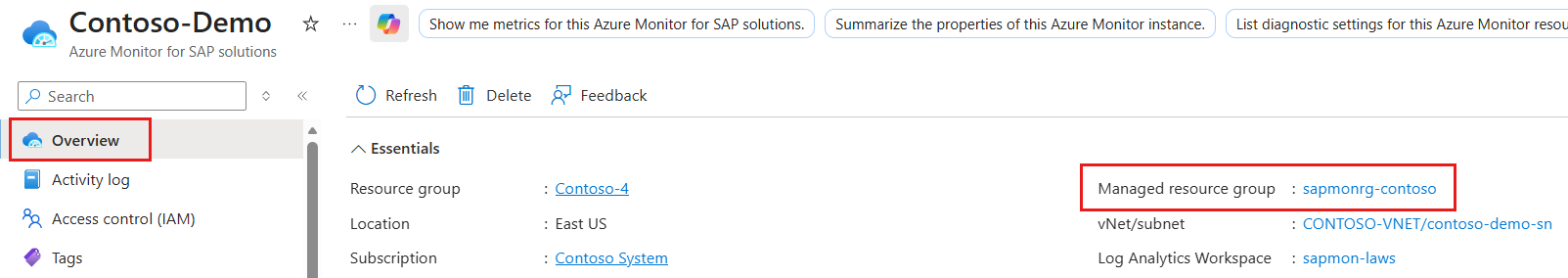

Find the subnet associated with your Azure Monitor for SAP solutions managed resource group:
Search for or select the Azure Monitor for SAP solutions service.
On the Overview page for Azure Monitor for SAP solutions, select your Azure Monitor for SAP solutions resource.

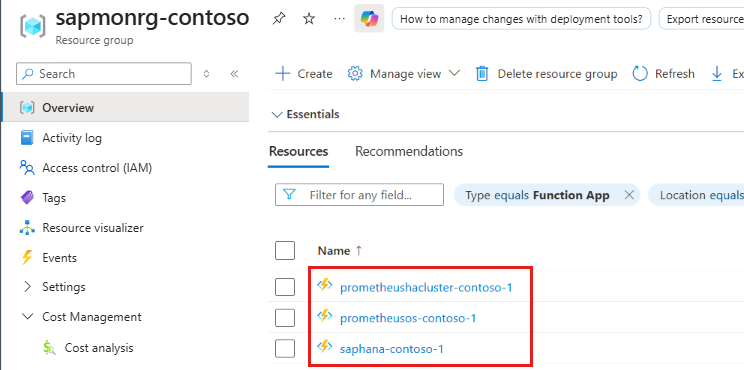

On the managed resource group's page, select the Azure Functions app.
On the app's page, select the Networking tab. Then select VNET Integration.
Review and note the subnet details. You need the subnet's IP address to create rules in the next step.
Select the subnet's name to find the associated NSG. Note the NSG's information.
Set new NSG rules for outbound network traffic:
Go to the NSG resource in the Azure portal.
On the NSG menu, under Settings, select Outbound security rules.
Select Add to add the following new rules:
Priority
Name
Port
Protocol
Source
Destination
Action
450
allow_monitor
443
TCP
Azure Functions subnet
Azure Monitor
Allow
501
allow_keyVault
443
TCP
Azure Functions subnet
Azure Key Vault
Allow
550
allow_storage
443
TCP
Azure Functions subnet
Storage
Allow
600
allow_azure_controlplane
443
Any
Azure Functions subnet
Azure Resource Manager
Allow
650
allow_ams_to_source_system
Any
Any
Azure Functions subnet
Virtual network or comma-separated IP addresses of the source system
Allow
660
deny_internet
Any
Any
Any
Internet
Deny
The Azure Monitor for SAP solution's subnet IP address refers to the IP of the subnet associated with your Azure Monitor for SAP solutions resource. To find the subnet, go to the Azure Monitor for SAP solutions resource in the Azure portal. On the Overview page, review the vNet/subnet value.
For the rules that you create, allow_vnet must have a lower priority than deny_internet. All other rules also need to have a lower priority than allow_vnet. The remaining order of these other rules is interchangeable.
